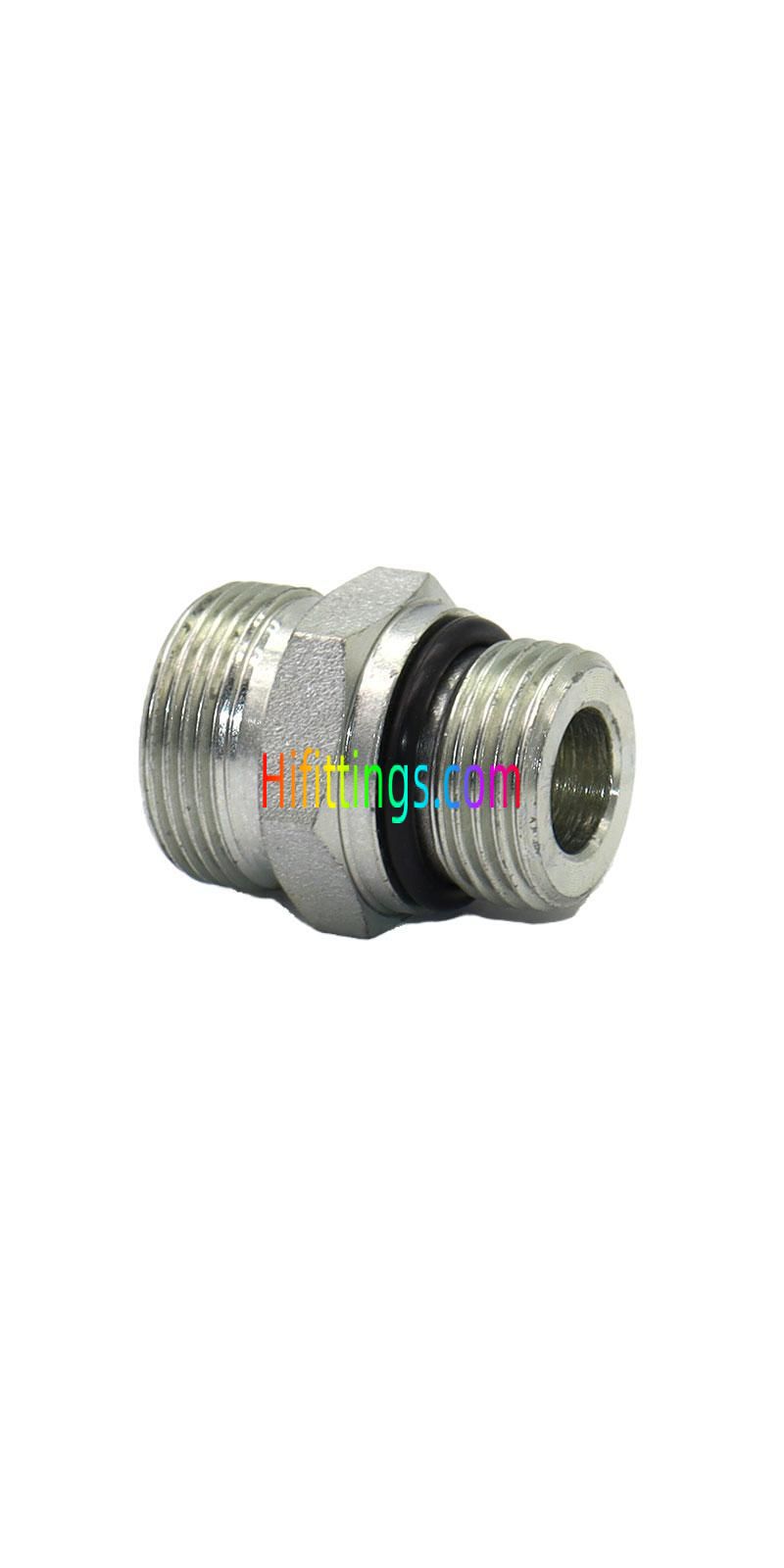

Rohrverschraubungen mit geradem UNF-Außengewinde und metrischem Außengewinde mit Biss 1CO/1DO
22
Auf Lager
Nur noch %1 verfügbar
SKU
1CO
Guarantee safe & secure checkout
Straight UNF Male Stud End With O-Ring Sealing / Metric Male DIN Bite Type Hydraulic Adapter Pipe Fittings ISO11926 1CO/1DO
|
Part NO. |
E |
F |
D1 |
B |
11 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
1 CO-14-04 |
M14X1.5 |
7/16"X20 |
8 |
9 |
10 |
25 |
17 |
17 |
PN315 |
|
1 CO-16-04 |
M16X1.5 |
7/16"X20 |
10 |
9 |
11 |
26 |
17 |
19 |
PN315 |
|
1 CO-18-06 |
M18X1.5 |
9/16"X18 |
12 |
10 |
11 |
26 |
19 |
22 |
PN315 |
|
1 CO-18-08 |
M18X1.5 |
3/4"X16 |
12 |
11 |
13 |
28 |
24 |
22 |
PN315 |
|
1 CO-18-10 |
M18X1.5 |
7/8"X14 |
12 |
12.7 |
14.3 |
29 |
27 |
22 |
PN315 |
|
1 CO-22-08 |
M22X1.5 |
3/4"X16 |
15 |
11 |
14 |
29 |
24 |
27 |
PN315 |
|
1 CO-22-10 |
M22X1.5 |
7/8"X14 |
15 |
12.7 |
15.3 |
30 |
27 |
27 |
PN315 |
|
1 CO-22-12 |
M22X1.5 |
1.1/16"X12 |
15 |
15.1 |
11.9 |
30 |
32 |
27 |
PN315 |
|
1 CO-26-08 |
M26X1.5 |
3/4"X16 |
18 |
11 |
14.5 |
31 |
27 |
32 |
PN315 |
|
1 CO-26-10 |
M26X1.5 |
7/8"X14 |
18 |
12.7 |
14.8 |
31 |
27 |
32 |
PN315 |
|
1 CO-30-08 |
M30X2 |
3/4"X16 |
18 |
11.1 |
13.9 |
33 |
32 |
36 |
PN160 |
|
1C0-30-10 |
M30X2 |
7/8"X14 |
22 |
12.7 |
16.8 |
33 |
32 |
36 |
PN160 |
|
1 CO-30-12 |
M30X2 |
1.1/16"X12 |
22 |
15 |
16.5 |
33 |
32 |
36 |
PN160 |
|
1 CO-30-16 |
M30X2 |
1.5/16"X12 |
22 |
15 |
17.5 |
34 |
41 |
36 |
PN160 |
|
1 CO-36-12 |
M36X2 |
1.1/16"X12 |
28 |
15.1 |
14.4 |
34 |
41 |
41 |
PN160 |
|
1 CO-36-16 |
M36X2 |
1.5/16"X12 |
28 |
15 |
17.5 |
34 |
41 |
41 |
PN160 |
|
1 CO-45-16 |
M45X2 |
1.5/16"X12 |
35 |
15 |
17.5 |
39 |
46 |
50 |
PN160 |
|
1 CO-45-20 |
M45X2 |
1.5/8"X12 |
35 |
15.1 |
16.4 |
39 |
50 |
50 |
PN160 |
|
1 CO-52-20 |
M52X2 |
1.5/8"X12 |
42 |
15.1 |
15.9 |
42 |
55 |
60 |
PN160 |
|
1 DO-16-04 |
M16X1.5 |
7/16"X20 |
8 |
9 |
15 |
30 |
17 |
19 |
PN630 |
|
1 DO-18-06 |
M18X1.5 |
9/16"X18 |
10 |
10 |
14.5 |
31 |
19 |
22 |
PN630 |
|
1 DO-20-06 |
M20X1.5 |
9/16"X18 |
12 |
10 |
14.5 |
31 |
22 |
24 |
PN630 |
|
1 DO-20-08 |
M20X1.5 |
3/4"X16 |
12 |
11 |
17.5 |
34 |
24 |
24 |
PN630 |
|
1 DO-24-08 |
M24X1.5 |
3/4"X16 |
16 |
11 |
15.5 |
34 |
24 |
30 |
PN400 |
|
1 DO-24-10 |
M24X1.5 |
7/8"X14 |
16 |
12.7 |
18.8 |
37 |
27 |
30 |
PN400 |
|
1 DO-30-08 |
M30X2 |
3/4"X16 |
20 |
11 |
20.5 |
42 |
32 |
36 |
PN400 |
|
1 DO-30-10 |
M30X2 |
7/8"X14 |
20 |
12.7 |
20.8 |
42 |
32 |
36 |
PN400 |
|
1 DO-30-12 |
M30X2 |
1.1/16"X12 |
20 |
15 |
20.5 |
42 |
32 |
36 |
PN400 |
|
1 DO-36-12 |
M36X2 |
1.1/16"X12 |
25 |
15.1 |
19.9 |
47 |
41 |
46 |
PN400 |
|
1 DO-36-16 |
M36X2 |
1.5/16"X12 |
25 |
15 |
23 |
47 |
41 |
46 |
PN400 |
|
1 DO-42-16 |
M42X2 |
1.5/16"X12 |
30 |
15 |
23.5 |
50 |
46 |
50 |
PN400 |
|
1 DO-42-20 |
M42X2 |
1.5/8"X12 |
30 |
15 |
23.5 |
50 |
50 |
50 |
PN400 |
|
1 DO-52-20 |
M52X2 |
1.5/8"X12 |
38 |
15.1 |
22.9 |
53.9 |
55 |
60 |
PN315 |
|
Note: 1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example 1DO-30-12RN. 2. PN = Nominal Pressure |
|||||||||
| Form | Straight |
|---|---|
| Gewindetyp | Male |
| Connection Type | Metric, UNF |
| Fitting Typ | Bite Type |
