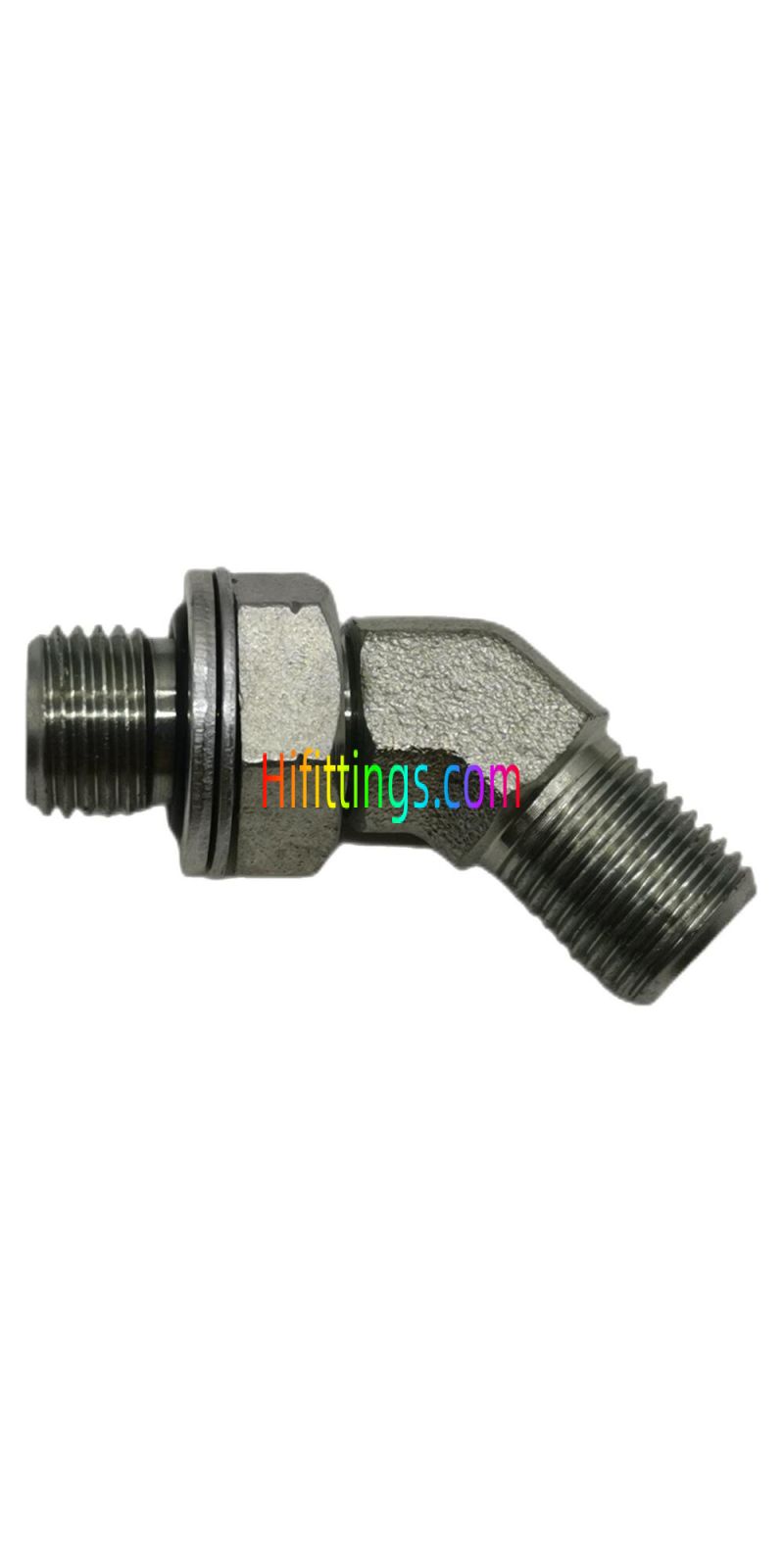

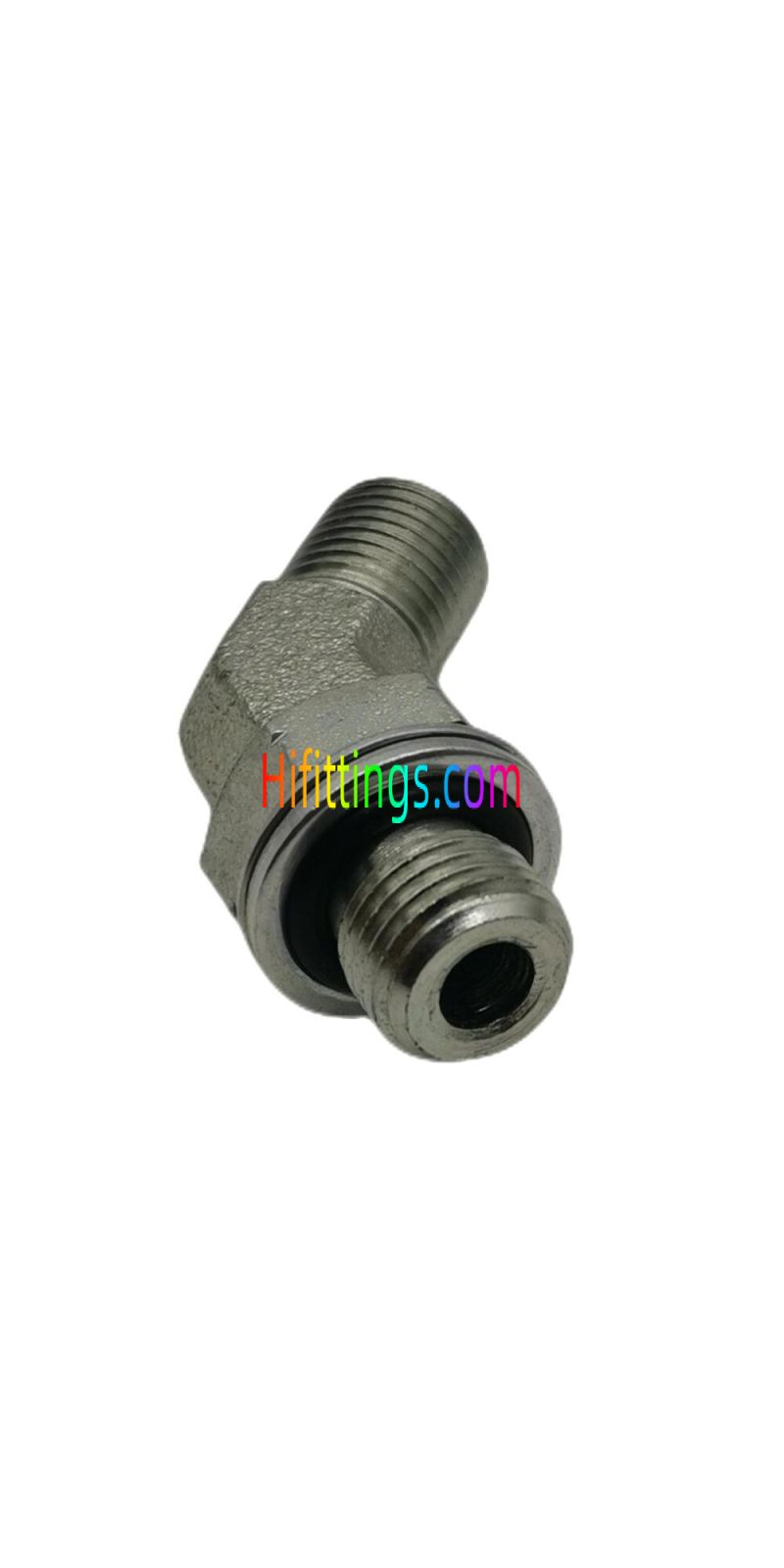

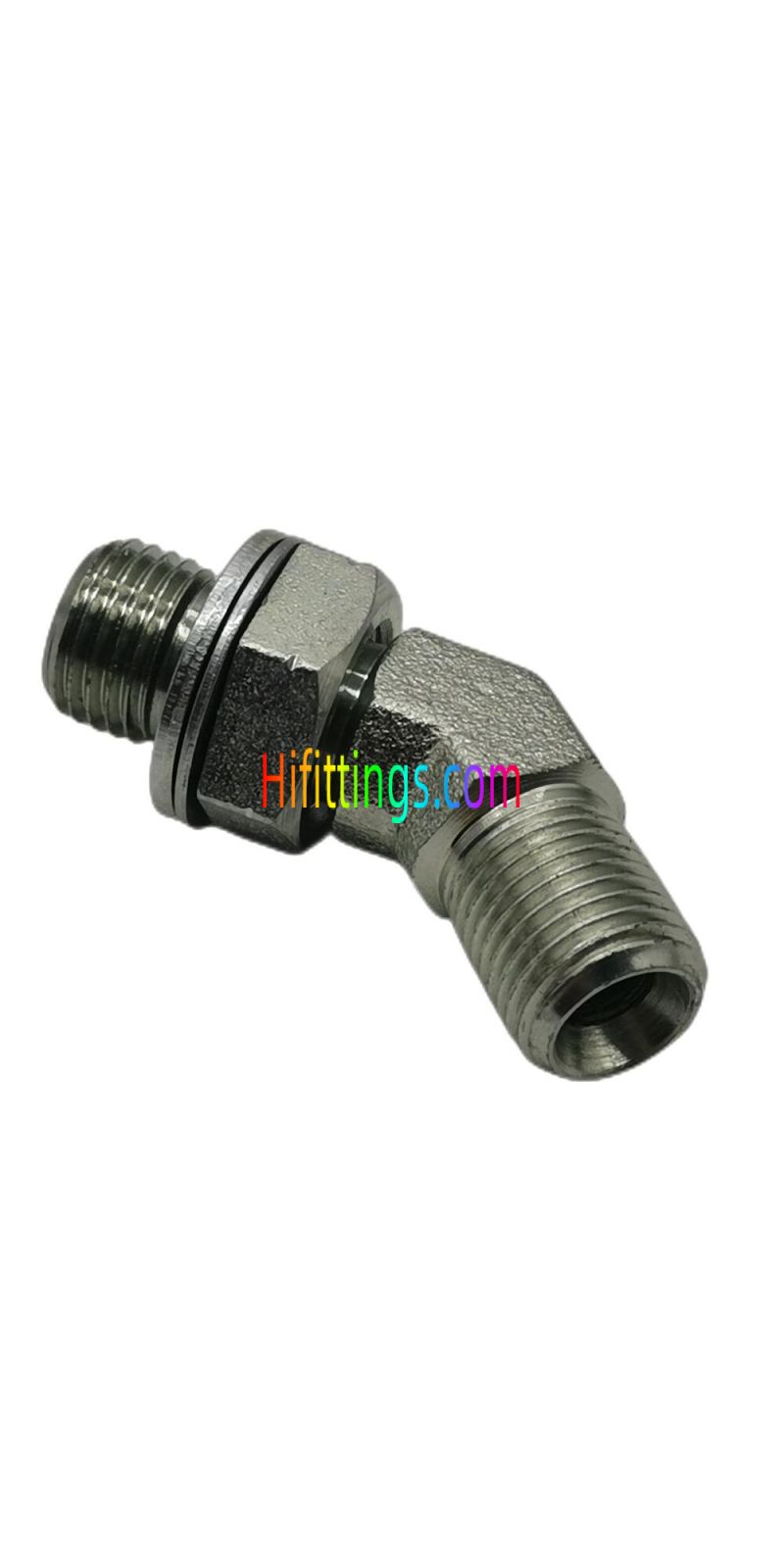

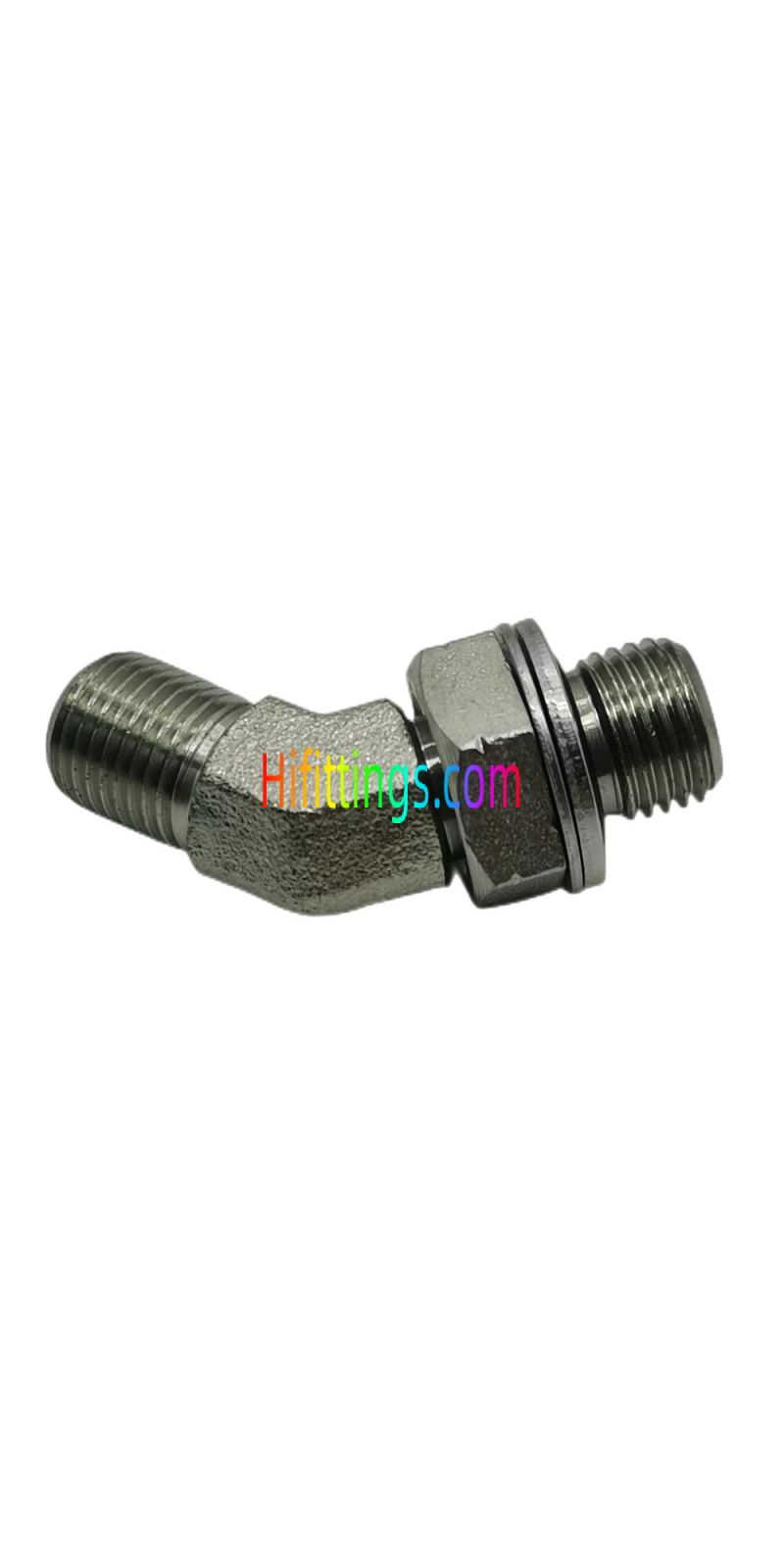

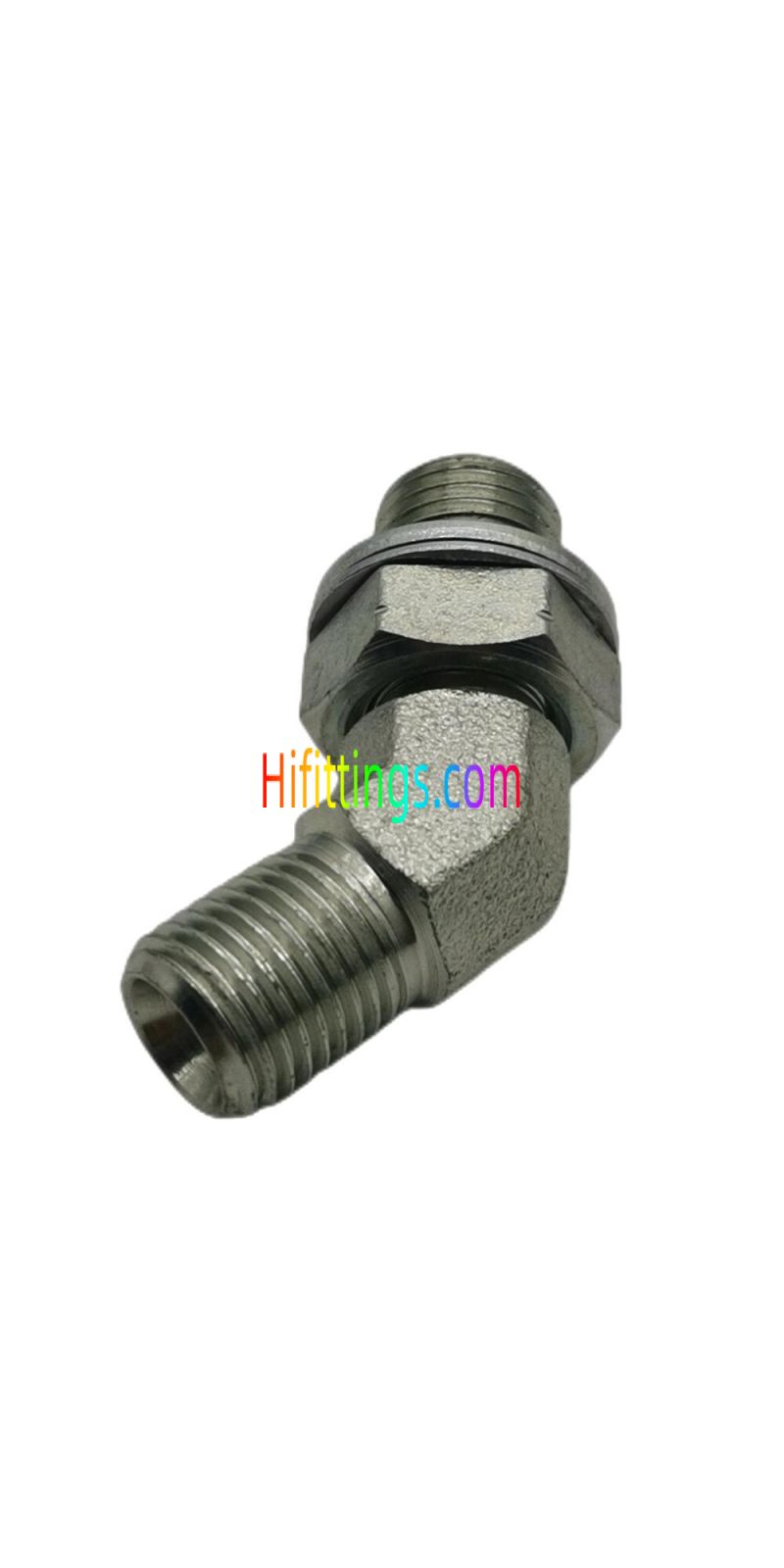

45° Elbow BSP Male Adjustable Stud Fittings 1BG4-OG

Add to Wish List
23
In stock
Only %1 left
SKU
1BG4-OG

Guarantee safe & secure checkout

No Related Posts

45° Elbow BSP Male Adjustable Stud Fittings 1BG4-OG - hifittings.com45° Elbow BSP Male Adjustable Stud Fittings 1BG4-OG - hifittings.com
45° Elbow BSP Male 60° Seat / BSP Male O-Ring Adjustable Stud End Hydraulic Fittings

Part NO.

E

F

F End

A

B

S1

S2

Working  Pressure  bar

1BG4-04OG

G1/4"X19

G1/4"X19

O111

22

28

14

19

PN345

1BG4-04-06OG

G1/4"X19

G3/8"X19

O113

21

30

16

22

PN345

1BG4-04-08OG

G1/4"X19

G1/2"X14

O115

22.5

36

22

27

PN345

1BG4-06OG

G3/8"X19

G3/8"X19

O113

21

30

16

22

PN345

1BG4-06-08OG

G3/8"X19

G1/2"X14

O115

23.5

36

22

27

PN345

1BG4-08OG

G1/2"X14

G1/2"X14

O115

27

36

22

27

PN345

1BG4-12OG

G3/4"X14

G3/4"X14

O119

32

42

27

32

PN275

1BG4-12-16OG

G3/4"X14

G1"X11

O217

32.5

44

33

41

PN205

1BG4-16OG

G1"X11

G1"X11

O217

34

44

33

41

PN205

1BG4-20OG

G1.1/4"X11

G1.1/4"X11

O222

38.5

47.5

41

50

PN170

1BG4-24OG

G1.1/2"X11

G1.1/2"X11

O224

44

51.5

48

55

PN105

Note 1. F end is connected with DIN 3852 port. 2. PN = Nominal Pressure

More Information
Shape Elbow
Fitting Type Cone
Thread Type Male
Connection Type BSP
