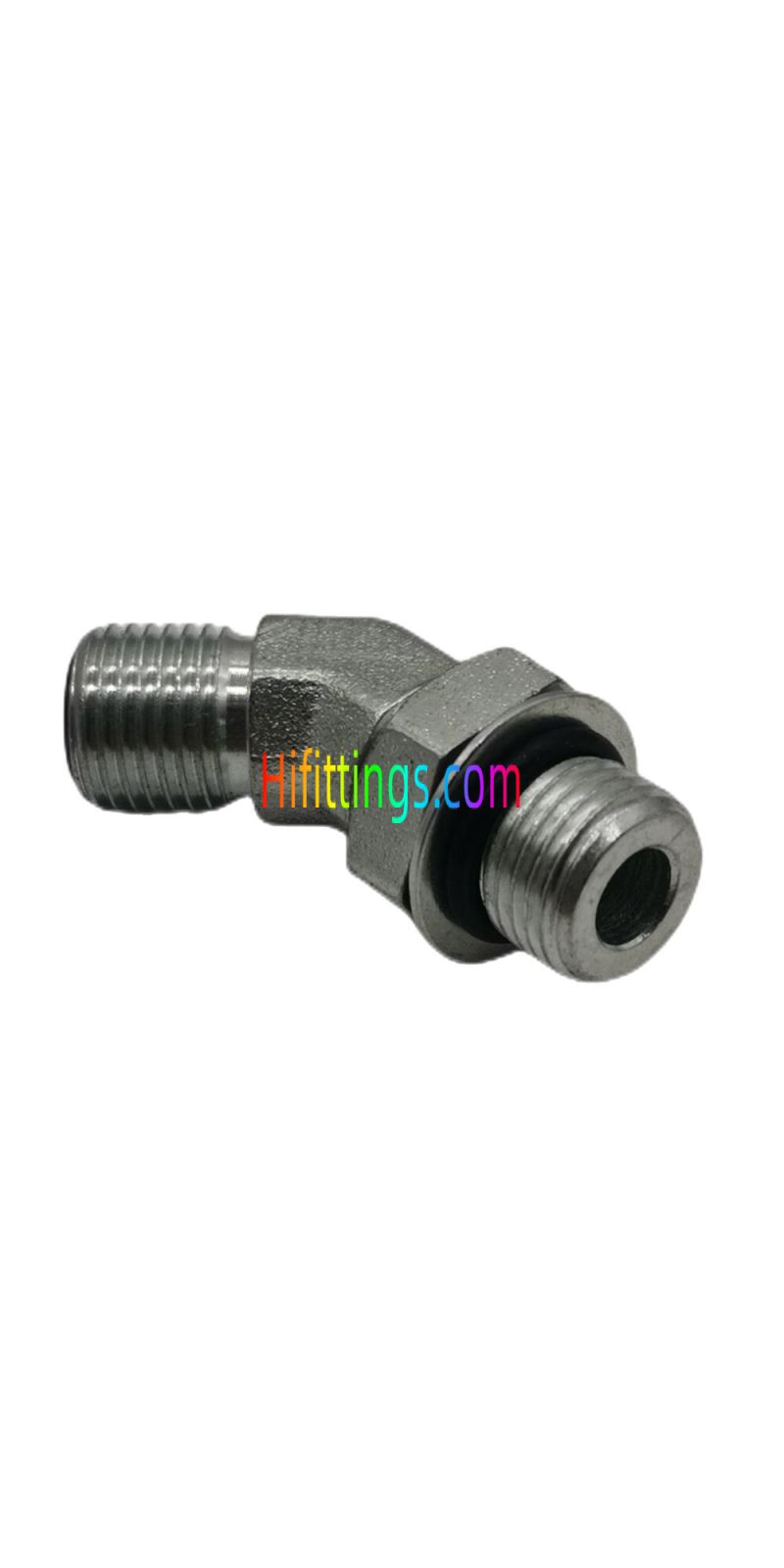

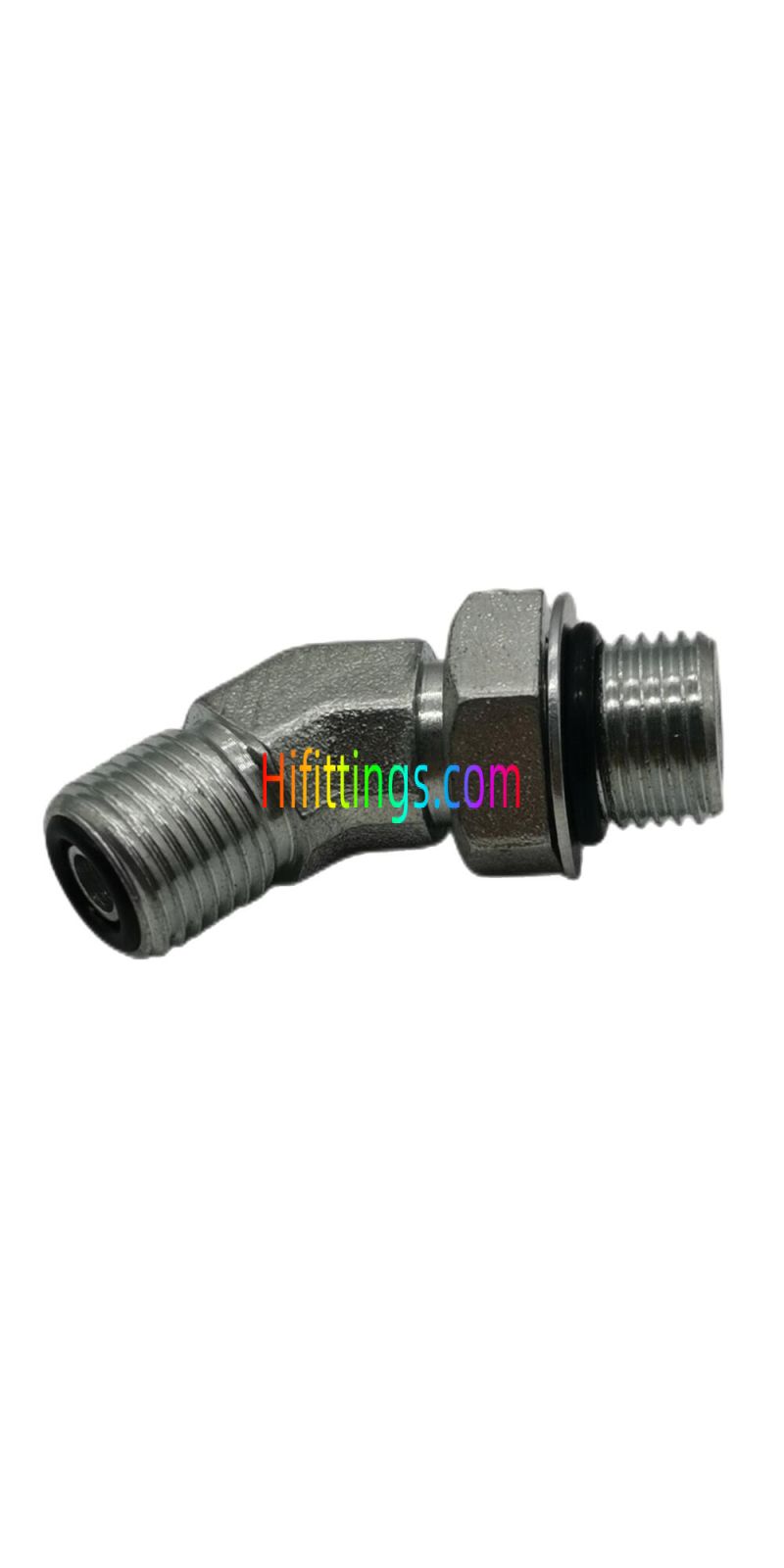

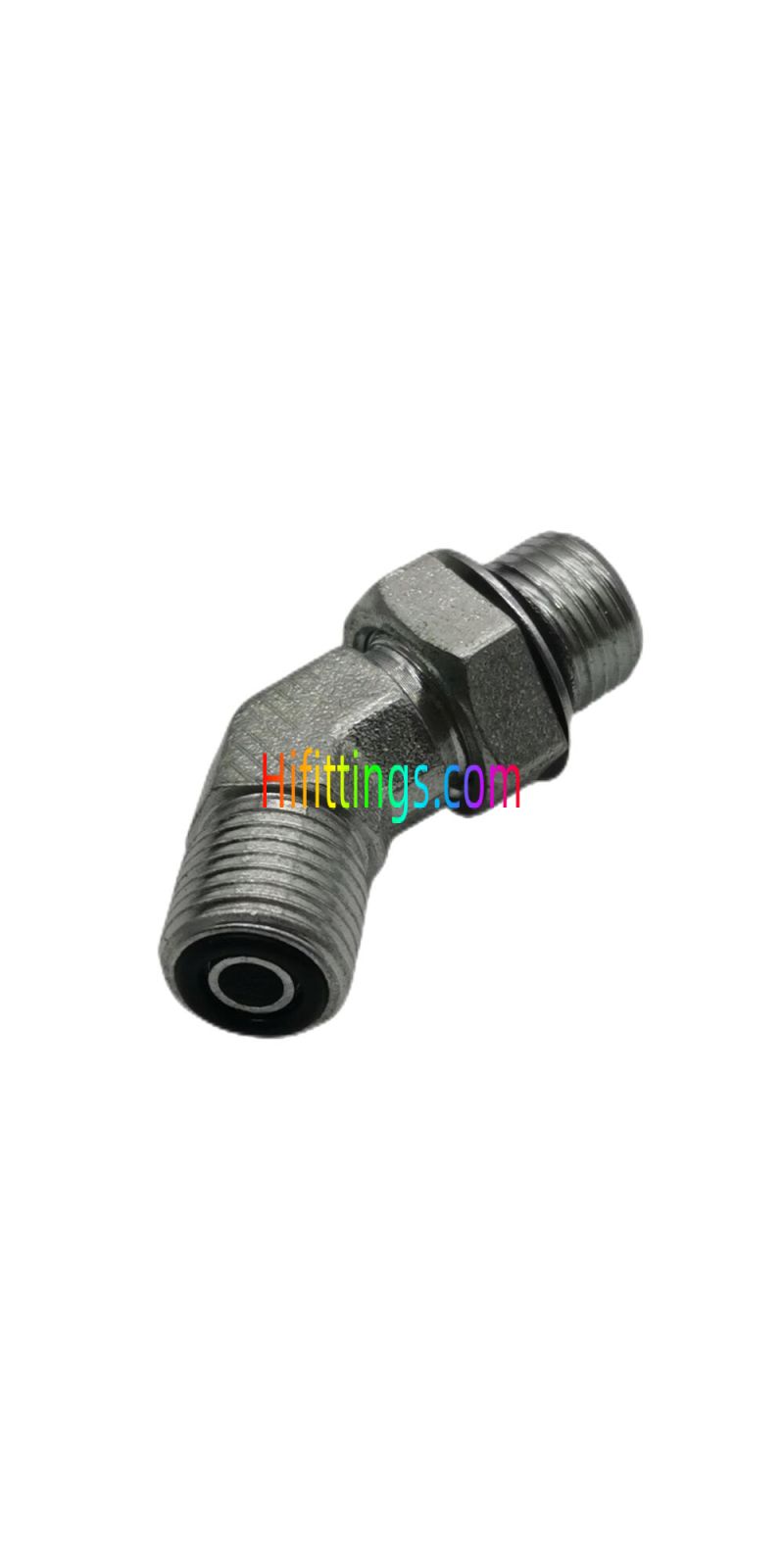

45° Elbow ORFS Male O-Ring SAE O-Ring Fittings 1FO4-OG

Part  NO.

E

F

E  End

F  End

A

B

S1

S2

Working  Pressure  bar

1FO4-04OG

9/16"X18

7/16"X20

11

904

18.3

26

14

17

PN400

1FO4-04-06OG

9/16"X18

9/16"X18

O011

O906

18.3

28

14

19

PN400

1FO4-06-04OG

11/16"X16

7/16"X20

0012

O904

20.5

27.3

19

17

PN400

1FO4-06OG

11/16"X16

9/16"X18

0012

O906

20.5

29.5

19

19

PN400

1FO4-06-08OG

11/16"X16

3/4"X16

O012

O908

20.5

32.5

19

24

PN400

1FO4-08-06OG

13/16"X16

9/16"X18

O014

O906

24

30.8

22

19

PN400

1FO4-08OG

13/16"X16

3/4"X16

014

0908

24

34

22

24

PN400

1FO4-08-10OG

13/16"X16

7/8"X14

O014

0910

24

39.5

22

27

PN400

1FO4-08-12OG

13/16"X16

1.1/16X12

O014

0912

25.5

44

27

32

PN400

1FO4-10-08OG

1"X14

3/4"X16

0016

0908

28

34

27

24

PN400

1FO4-10OG

1"X14

7/8"X14

0016

0910

28

41.5

27

27

PN400

1FO4-10-12OG

1"X14

1.1/16"X12

0016

0912

28

44

27

32

PN400

1FO4-12-10OG

1.3/16"X12

7/8"X14

O018

O910

30.7

42

30

27

PN400

1FO4-12OG

1.3/16"X12

1.1/16"X12

O018

O912

30.7

45.5

30

32

PN400

1FO4-12-16OG

1.3/16"X12

1.5/16"X12

0018

O916

32.5

47.9

36

41

PN315

1FO4-16-12OG

1.7/16"X12

1.1/16"X12

O021

O912

33

47.9

36

32

PN400

1FO4-16OG

1.7/16"X12

1.5/16X12

O021

0916

33

47.9

36

41

PN315

1FO4-16-20OG

1.7/16"X12

1.5/8"X12

O021

0920

35.5

48.5

41

50

PN250

1FO4-20OG

1.11/16"X12

1.5/8"X12

0025

0920

35.5

48.8

41

50

PN250

1FO4-20-24OG

1.11/16"X12

1.7/8"X12

0025

0924

38

51

48

55

PN200

1FO4-24OG

2"X12

1.7/8"X12

0029

0924

39

52

50

55

PN200

Note: 1.: F  end is connected with ISO 11926-1port.  2. PN = Nominal Pressure
