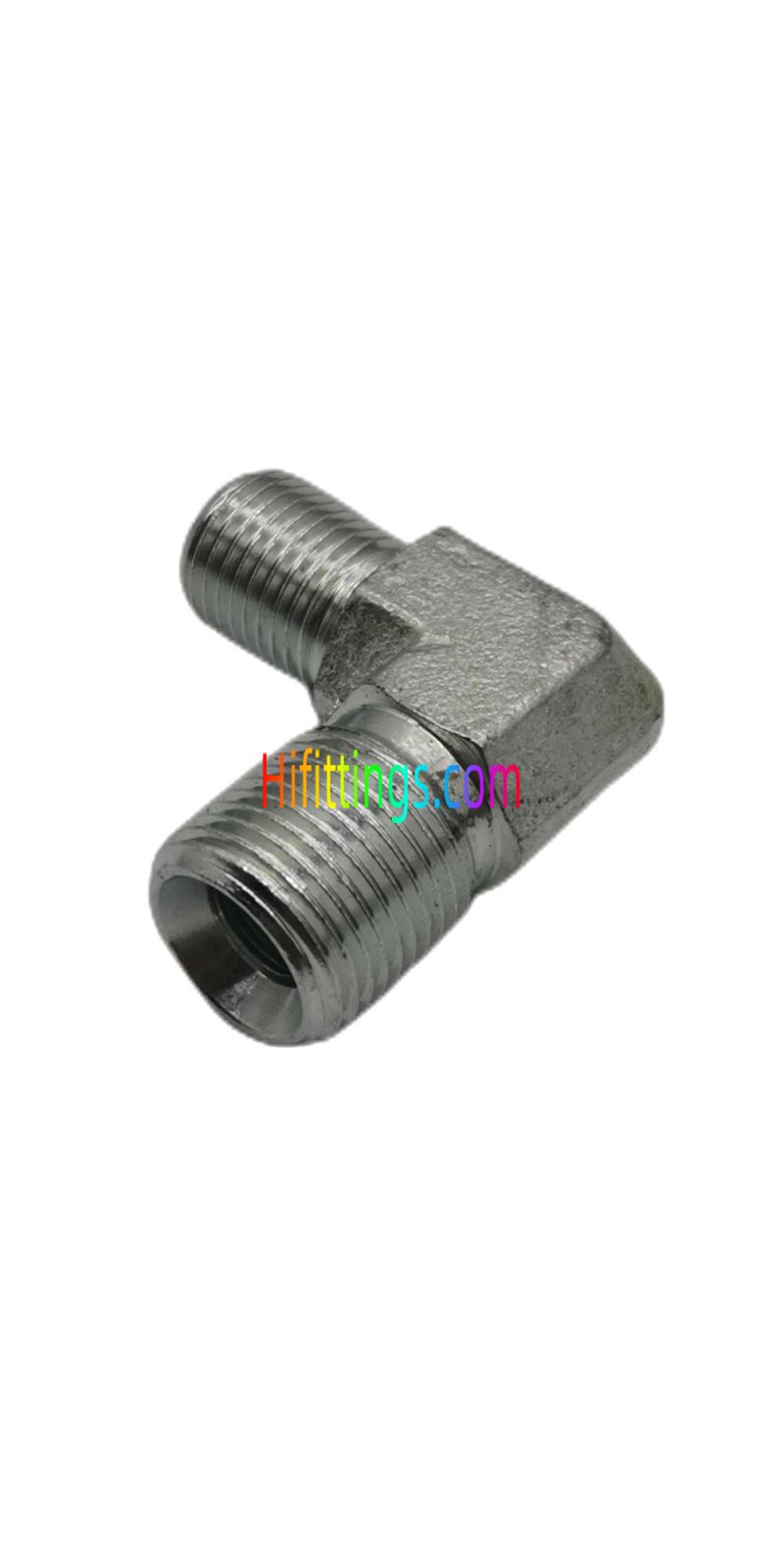

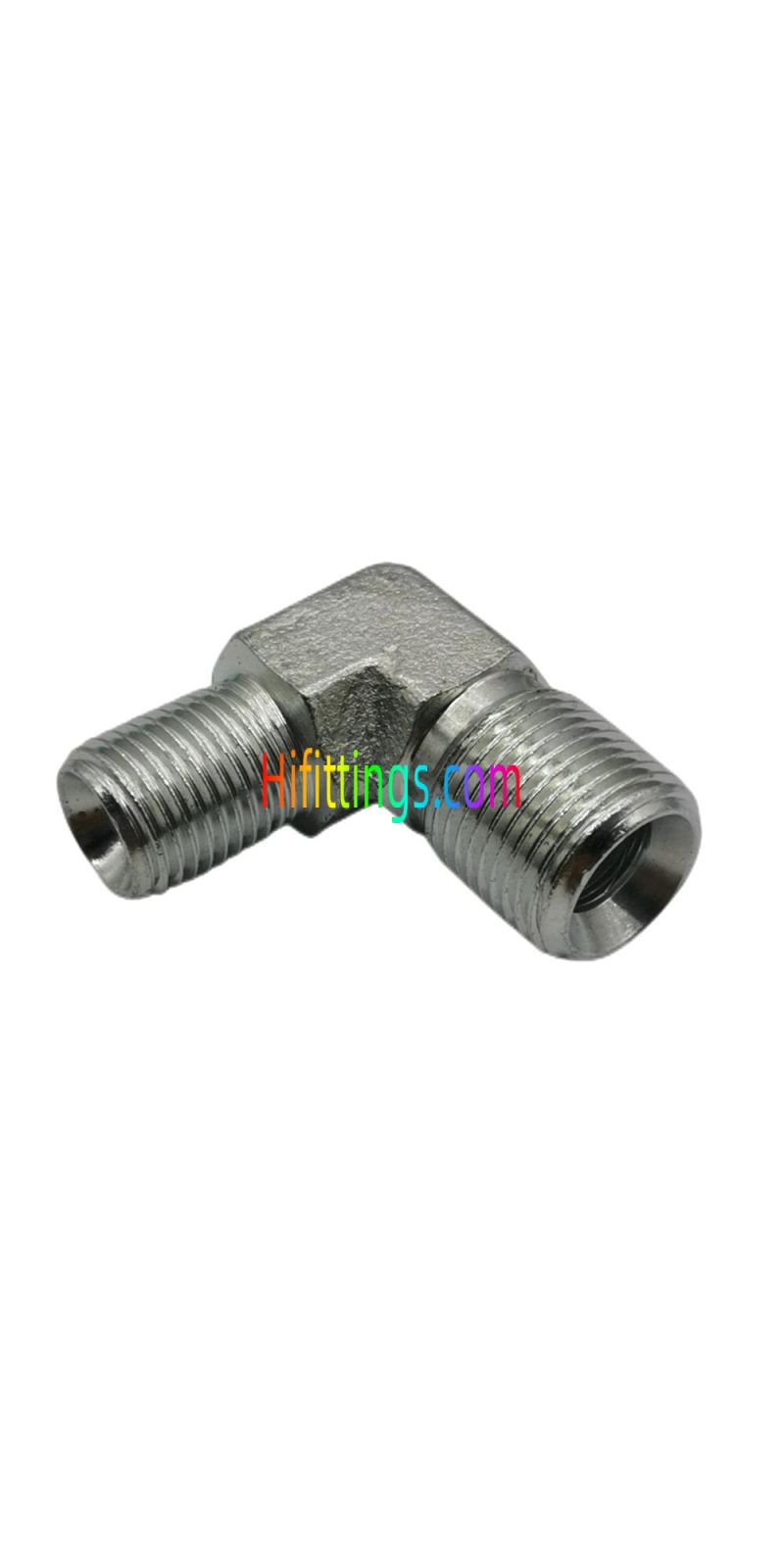

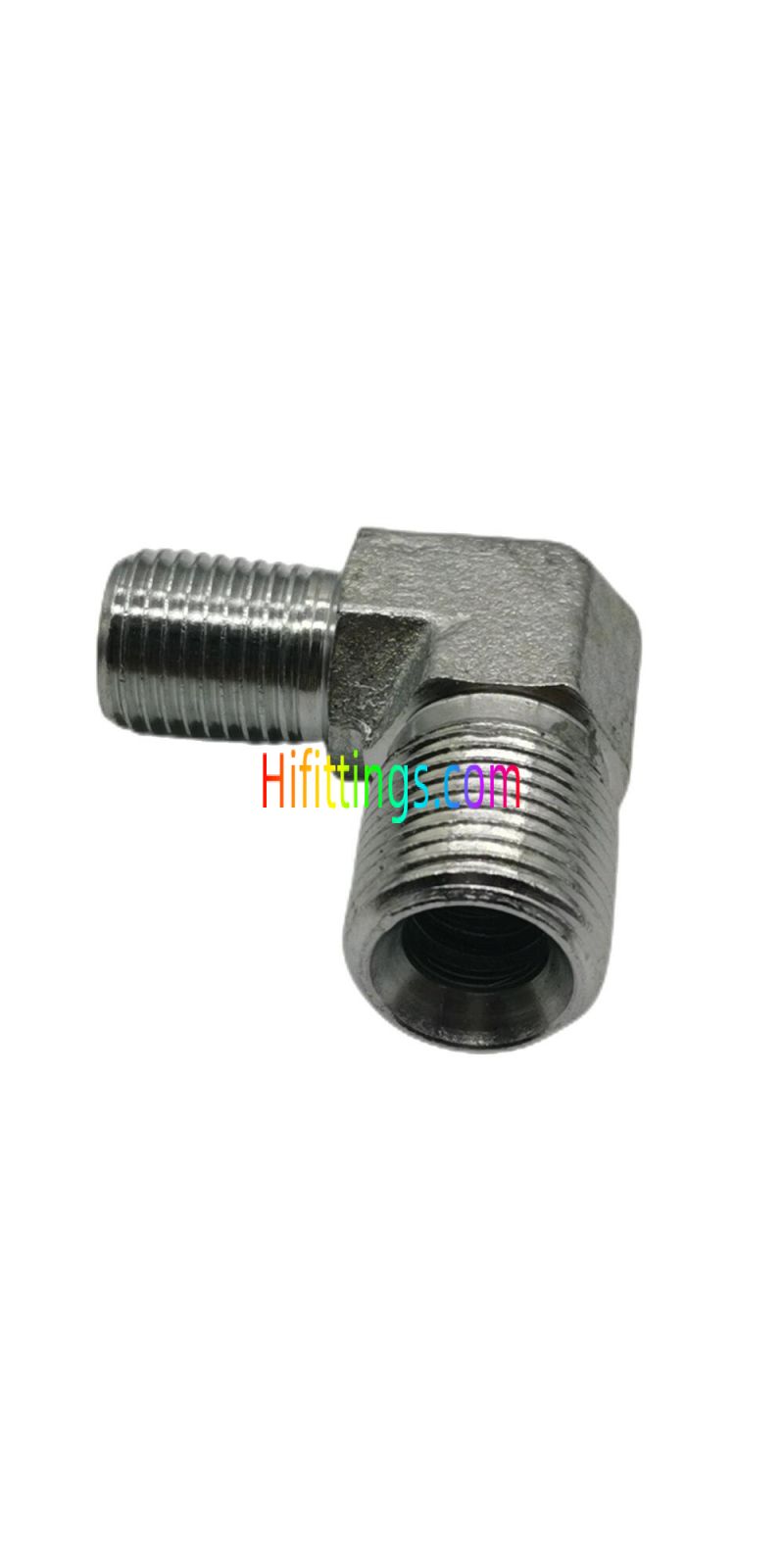

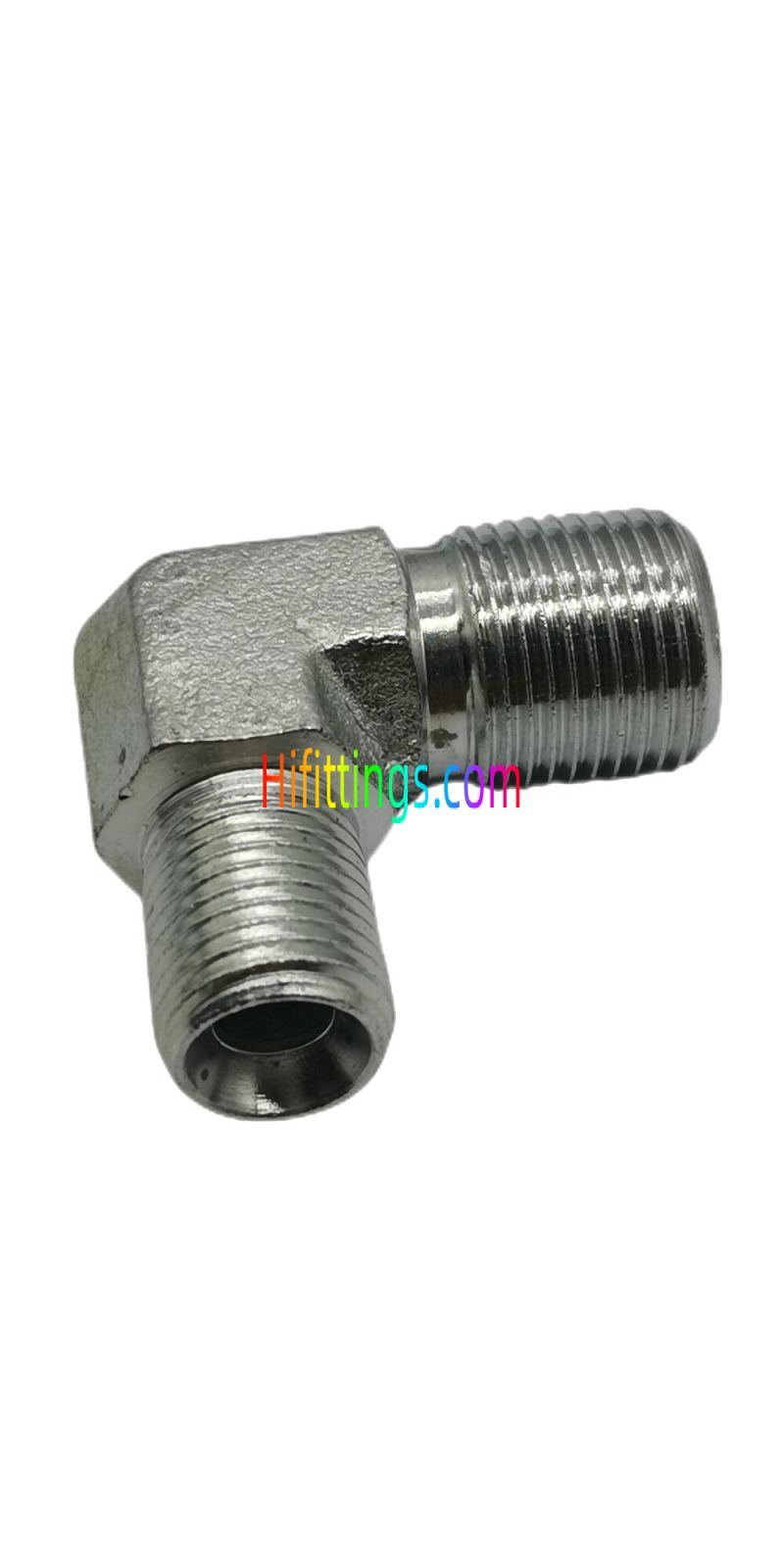

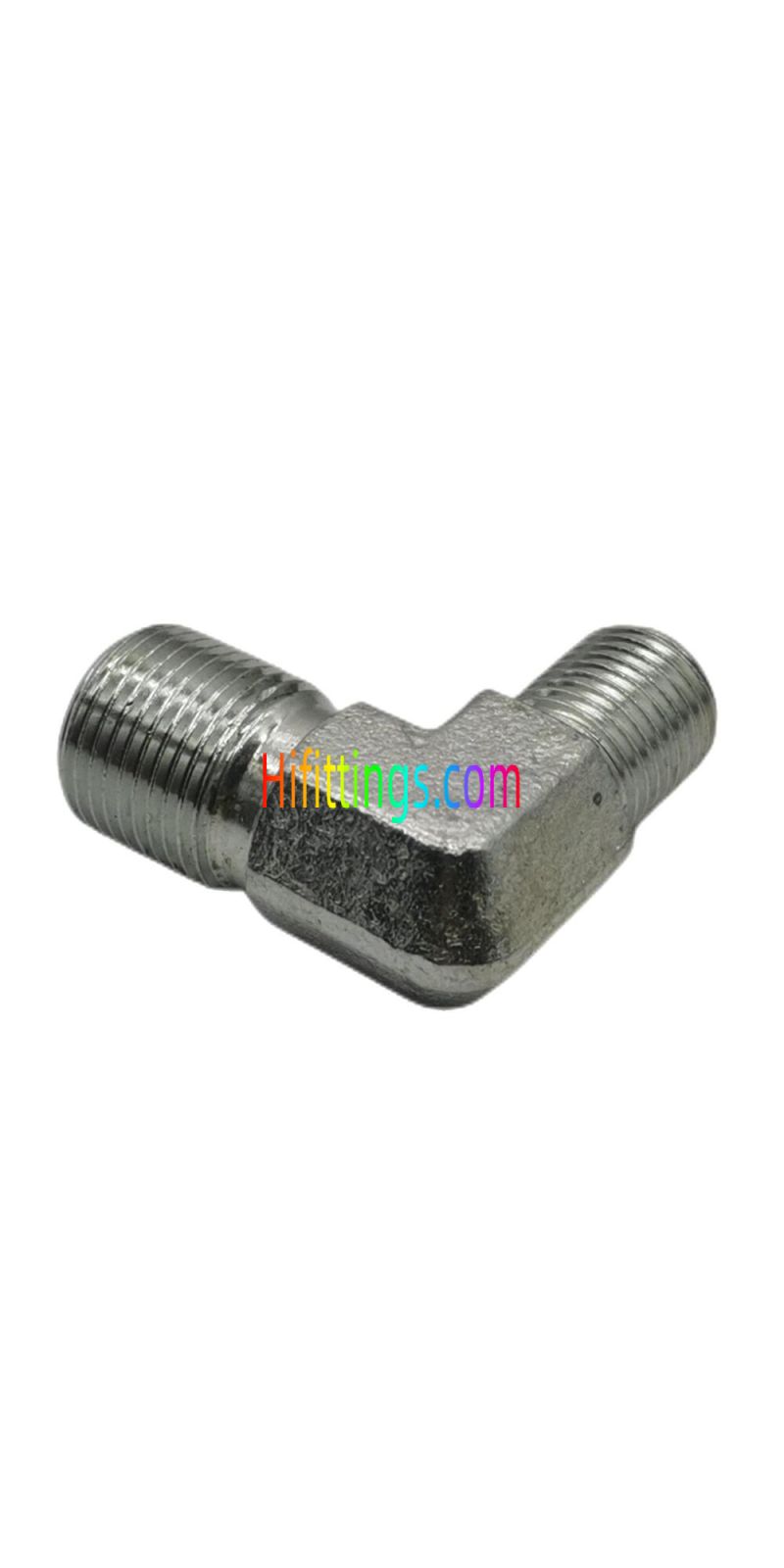

90 Degree Elbow BSP Male 60 Degree Seat Cone Hydraulic Fittings 1B9
|
Part NO. |
E |
F |
A |
B |
S1 |
Working Pressure bar |
|
1B9-02 |
G1/8"X28 |
G1/8"X28 |
19.8 |
19.8 |
11 |
PN345 |
|
1B9-02-04 |
G1/8"X28 |
G1/4"X19 |
23 |
25 |
14 |
PN345 |
|
1B9-04 |
G1/4"X19 |
G1/4"X19 |
24.5 |
24.5 |
14 |
PN345 |
|
1B9-04-06 |
G1/4"X19 |
G3/8"X19 |
26.5 |
27.5 |
16 |
PN345 |
|
1B9-06 |
G3/8"X19 |
G3/8"X19 |
27.5 |
27.5 |
16 |
PN345 |
|
1B9-06-08 |
G3/8"X19 |
G1/2"X14 |
31 |
34.5 |
22 |
PN345 |
|
1B9-08 |
G1/2"X14 |
G1/2"X14 |
34.5 |
34.5 |
22 |
PN345 |
|
1B9-08-12 |
G1/2"X14 |
G3/4"X14 |
37.5 |
40 |
27 |
PN275 |
|
1B9-10 |
G5/8"X14 |
G5/8"X14 |
35 |
35 |
22 |
PN275 |
|
1B9-10-12 |
G5/8"X14 |
G3/4"X14 |
37.5 |
39 |
30 |
PN275 |
|
1B9-12 |
G3/4"X14 |
G3/4"X14 |
40 |
40 |
27 |
PN275 |
|
1B9-12-16 |
G3/4"X14 |
G1"X11 |
43.5 |
46 |
33 |
PN205 |
|
1B9-16 |
G1"X11 |
G1"X11 |
46 |
46 |
33 |
PN205 |
|
1B9-16-20 |
G1"X11 |
G1.1/4"X11 |
50.5 |
50.5 |
41 |
PN170 |
|
1B9-20 |
G1.1/4"X11 |
G1.1/4"X11 |
50.5 |
50.5 |
41 |
PN170 |
|
1B9-20-24 |
G1.1/4"X11 |
G1.1/2"X11 |
54.5 |
57.5 |
48 |
PN105 |
|
1B9-24 |
G1.1/2"X11 |
G1.1/2"X11 |
57.5 |
57.5 |
48 |
PN105 |
|
1B9-32 |
G2"X11 |
G2"X11 |
68 |
68 |
63 |
PN105 |
| Shape | Elbow |
|---|---|
| Fitting Type | Cone |
| Thread Type | Male |
| Connection Type | BSP |
