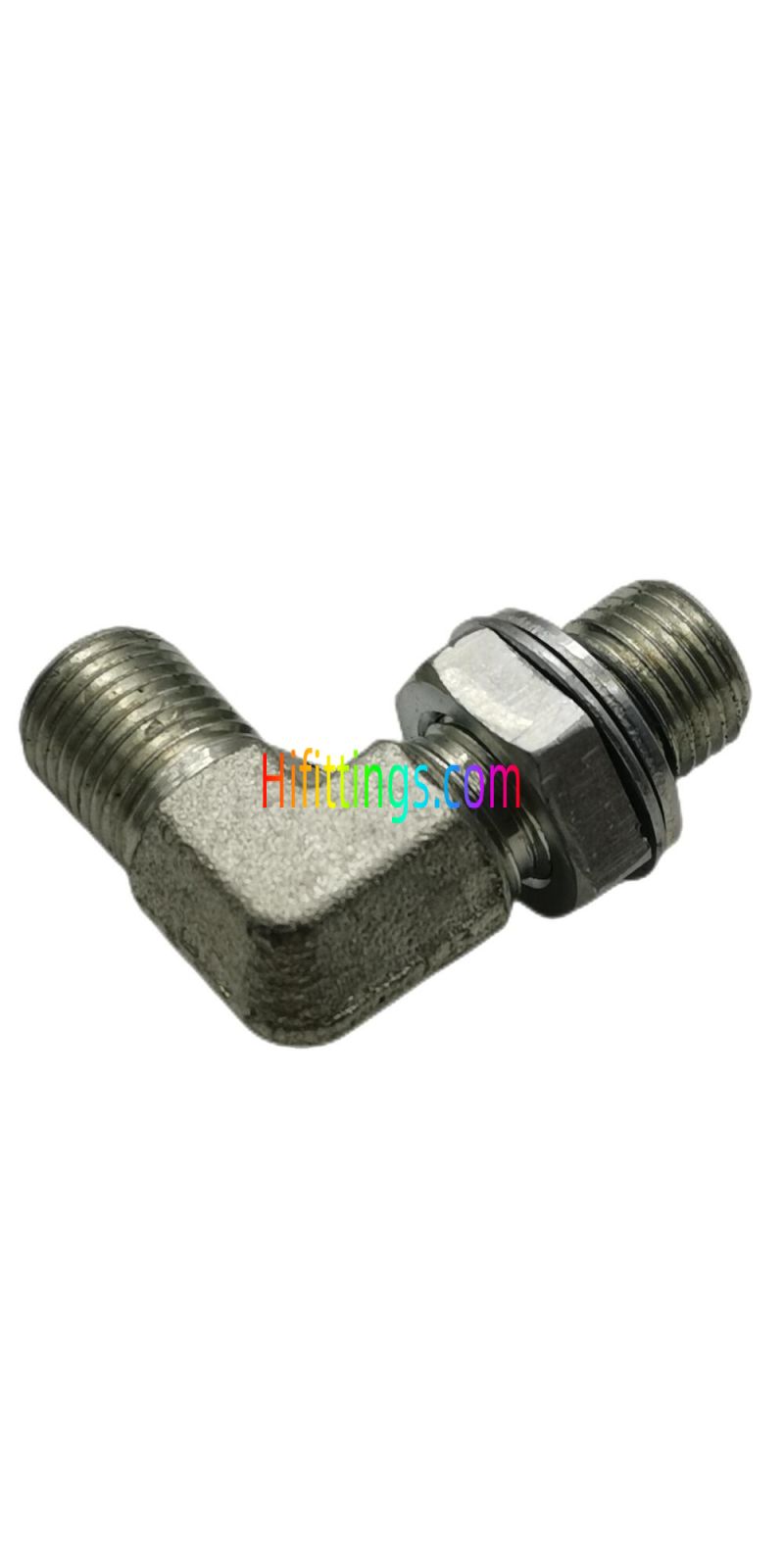

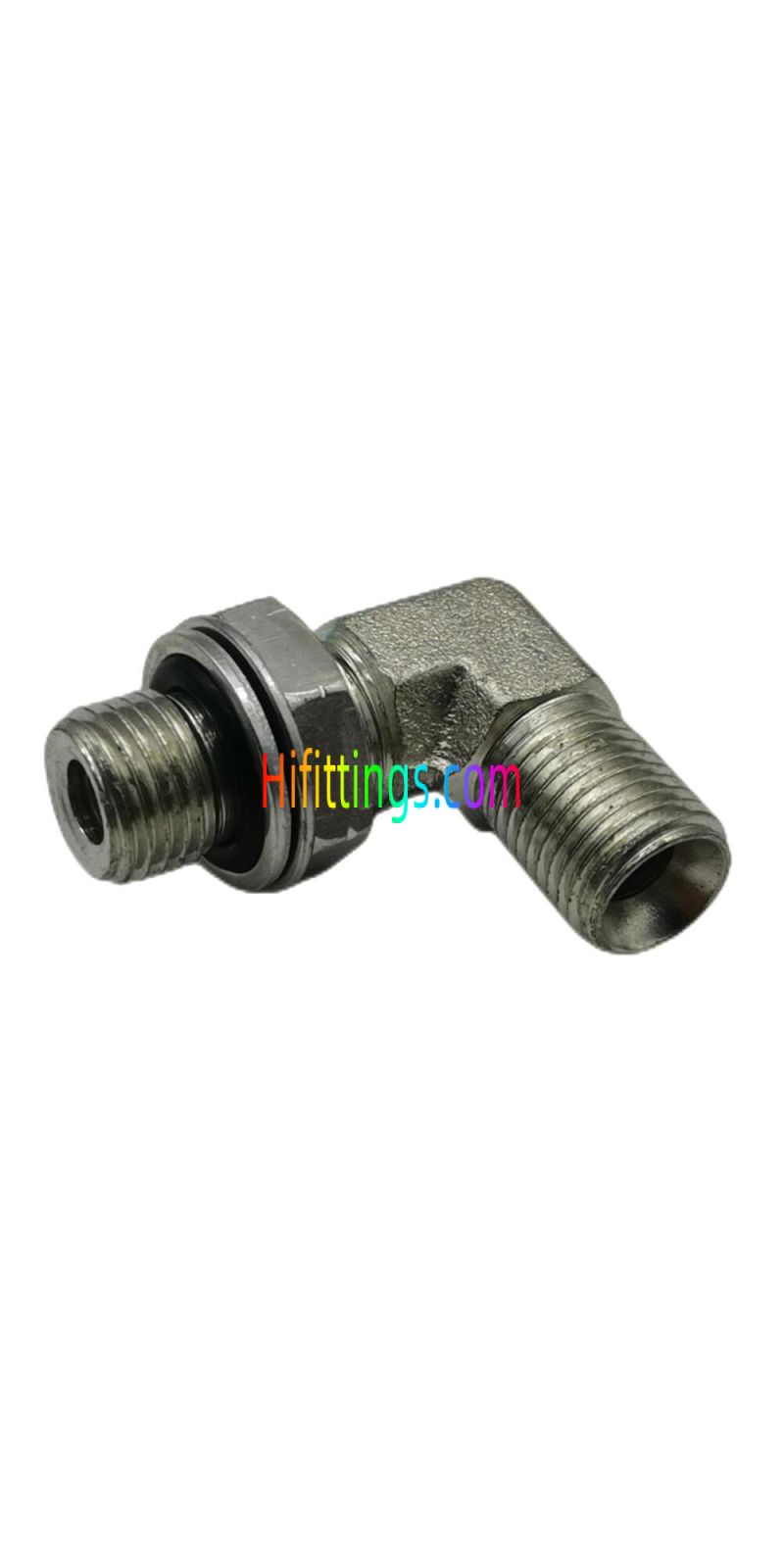

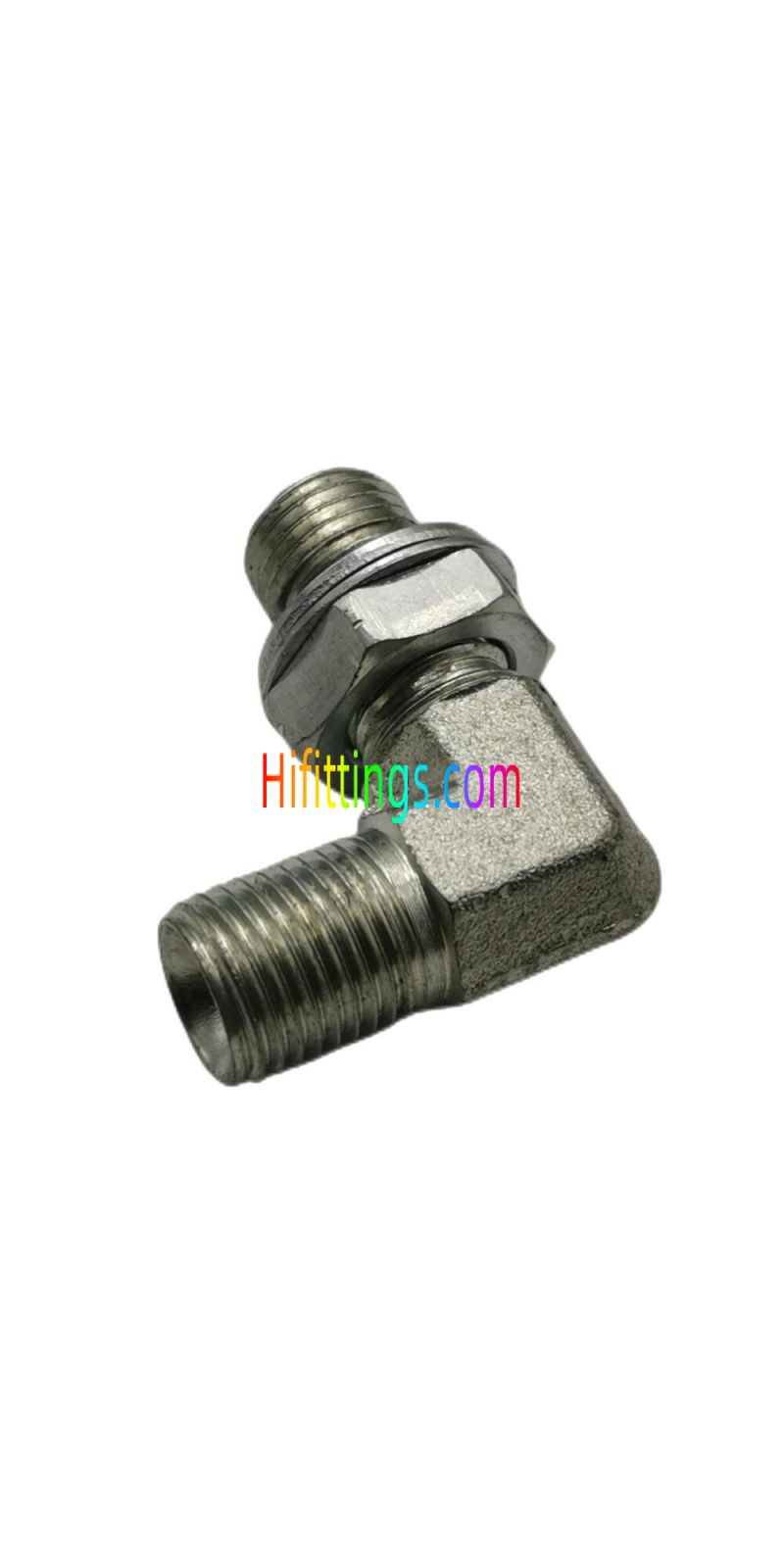

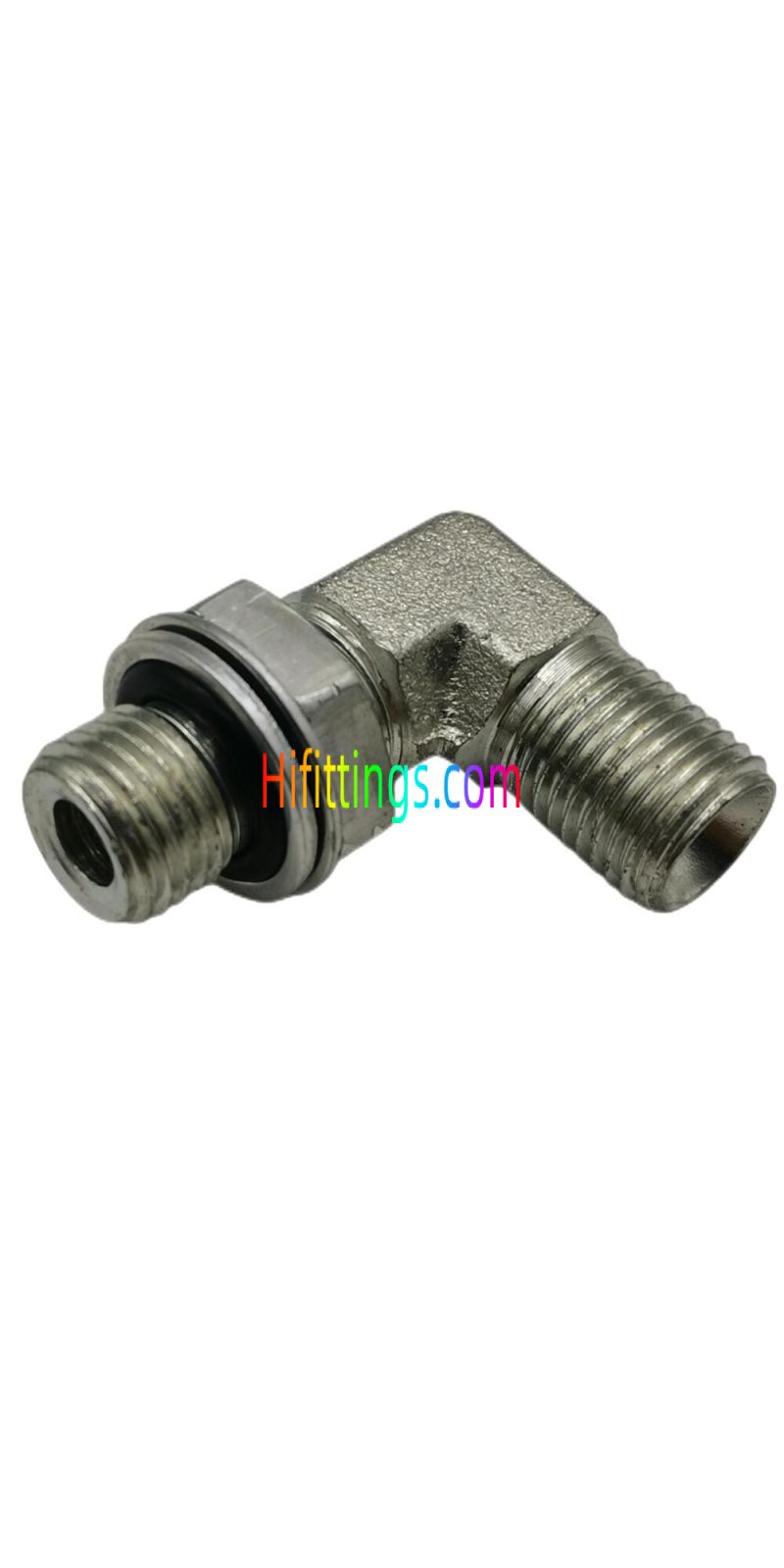

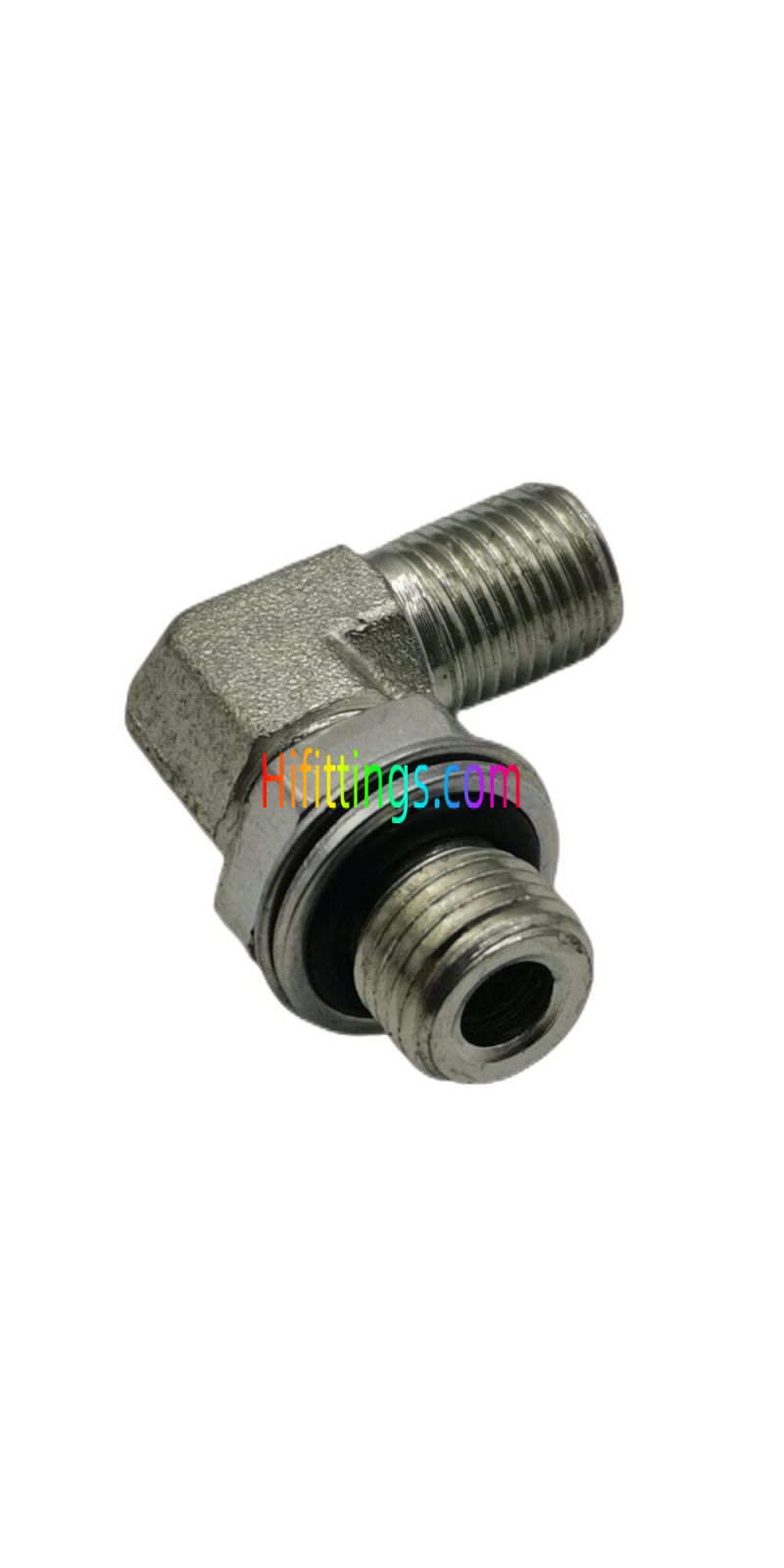

90° Elbow BSP Male 60° Seat / BSP Male O-Ring Adjustable Stud End Hydraulic Fittings 1BG9-OG

Part NO.

E

F

O-Ring  F End

A

B

S1

S2

Working  Pressure  bar

1BG9-04OG

G1/4"X19

G1/4"X19

111

25

31.5

14

19

PN345

1BG9-04-060G

G1/4"X19

G3/8"X19

113

26.5

36.8

16

22

PN345

1BG9-06OG

G3/8"X19

G3/8"X19

113

28

36.8

16

22

PN345

1BG9-06-080G

G3/8”X19

G1/2"X14

115

31

43.2

22

27

PN345

1BG9-08OG

G1/2"X14

G1/2"X14

115

34.5

43.2

22

27

PN345

1BG9-08-12OG

G1/2"X14

G3/4"X14

119

40

49.3

27

32

PN275

1BG9-12OG

G3/4"X14

G3/4"X14

119

40

49.3

27

32

PN275

1BG9-12-16OG

G3/4"X14

G1"X11

217

45

53

33

41

PN205

1BG9-16OG

G1"X11

G1"X11

217

46

53

33

41

PN205

1BG9-20-16OG

G1.1/4"X11

G1"X11

217

50.5

58

41

41

PN170

1BG9-20OG

G1.1/4"X11

G1.1/4"X11

222

51.5

58

41

50

PN170

1BG9-24OG

G1.1/2"X11

G1.1/2"X11

224

58.5

63

48

55

PN105

Note 1. F end is connected with DIN 3852 port. 2. PN = Nominal Pressure

More Information
Shape Elbow
Fitting Type Cone
Thread Type Male
Connection Type BSP
