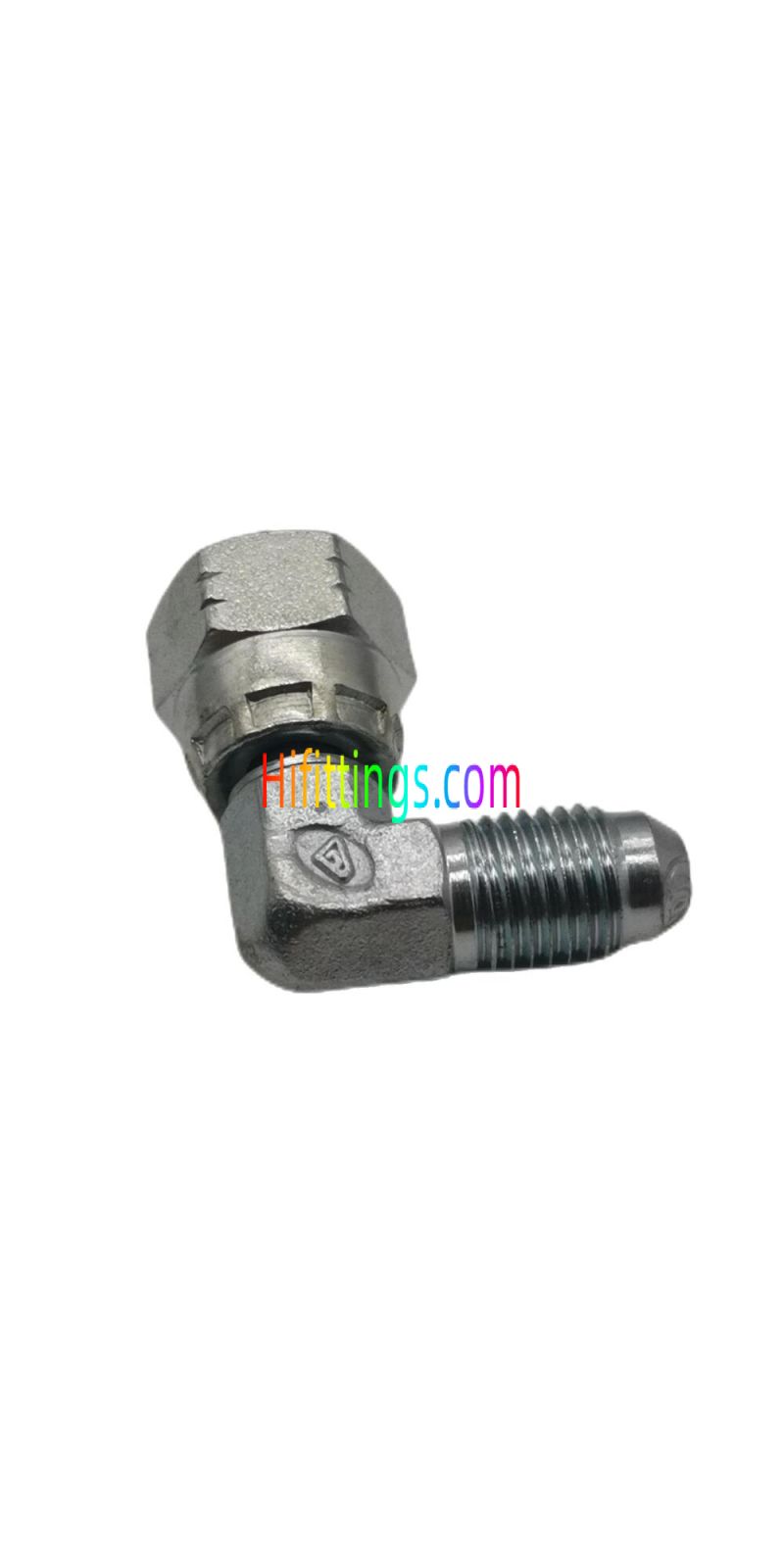

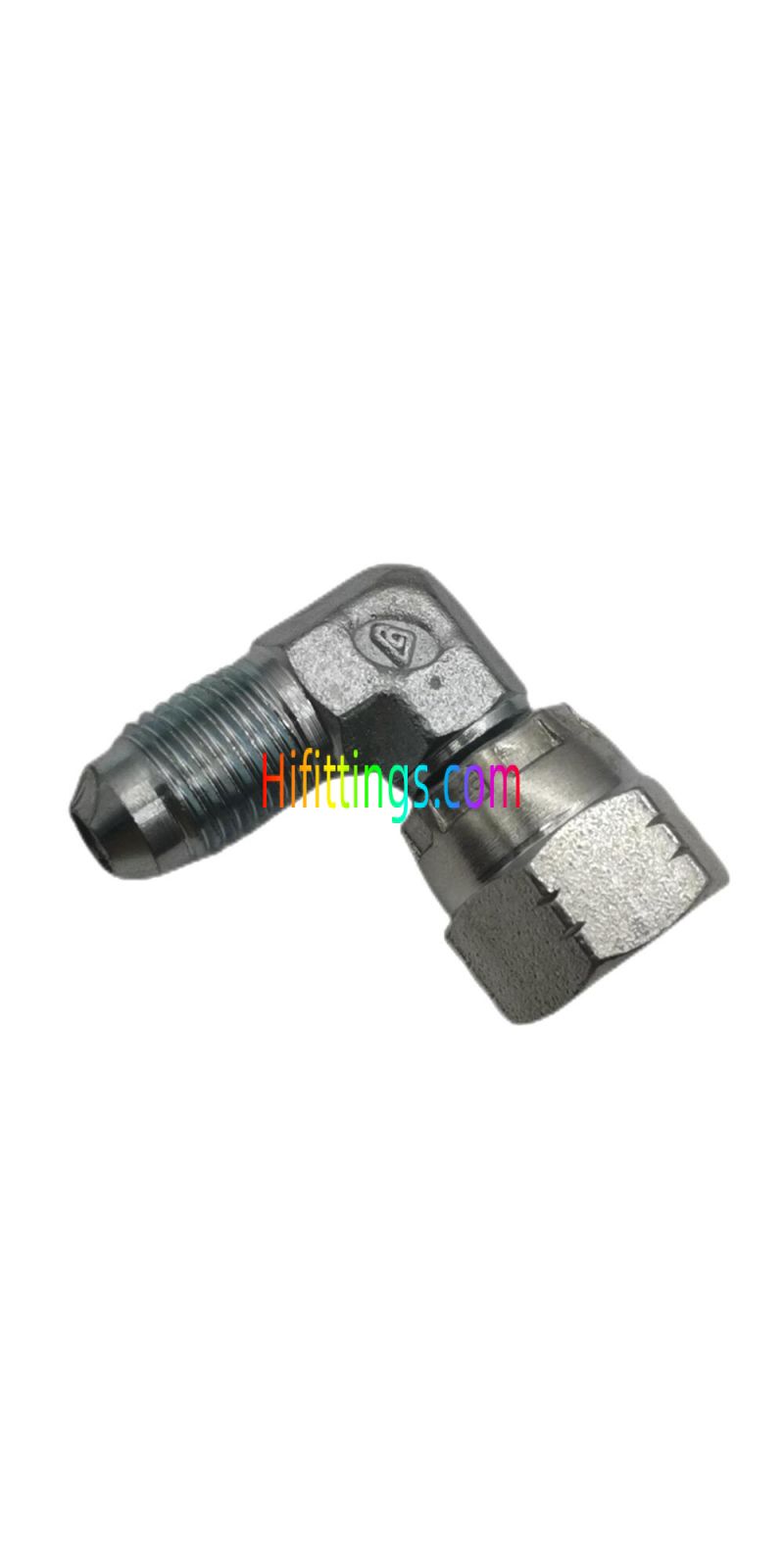

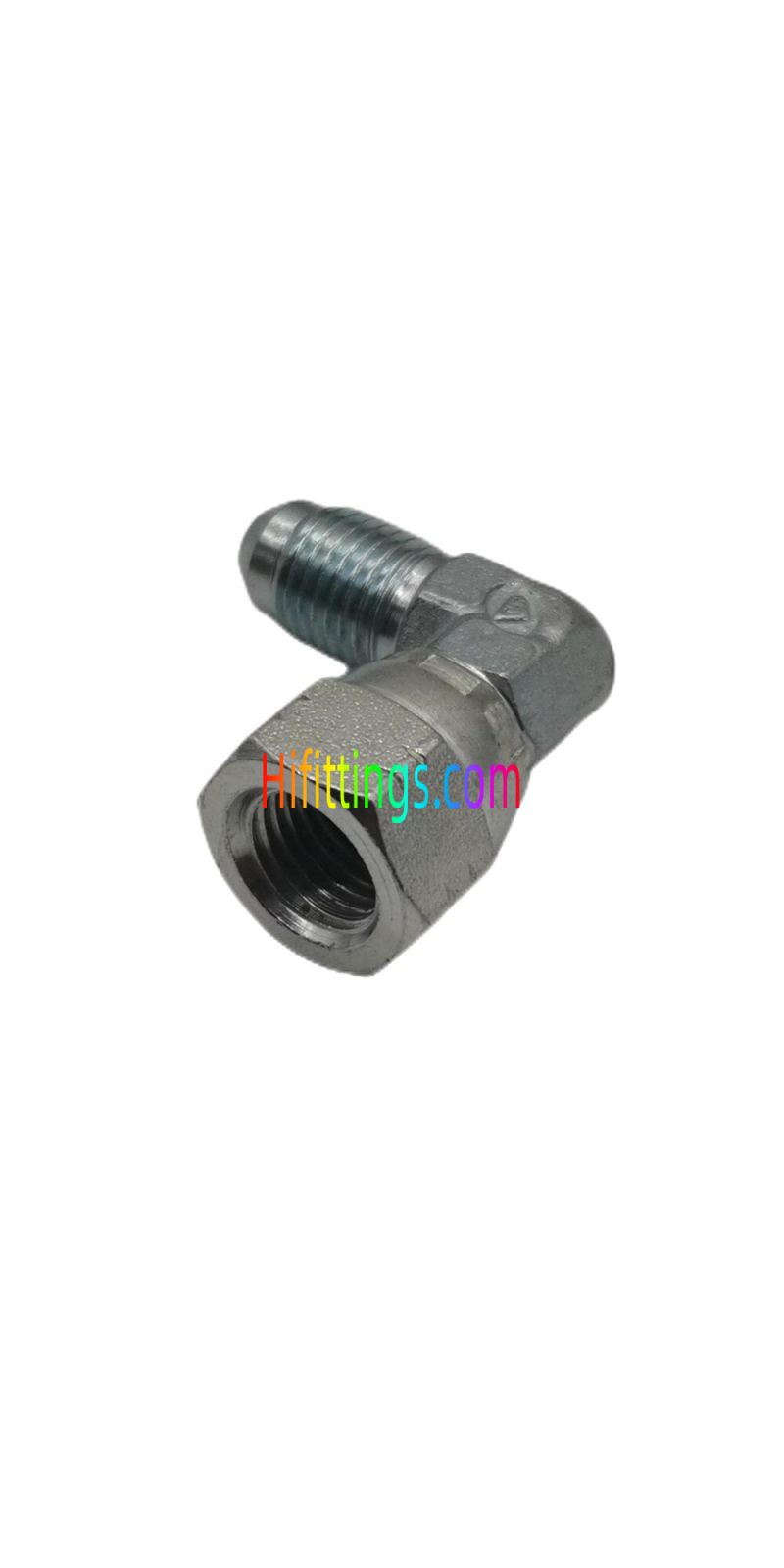

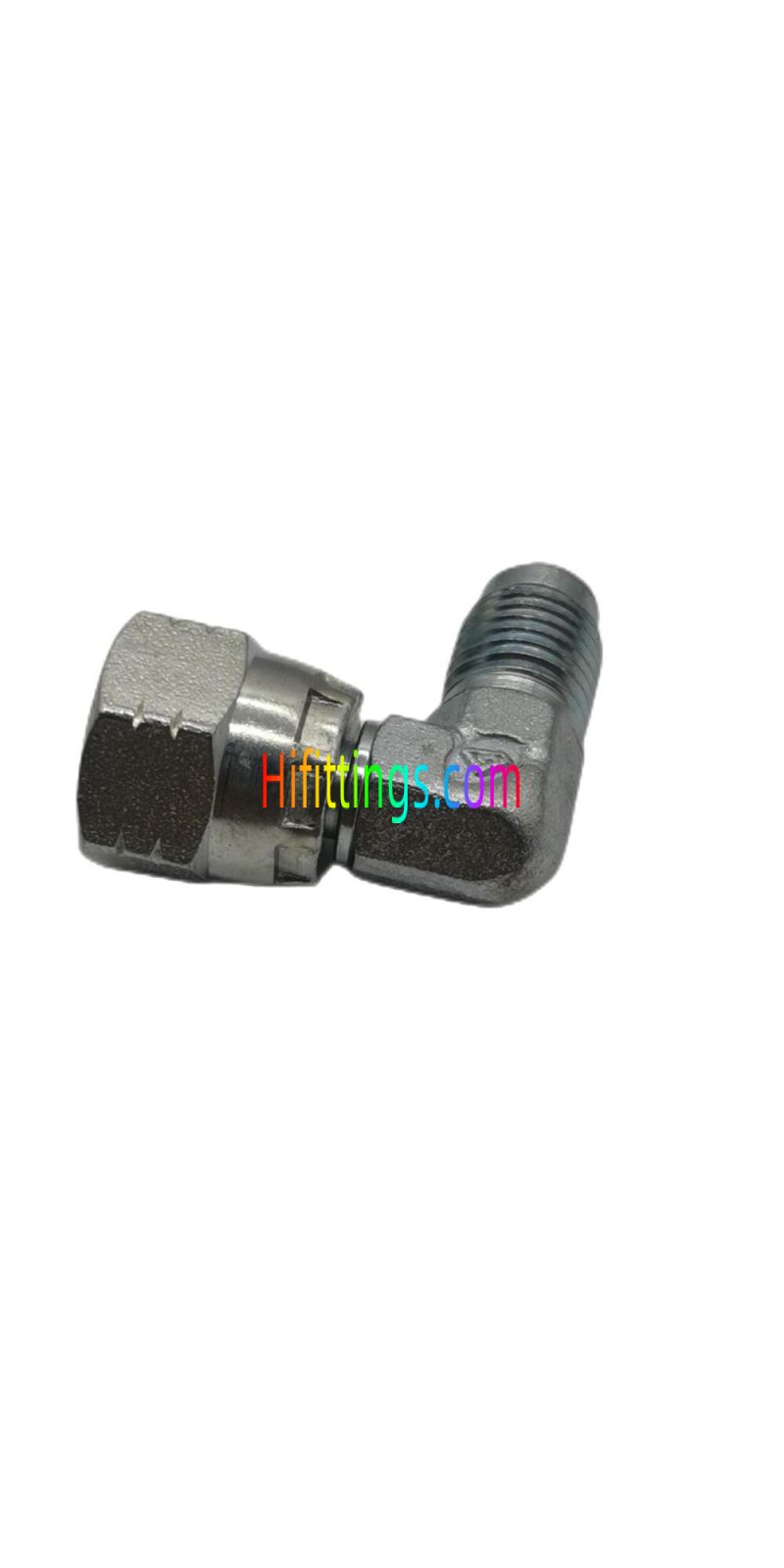

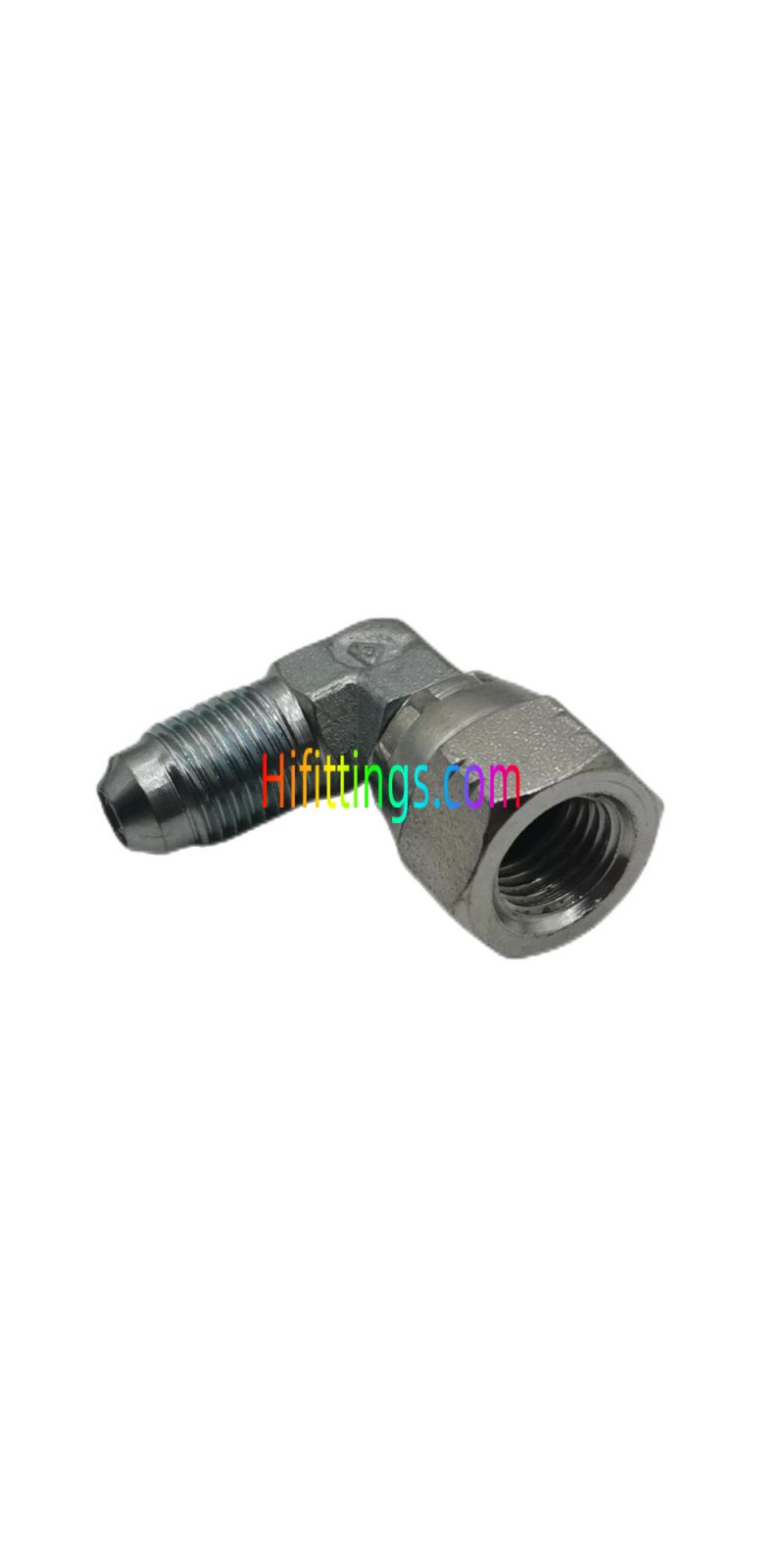

90° Elbow JIC Male 74° Cone JIC Female 74° Seat Flared Tube Fittings 2J9

Part NO.

E

F

A

B

S1

S2

Working  Pressure  bar

2J9-02

5/16"X24

5/16"X24

21

5.6

11

12

PN345

2J9-03

3/8"X24

3/8"X24

22

5

11

14

PN345

2J9-04

7/16"X20

7/16"X20

24.5

9

11

15

PN345

2J9-05

12X20

12X20

26.5

9.5

14

17

PN345

2J9-06

9/16"X18

9/16"X18

26.9

10.5

14

19

PN345

2J9-06-08

9/16"X18

3/4"X16

28.5

11

16

24

PN310

2J9-08-06

3/4"X16

9/16"X18

32

10.5

19

19

PN310

2J9-08

3/4"X16

3/4"X16

32

11

19

24

PN310

2J9-08-10

3/4"X16

7/8"X14

32

13

19

27

PN240

2J9-10

7/8"X14

7/8"X14

37.8

13

22

27

PN240

2J9-10-08

7/8"X14

3/4"X16

37.8

11

22

24

PN240

2J9-10-12

7/8"X14

1.1/16"X12

39.5

15

24

32

PN240

2J9-12

1.1/16"X12

1.1/16"X12

44.2

15

27

32

PN240

2J9-12-10

1.1/16"X12

7/8"X14

44.2

13

27

27

PN240

2J9-12-16

1.1/16"X12

1.5/16"X12

46

16

30

41

PN210

2J9-14

1.3/16"X12

1.3/16"X12

47.5

15

30

36

PN210

2J9-16

1.5/16"X12

1.5/16"X12

48.8

16

33

41

PN210

2J9-16-20

1.5/16"X12

1.5/8"X12

54

17

41

50

PN170

2J9-20-16

1.5/8"X12

1.5/16"X12

55.5

16

41

41

PN170

2J9-20

1.5/8"X12

1.5/8"X12

55.5

17

41

50

PN170

2J9-20-24

1.5/8"X12

1.7/8"X12

59.5

20

48

55

PN140

2J9-24-20

1.7/8"X12

1.5/8"X12

62.5

17

48

50

PN140

2J9-24

1.7/8"X12

1.7/8"X12

62.5

20

48

55

PN140

2J9-32

2.1/2"X12

2.1/2"X12

75.5

24.5

63

75

PN105

Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.

2.PN = Nominal Pressure
