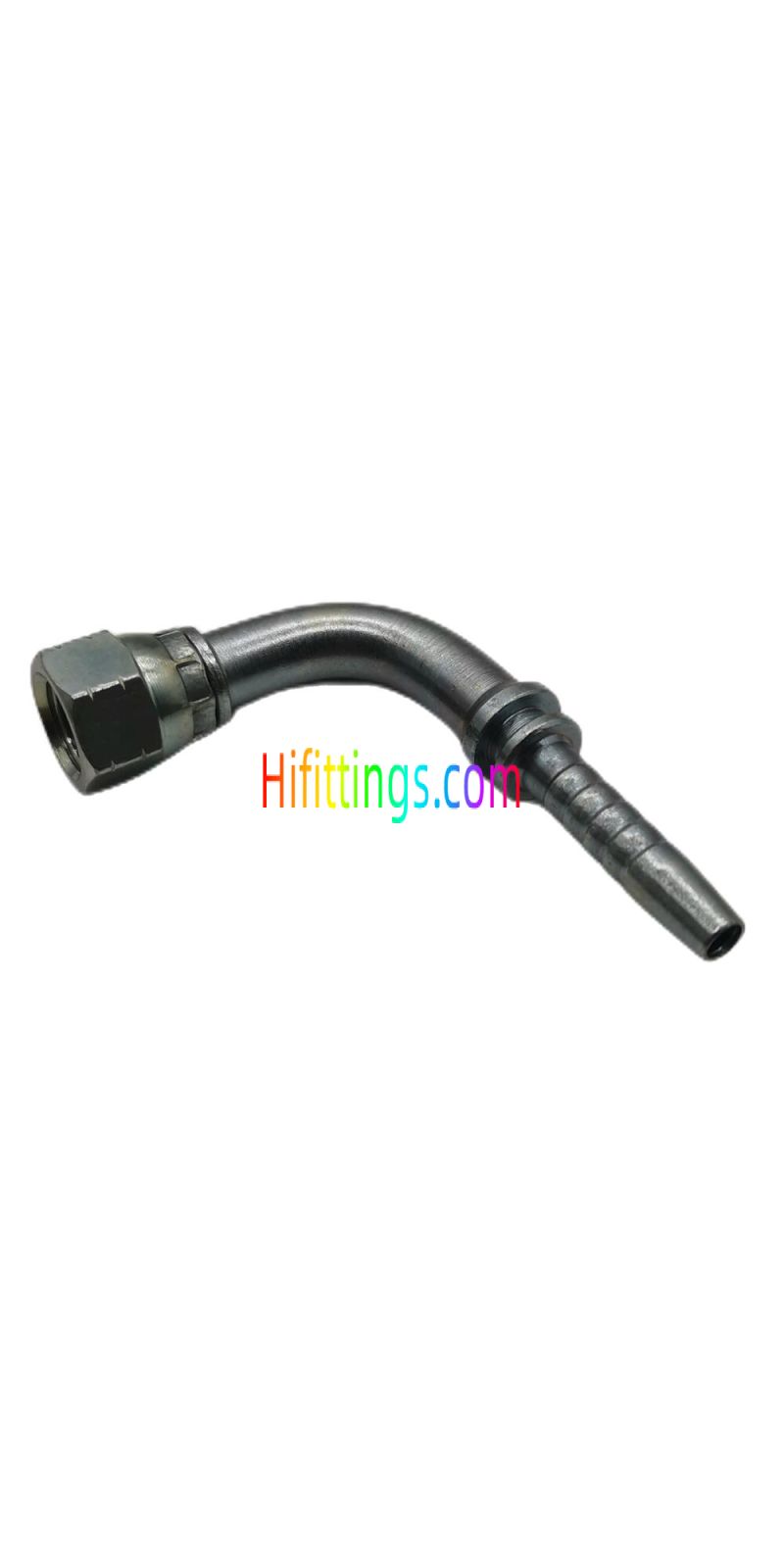

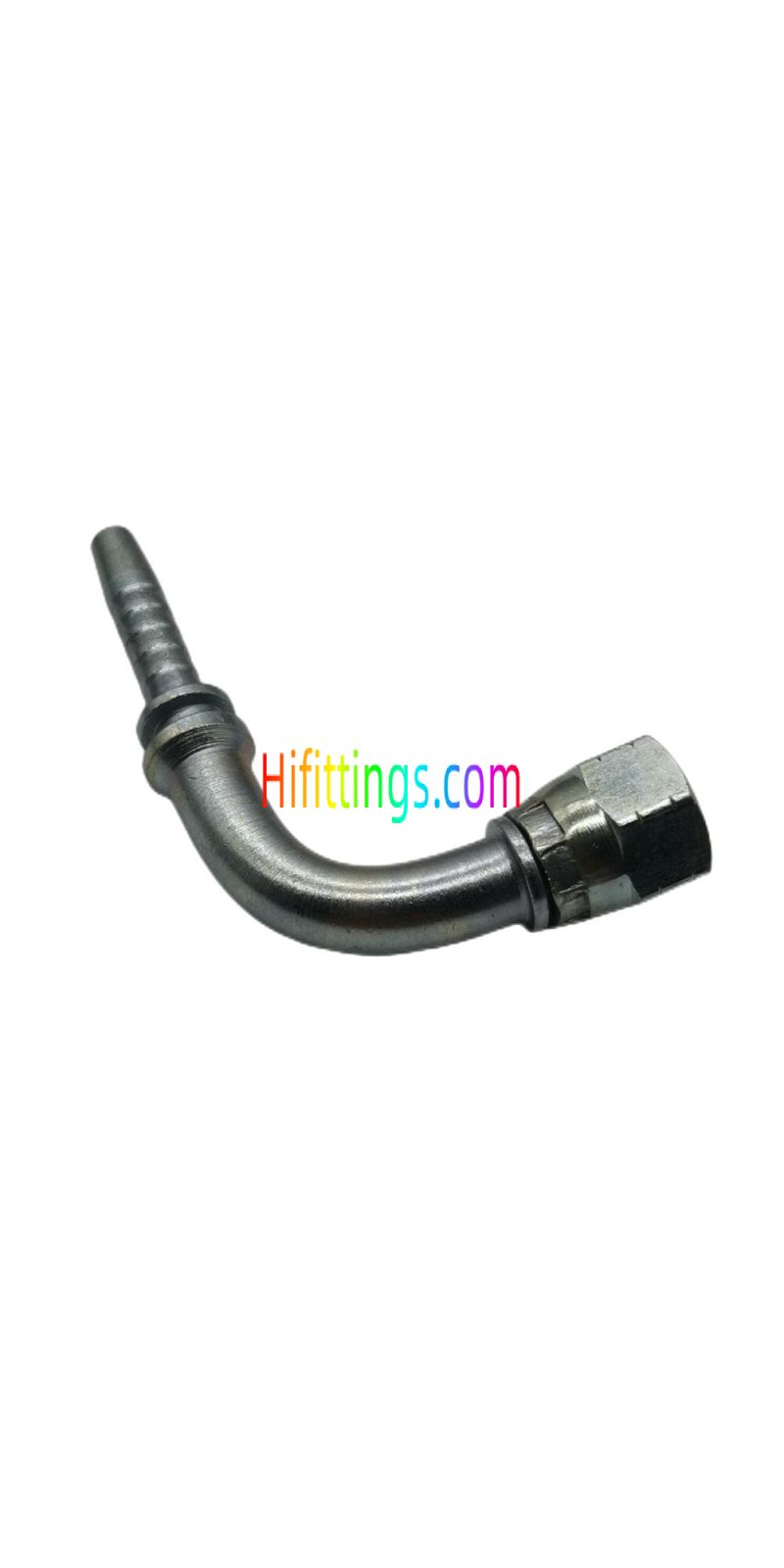

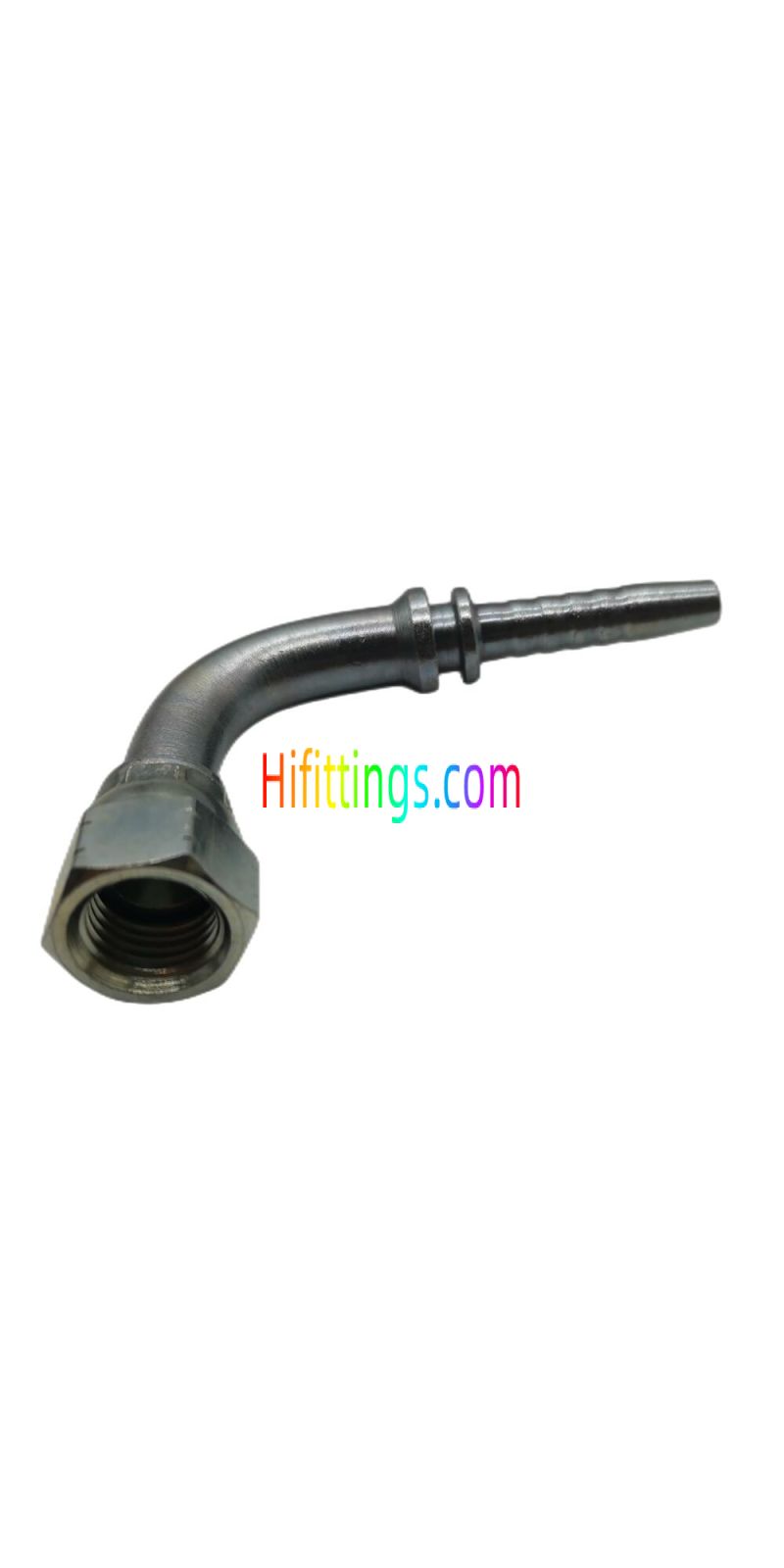

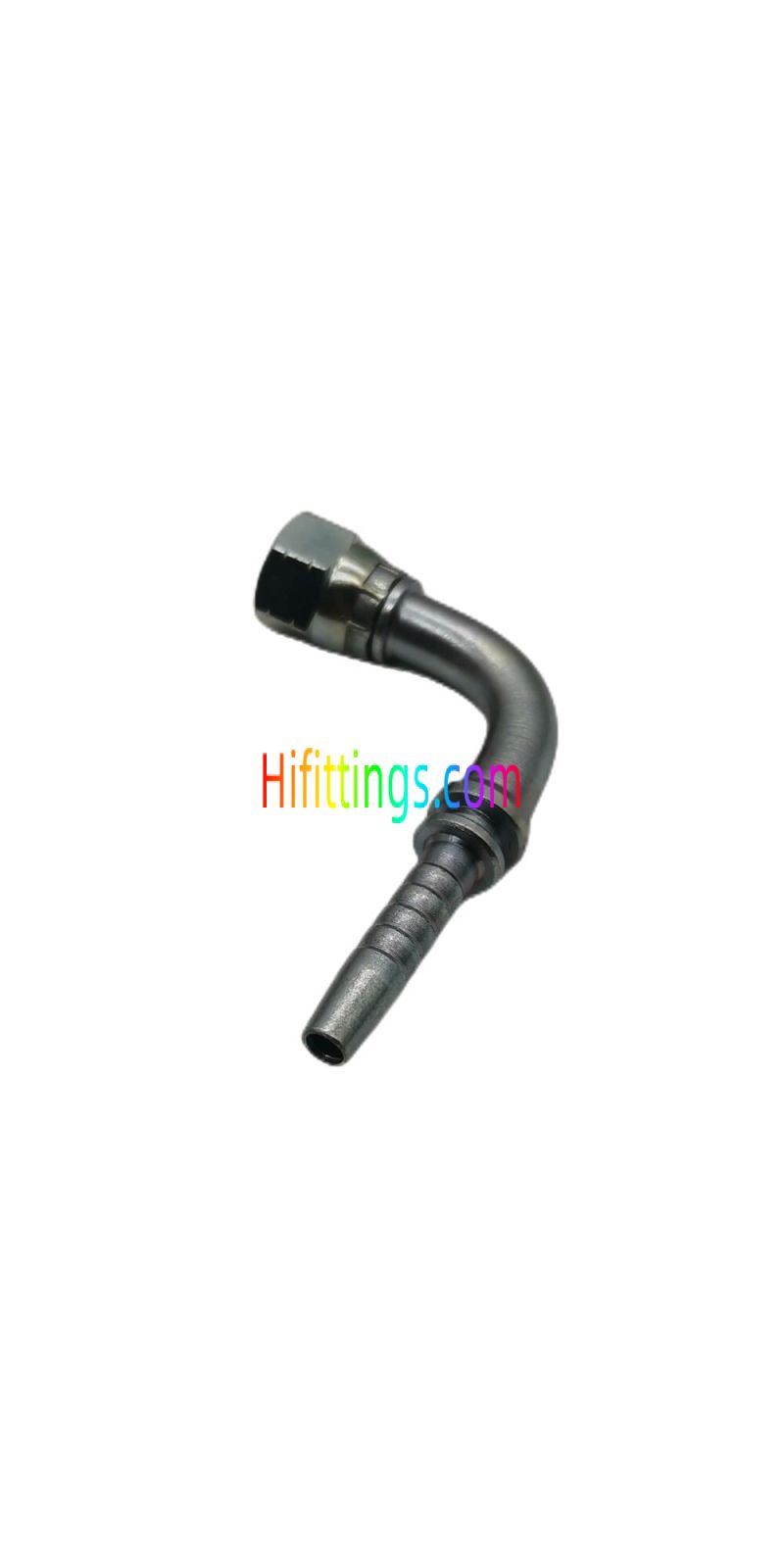

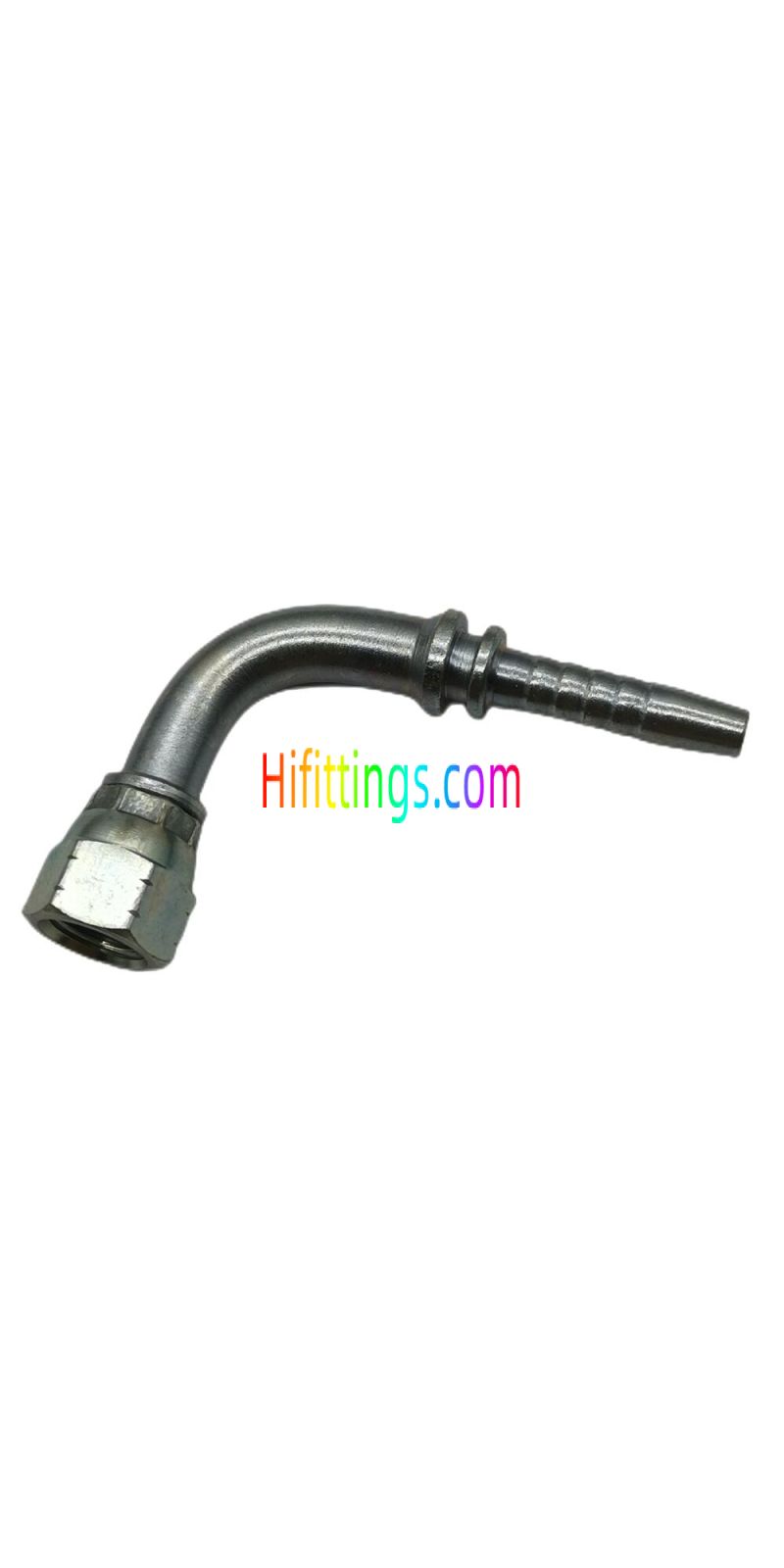

90° Elbow JIC Swivel Female 74° Cone Seat Swaged Hose Fitting 26791

Part NO.

Thread  E

Hose Bore - DN

Hose Bore - Dash

A

C

H

S2

26791-04-03

7/16"X20

5

3

26.5

9

30.5

15

26791-04-04

7/16"X20

6

4

30

9

33.5

15

26791-05-04

1/2"X20

6

4

30

9.5

34

17

26791-05-05

1/2"X20

8

5

33

9.5

37

17

26791-05-06

1/2"X20

10

6

35.3

9.5

39.3

17

26791-06-04

9/16"X18

6

4

30

10.5

34

19

26791-06-05

9/16"X18

8

5

33

10.5

37

19

26791-06-06

9/16"X18

10

6

35.3

10.5

39.3

19

26791-06-08

9/16"X18

12

8

35.8

10.5

39.8

19

26791-08-06

3/4"X16

10

6

35.3

11

41.3

24

26791-08-08

3/4"X16

12

8

41

11

47.5

24

26791-08-10

3/4"X16

16

10

49

11

47.5

24

26791-10-08

7/8"X14

12

8

41

13

48

27

26791-10-10

7/8"X14

16

10

56

13

52.5

27

26791-10-12

7/8"X14

20

12

64.9

13

62

27

26791-12-08

1.1/16"X12

12

8

41

15

49.5

32

26791-12-10

1.1/16"X12

16

10

56

15

54

32

26791-12-12

1.1/16"X12

20

12

65.5

15

63.5

32

26791-12-16

1.1/16"X12

25

16

74

15

63.5

32

26791-14-12

1.3/16"X12

20

12

65.5

15

63.5

36

26791-16-12

1.5/16"X12

20

12

65.5

16

63.5

41

26791-16-16

1.5/16"X12

25

16

76.7

16

70

41

26791-20-20W

1.5/8"X12

32

20

91.5

17

80.5

50

26791-24-20W

1.7/8"X12

32

20

91.5

20

80.5

55

26791-24-24W

1.7/8"X12

40

24

109.4

20

94

55

26791-32-32W

2.1/2"X12

50

32

133.1

23.5

121.8

75

Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is26792-XX-XX
