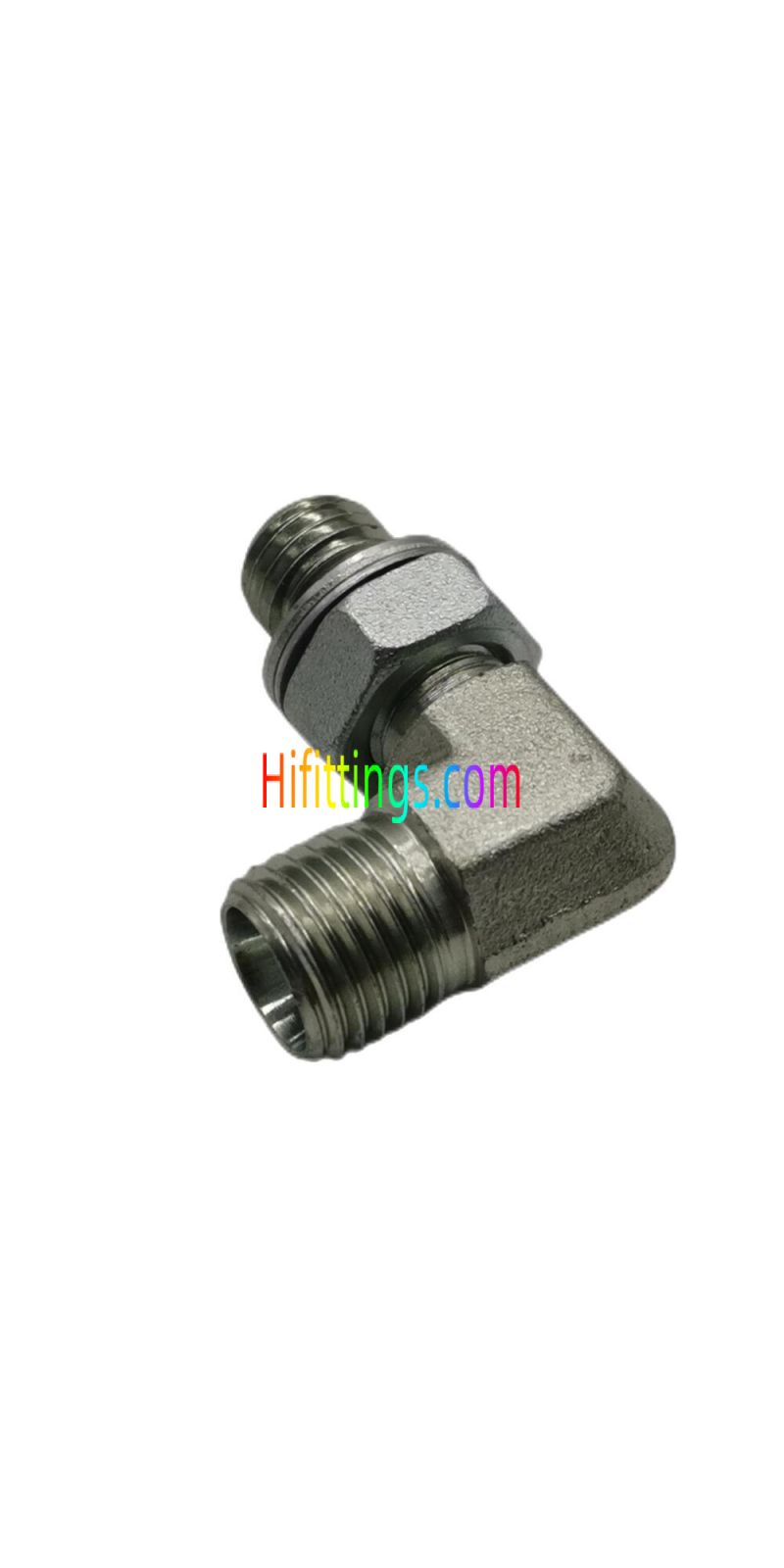

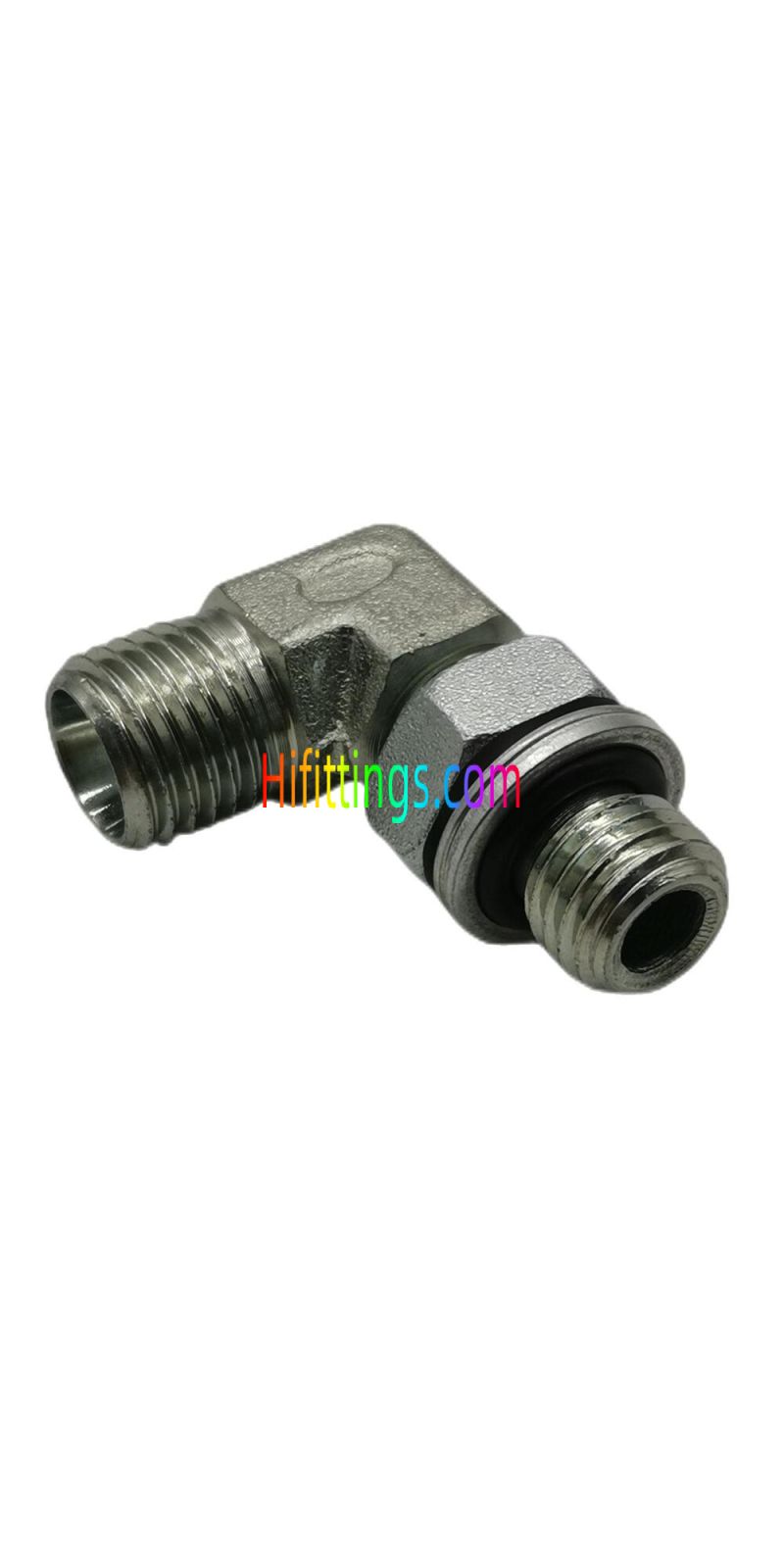

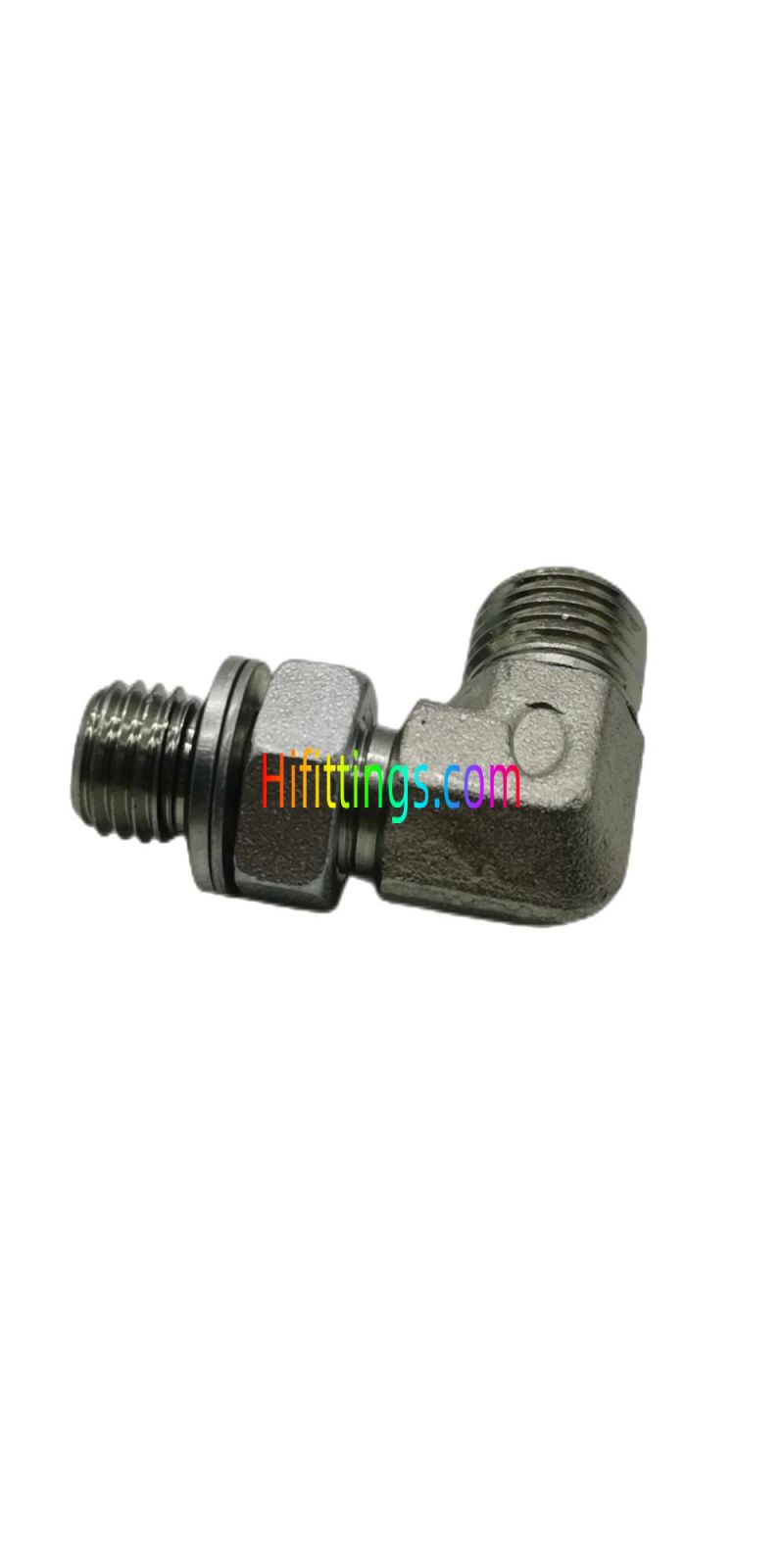

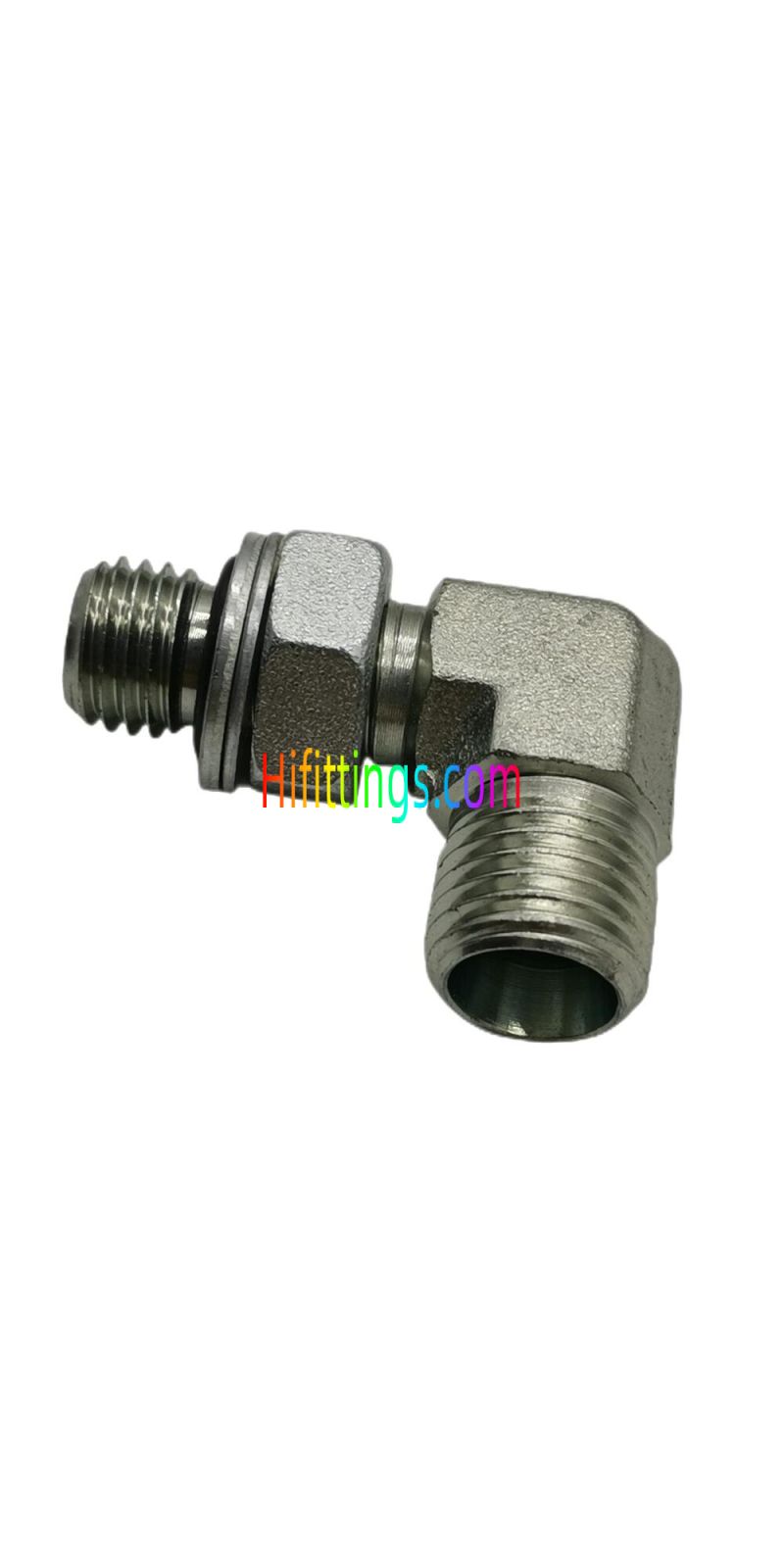

90° Elbow Metric Male Adjustable Stud End Bite Type Tube Fittings 1CH9-OG/1DH9-OG

Add to Wish List
43
In stock
Only %1 left
SKU
1CH9

Guarantee safe & secure checkout

No Related Posts

90° Elbow Metric Male Adjustable Stud End  ISO 6149 Bite Type Tube Fitting 1CH9-OG/1DH9-OG- hifittings.com90° Elbow Metric Male Adjustable Stud End  ISO 6149 Bite Type Tube Fitting 1CH9-OG/1DH9-OG- hifittings.com
90° Elbow Metric Male Adjustable Stud End ISO 6149 Bite Type Tube Fitting 1CH9-OG/1DH9-OG

Part  NO.

E

F

D1

O-Ring

11

L1

L2

S1

S2

S3

Working Pressure bar

1CH9-12-10OG

M12X1.5

M10X1

6

8.1X1.6

13

28

26.5

11

14

14

PN315

1CH9-14-12OG

M14X1.5

M12X1.5

8

9.3X2.4

15.5

30.5

32

14

17

17

PN315

1CH9-16-14OG

M16X1.5

M14X1.5

10

11.3X2.4

17.5

32.5

34

16

19

19

PN315

1CH9-18-16OG

M18X1.5

M16X1.5

12

13.3X2.4

19

34

36

19

22

22

PN315

1CH9-22-18OG

M22X1.5

M18X1.5

15

15.3X2.4

22

37

39.5

22

27

24

PN315

1CH9-26-22OG

M26X1.5

M22X1.5

18

19.3X2.4

25.5

42

43.5

27

32

27

PN315

1CH9-30-27OG

M30X2

M27X2

22

23.5X3.0

29.3

45.8

50

30

36

32

PN160

1CH9-36-33OG

M36X2

M33X2

28

29.5X30

33.3

49.8

54

36

41

41

PN160

1DH9-14-12OG

M14X1.5

M12X1.5

6

9.3X2.4

17.5

32.5

32

14

17

17

PN630

1DH9-16-14OG

M16X1.5

M14X1.5

8

11.3X2.4

18.7

33.7

34

16

19

19

PN630

1DH9-18-16OG

M18X1.5

M16X1.5

10

13.3X2.4

19.5

36

36

19

22

22

PN630

1DH9-20-18OG

M20X1.5

M18X1.5

12

15.3X2.4

19.5

36

37

19

24

24

PN630

1DH9-22-20OG

M22X1.5

M20X1.5

14

17.3X2.4

23

41

40

22

27

27

PN630

1DH9-24-22OG

M24X1.5

M22X1.5

16

19.3X2.4

24

42

37.5

24

30

27

PN630

1DH9-30-27OG

M30X2

M27X2

20

23.5X3.0

28.3

49.8

50

30

36

32

PN400

1DH9-36-33OG

M36X2

M33X2

25

29.5X3.0

32.8

56.8

54

36

46

41

PN400

1DH9-42OG

M42X2

M42X2

30

38.5X3.0

36.2

62.7

57.2

41

50

50

PN400

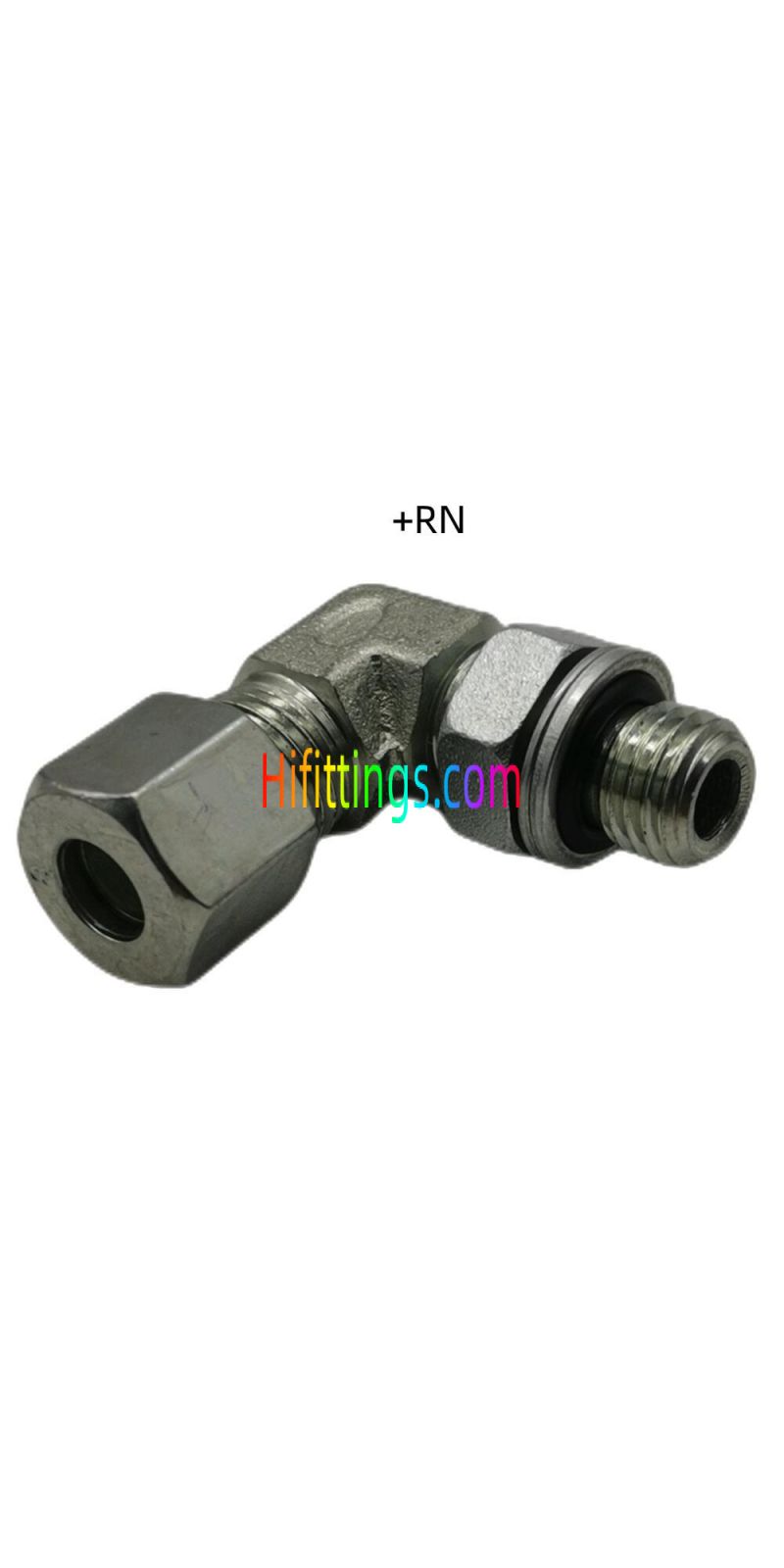

Note: 1.  In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 1CH9-30-27OG/RN.   2. PN = Nominal Pressure

More Information
Shape Elbow
Thread Type Male
Connection Type Metric
Fitting Type Bite Type
