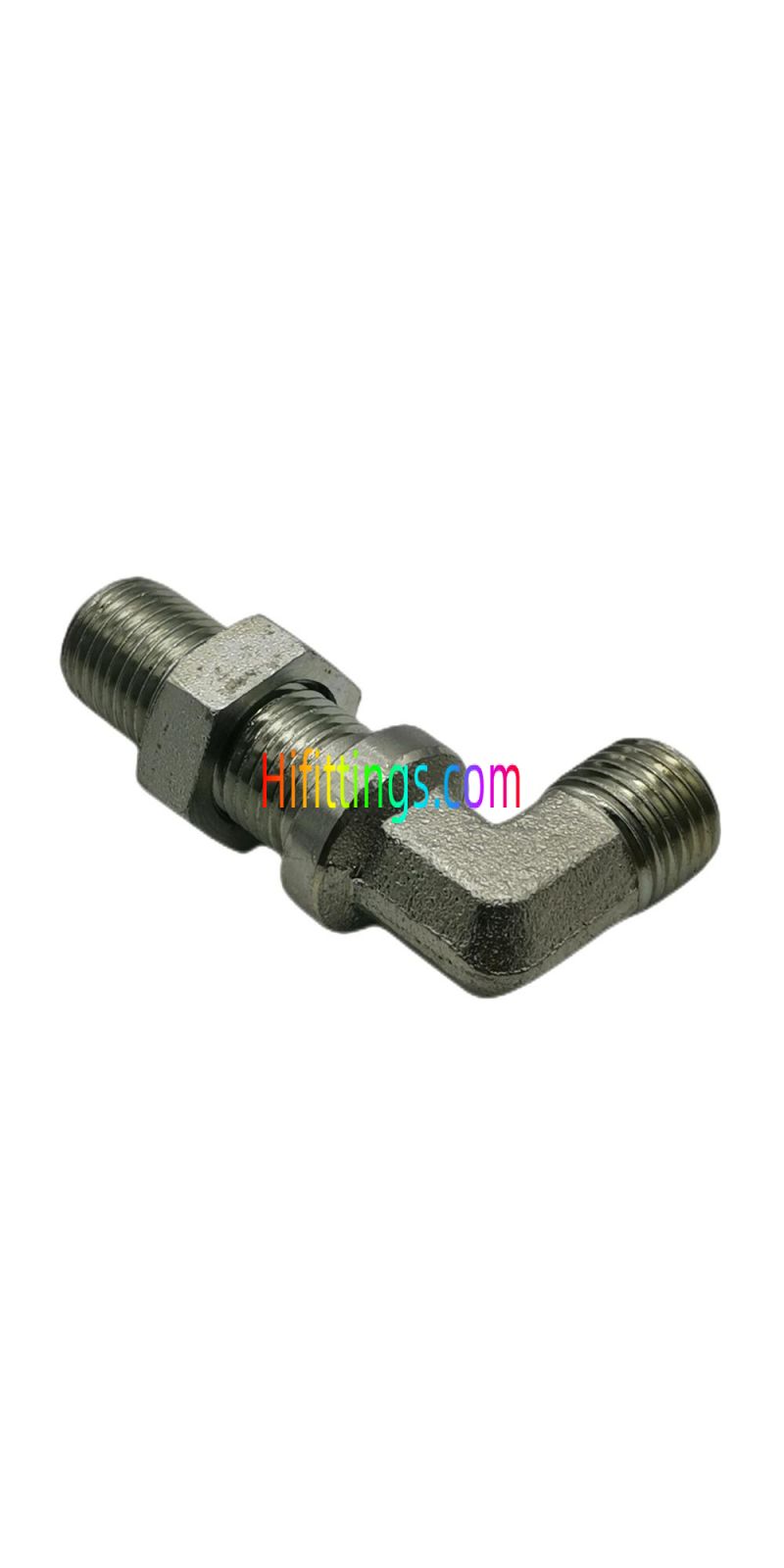

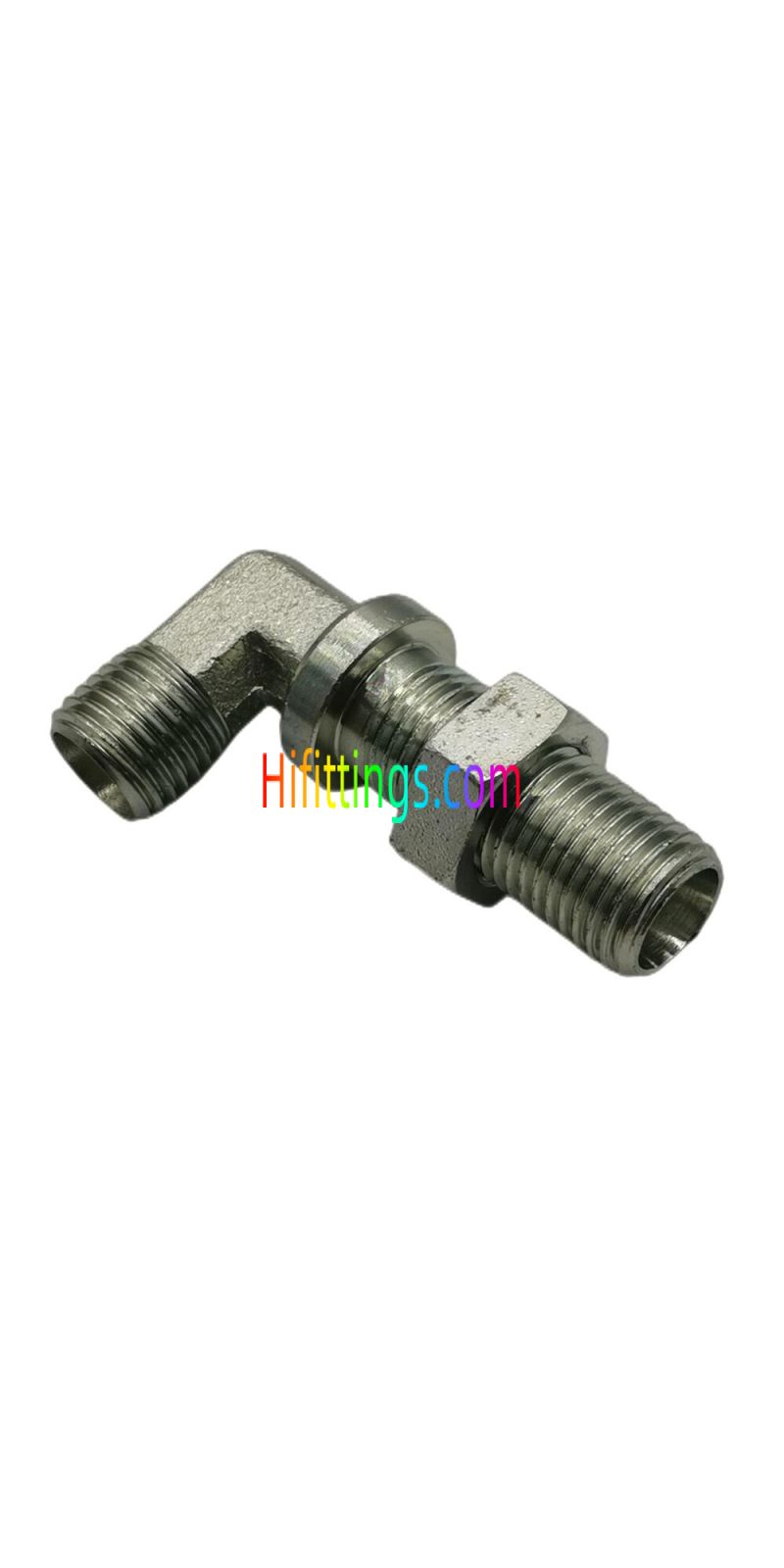

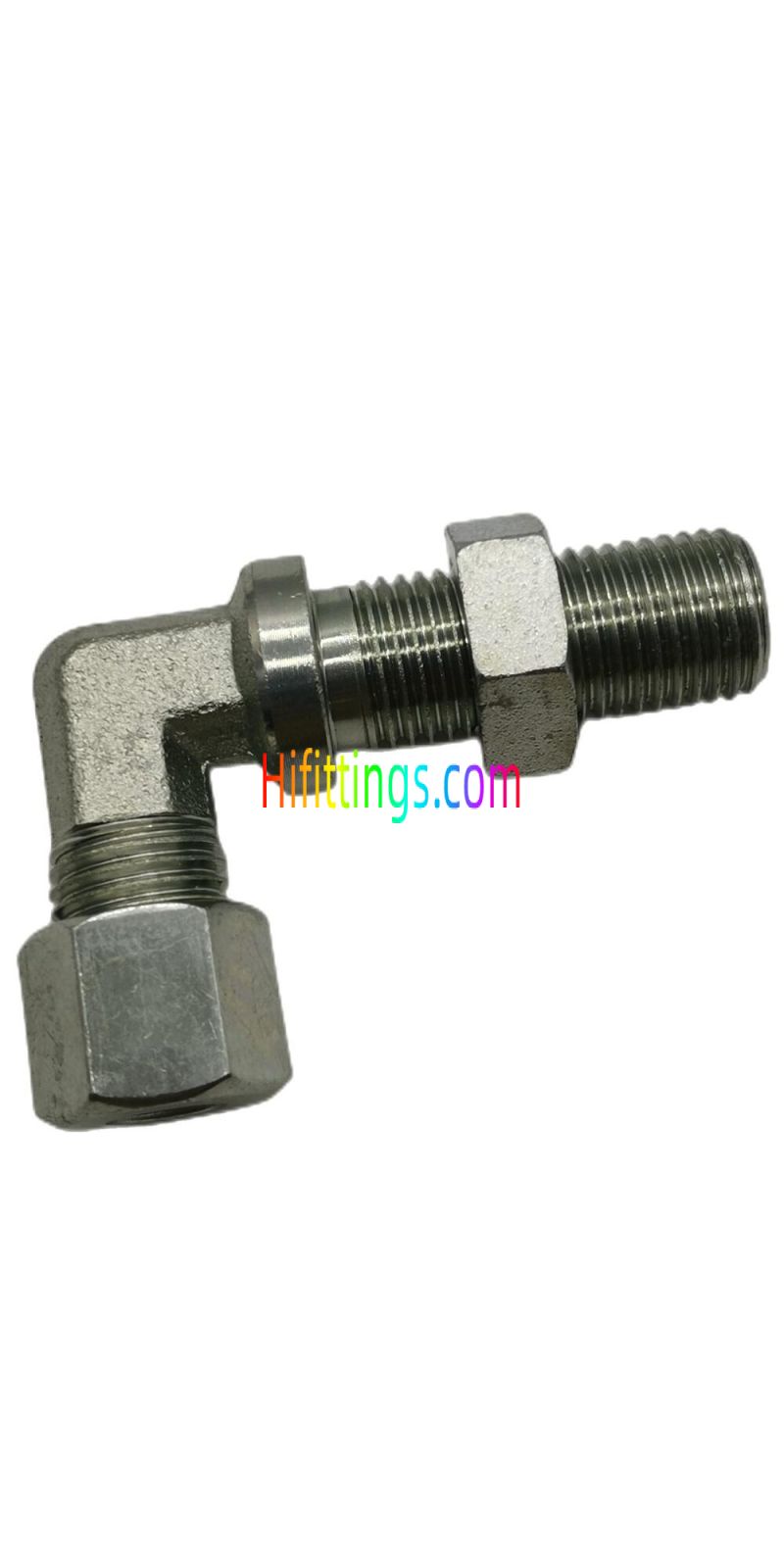

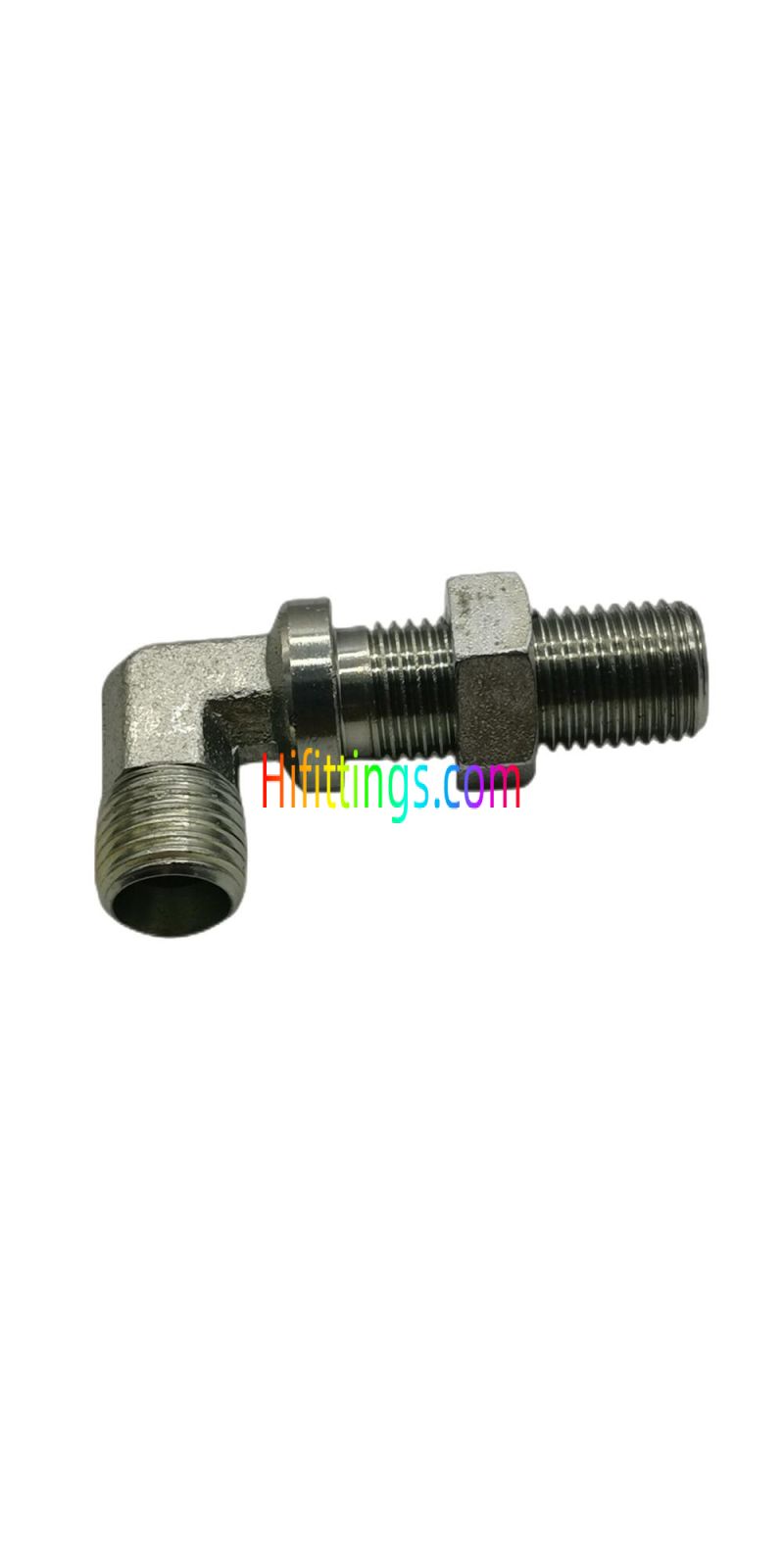

90° Elbow Metric Male Bite Type Bulkhead Tube Fittings 6C9/6D9

Part  NO.

E

F

D1

D2

11

l2

l3

L1

L2

S1

S2.S3

S4

Working Pressure  bar

6C9-12

M12X1.5

M12X1.5

6

6

27

12

14

42

27

12

14

17

PN315

6C9-14

M14X1.5

M14X1.5

8

8

27

14

17

42

29

12

17

19

PN315

6C9-16

M16X1.5

M16X1.5

10

10

28

15

18

43

30

14

19

22

PN315

6C9-18

M18X1.5

M18X1.5

12

12

29

17

20

44

32

17

22

24

PN315

6C9-22

M22X1.5

M22X1.5

15

15

31

21

23

46

36

19

27

30

PN315

6C9-26

M26X1.5

M26X1.5

18

18

32.5

23.5

24

49

40

24

32

36

PN315

6C9-30

M30X2

M30X2

22

22

34.5

27.5

30

51

44

27

36

41

PN160

6C9-36

M36X2

M36X2

28

28

35.5

30.5

34

52

47

36

41

46

PN160

6C9-45

M45X2

M45X2

35

35

36.5

34.5

39

58

56

41

50

55

PN160

6C9-52

M52X2

M52X2

42

42

36

40

43

59

63

50

60

65

PN160

6D9-14

M14X1.5

M14X1.5

6

6

29

16

17

44

31

12

17

19

PN630

6D9-16

M16X1.5

M16X1.5

8

8

29

17

18

44

32

14

19

22

PN630

6D9-18

M18X1.5

M18X1.5

10

10

29.5

17.5

20

46

34

17

22

24

PN630

6D9-20

M20X1.5

M20X1.5

12

12

30.5

21.5

21

47

38

17

24

27

PN630

6D9-22

M22X1.5

M22X1.5

14

14

32

22

23

50

40

19

27

30

PN630

6D9-24

M24X1.5

M24X1.5

16

16

31.5

24.5

24

50

43

24

30

32

PN400

6D9-30

M30X2

M30X2

20

20

33.5

26.5

30

55

48

27

36

41

PN400

6D9-36

M36X2

M36X2

25

25

35

30

34

59

54

36

46

46

PN400

6D9-42

M42X2

M42X2

30

30

37.5

35.5

39

64

62

41

50

50

PN400

6D9-52

M52X2

M52X2

38

38

37

41

43

68

72

50

60

65

PN315

Note: 1.  In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part NO., for example 6C9-30LN,order the adapter with cutting ring and nut,insert suffix "RN" after part NO.,for example 6C9-30RN. 2. PN = Nominal Pressure
