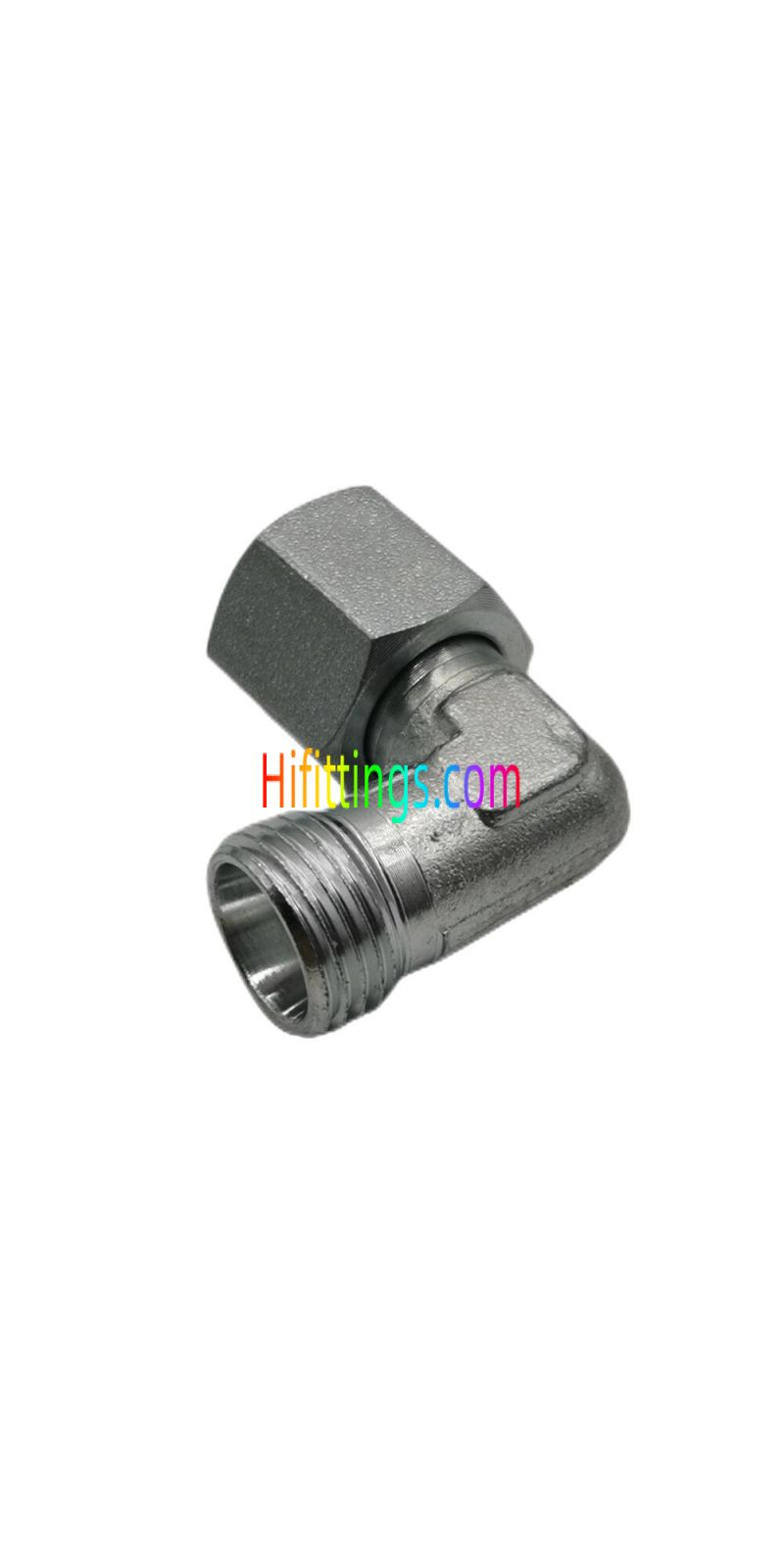

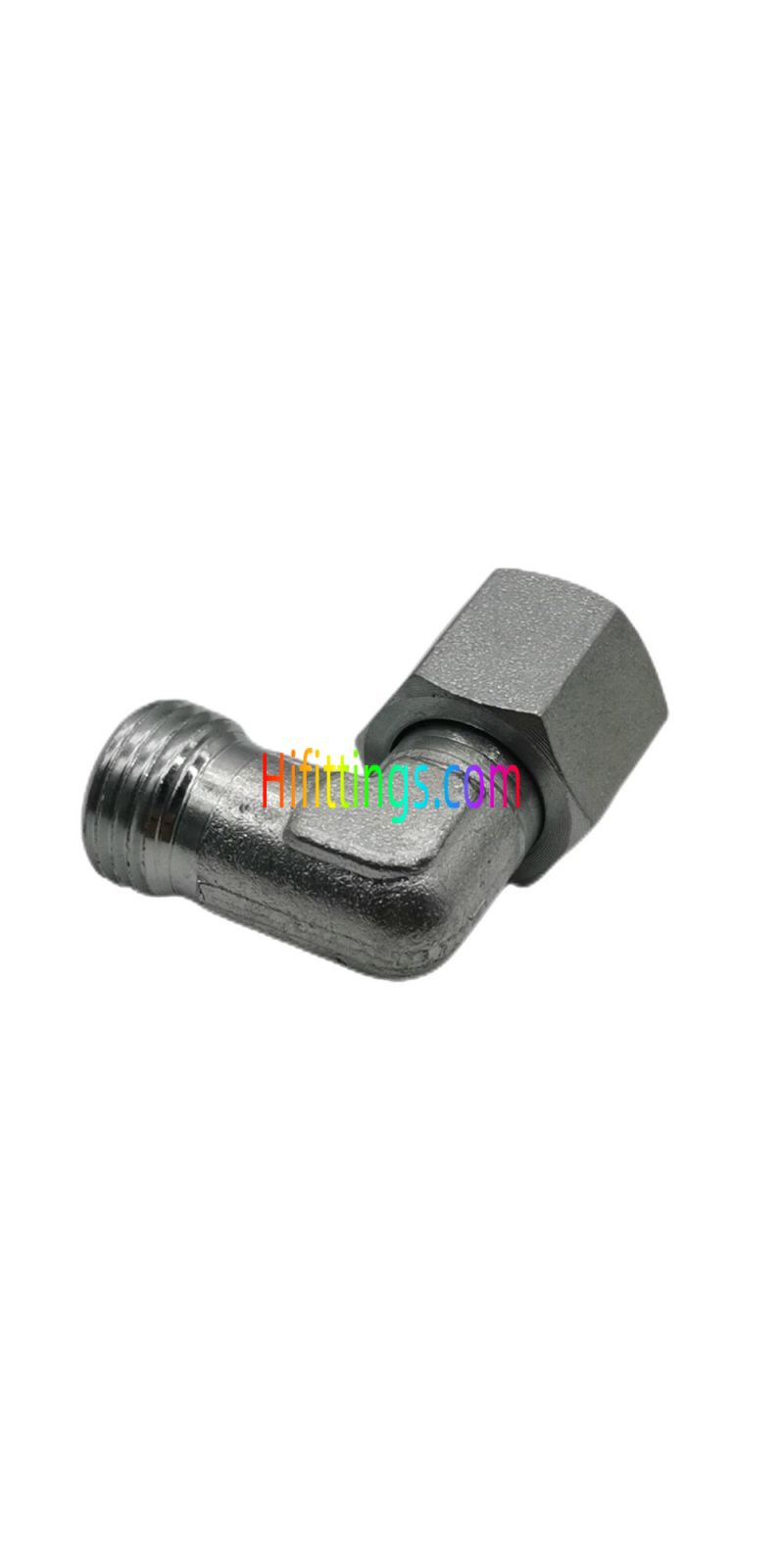

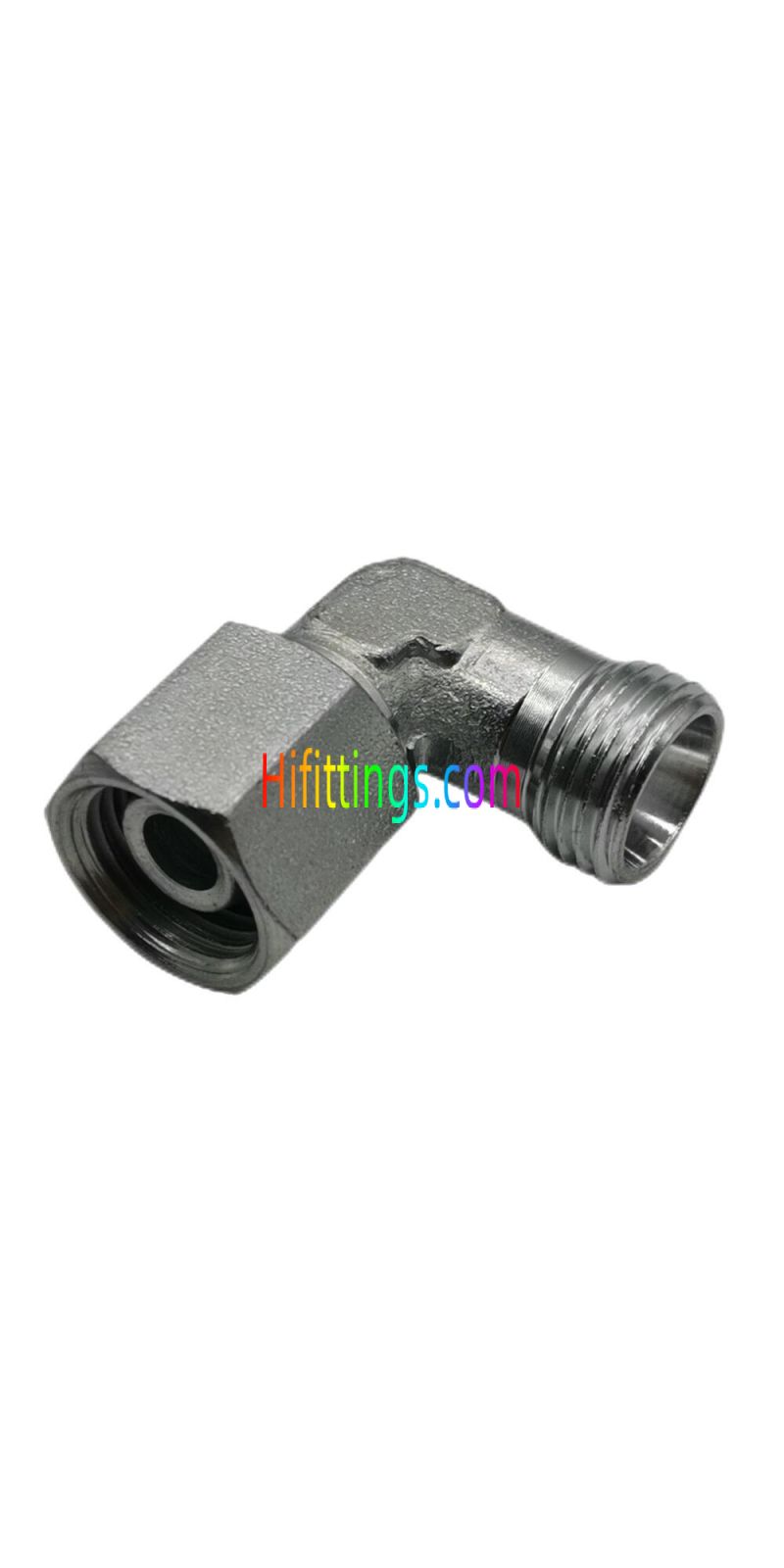

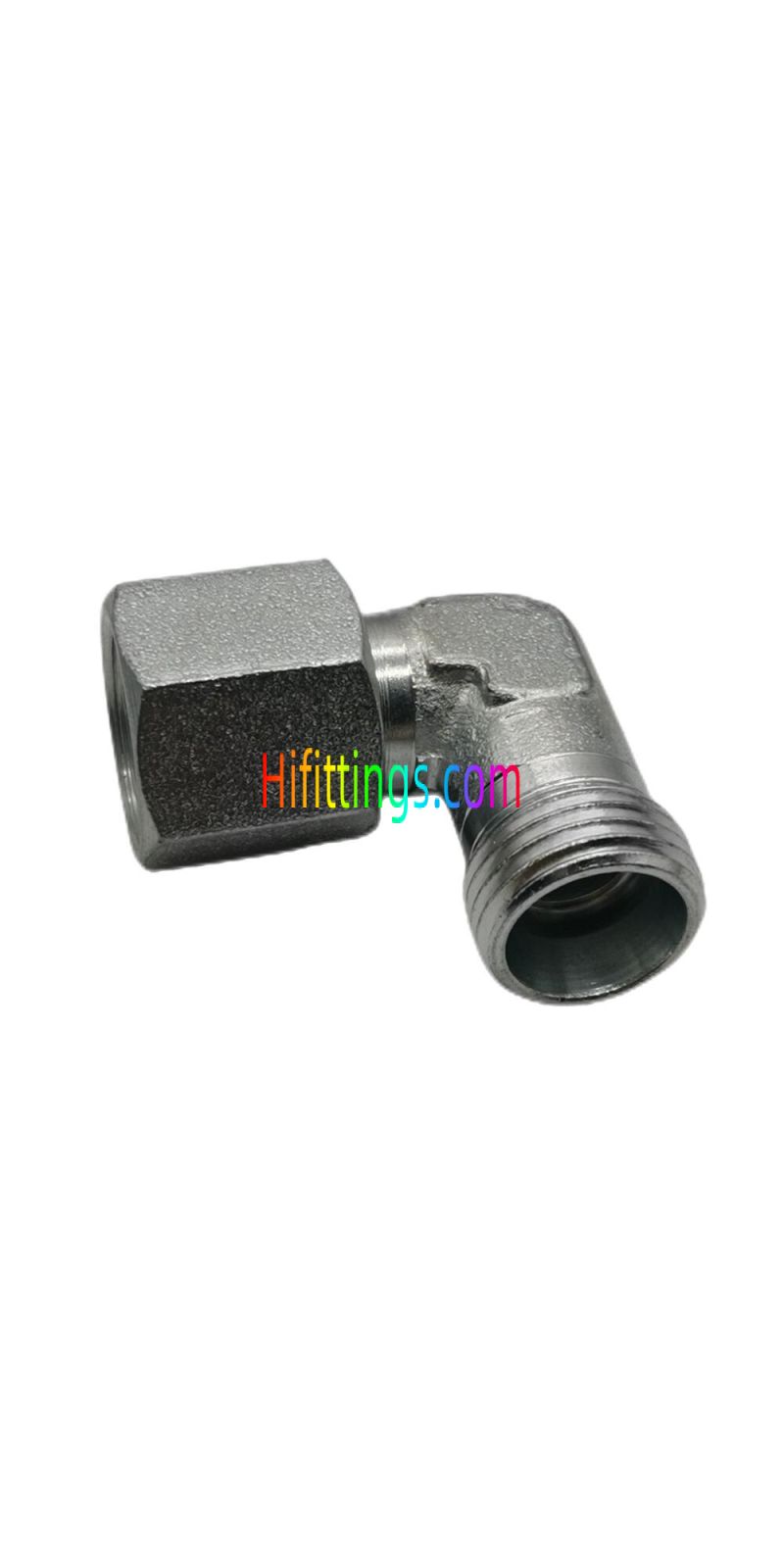

90° Elbow Metric Male Metric Female Reducer Adaptor Swivel Tube Fittings 2C9/2D9

Part  No.

E

F

D1

D2

11

L1

L2

S1

S2

S3

Working Pressure bar

2C9-12

M12X1.5

M12X1.5

6

6

12

27

26

12

14

14

PN250

2C9-14

M14X1.5

M14X1.5

8

8

14

29

27.5

12

17

17

PN250

2C9-16

M16X1.5

M16X1.5

10

10

15

30

29

14

19

19

PN250

2C9-18

M18X1.5

M18X1.5

12

12

17

32

29.5

17

22

22

PN250

2C9-22

M22X1.5

M22X1.5

15

15

21

36

32.5

19

27

27

PN250

2C9-26

M26X1.5

M26X1.5

18

18

23.5

40

35.5

24

32

32

PN250

2C9-30

M30X2

M30X2

22

22

27.5

44

38.5

27

36

36

PN160

2C9-36

M36X2

M36X2

28

28

30.5

47

41.5

36

41

41

PN160

2C9-45

M45X2

M45X2

35

35

34.5

56

51

41

50

50

PN160

2C9-52

M52X2

M52X2

42

42

40

63

56

50

60

60

PN160

2D9-14

M14X1.5

M14X1.5

6

6

16

31

27

12

17

17

PN630

2D9-16

M16X1.5

M16X1.5

8

8

17

32

27.5

14

19

19

PN630

2D9-18

M18X1.5

M18X1.5

10

10

17.5

34

30

17

22

22

PN630

2D9-20

M20X1.5

M20X1.5

12

12

21.5

38

31

17

24

24

PN630

2D9-22

M22X1.5

M22X1.5

14

14

22

40

35

19

27

27

PN630

2D9-24

M24X1.5

M24X1.5

16

16

24.5

43

36.5

24

30

30

PN400

2D9-30

M30X2

M30X2

20

20

265

48

44.5

27

36

36

PN400

2D9-36

M36X2

M36X2

25

25

30

54

50

36

46

46

PN400

2D9-42

M42X2

M42X2

30

30

35.5

62

55

41

50

50

PN400

2D9-52

M52X2

M52X2

38

38

41

72

63

50

60

60

PN315

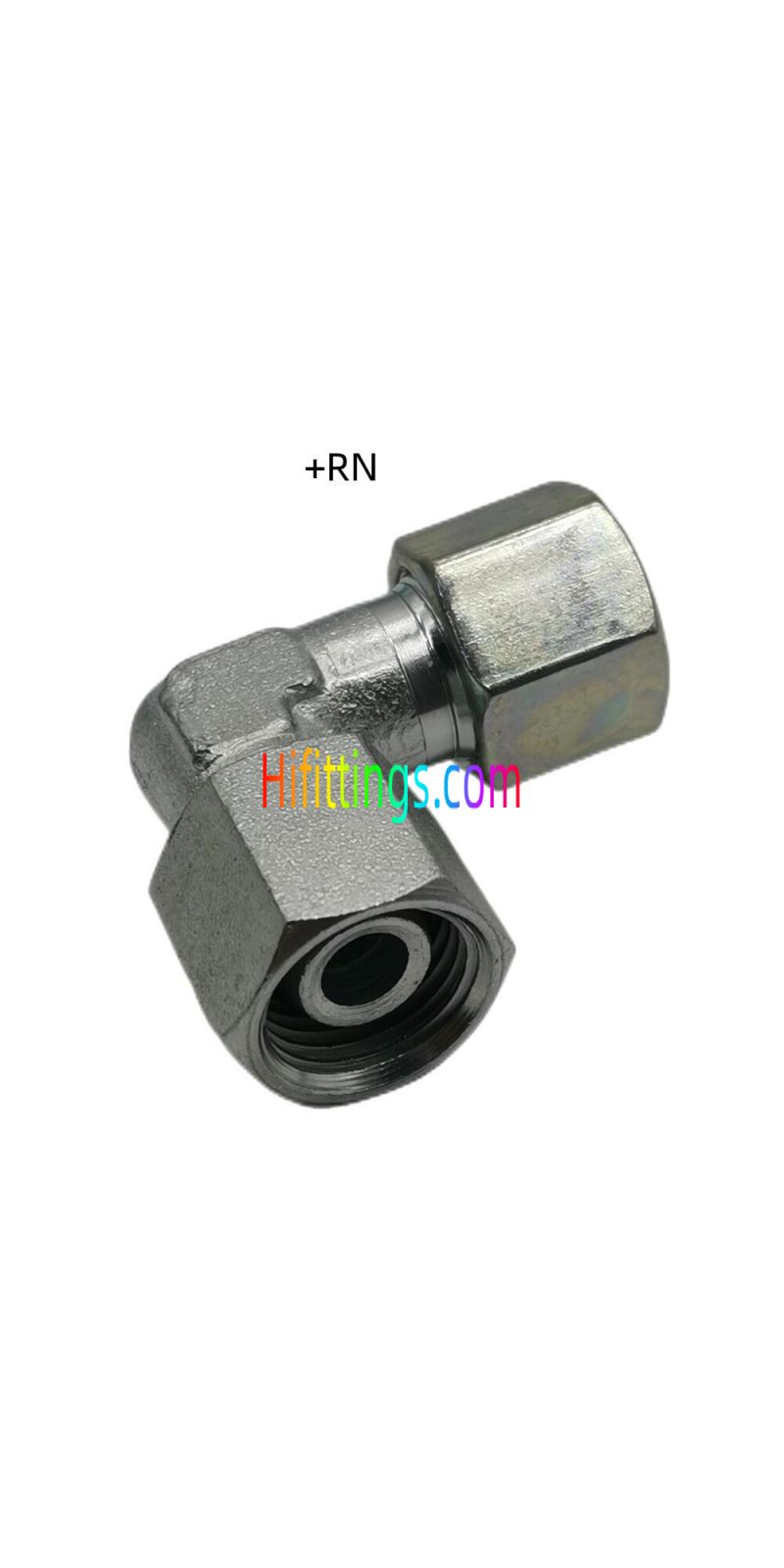

Note: 1.  In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 2C9-30RN.   2. PN = Nominal Pressure
