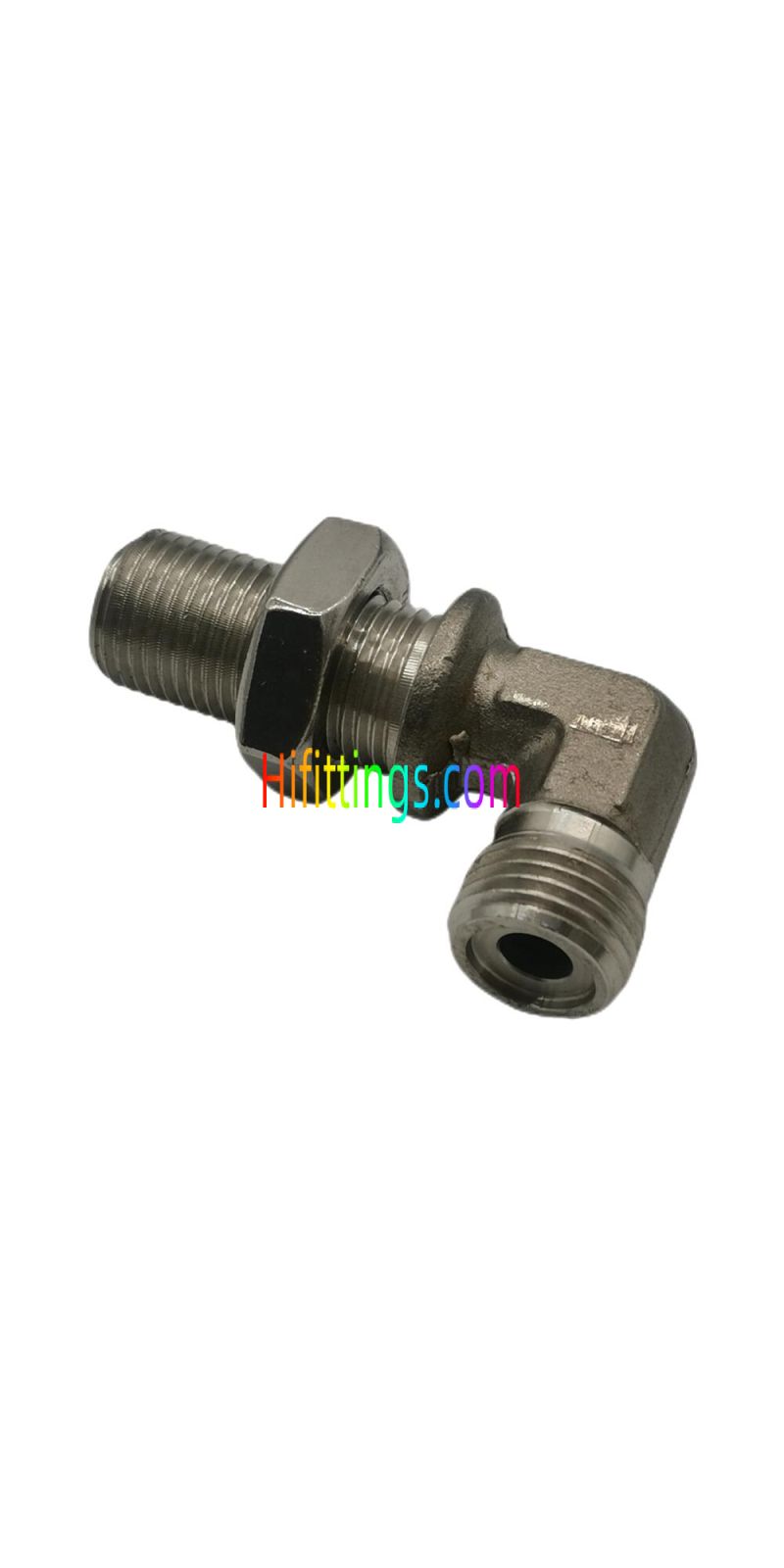

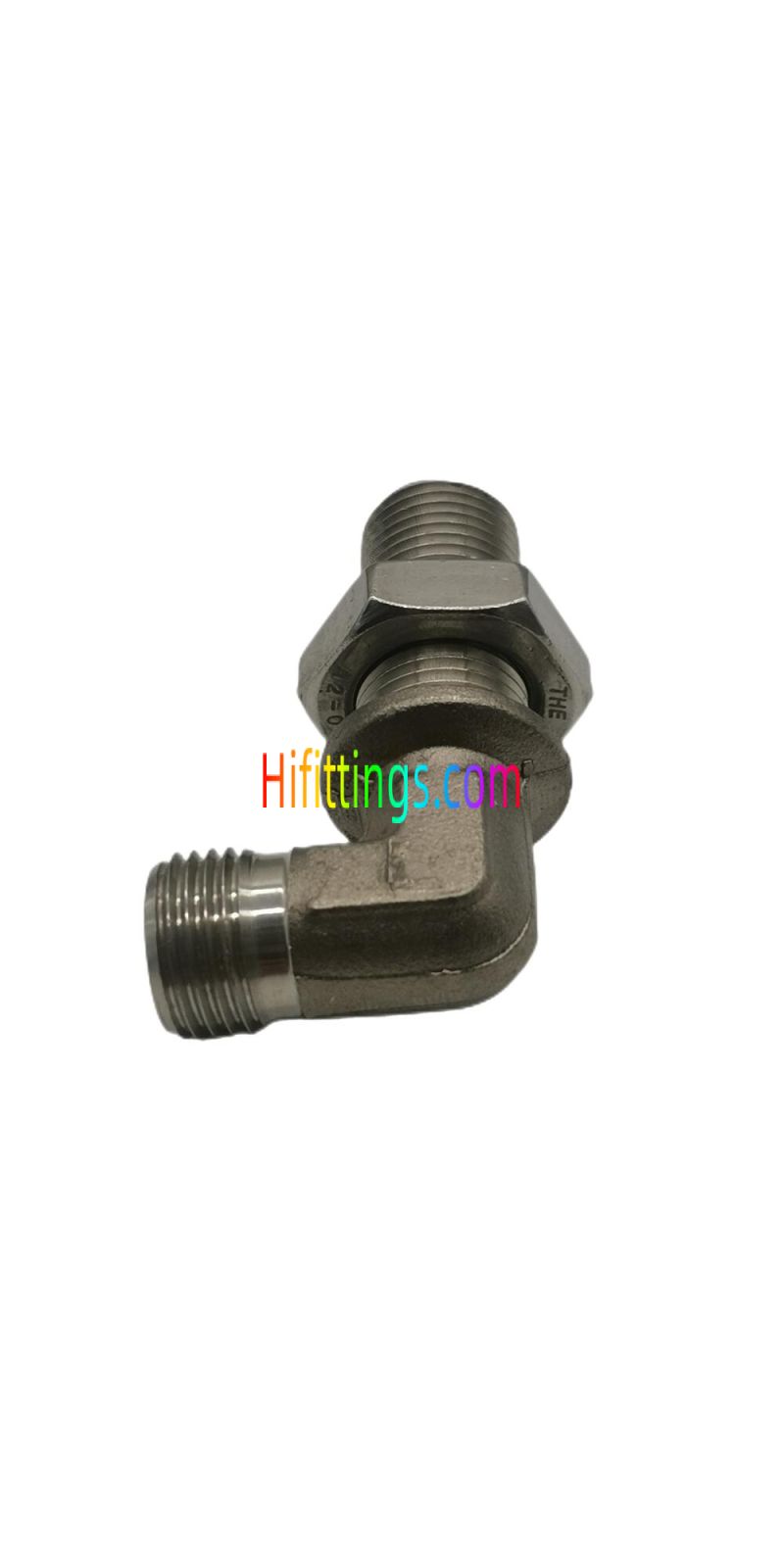

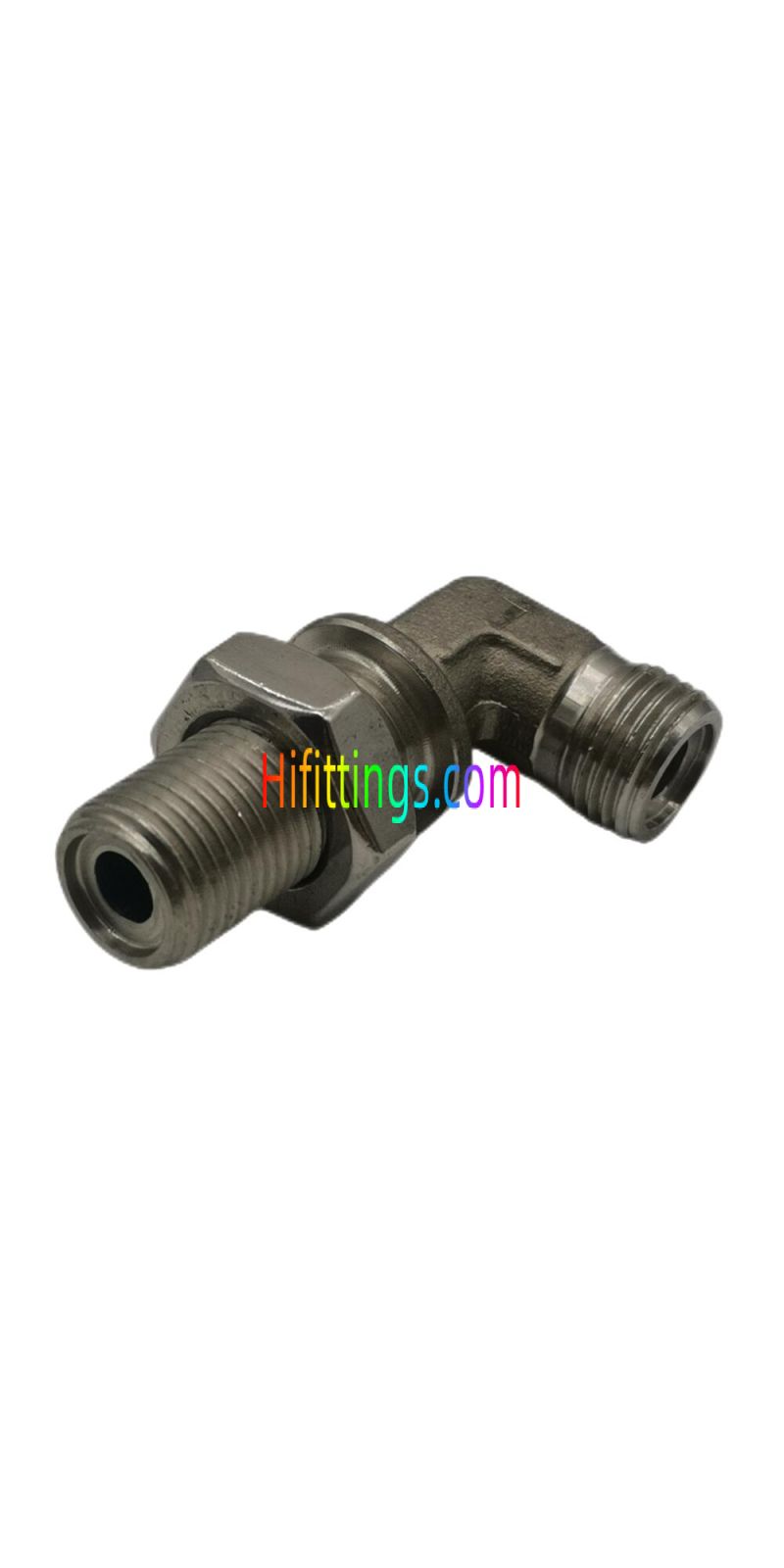

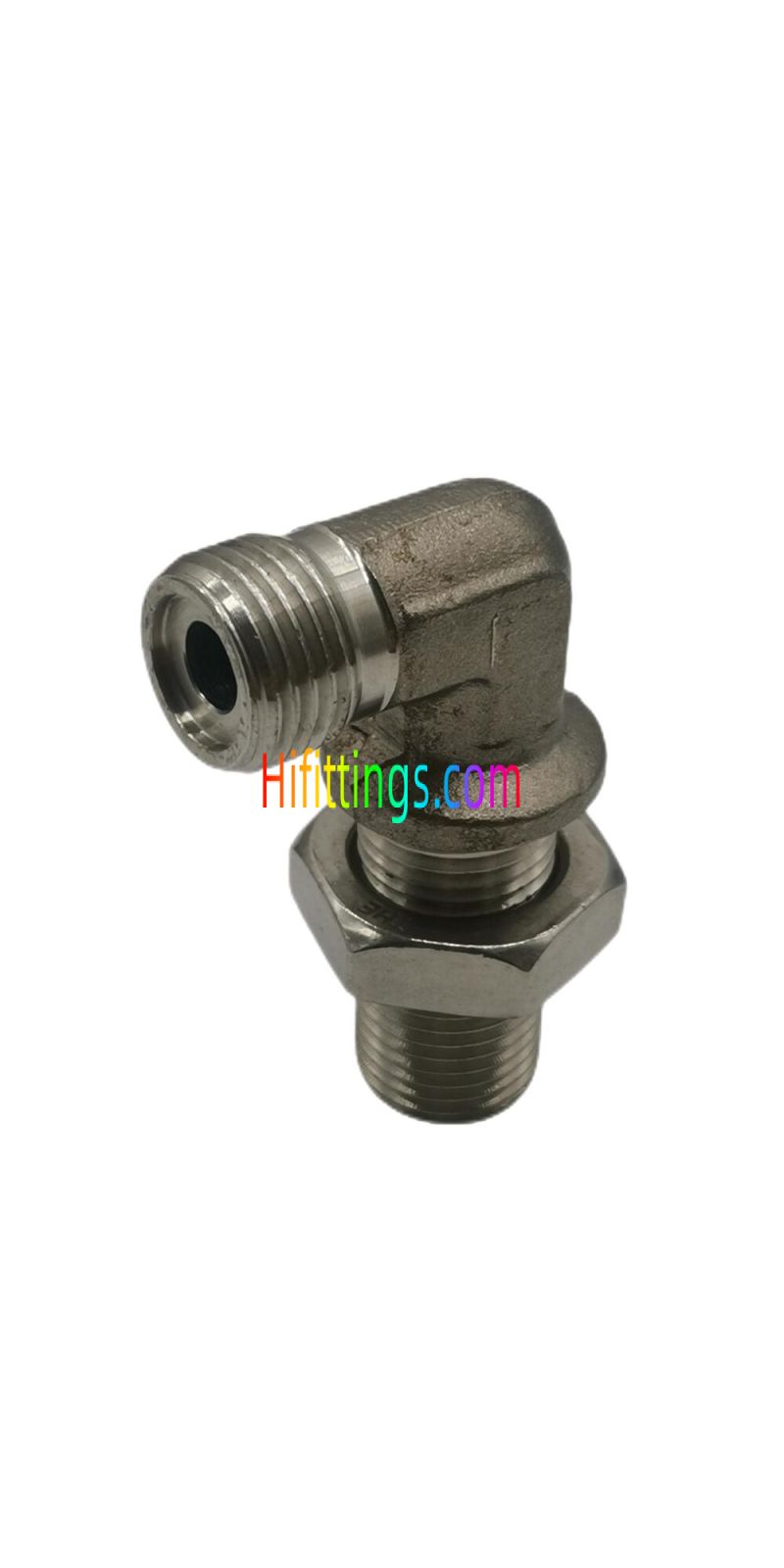

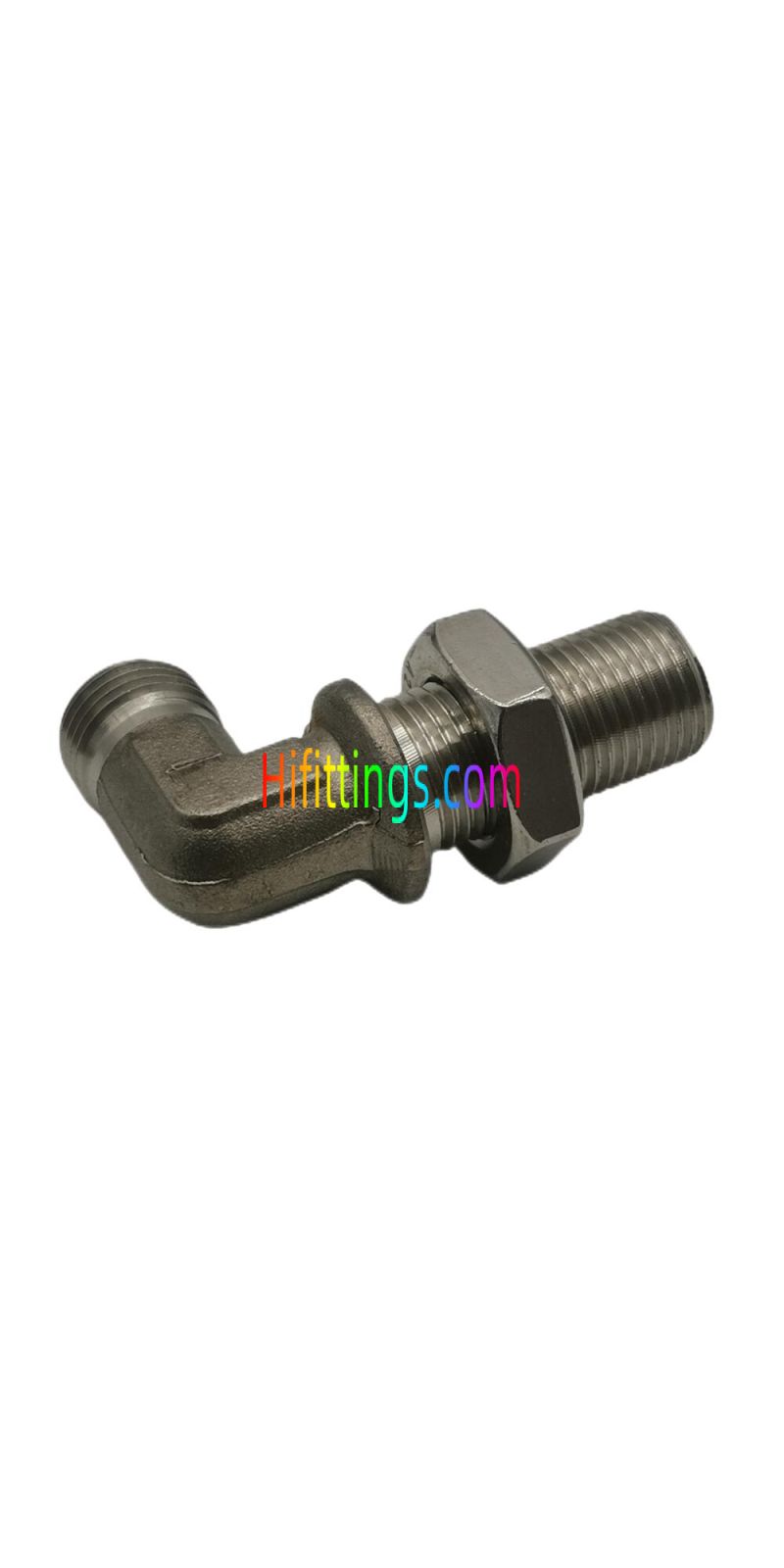

90° Elbow Metric Male O-Ring Face Seal Bulkhead Fittings 6E9
|
Part NO. |
E ,F |
O-Ring - E ,F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
6E9-12 |
M12X1.25 |
8X1.9 |
20.5 |
44.5 |
12 |
17 |
PN630 |
|
6E9-14 |
M14X1.5 |
10X1.9 |
22.5 |
46.5 |
14 |
19 |
PN630 |
|
6E9-16 |
M16X1.5 |
11X1.9 |
24 |
48 |
17 |
22 |
PN630 |
|
6E9-18 |
M18X1.5 |
13X1.9 |
26 |
50 |
19 |
24 |
PN630 |
|
6E9-22 |
M22X1.5 |
16X2.4 |
29 |
54 |
22 |
30 |
PN630 |
|
6E9-27 |
M27X1.5 |
20X2.4 |
32.5 |
58.5 |
27 |
36 |
PN400 |
|
6E9-30 |
M30X1.5 |
24X2.4 |
35.5 |
61.5 |
30 |
41 |
PN400 |
|
6E9-36 |
M36X2 |
30X3.1 |
42 |
71 |
36 |
46 |
PN400 |
|
6E9-39 |
M39X2 |
32X3.1 |
47.5 |
76 |
41 |
50 |
PN250 |
|
6E9-42 |
M42X2 |
35X3.1 |
49.5 |
78 |
41 |
50 |
PN250 |
|
6E9-45 |
M45X2 |
38X3.1 |
52.5 |
81 |
46 |
55 |
PN250 |
|
6E9-52 |
M52X2 |
40X3.1 |
57 |
86 |
50 |
65 |
PN250 |
|
Note: 1. The parameter of O-ring is ring outside diameter and ring width. 2. PN = Nominal Pressure |
|||||||
| Shape | Elbow |
|---|---|
| Thread Type | Male |
| Connection Type | Metric |
| Fitting Type | Face Seal |
