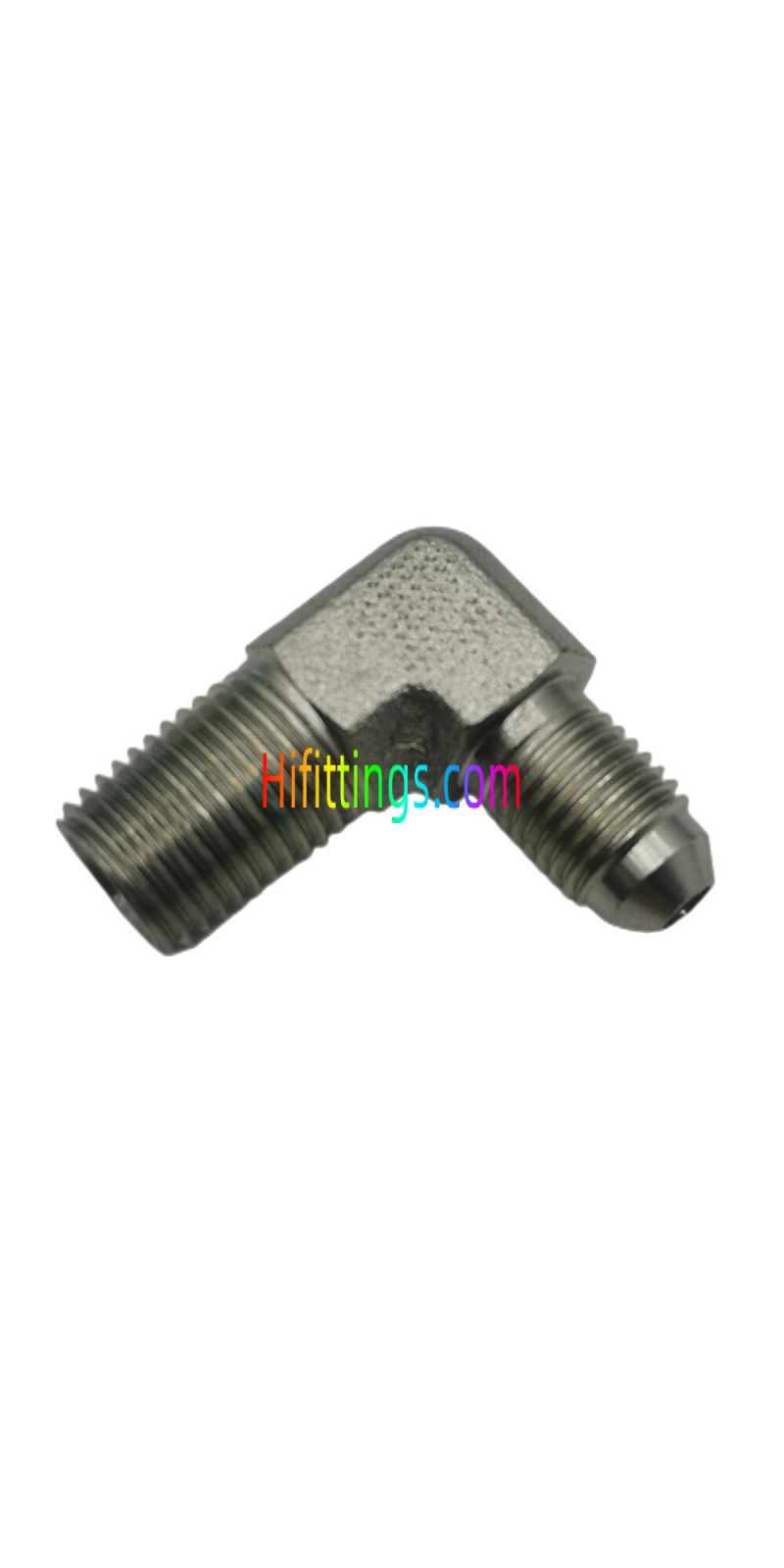

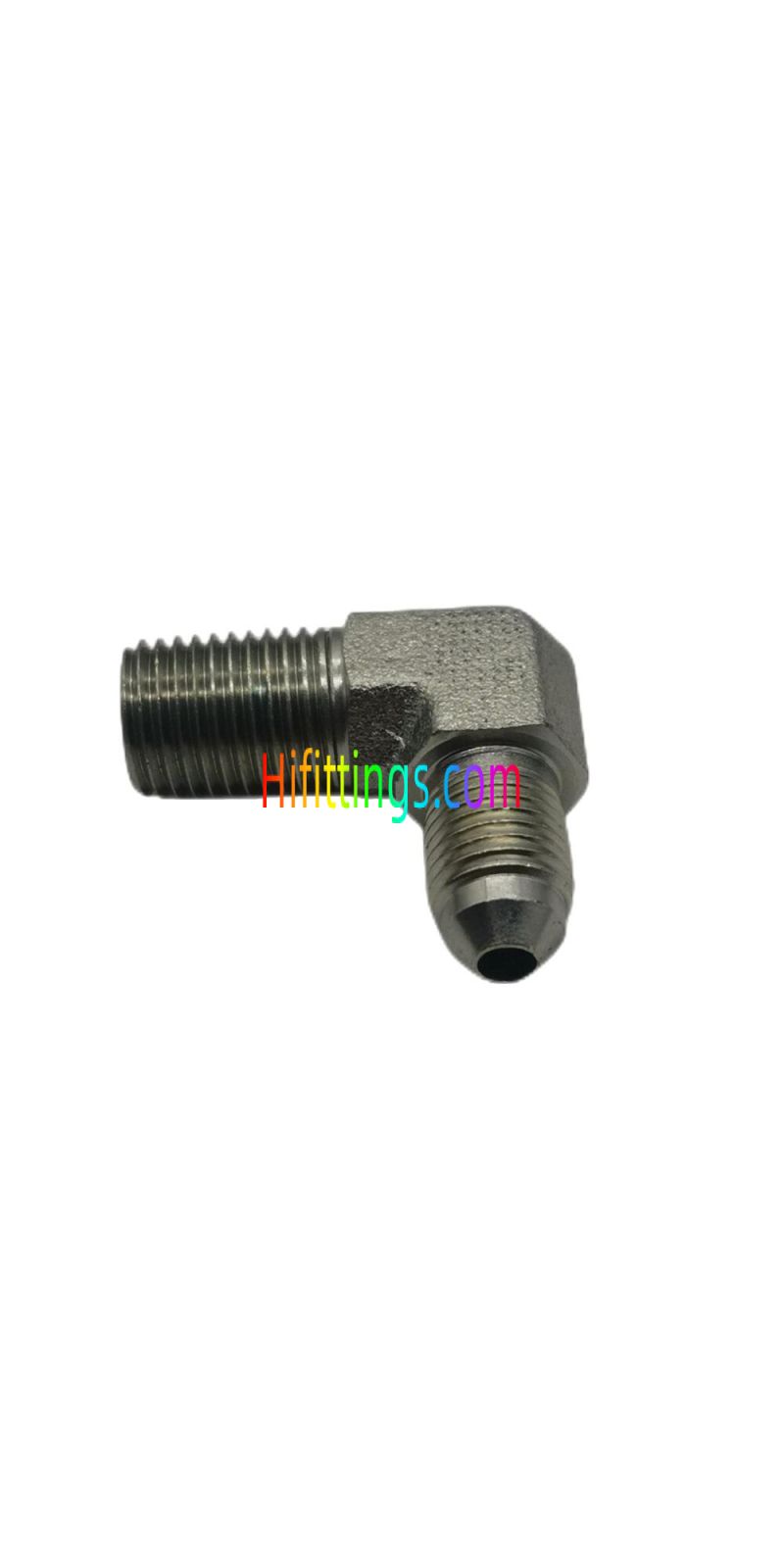

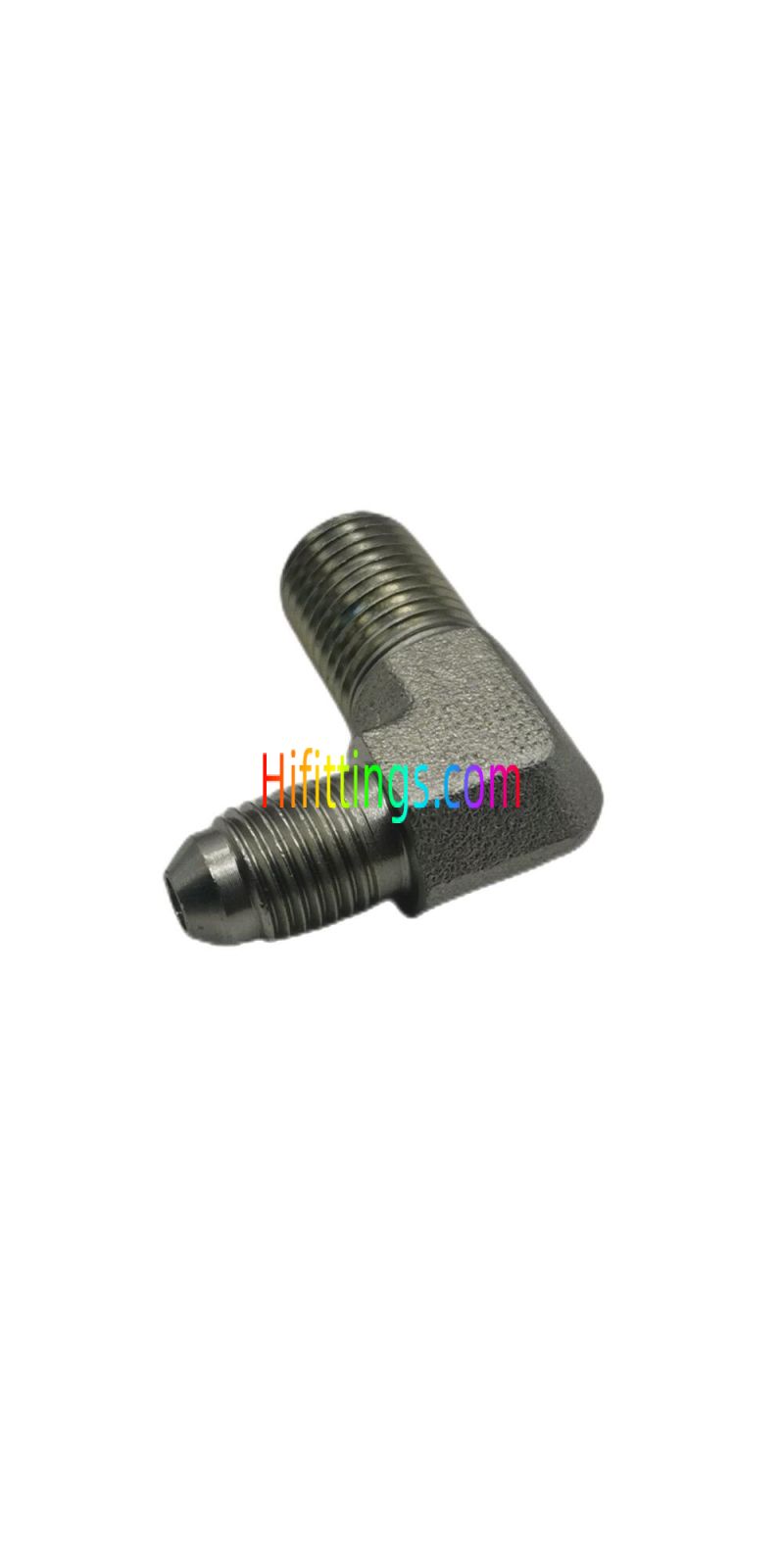

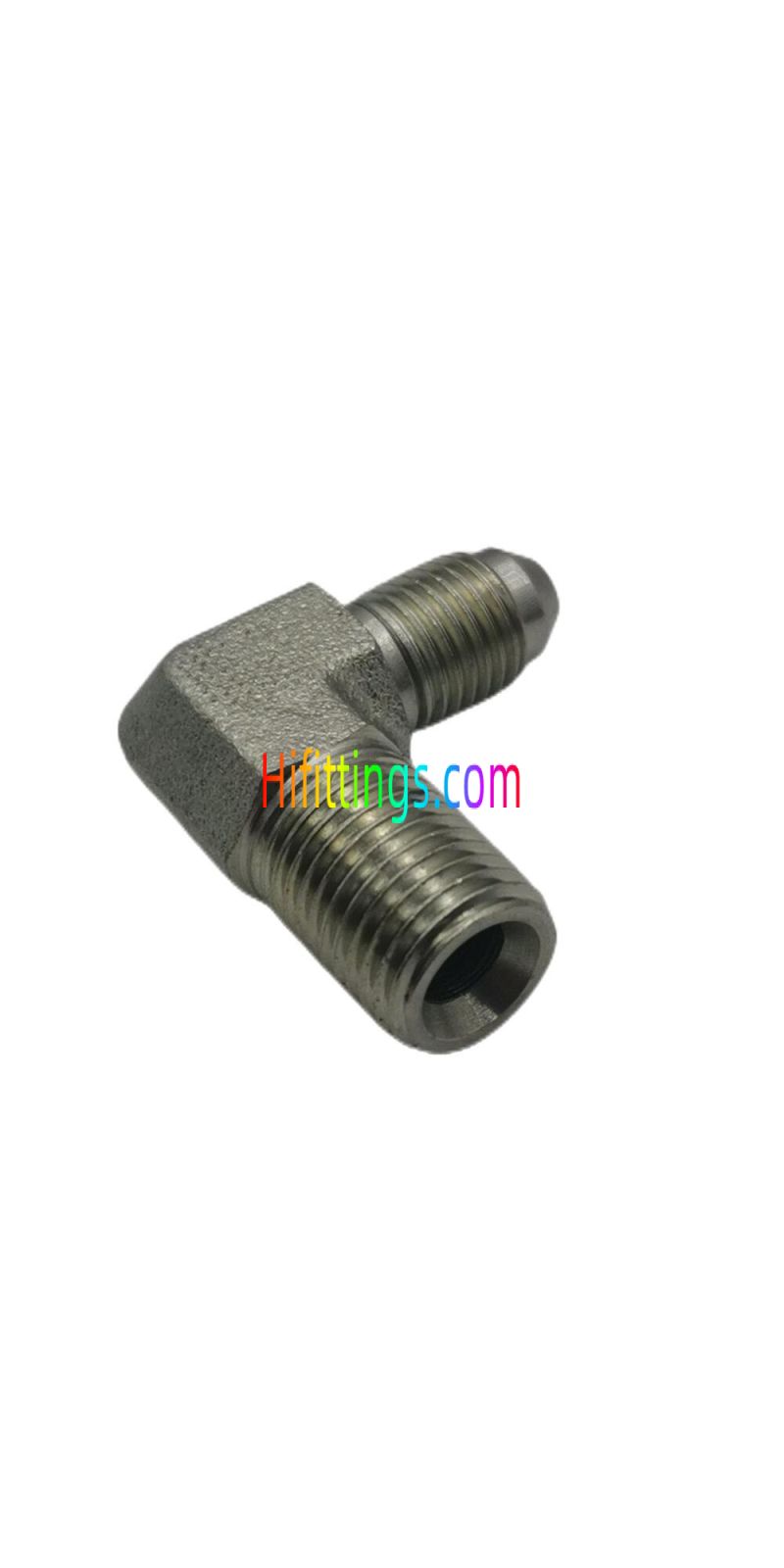

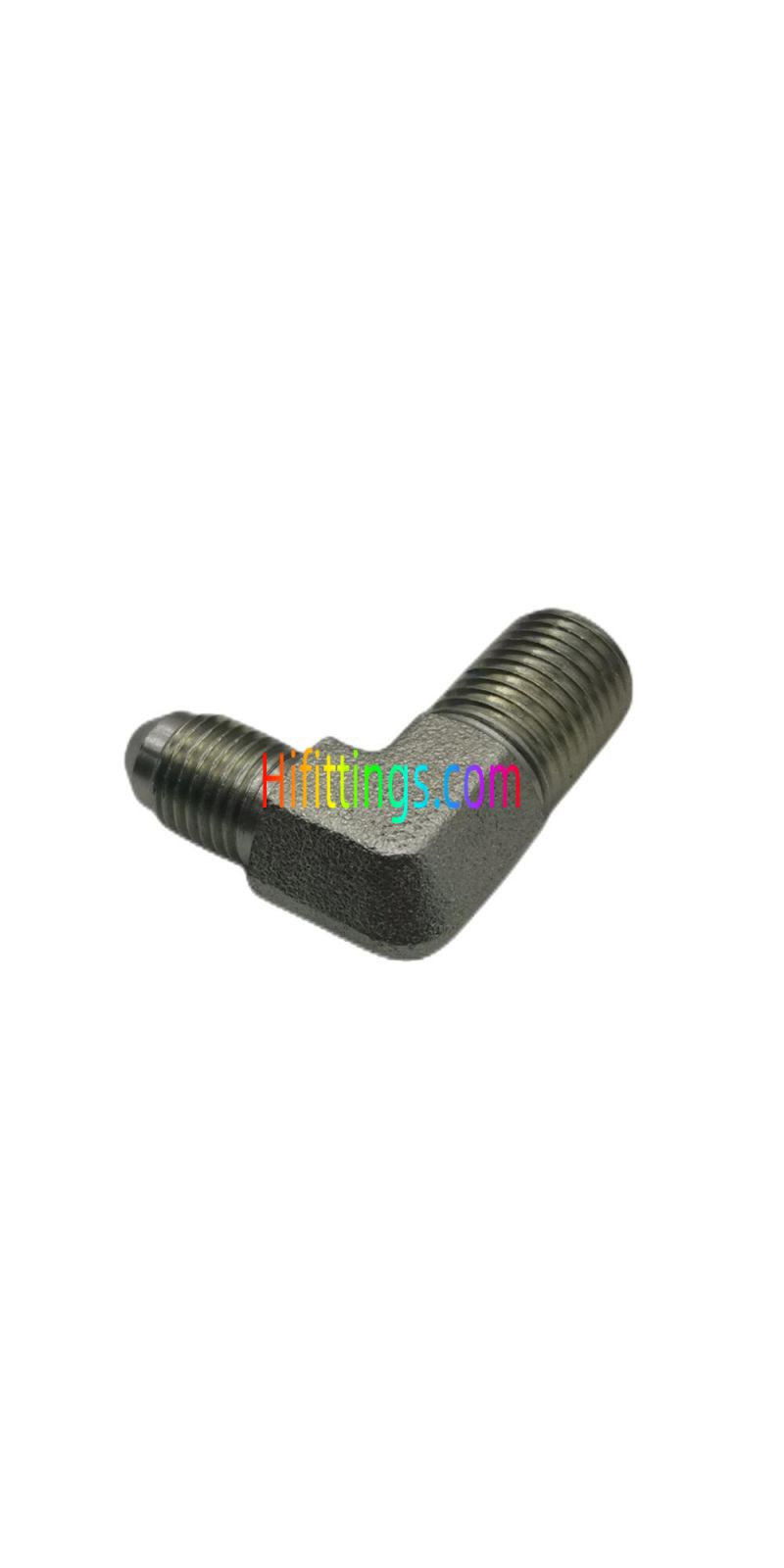

 90 Degree Elbow NPT Male /JIC Male 74 Degree Cone Flared Hydraulic Tube Fittings 1JN9- hifittings.com 90 Degree Elbow NPT Male /JIC Male 74 Degree Cone Flared Hydraulic Tube Fittings 1JN9- hifittings.com
90° Elbow NPT Male JIC Male 74° Cone Flared Tube Fittings 1JN9

Part  NO.

E

F

A

B

S1

Working  Pressure  bar

1JN9-02

5/16"X24

Z1/8"X27

21

21

11

PN345

1JN9-03-02

3/8"X24

Z1/8"X27

22

21

11

PN345

1JN9-04

7/16"X20

Z1/4"X18

26.6

25.5

14

PN275

1JN9-04-02

7/16"X20

Z1/8"X27

24.5

21

11

PN345

1JN9-04-06

7/16"X20

Z3/8"X18

29.5

31

19

PN210

1JN9-05-02

1/2"X20

Z1/8"X27

26.6

23.5

14

PN345

1JN9-05-04

1/2"X20

Z1/4"X18

26.6

25.5

14

PN275

1JN9-05-06

1/2"X20

Z3/8"X18

29.5

31

19

PN210

1JN9-06

9/16"X18

Z3/8"X18

30

31

19

PN210

1JN9-06-04

9/16"X18

Z1/4"X18

26.9

25.5

14

PN275

1JN9-06-08

9/16"X18

Z1/2"X14

32

36.7

22

PN210

1JN9-08

3/4"X16

Z1/2"X14

34.8

37.3

22

PN210

1JN9-08-04

3/4"X16

Z1/4"X18

32

28.5

19

PN275

1JN9-08-06

3/4"X16

Z3/8"X18

32

31

19

PN210

1JN9-08-12

3/4"X16

Z3/4"X14

37.9

44

27

PN170

1JN9-10-06

7/8"X14

Z3/8"X18

37.8

32.5

22

PN210

1JN9-10-08

7/8"X14

Z1/2"X14

37.8

37.3

22

PN210

1JN9-10-12

7/8"X14

Z3/4"X14

41

44

27

PN170

1JN9-10-16

7/8"X14

Z1"X11.5

44.5

50

33

PN140

1JN9-12

1.1/16"X12

Z3/4"X14

44.2

44

27

PN170

1JN9-12-08

1.1/16"X12

Z1/2"X14

44.2

40

27

PN210

1JN9-12-16

1.1/16"X12

Z1"X11.5

49

50

33

PN140

1JN9-12-20

1.1/16"X12

Z1.1/4"X11.5

52.5

54.5

41

PN170

1JN9-14-12

1.3/16"X12

Z3/4"X14

47.5

45

30

PN170

1JN9-14-16

1.3/16"X12

Z1"X11.5

48.7

50

33

PN140

1JN9-16

1.5/16"X12

Z1"X11.5

49

50

33

PN140

1JN9-16-12

1.5/16"X12

Z3/4"X14

49

45.2

33

PN170

1JN9-16-20

1.5/16X12

Z1.1/4"X11.5

54

60.5

41

PN170

1JN9-16-24

1.5/16"X12

Z1.1/2"X11.5

59.4

59.5

48

PN70

1JN9-20

1.5/8"X12

Z1.1/4"X11.5

55.5

54.5

41

PN170

1JN9-20-16

1.5/8"X12

Z1"X11.5

55.5

54.5

41

PN140

1JN9-20-24

1.5/8"X12

Z1.1/2"X11.5

59.4

63

48

PN70

1JN9-24

1.7/8"X12

Z1.1/2"X11.5

62.5

63

48

PN70

1JN9-24-20

1.7/8"X12

Z1.1/4"X11.5

62.5

63

48

PN170

1JN9-32-24

2.1/2"X12

Z1.1/2"X11,5

75.4

70

63

PN70

1JN9-32

2.1/2"X12

Z2"X11.5

75.4

67.5

63

PN70

Note:1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.

2.PN = Nominal Pressure

More Information
Shape Elbow
Fitting Type Cone Flared
Thread Type Male
Connection Type JIC, NPT
