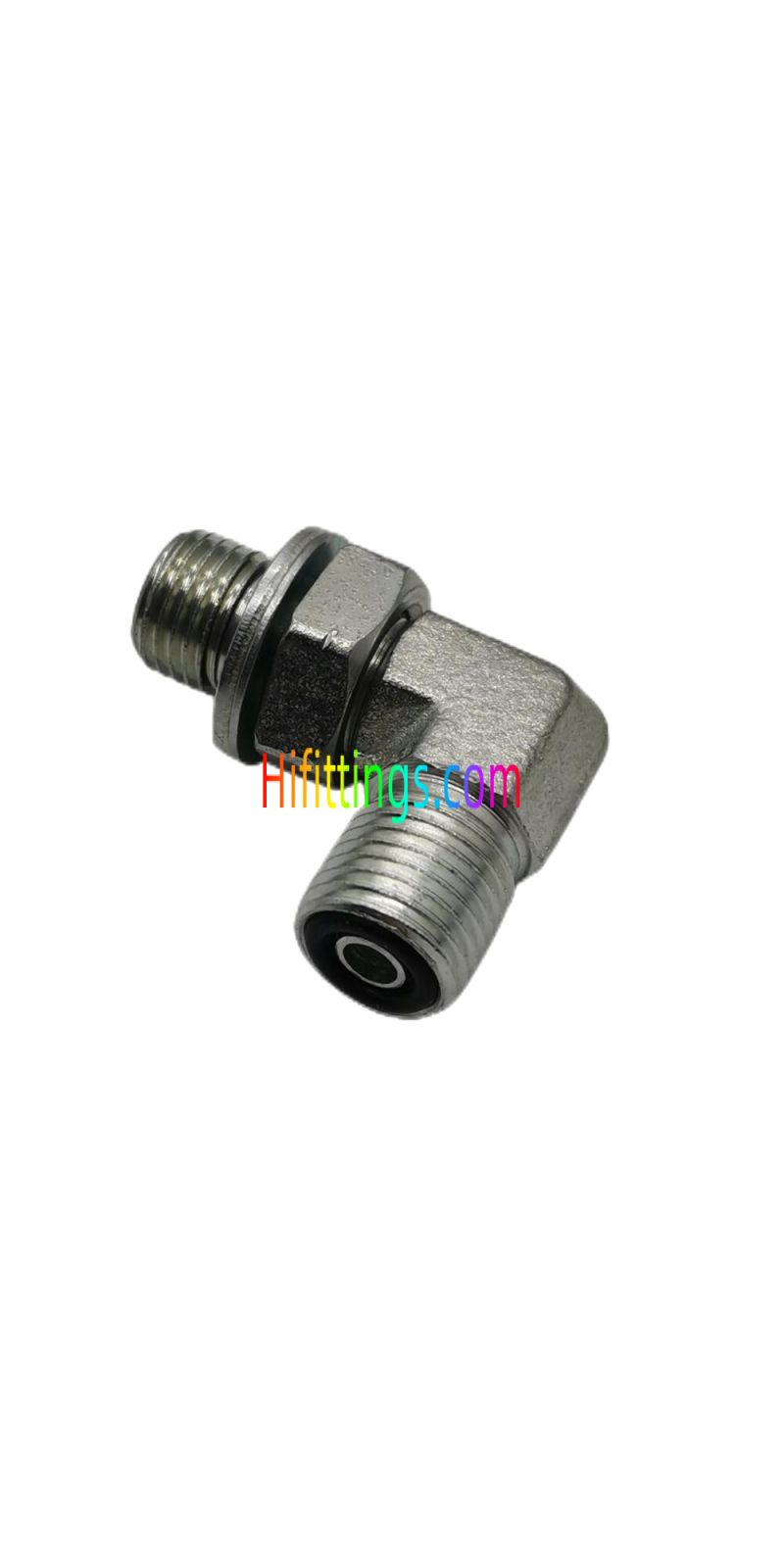

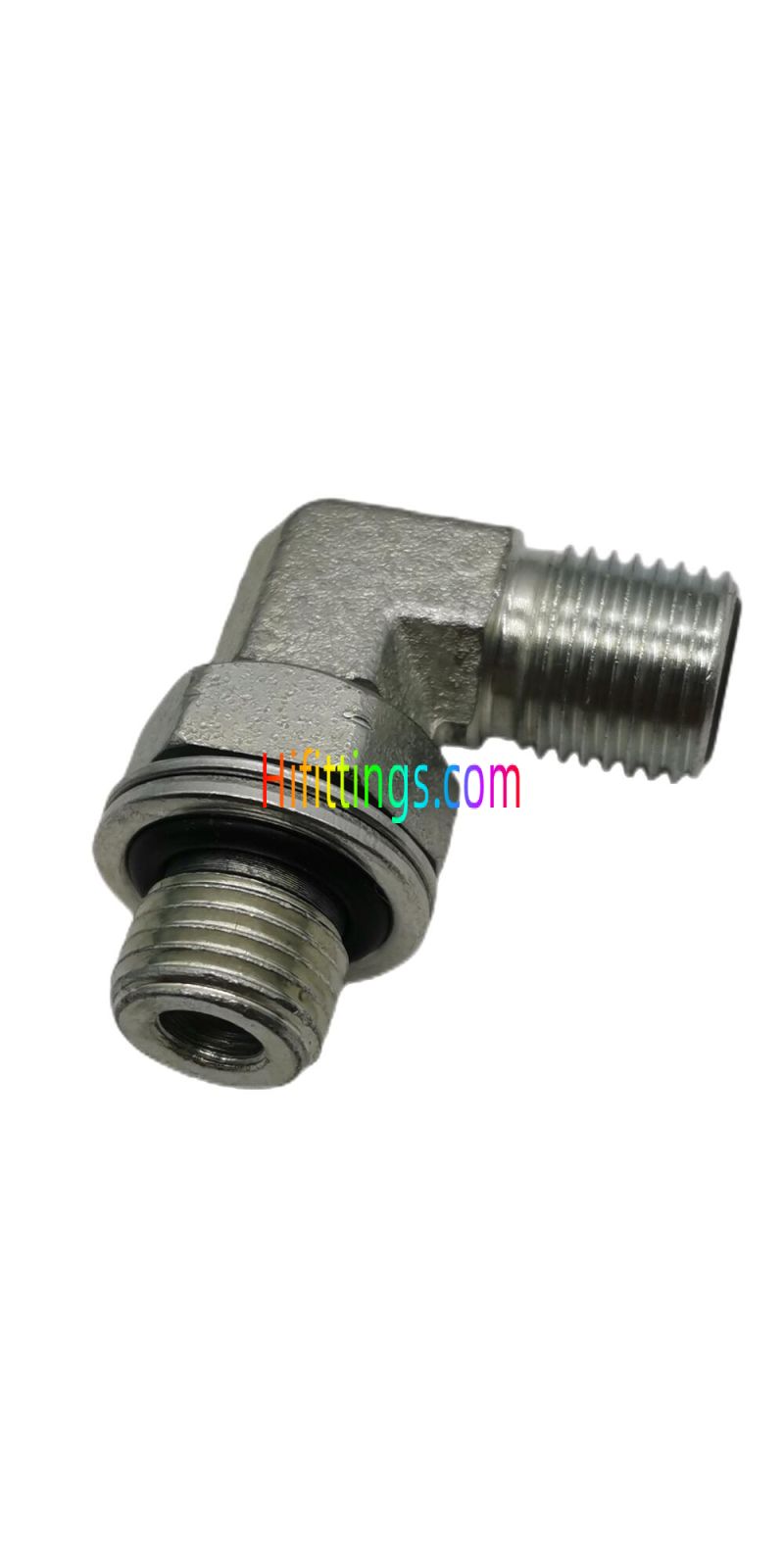

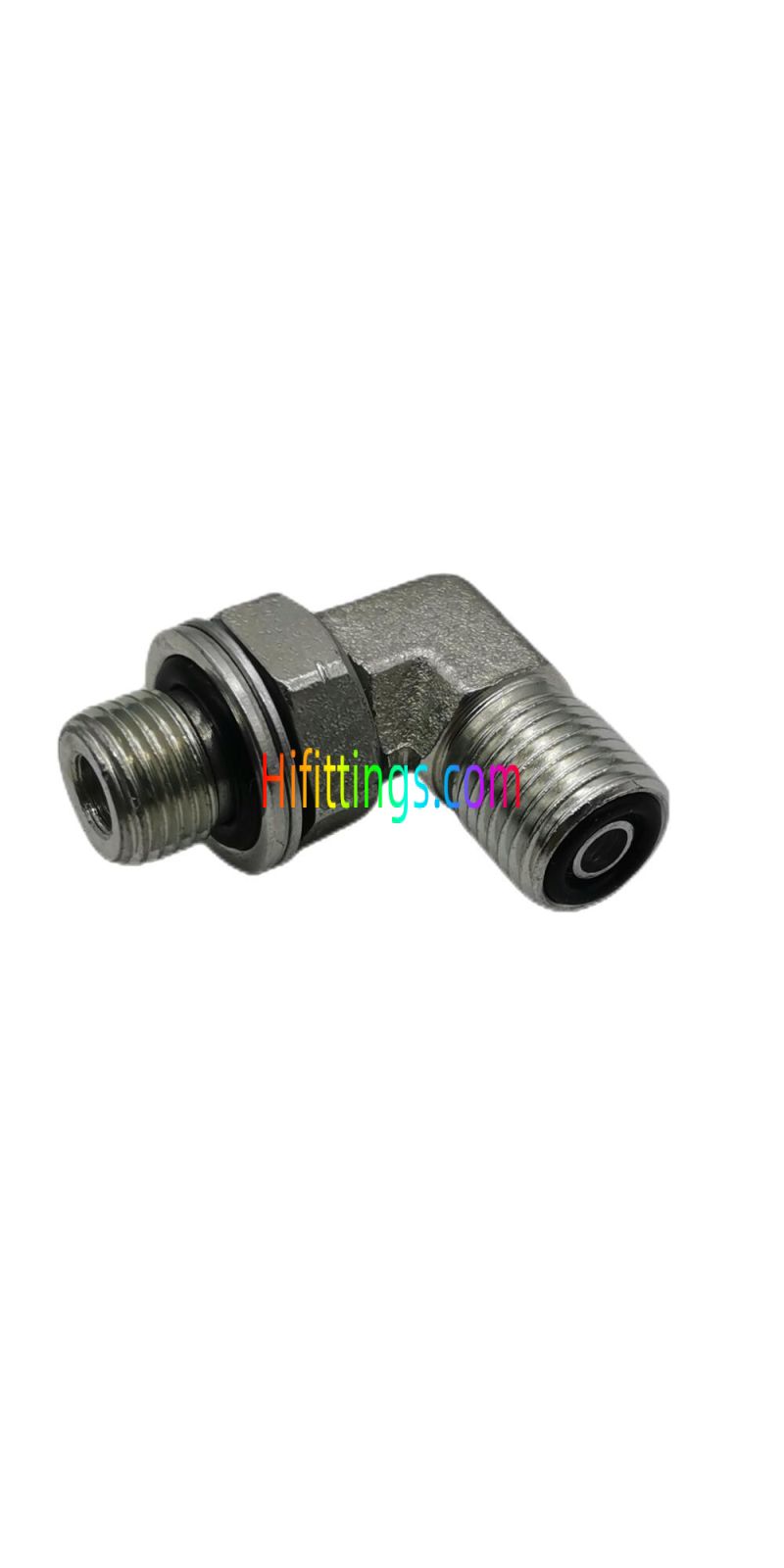

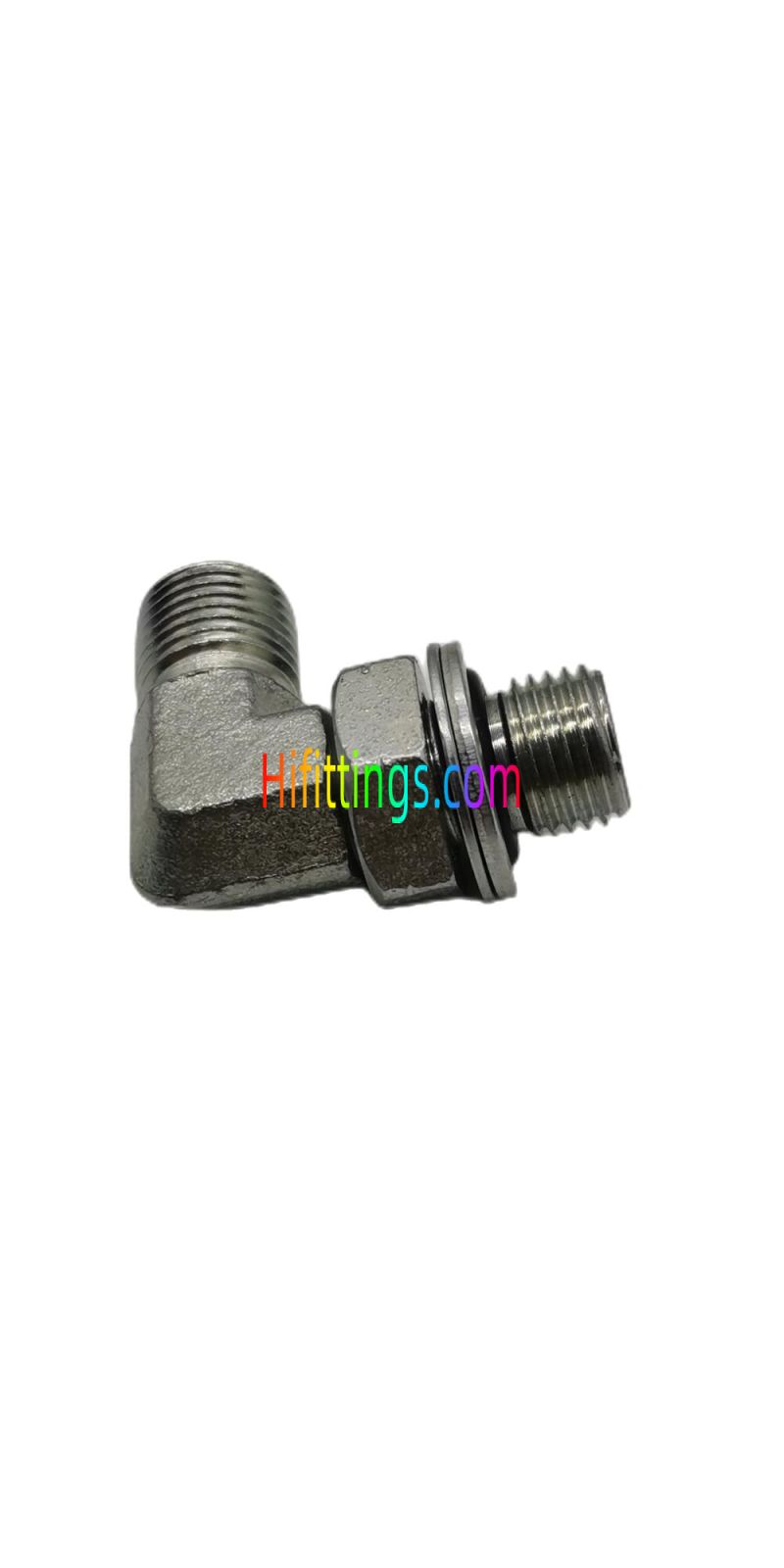

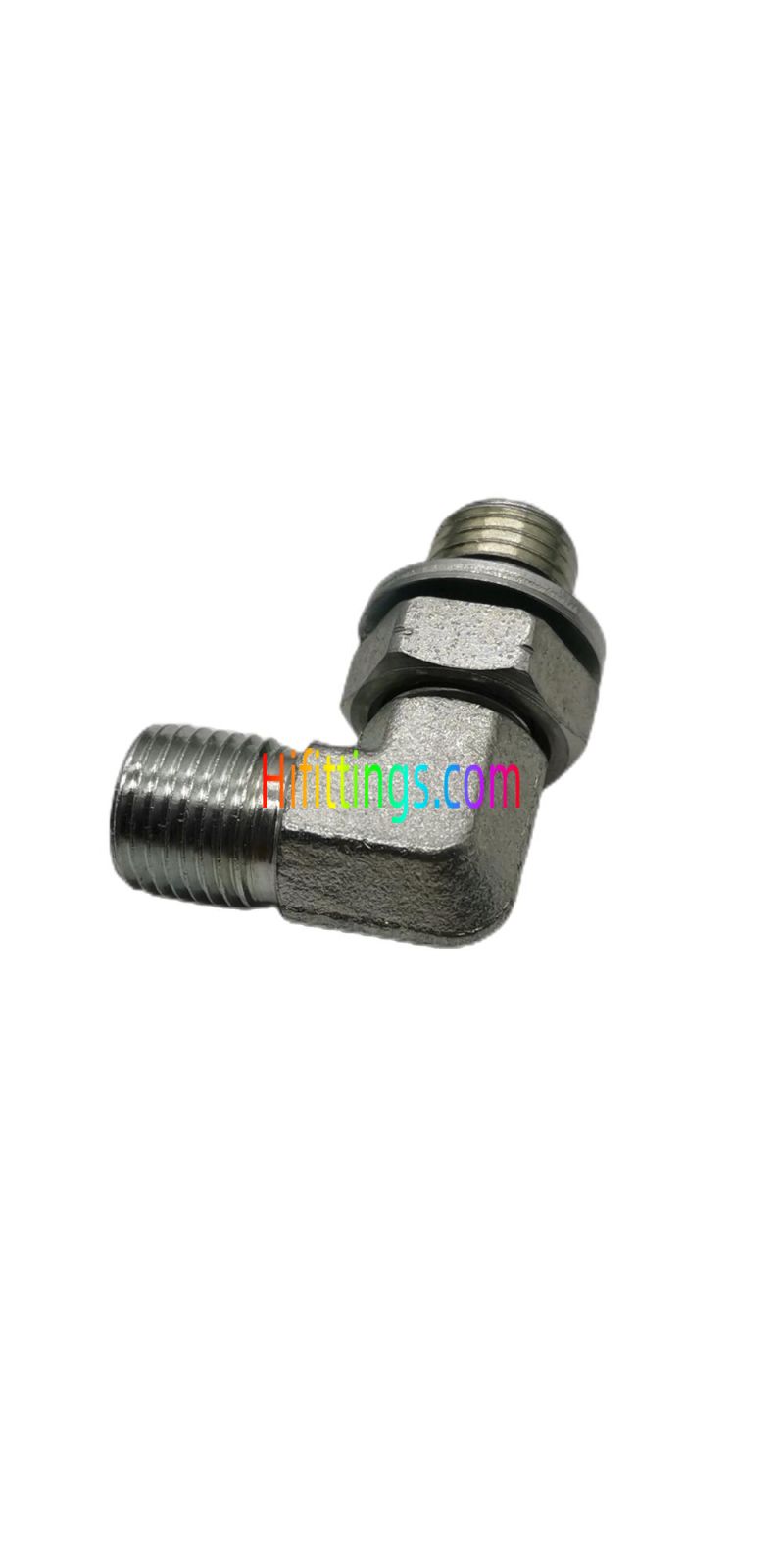

90°Elbow ORFS Male O-Ring BSP Male O-Ring Fittings 1FG9-OG

Part  NO.

E

F

E  End

F  End

A

B

S1

S2

Working  Pressure  bar

1FG9-04-02OG

9/16"X18

G1/8"X28

11

11

23

29

14

14

PN400

1FG9-04OG

9/16"X18

G1/4"X19

11

111

23

31.3

14

19

PN400

1FG9-04-06OG

9/16"X18

G3/8"X19

11

113

24

35.8

16

22

PN315

1FG9-06-04OG

11/16"X16

G1/4"X19

12

111

27

33.5

19

19

PN400

1FG9-06OG

11/16"X16

G3/8"X19

12

113

27

36.8

19

22

PN315

1FG9-06-08OG

11/16"X16

G1/2"X14

12

115

29

43.2

22

27

PN315

1FG9-08-06OG

13/16"X16

G3/8"X19

14

113

31

39.5

22

22

PN315

1FG9-08OG

13/16"X16

G1/2"X14

14

115

31

43.2

22

27

PN315

1FG9-10-08OG

1"X14

G1/2"X14

16

115

36.5

46.5

27

27

PN315

1FG9-10-12OG

1"X14

G3/4"X14

16

119

36.5

49.3

27

32

PN200

1FG9-12-08OG

1.3/16"X12

G1/2"X14

18

115

40.3

47.5

30

27

PN315

1FG9-12OG

1.3/16"X12

G3/4"X14

18

119

40.3

52

30

32

PN200

1FG9-12-16OG

1.3/16"X12

G1"X11

18

217

42.5

53

33

41

PN200

1FG9-16-12OG

1.7/16"X12

G3/4"X14

21

119

44.5

56

36

32

PN200

1FG9-16OG

1.7/16"X12

G1"X11

21

217

44.5

56

36

41

PN200

1FG9-20-16OG

1.11/16"X12

G1"X11

25

217

47.5

60

41

41

PN200

1FG9-20OG

1.11/16"X12

G1.1/4"X11

25

222

47.5

60

41

50

PN200

1FG9-24OG

2"X12

G1.1/2"X11

29

224

51.5

65.5

50

55

PN200

Note: 1.F end is connected with DIN 3852 port.  2. PN = Nominal Pressure
