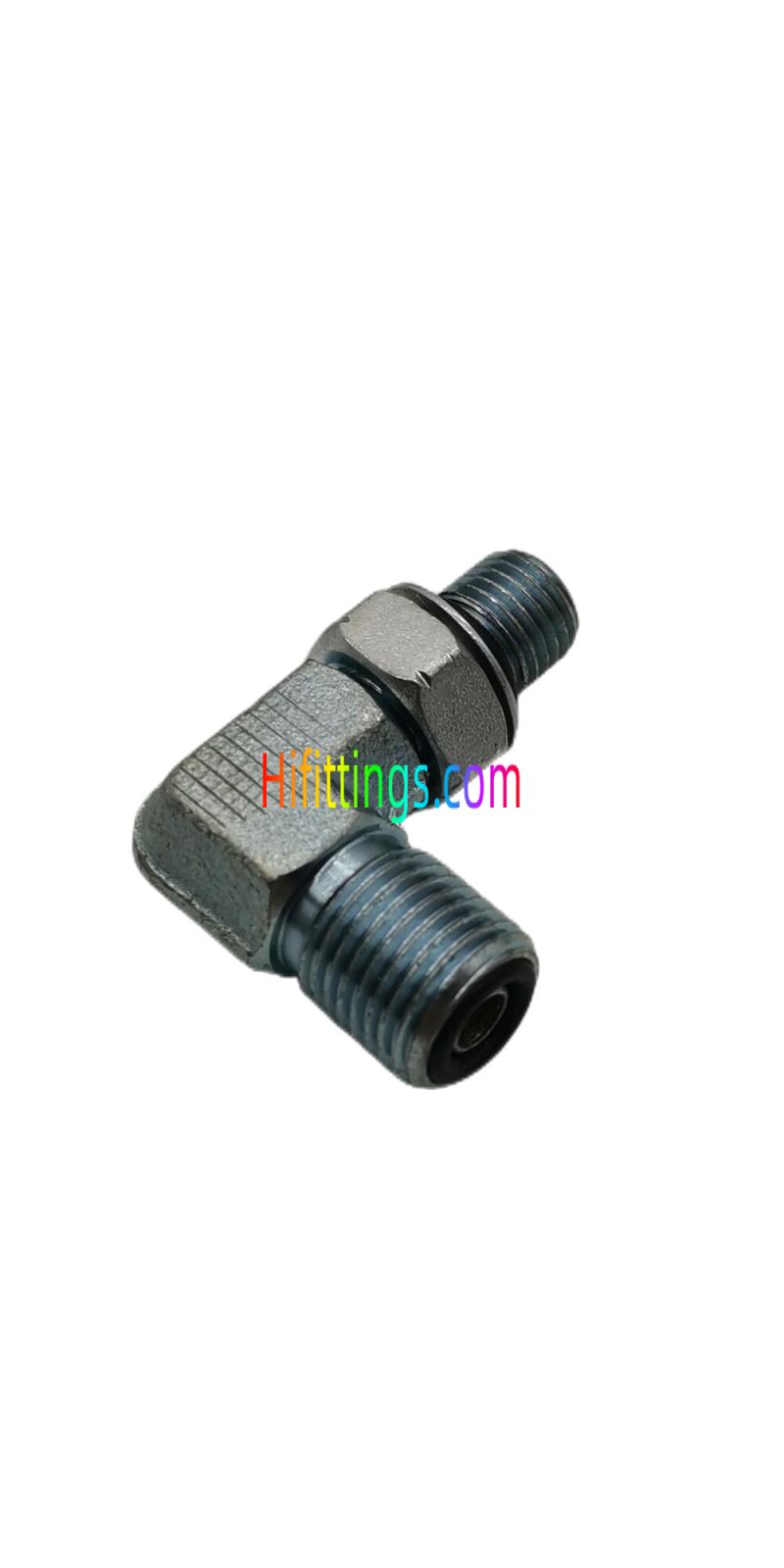

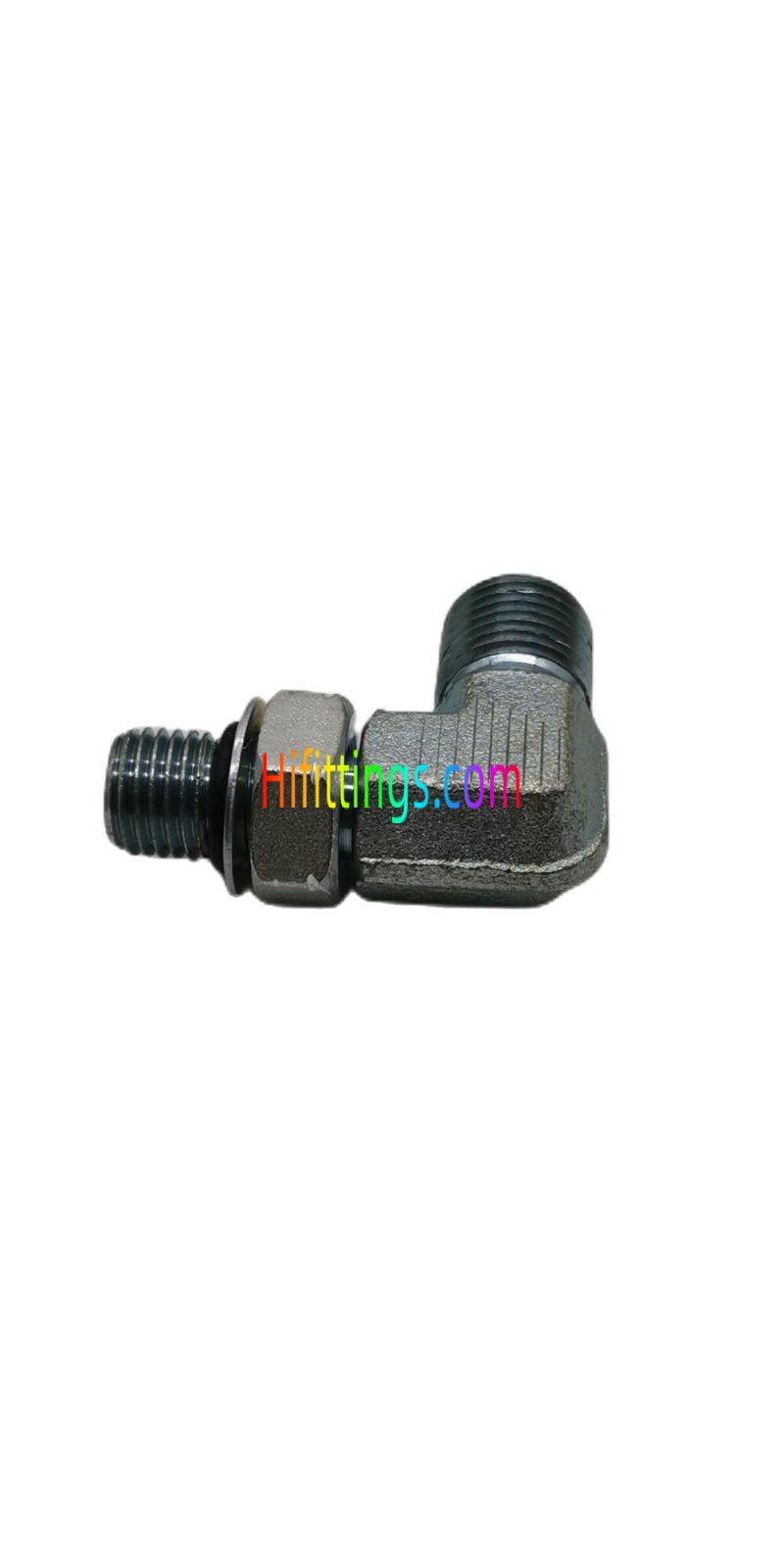

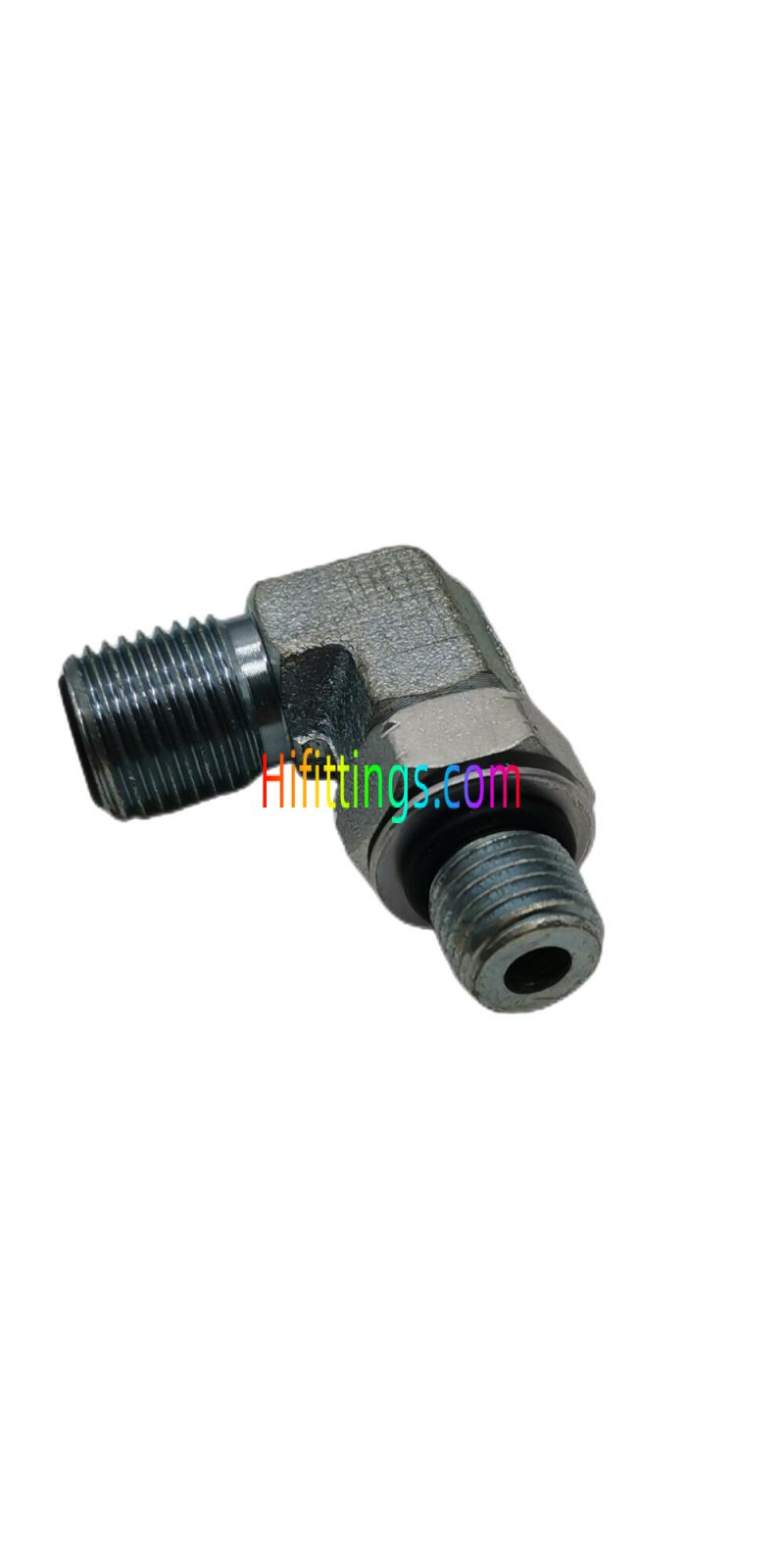

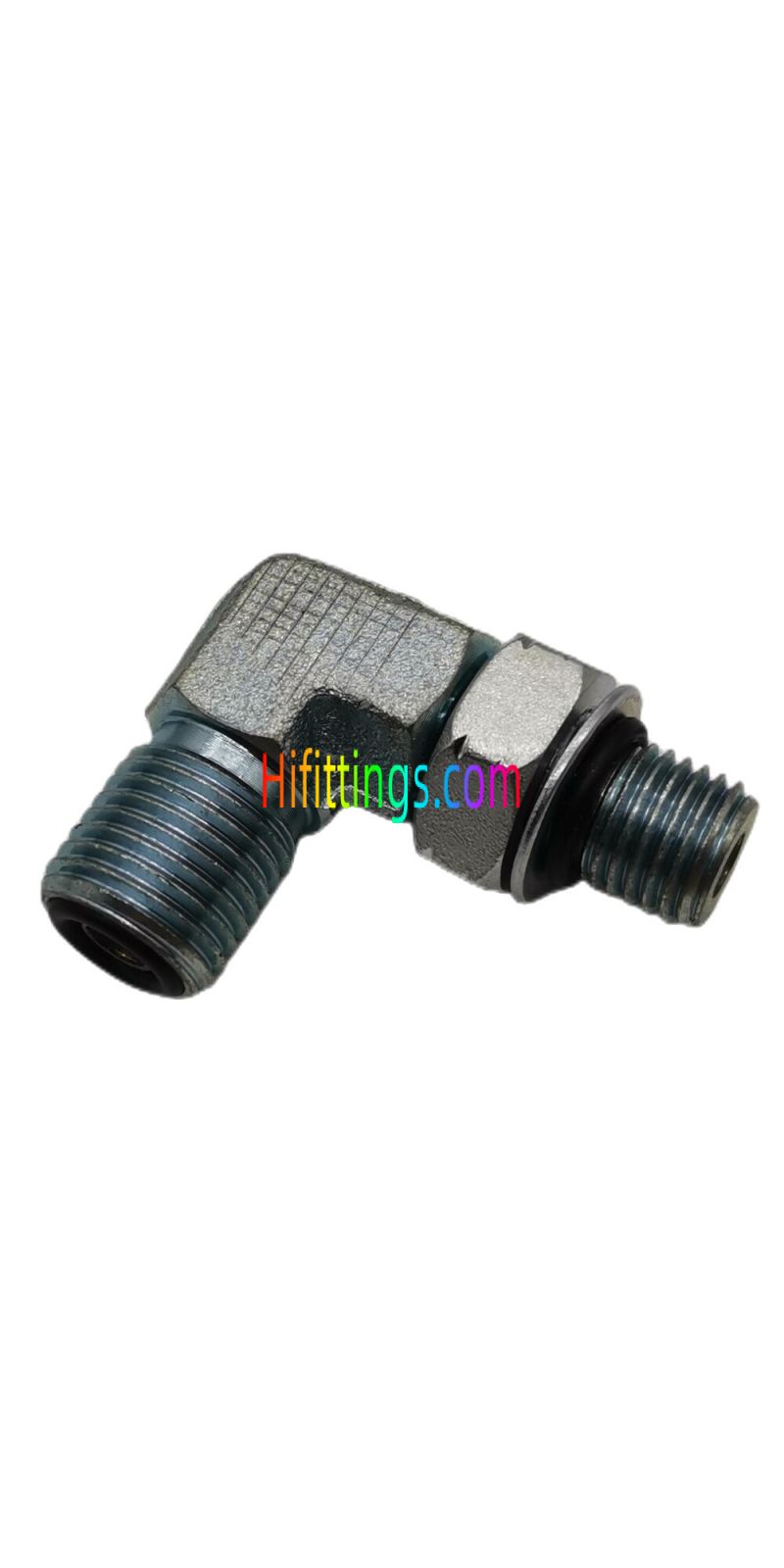

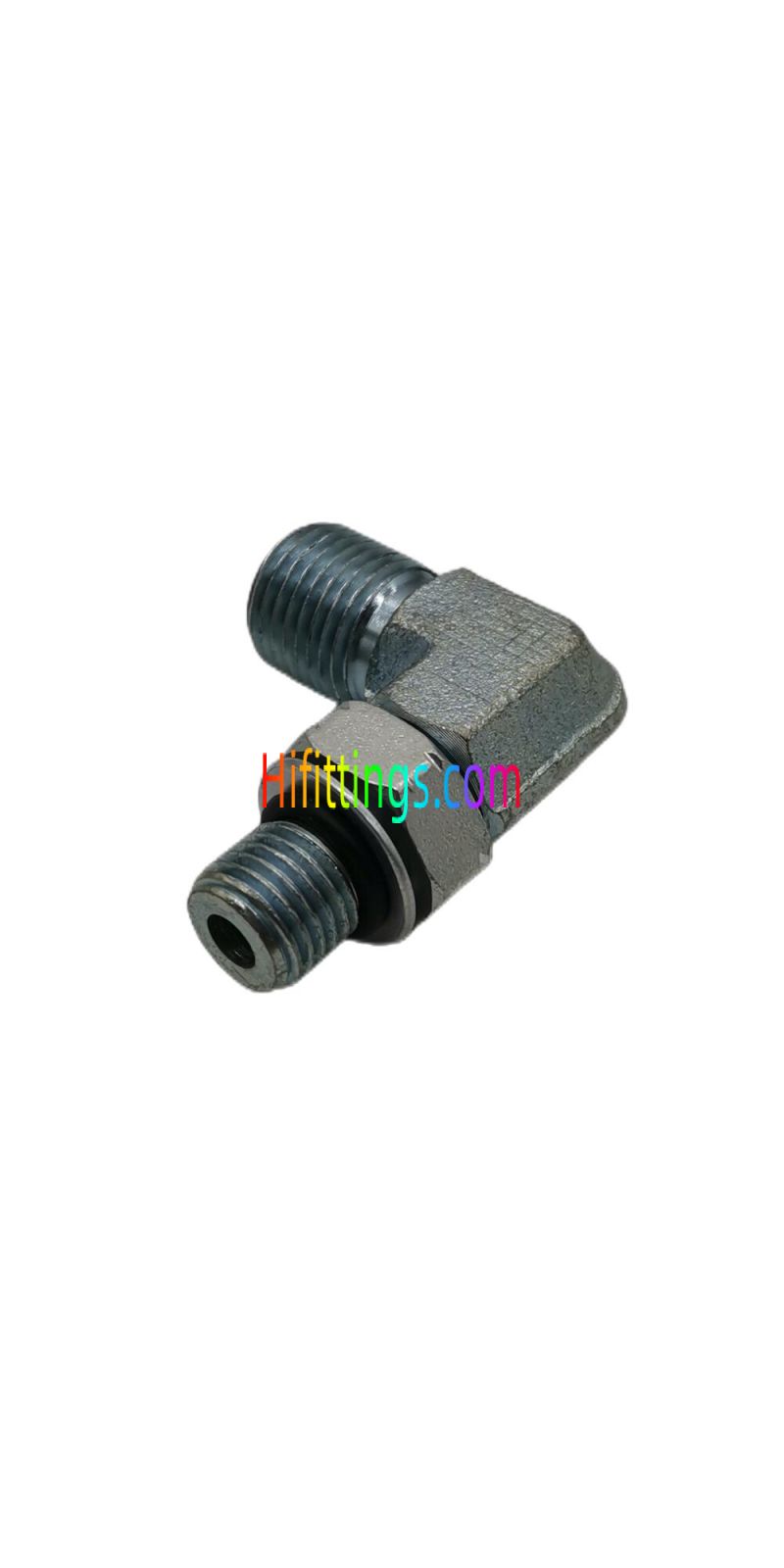

90°Elbow ORFS Male O-Ring SAE O-Ring Fittings 1FO9-OG

Part  NO.

E

F

E  End

F  End

A

B

S1

S2

Working  Pressure  bar

1FO9-04OG

9/16"X18

7/16"X20

11

904

23

30.3

14

17

PN400

1FO9-04-06OG

9/16"X18

9/16"X18

11

906

23

32

14

19

PN400

1FO9-06-04OG

11/16"X16

7/16"X20

12

904

27.5

33.5

19

17

PN400

1FO9-06OG

11/16"X16

9/16"X18

12

906

27.5

34.5

19

19

PN400

1FO9-06-08OG

11/16"X16

3/4"X16

12

908

27.5

38

19

24

PN400

1FO9-06-10OG

11/16"X16

7/8"X14

12

910

29

47

22

27

PN400

1FO9-08-06OG

13/16"X16

9/16"X18

14

906

31

37

22

19

PN400

1FO9-08OG

13/16"X16

3/4"X16

14

908

31

40.5

22

24

PN400

1FO9-08-10OG

13/16"X16

7/8"X14

14

910

31

45.3

22

27

PN400

1FO9-08-12OG

13/16"X16

1.1/16"X12

14

912

34.5

52

27

32

PN400

1FO9-10-08OG

1"X14

3/4"X16

16

908

36.5

45

27

24

PN400

1FO9-10OG

1"X14

7/8"X14

16

910

36.5

50.8

27

27

PN400

1FO9-10-12OG

1"X14

1.1/16"X12

16

912

36.5

52

27

32

PN400

1FO9-12-10OG

1.3/16"X12

7/8"X14

18

910

41

52.8

30

27

PN400

1FO9-12OG

1.3/16"X12

1.1/16"X12

18

912

41

54

30

32

PN400

1FO9-12-16OG

1.3/16"X12

1.5/16"X12

18

916

43

55.5

33

41

PN315

1FO9-16-12OG

1.7/16"X12

1.1/16"X12

21

912

44.5

59

36

32

PN315

1FO9-16OG

1.7/16"X12

1.5/16"X12

21

916

44.5

59

36

41

PN250

1FO9-20OG

1.11/16"X12

1.5/8"X12

25

920

47.5

60.5

41

50

PN250

1FO9-20-24OG

1.11/16"X12

1.7/8"X12

25

924

51.5

66.5

48

55

PN200

1FO9-24-20OG

2"X12

1.5/8"X12

29

920

53.5

67.5

50

50

PN250

1FO9-24OG

2"X12

1.7/8"X12

29

924

53.5

67.5

50

55

PN200

Note: 1.: F  end is connected with ISO 11926-1port.  2. PN = Nominal Pressure
