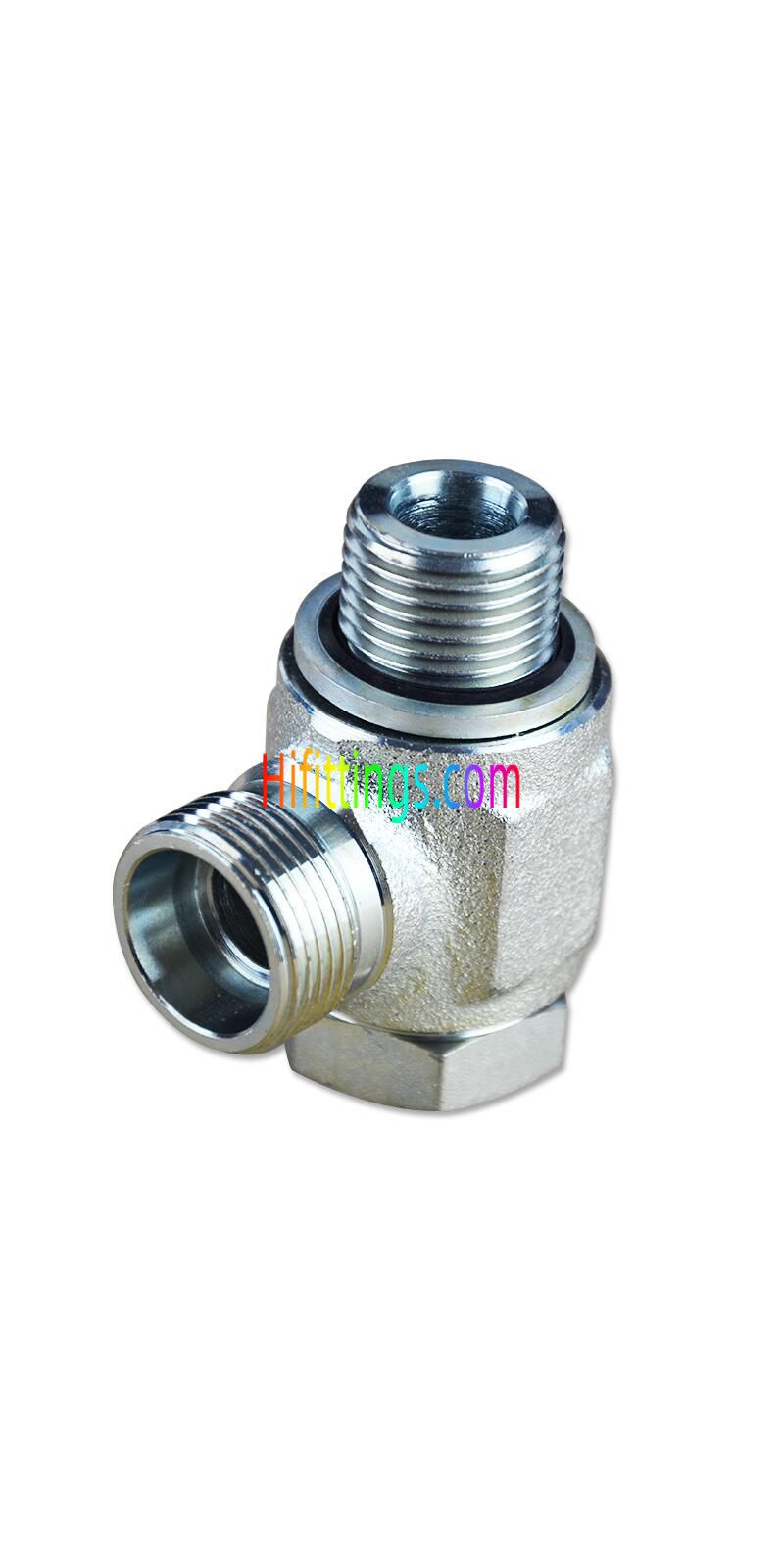

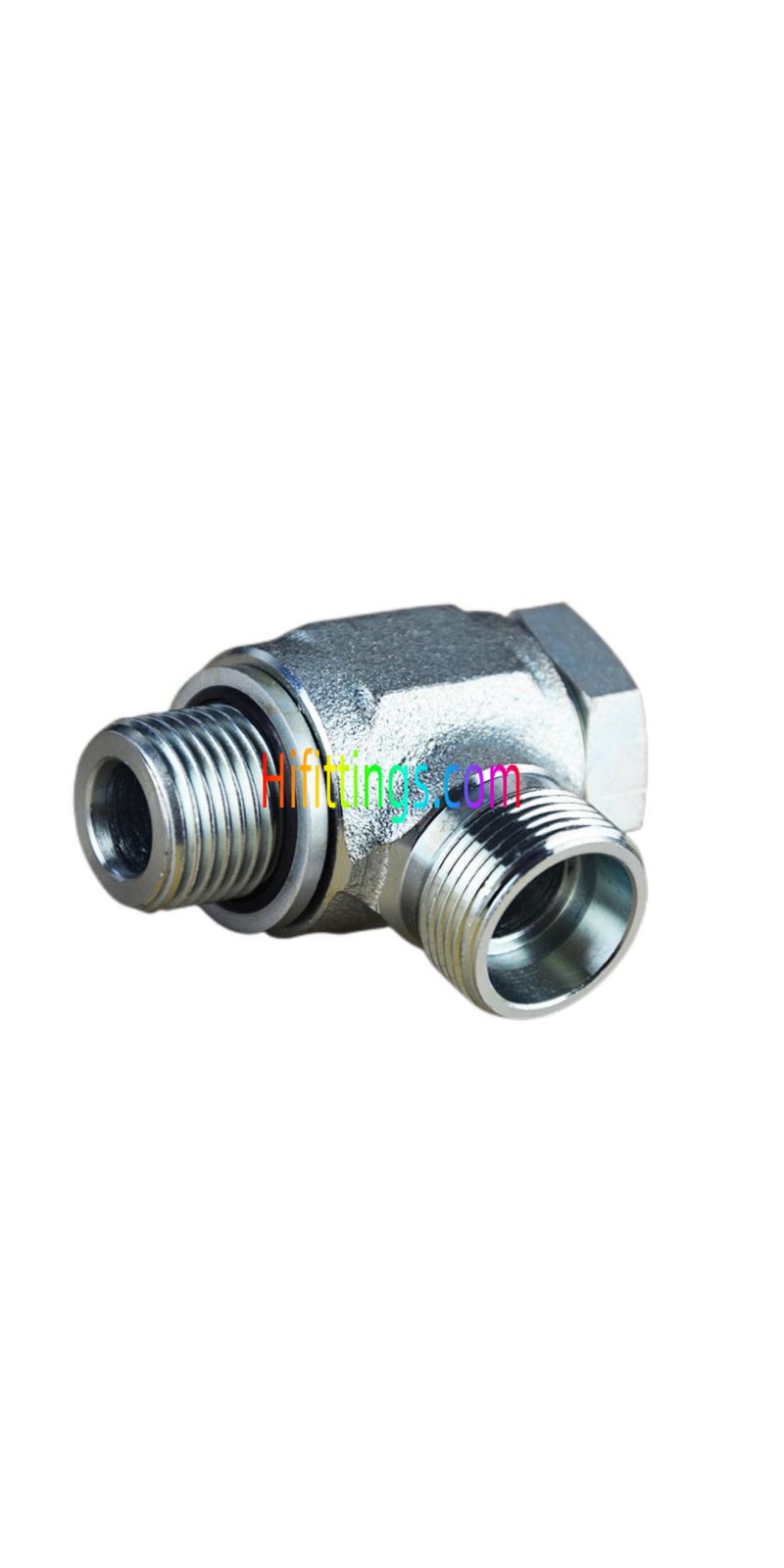

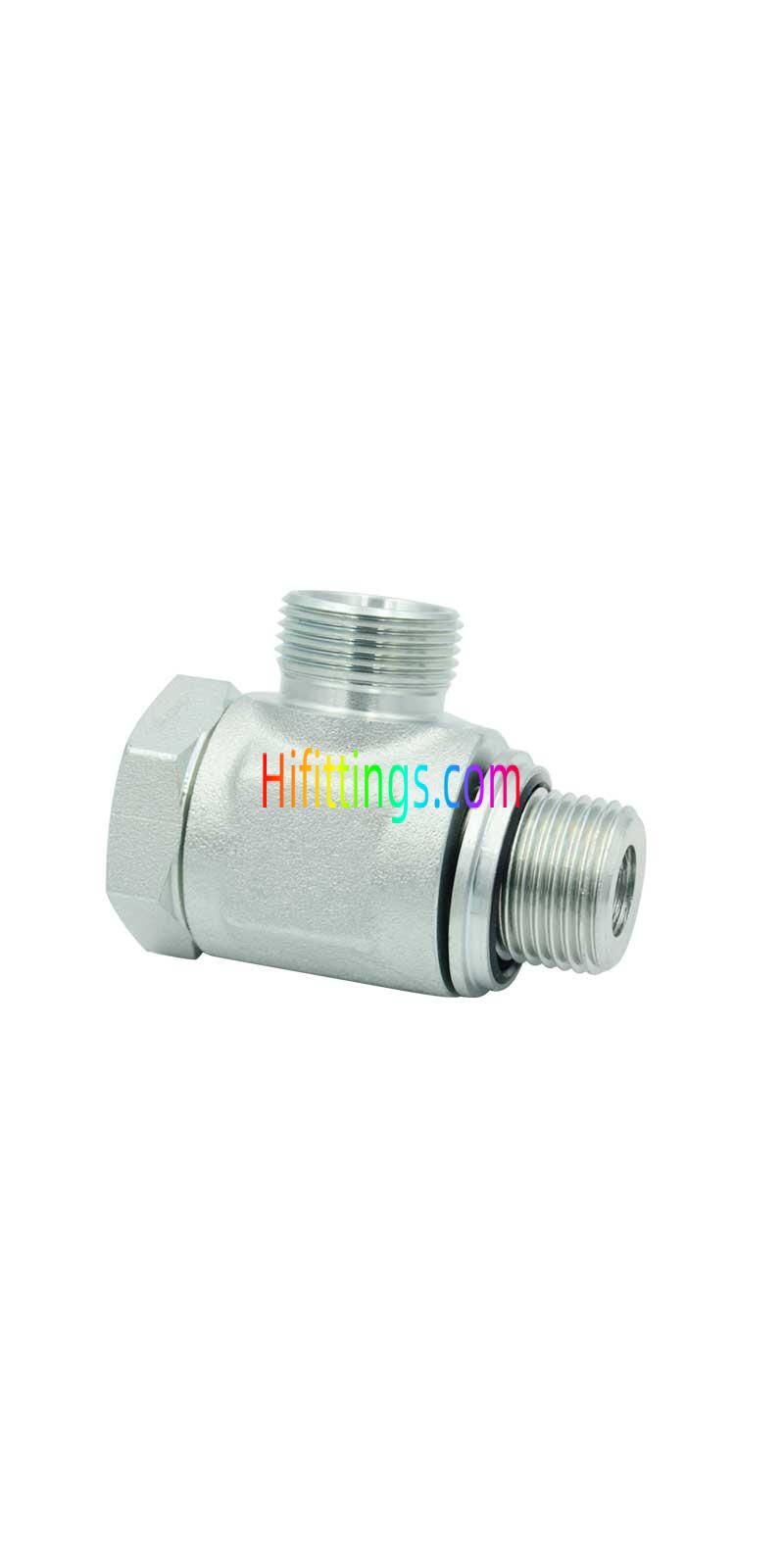

BSP BANJO Bite Type Tube Fittings 1CI-B/1DI-B

Part NO.

E

M

D1

l

l1

L1

l2

L2

S1

S2

S3

Sealing Ring

Working Pressure bar

1CI-12-02B

M12X1.5

G1/8"

6

8

10.5

25.5

12

27

14

17

14

DP-10I

PN315

1CI-14-04B

M14X1.5

G1/4"

8

12

14

32.5

15.5

30

19

24

17

DP-14I

PN315

1CI-16-04B

M16X1.5

G1/4"

10

12

14

32.5

16.5

31

19

24

19

DP-14I

PN315

1CI-18-06B

M18X1.5

G3/8"

12

12

16.5

38

19.5

34.5

24

30

22

DP-18I

PN315

1CI-22-08B

M22X1.5

G1/2"

15

14

21.5

49

21.5

37

27

32

27

DP-22I

PN315

1CI-26-08B

M26X1.5

G1/2"

18

14

21.5

49

21

37

27

32

32

DP-22I

PN315

1CI-30-12B

M30X2

G3/4"

22

16

24

56

27.5

44

32

41

36

DP-27I

PN160

1CI-36-16B

M36X2

G1"

28

18

30.5

71

32

49

41

50

41

DP-33I

PN160

1CI-45-20B

M45X2

G1.1/4"

35

20

35.5

82

36

58

50

60

50

DP-42I

PN160

1CI-52-24B

M52X2

G1.1/2"

42

22

40.5

93

40.5

63

55

70

60

DP-48I

PN160

1 DI-14-04B

M14X1.5

G1/4"

6

12

14

32.5

17.5

32

19

24

17

DP-14I

PN630

1 DI-16-04B

M16X1.5

G1/4"

8

12

14

32.5

17.5

32

19

24

19

DP-14I

PN630

1 DI-18-06B

M18X1.5

G3/8"

10

12

16.5

38

20

36.5

24

30

22

DP-18I

PN630

1 DI-20-06B

M20X1.5

G3/8"

12

12

16.5

38

20

36.5

24

30

24

DP-18I

PN630

1 DI-22-08B

M22X1.5

G1/2"

14

14

21.5

49

22.5

40

27

32

27

DP-22I

PN630

1 DI-24-08B

M24X1.5

G1/2"

16

14

21.5

49

22

40

27

32

30

DP-22I

PN630

1 DI-30-12B

M30X2

G3/4"

20

16

24

56

26.5

48

32

41

36

DP-27I

PN400

1 DI-36-16B

M36X2

G1"

25

18

30.5

71

31.5

56

41

50

46

DP-33I

PN400

1 DI-42-20B

M42X2

G1.1/4"

30

20

35.5

82

37

64

50

60

50

DP-42I

PN400

1 DI-52-24B

M52X2

G1.1/2"

38

22

40.5

93

41.5

72

55

70

60

DP-48I

PN400

Note： In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example 1DI-36-16B/RN. 2. PN = Nominal Pressure
