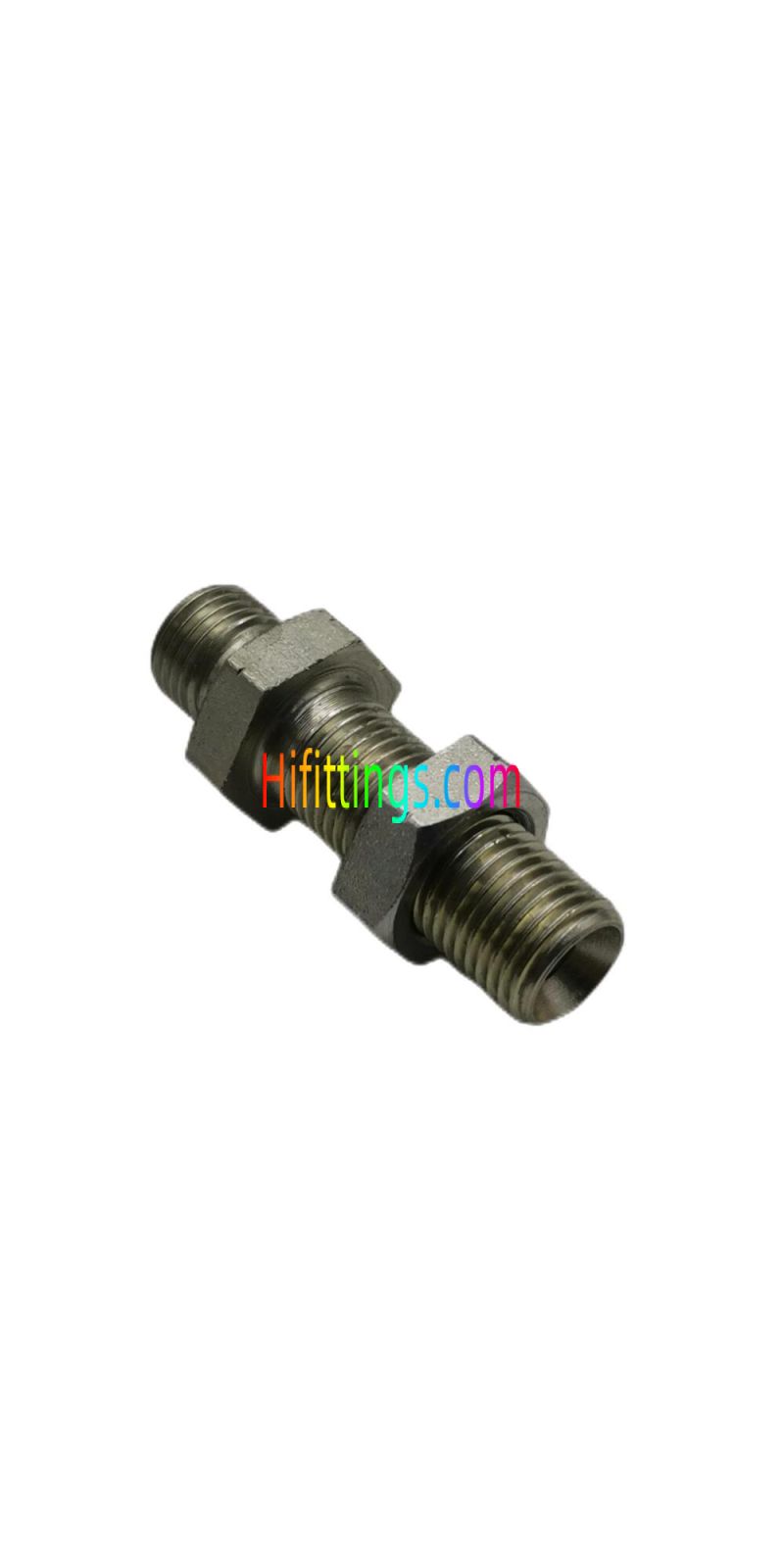

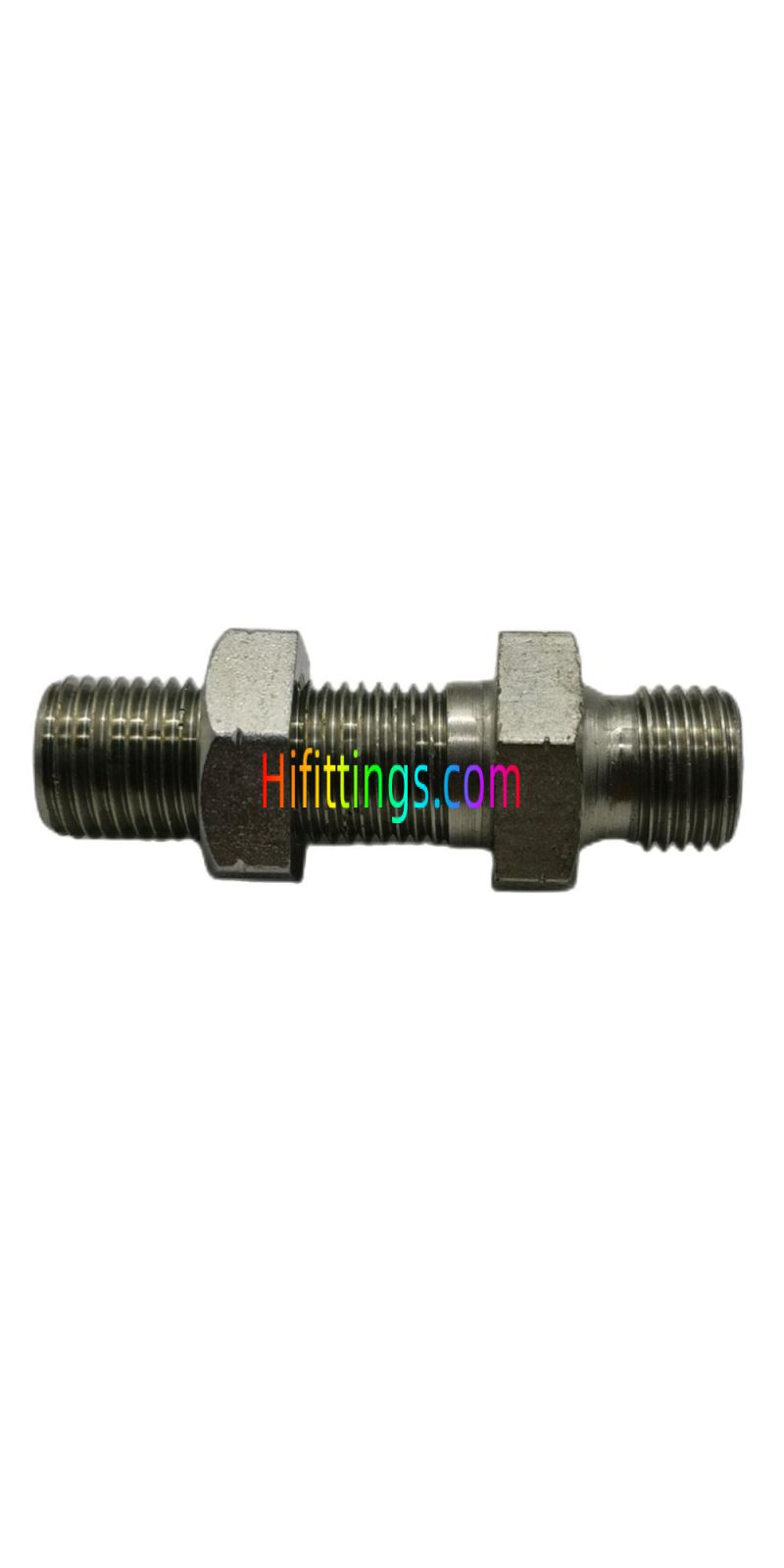

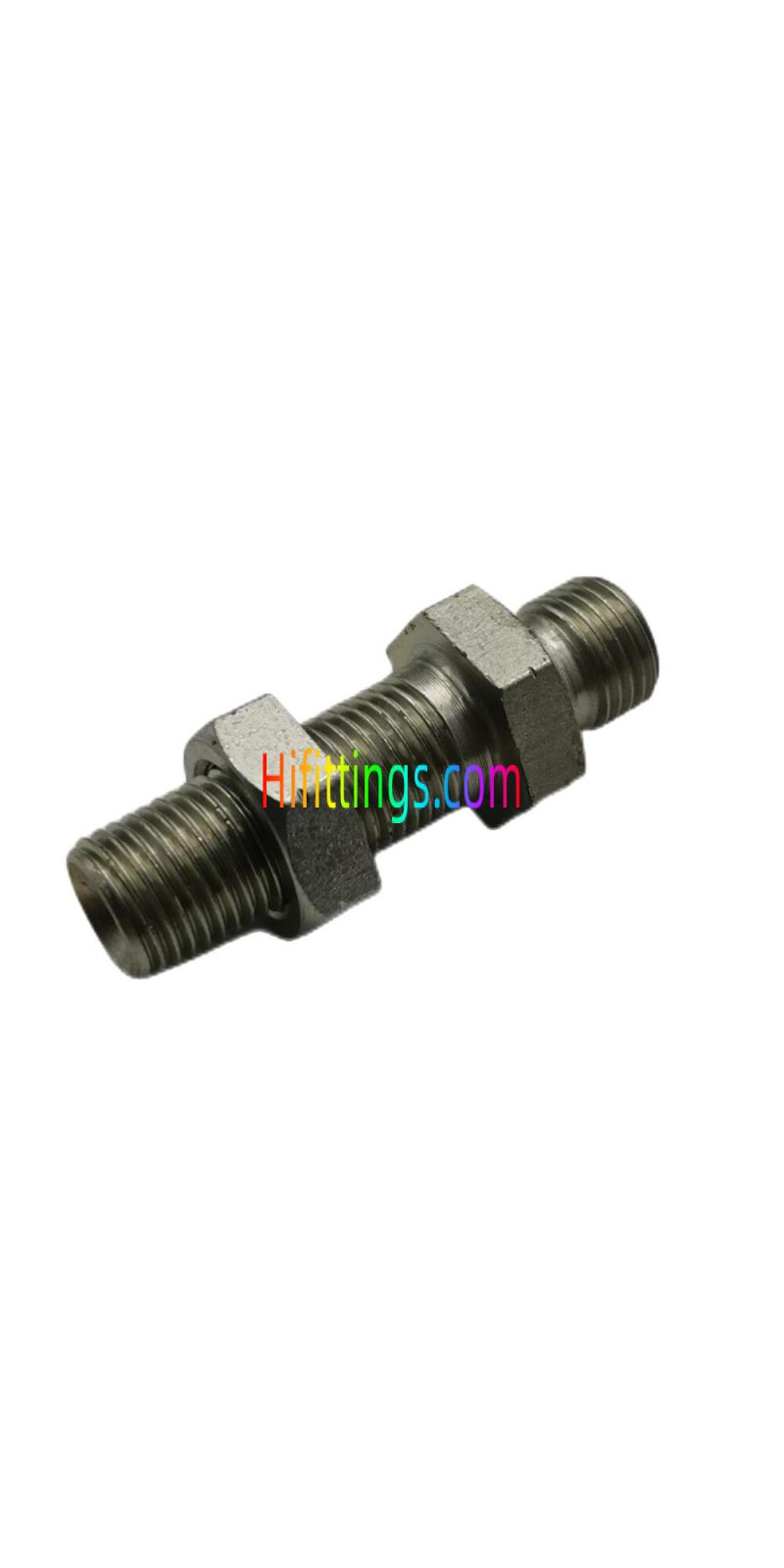

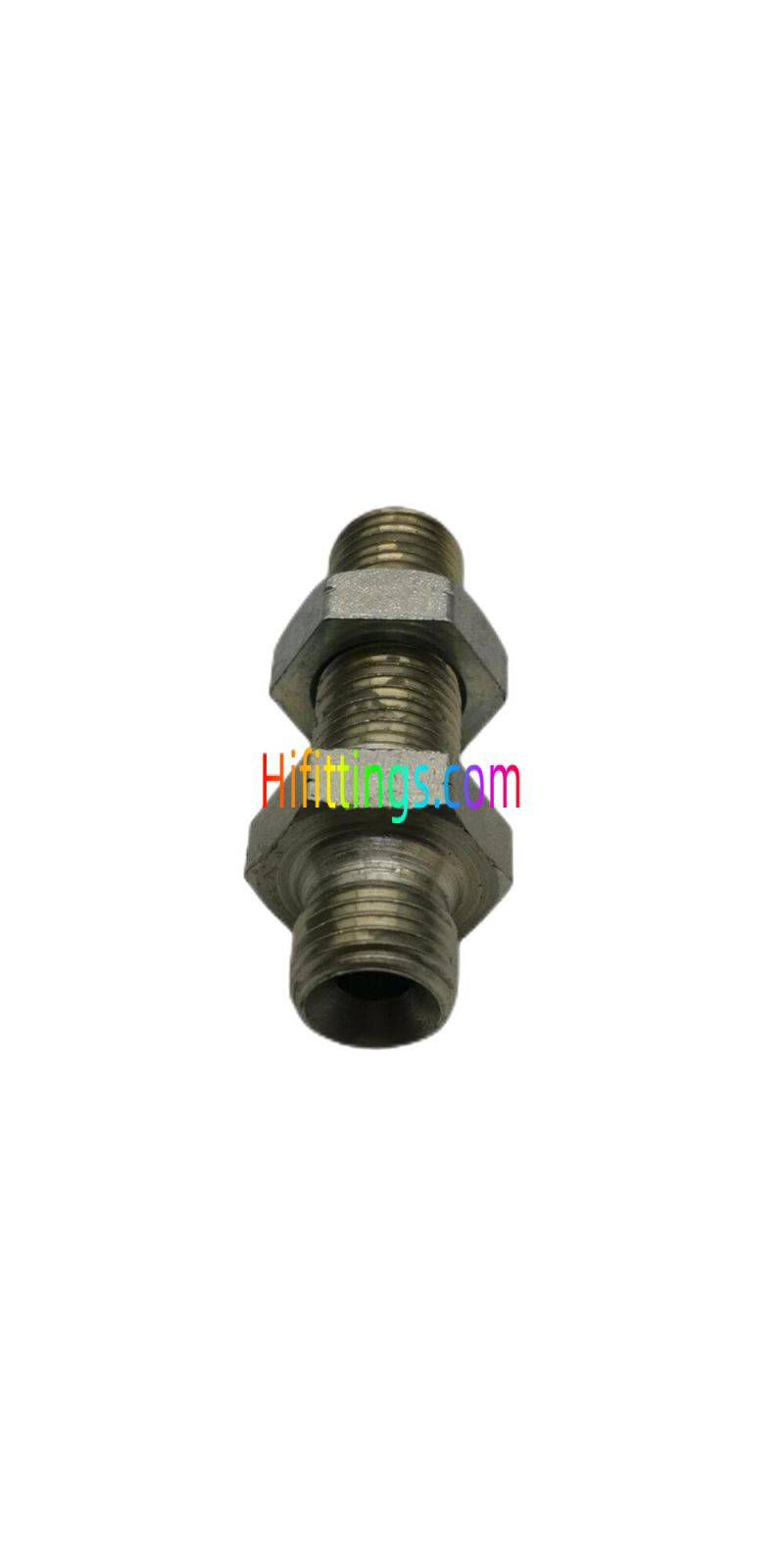

BSP Male 60° Seat Bulkhead Cone Fittings 6B
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
S2 |
Working Pressure bar |
|
6B-02 |
G1/8"X28 |
G1/8"X28 |
10 |
33 |
49 |
14 |
14 |
PN345 |
|
6B-04 |
G1/4"X19 |
G1/4"X19 |
12 |
35 |
53 |
19 |
19 |
PN345 |
|
6B-06 |
G3/8"X19 |
G3/8"X19 |
13.5 |
35 |
56.5 |
22 |
22 |
PN345 |
|
6B-08 |
G1/2"X14 |
G1/2"X14 |
16 |
39 |
65 |
27 |
27 |
PN345 |
|
6B-10 |
G5/8"X14 |
G5/8"X14 |
17.5 |
40 |
67.5 |
30 |
30 |
PN275 |
|
6B-12 |
G3/4"X14 |
G3/4"X14 |
18.5 |
42 |
71.5 |
32 |
32 |
PN275 |
|
6B-16 |
G1"X11 |
G1"X11 |
20.5 |
50 |
84 |
41 |
41 |
PN205 |
|
6B-20 |
G1.1/4"X11 |
G1.1/4"X11 |
20.5 |
52 |
89.5 |
50 |
50 |
PN170 |
|
6B-24 |
G1.1/2"X11 |
G1.1/2"X11 |
23 |
55 |
93 |
55 |
55 |
PN105 |
|
6B-32 |
G2"X11 |
G2"X11 |
25.5 |
55 |
97.5 |
70 |
70 |
PN105 |
| Shape | Straight |
|---|---|
| Fitting Type | Cone |
| Thread Type | Male |
| Connection Type | BSP |
