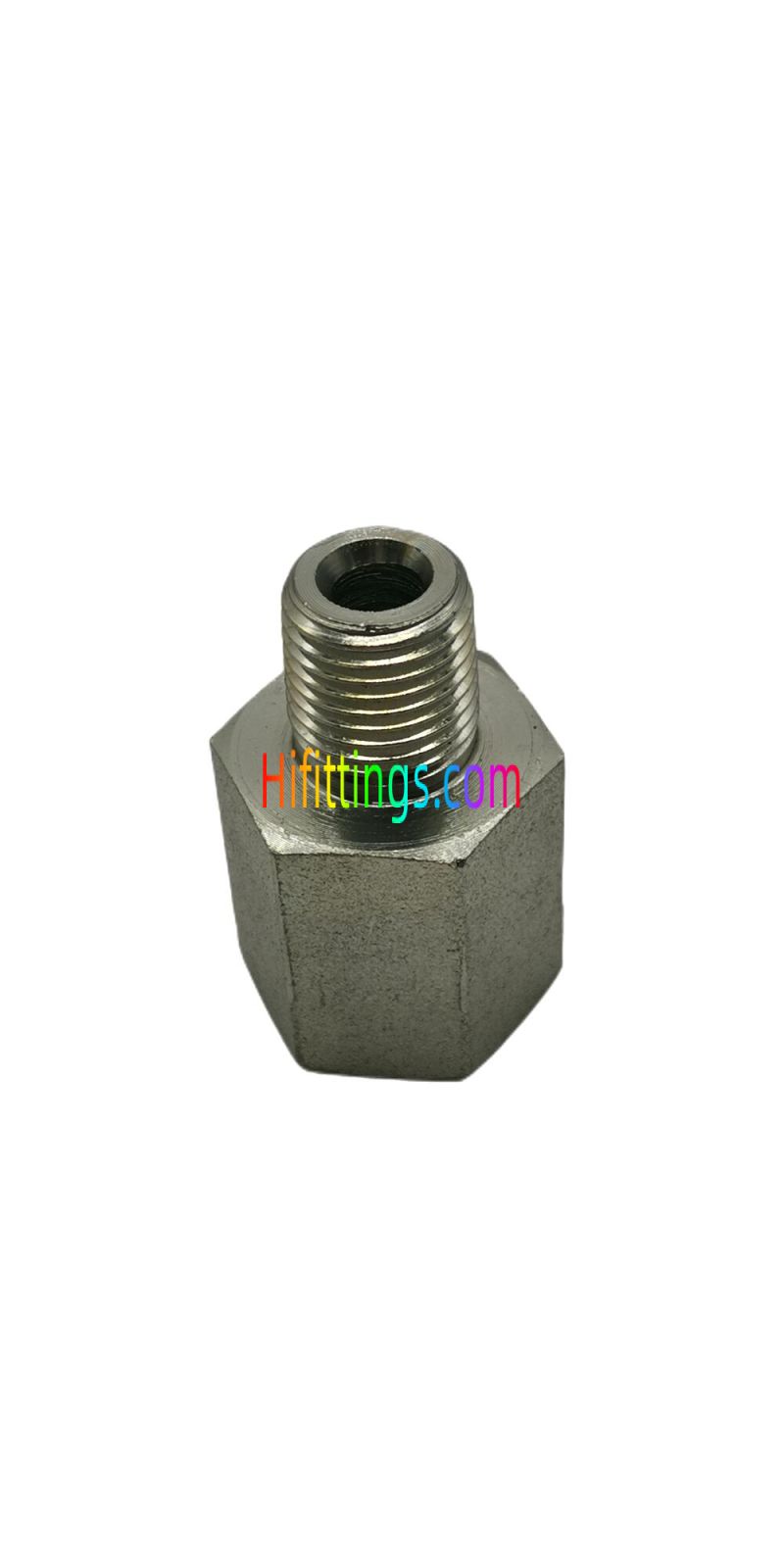

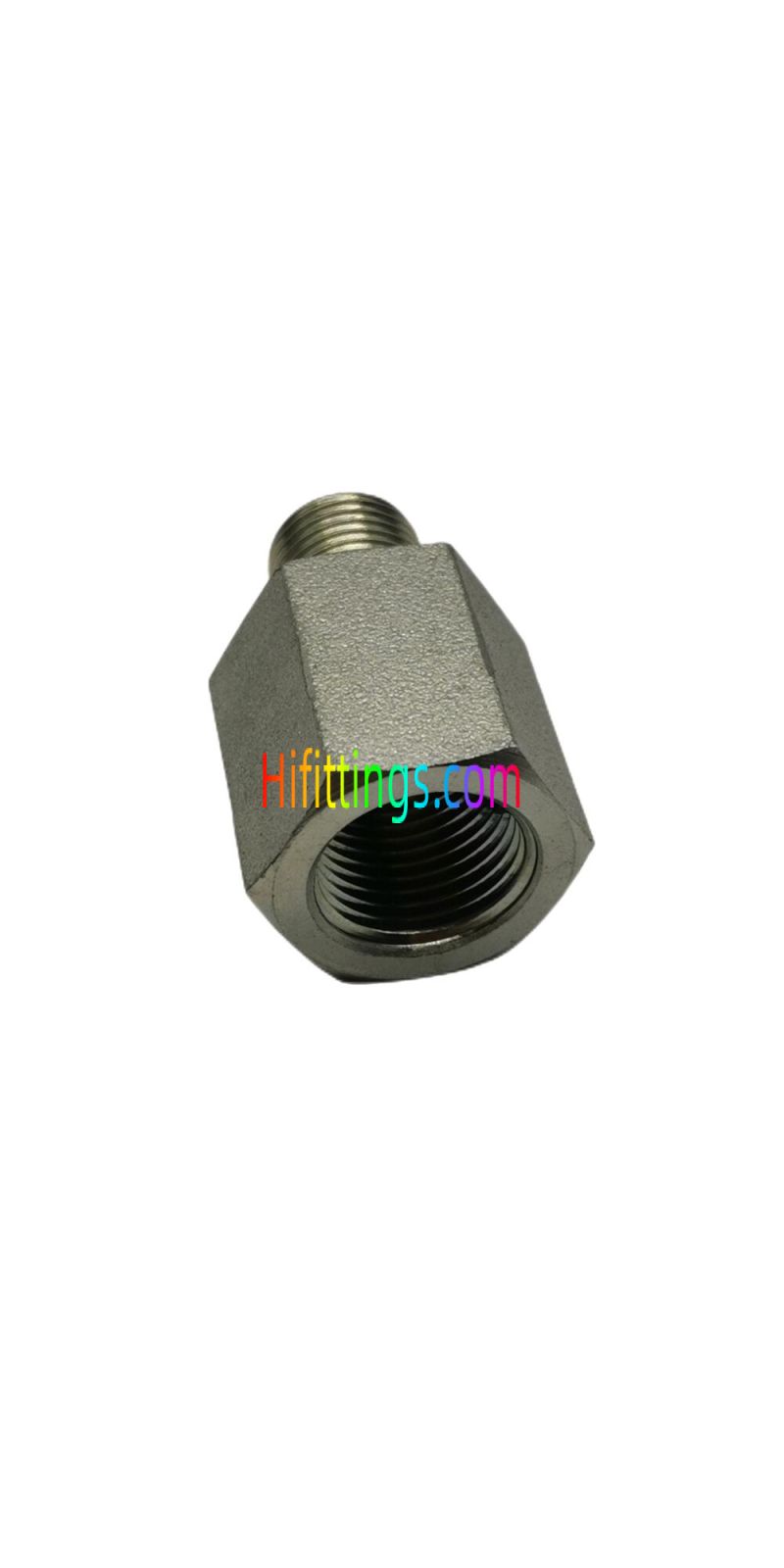

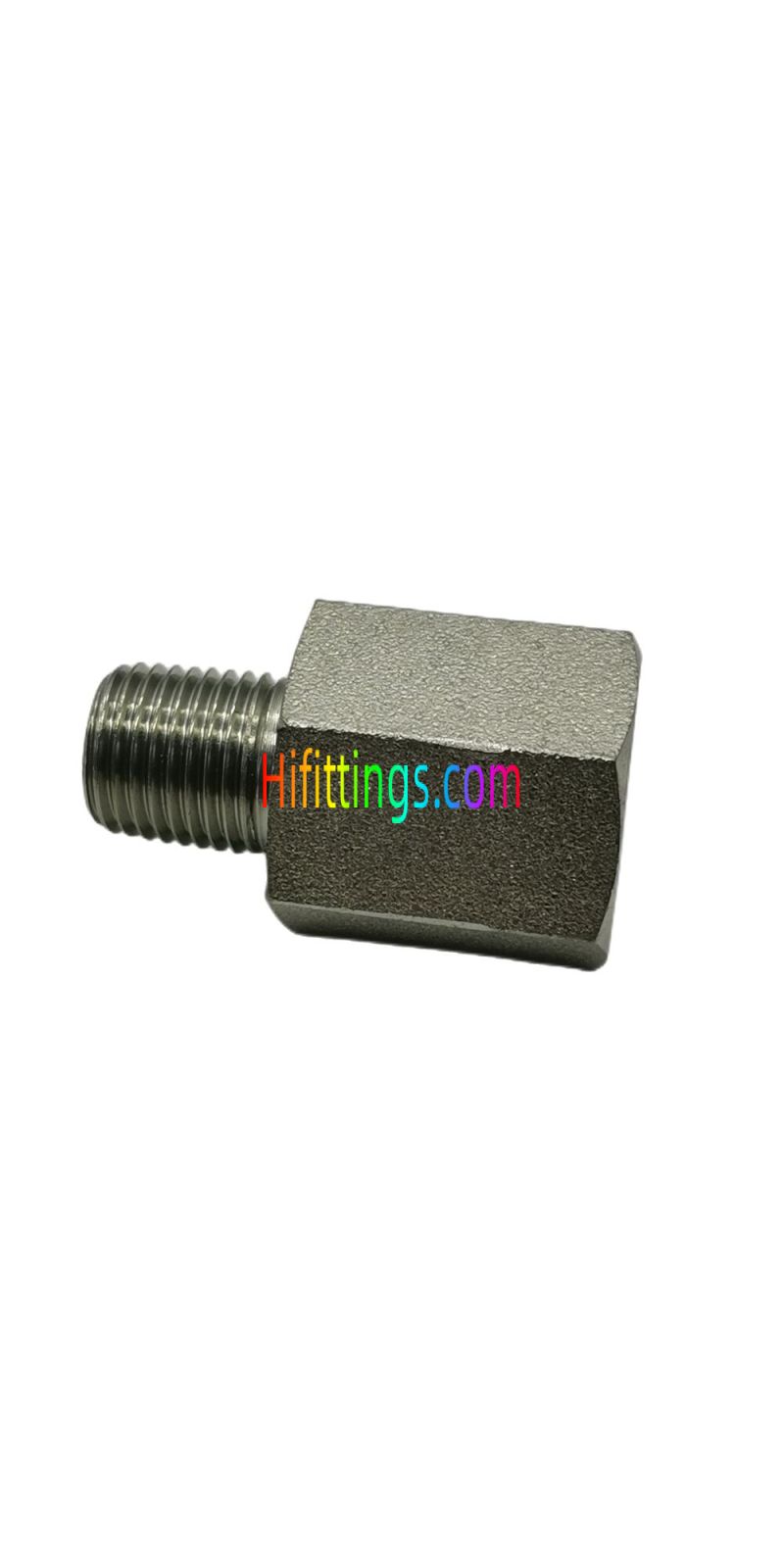

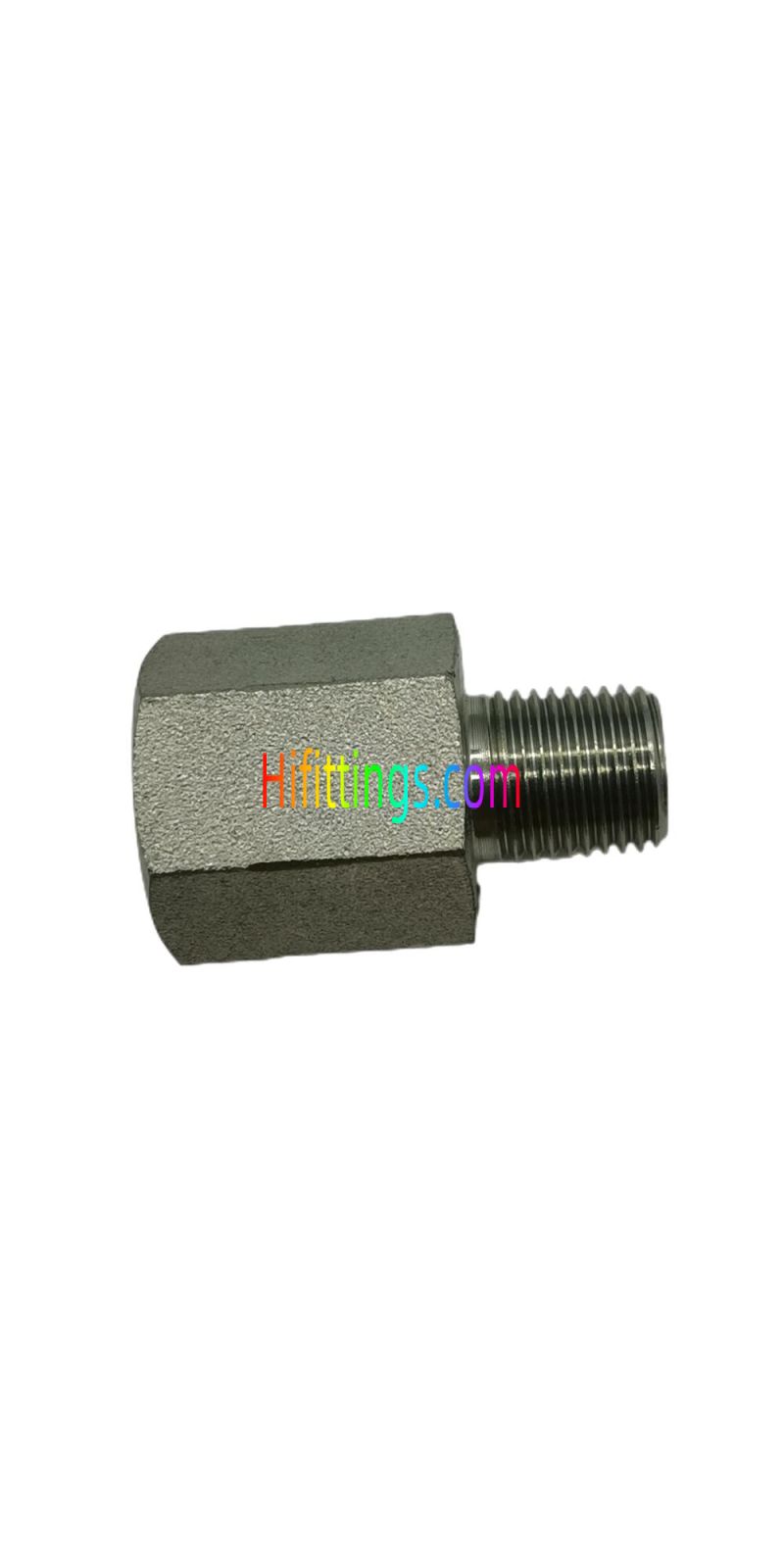

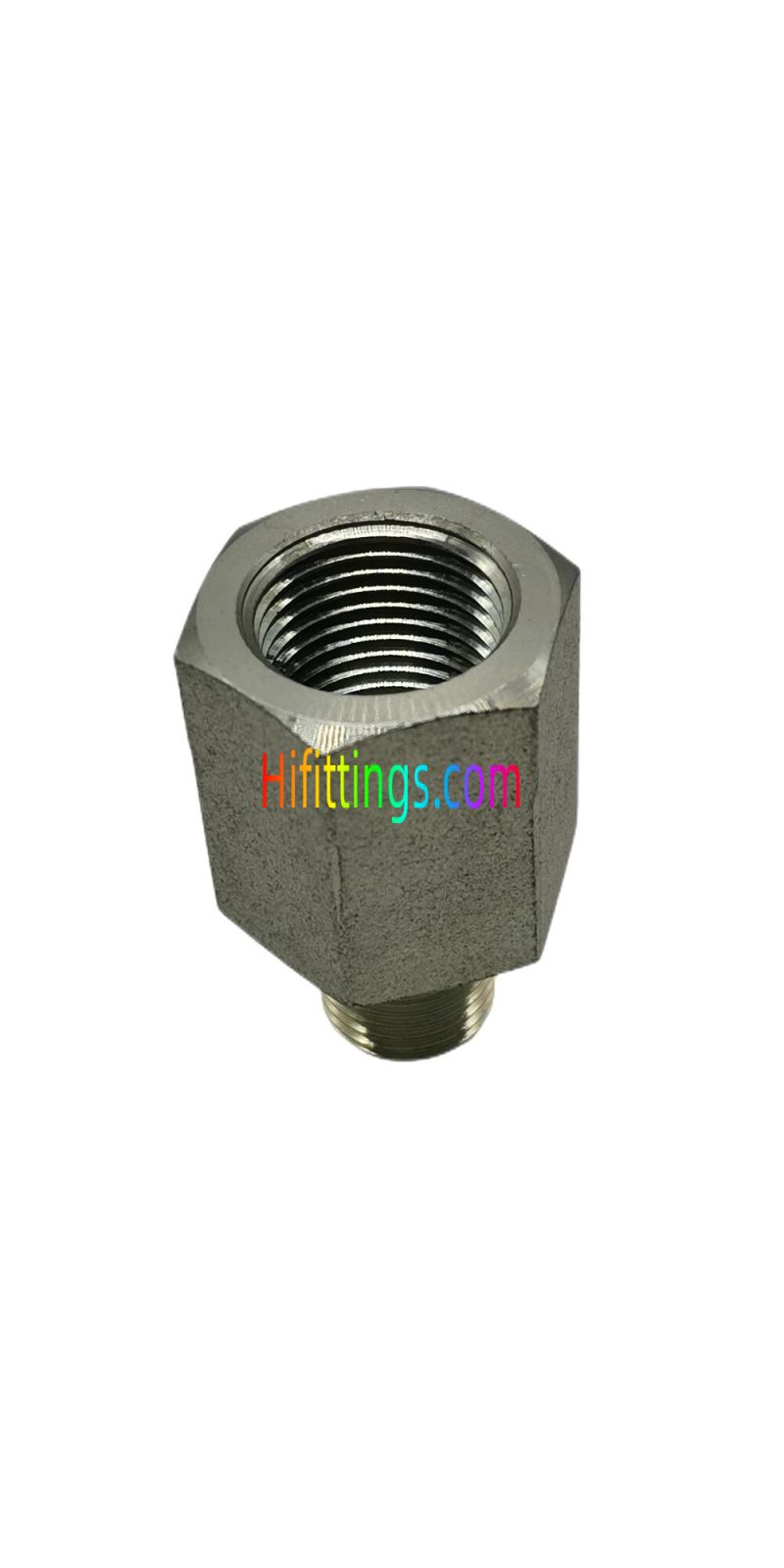

BSPT Male / BSPT Female Hydraulic Adapter Pipe Fittings 5T-SP
|
Part NO. |
E |
F |
A |
L |
S1 |
Working Pressure bar |
|
5T-02-04SP |
R1/8"X28 |
Rc1/4"X19 |
11 |
32.5 |
19 |
PN345 |
|
5T-04-02SP |
R1/4"X19 |
Rc1/8"X28 |
14.5 |
20.5 |
14 |
PN345 |
|
5T-04SP |
R1/4"X19 |
Rc1/4"X19 |
14.5 |
36 |
19 |
PN345 |
|
5T-04-06SP |
R1/4"X19 |
Rc3/8"X19 |
14.5 |
38 |
22 |
PN345 |
|
5T-06-02SP |
R3/8"X19 |
Rc1/8"X28 |
15 |
23 |
19 |
PN345 |
|
5T-06-04SP |
R3/8"X19 |
Rc1/4"X19 |
15 |
23 |
19 |
PN345 |
|
5T-06SP |
R3/8"X19 |
Rc3/8"X19 |
15 |
38.5 |
22 |
PN345 |
|
5T-06-08SP |
R3/8"X19 |
Rc1/2"X14 |
15 |
44 |
27 |
PN345 |
|
5T-08-04SP |
R1/2"X14 |
Rc1/4"X19 |
20 |
30 |
24 |
PN345 |
|
5T-08-06SP |
R1/2"X14 |
Rc3/8"X19 |
20 |
30 |
24 |
PN345 |
|
5T-08SP |
R1/2"X14 |
Rc1/2"X14 |
20 |
49 |
27 |
PN345 |
|
5T-08-12SP |
R1/2"X14 |
Rc3/4"X14 |
20 |
51 |
36 |
PN275 |
|
5T-12-06SP |
R3/4"X14 |
Rc3/8"X19 |
20 |
31 |
30 |
PN275 |
|
5T-12-08SP |
R3/4"X14 |
Rc1/2"X14 |
20 |
31 |
30 |
PN275 |
|
5T-12SP |
R3/4"X14 |
Rc3/4"X14 |
20 |
51 |
36 |
PN275 |
|
5T-12-16SP |
R3/4"X14 |
Rc1"X11 |
20 |
56.5 |
41 |
PN205 |
|
5T-16-08SP |
R1"X11 |
Rc1/2"X14 |
25.5 |
37 |
36 |
PN205 |
|
5T-16-12SP |
R1"X11 |
Rc3/4"X14 |
25.5 |
37 |
36 |
PN205 |
|
5T-16SP |
R1"X11 |
Rc1"X11 |
25.5 |
60 |
41 |
PN205 |
|
5T-16-20SP |
R1"X11 |
Rc1.1/4"X11 |
25.5 |
64 |
50 |
PN170 |
|
5T-20-12SP |
R1.1/4"X11 |
Rc3/4"X14 |
26.5 |
38 |
46 |
PN170 |
|
5T-20-16SP |
R1.1/4"X11 |
Rc1"X11 |
26.5 |
38 |
46 |
PN170 |
|
5T-20SP |
R1.1/4"X11 |
Rc1.1/4"X11 |
26.5 |
64.5 |
50 |
PN170 |
|
5T-24-16SP |
R1.1/2"X11 |
Rc1"X11 |
26.5 |
41 |
50 |
PN105 |
|
5T-24-20SP |
R1.1/2"X11 |
Rc1.1/4"X11 |
26.5 |
41 |
50 |
PN105 |
|
5T-32-20SP |
R2"X11 |
Rc1.1/4"X11 |
30 |
45 |
65 |
PN105 |
|
5T-32-24SP |
R2"X11 |
Rc1.1/2"X11 |
30 |
45 |
65 |
PN105 |
|
Note:1.PN = Nominal Pressure |
||||||
| Shape | Straight |
|---|---|
| Connection Type | BSPT |
| Thread Type | Male-Female |
| Fitting Type | Pipe Thread |
