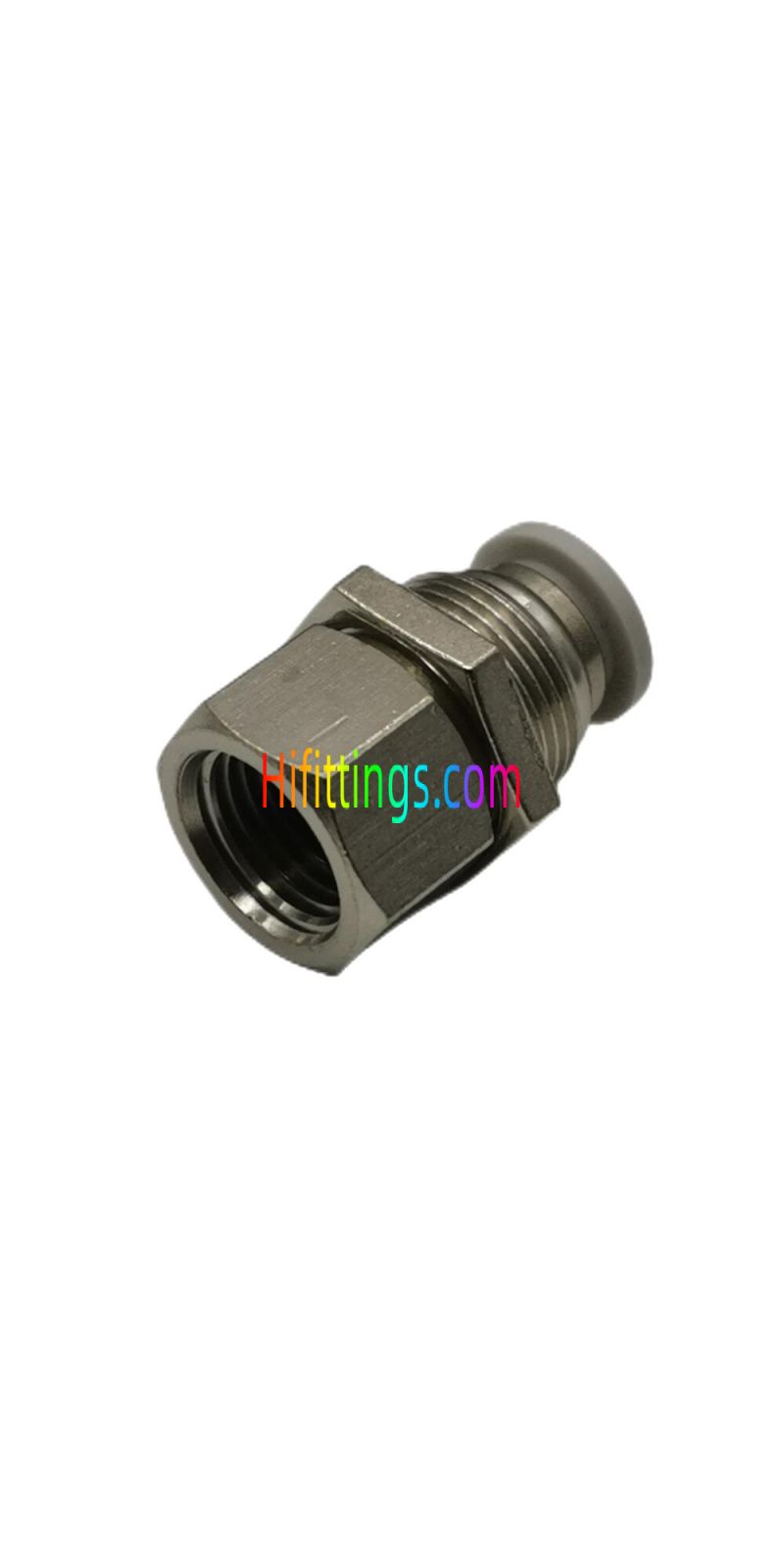

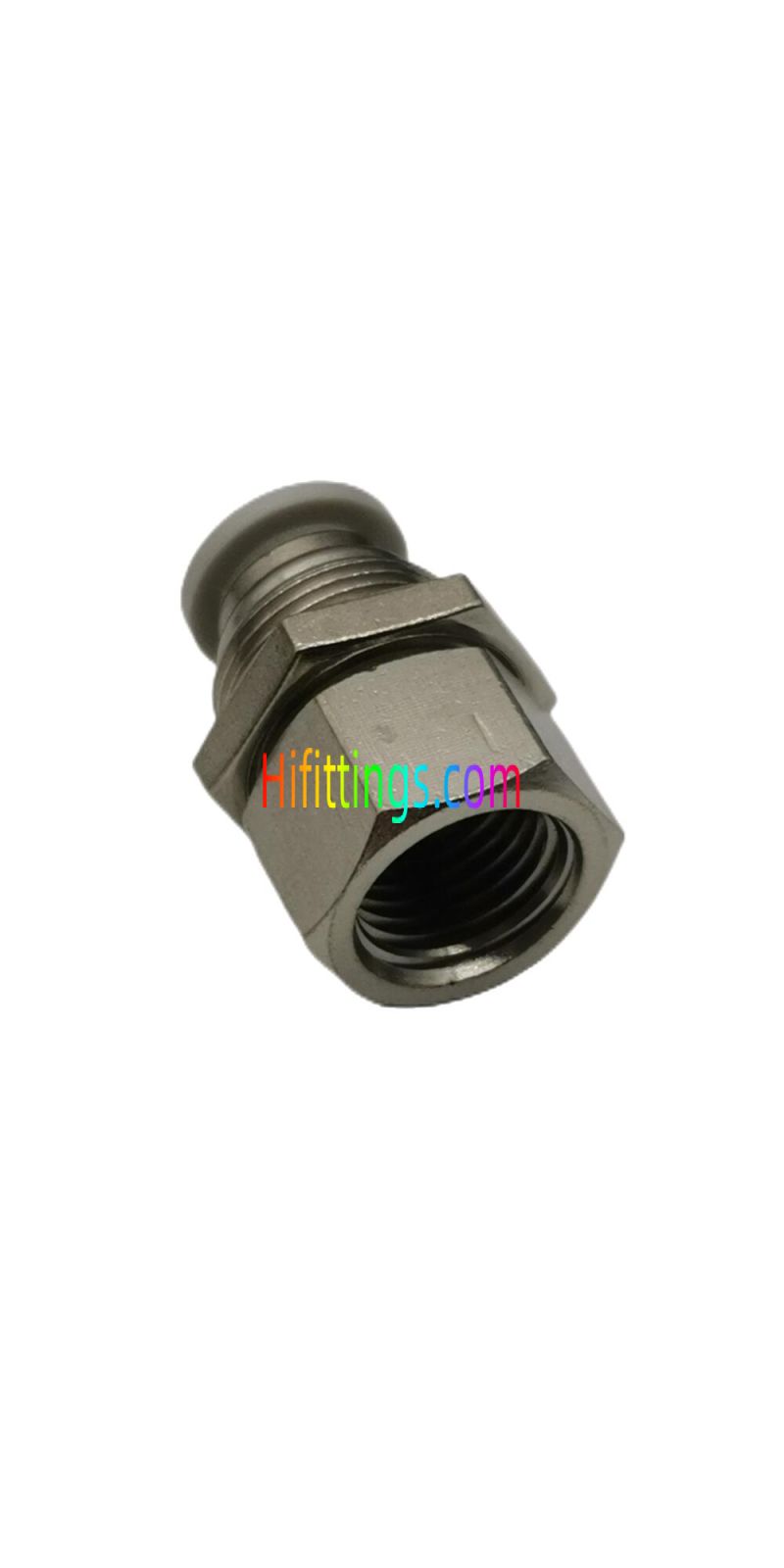

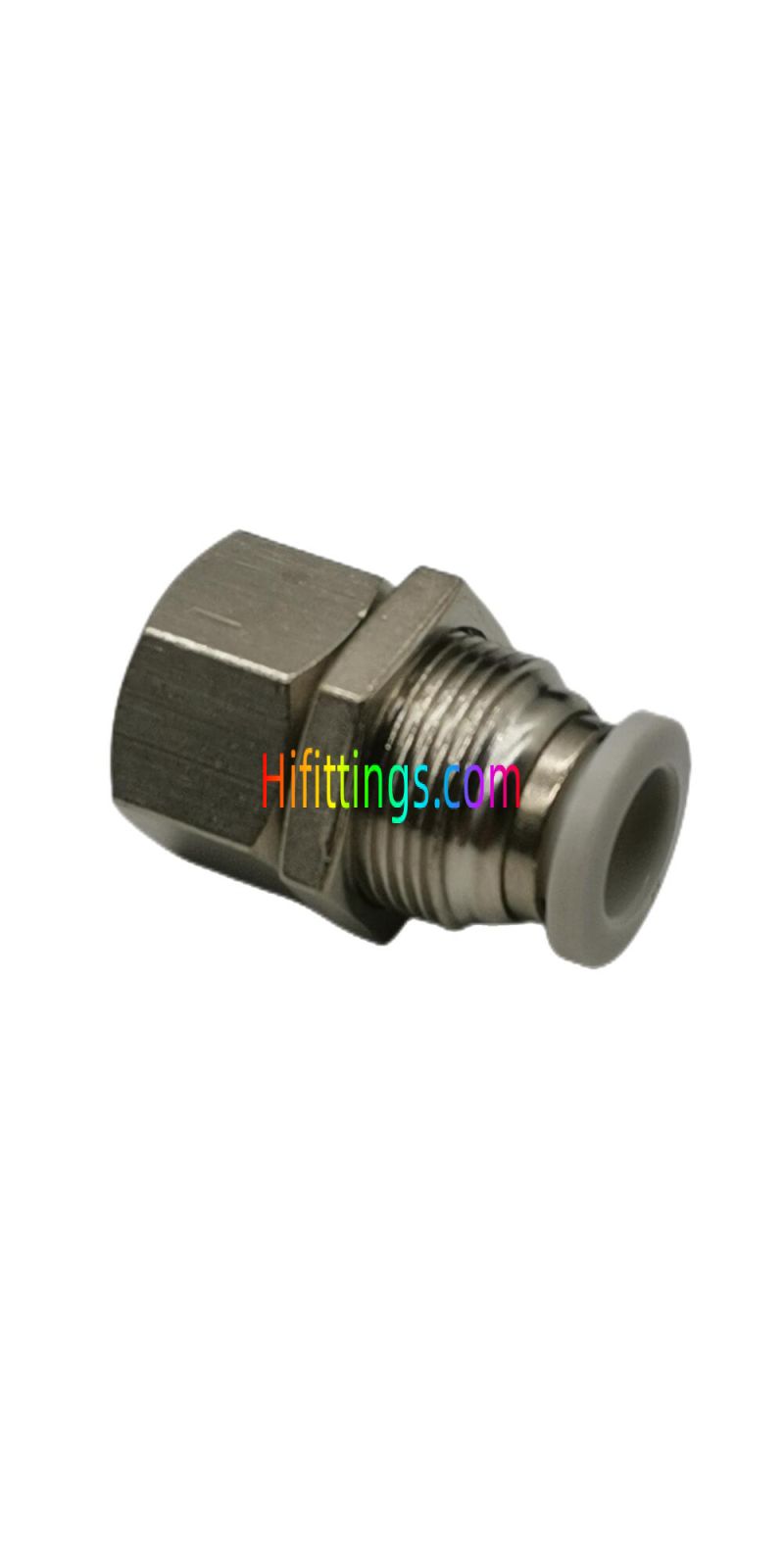

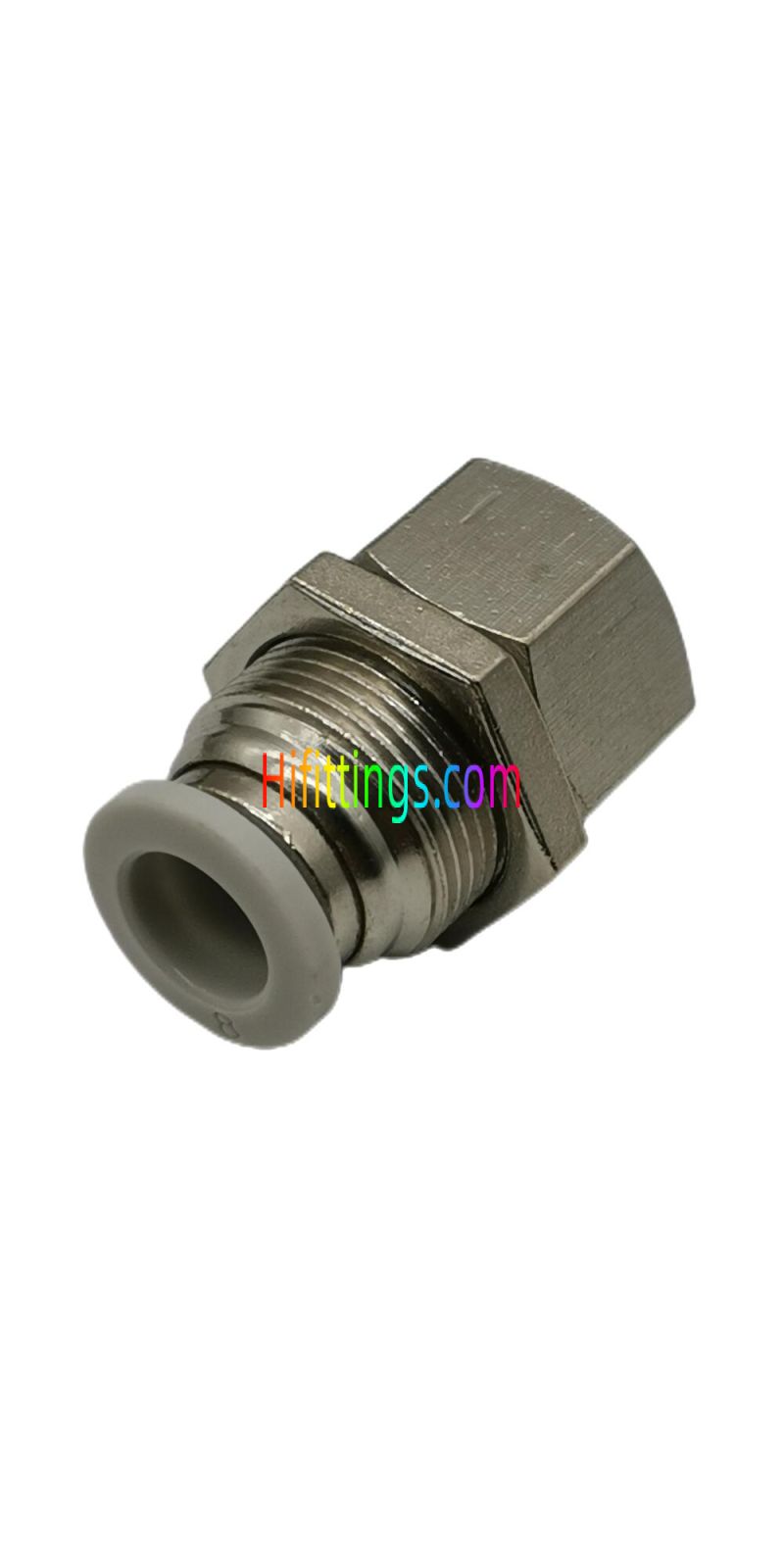

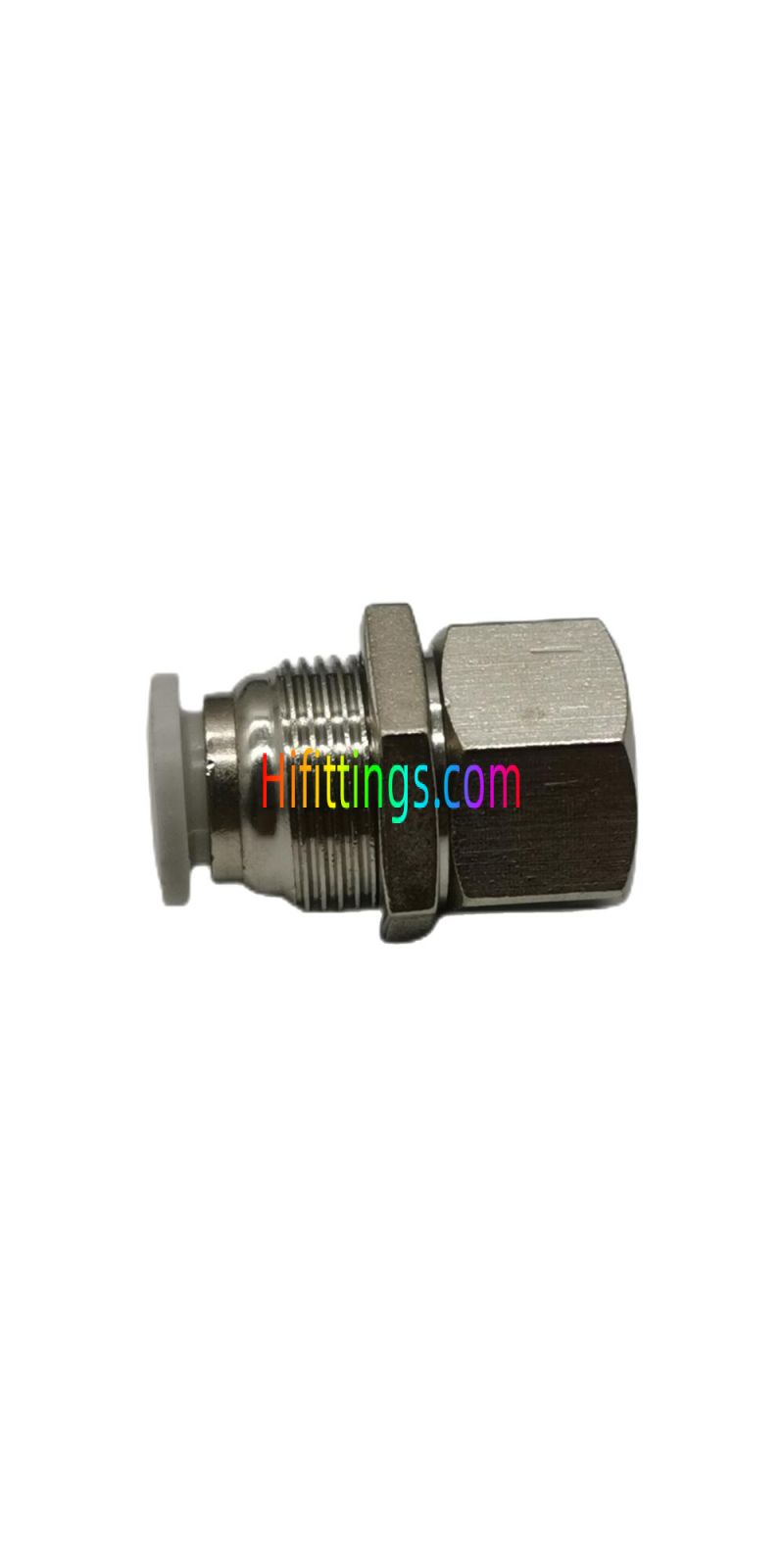

Bulkhead Female Connector Pneumatic Push-In Fitting PMF
| Item | φD | R | M | L | c | K | LA | E | GA | G | H |
| PMF401 | 4 | PT1/8 | M12X1 | 8 | 25 | 14 | 12 | 4 | 4 | 14 | 14 |
| PMF402 | PT1/4 | M12X1 | 11 | 29 | 14 | 12 | 4 | 4 | 14 | 17 | |
| PMF601 | 6 | PT1/8 | M14X1 | 8 | 25.5 | 16.5 | 12.5 | 5 | 4 | 17 | 17 |
| PMF602 | PT1/4 | M14X1 | 11 | 30.5 | 16.5 | 12.5 | 5 | 4 | 17 | 17 | |
| PMF603 | PT3/8 | M14X1 | 12 | 31.5 | 16.5 | 12.5 | 5 | 4 | 17 | 21 | |
| PMF801 | 8 | PT1/8 | M16X1 | 8 | 27.5 | 18.5 | 13.5 | 5.5 | 4 | 19 | 19 |
| PMF802 | PT1/4 | M16X1 | 11 | 32 | 18.5 | 13.5 | 5.5 | 4 | 19 | 19 | |
| PMF803 | PT3/8 | M16X1 | 12 | 33 | 18.5 | 13.5 | 5.5 | 4 | 19 | 21 | |
| PMF804 | PT1/2 | M16X1 | 13.5 | 34.5 | 18.5 | 13.5 | 5.5 | 4 | 19 | 25 | |
| PMF1001 | 10 | PT1/8 | M20X1 | 8 | 30 | 21 | 14.5 | 7.5 | 5 | 24 | 22 |
| PMF1002 | PT1/4 | M20X1 | 11 | 35 | 21 | 14.5 | 7.5 | 5 | 24 | 22 | |
| PMF1003 | PT3/8 | M20X1 | 12 | 36 | 21 | 14.5 | 7.5 | 5 | 24 | 22 | |
| PMF1004 | PT1/2 | M20X1 | 13.5 | 37.5 | 21 | 14.5 | 7.5 | 5 | 24 | 25 | |
| PMF1202 | 12 | PT1/4 | M22X1 | 11 | 34.5 | 23 | 15.5 | 8 | 6 | 27 | 24 |
| PMF1203 | PT3/8 | M22X1 | 12 | 37.5 | 23 | 15.5 | 8 | 6 | 27 | 24 | |
| PMF1204 | PT1/2 | M22X1 | 13.5 | 39 | 23 | 15.5 | 8 | 6 | 27 | 25 |
| Shape | Straight |
|---|---|
| Material | Carbon Steel |
| Fitting Type | Push-in |
| Thread Type | Female |
| Connection Type | BSPT |
| Safecan | Safecan |
