Close Type Hydraulic Quick Coupling ISO7241 A

Add to Wish List
As low as $4.30 Regular Price $4.30
36
In stock
Only %1 left
SKU
A
Quick Couplings
Estimated Delivery:
21 - 11 Dec, 2024
Free Shipping & Returns:
On all orders over $300

Guarantee safe & secure checkout

ISO7241-A  Specifications
Body Size(in) 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2
Rated Pressure (PSI) 5000 5000 4000 4000 3000 3000 2500 2000
Rated Flow(GPM) 3 6 12 28 50 88 120 240
Temperature Range(NBR) -20℃ 〜+120C
 Close Type Hydraulic Quick Coupling ISO7241 A  Socket Close Type Hydraulic Quick Coupling ISO7241 A  Socket

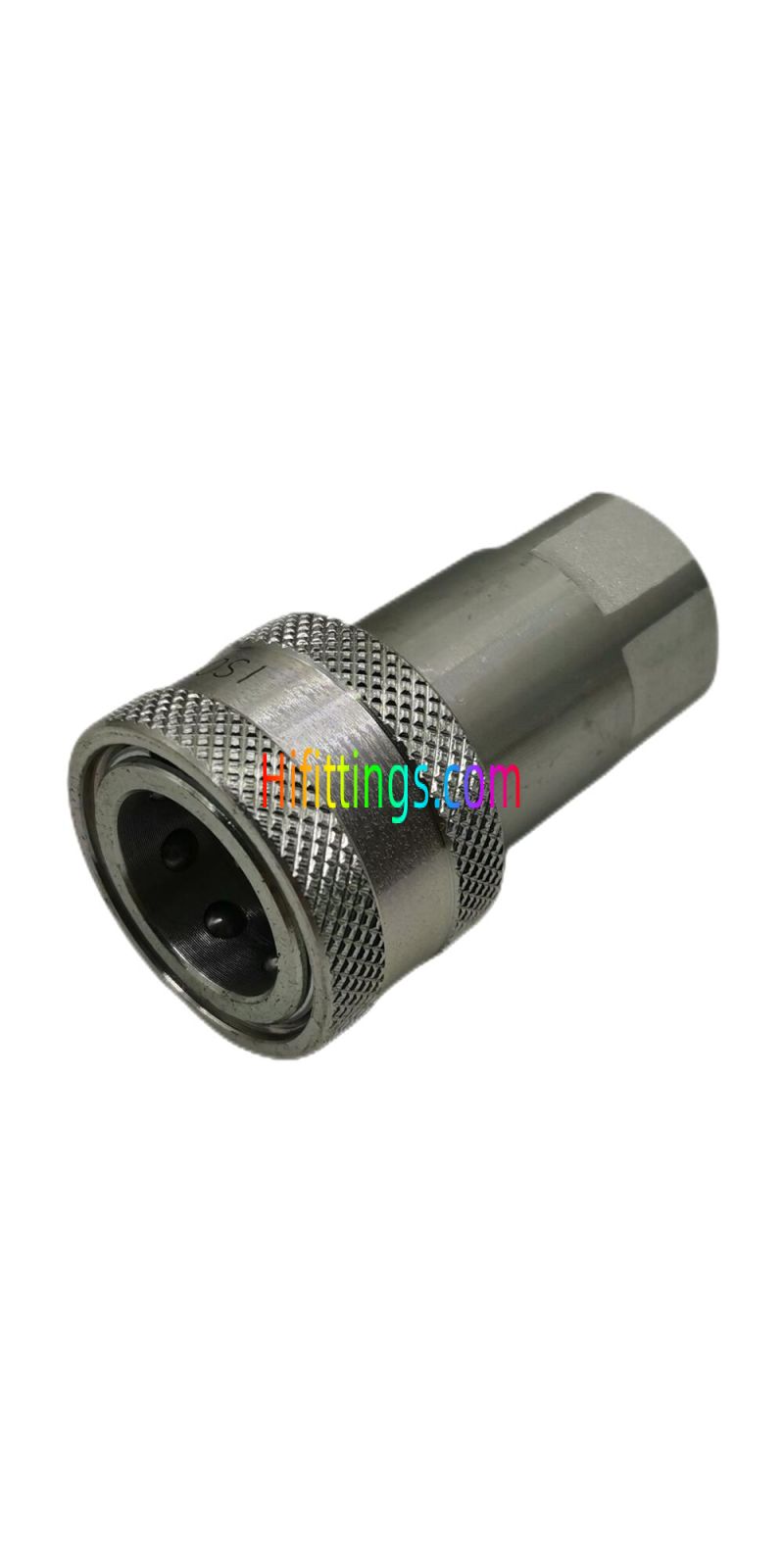

Socket

Part NO. ISO Thread LS φD S1 A
A-G02SF 6.3 Gl/4 50 26 19 13
A-G03SF 10 G3/8 56 31.5 22 14
A-G04SF 12.5 Gl/2 66 38.5 27 16
A-G06SF 20 G3/4 80 48 34 18
A-G08SF 25 G1 94 56 41 21
A-G10SF 31.5 Gl-l/4 117 69.5 50 25
A-G12SF 40 Gl-1/2 133 84 60 27
A-G16SF 50 G2 165 99 75 26
Multi-Purpose Close Type Hydraulic Quick Couplings, ISO 7241 series A Interchange  PlugMulti-Purpose Close Type Hydraulic Quick Couplings, ISO 7241 series A Interchange  Plug

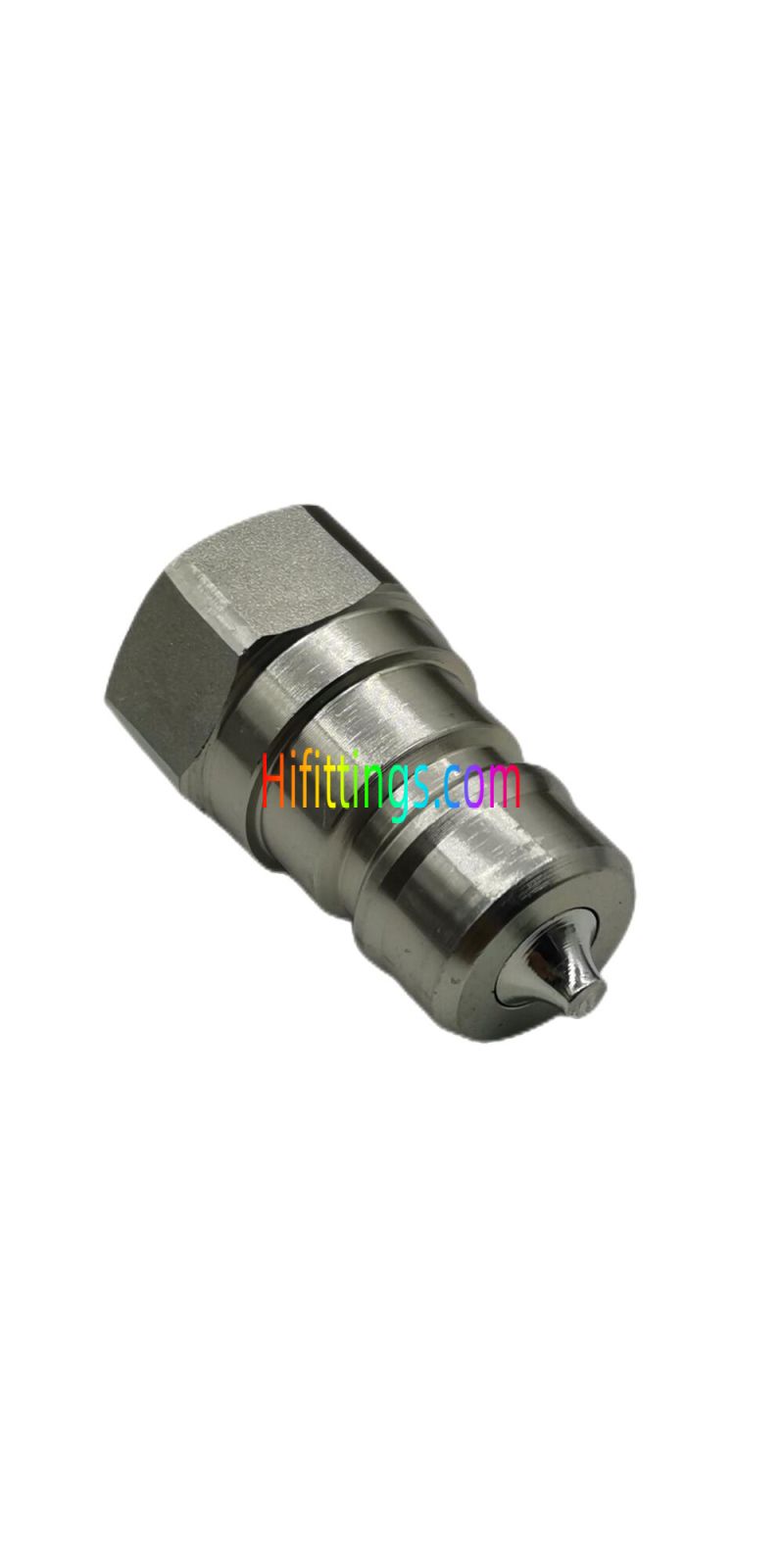

Plug

Part NO. ISO Thread LP d C S2
A-G02PF 6.3 Gl/4 35.5 11.8 15 19
A-G03PF 10 G3/8 36.5 17.3 21.4 22
A-G04PF 12.5 Gl/2 43.5 20.5 27 27
A-G06PF 20 G3/4 57 29 28 34
A-G08PF 25 G1 59.5 34.3 36 41
A-G10PF 31.5 Gl-l/4 75 45 46 50
A-G12PF 40 Gl-1/2 83.5 55 52 60
A-G16PF 50 G2 105 65 64 75
Multi-Purpose Close Type Hydraulic Quick Couplings, ISO 7241 series A Interchange Coupling FittingMulti-Purpose Close Type Hydraulic Quick Couplings, ISO 7241 series A Interchange Coupling Fitting

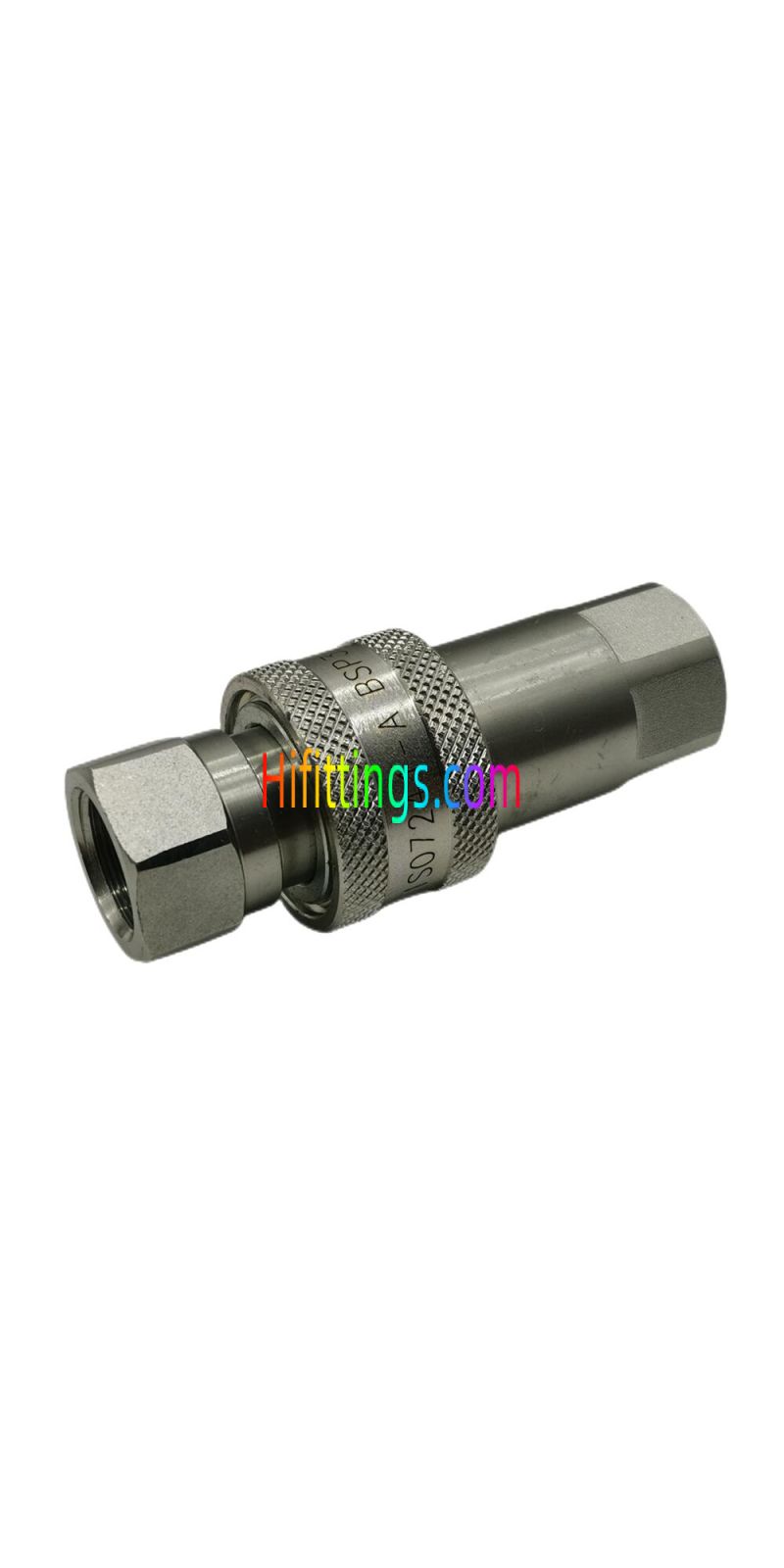

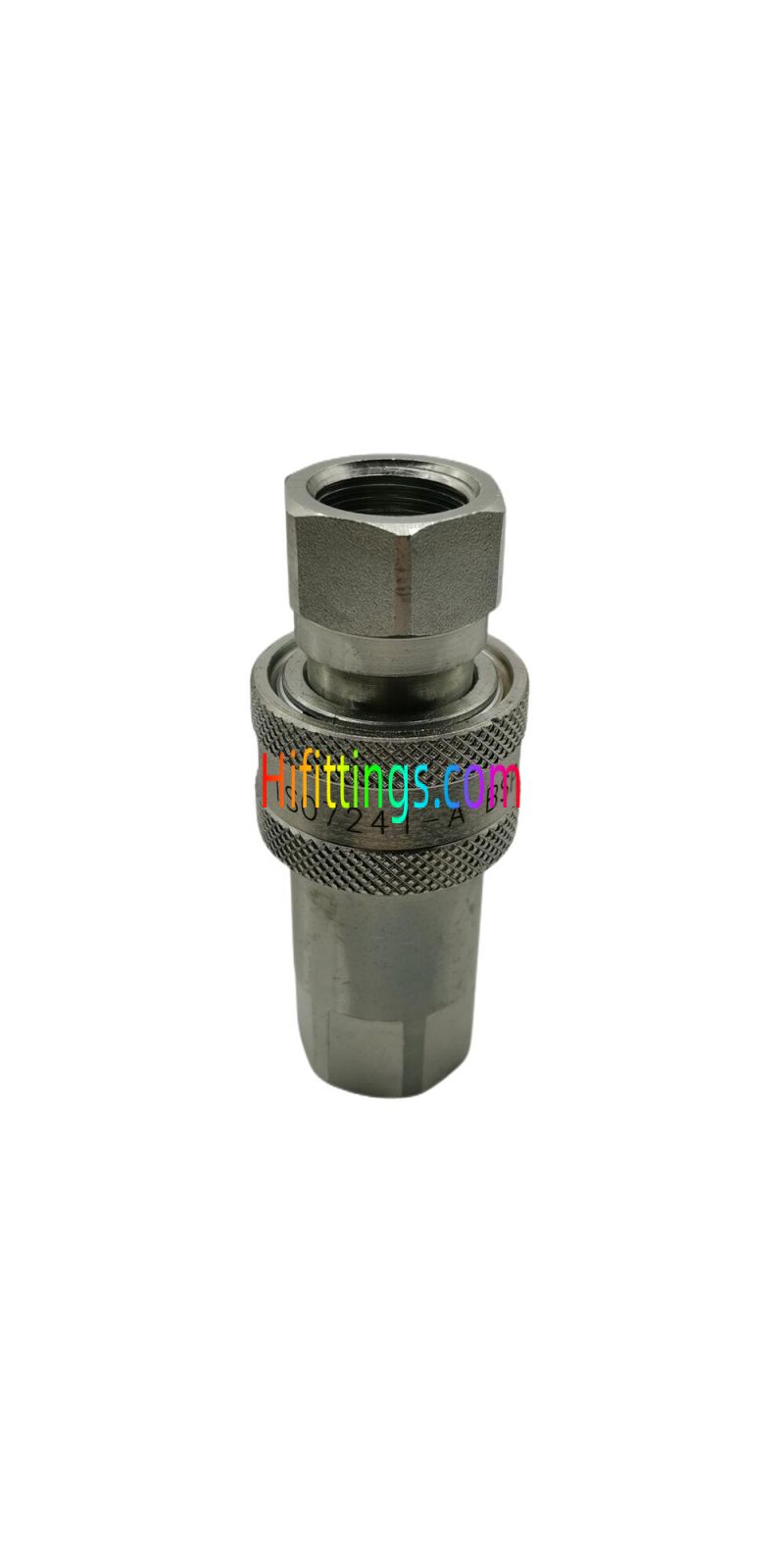

Coupling Fitting

Part NO. ISO Thread L φD S1,S2
A-G02SP 6.3 Gl/4 71 26 19
A-G03SP 10 G3/8 75 31.5 22
A-G04SP 12.5 Gl/2 88 38.5 27
A-G06SP 20 G3/4 110 48 34
A-G08SP 25 G1 119.5 56 41
A-G1OSP 31.5 Gl-l/4 150 69.5 50
A-G12SP 40 Gl-1/2 167.5 84 60
A-G16SP 50 G2 210.5 99 75
More Information
Thread Type Female
