Close Type Hydraulic Quick Coupling ISO7241 B

Add to Wish List
As low as $4.30 Regular Price $4.30
50
In stock
Only %1 left
SKU
B
Quick Couplings
Estimated Delivery:
21 - 10 Jan, 2025
Free Shipping & Returns:
On all orders over $300

Guarantee safe & secure checkout

ISO7211-B  Specifications
Body Size(in) 1/8 1/4 3/8 1/2 3/4 1
Rated Pressure (PSI) 5000 5000 4000 4000 3000 3000
Rated Flow(GPM) 1 3 6 12 28 50
Temperature Range(NBR) -20℃ 〜+120C
Close Type Hydraulic Quick Coupling ISO7241 B  Socket    Close Type Hydraulic Quick Coupling ISO7241 B  Socket

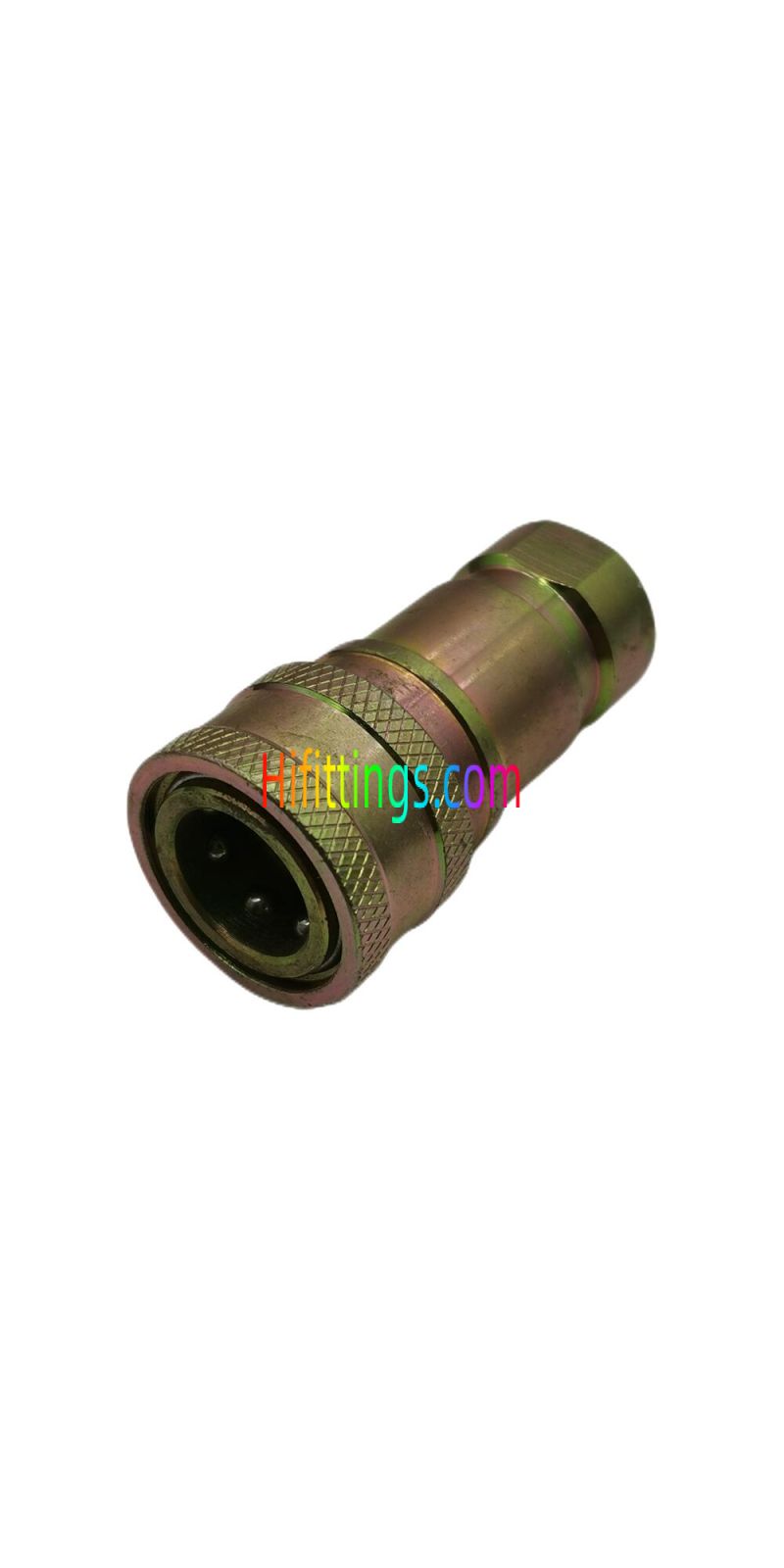

Socket

Part NO. ISO Thread LS φD S1 A
B-G01SF 5 G1/8 48 24 17 9.5
B-G02SF 6.3 G1/4 58 28.5 19 13
B-G03SF 10 G3/8 65 35 24 13
B-G04SF 12.5 G1/2 74 44.5 28.5 20.5
B-G06SF 20 G3/4 92 54 36 22
B-G08SF 25 G1 103 63.5 41 23
Close Type Hydraulic Quick Coupling ISO7241 B Plug Close Type Hydraulic Quick Coupling ISO7241 B Plug

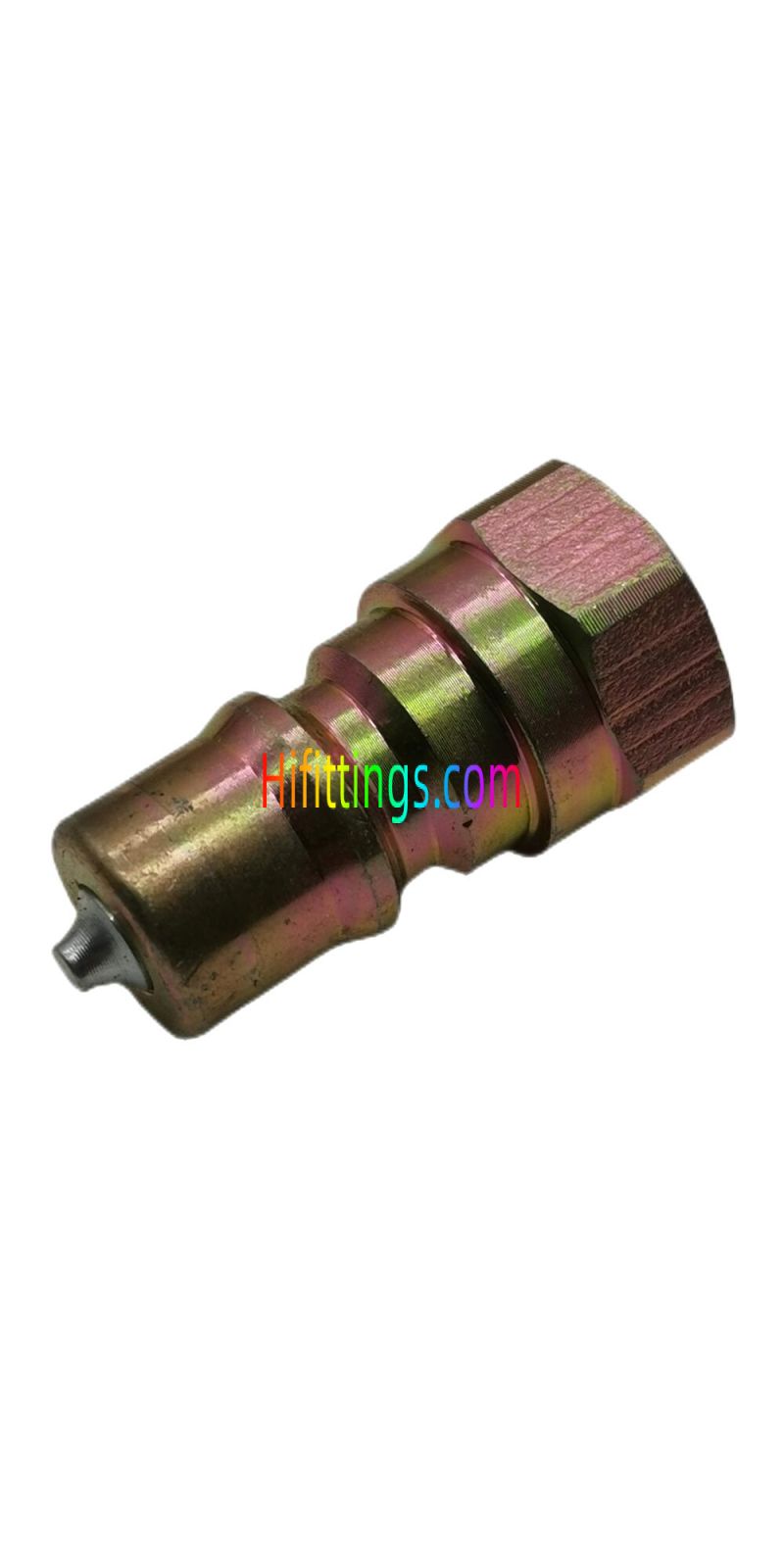

Plug

Part NO. ISO Thread LP φd C S2
B-G01PF 5 G1/8 29 10.8 19 14
B-G02PF 6.3 G1/4 36 14.2 22.8 19
B-G03PF 10 G3/8 40 19 25 24
B-G04PF 12.5 G1/2 46.5 23.5 28 28.5
B-G06PF 20 G3/4 56 31.5 36 36
B-G08PF 25 G1 63 37.8 45 41
Multi-Purpose Close Type Hydraulic Quick Couplings, ISO 7241 series B InterchangeMulti-Purpose Close Type Hydraulic Quick Couplings, ISO 7241 series B Interchange

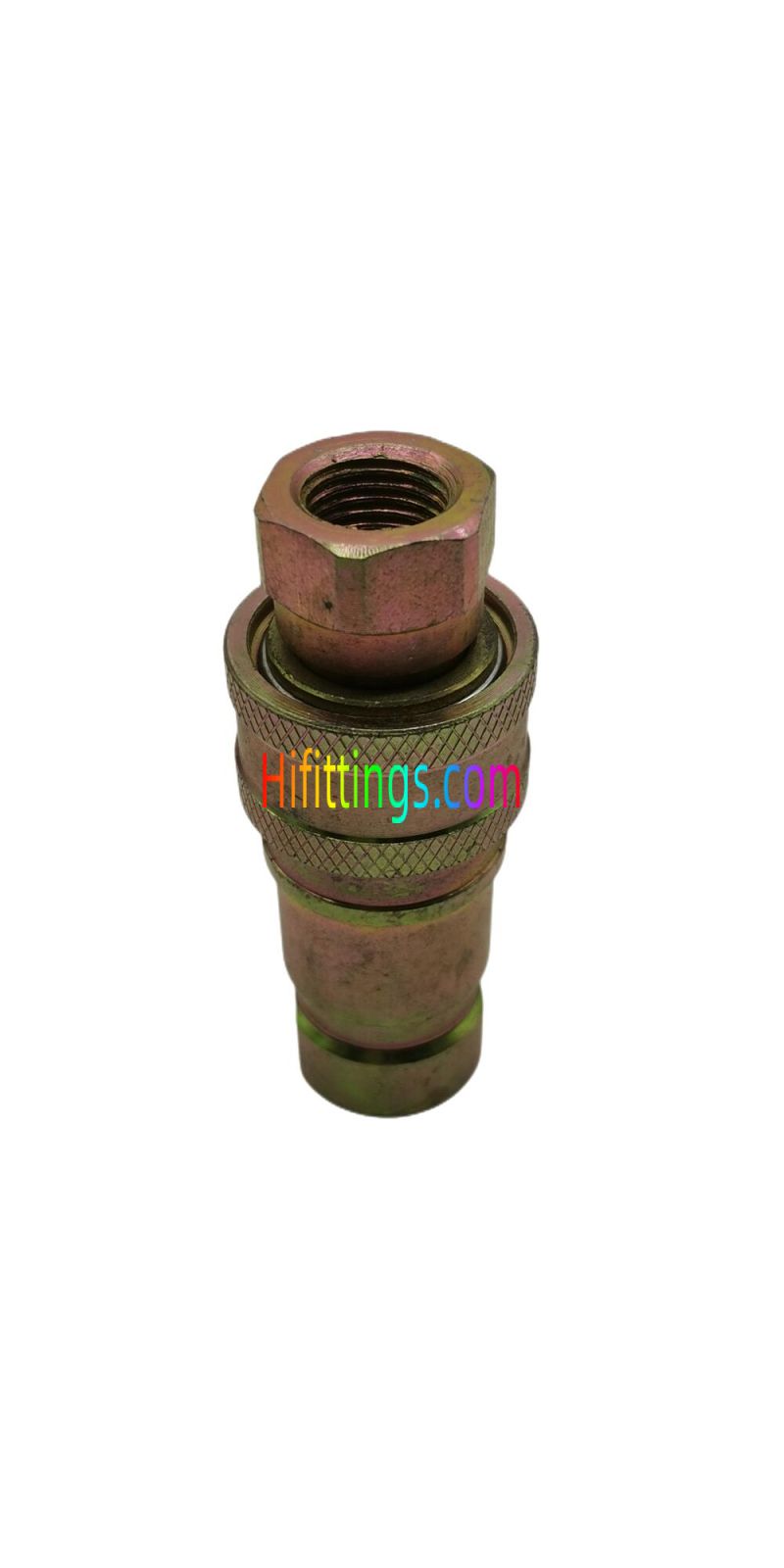

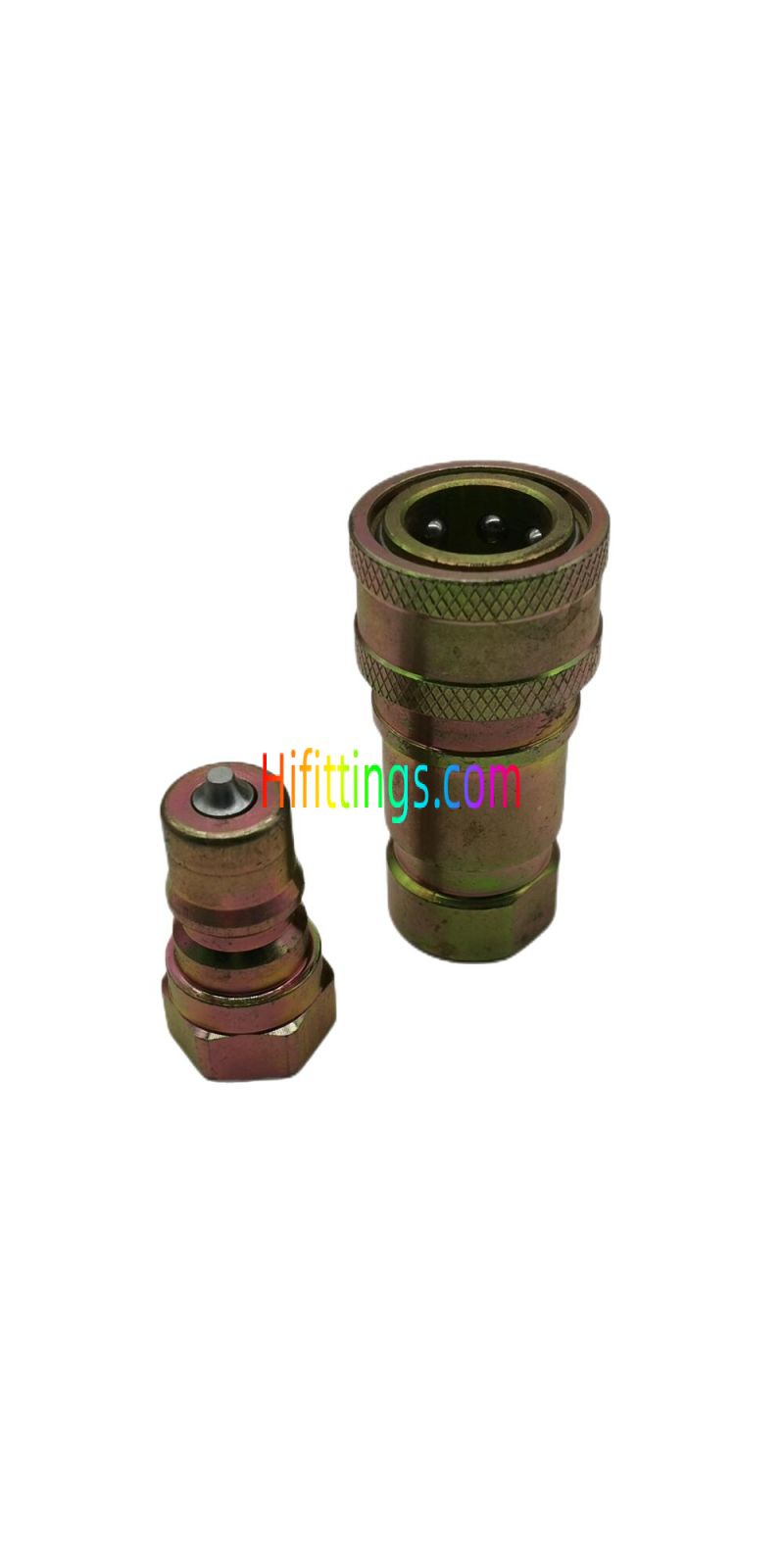

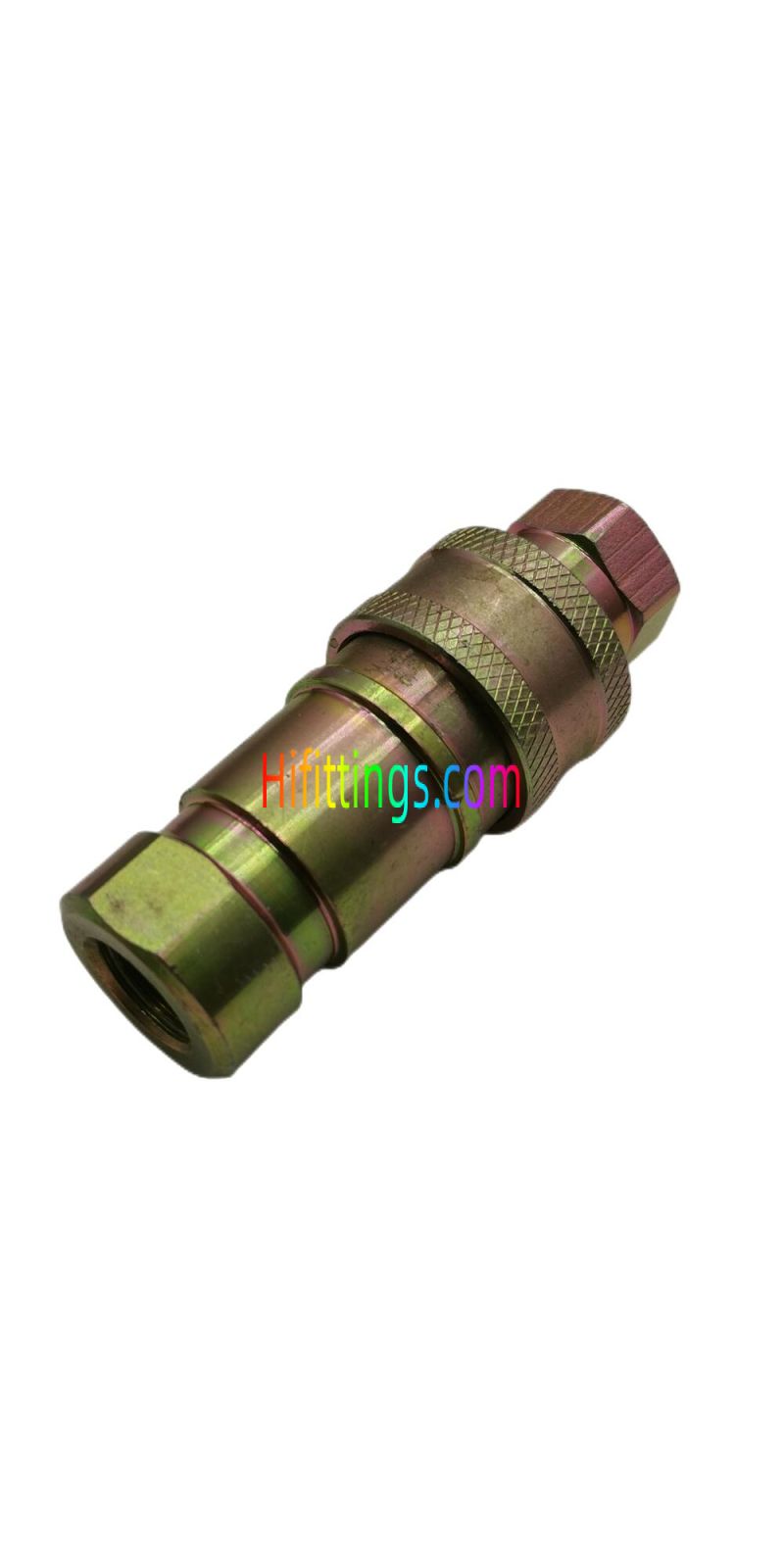

Multi-Purpose Close Type Hydraulic Quick Couplings, ISO 7241 series B Interchange

Part NO. ISO Thread L φD S1 S2
B-G01SP 5 G1/8 58.8 24 17 14
B-G02SP 6.3 G1/4 72 28.5 19 19
B-G03SP 10 G3/8 80.5 35 24 24
B-G04SP 12. 5 G1/2 93. 5 44.5 28.5 28.5
B-G06SP 20 G3/4 112.5 54 36 36
B-G08SP 25 G1 126.5 63.5 41 41
More Information
Thread Type Female
