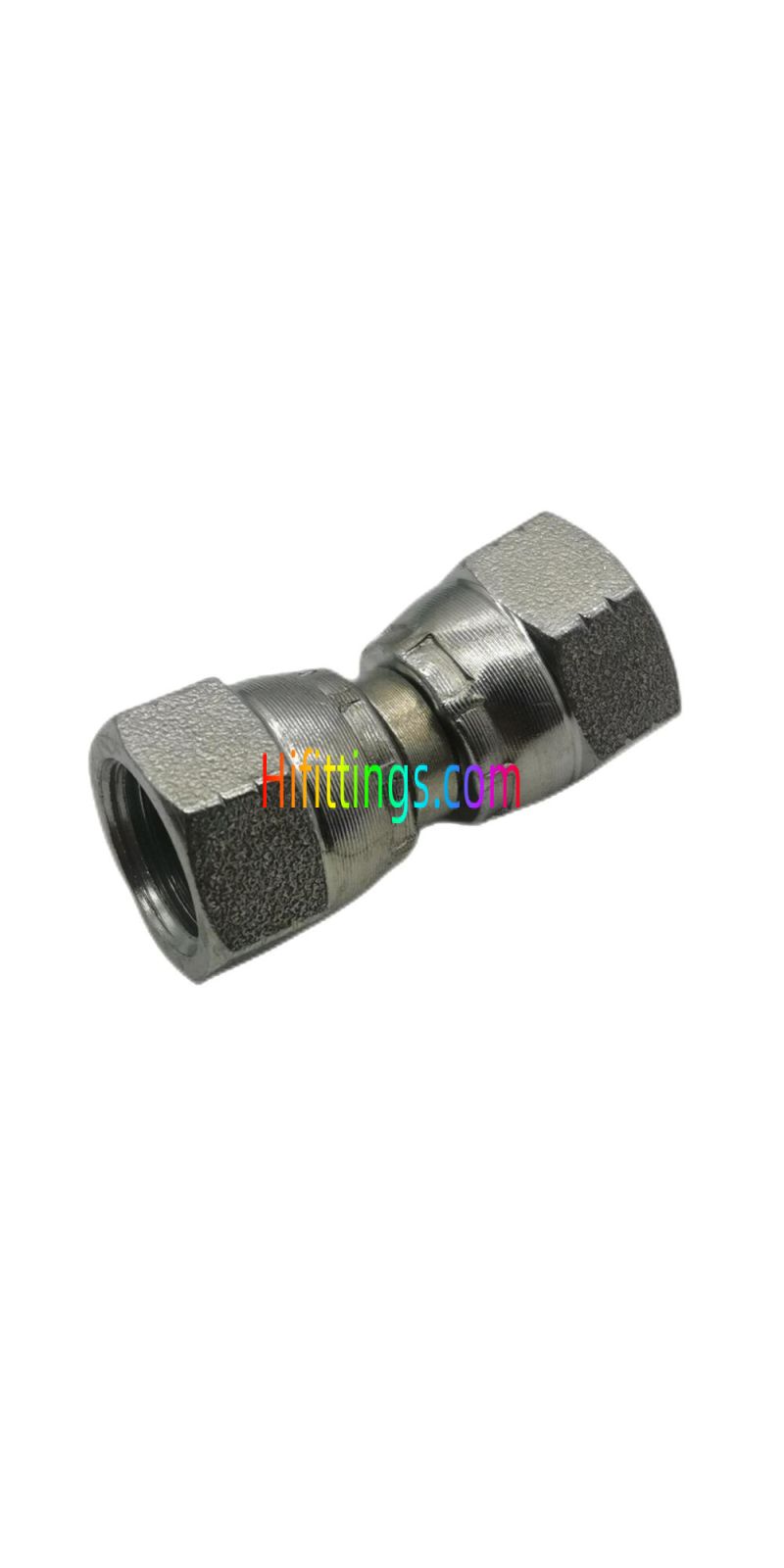

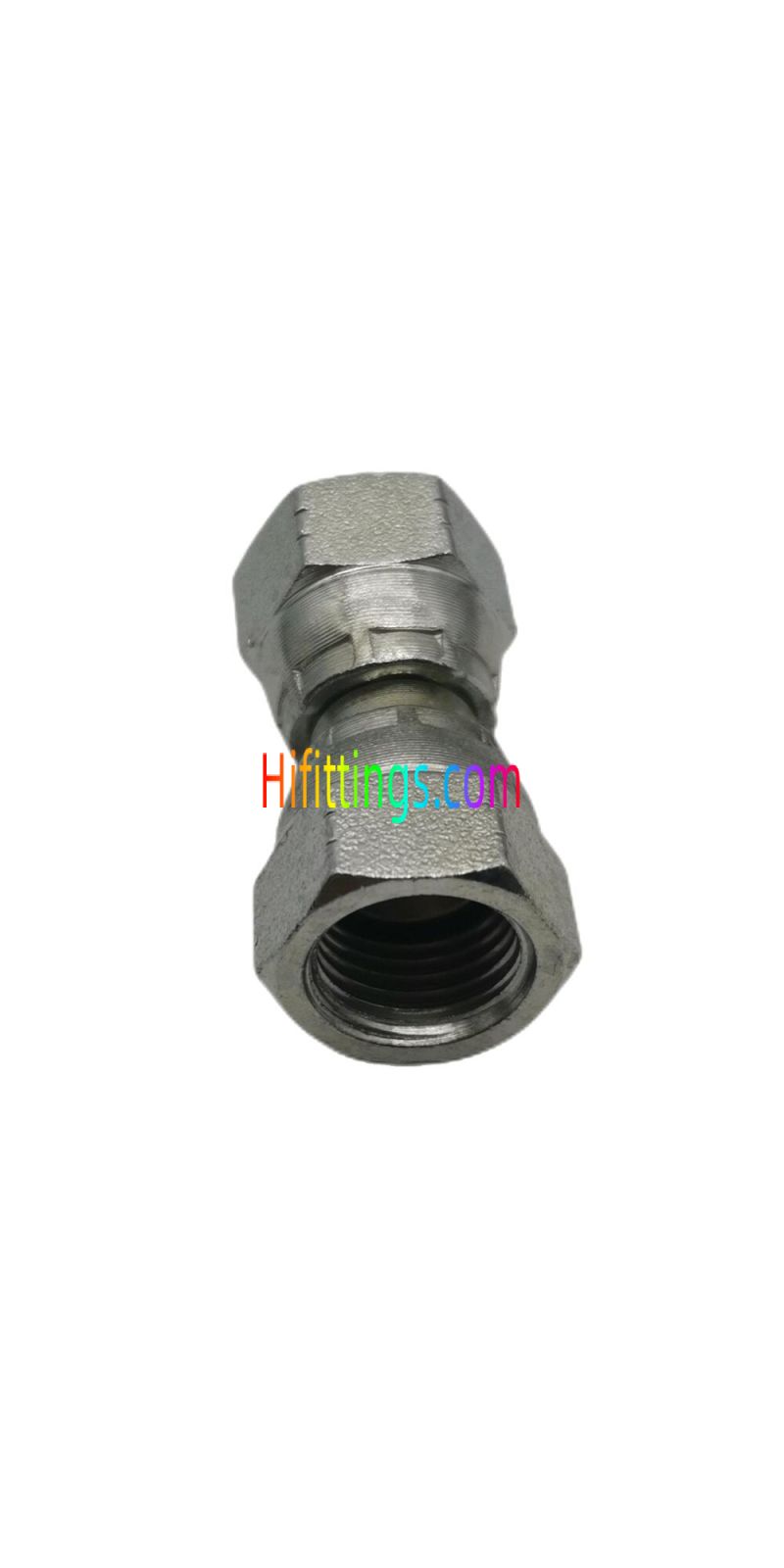

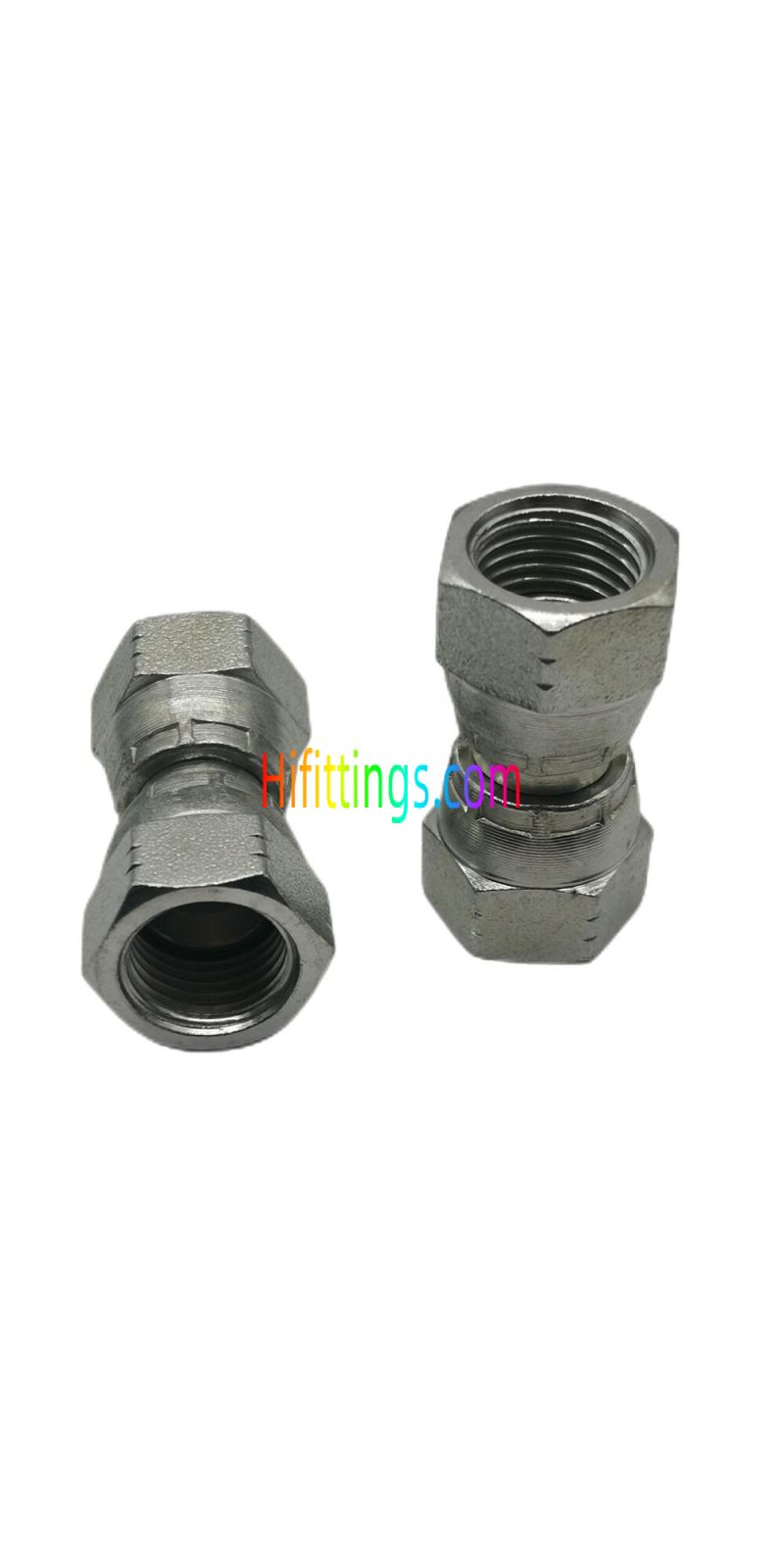

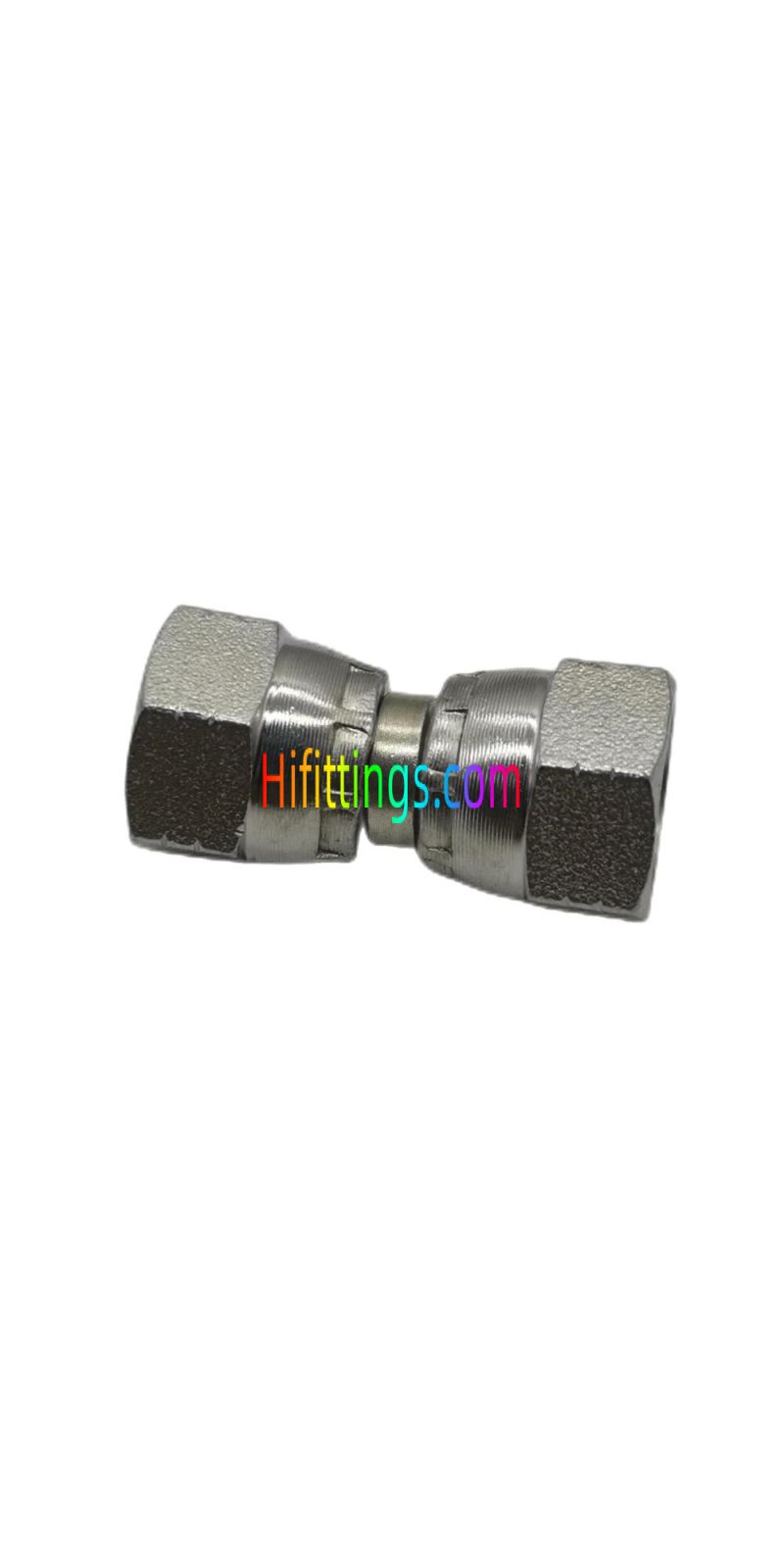

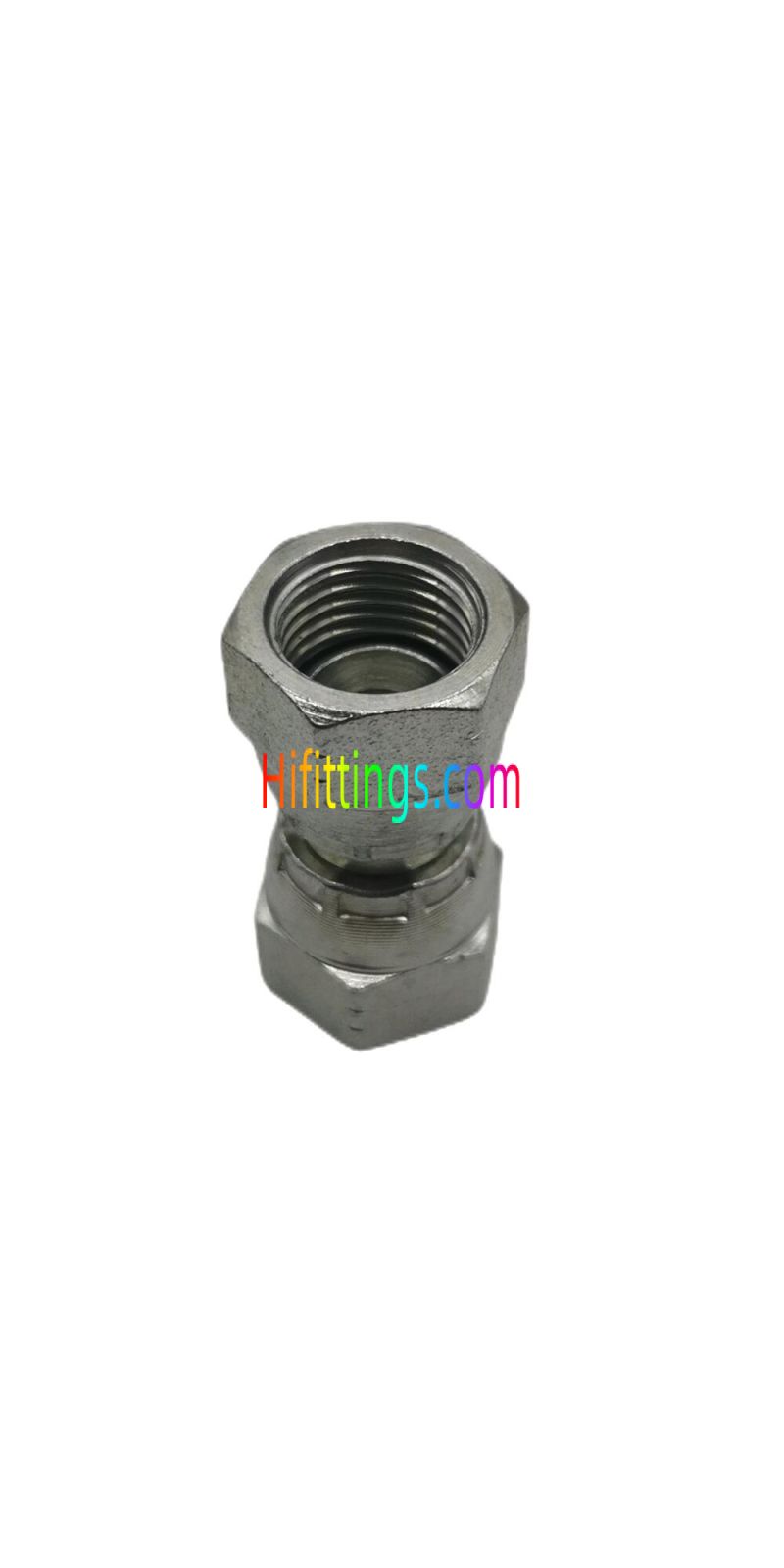

JIC Female 74 Degree Seat Flared Adapter Swivel Hydraulic Tube Fittings 3J
|
Part NO. |
E |
F |
A |
B |
L |
S2 |
S3 |
Working Pressure bar |
|
3J-04 |
7/16"X20 |
7/16"X20 |
9 |
9 |
19 |
15 |
15 |
PN345 |
|
3J-05 |
12X20 |
1/2"X20 |
9.5 |
9.5 |
21 |
17 |
17 |
PN345 |
|
3J-06 |
9/16"X18 |
9/16"X18 |
10.5 |
10.5 |
21 |
19 |
19 |
PN345 |
|
3J-06-08 |
9/16"X18 |
3/4"X16 |
10.5 |
11 |
23 |
19 |
24 |
PN310 |
|
3J-08 |
3/4"X16 |
3/4"X16 |
11 |
11 |
26 |
24 |
24 |
PN310 |
|
3J-10 |
7/8"X14 |
7/8"X14 |
13 |
13 |
27 |
27 |
27 |
PN240 |
|
3J-12 |
1.1/16"X12 |
1.1/16"X12 |
15 |
15 |
29 |
32 |
32 |
PN240 |
|
3J-16 |
1.5/16"X12 |
1.5/16"X12 |
16 |
16 |
29 |
41 |
41 |
PN210 |
|
3J-20 |
1.5/8"X12 |
1.5/8"X12 |
17 |
17 |
35 |
50 |
50 |
PN170 |
|
3J-24 |
1.7/8"X12 |
1.7/8"X12 |
20 |
20 |
37 |
55 |
55 |
PN140 |
|
Note:1.PN = Nominal Pressure |
||||||||
| Shape | Straight |
|---|---|
| Fitting Type | Cone Flared |
| Thread Type | Female |
| Connection Type | JIC |
