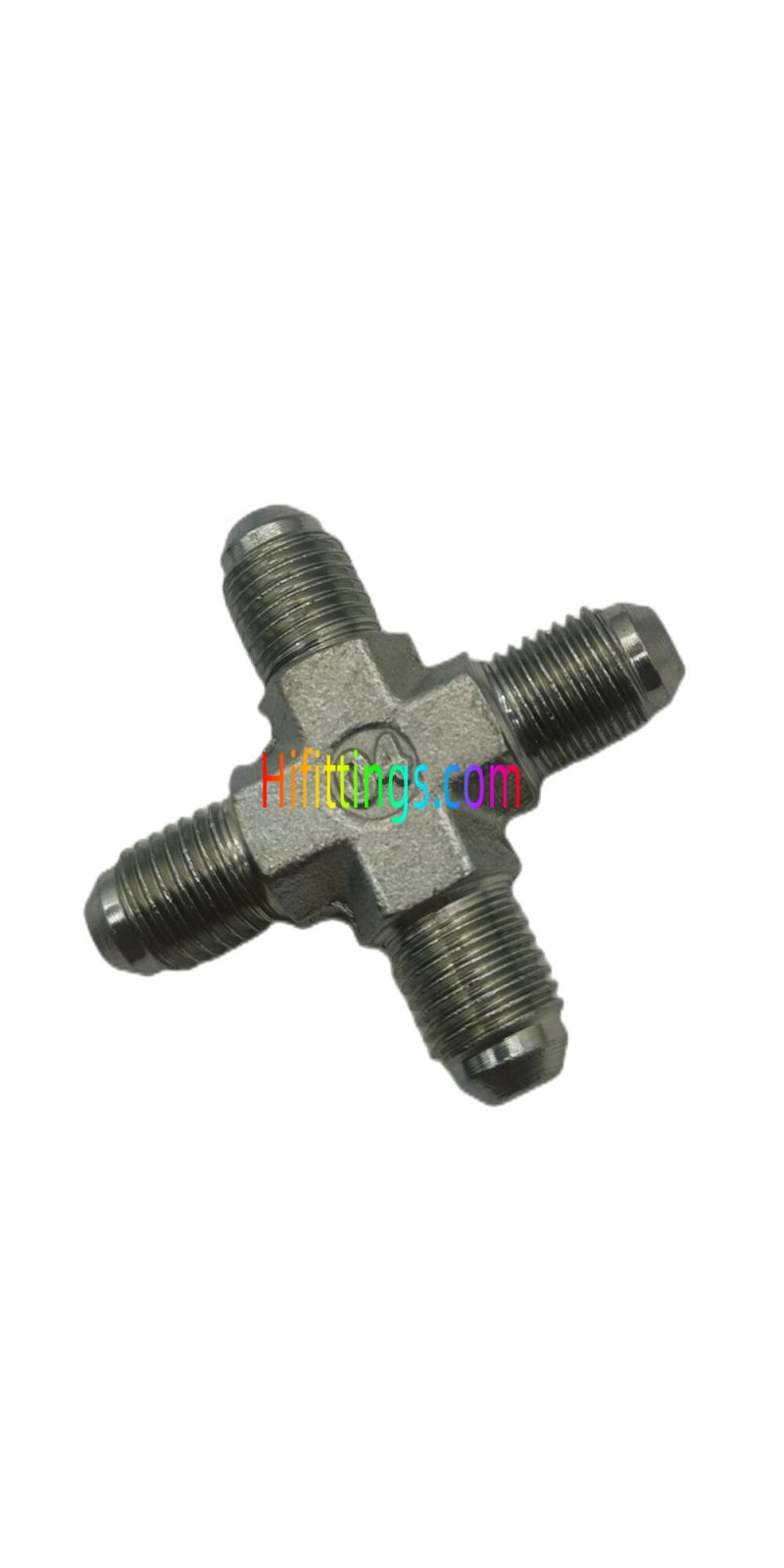

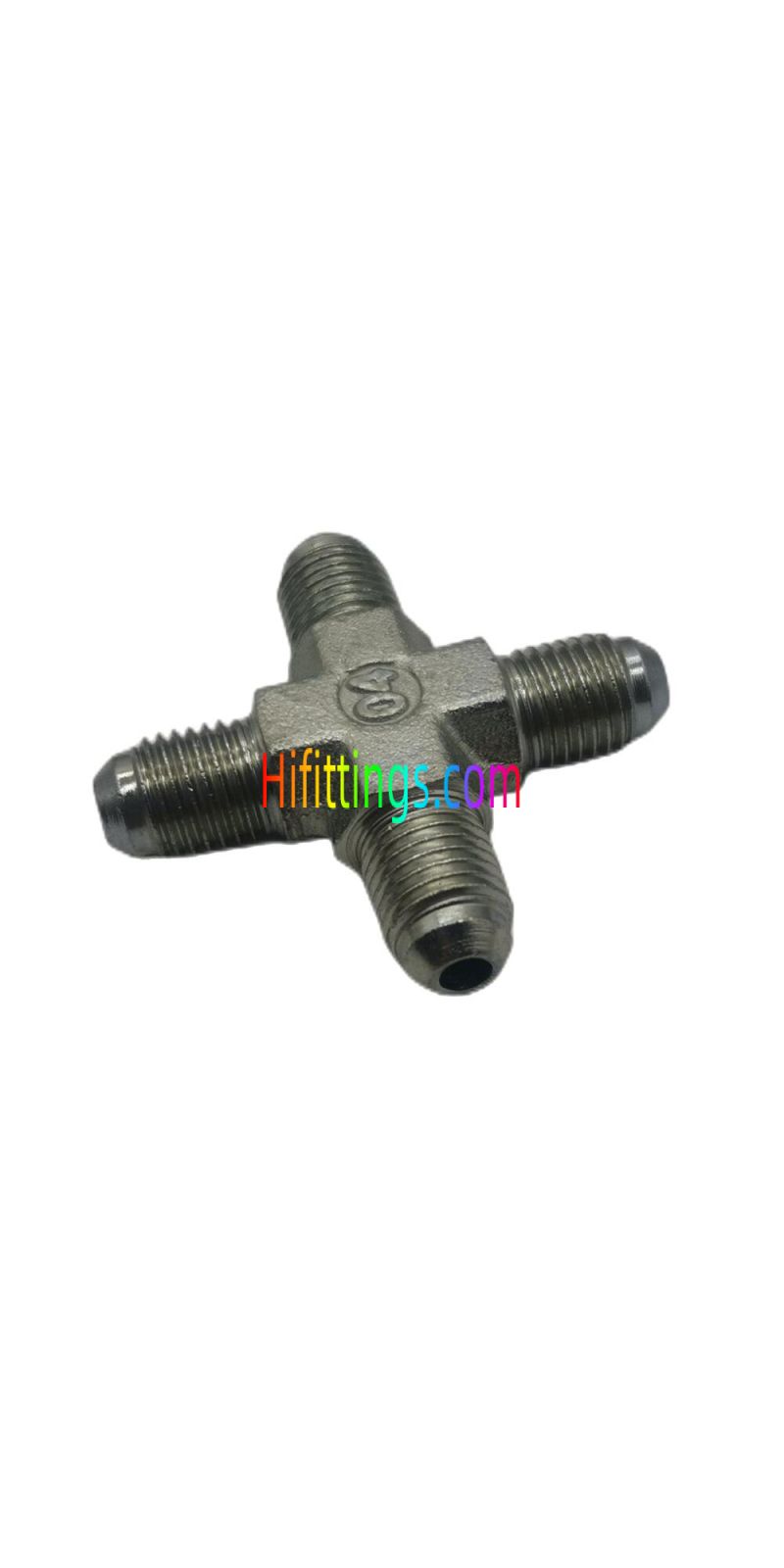

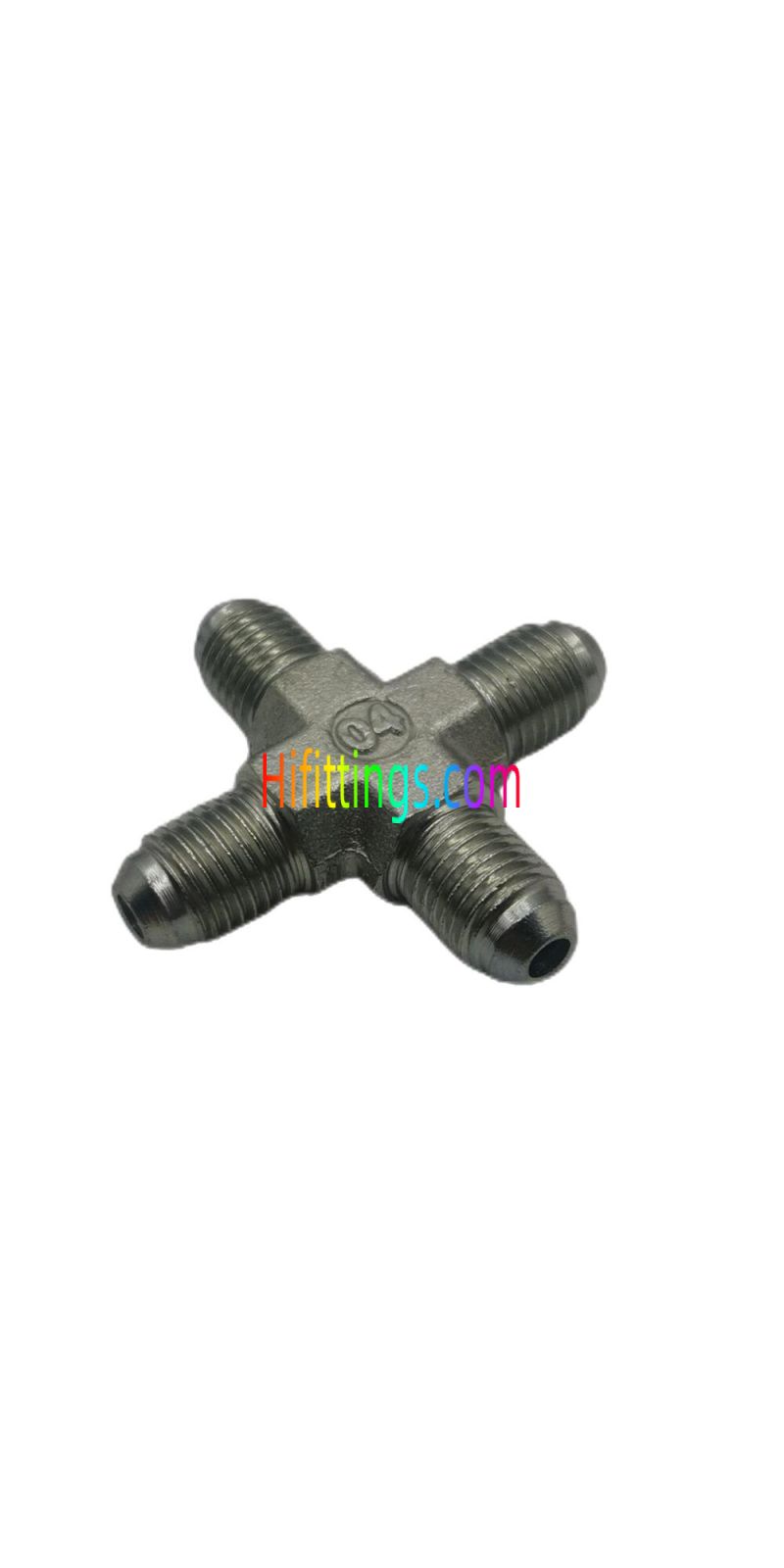

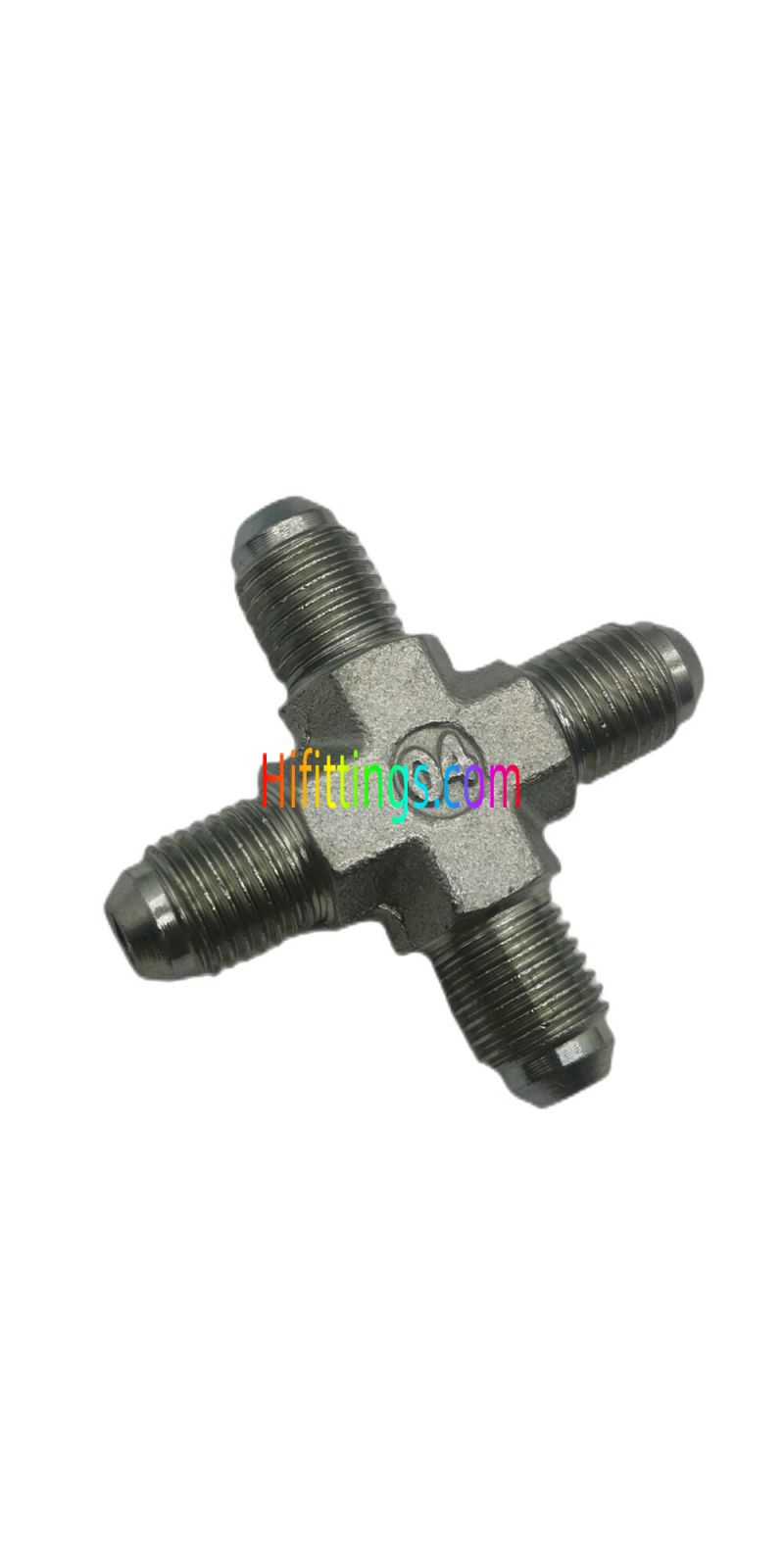

JIC Male 74° Cone Cross Flared Tube Fittings XJ

Part NO.

E,F,G,H

A,B,C,D

S1

Working  Pressure  bar

XJ-04

7/16"X20

24.5

11

PN345

XJ-05

1/2"X20

26.5

14

PN345

XJ-06

9/16"X18

26.9

14

PN345

XJ-08

3/4"X16

32

19

PN310

XJ-10

7/8"X14

37.8

22

PN240

XJ-12

1.1/16"X12

44.2

27

PN240

XJ-16

1.5/16"X12

49

33

PN210

Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.

2.PN = Nominal Pressure
