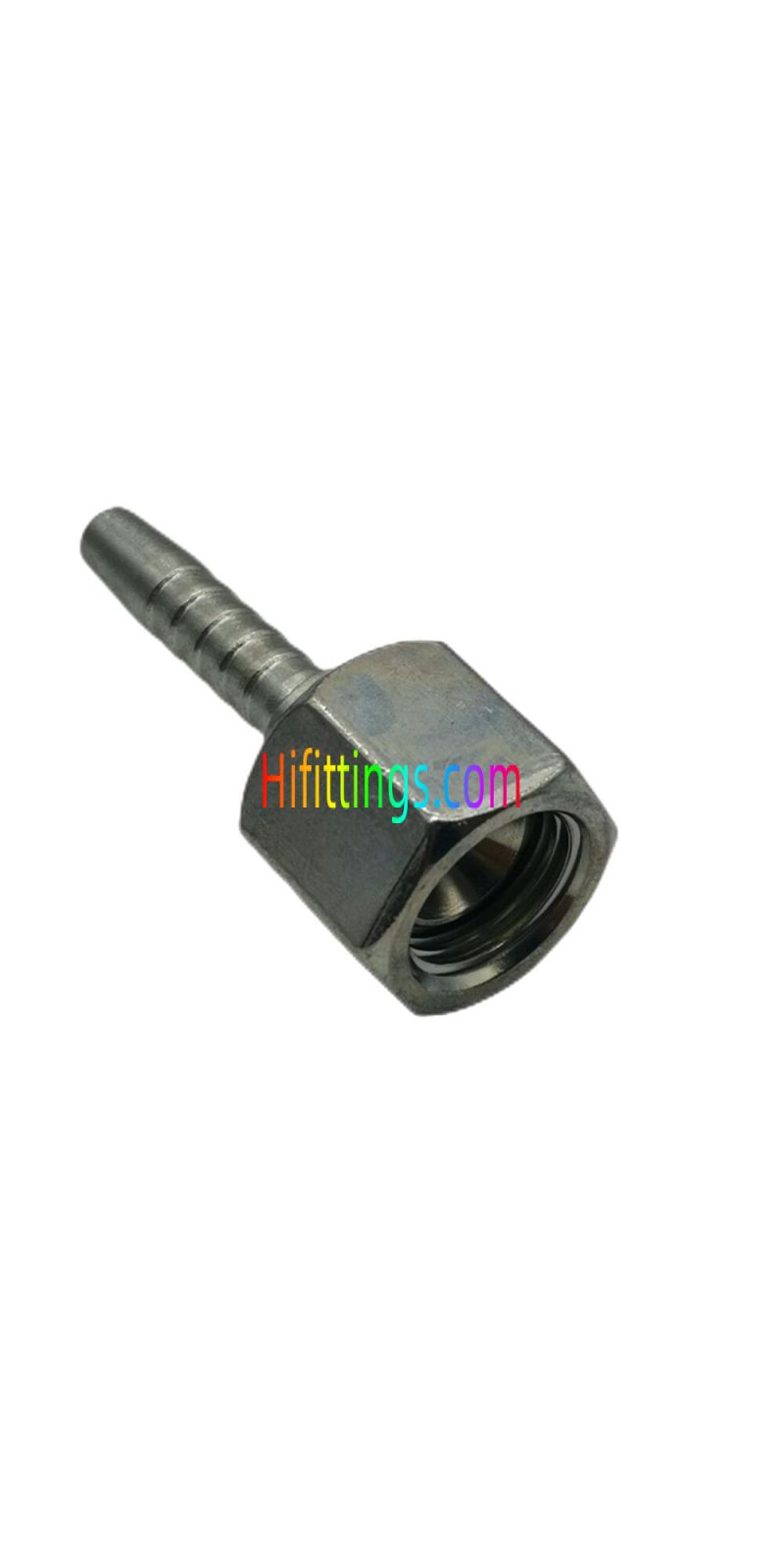

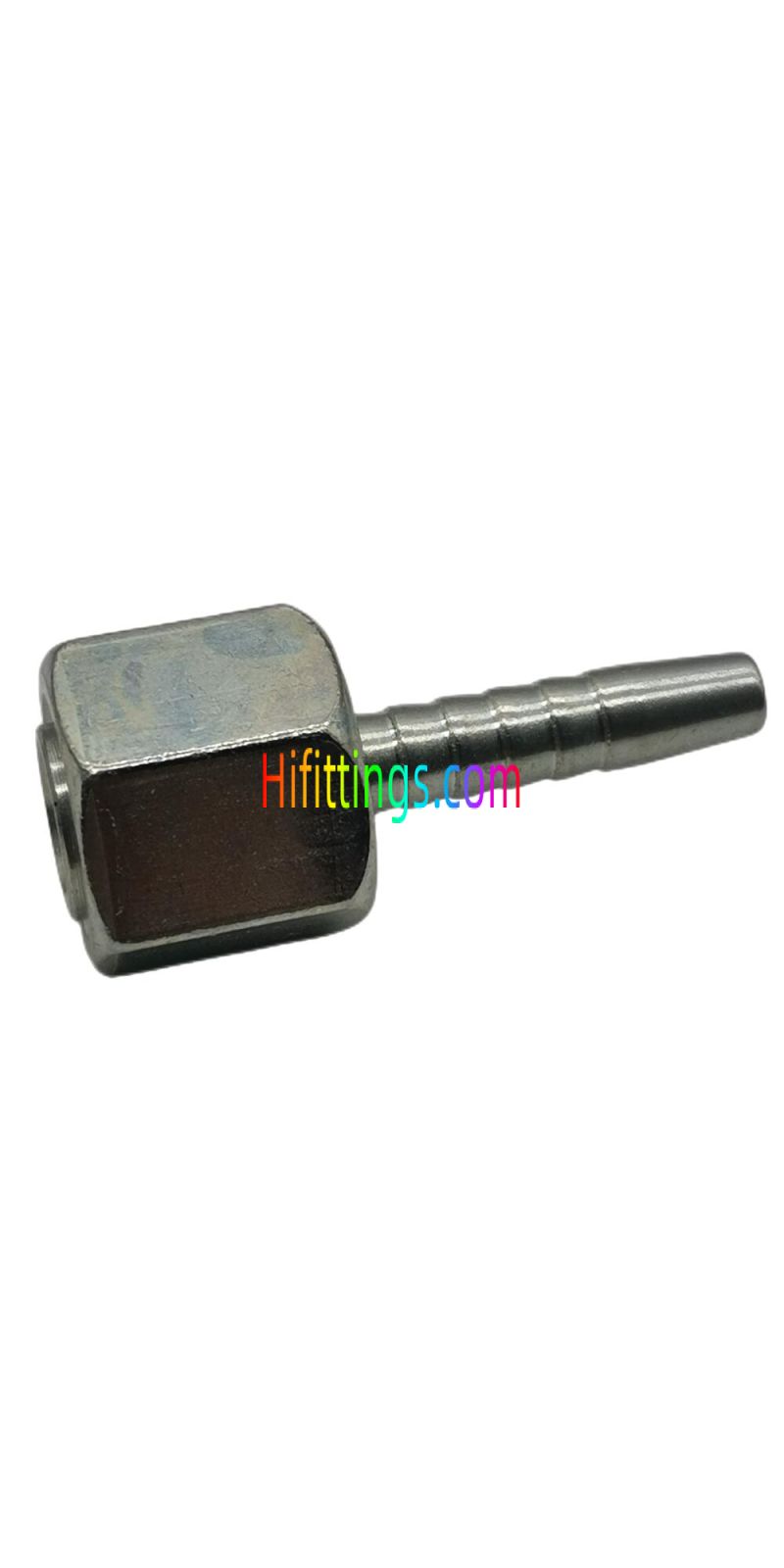

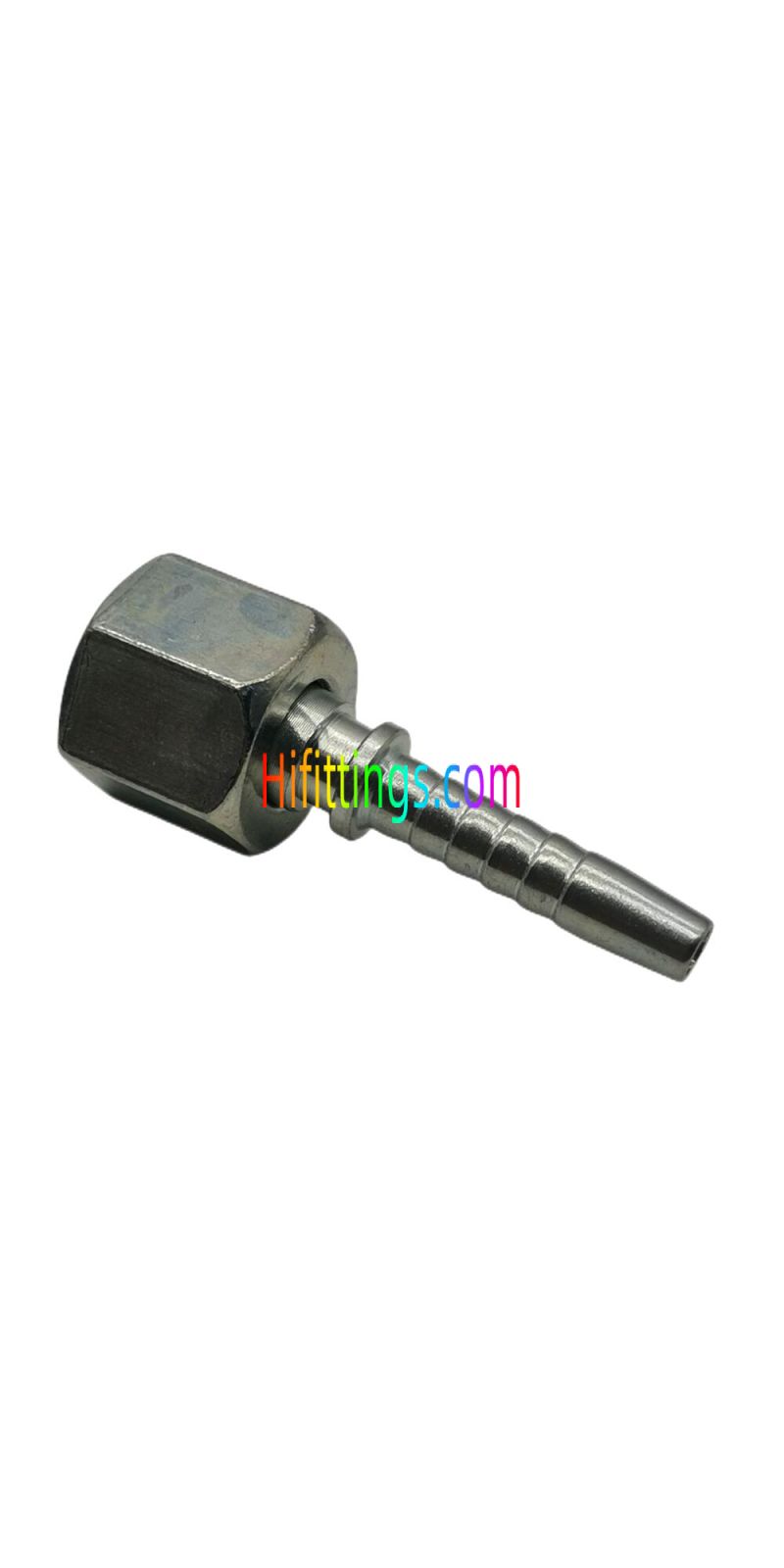

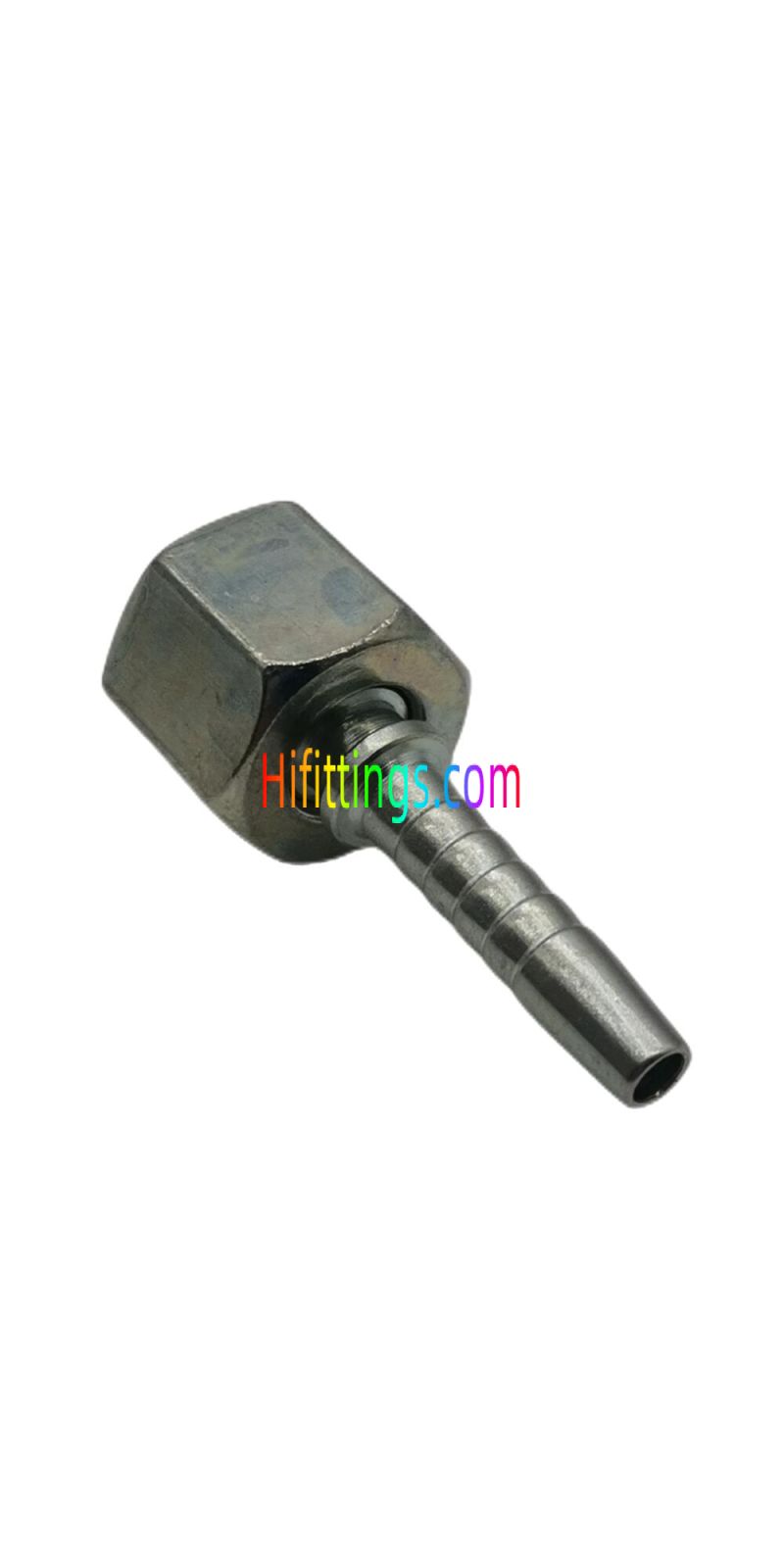

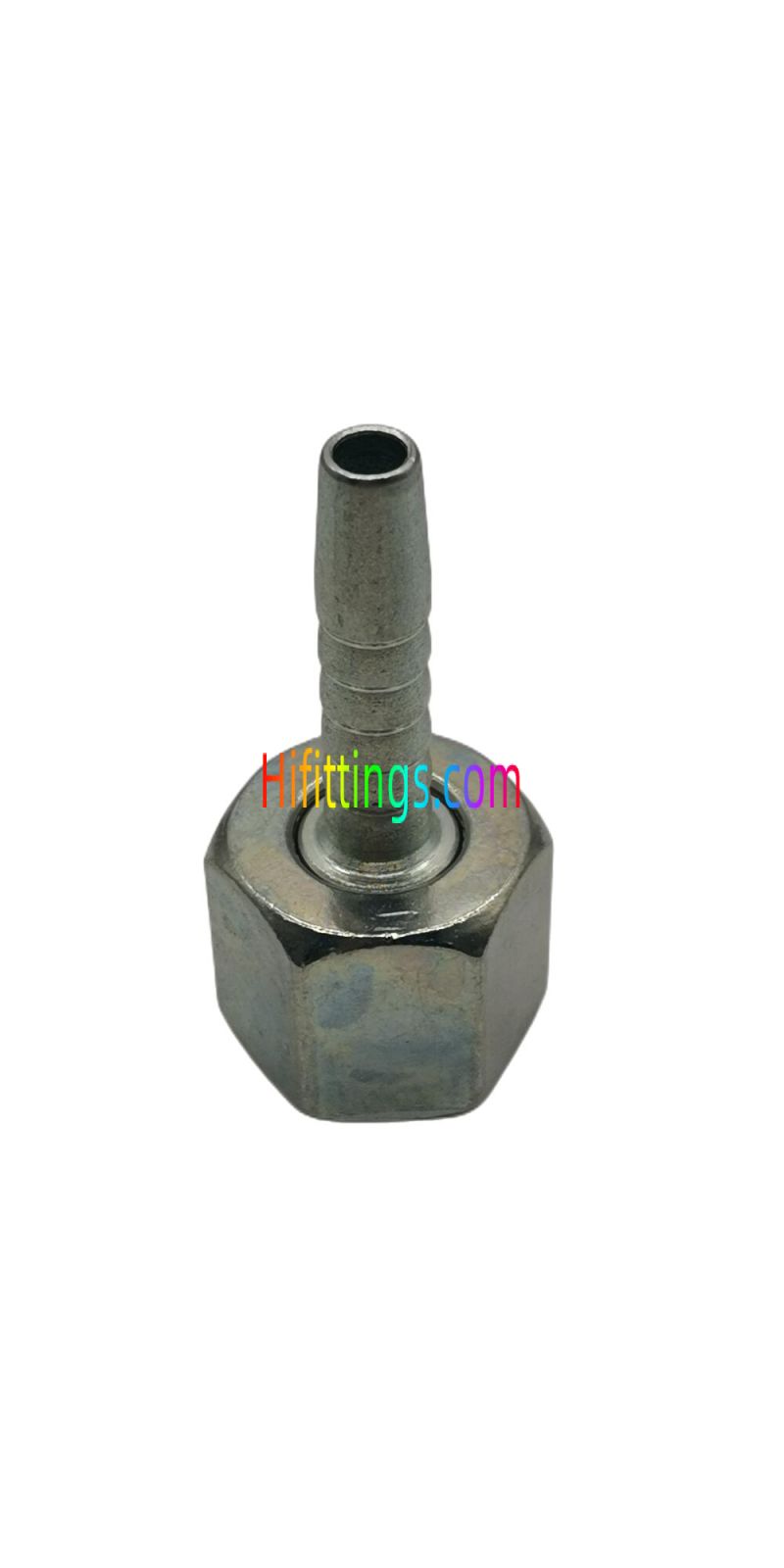

JIC Swivel Female 74° Cone Seat Swaged Hose Fitting 26711

Part NO.

Thread  E

Hose Bore - DN

Hose Bore - Dash

A

C

S2

26711-04-03

7/16"X20

5

3

14.5

9

15

26711-04-04

7/16"X20

6

4

15

9

15

26711-05-04

1/2"X20

6

4

15.5

9.5

17

26711-05-05

1/2"X20

8

5

15.5

9.5

17

26711-05-06

1/2"X20

10

6

15.5

9.5

17

26711-06-04

9/16"X18

6

4

15.5

10.5

19

26711-06-05

9/16"X18

8

5

15.5

10.5

19

26711-06-06

9/16"X18

10

6

15.5

10.5

19

26711-06-08

9/16"X18

12

8

16

10.5

19

26711-08-06

3/4"X16

10

6

17.5

11

24

26711-08-08

3/4"X16

12

8

18

11

24

26711-08-10

3/4"X16

16

10

19.5

11

24

26711-10-08

7/8"X14

12

8

18.5

13

27

26711-10-10

7/8"X14

16

10

20

13

27

26711-10-12

7/8"X14

20

12

20

13

27

26711-12-08T

1.1/16"X12

12

8

19

15

32

26711-12-10

1.1/16"X12

16

10

21.5

15

32

26711-12-12

1.1/16"X12

20

12

21.5

15

32

26711-12-16

1.1/16"X12

25

16

23

15

32

26711-14-12

1.3/16"X12

20

12

21.5

15

36

26711-16-12T

1.5/16"X12

20

12

18.5

16

41

26711-16-16

1.5/16"X12

25

16

23

16

41

26711-16-20

1.5/16"X12

32

20

24

16

41

26711-20-16T

1.5/8"X12

25

16

23

17

50

26711-20-20W

1.5/8"X12

32

20

26

17

50

26711-24-20W

1.7/8"X12

32

20

26.5

20

55

26711-24-24W

1.7/8"X12

40

24

26.5

20

55

26711-32-24T

2.1/2"X12

40

24

27

23.5

75

26711-32-32T

2.1/2"X12

50

32

27

23.5

75

Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 26712-XX-XX
