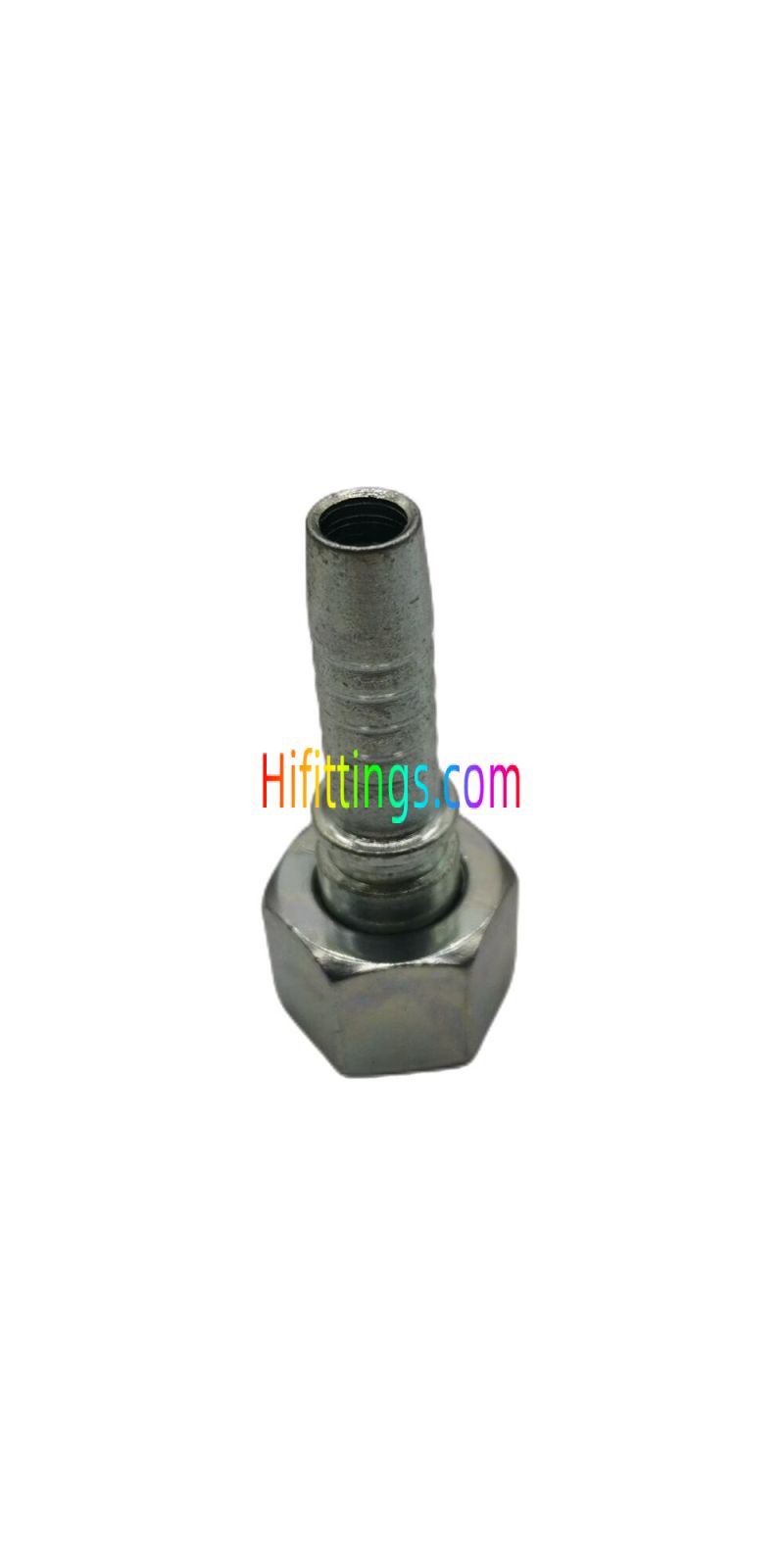

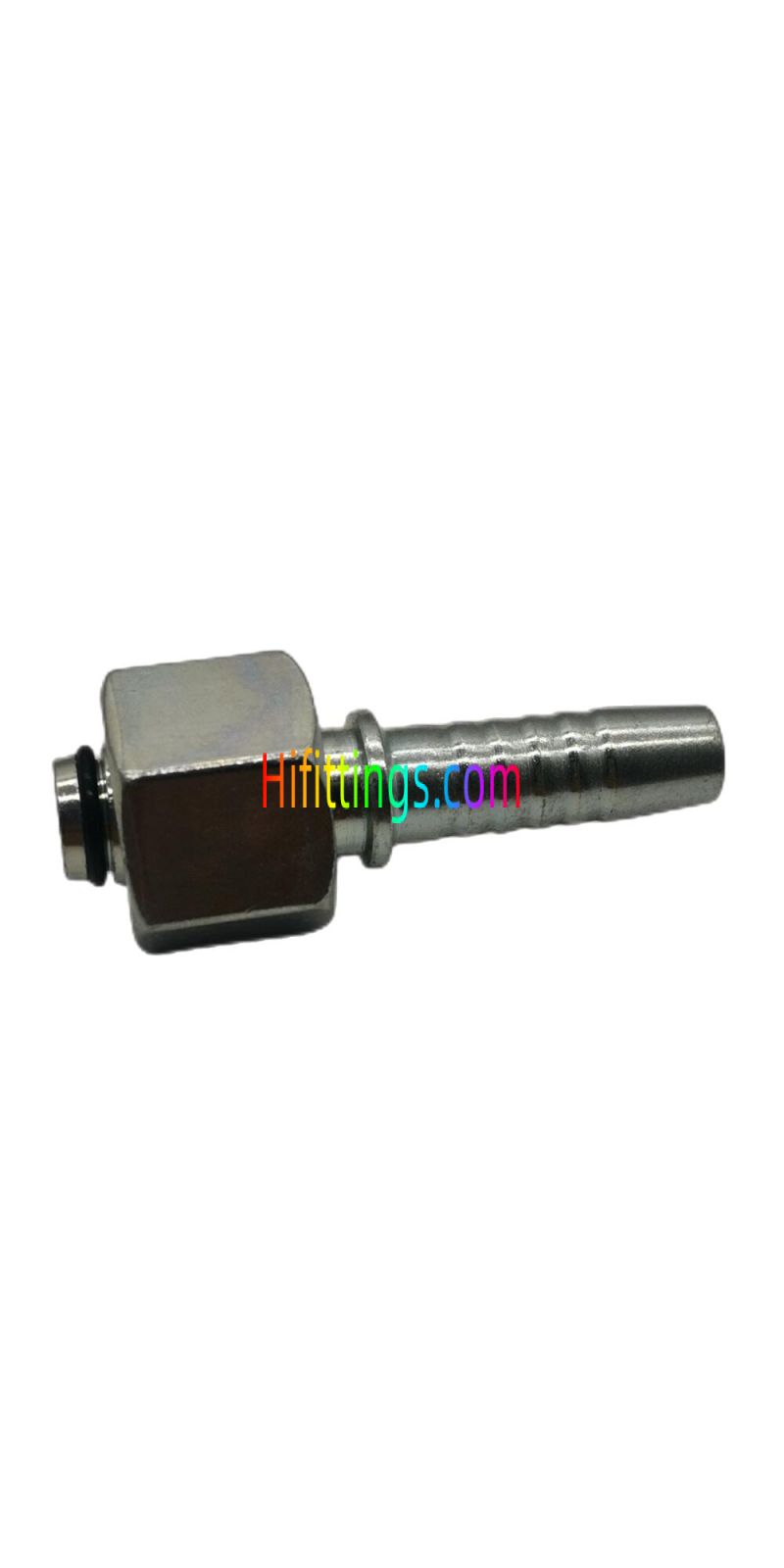

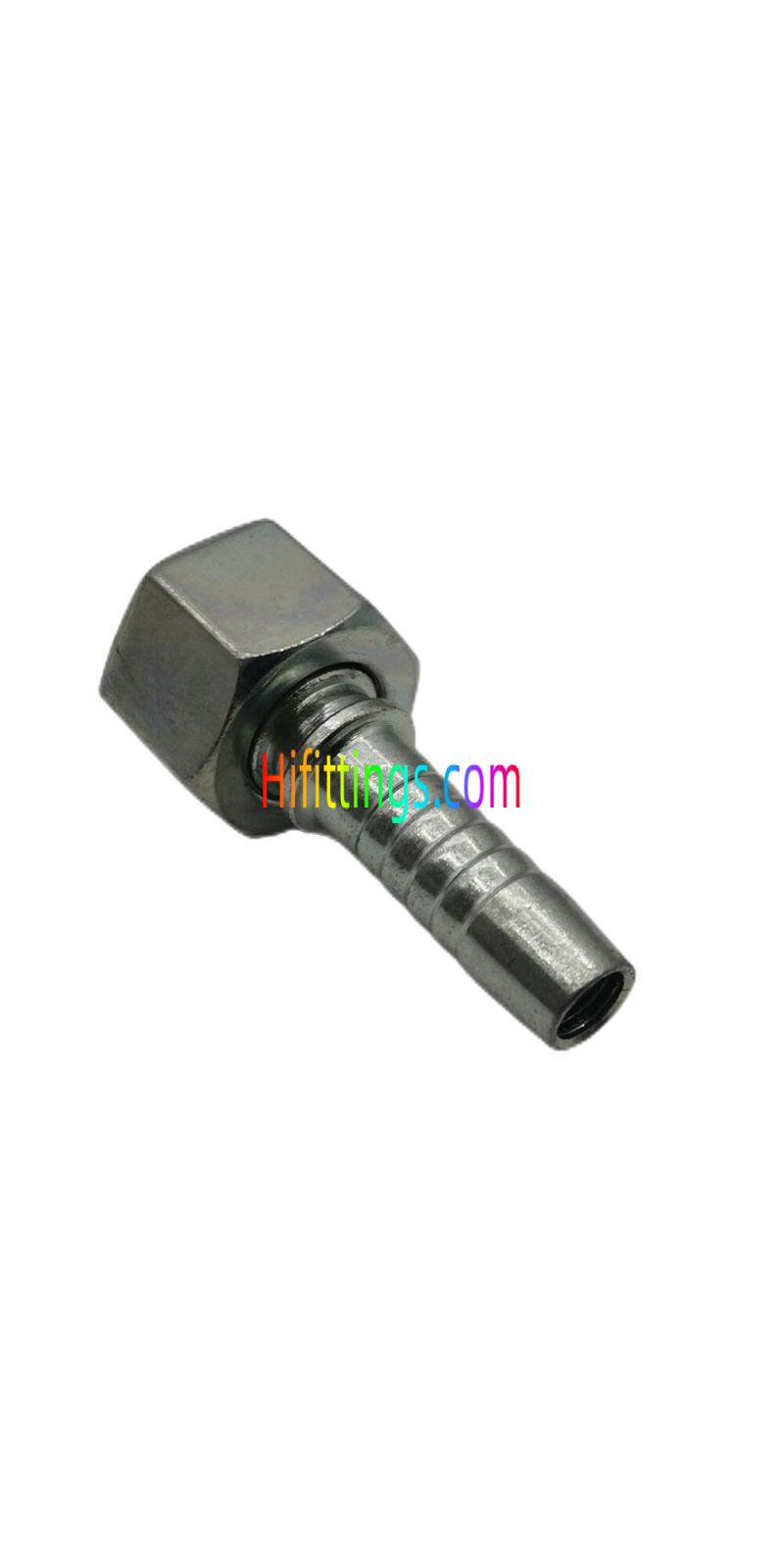

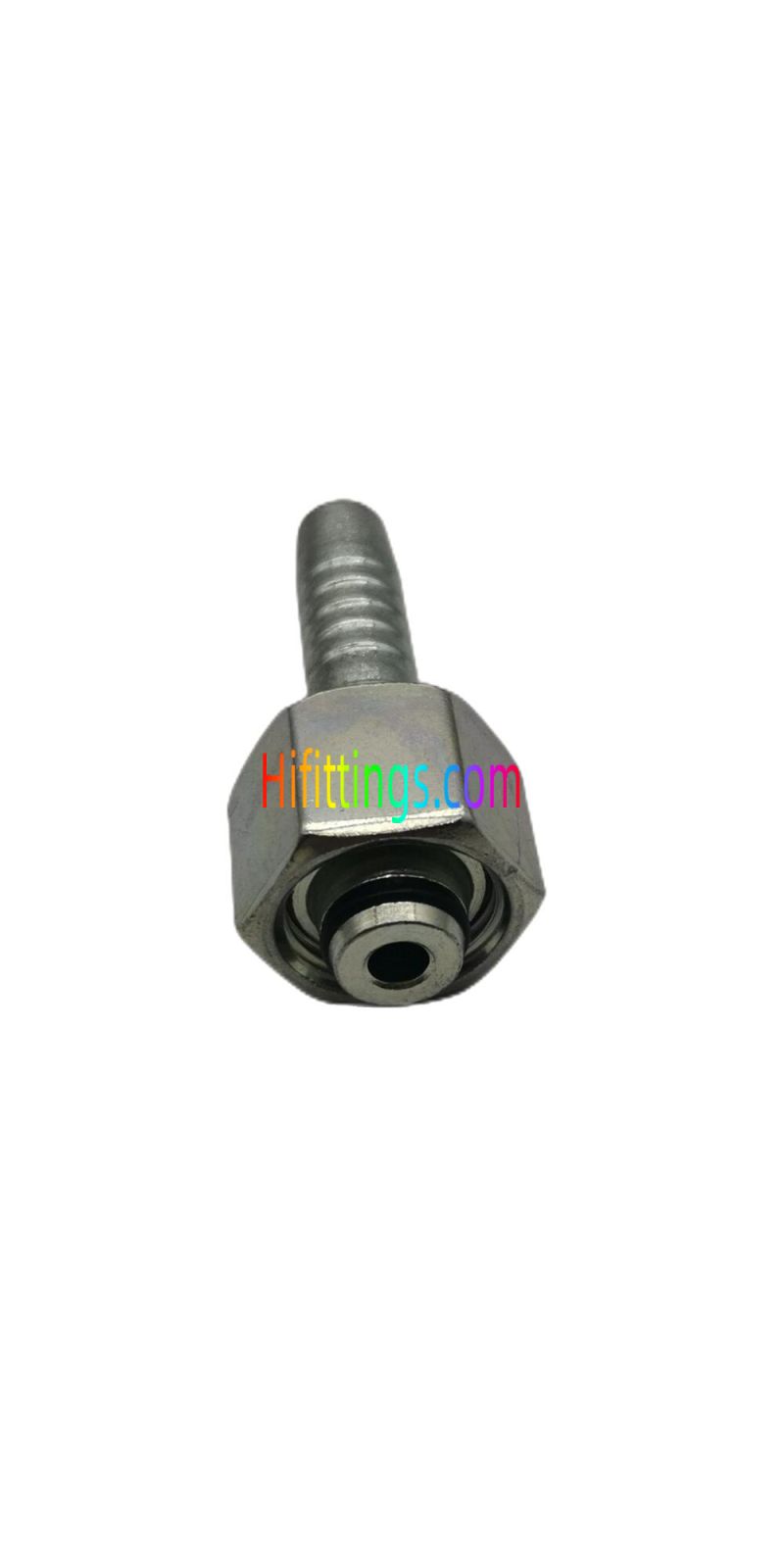

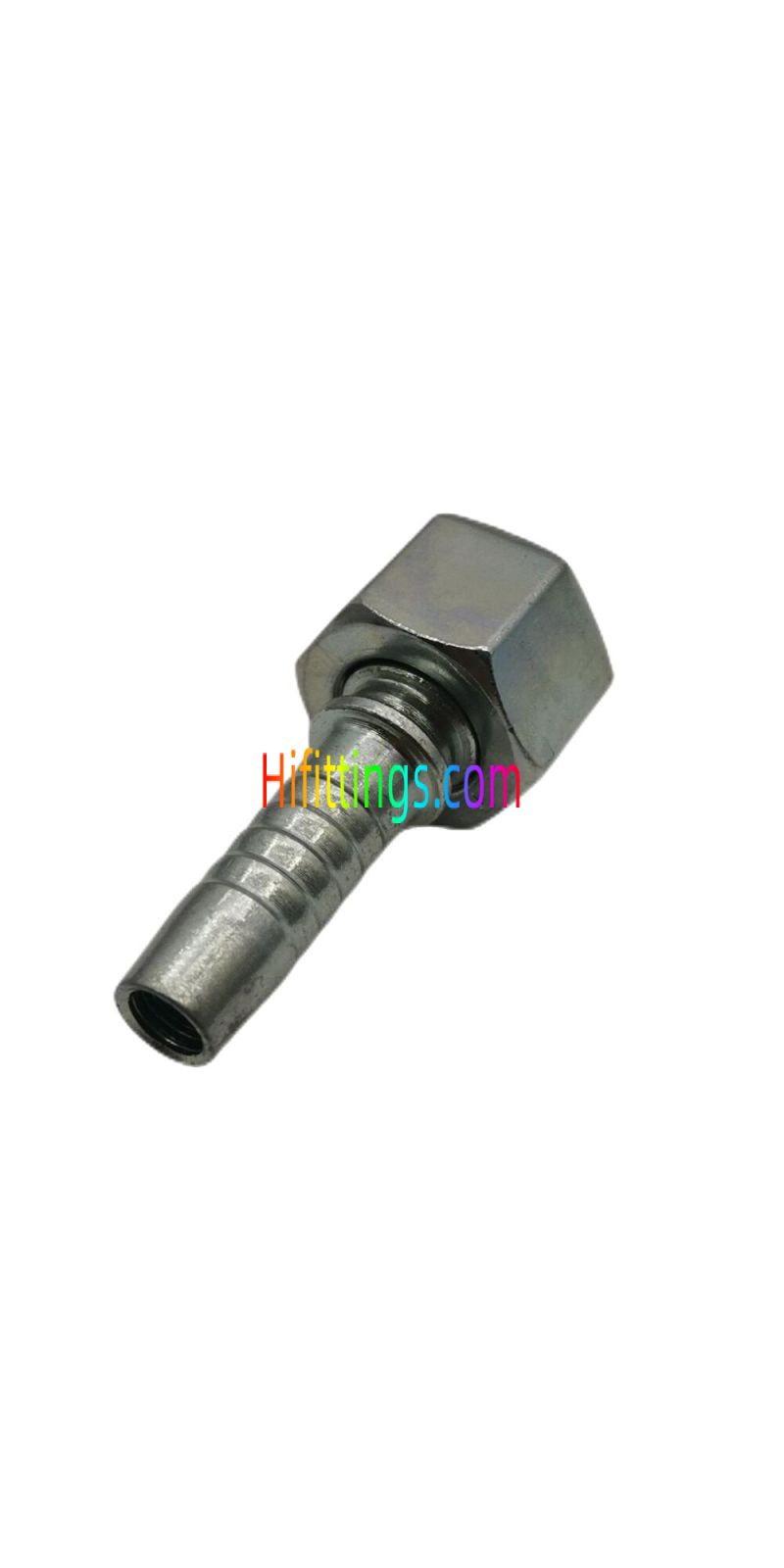

Metric Female 24° Cone With O-Ring Swivel Heavy Series Swaged Hose Fitting 20511

Add to Wish List
As low as $3.20 Regular Price $3.20
32
In stock
Only %1 left
SKU
20511

Guarantee safe & secure checkout

Metric Female 24° Cone With O-Ring Swivel Heavy Series Swaged Hose Fitting ISO 12151-2—DIN 3865 20511Metric Female 24° Cone With O-Ring Swivel Heavy Series Swaged Hose Fitting ISO 12151-2—DIN 3865 20511
Metric Female 24° Cone With O-Ring Swivel Heavy Series Swaged Hose Fitting ISO 12151-2—DIN 3865 20511

Part NO.

Thread  E

Hose Bore - DN

Hose Bore -  Dash

Tube O.D

O Ring

A

C

S2

20511-14-04

M16X1.5

6

4

6

004.5X1.5

29

1.5

19

20511-16-04

M16X1.5

6

4

8

006.5X1.5

29

1.5

22

20511-16-05

M16X1.5

8

5

8

006.5X1.5

29

1.5

22

20511-18-04T

M18X1.5

6

4

10

008.0X1.5

25.5

1.5

22

20511-18-06

M18X1.5

10

6

10

008.0X1.5

29

2

24

20511-20-06T

M20X1.5

10

6

12

010.0X1.5

26.5

2.5

24

20511-20-08

M20X1.5

12

8

12

010.0X1.5

31.5

2.5

27

20511-22-06T

M22X1.5

10

6

14

011.0X2.0

26.5

3

27

20511-22-08

M22X1.5

12

8

14

011.0X2.0

31.5

2.5

27

20511-24-06T

M24X1.5

10

6

16

013.0X2.0

27

3

30

20511-24-08T

M24X1.5

12

8

16

013.0X2.0

27.5

3

30

20511-30-10T

M30X2

16

10

20

016.3X2.4

33

2.5

36

20511-30-12

M30X2

20

12

20

016.3X2.4

39

3

36

20511-36-12T

M36X2

20

12

25

020.3X2.4

35

3.2

46

20511-36-14T

M36X2

22

14

25

020.3X2.4

34

3.2

46

20511-42-12T

M42X2

20

12

30

025.3X2.4

37.5

3.9

50

20511-42-16T

M42X2

25

16

30

025.3X2.4

38.5

3.9

50

20511-52-20T

M52X2

32

20

38

033.3X2.4

41.5

4.5

60

20511-52-24T

M52X2

40

24

38

033.3X2.4

41.5

4.5

60

Note: I.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20512-XX-XX

More Information
Shape Straight
Fitting Type Cone
Thread Type Female
Connection Type Metric
