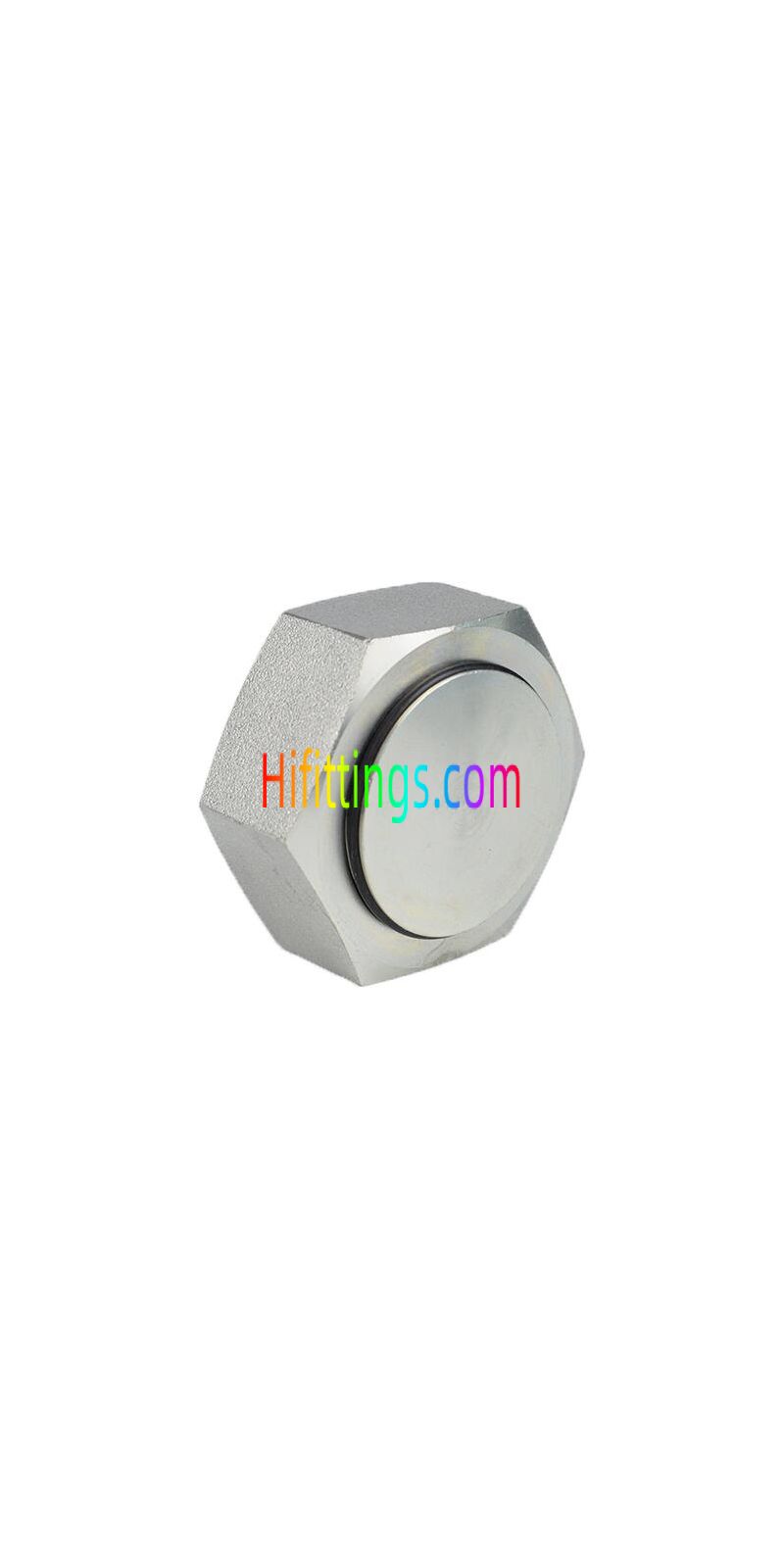

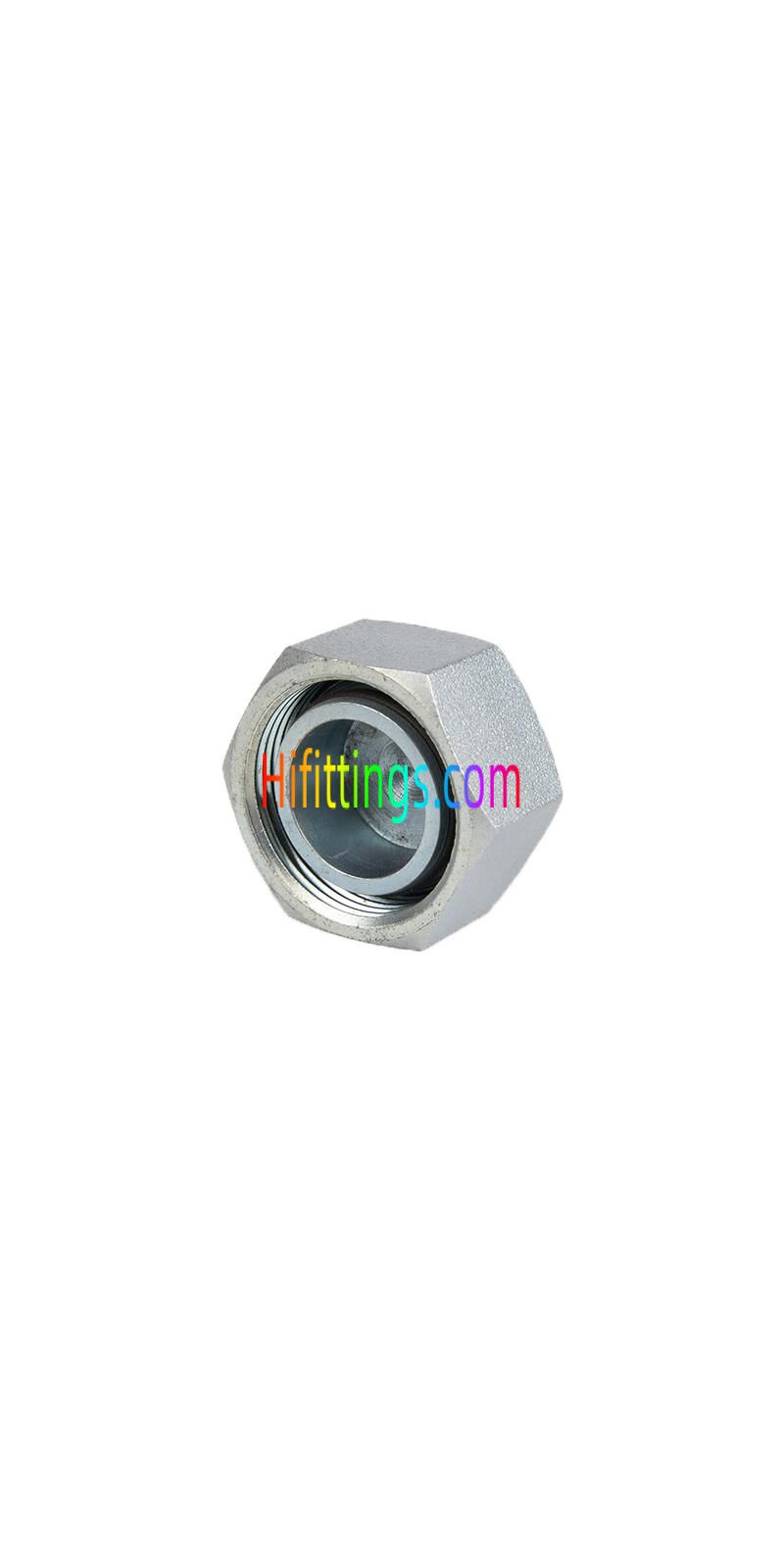

Metric Female Bite Type Tube Fittings Plug 9C/9D
|
Part NO. |
F |
D |
L |
L1 |
S2 |
Working Pressure bar |
|
9C-12 |
M12X1.5 |
6 |
15.5 |
17.5 |
14 |
PN315 |
|
9C-14 |
M14X1.5 |
8 |
15.5 |
18 |
17 |
PN315 |
|
9C-16 |
M16X1.5 |
10 |
16.5 |
18 |
19 |
PN315 |
|
9C-18 |
M18X1.5 |
12 |
18 |
19.5 |
22 |
PN315 |
|
9C-22 |
M22X1.5 |
15 |
19.5 |
20 |
27 |
PN315 |
|
9C-26 |
M26X1.5 |
18 |
20 |
22 |
32 |
PN315 |
|
9C-30 |
M30X2 |
22 |
21.5 |
22.5 |
36 |
PN160 |
|
9C-36 |
M36X2 |
28 |
22.5 |
24.5 |
41 |
PN160 |
|
9C-45 |
M45X2 |
35 |
25 |
29 |
55 |
PN160 |
|
9C-52 |
M52X2 |
42 |
27 |
31.5 |
60 |
PN160 |
|
9D-14 |
M14X1.5 |
6 |
16 |
18 |
17 |
PN630 |
|
9D-16 |
M16X1.5 |
8 |
16.5 |
18.5 |
19 |
PN630 |
|
9D-18 |
M18X1.5 |
10 |
18 |
20 |
22 |
PN630 |
|
9D-20 |
M20X1.5 |
12 |
18.5 |
20.5 |
24 |
PN630 |
|
9D-22 |
M22X1.5 |
14 |
19 |
21.5 |
27 |
PN630 |
|
9D-24 |
M24X1.5 |
16 |
18.5 |
21.5 |
30 |
PN400 |
|
9D-30 |
M30X2 |
20 |
22.5 |
25 |
36 |
PN400 |
|
9D-36 |
M36X2 |
25 |
23.5 |
28.5 |
46 |
PN400 |
|
9D-42 |
M42X2 |
30 |
25.5 |
32 |
50 |
PN400 |
|
9D-52 |
M52X2 |
38 |
26.5 |
36 |
60 |
PN315 |
| Shape | Plug |
|---|---|
| Thread Type | Female |
| Connection Type | Metric |
| Fitting Type | Bite Type |
