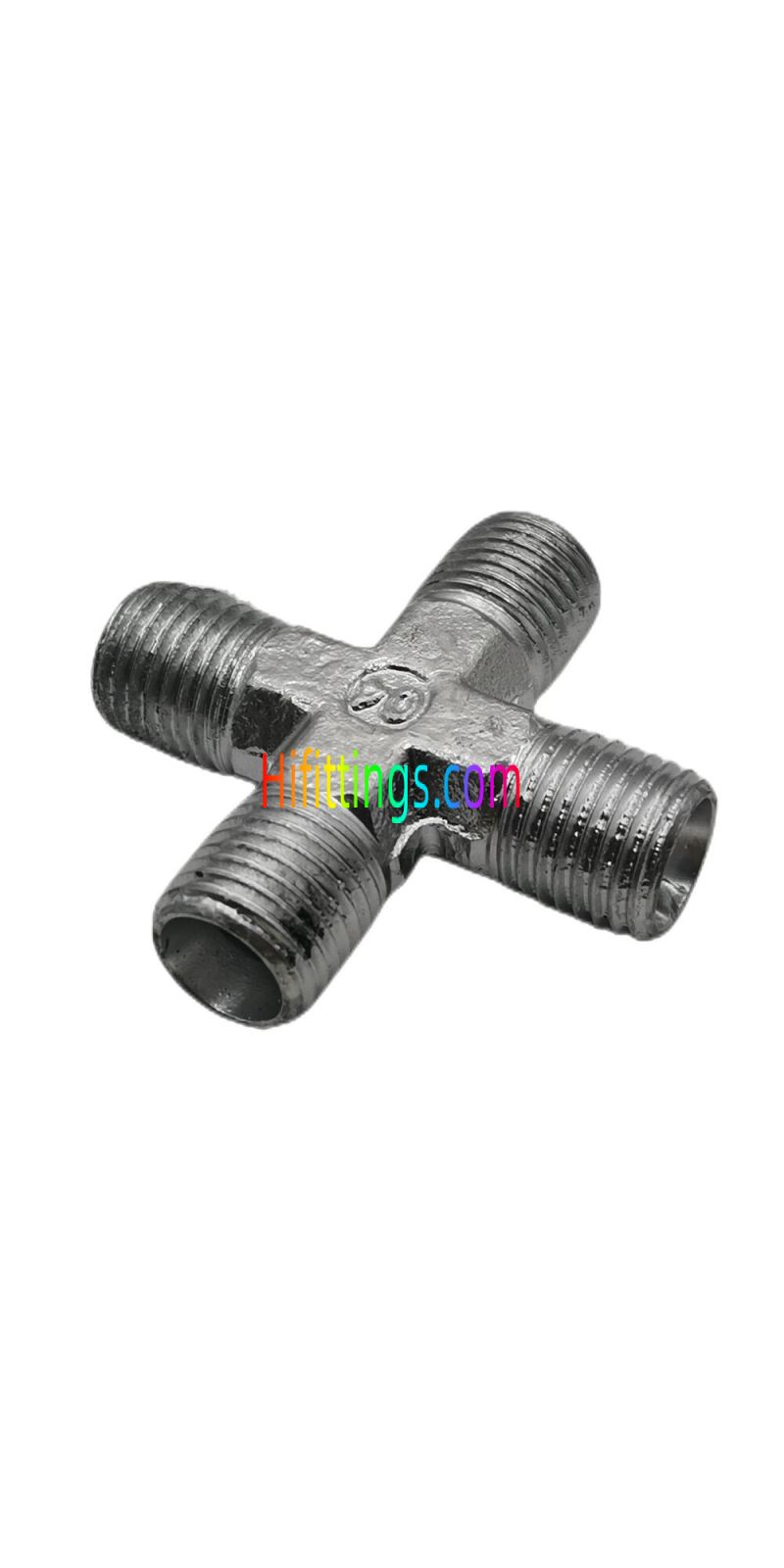

Metric Male Bite Type Cross Tube Fittings XC/XD

Add to Wish List
40
In stock
Only %1 left
SKU
XC

Guarantee safe & secure checkout

No Related Posts

Metric Male Bite Type Cross  Hydraulic Adapter Pipe Fittings XC/XD- hifittings.comMetric Male Bite Type Cross  Hydraulic Adapter Pipe Fittings XC/XD- hifittings.com

Metric Male Bite Type Cross  Hydraulic Adapter Pipe Fittings XC/XD

Part NO.

E,F,G,H

D1,D2,D3,D4

l1

L1

S1

S2

Working Pressure bar

XC-12

M12X1.5

6

12

27

12

14

PN315

XC-14

M14X1.5

8

14

29

12

17

PN315

XC-16

M16X1.5

10

15

30

14

19

PN315

XC-18

M18X1.5

12

17

32

17

22

PN315

XC-22

M22X1.5

15

21

36

19

27

PN315

XC-26

M26X1.5

18

23.5

40

24

32

PN315

XC-30

M30X2

22

27.5

44

27

36

PN160

XC-36

M36X2

28

30.5

47

36

41

PN160

XC-45

M45X2

35

34.5

56

41

50

PN160

XC-52

M52X2

42

40

63

50

60

PN160

XD-14

M14X1.5

6

16

31

12

17

PN630

XD-16

M16X1.5

8

17

32

14

19

PN630

XD-18

M18X1.5

10

17.5

34

17

22

PN630

XD-20

M20X1.5

12

21.5

38

17

24

PN630

XD-22

M22X1.5

14

22

40

19

27

PN630

XD-24

M24X1.5

16

24.5

43

24

30

PN400

XD-30

M30X2

20

26.5

48 .

27

36

PN400

XD-36

M36X2

25

30

54

36

46

PN400

XD-42

M42X2

30

35.5

62

41

50

PN400

XD-52

M52X2

38

41

72

50

60

PN315

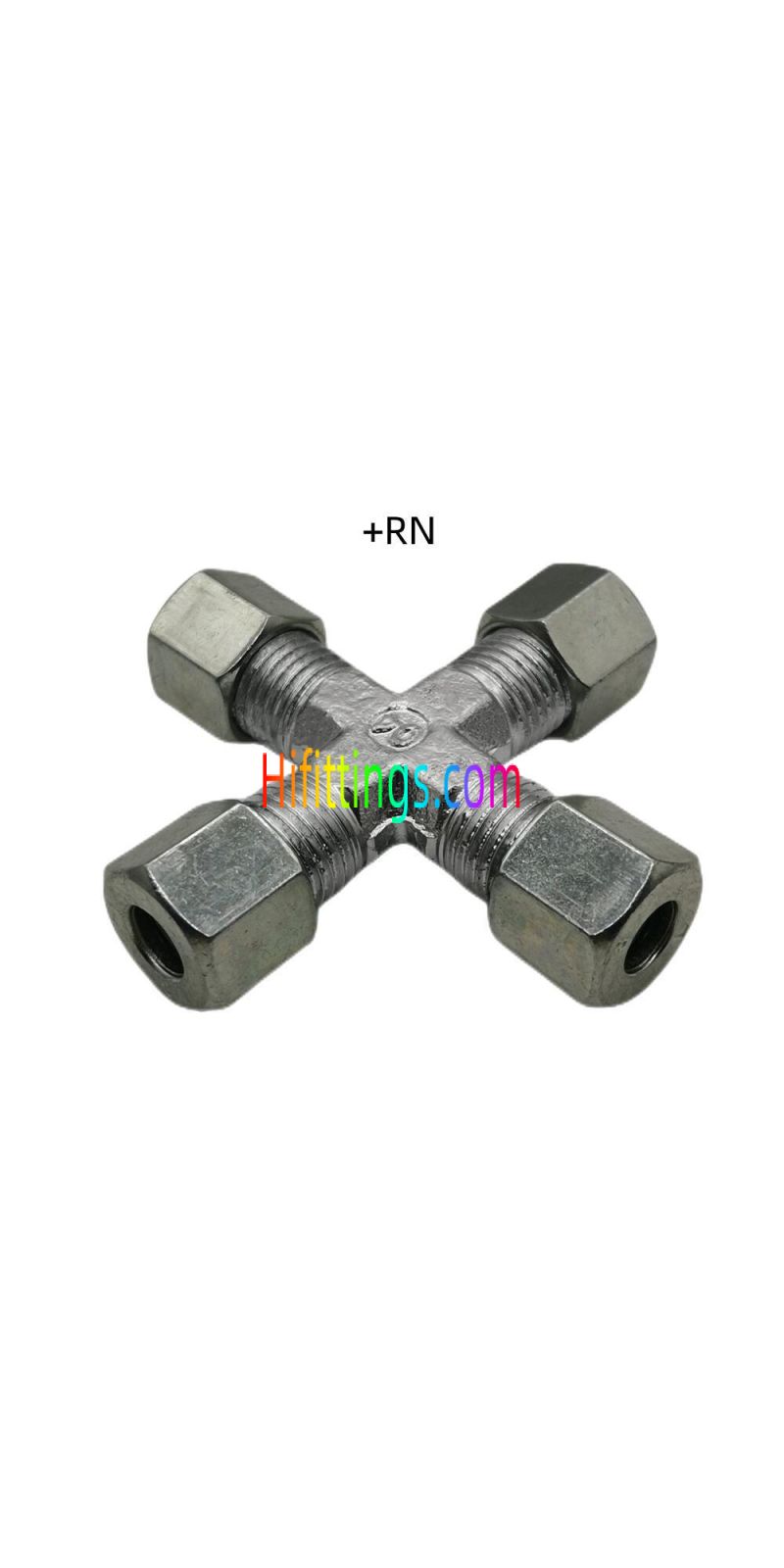

Note: 1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example XC-30RN.   2. PN = Nominal Pressure

More Information
Shape Cross
Thread Type Male
Connection Type Metric
Fitting Type Bite Type
