Metric Male Bite Type Equal Tee Tube Fittings AC/AD

Add to Wish List
As low as $5.90 Regular Price $5.90
22
In stock
Only %1 left
SKU
AC
Estimated Delivery:
8 - 28 Dec, 2024
Free Shipping & Returns:
On all orders over $300

Guarantee safe & secure checkout

Metric Male Bite Type Equal Tee Hydraulic Adapter Pipe Fittings AC/AD- hifittings.comMetric Male Bite Type Equal Tee Hydraulic Adapter Pipe Fittings AC/AD- hifittings.com

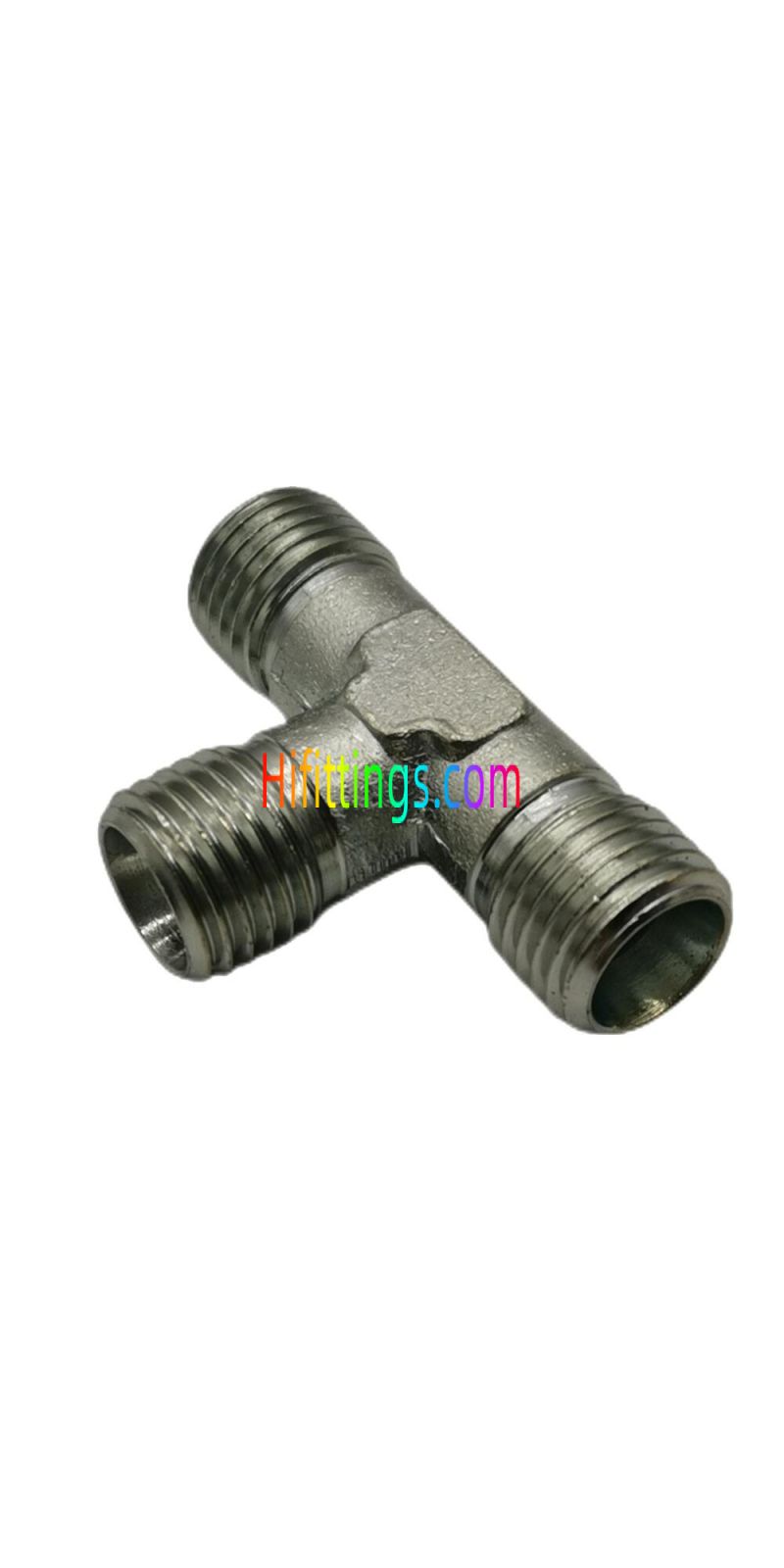

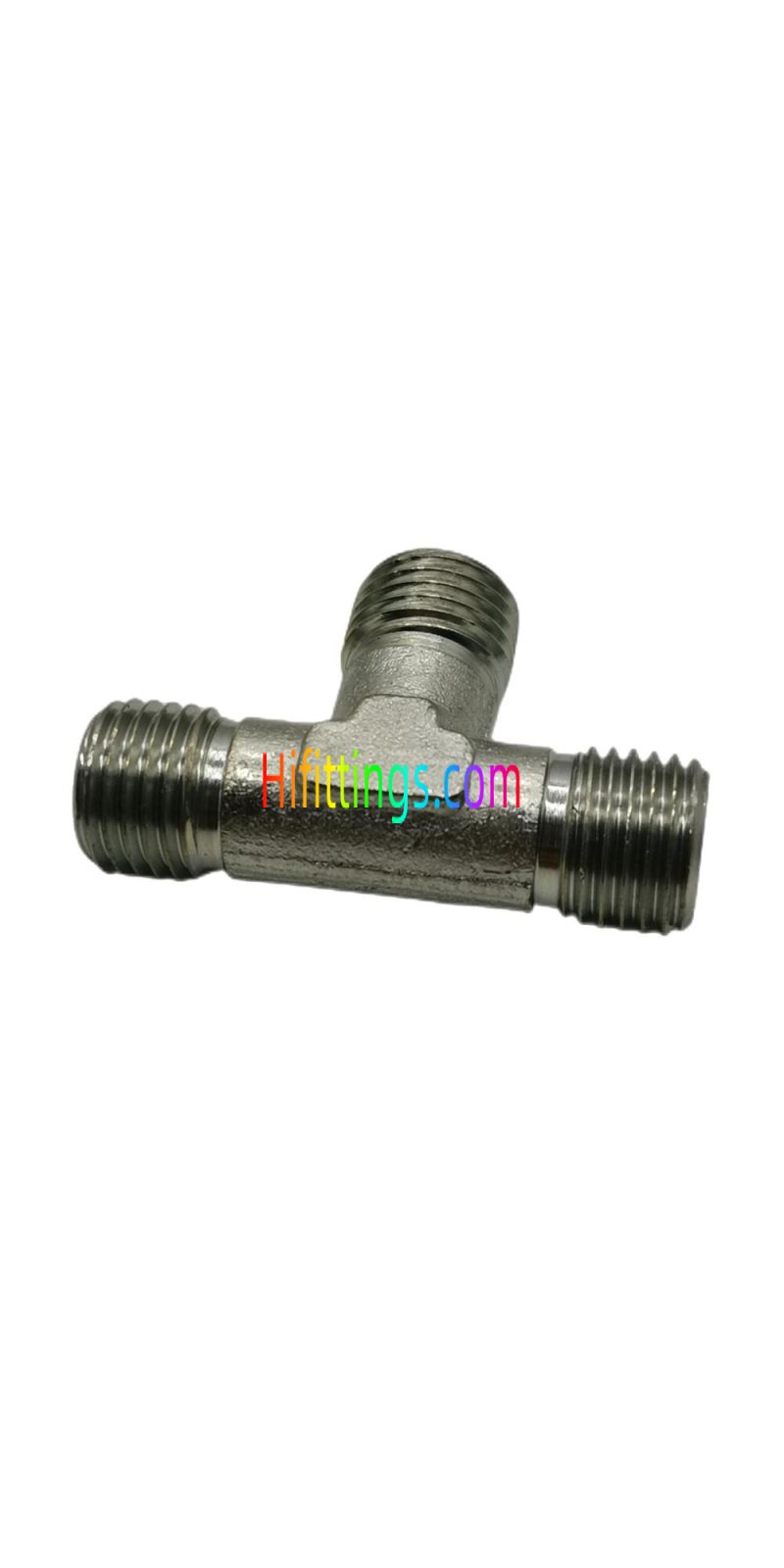

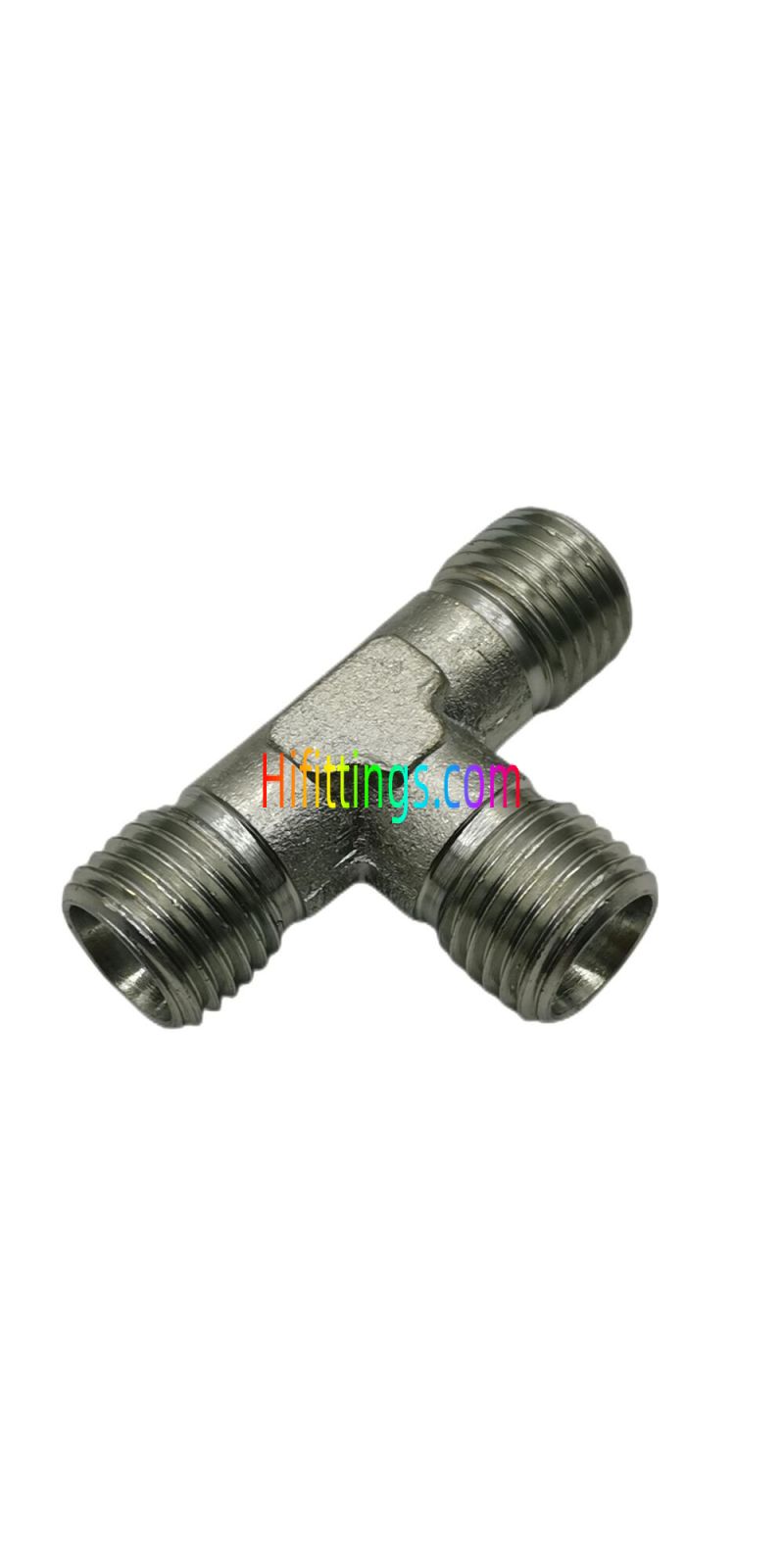

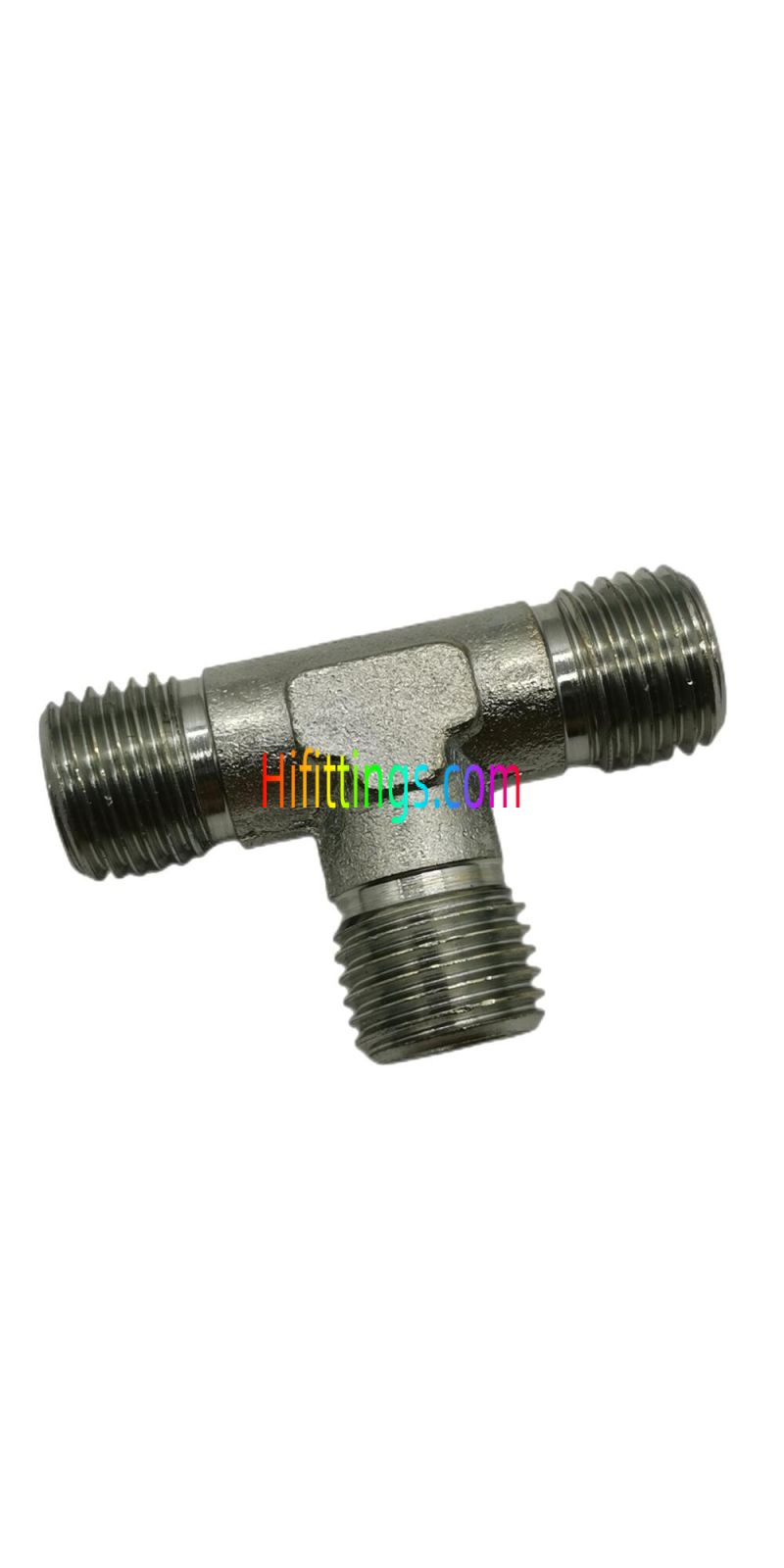

Metric Male Bite Type Equal Tee Hydraulic Adapter Pipe Fittings AC/AD

Part NO.

E,F,G

D1,D2,D3

l1,l2,l3

L1,L2,L3

S1

S2,S3,S4

Working Pressure  bar

AC-08

M8X1

4

11

21

9

10

PN100

AC-10

M10X1

5

9.5

21

9

12

PN100

AC-10LL

M10X1

6

9.51

21

9

12

PN100

AC-12LL

M12X1

8

11.5

23

12

14

PN100

AC-12

M12X1.5

6

12

27

12

14

PN250

AC-14

M14X1.5

8

14

29

12

17

PN250

AC-16

M16X1.5

10

15

30

14

19

PN250

AC-18

M18X1.5

12

17

32

17

22

PN250

AC-22

M22X1.5

15

21

36

19

27

PN250

AC-26

M26X1.5

18

23.5

40

24

32

PN250

AC-30

M30X2

22

27.5

44

27

36

PN160

AC-36

M36X2

28

30.5

47

36

41

PN160

AC-45

M45X2

35

34.5

56

41

50

PN160

AC-52

M52X2

42

40

63

50

60

PN160

AD-14

M14X1.5

6

16

31

12

17

PN630

AD-16

M16X1.5

8

17

32

14

19

PN630

AD-18

M18X1.5

10

17.5

'34

17

22

PN630

AD-20

M20X1.5

12

21.5

38

17

24

PN630

AD-22

M22X1.5

14

22

40

19

27

PN630

AD-24

M24X1.5

16

24.5

43

24

30

PN400

AD-30

M30X2

20

26.5

48

27

36

PN400

AD-36

M36X2

25

30

54

365

46

PN400

AD-42

M42X2

,30

35.5

62 .

41

50

PN400

AD-52

M52X2

38

41

72

50

60

PN315

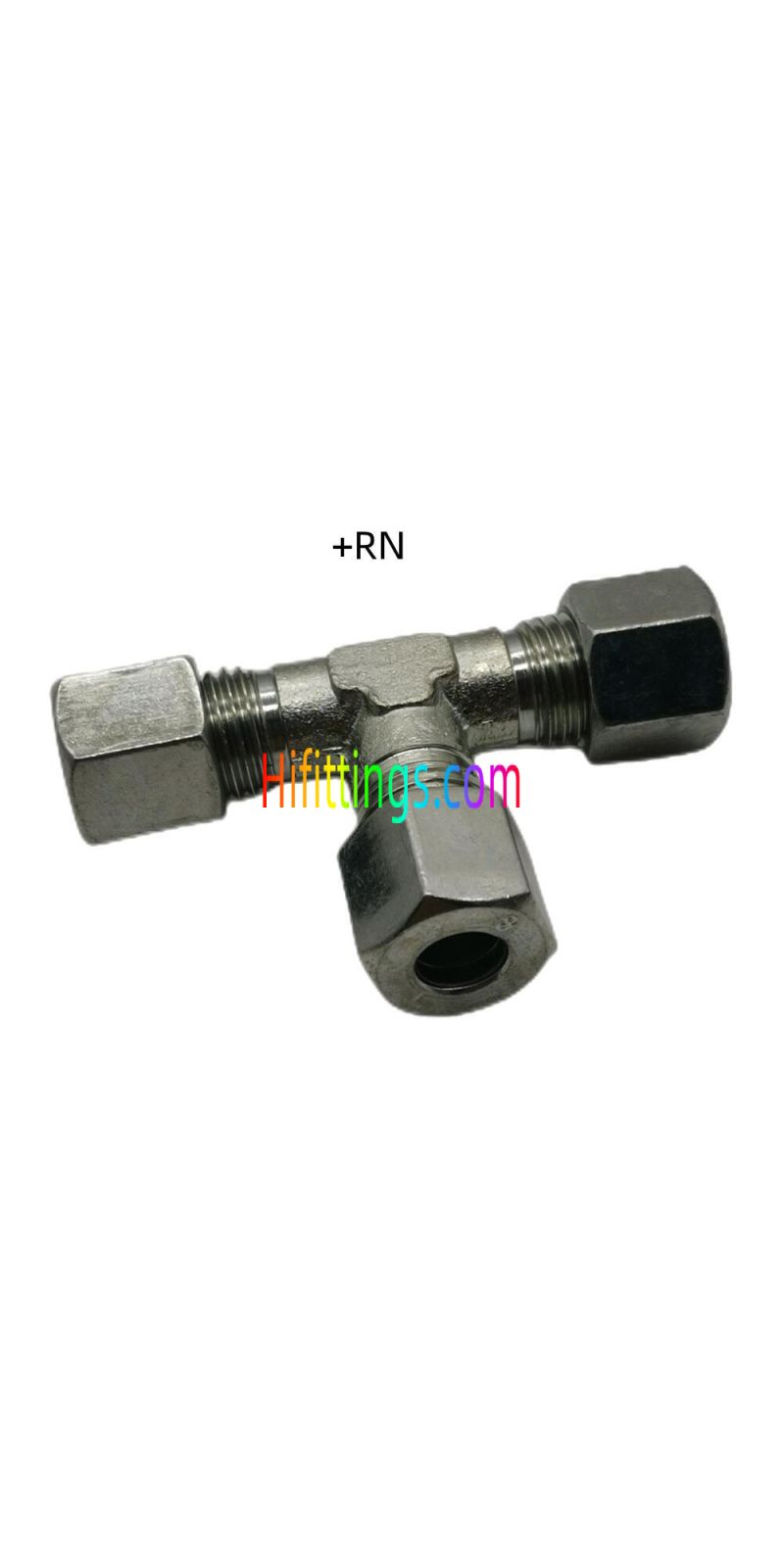

Note:1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO.,for example AC-22RN.  2. PN = Nominal Pressure

More Information
Shape Tee
Thread Type Male
Connection Type Metric
Fitting Type Bite Type
