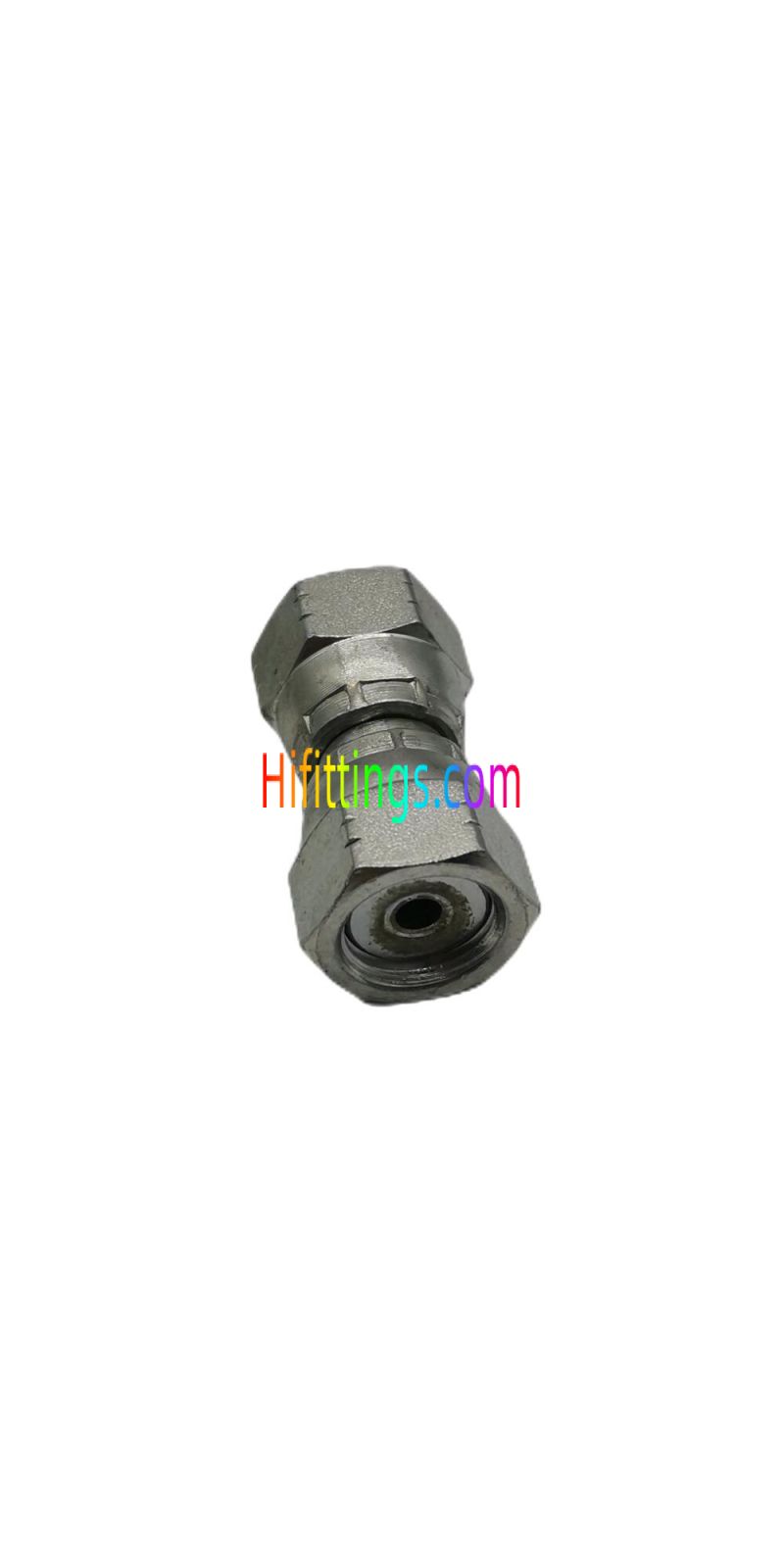

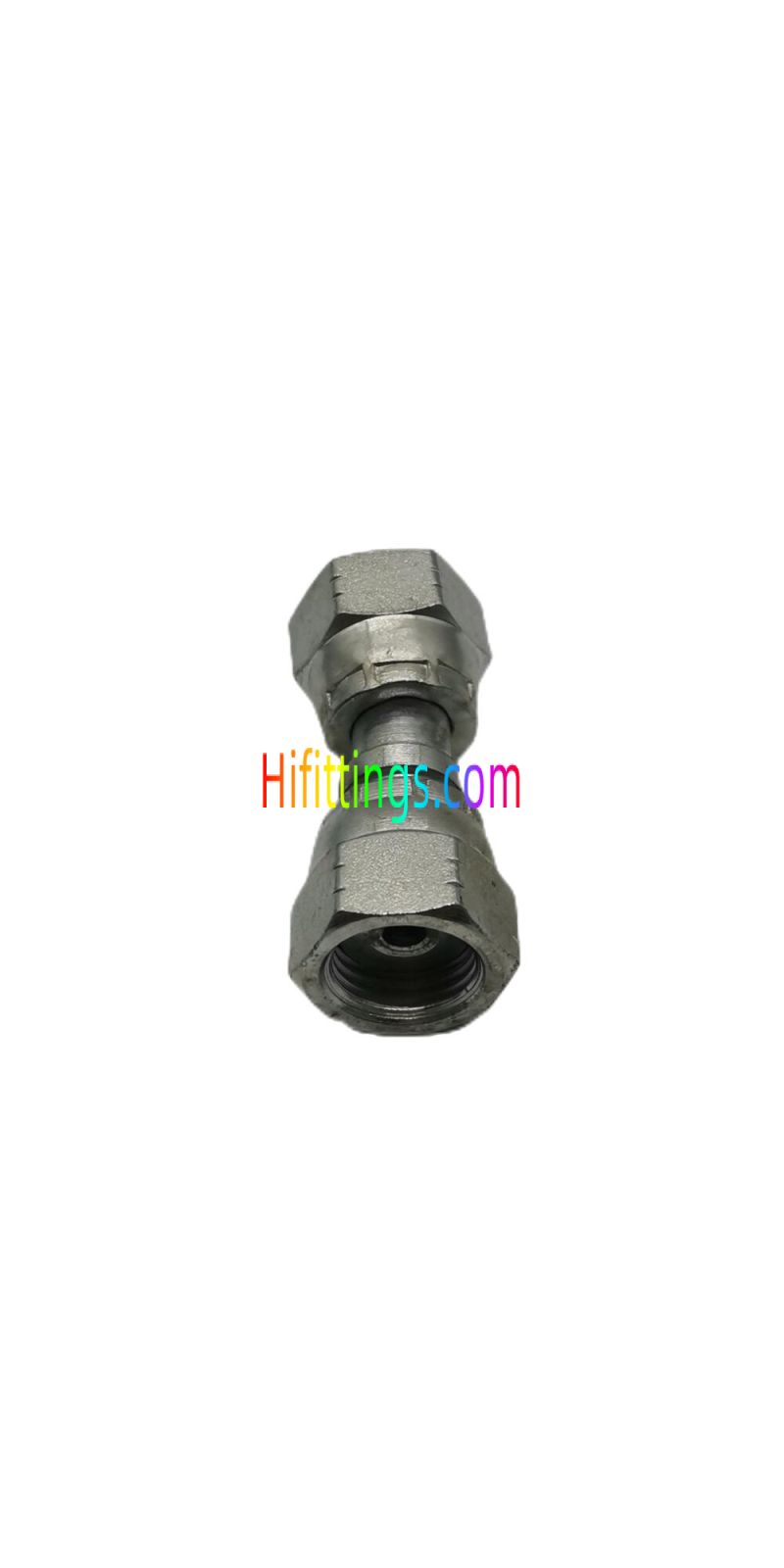

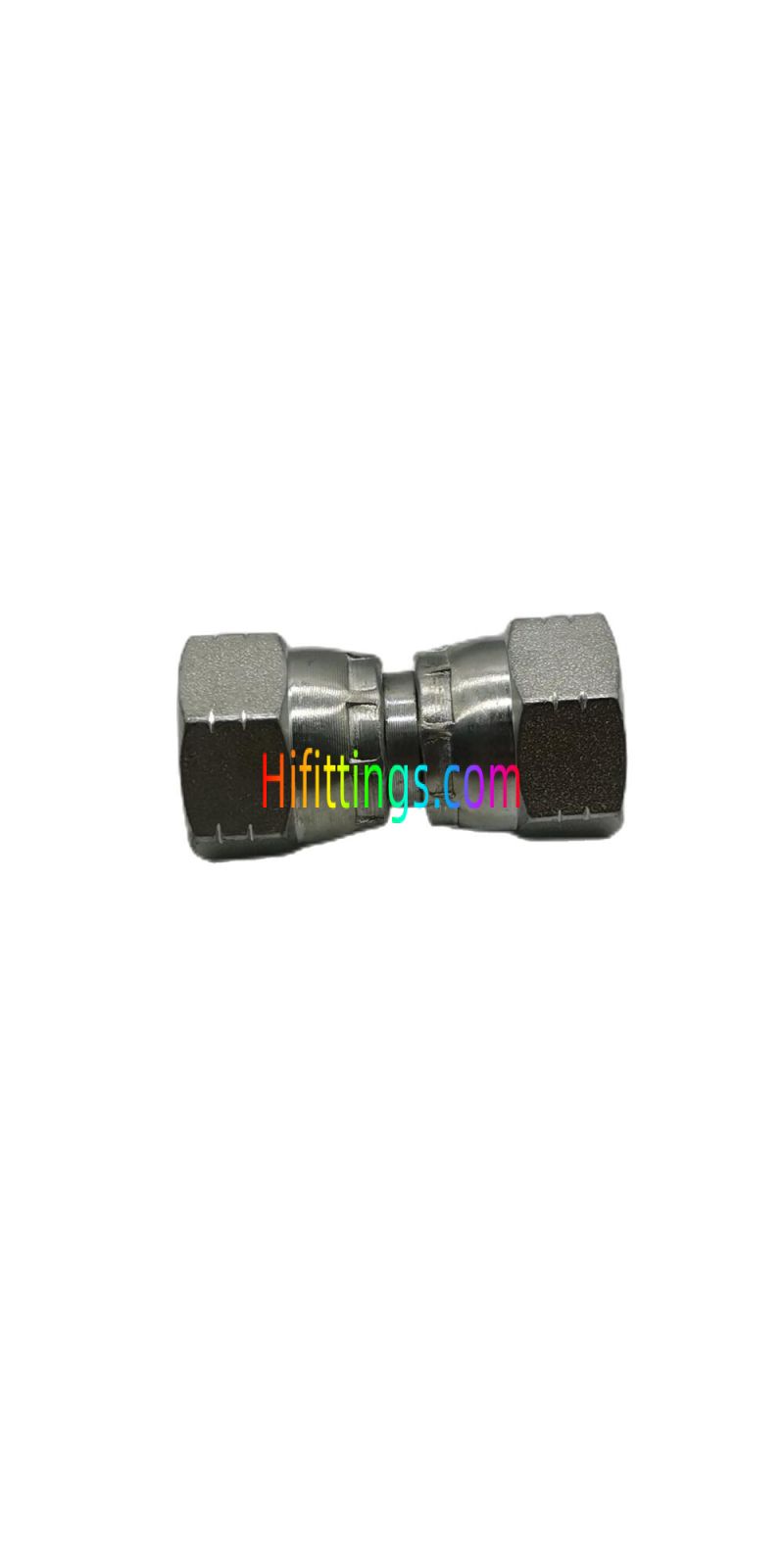

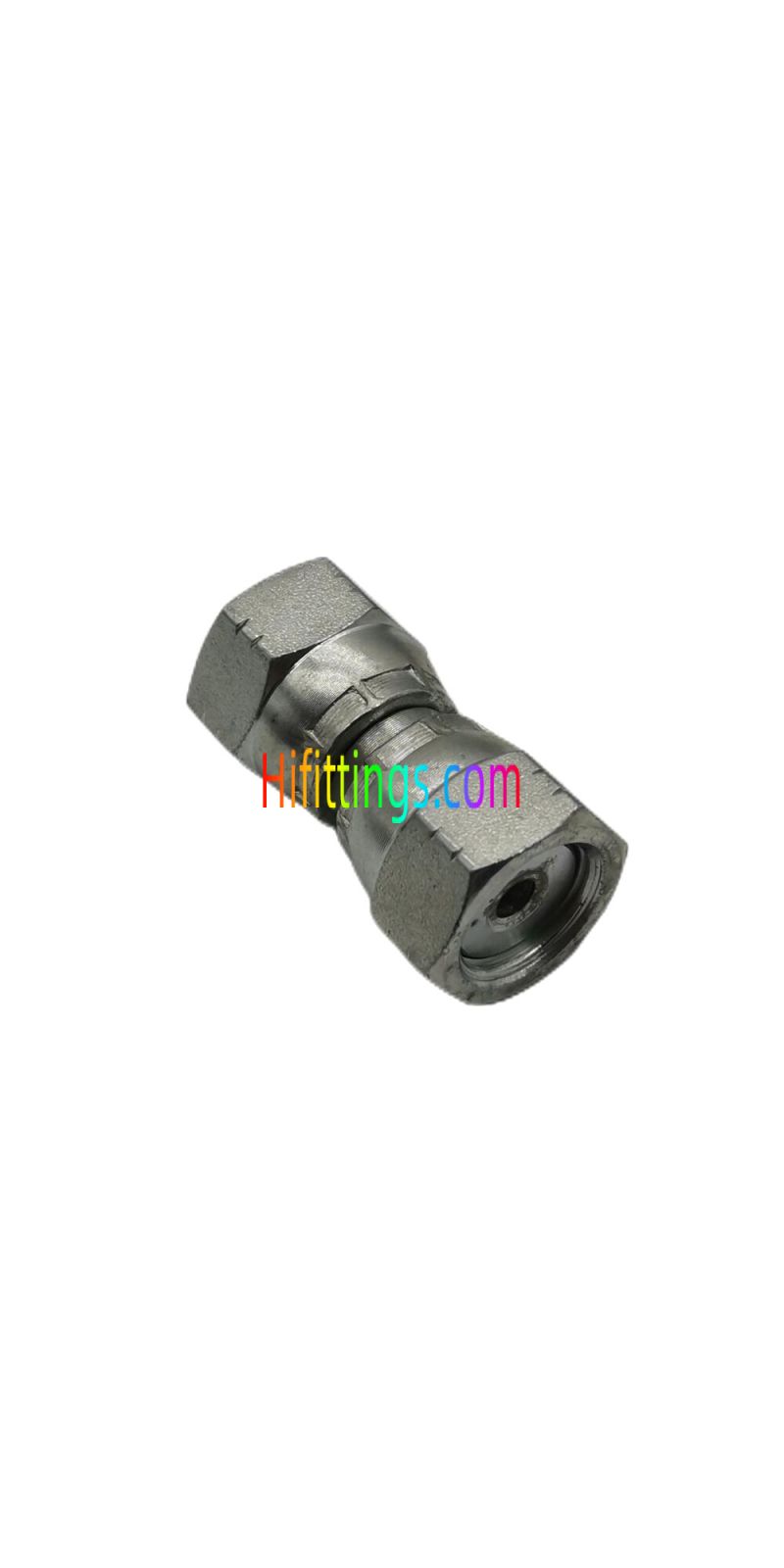

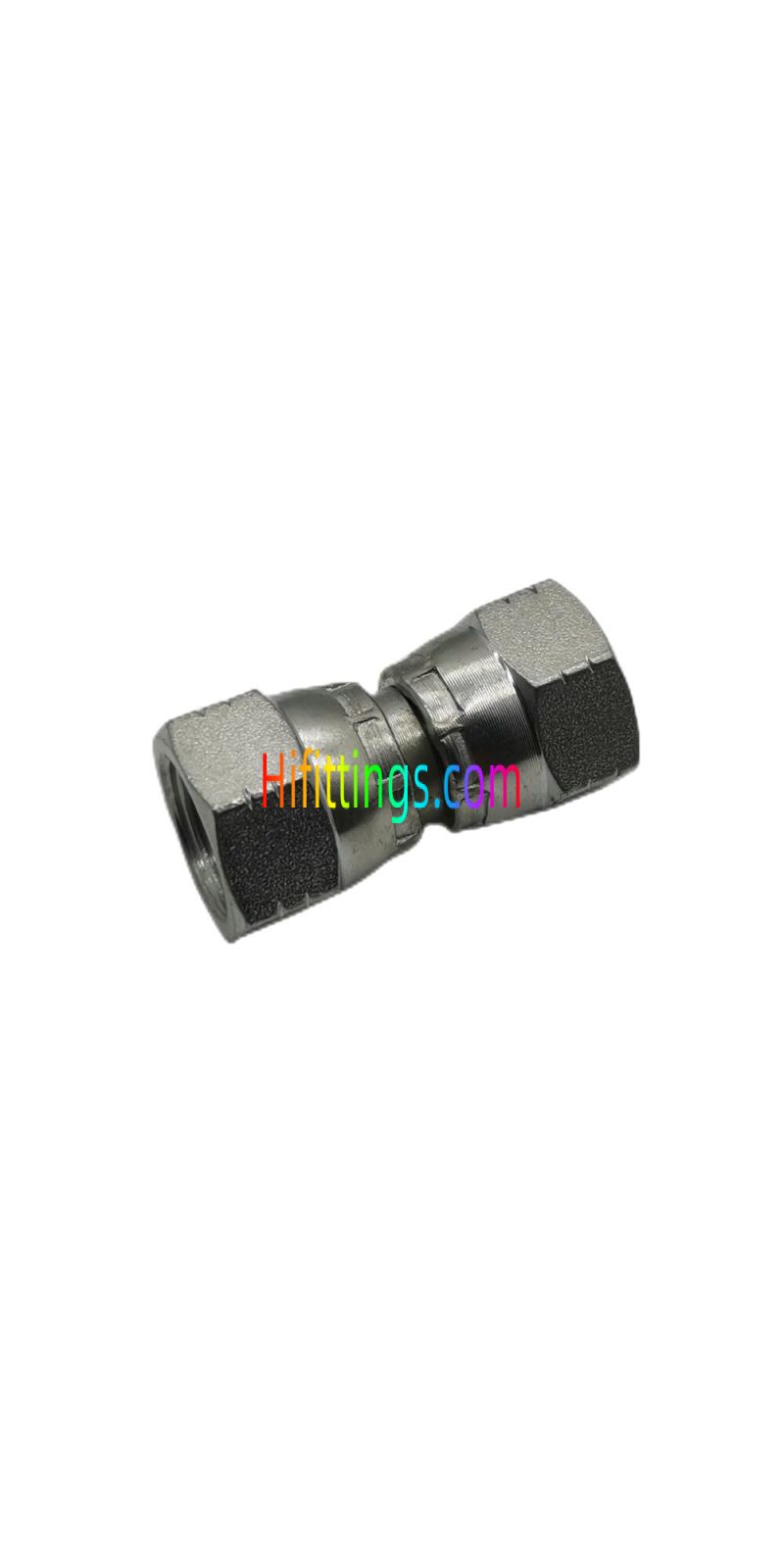

ORFS Female Swivel Fittings 3F
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
S2,S3 |
Working Pressure bar |
|
3F-04 |
9/16"X18 |
9/16"X18 |
8.5 |
8.5 |
33.5 |
19 |
19 |
PN630 |
|
3F-06 |
11/16"X16 |
11/16"X16 |
10 |
10 |
40.5 |
22 |
22 |
PN630 |
|
3F-08 |
13/16"X16 |
13/16"X16 |
11 |
11 |
44.5 |
27 |
27 |
PN630 |
|
3F-10 |
1"X14 |
1"X14 |
13.5 |
13.5 |
52.5 |
30 |
30 |
PN400 |
|
3F-12 |
1.3/16"X12 |
1.3/16"X12 |
15 |
15 |
56 |
36 |
36 |
PN400 |
|
3F-16 |
1.7/16"X12 |
1.7/16"X12 |
15 |
15 |
60 |
41 |
41 |
PN400 |
|
3F-20 |
1.11/16"X12 |
1.11/16"X12 |
15 |
15 |
59.5 |
50 |
50 |
PN250 |
|
3F-24 |
2"X12 |
2"X12 |
16 |
16 |
64 |
60 |
60 |
PN250 |
| Shape | Straight |
|---|---|
| Fitting Type | Face Seal |
| Thread Type | Female |
| Connection Type | ORFS |
