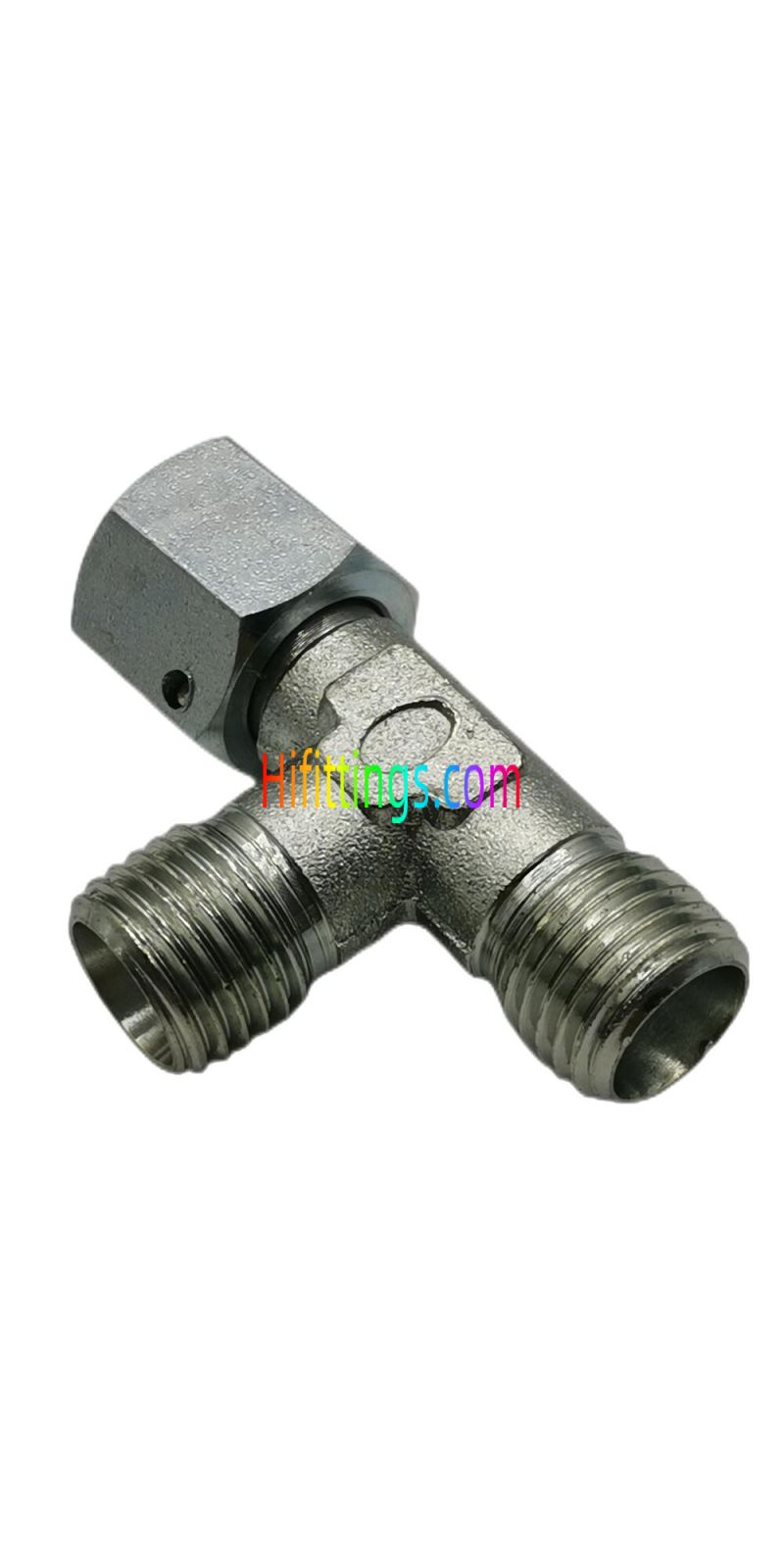

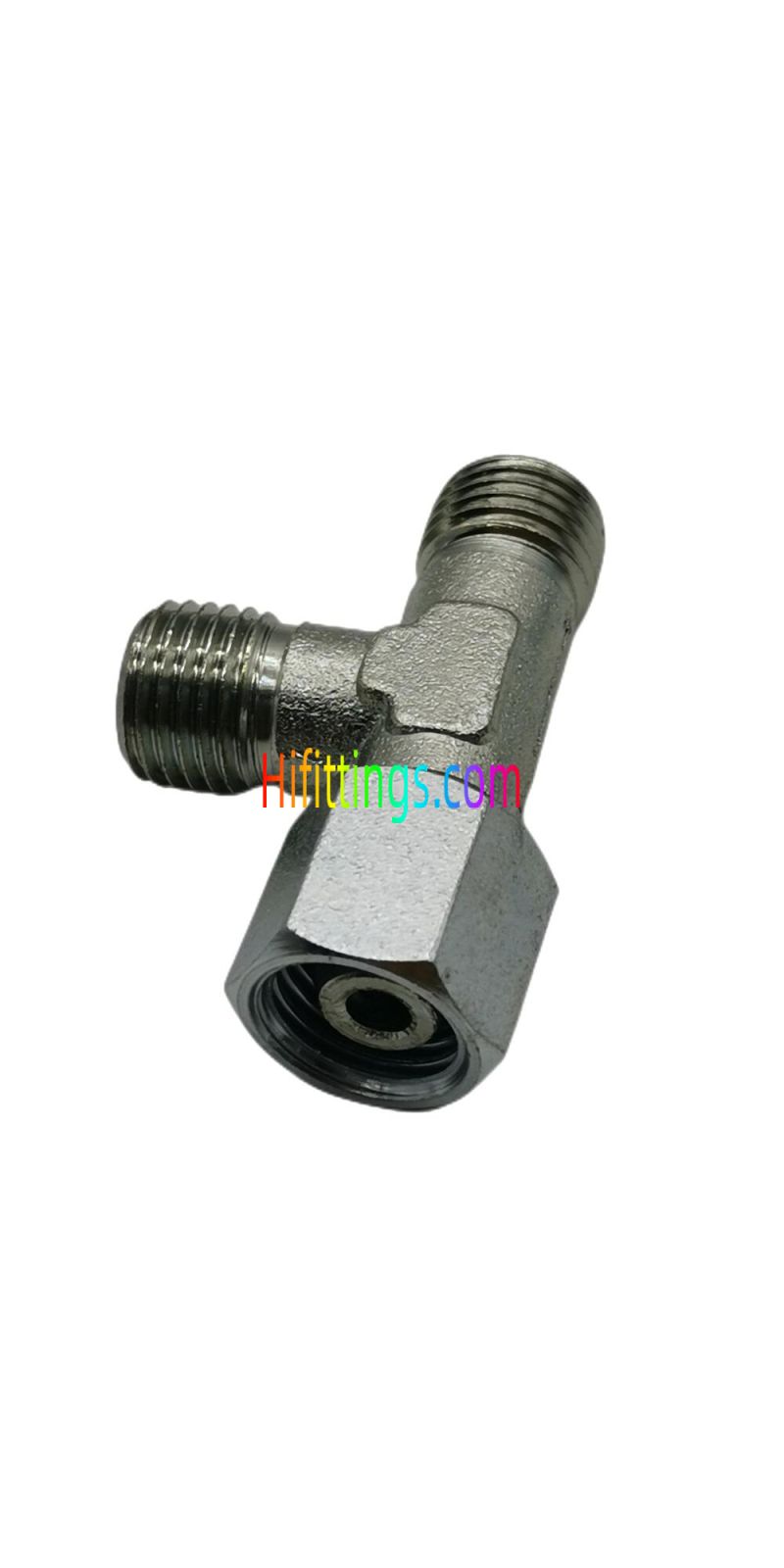

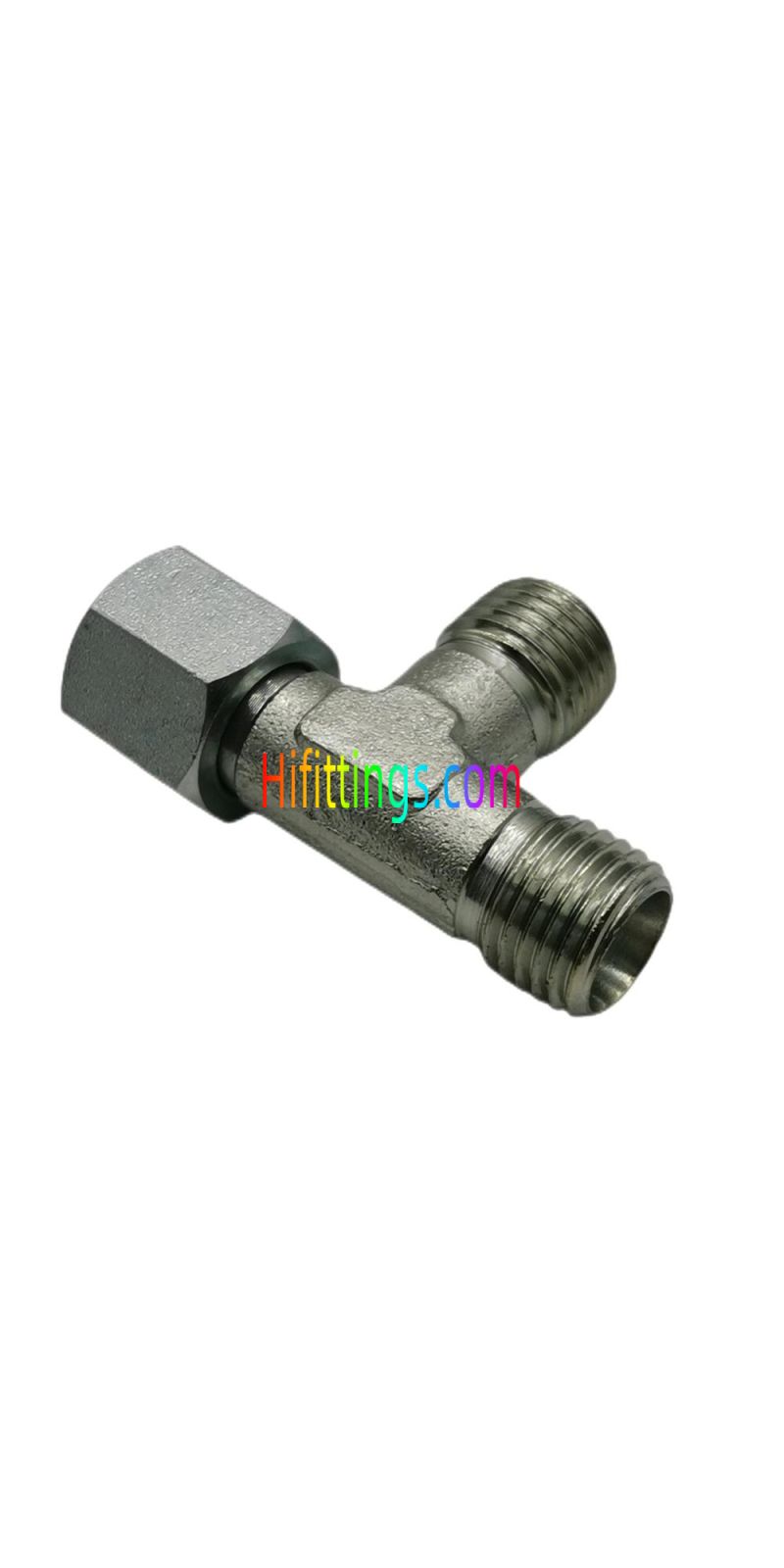

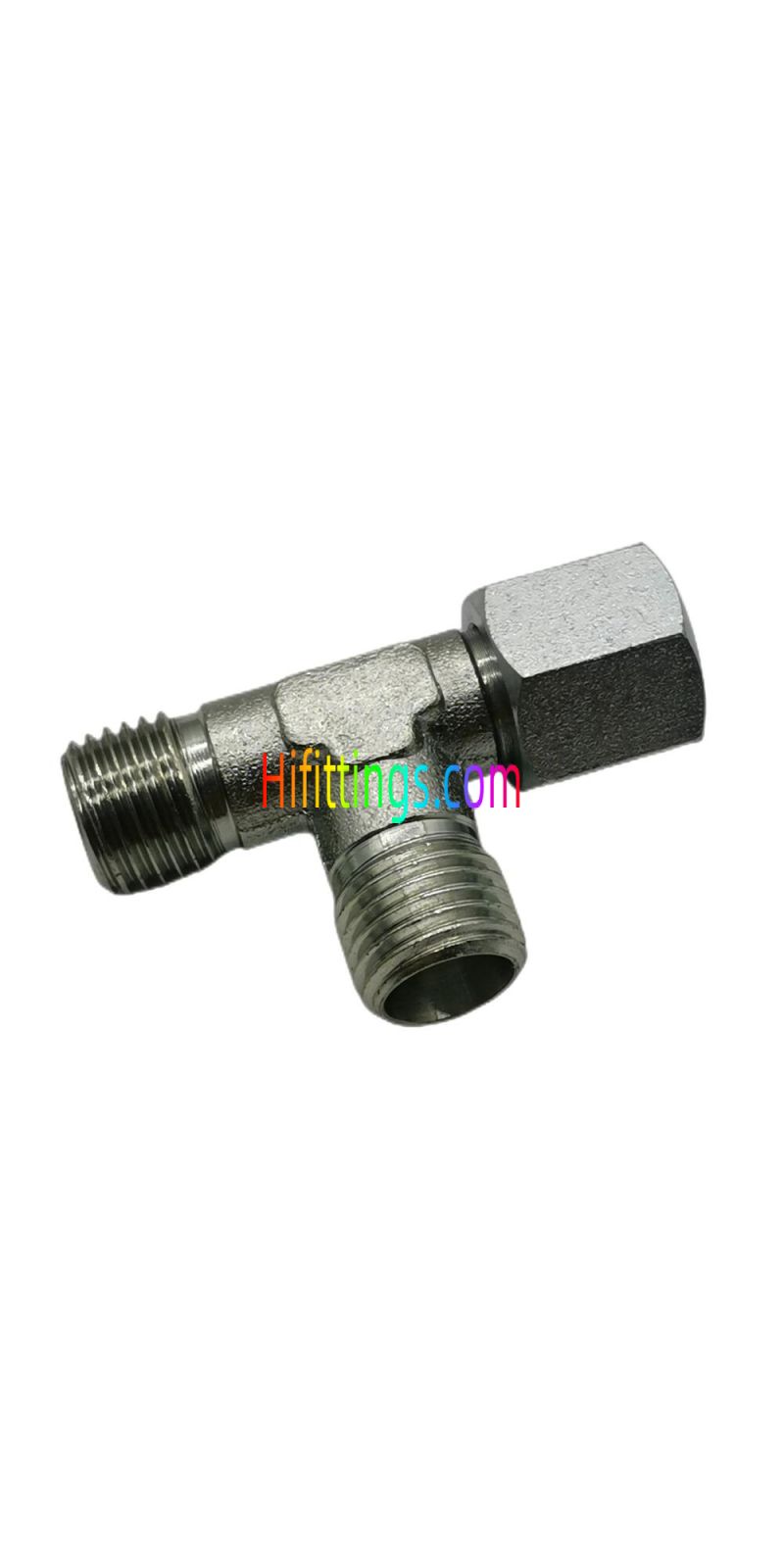

Run Tee Fittings With Swivel Nut CC/CD

Part  NO.

E,F

G

D1,D2

D3

11,l2

L1,L2

L3

S1

S2,S3

S4

Working Pressure bar

CC-12

M12X1.5

M12X1.5

6

6

12

27

26

12

14

14

PN315

CC-14

M14X1.5

M14X1.5

8

8

14

29

27.5

12

17

17

PN315

CC-16

M16X1.5

M16X1.5

10

10

15

30

29

14

19

19

PN315

CC-18

M18X1.5

M18X1.5

12

12

17

32

29.5

17

22

22

PN315

CC-22

M22X1.5

M22X1.5

15

15

21

36

32.5

19

27

27

PN315

CC-26

M26X1.5

M26X1.5

18

18

23.5

40

35.5

24

32

32

PN315

CC-30

M30X2

M30X2

22

22

27.5

44

38.5

27

36

36

PN160

CC-36

M36X2

M36X2

28

28

30.5

47

41.5

36

41

41

PN160

CC-45

M45X2

M45X2

35

35

34.5

56

51

41

50

50

PN160

CC-52

M52X2

M52X2

42

42

40

63

56

50

60

60

PN160

CD-14

M14X1.5

M14X1.5

6

6

16

31

27

12

17

17

PN630

CD-16

M16X1.5

M16X1.5

8

8

17

32

27.5

14

19

19

PN630

CD-18

M18X1.5

M18X1.5

10

10

17.5

34

30

17

22

22

PN630

CD-20

M20X1.5

M20X1.5

12

12

21.5

38

31

17

24

24

PN630

CD-22

M22X1.5

M22X1.5

14

14

22

40

35

19

27

27

PN630

CD-24

M24X1.5

M24X1.5

16

16

24.5

43

36.5

24

30

30

PN400

CD-30

M30X2

M30X2

20

20

26.5

48

44.5

27

36

36

PN400

CD-36

M36X2

M36X2

25

25

30

54

50

36

46

46

PN400

CD-42

M42X2

M42X2

30

30

35.5

62

55

41

50

50

PN400

CD-52

M52X2

M52X2

38

38

41

72

63

50

60

60

PN315

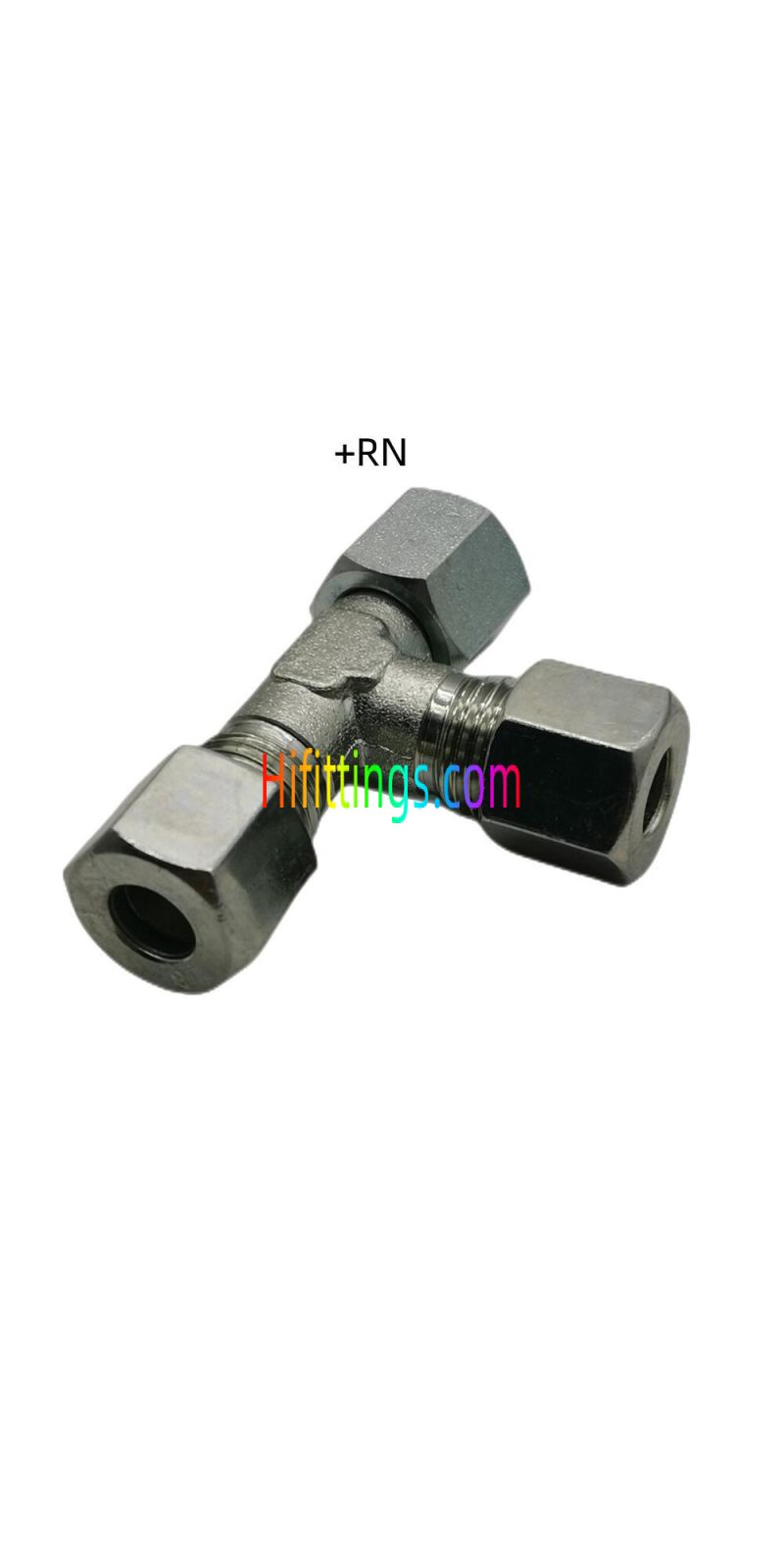

Note: 1.  In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example CC-30RN.   2. PN = Nominal Pressure
