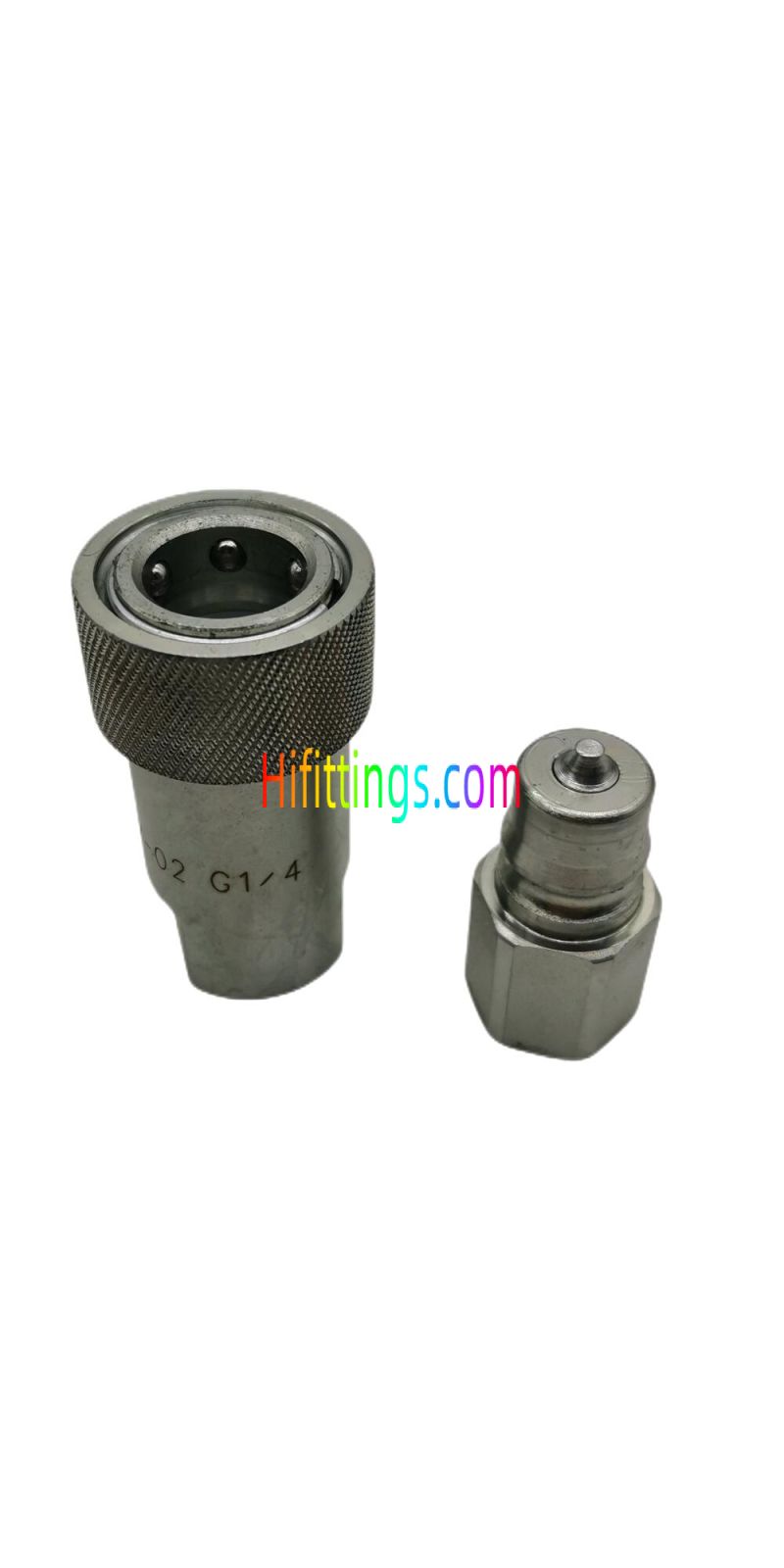

| S7 Specifications | |||||
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 5000 | 4000 | 4000 | 3000 | 3000 |
| Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range(NBR) | -20℃ 〜+120℃ | ||||

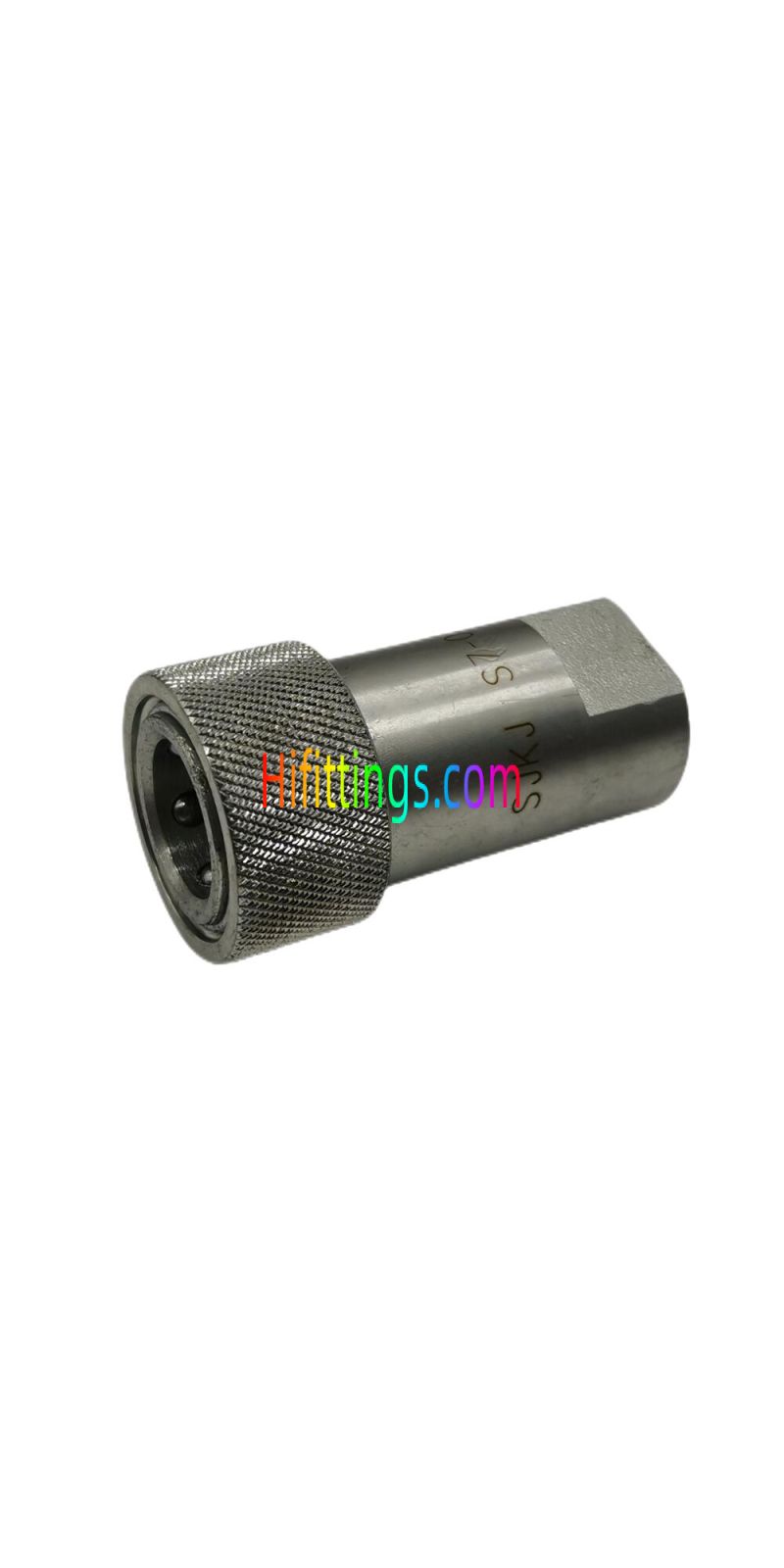

Socket
| Part NO. | Thread | LS | φD | S1 | A |
| S7-02SF-G02 | Gl/4 | 53 | 28.5 | 19 | 12.5 |
| S7-03SF-G03 | G3/8 | 60 | 33 | 23 | 14 |
| S7-04SF-G04 | Gl/2 | 72 | 43.5 | 35 | 18 |
| S7-06SF-G06 | G3/4 | 72 | 43.5 | 35 | 18 |
| S7-08SF-G08 | G1 | 93 | 58 | 46 | 22 |

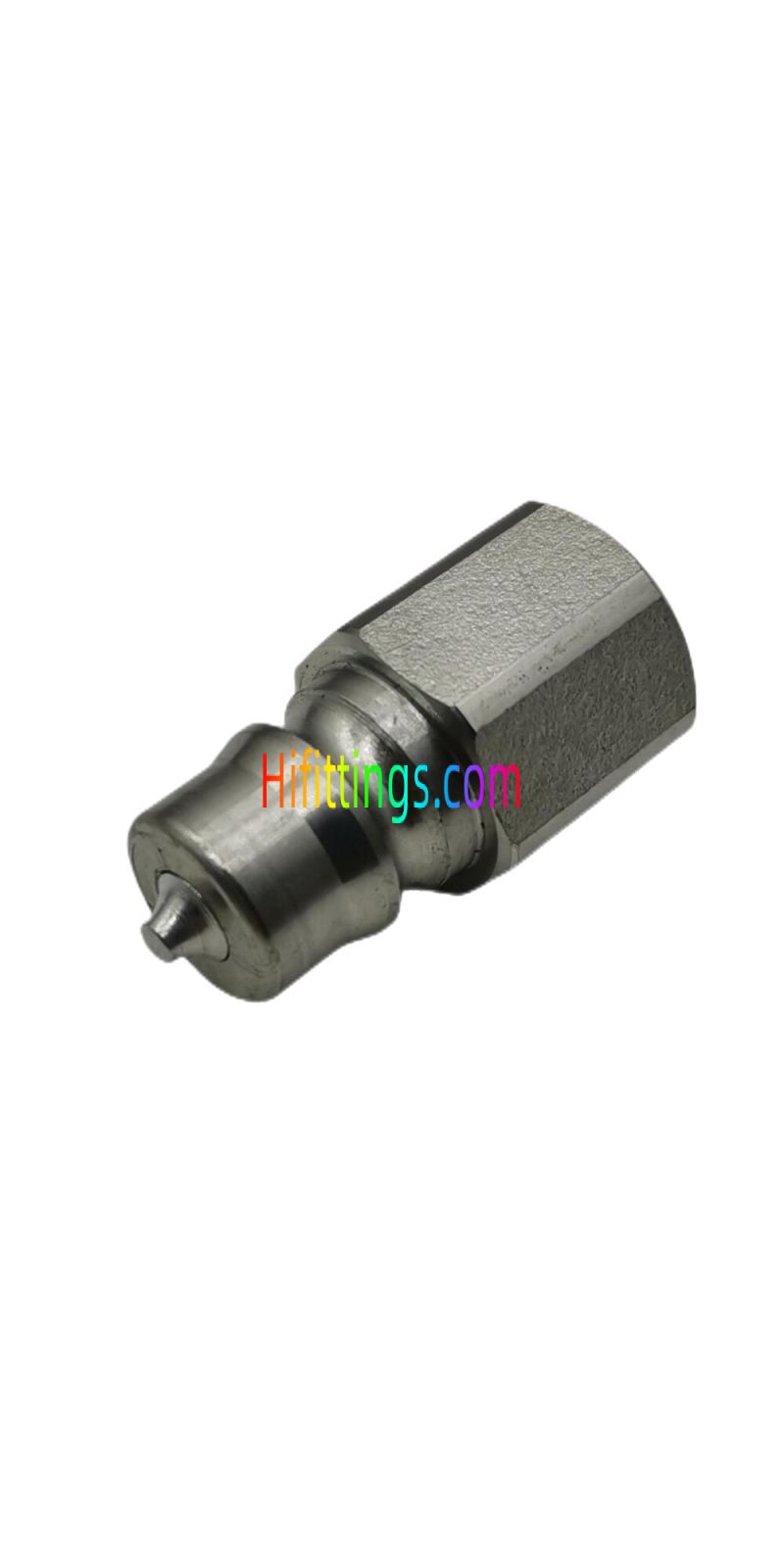

Plug
| Part NO. | Thread | LP | C | S2 | A |
| S7-02PF-G02 | Gl/4 | 36 | 17.5 | 19 | 12 |
| S7-03PF-G03 | G3/8 | 38 | 22.5 | 23 | 13 |
| S7-04PF-G04 | Gl/2 | 50 | 27.5 | 32 | 16 |
| S7-06PF-G06 | G3/4 | 50 | 27.5 | 32 | 18 |
| S7-08PF-G08 | G1 | 61 | 36 | 41 | 23 |

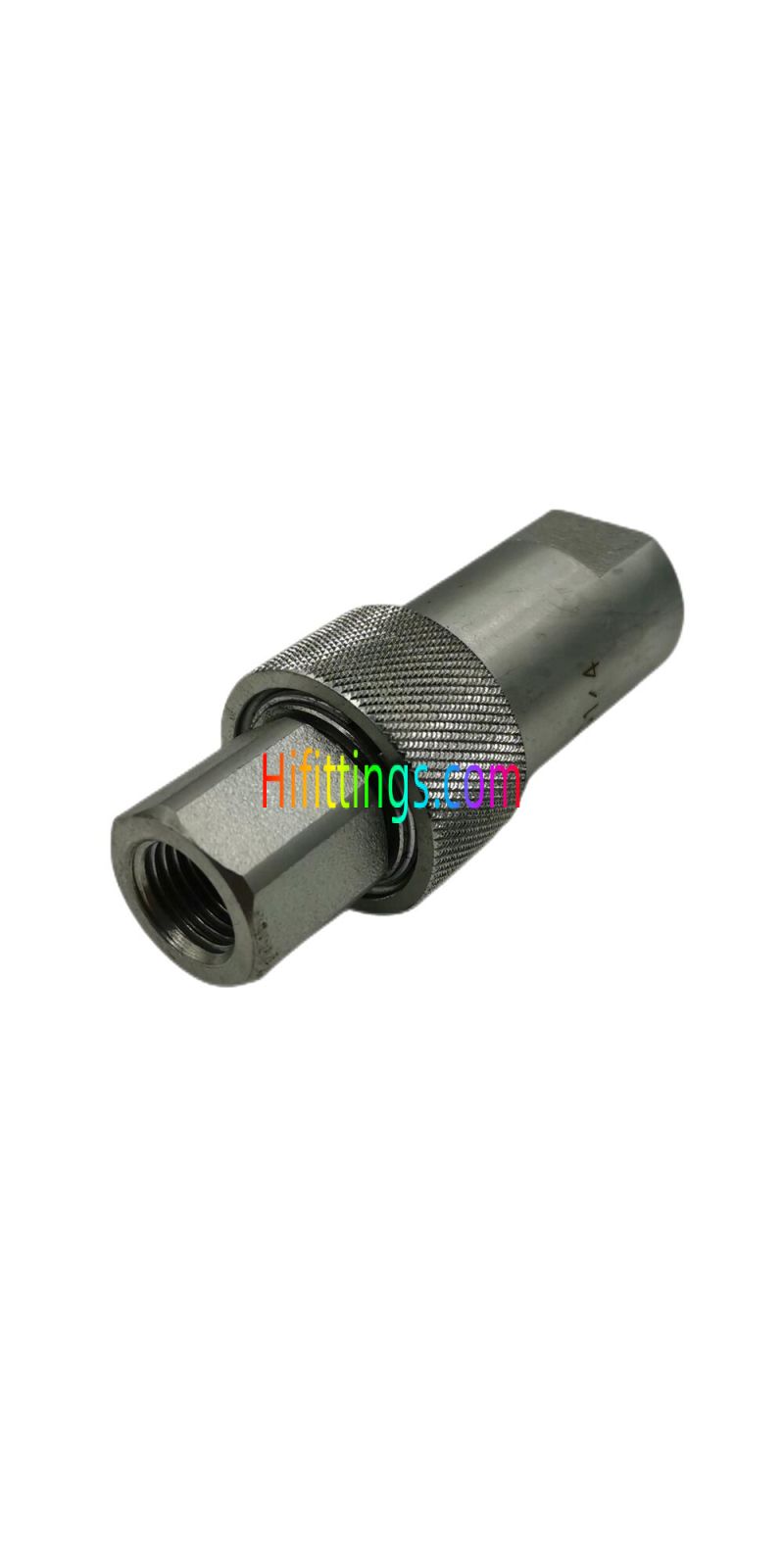

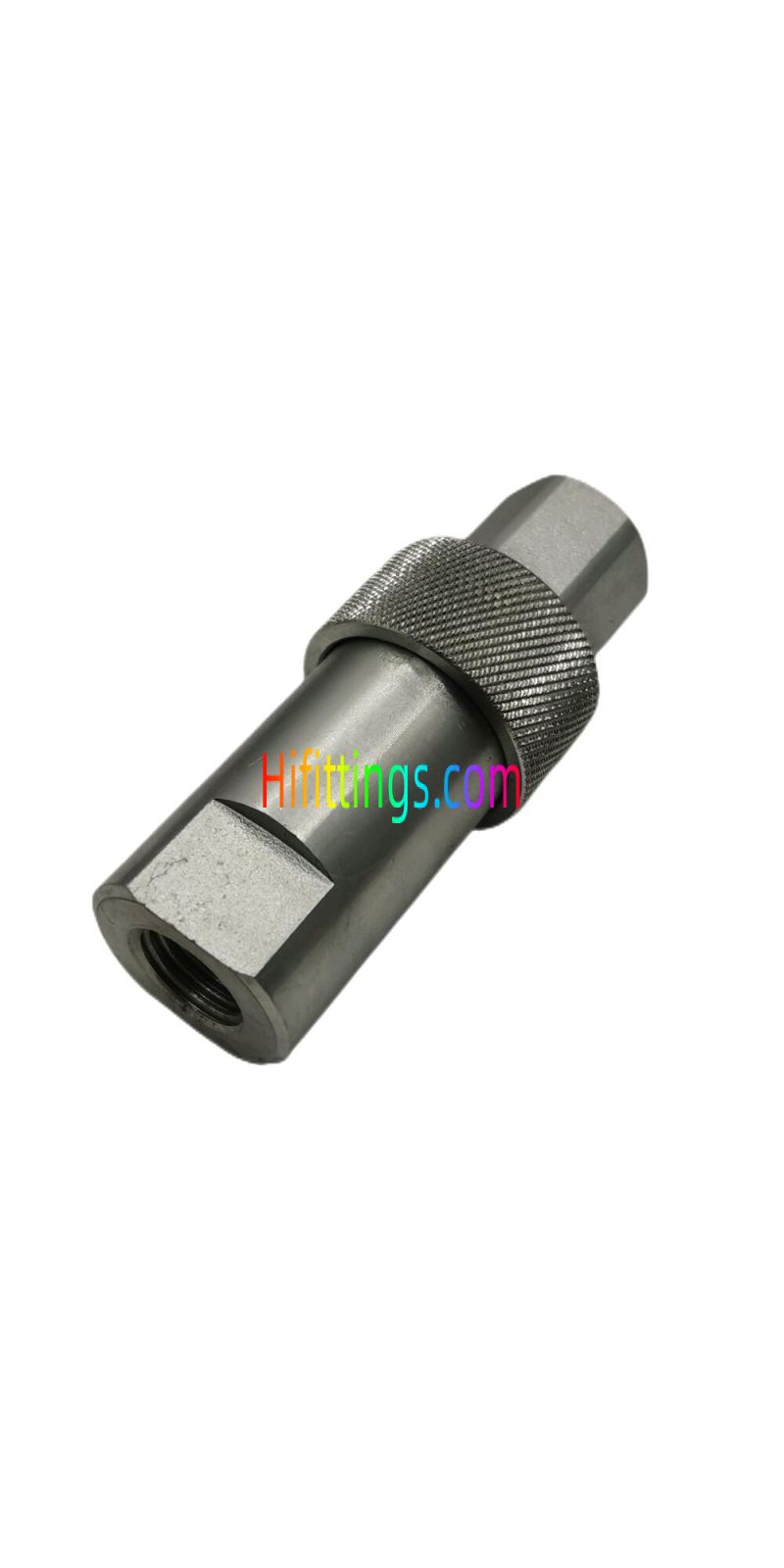

Coupling Fitting
| Part NO. | Thread | L | D | S1 | S2 |
| S7-G02SP | Gl/4 | 72.3 | 28.5 | 19 | 19 |
| S7-G03SP | G3/8 | 76 | 33 | 23 | 23 |
| S7-G04SP | Gl/2 | 0.3 | 43.5 | 35 | 32 |
| S7-G06SP | G3/4 | 95 | 43.5 | 35 | 32 |
| S7-G08SP | G1 | 119.2 | 58 | 46 | 41 |
| Thread Type | Female |
|---|
