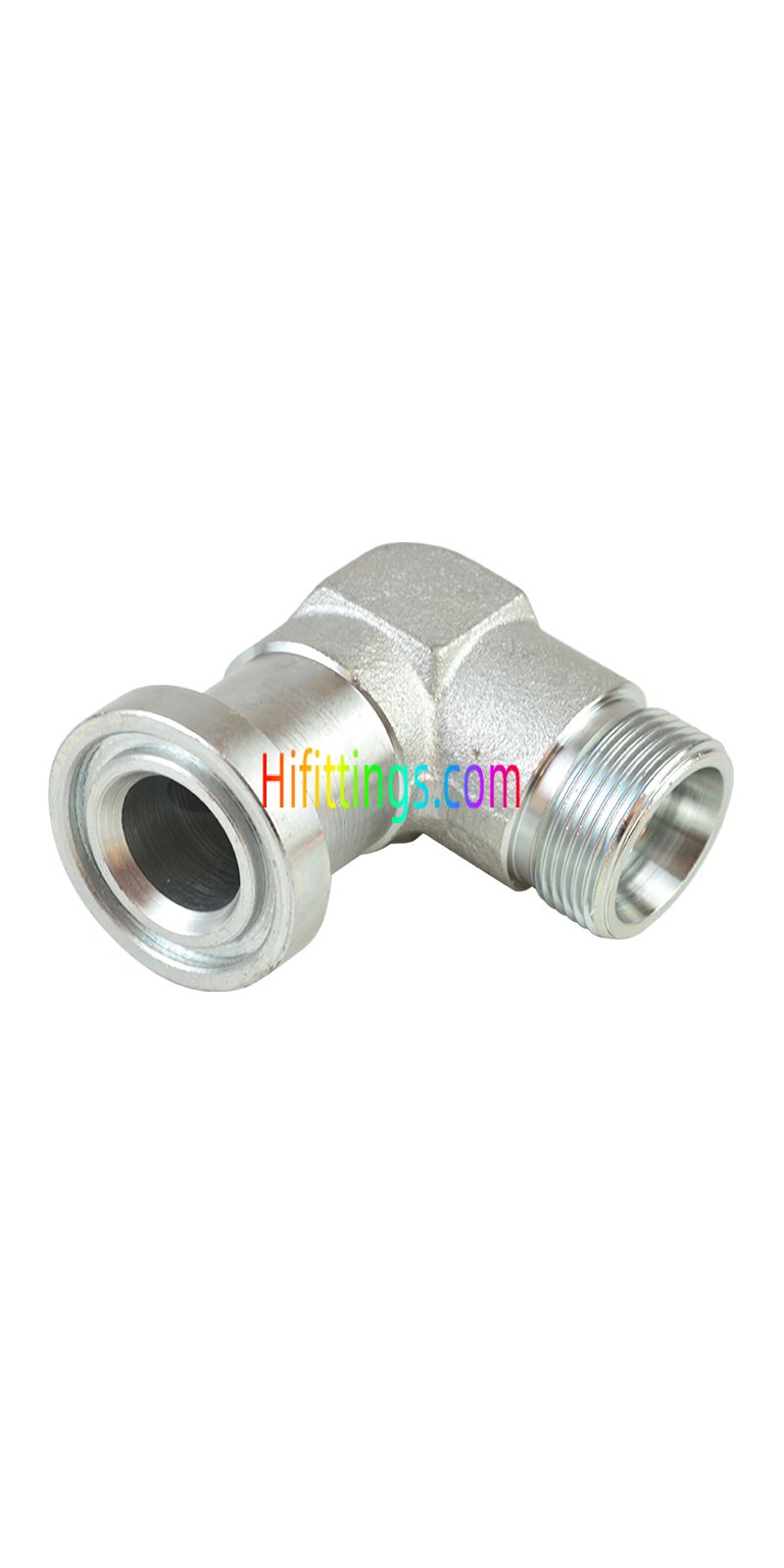

90° Elbow Metric Male Bite Type / SAE H-Series Hydraulic Flange Fittings ISO 6162-1 1DFS990° Elbow Metric Male Bite Type / SAE H-Series Hydraulic Flange Fittings ISO 6162-1 1DFS9
90° Elbow Metric Male Bite Type / SAE H-Series Hydraulic Flange Fittings ISO 6162-1 1DFS9

Part  NO.

E

Flange Size

D1

d1

I

11

L1

L2

S1

S2

Working  Pressure  bar

1DFS9-24-08

M24X1.5

1/2"

16

31.7

7.8

29.5

48

39

24

30

PN400

1DFS9-24-12

M24X1.5

3/4"

16

41.3

8.8

36.5

55

48

32

30

PN400

1DFS9-30-12

M30X2

3/4"

20

41.3

8.8

35.5

57

48

32

36

PN400

1DFS9-36-12

M36X2

3/4"

25

41.3

8.8

36

60

48

32

46

PN400

1DFS9-36-16

M36X2

1"

25

47.6

9.5

41

65

60

41

46

PN400

1DFS9-42-16

M42X2

1"

30

47.6

9.5

41.5

68

60

41

50

PN400

1DFS9-42-20

M42X2

1.1/4"

30

54

10.3

44.5

71

68

46

50

PN400

1DFS9-52-20

M52X2

1.1/4"

38

54

10.3

45

76

68

46

60

PN315

1DFS9-52-24

M52X2

1.1/2"

38

63.5

12.6

56

87

76

50

60

PN315

Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no, for example 1DFS9-52-24RN.
