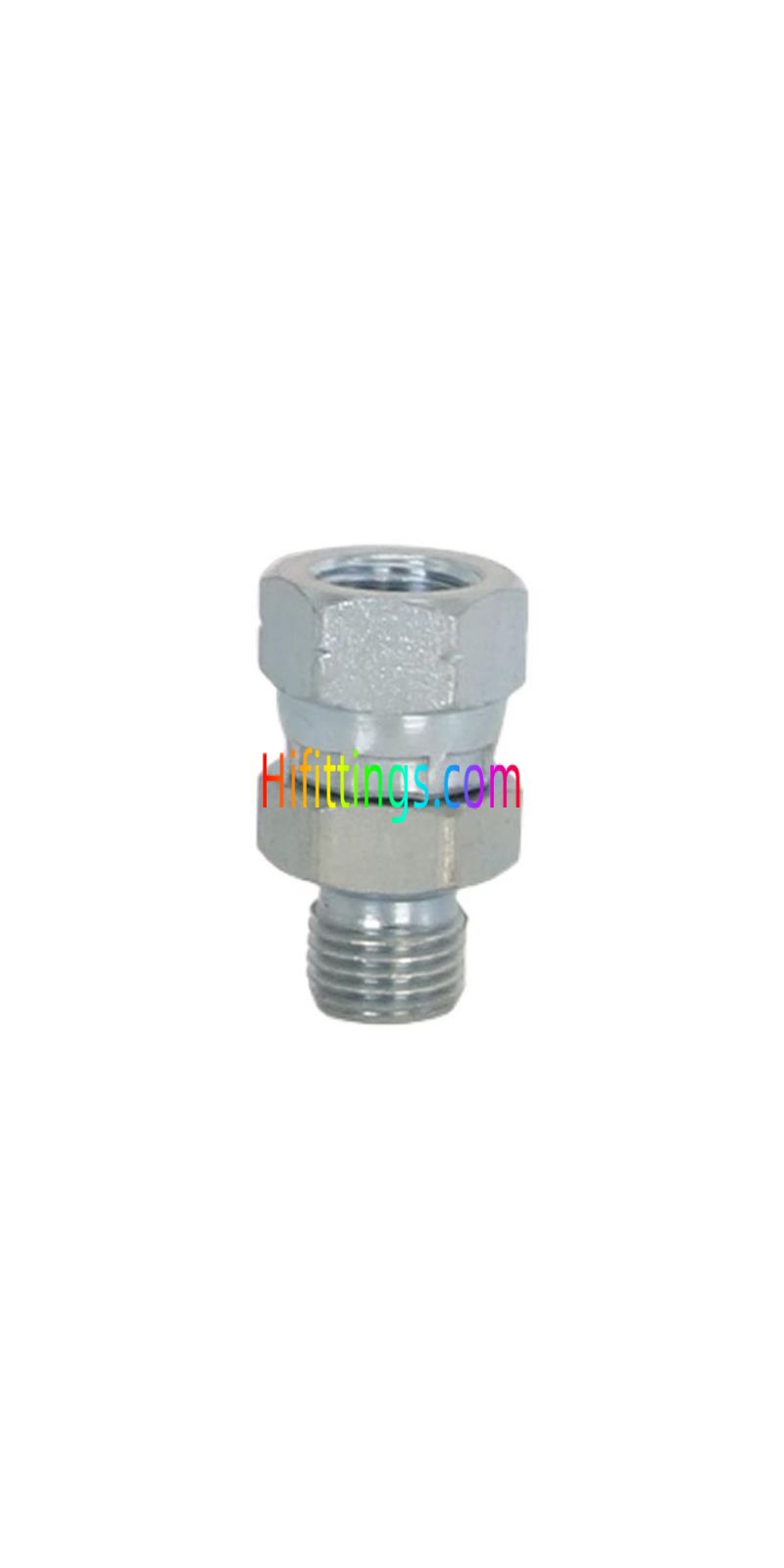

Straight BSP Male 60° Seat BSP Female 60° Cone Fittings 2B

Part  NO.

E

F

A

B

L

S1

S2

Working Pressure  bar

2B-02

G1/8"X28

G1/8"X28

10

5.5

25

14

14

PN345

2B-02-04

G1/8"X28

G1/4"X19

10

5.5

27

14

19

PN345

2B-04

G1/4"X19

G1/4"X19

12

5.5

29

19

19

PN345

2B-04-06

G1/4"X19

G3/8"X19

12

6.3

30.5

19

22

PN345

2B-04-08

G1/4"X19

G1/2"X14

12

7.5

32

19

27

PN345

2B-06

G3/8"X19

G3/8"X19

13.5

6.3

34

22

22

PN345

2B-06-08

G3/8"X19

G1/2"X14

13.5

7.5

35.5

22

27

PN345

2B-06-10

G3/8"X19

G5/8"X14

13.5

9.5

36

22

30

PN345

2B-08

G1/2"X14

G1/2"X14

16

7.5

40

27

27

PN345

2B-08-06

G1/2"X14

G3/8"X19

16

6.3

38.5

27

22

PN345

2B-08-12

G1/2"X14

G3/4"X14

16

10.9

41

27

32

PN275

2B-10

G5/8"X14

G5/8"X14

17.5

9.5

42

30

30

PN275

2B-10-08

G5/8"X14

G1/2"X14

17.5

7.5

41.5

30

27

PN275

2B-10-12

G5/8"X14

G3/4"X14

17.5

10.9

42.5

30

32

PN275

2B-12

G3/4"X14

G3/4"X14

18.5

10.9

44.5

32

32

PN275

2B-12-10

G3/4"X14

G5/8"X14

18.5

9.5

44

32

30

PN275

2B-12-16

G3/4"X14

G1"X11

18.5

11.7

46

32

41

PN205

2B-16

G1"X11

G1"X11

20.5

11.7

50

41

41

PN205

2B-16-12

G1"X11

G3/4"X14

20.5

10.9

49

41

32

PN205

2B-16-20

G1"X11

G1.1/4"X11

20.5

11

53

41

50

PN205

2B-20

G1.1/4"X11

G1.1/4"X11

20.5

11

55

50

50

PN170

2B-20-16

G1.1/4"X11

G1"X11

20.5

11.7

52

50

41

PN170

2B-20-24

G1.1/4"X11

G1.1/2"X11

20.5

13

55.5

50

55

PN105

2B-24

G1.1/2"X11

G1.1/2"X11

23

13

58

55

55

PN105

2B-32

G2"X11

G2"X11

25.5

16

63.5

70

70

PN105
