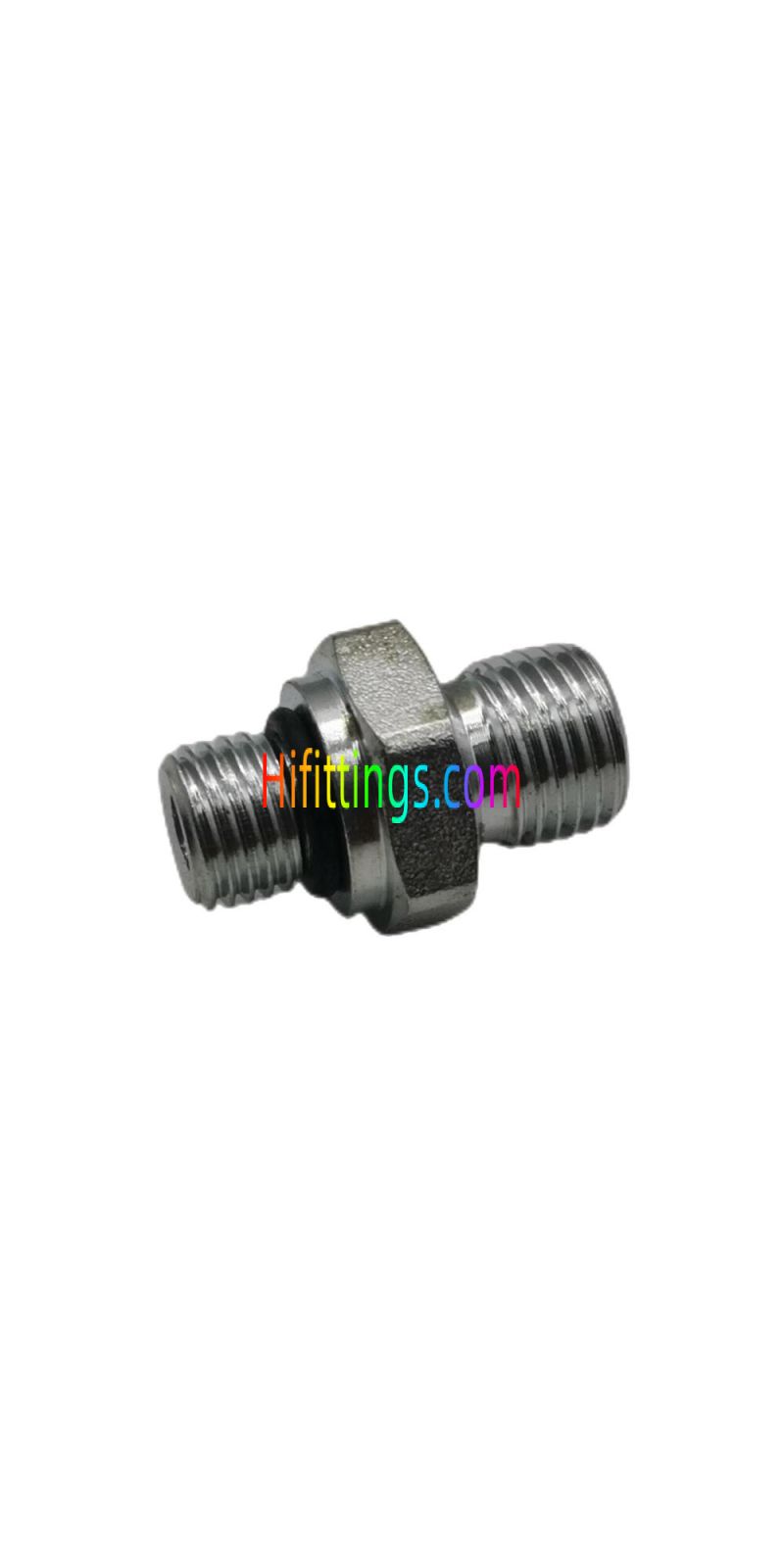

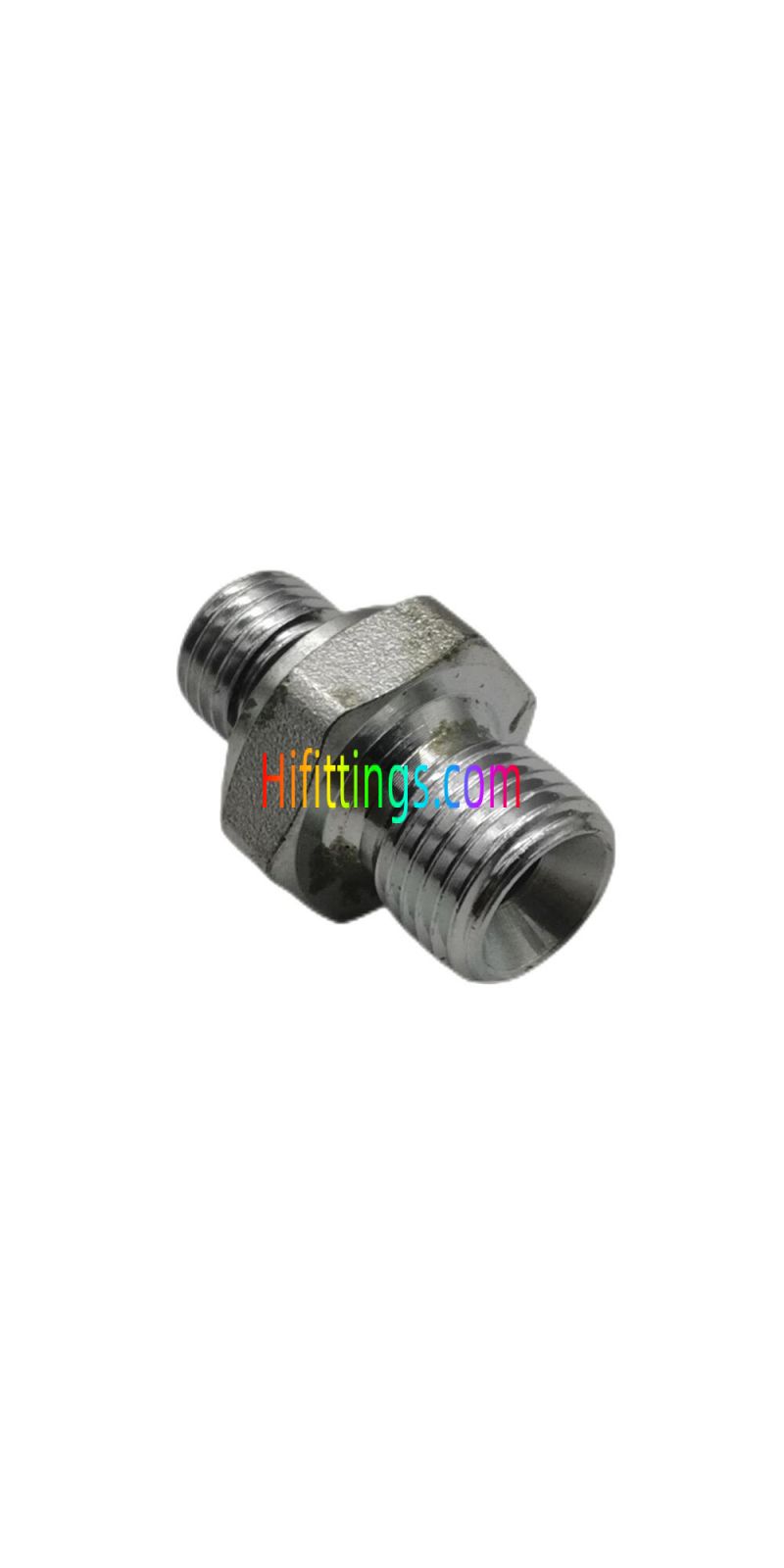

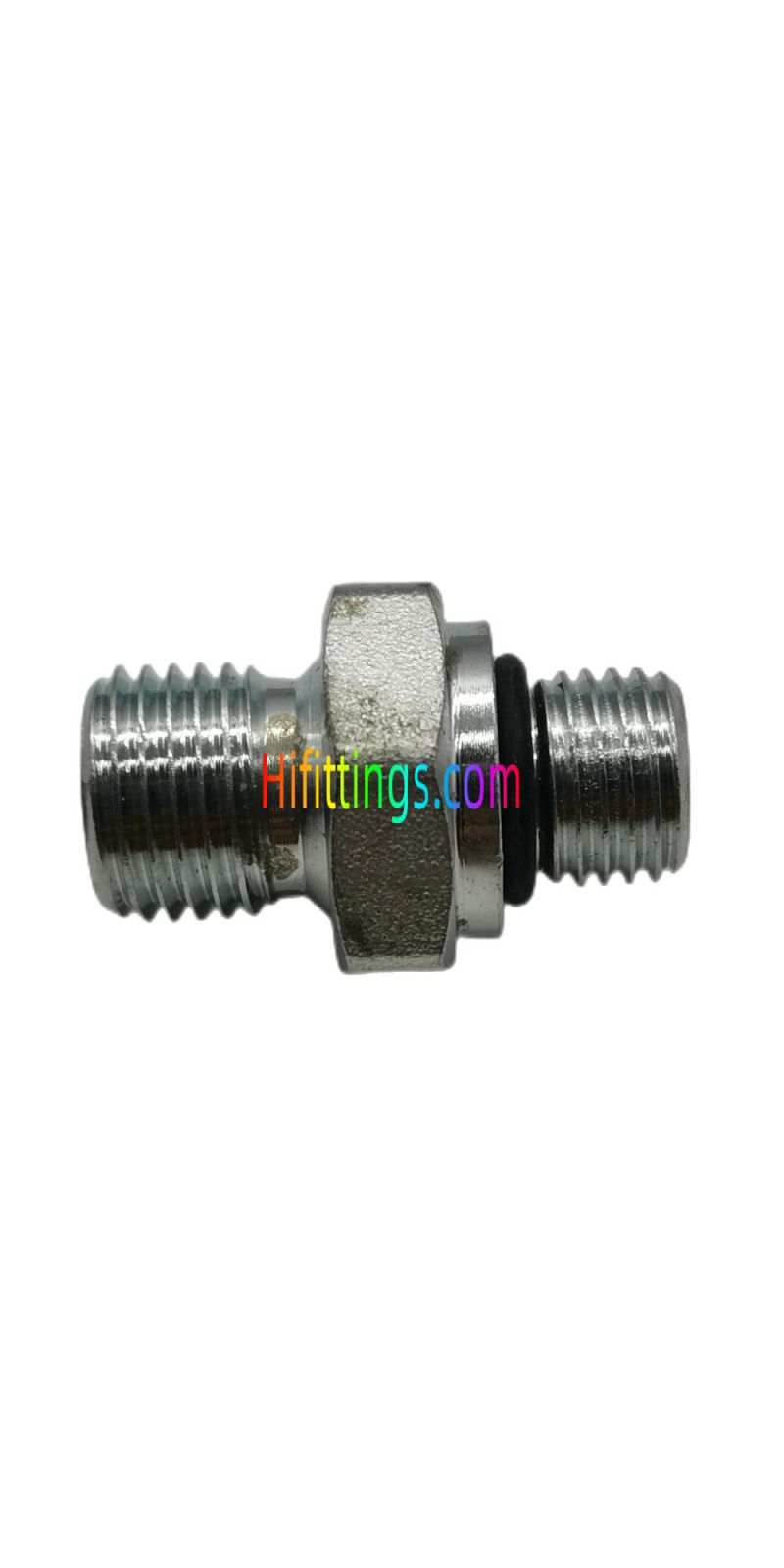

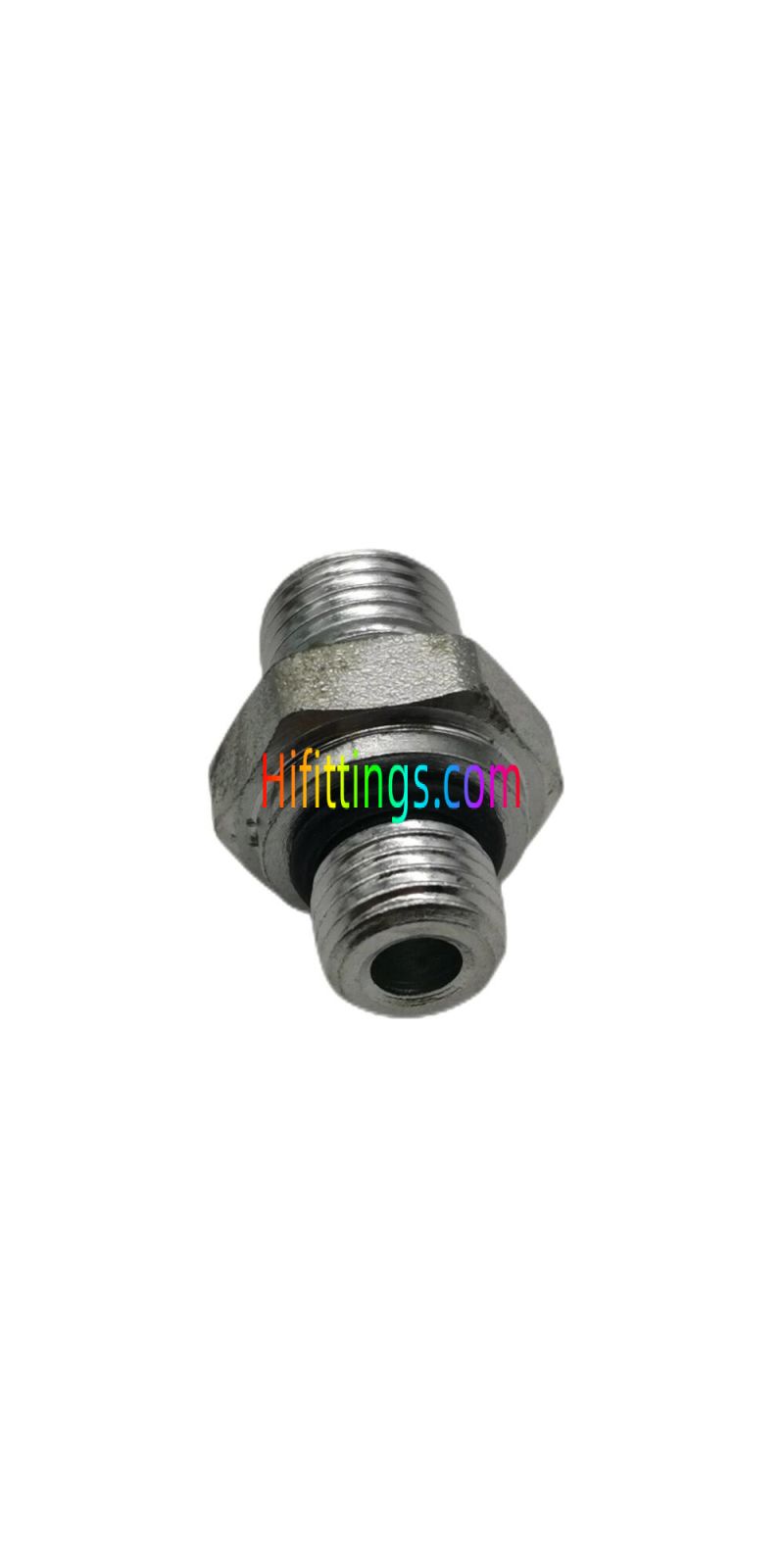

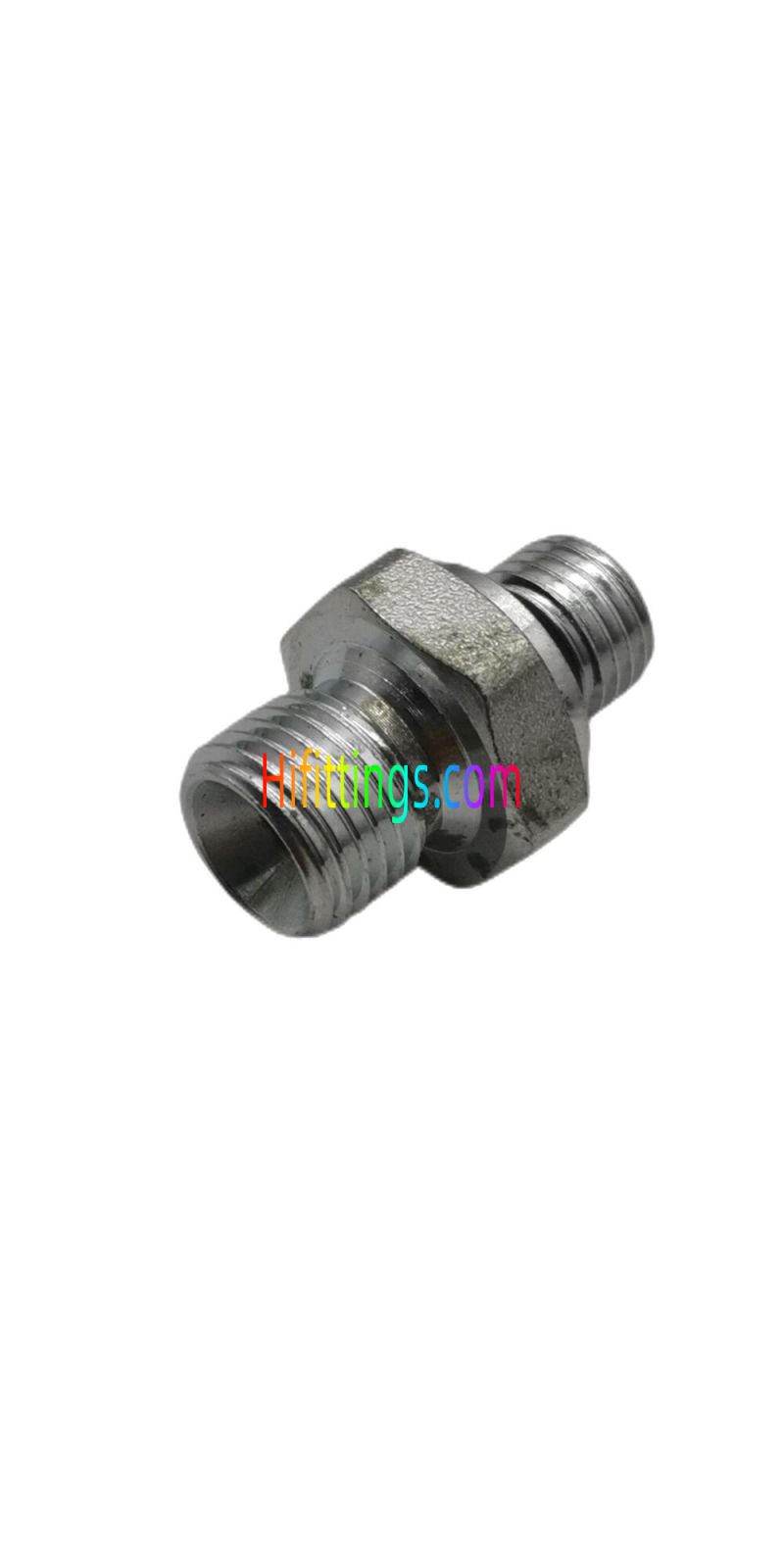

Straight BSP Male 60° Seat SAE O-Ring Fittings 1BO

Add to Wish List
26
In stock
Only %1 left
SKU
1BO

Guarantee safe & secure checkout

No Related Posts

Straight BSP Male 60° Seat SAE O-Ring Fittings 1BO - hifittings.comStraight BSP Male 60° Seat SAE O-Ring Fittings 1BO - hifittings.com
BSP Male Double Use For 60° Seat Or Bonded Seal / SAE O-Ring Boss L-Series ISO 11926-3 Hydraulic Adapter Fittings

Part NO.

E

F

O-Ring   F End

A

B

L

S1

Working  Pressure  bar

1BO-04

G1/4"X19

7/16"X20

O904

12

9.1

29.5

19

PN345

1BO-04-05

G1/4"X19

1/2"X20

O905

12

9.1

29.5

19

PN345

1BO-04-06

G1/4"X19

9/16"X18

O906

12

9.9

32

19

PN345

1BO-04-08

G1/4"X19

3/4"X16

O908

12

11.1

31

22

PN345

1BO-06

G3/8"X19

9/16"X18

O906

13.5

9.9

33.5

22

PN345

1BO-06-04

G3/8"X19

7/16"X20

O904

13.5

9.1

33

22

PN345

1BO-06-08

G3/8"X19

3/4"X16

O908

13.5

11.1

36

24

PN345

1BO-06-10

G3/8"X19

7/8"X14

O910

13.5

12.7

39.5

27

PN345

1BO-08

G1/2"X14

3/4"X16

O908

16

11.1

38

27

PN345

1BO-08-06

G1/2"X14

9/16"X18

O906

16

9.9

36

27

PN345

1BO-08-10

G1/2"X14

7/8"X14

O910

16

12.7

42

27

PN345

1BO-08-12

G1/2"X14

1.1/16"X12

O912

16

15.1

42.5

36

PN345

1BO-10

G5/8"X14

7/8"X14

O910

17.5

12.7

43.5

30

PN275

1BO-10-08

G5/8"X14

3/4"X16

O908

17.5

11.1

41.5

30

PN275

1BO-10-12

G5/8"X14

1.1/16"X12

O912

17.5

15.1

47

34

PN275

1BO-12

G3/4"X14

1.1/16"X12

O912

18.5

15.1

48

34

PN275

1BO-12-08

G3/4"X14

3/4"X16

O908

18.5

11.1

40.5

32

PN275

1BO-12-10

G3/4"X14

7/8"X14

O910

18.5

12.7

45.5

32

PN275

1BO-12-14

G3/4"X14

1.3/16"X12

O914

18.5

15.1

48

38

PN275

1BO-12-16

G3/4"X14

1.5/16"X12

O916

18.5

15.1

50.7

41

PN275

1BO-16

G1"X11

1.5/16"X12

O916

20.5

15.1

52.6

41

PN205

1BO-16-10

G1"X11

7/8"X14

O910

20.5

12.7

49.5

41

PN205

1BO-16-12

G1"X11

1.1/16"X12

O912

20.5

15.1

52

41

PN205

1BO-16-14

G1"X11

1.3/16"X12

O914

20.5

15.1

52

41

PN205

1BO-16-20

G1"X11

1.5/8"X12

O920

20.5

15.1

54.7

50

PN205

1BO-20

G1.1/4"X11

1.5/8"X12

O920

20.5

15.1

54.7

50

PN170

1BO-20-16

G1.1/4"X11

1.5/16"X12

O916

20.5

15.1

54.7

50

PN170

1BO-24

G1.1/2"X11

1.7/8"X12

O924

23

15.1

57

55

PN105

More Information
Shape Straight
Fitting Type Cone
Thread Type Male
Connection Type BSP, UNF
