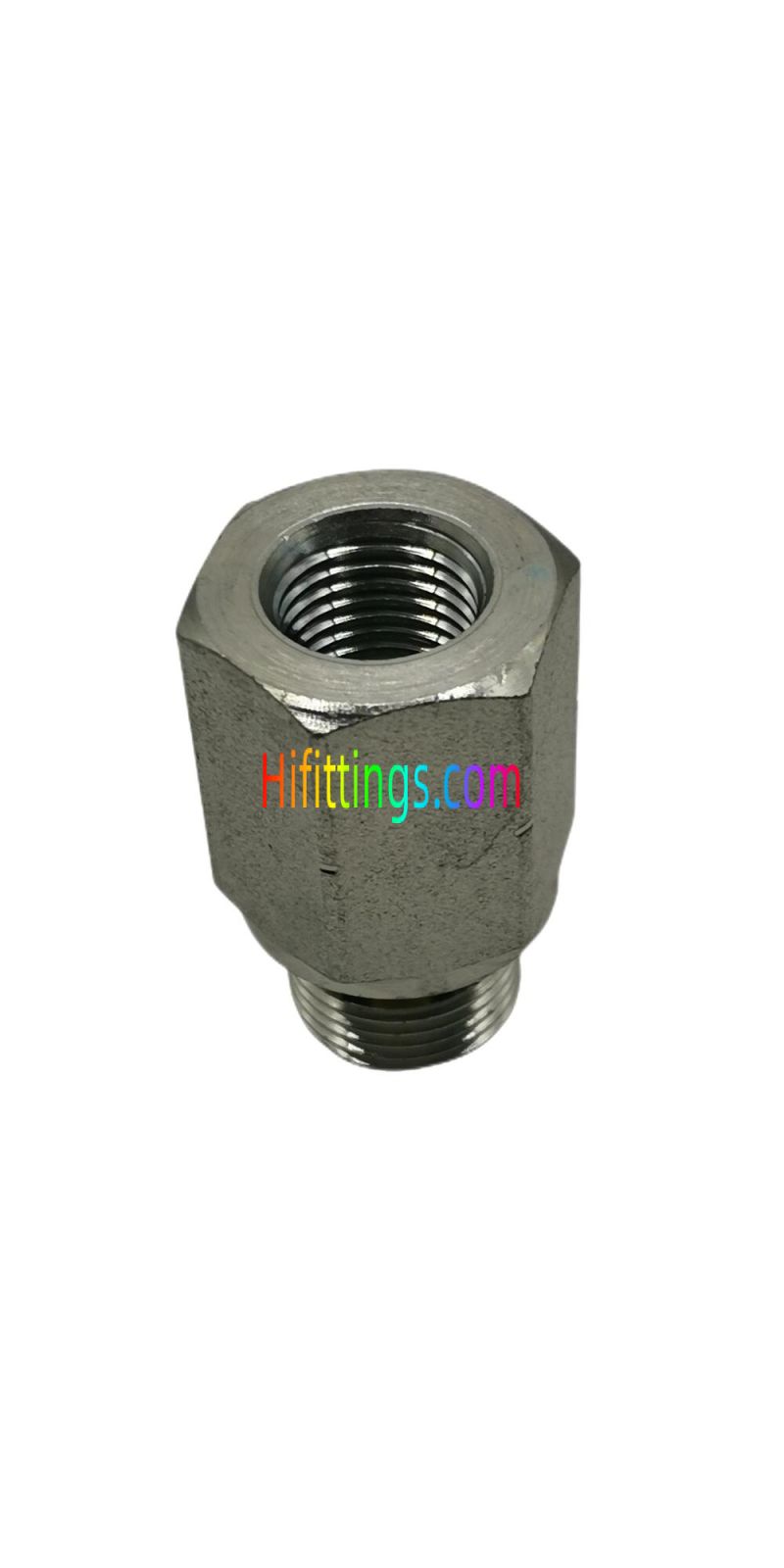

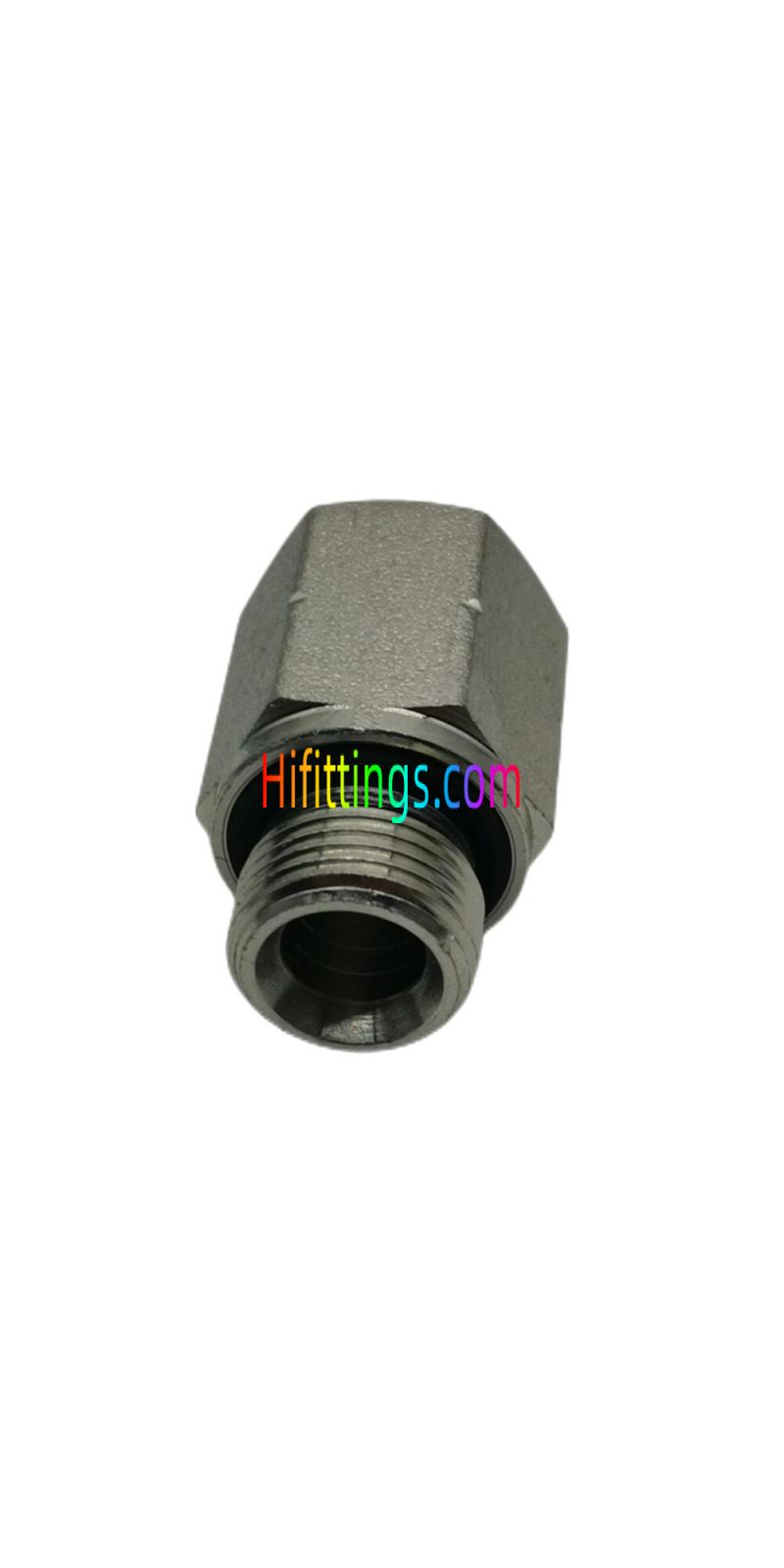

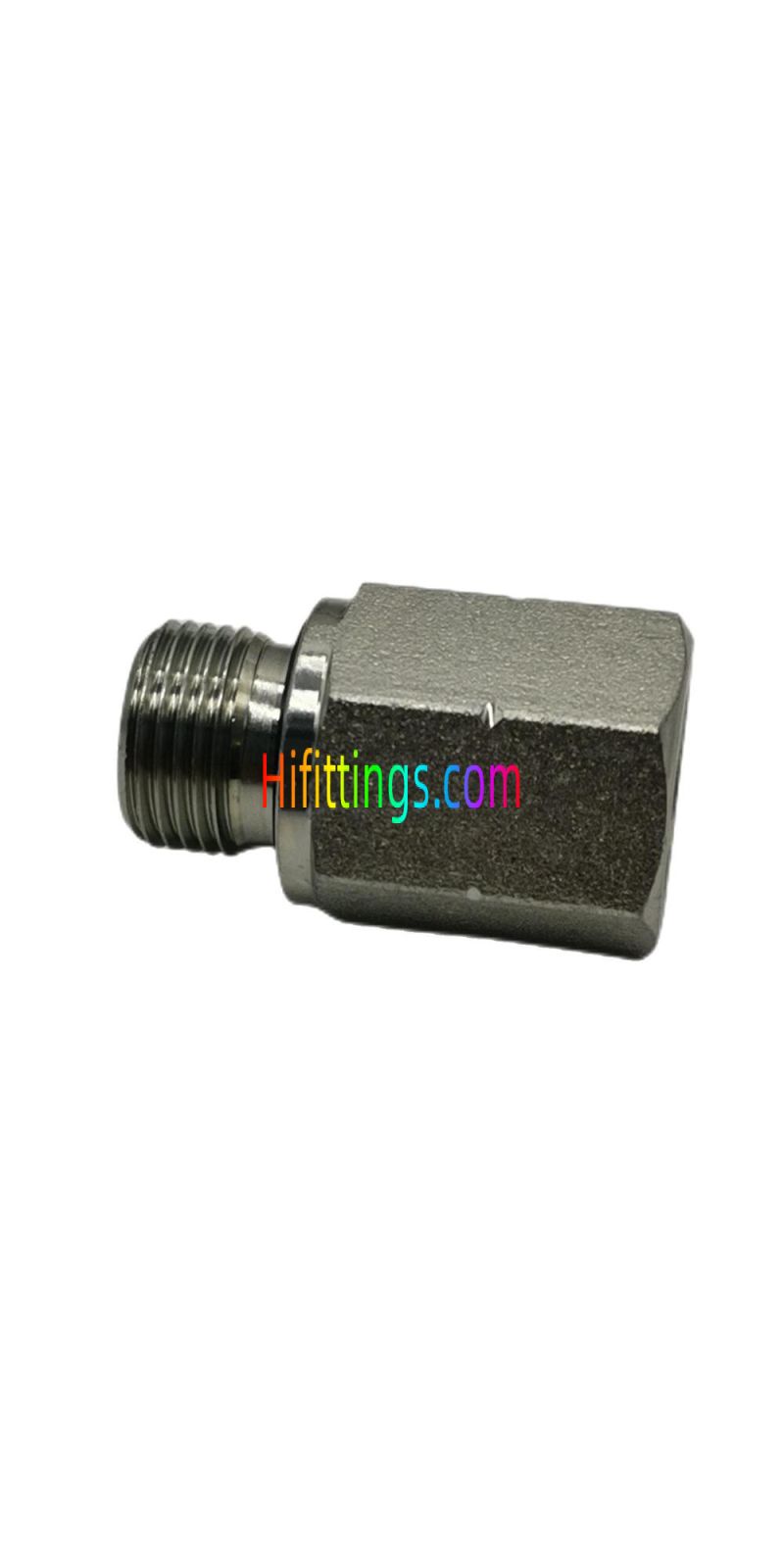

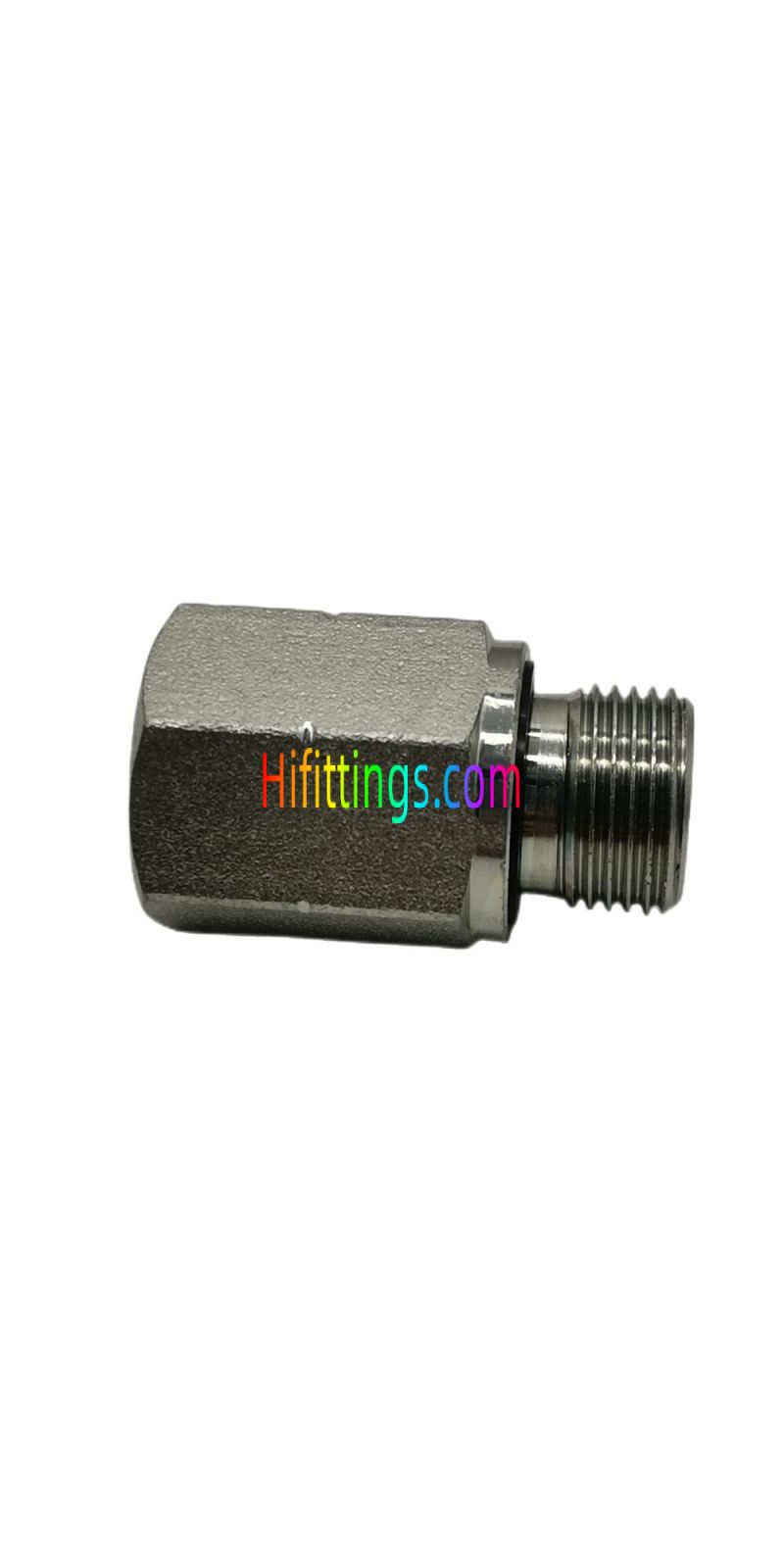

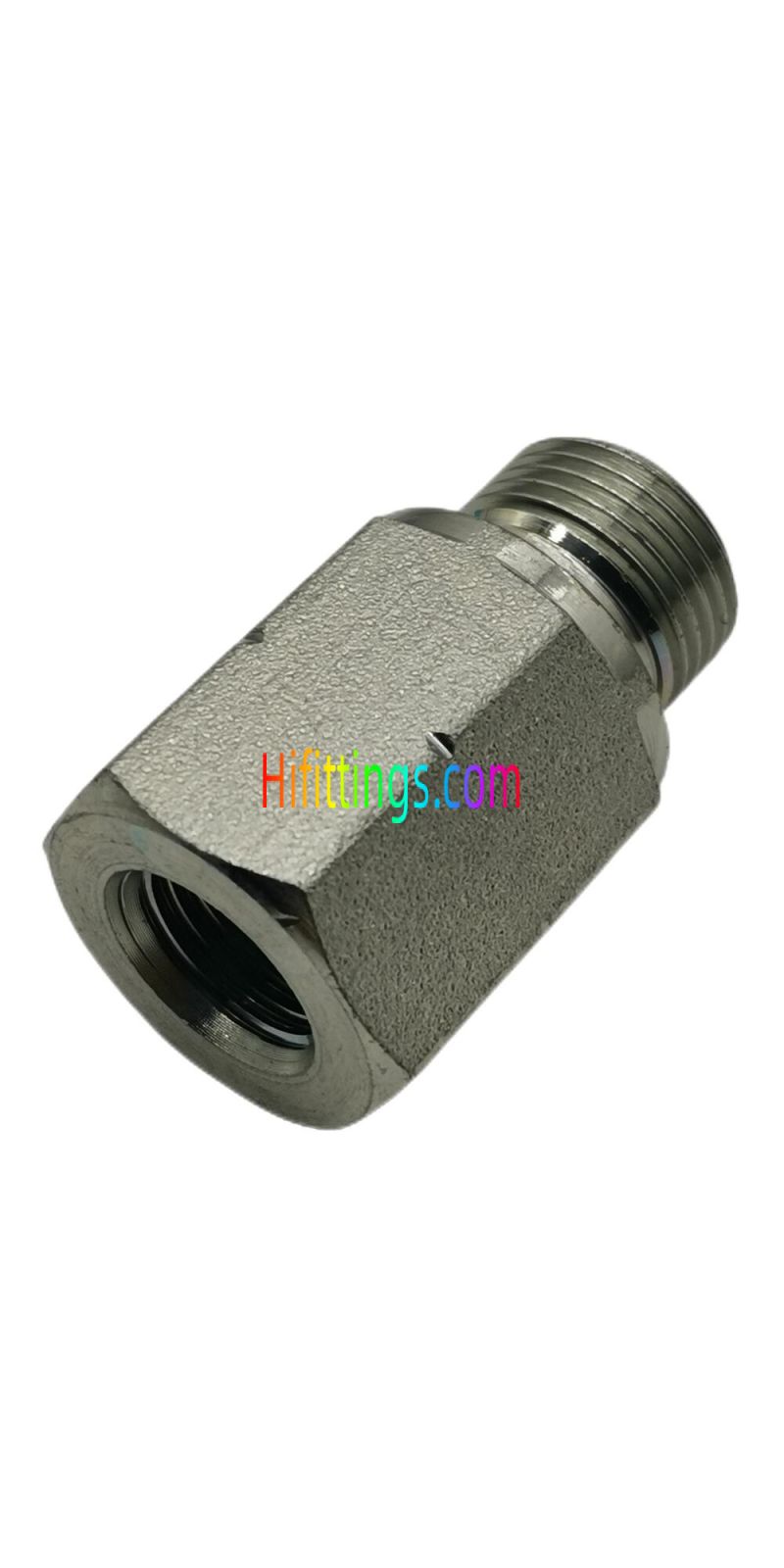

Straight BSP Male Captive Seal BSP Female Fittings 5B-WD

Part NO.

E

F

E  End

A

L

S1

Working  Pressure  bar

5B-02-04WD

G1/8"X28

G1/4"X19

WD-B02

8

30.5

19

PN345

5B-02-06WD

G1/8"X28

G3/8"X19

WD-B02

8

33.5

22

PN345

5B-04-02WD

G1/4"X19

G 1/8"X28

WD-B04

12

31.5

19

PN345

5B-04-06WD

G1/4"X19

G3/8"X19

WD-B04

12

37

22

PN345

5B-04-08WD

G1/4"X19

G1/2"X14

WD-B04

12

43

27

PN345

5B-06-02WD

G3/8"X19

G1/8"X28

WD-B06

12

35.5

22

PN345

5B-06-04WD

G3/8"X19

G1/4"X19

WD-B06

12

37.5

22

PN345

5B-06-08WD

G3/8"X19

G1/2"X14

WD-B06

12

43.5

27

PN345

5B-08-04WD

G1/2"X14

G1/4"X19

WD-B08

14

38

27

PN345

5B-08-06WD

G1/2"X14

G3/8"X19

WD-B08

14

41

27

PN345

5B-08-12WD

G1/2"X14

G3/4"X14

WD-B08

14

46

36

PN345

5B-12-08WD

G3/4"X14

G1/2"X14

WD-B12

16

47.5

32

PN275

5B-12-16WD

G3/4"X14

G1"X11

WD-B12

16

53.5

41

PN275

5B-12-20WD

G3/4"X14

G1.1/4"X11

WD-B12

16

54.5

50

PN275

5B-16-12WD

G1"X11

G3/4"X14

WD-B16

18

50.5

41

PN205

5B-16-20WD

G1"X11

G1.1/4"X11

WD-B16

18

56.5

50

PN205

5B-20-16WD

G1.1/4"X11

G1"X11

WD-B20

20

57.5

50

PN170

5B-20-24WD

G1.1/4"X11

G1.1/2"X11

WD-B20

20

59.5

55

PN170

5B-20-32WD

G1.1/4"X11

G2"X11

WD-B20

20

64

70

PN170

5B-24-16WD

G1.1/2"X11

G1"X11

WD-B24

22

59.5

55

PN105

5B-24-20WD

G1.1/2"X11

G1.1/4"X11

WD-B24

22

60

55

PN105

5B-24-32WD

G1.1/2"X11

G2"X11

WD-B24

22

66

70

PN105
