Part NO. |
E |
F |
D1 |
SEAL |
B |
11 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
1CB-12-02WD |
M12X1.5 |
G1/8"X28 |
6 |
WD-B02 |
8 |
8.5 |
23.5 |
14 |
14 |
PN315 |
|
1CB-12-04WD |
M12X1.5 |
G1/4"X19 |
6 |
WD-B04 |
12 |
10 |
25 |
19 |
14 |
PN315 |
|
1CB-12-06WD |
M12X1.5 |
G3/8"X19 |
6 |
WD-B06 |
12 |
11.5 |
26.5 |
22 |
14 |
PN315 |
|
1CB-14-02WD |
M14X1.5 |
G1/8"X28 |
8 |
WD-B02 |
8 |
9 |
24 |
14 |
17 |
PN315 |
|
1CB-14-04WD |
M14X1.5 |
G1/4"X19 |
8 |
WD-B04 |
12 |
10 |
24 |
19 |
17 |
PN315 |
|
1CB-14-06WD |
M14X1.5 |
G3/8"X19 |
8 |
WD-B06 |
12 |
11 |
26 |
22 |
17 |
PN315 |
|
1CB-16-04WD |
M16X1.5 |
G1/4"X19 |
10 |
WD-B04 |
12 |
11 |
24.5 |
19 |
19 |
PN315 |
|
1CB-16-06WD |
M16X1.5 |
G3/8"X19 |
10 |
WD-B06 |
12 |
12.5 |
26 |
22 |
19 |
PN315 |
|
1CB-16-08WD |
M16X1.5 |
G1/2"X14 |
10 |
WD-B08 |
14 |
13 |
28 |
27 |
19 |
PN315 |
|
1CB-18-04WD |
M18X1.5 |
G1/4"X19 |
12 |
WD-B04 |
12 |
12 |
27 |
19 |
22 |
PN315 |
|
1CB-18-06WD |
M18X1.5 |
G3/8"X19 |
12 |
WD-B06 |
12 |
12.5 |
26 |
22 |
22 |
PN315 |
|
1CB-18-08WD |
M18X1.5 |
G1/2"X14 |
12 |
WD-B08 |
14 |
14 |
28 |
27 |
22 |
PN315 |
|
1CB-22-04WD |
M22X1.5 |
G1/4"X19 |
15 |
WD-B04 |
12 |
13 |
28 |
24 |
27 |
PN315 |
|
1CB-22-06WD |
M22X1.5 |
G3/8"X19 |
15 |
WD-B06 |
12 |
13.5 |
28 |
24 |
27 |
PN315 |
|
1CB-22-08WD |
M22X1.5 |
G1/2"X14 |
15 |
WD-B08 |
14 |
14 |
29 |
27 |
27 |
PN315 |
|
1CB-22-12WD |
M22X1.5 |
G3/4"X14 |
15 |
WD-B12 |
16 |
15 |
29 |
32 |
27 |
PN315 |
|
1CB-26-08WD |
M26X1.5 |
G1/2"X14 |
18 |
WD-B08 |
14 |
14.5 |
31 |
27 |
32 |
PN315 |
|
1CB-26-12WD |
M26X1.5 |
G3/4"X14 |
18 |
WD-B12 |
16 |
14.5 |
31 |
32 |
32 |
PN315 |
|
1CB-30-12WD |
M30X2 |
G3/4"X14 |
22 |
WD-B12 |
16 |
16.5 |
33 |
32 |
36 |
PN160 |
|
1CB-36-16WD |
M36X2 |
G1"X11 |
28 |
WD-B16 |
18 |
17.5 |
34 |
41 |
41 |
PN160 |
|
1CB-45-20WD |
M45X2 |
G1.1/4"X11 |
35 |
WD-B20 |
20 |
17.5 |
39 |
50 |
50 |
PN160 |
|
1CB-52-24WD |
M52X2 |
G1.1/2"X11 |
42 |
WD-B24 |
22 |
19 |
42 |
55 |
60 |
PN160 |
|
1DB-14-04WD |
M14X1.5 |
G1/4"X19 |
6 |
WD-B04 |
12 |
15 |
30 |
19 |
17 |
PN630 |
|
1DB-16-04WD |
M16X1.5 |
G1/4"X19 |
8 |
WD-B04 |
12 |
15 |
30 |
19 |
19 |
PN630 |
|
1DB-16-06WD |
M16X1.5 |
G3/8"X19 |
8 |
WD-B06 |
12 |
15.5 |
30 |
22 |
19 |
PN630 |
|
1DB-18-04WD |
M18X1.5 |
G1/4"X19 |
10 |
WD-B04 |
12 |
14.5 |
31 |
19 |
22 |
PN630 |
|
1DB-18-06WD |
M18X1.5 |
G3/8"X19 |
10 |
WD-B06 |
12 |
14.5 |
31 |
22 |
22 |
PN630 |
|
1DB-18-08WD |
M18X1.5 |
G1/2"X14 |
10 |
WD-B08 |
14 |
17.5 |
34 |
27 |
22 |
PN630 |
|
1DB-20-04WD |
M20X1.5 |
G1/4"X19 |
12 |
WD-B04 |
12 |
16.5 |
33 |
22 |
24 |
PN630 |
|
1DB-20-06WD |
M20X1.5 |
G3/8"X19 |
12 |
WD-B06 |
12 |
15 |
33 |
22 |
24 |
PN630 |
|
1DB-20-08WD |
M20X1.5 |
G1/2"X14 |
12 |
WD-B08 |
14 |
17.5 |
34 |
27 |
24 |
PN630 |
|
1DB-22-08WD |
M22X1.5 |
G1/2"X14 |
14 |
WD-B08 |
14 |
19 |
37 |
27 |
27 |
PN630 |
|
1DB-24-06WD |
M24X1.5 |
G3/8"X19 |
16 |
WD-B06 |
12 |
18 |
36.5 |
27 |
30 |
PN400 |
|
1DB-24-08WD |
M24X1.5 |
G1/2"X14 |
16 |
WD-B08 |
14 |
18.5 |
37 |
27 |
30 |
PN400 |
|
1DB-24-12WD |
M24X1.5 |
G3/4"X14 |
16 |
WD-B12 |
16 |
20.5 |
39 |
32 |
30 |
PN400 |
|
1DB-30-12WD |
M30X2 |
G3/4"X14 |
20 |
WD-B12 |
16 |
20.5 |
42 |
32 |
36 |
PN400 |
|
1DB-36-08WD |
M36X2 |
G1/2"X14 |
25 |
WD-B08 |
14 |
23 |
47 |
41 |
46 |
PN400 |
|
1DB-36-12WD |
M36X2 |
G3/4"X14 |
25 |
WD-B12 |
16 |
23 |
47 |
41 |
46 |
PN400 |
|
1DB-36-16WD |
M36X2 |
G1"X11 |
25 |
WD-B16 |
18 |
23 |
47 |
41 |
46 |
PN400 |
|
1DB-42-20WD |
M42X2 |
G1.1/4"X11 |
30 |
WD-B20 |
20 |
23.5 |
50 |
50 |
50 |
PN400 |
|
1DB-52-24WD |
M52X2 |
G1.1/2"X11 |
38 |
WD-B24 |
22 |
26 |
57 |
55 |
60 |
PN315 |
|

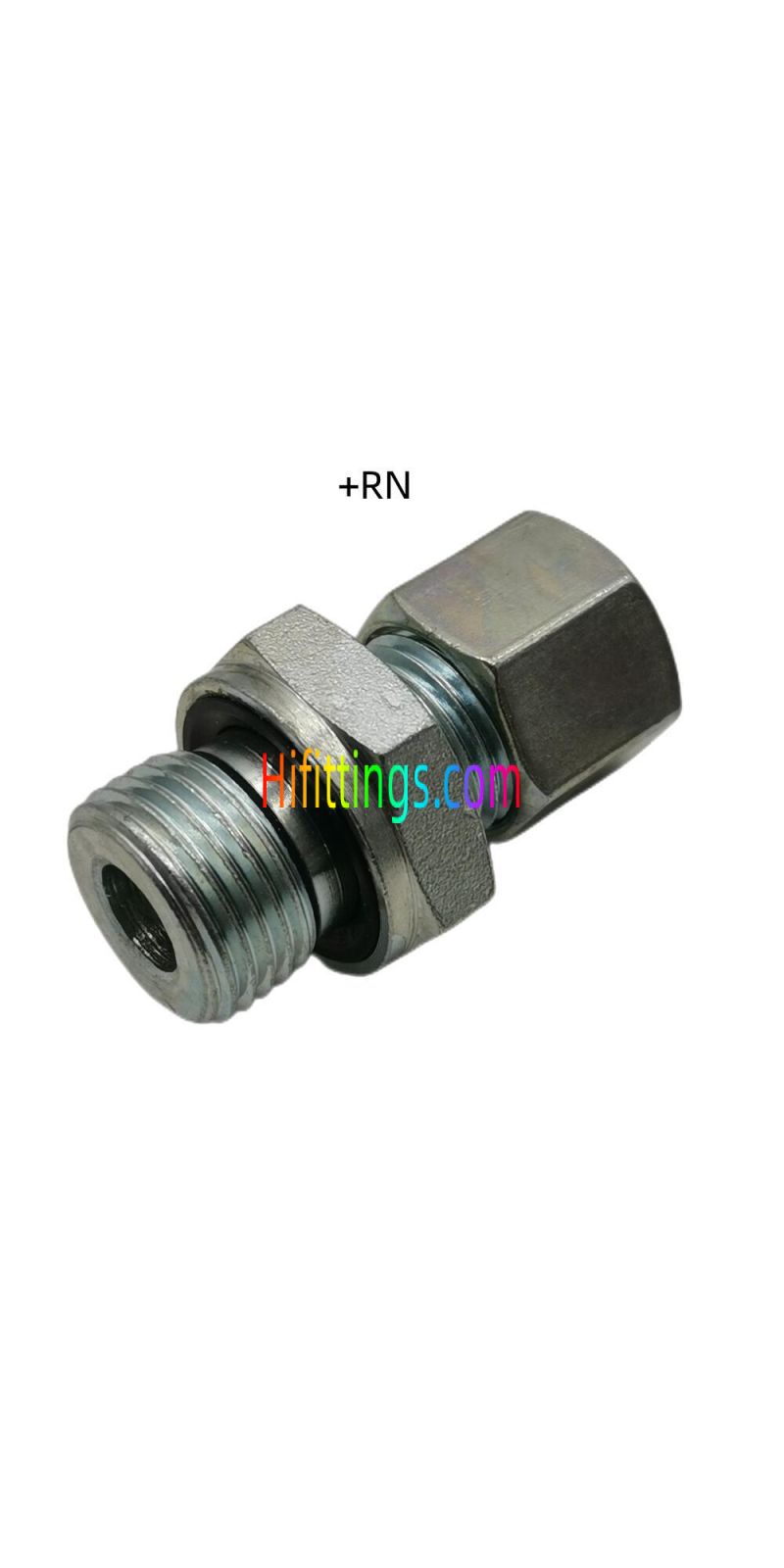

Note: 1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example 1DB-20-08WD/RN. 2. PN = Nominal Pressure |
||||||||||
| Shape | Straight |
|---|---|
| Thread Type | Male |
| Brand | SAFECAN |
| Connection Type | BSP, Metric |
| Fitting Type | Bite Type |
