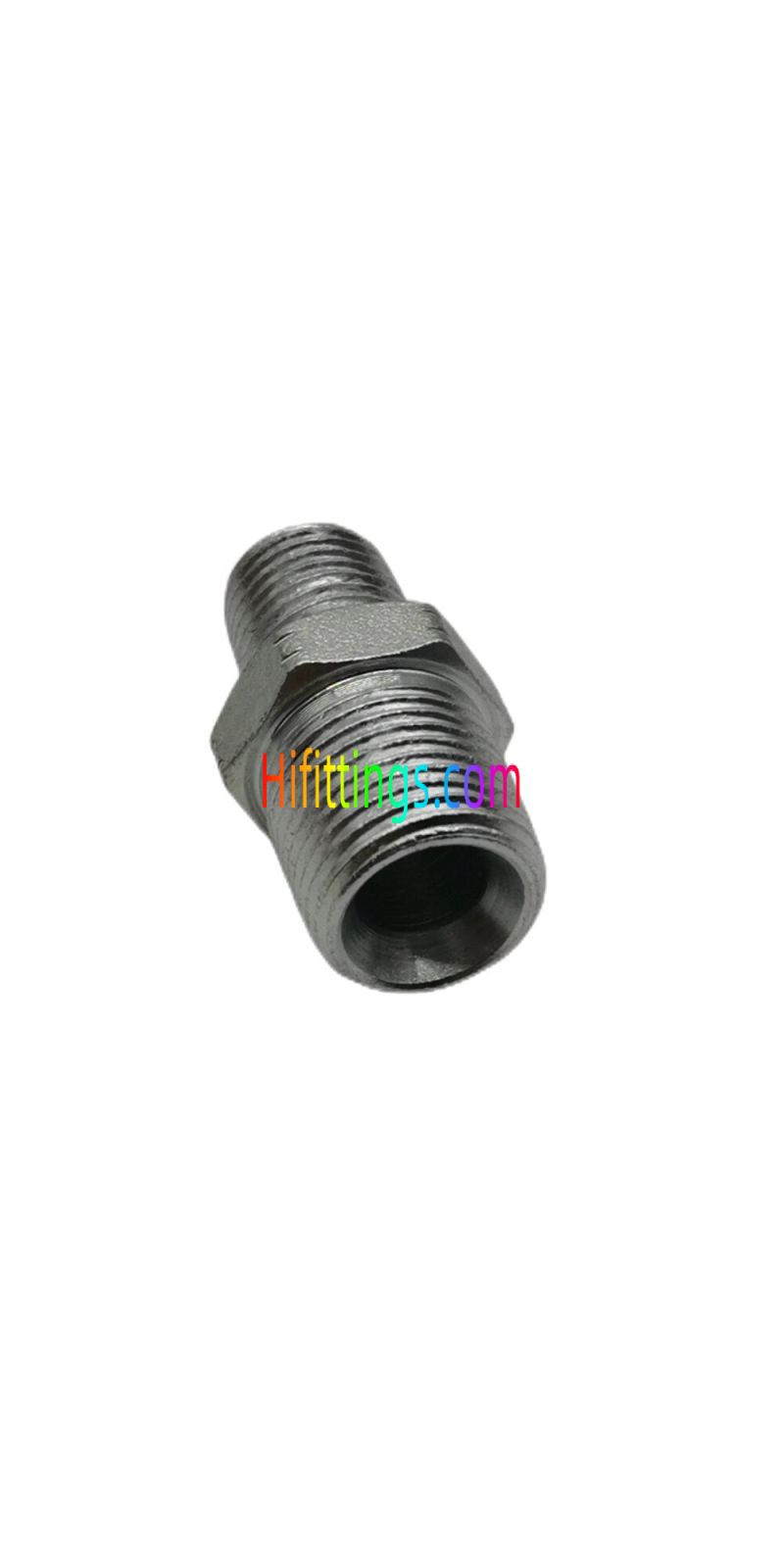

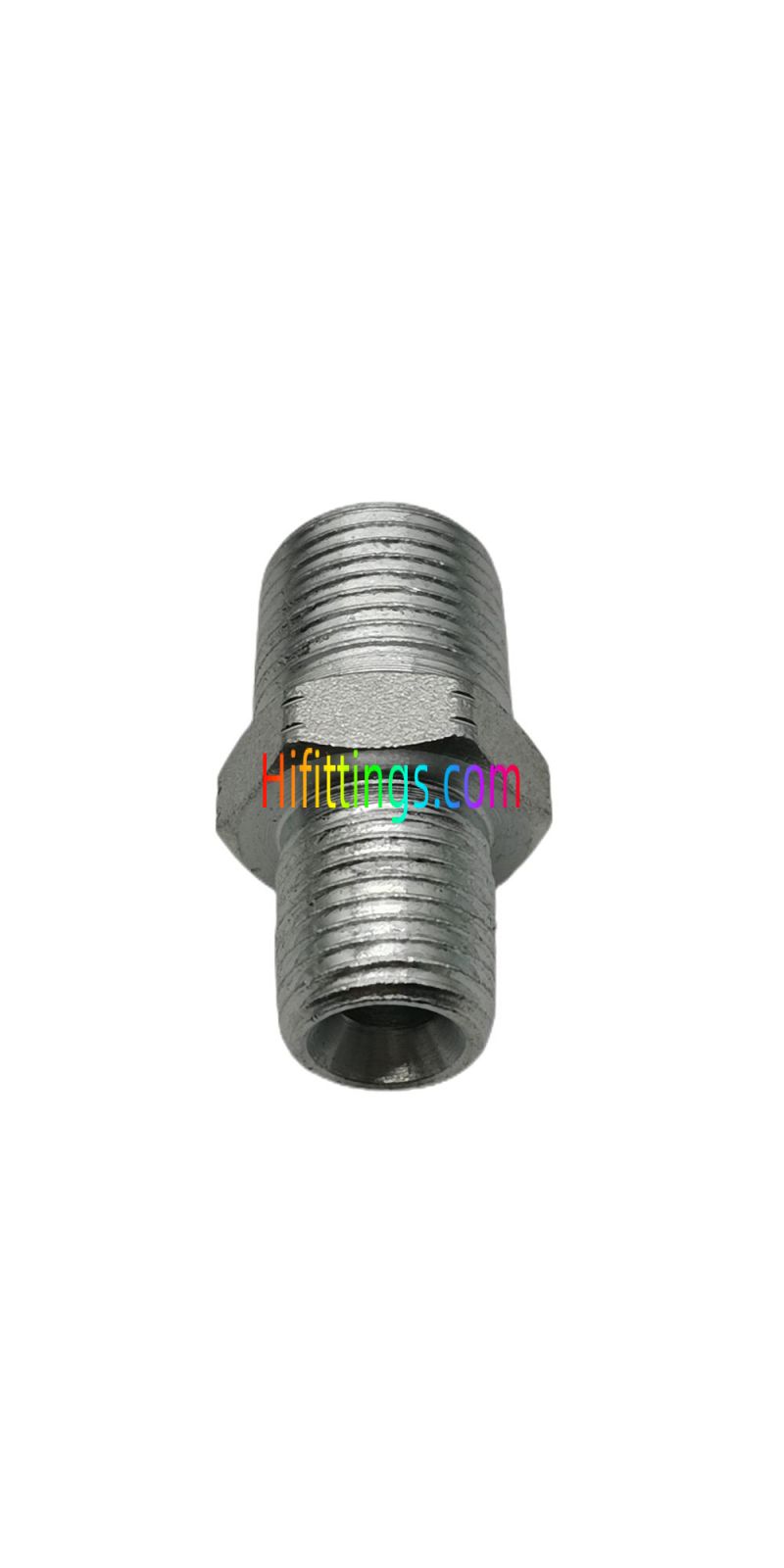

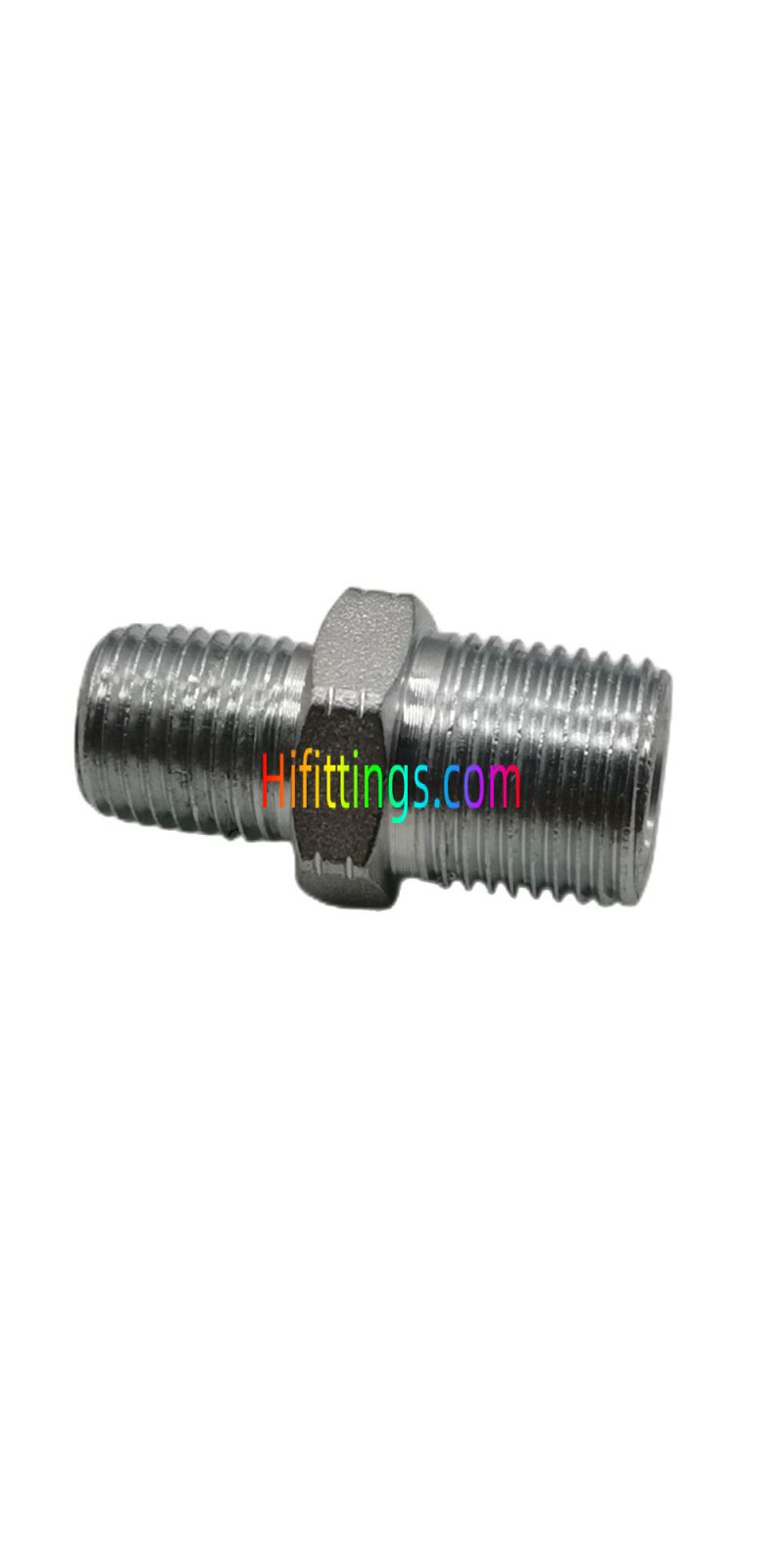

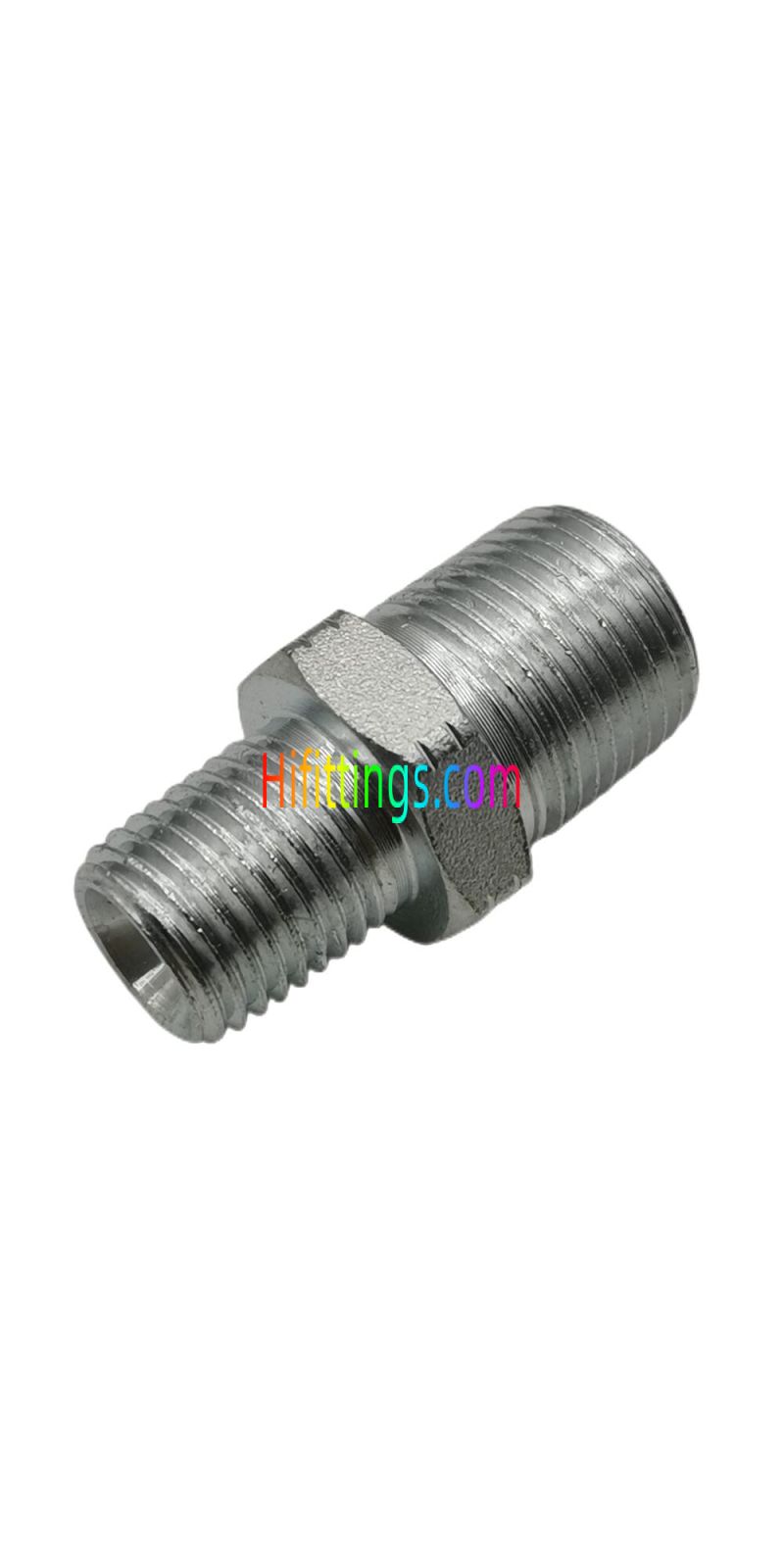

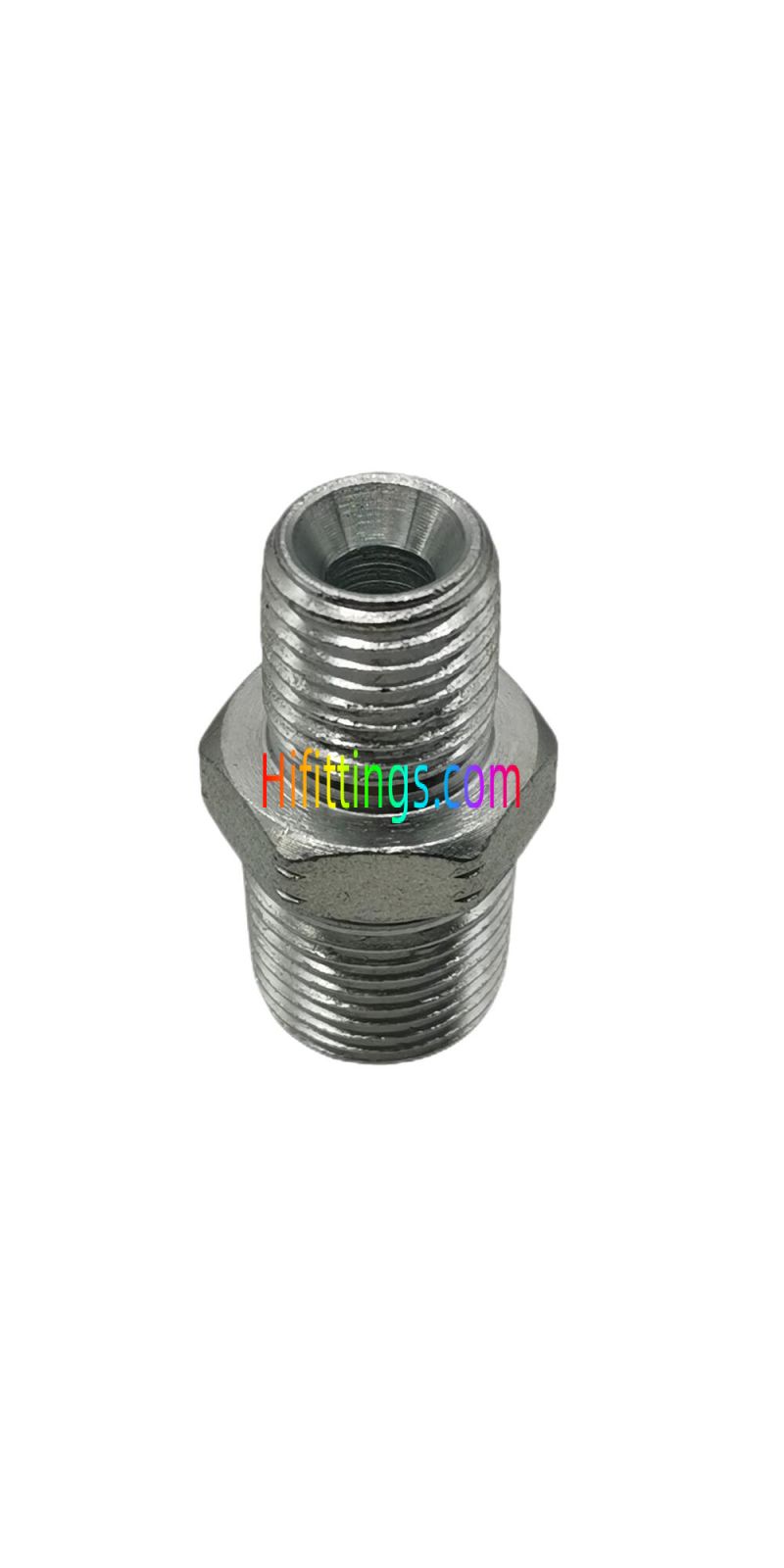

Straight BSPT Male Hydraulic Adapter Pipe Fittings 1T-SP
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
Working Pressure bar |
|
1T-02SP |
R1/8"X28 |
R1/8"X28 |
10 |
10 |
26 |
12 |
PN345 |
|
1T-02-04SP |
R1/8"X28 |
R1/4"X19 |
10 |
14.5 |
30.5 |
14 |
PN345 |
|
1T-02-06SP |
R1/8"X28 |
R3/8"X19 |
10 |
15 |
31 |
17 |
PN345 |
|
1T-04SP |
R1/4"X19 |
R1/4"X19 |
14.5 |
14.5 |
34 |
14 |
PN345 |
|
1T-04-06SP |
R1/4"X19 |
R3/8"X19 |
14.5 |
15 |
35 |
17 |
PN345 |
|
1T-04-08SP |
R1/4"X19 |
R1/2"X14 |
15 |
20 |
43 |
22 |
PN345 |
|
1T-06SP |
R3/8"X19 |
R3/8"X19 |
15 |
15 |
36 |
17 |
PN345 |
|
1T-06-08SP |
R3/8"X19 |
R1/2"X14 |
15 |
20 |
43 |
22 |
PN345 |
|
1T-08SP |
R1/2"X14 |
R1/2"X14 |
20 |
20 |
46 |
22 |
PN345 |
|
1T-08-12SP |
R1/2"X14 |
R3/4"X14 |
20 |
20 |
48 |
27 |
PN275 |
|
1T-12SP |
R3/4"X14 |
R3/4"X14 |
20 |
20 |
48 |
27 |
PN275 |
|
1T-12-16SP |
R3/4"X14 |
R1"X11 |
20 |
25.5 |
55.5 |
36 |
PN205 |
|
1T-16SP |
R1"X11 |
R1"X11 |
25.5 |
25.5 |
61 |
36 |
PN205 |
|
1T-16-20SP |
R1"X11 |
R1.1/4"X11 |
25.5 |
26.5 |
64.5 |
46 |
PN170 |
|
1T-20SP |
R1.1/4"X11 |
R1.1/4"X11 |
26.5 |
26.5 |
65.5 |
46 |
PN170 |
|
1T-20-24SP |
R1.1/4"X11 |
R1.1/2"X11 |
26.5 |
26.5 |
67 |
50 |
PN105 |
|
1T-24SP |
R1.1/2"X11 |
R1.1/2"X11 |
26.5 |
26.5 |
67 |
50 |
PN105 |
|
1T-24-32SP |
R1.1/2"X11 |
R2"X11 |
26.5 |
30 |
71.5 |
65 |
PN105 |
|
1T-32SP |
R2"X11 |
R2"X11 |
30 |
30 |
75 |
65 |
PN105 |
|
Note:1.PN = Nominal Pressure |
|||||||
| Shape | Straight |
|---|---|
| Connection Type | BSPT |
| Thread Type | Male |
| Fitting Type | Pipe Thread |
