Straight BSPT Male / JIC Male 74 Degree Cone  Flared Hydraulic Tube Fittings 1JT-SP - hifittings.comStraight BSPT Male / JIC Male 74 Degree Cone  Flared Hydraulic Tube Fittings 1JT-SP - hifittings.com

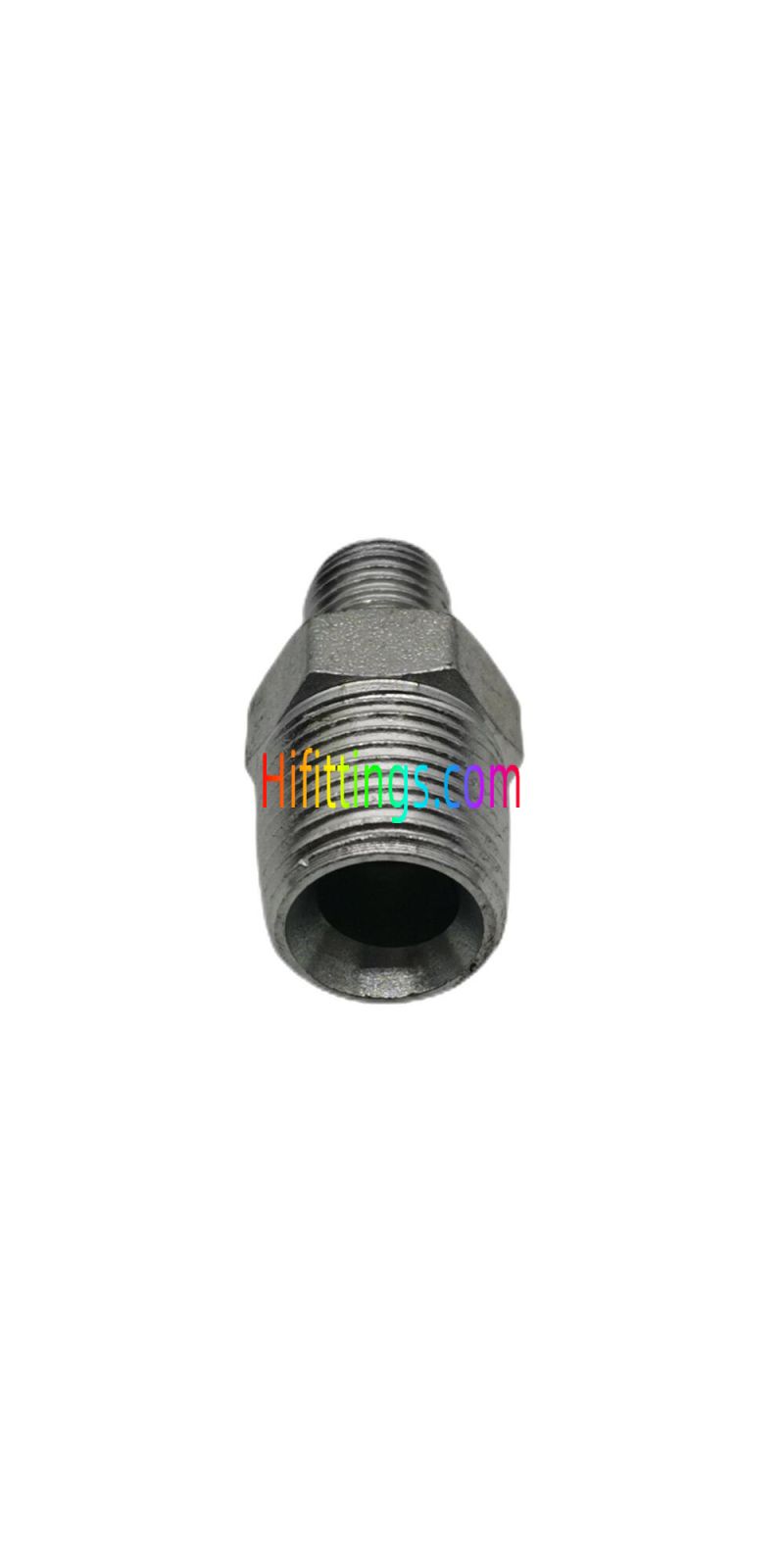

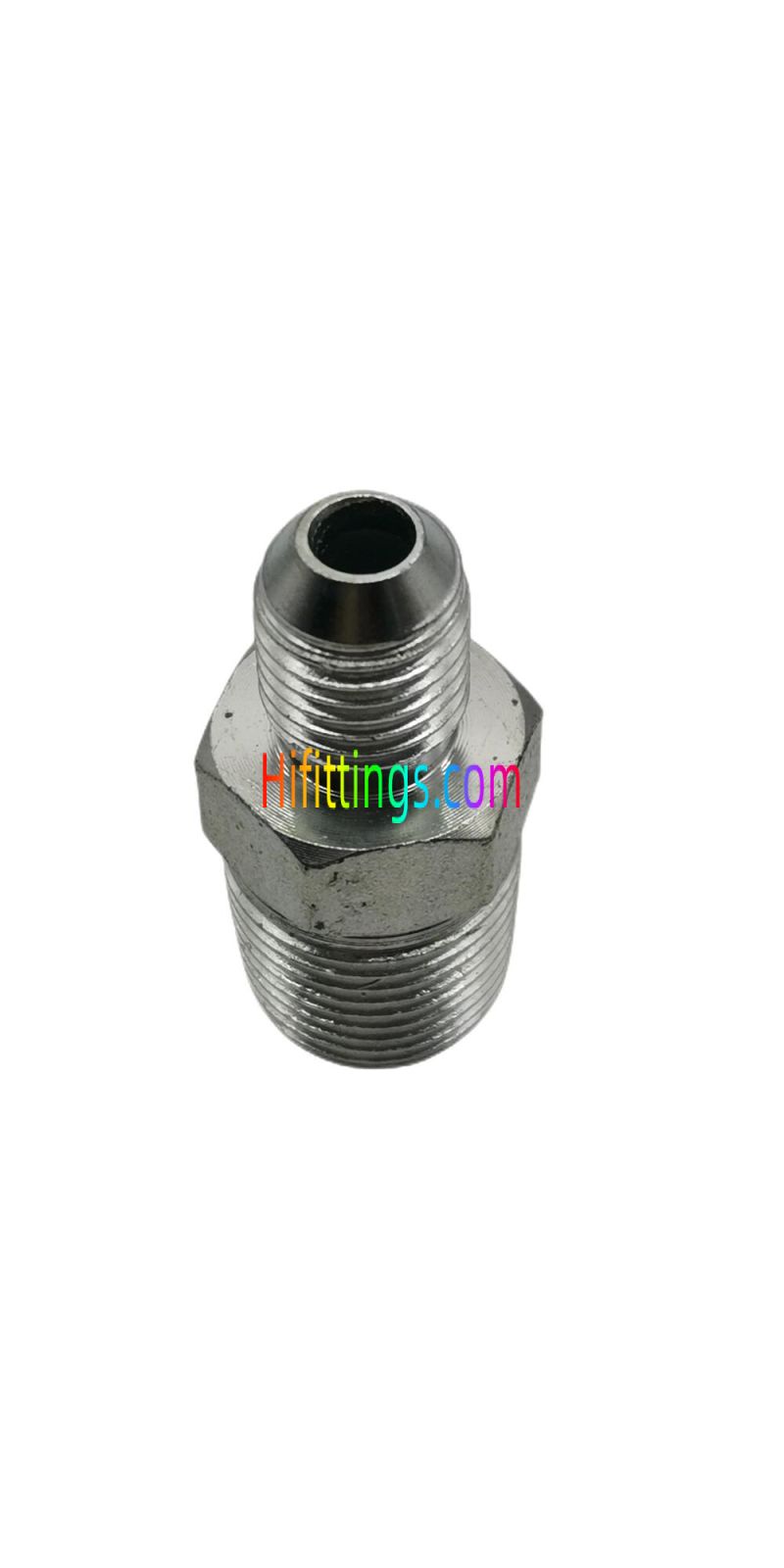

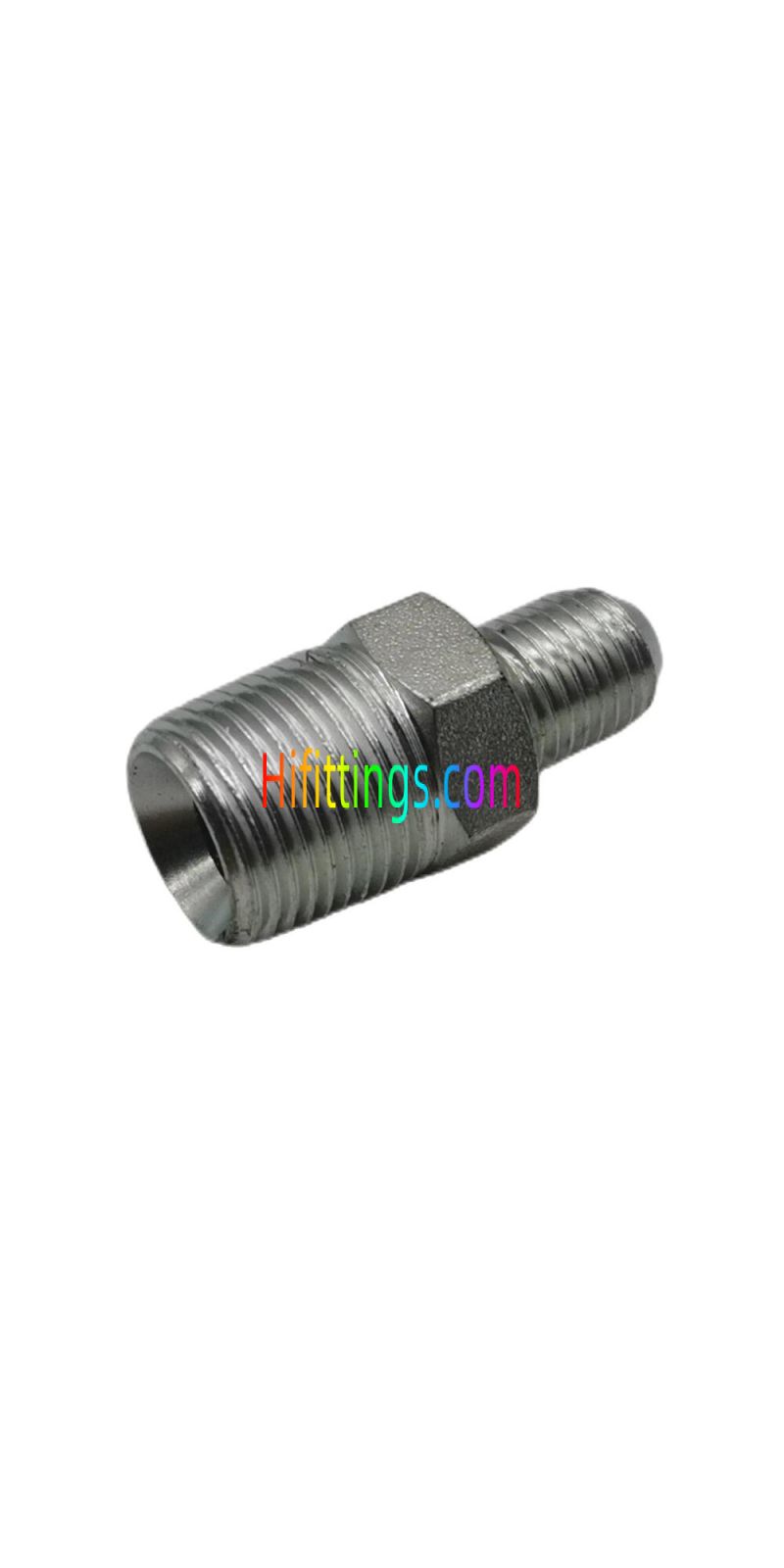

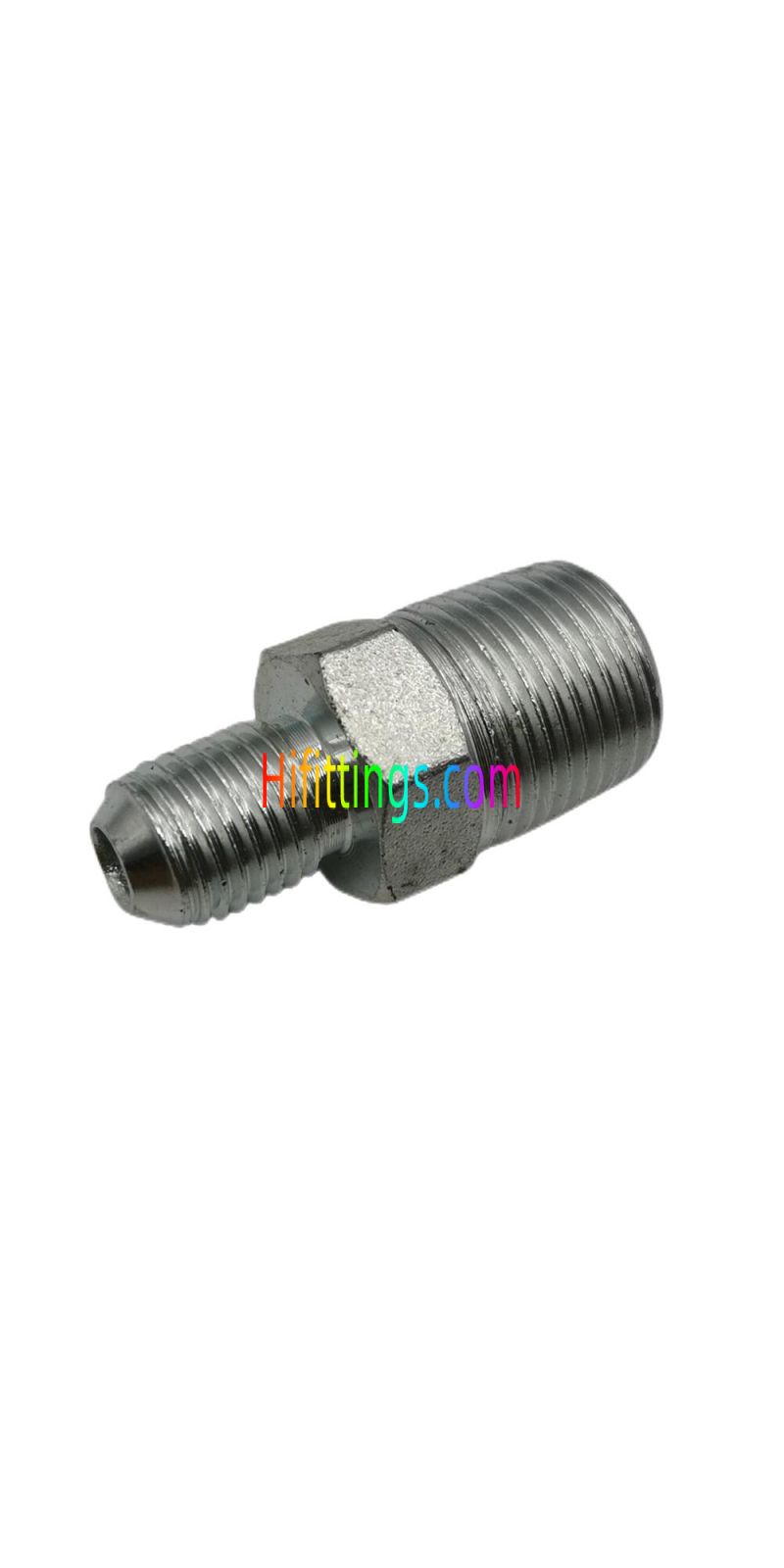

Straight BSPT Male / JIC Male 74 Degree Cone Flared Hydraulic Tube Fittings 1JT-SP

Part  NO.

E

F

A

B

L

S1

Working  Pressure  bar

1JT-04-02SP

7/16"X20

R1/8"X28

14

10

30

12

PN345

1JT-04SP

7/16"X20

R1/4"X19

14

14.5

34.5

14

PN345

1JT-04-06SP

7/16"X20

R3/8"X19

14

15

35

17

PN345

1JT-05-02SP

1/2"X20

R1/8"X28

14

10.5

30.5

14

PN345

1JT-05-04SP

1/2"X20

R1/4"X19

14

14.5

34

14

PN345

1JT-05-06SP

1/2"X20

R3/8"X19

14

15

35

19

PN345

1JT-06-02SP

9/16"X18

R1/8"X28

14.1

10.5

30.5

17

PN345

1JT-06-04SP

9/16"X18

R1/4"X19

14.1

14.5

34

17

PN345

1JT-06SP

9/16"X18

R3/8"X19

14.1

15

34

17

PN345

1JT-06-08SP

9/16"X18

R1/2"X14

14.1

20

41

22

PN345

1JT-08-06SP

3/4"X16

R3/8"X19

16.7

15

39

22

PN310

1JT-08SP

3/4"X16

R1/2"X14

16.7

20

44.5

22

PN310

1JT-08-12SP

3/4"X16

R3/4"X14

16.7

20

46

30

PN310

1JT-10-06SP

7/8"X14

R3/8"X19

19.3

15

42.5

24

PN240

1JT-10-08SP

7/8"X14

R1/2"X14

19.3

20

46.5

24

PN240

1JT-10-12SP

7/8"X14

R3/4"X14

19.3

20

48.5

30

PN240

1JT-12-08SP

1.1/16"X12

R1/2"X14

21.9

20

51

30

PN240

1JT-12SP

1.1/16"X12

R3/4"X14

21.9

20

51

30

PN240

1JT-12-16SP

1.1/16"X12

R1"X11

21.9

25.5

57.5

36

PN205

1JT-14-12SP

1.3/16"X12

R3/4"X14

22.6

20

52.5

32

PN210

1JT-14-16SP

1.3/16"X12

R1"X11

22.6

25.5

57.5

36

PN205

1JT-16-12SP

1.5/16"X12

R3/4"X14

23.1

20

53

36

PN210

1JT-16SP

1.5/16"X12

R1"X11

23.1

25.5

59

36

PN205

1JT-16-20SP

1.5/16"X12

R1.1/4"X11

23.1

26.5

61.5

46

PN210

1JT-20-16SP

1.5/8"X12

R1"X11

24.3

25.5

62.5

46

PN170

1JT-20SP

1.5/8"X12

R1.1/4"X11

24.3

26.5

63

46

PN170

1JT-20-24SP

1.5/8"X12

R1.1/2"X11

24.3

26.5

66.5

50

PN105

1JT-24-20SP

1.7/8"X12

R1.1/4"X11

27.5

26.5

67.5

50

PN140

1JT-24SP

1.7/8"X12

R1.1/2"X11

27.5

26.5

69.5

50

PN105

1JT-24-32SP

1.7/8"X12

R2"X11

27.5

30

74.5

65

PN105

1JT-32-24SP

2.1/2"X12

R1.1/2"X11

33.9

26.5

77.5

65

PN105

1JT-32SP

2.1/2"X12

R2"X11

33.9

30

80

65

PN105

Note:1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.

2.PN = Nominal Pressure

More Information
Shape Straight
Fitting Type Cone Flared
Thread Type Male
Connection Type BSPT, JIC
