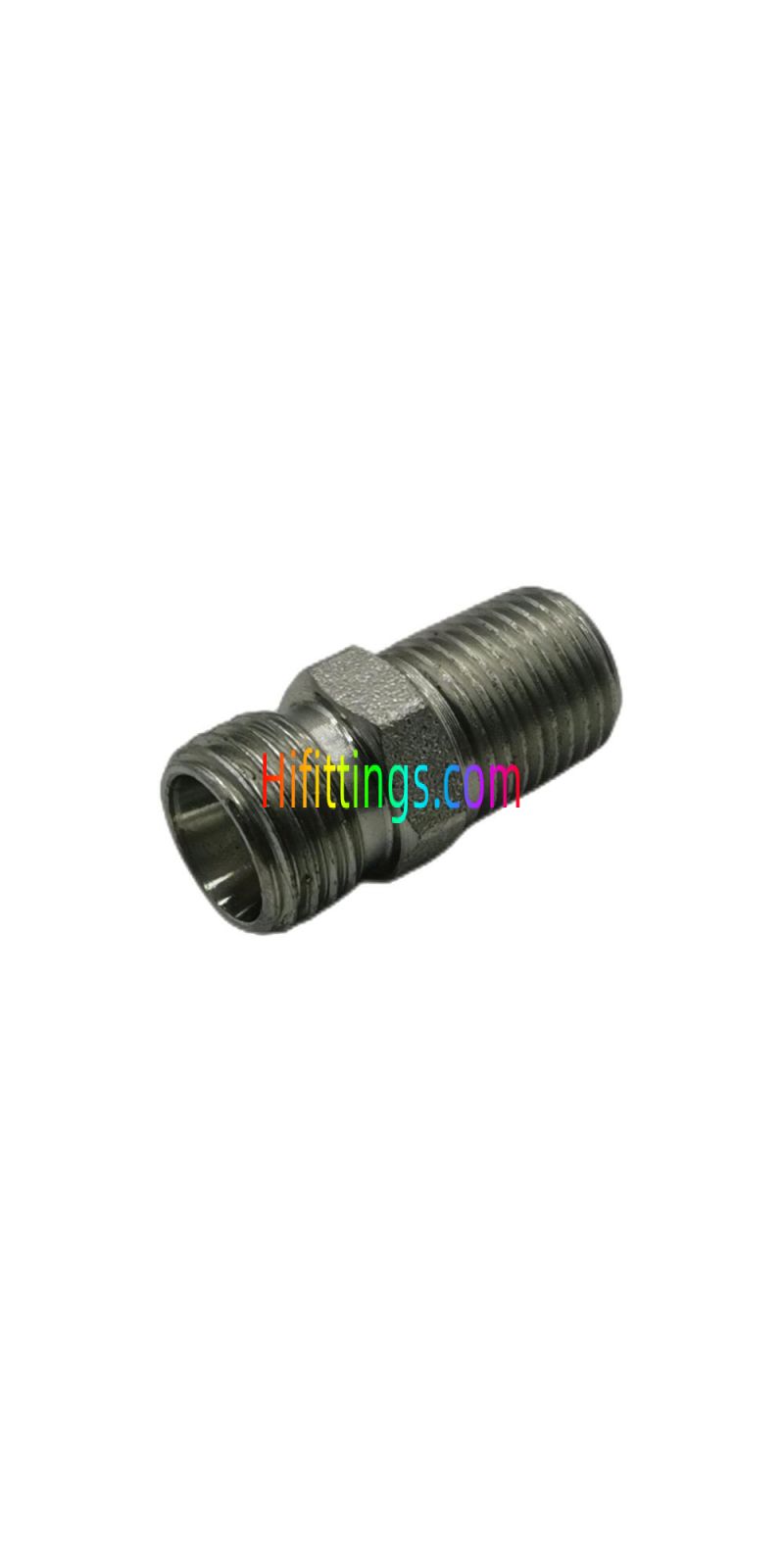

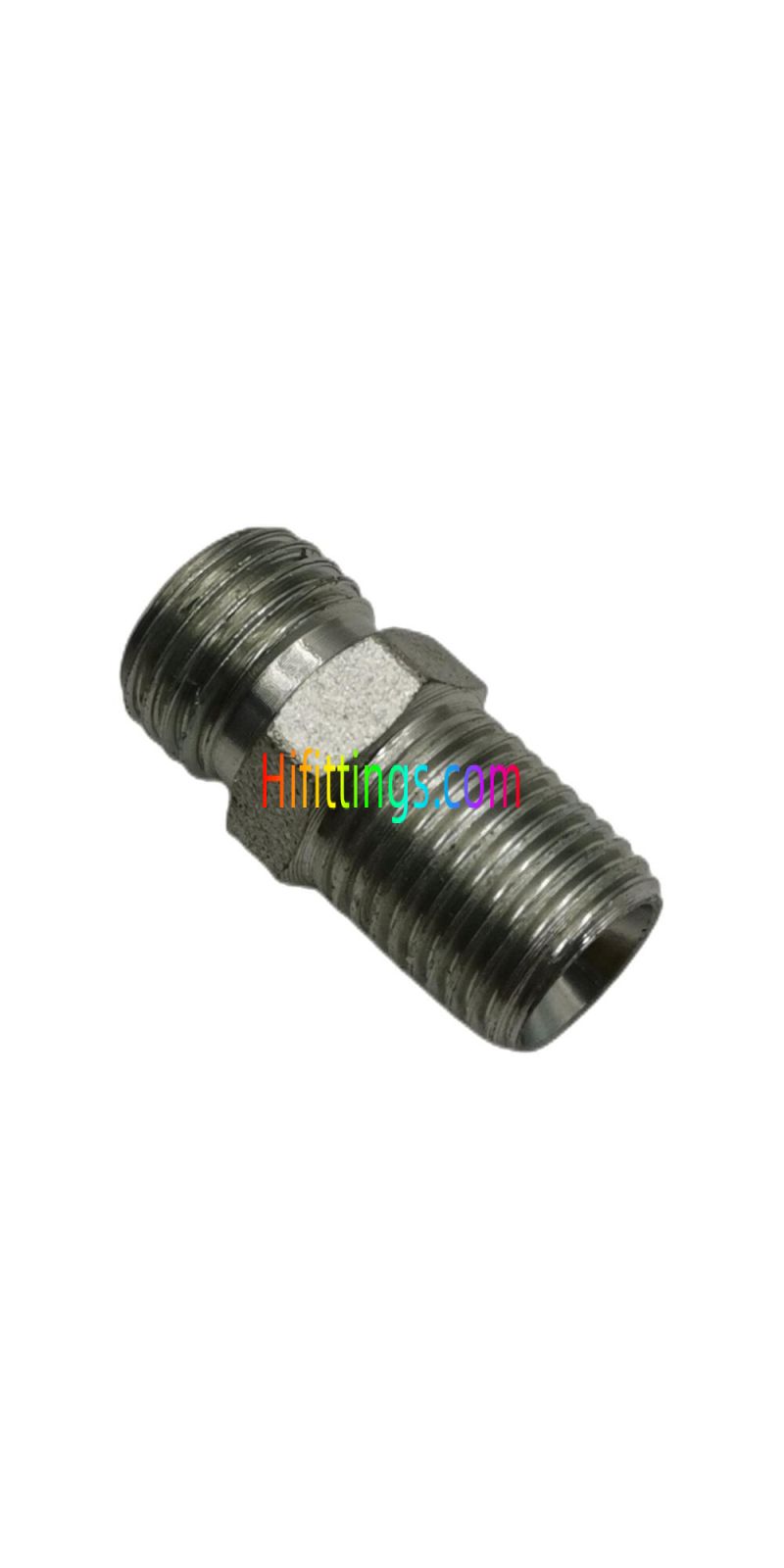

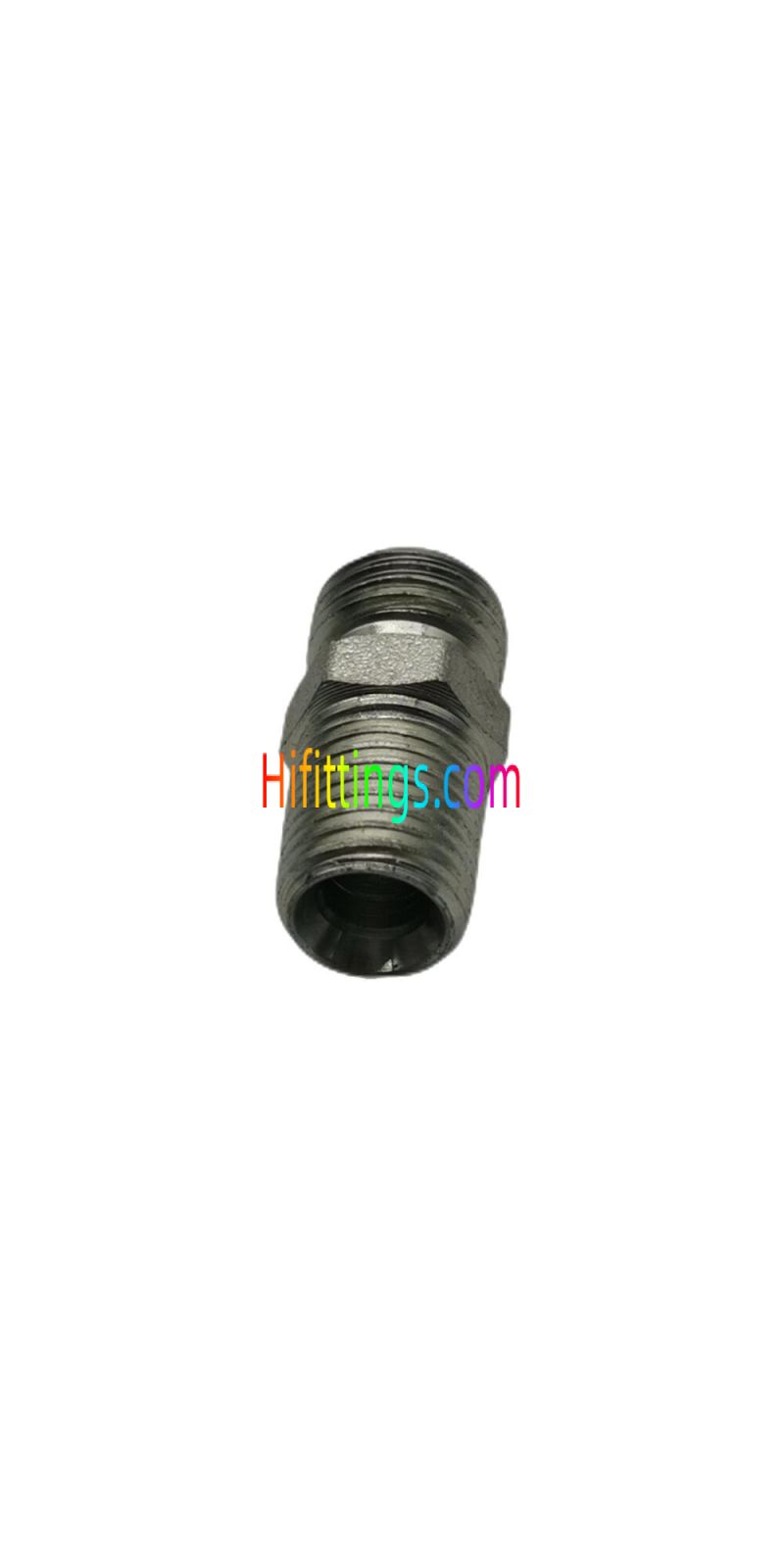

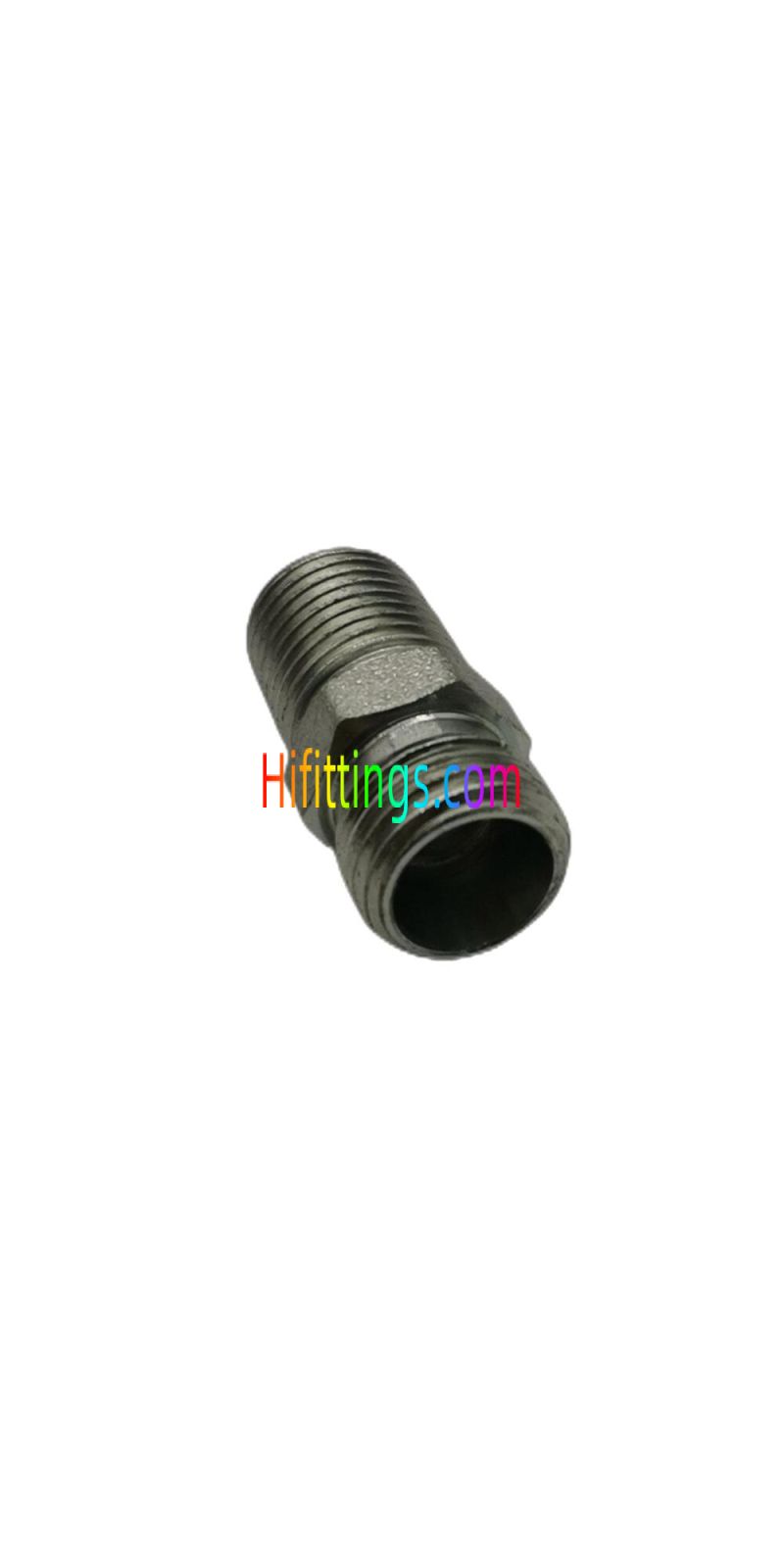

Straight BSPT Male / Metric Male DIN Bite Type Hydraulic Adapter Pipe Fittings 1CT-SP/1DT-SP
|
Part NO. |
E |
F |
D1 |
l1 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
1CT-12-02SP |
M12x1.5 |
R1/8"x28 |
6 |
13 |
28 |
12 |
14 |
PN250 |
|
1CT-12-04SP |
M 12x1.5 |
R1/4"x19 |
8 |
14 |
30.5 |
14 |
14 |
PN250 |
|
1CT-14-04SP |
M 14x1.5 |
R1/4"x19 |
8 |
16.5 |
31.5 |
14 |
17 |
PN250 |
|
1CT-14-06SP |
M 14x1.5 |
R3/8"x19 |
8 |
17.6 |
32.6 |
19 |
17 |
PN250 |
|
1CT-16-04SP |
M 16x1.5 |
R1/4"x19 |
10 |
17.5 |
32.5 |
17 |
19 |
PN250 |
|
1CT-16-06SP |
M 16x1.5 |
R3/8"x19 |
10 |
18.6 |
33.6 |
19 |
19 |
PN250 |
|
1CT-16-08SP |
M16x1.5 |
R1/2"x14 |
10 |
21.8 |
36.8 |
22 |
19 |
PN250 |
|
1CT-16-12SP |
M16x1.5 |
R3/4"x14 |
10 |
21.5 |
36.5 |
30 |
19 |
PN250 |
|
1CT-18-04SP |
M18x1.5 |
R1/4"x19 |
12 |
18.5 |
33.5 |
19 |
22 |
PN250 |
|
1CT-18-06SP |
M18x1.5 |
R3/8"x19 |
12 |
18.6 |
33.6 |
19 |
22 |
PN250 |
|
1CT-18-08SP |
M18X1.5 |
R1/2"x14 |
12 |
21.8 |
36.8 |
22 |
22 |
PN250 |
|
1CT-22-08SP |
M22x1.5 |
R1/2"x14 |
15 |
22.8 |
37.8 |
24 |
27 |
PN250 |
|
1CT-26-08SP |
M26x1.5 |
R1/2"x14 |
18 |
23.3 |
39.8 |
27 |
32 |
PN250 |
|
1 CT-26-12SP |
M26X1.5 |
R3/4"x14 |
18 |
22 |
38.5 |
30 |
32 |
PN160 |
|
1 CT-30-12S-P |
M30x2 |
R3/4"x14 |
22 |
24 |
40.5 |
32 |
36 |
PN160 |
|
1 CT-36-16SP |
M36X2 |
R1"x11 |
28 |
29.6 |
46.1 |
38 |
41 |
PN160 |
|
1GT-36-20SP |
M36X2 |
R1.1/4"x11 |
28 |
29.3 |
45.8 |
46 |
41 |
PN160 |
|
1 CT-45-16SP |
M45x2 |
R1"x11 |
35 |
29.6 |
51.1 |
46 |
50 |
PN160 |
|
1CT-45-20SP |
M45x2 |
R1.1/4"x11 |
35 |
28.3 |
49.8 |
46 |
50 |
PN160 |
|
1CT-52-20SP |
M52x2 |
R1.1/4"x11 |
42 |
29.8 |
52.8 |
55 |
60 |
PN160 |
|
1CT-52-24SP |
M52x2 |
R1.1/2"x11 |
42 |
29.8 |
52.8 |
55 |
60 |
PN160 |
|
1DT-14-04SP |
M14x1.5 |
R1/4"x19 |
6 |
13 |
36.5 |
17 |
17 |
PN400 |
|
1DT-16-04SP |
M 16x1.5 |
R1/4"x19 |
8 |
21.5 |
36.5 |
17 |
19 |
PN400 |
|
1DT-18-04SP |
M 18x1.5 |
R1/4"x19 |
10 |
21 |
37.5 |
19 |
22 |
PN400 |
|
1DT-20-04SP |
M20X1.5 |
R1/4"x19 |
12 |
23 |
39.5 |
22 |
24 |
PN400 |
|
1DT-20-06SP |
M20x1.5 |
R3/8"x19 |
12 |
23.1 |
39.6 |
22 |
24 |
PN400 |
|
1DT-22-06SP |
M22x1.5 |
R3/8"x19 |
14 |
24.6 |
42.6 |
24 |
27 |
PN400 |
|
1DT-22-08SP |
M22x15 |
R1/2"x14 |
14 |
27.8 |
45.8 |
24 |
27 |
PN400 |
|
1DT-24-06SP |
M24x1.5 |
R3/8"x19 |
16 |
24.1 |
42.6 |
27 |
30 |
PN400 |
|
1DT-24-08SP |
M24X1.5 |
R1/2"x14 |
16 |
27.3 |
45.8 |
27 |
30 |
PN400 |
|
1DT-30-12SP |
M30X2 |
R3/4"x14 |
20 |
28 |
49.5 |
32 |
36 |
PN250 |
|
1DT-36-12SP |
M36X2 |
R3/4"x14 |
25 |
29.5 |
53.5 |
38 |
46 |
PN250 |
|
1DT-36-16SP |
M36x2 |
R1"x11 |
25 |
34.1 |
58.1 |
38 |
46 |
PN250 |
|
1DT-42-16SP |
M42x2 |
R1"x11 |
30 |
35.6 |
62.1 |
46 |
50 |
PN250 |
|
1DT-42-20SP |
M42x2 |
R1.1/4"x11 |
30 |
34.3 |
60.8 |
46 |
50 |
PN250 |
|
1DT-52-20SP |
M52x2 |
R1.1/4"x11 |
38 |
36.8 |
67.8 |
55 |
60 |
PN250 |
|
1DT-52-24SP |
M52x2 |
R1.1/2"x11 |
38 |
36.8 |
67.8 |
55 |
60 |
PN250 |
|

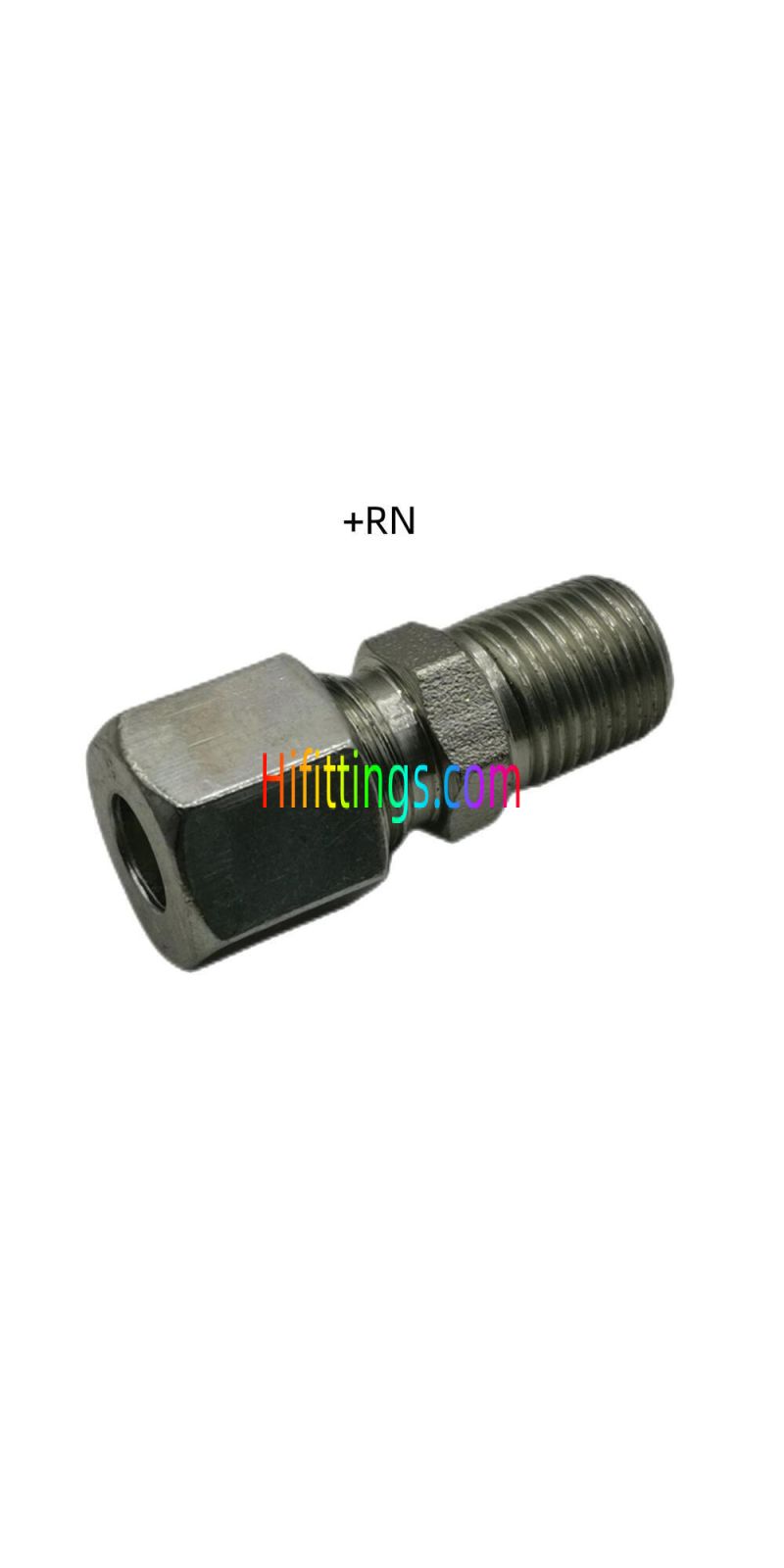

Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 1DT-22-08SP/RN. 2. PN = Nominal Pressure |
||||||||
| Shape | Straight |
|---|---|
| Thread Type | Male |
| Connection Type | BSPT, Metric |
| Fitting Type | Bite Type |
