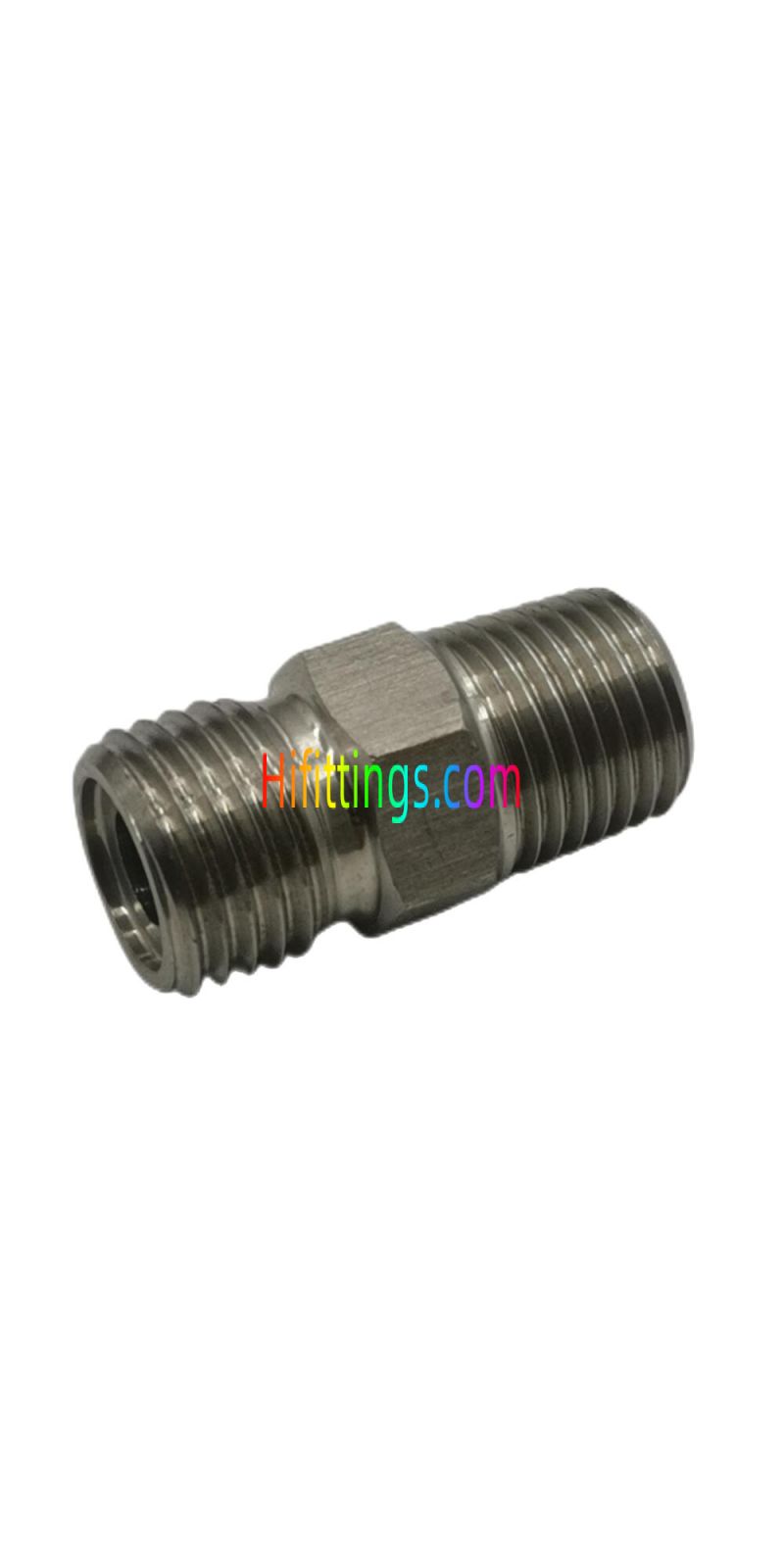

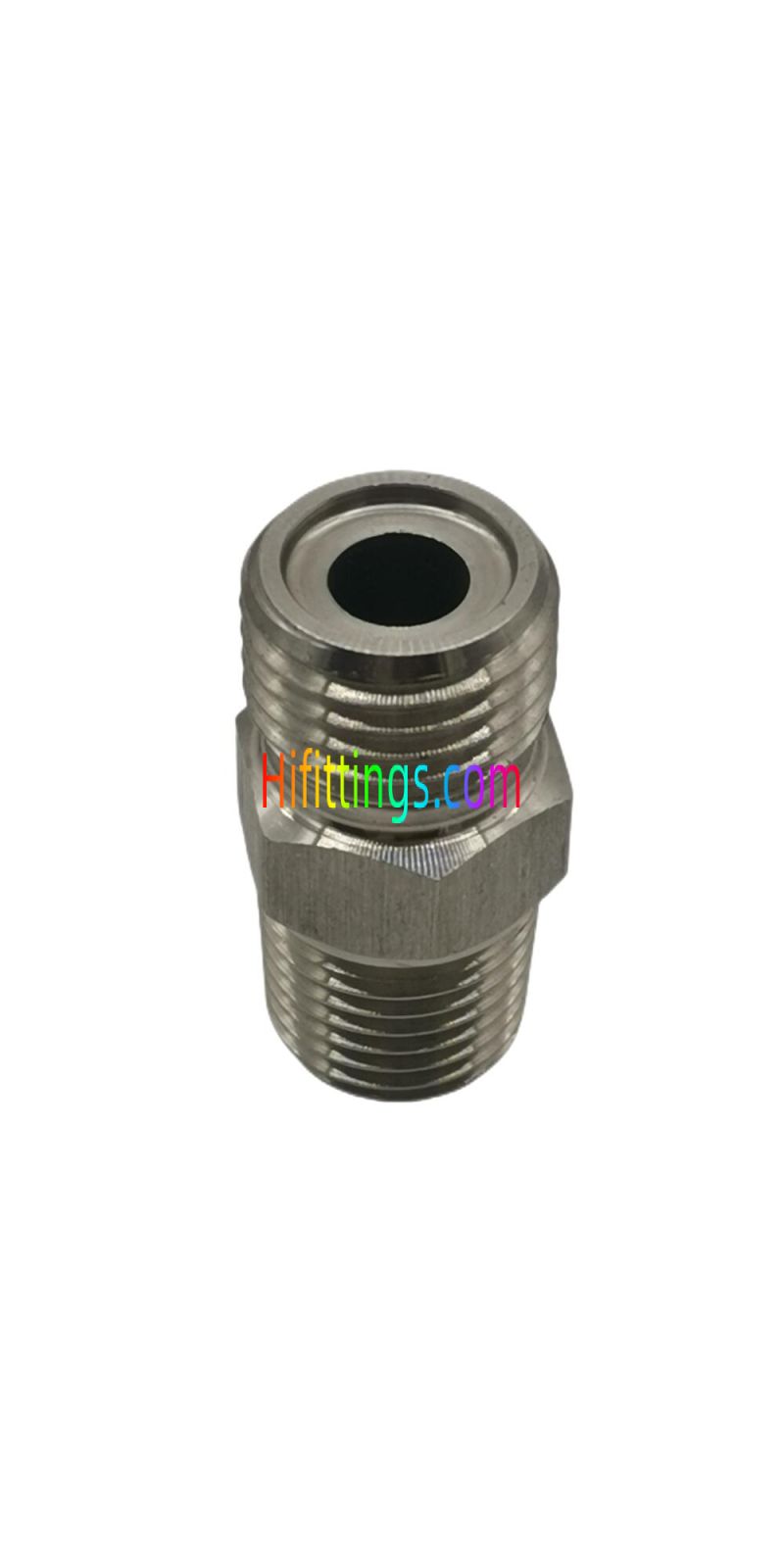

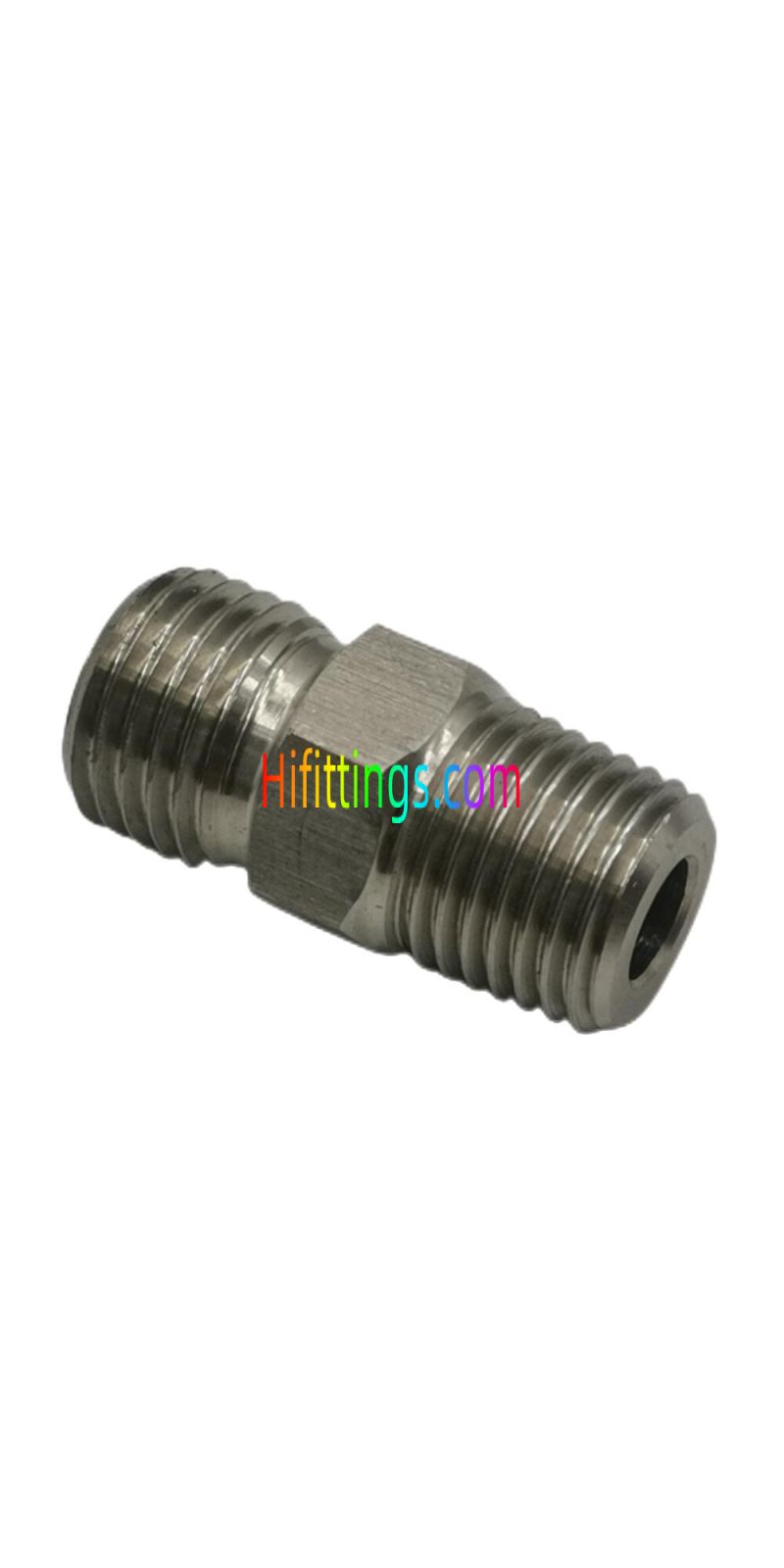

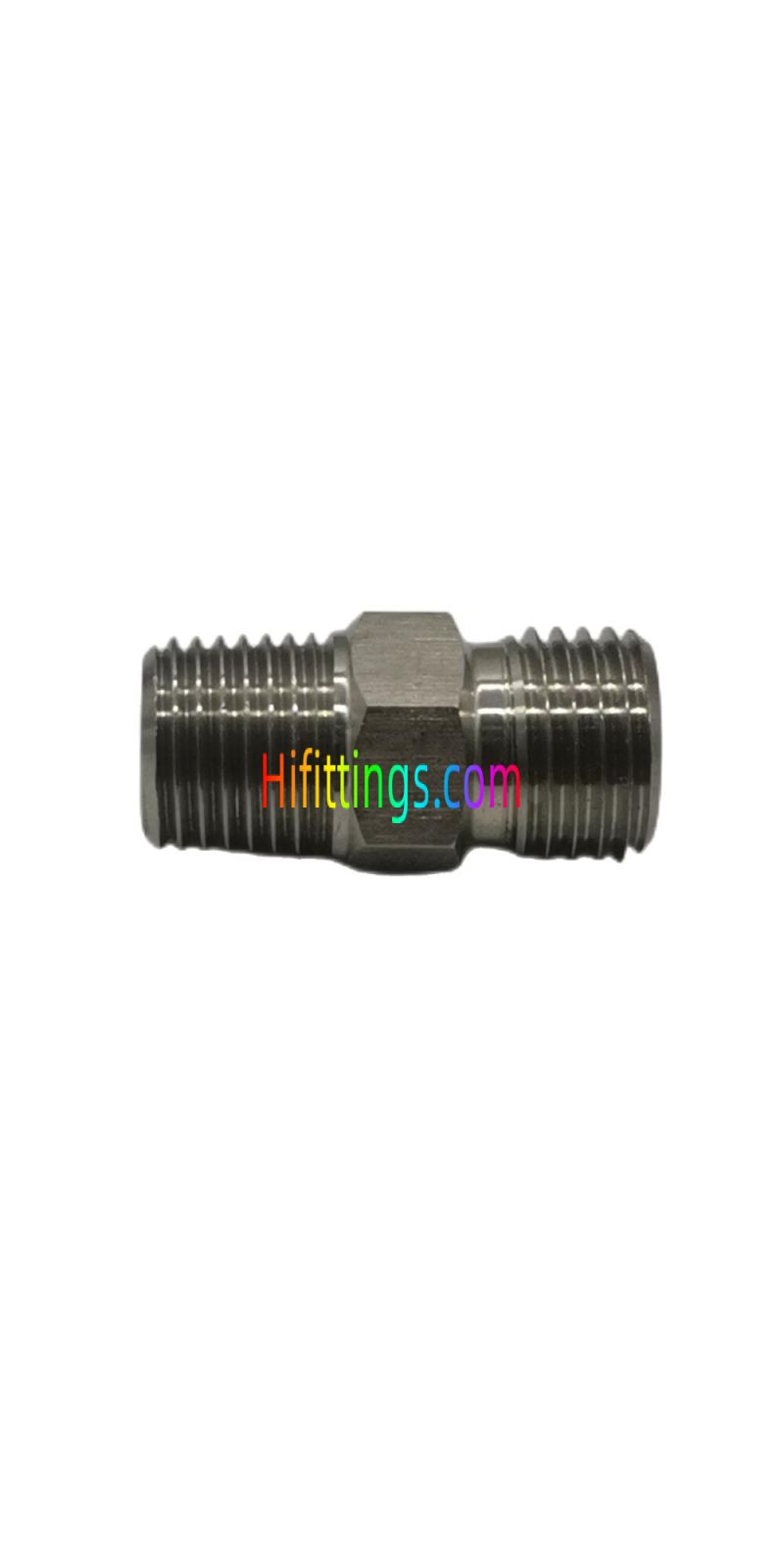

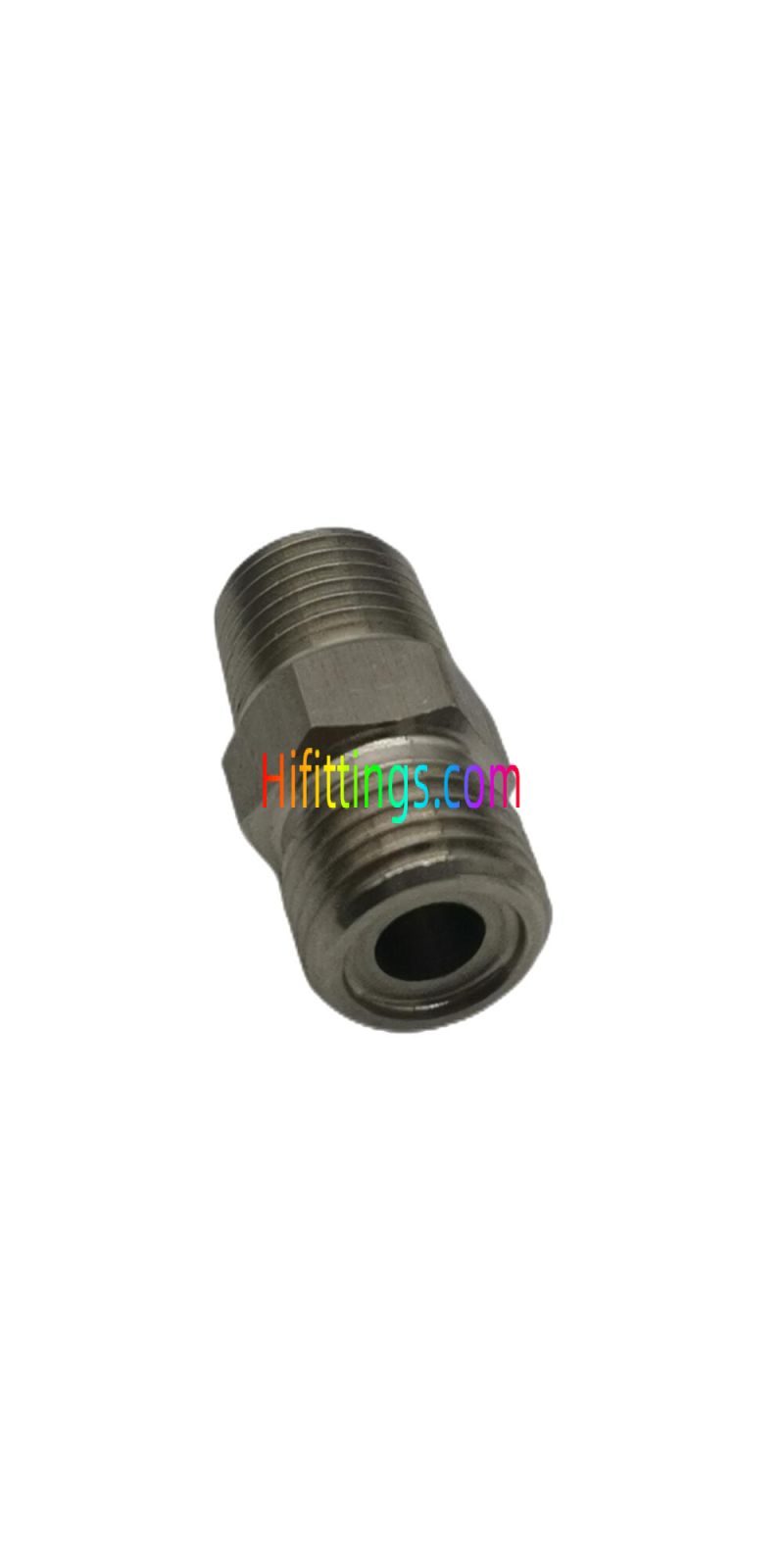

Straight BSPT Male Metric Male O-Ring Face Seal Fittings 1ET-SP

Part NO.

E

F

O-Ring - E  End

A

B

L

S1

Working Pressure  bar

1ET-14-04SP

M14X1.5

R1/4"X19

10X1.9

11

14.5

31.5

14

PN345

1ET-14-06SP

M14X1.5

R3/8"X19

10X1.9

11

15

32

17

PN345

1ET-16-04SP

M16X1.5

R1/4"X19

11X1.9

11

14.5

31.5

17

PN345

1ET-16-06SP

M16X1.5

R3/8"X19

11X1.9

11

15

32

17

PN345

1ET-18-06SP

M18X1.5

R3/8"X19

13X1.9

11

15

32

19

PN345

1ET-18-08SP

M18X1.5

R1/2"X14

13X1.9

11

20

37

22

PN345

1ET-22-08SP

M22X1.5

R1/2"X14

16X2.4

12

20

40

24

PN345

1ET-22-12SP

M22X1.5

R3/4"X14

16X2.4

12

20

40

27

PN275

1ET-24-06SP

M24X1.5

R3/8"X19

18X2.4

13

15

38

27

PN345

1ET-24-08SP

M24X1.5

R1/2"X14

18X2.4

13

20

43

27

PN345

1ET-27-08SP

M27X1.5

R1/2"X14

20X2.4

13

20

43

30

PN345

1ET-27-12SP

M27X1.5

R3/4"X14

,20X2.4

13

20

43

30

PN275

1ET-30-12SP

M30X1.5

R3/4"X14

24X2.4

14

20

45

32

PN275

1ET-36-12SP

M36X2

R3/4"X14

30X3.1

16

20

47

38

PN275

1ET-36-16SP

M36X2

R1"X11

30X3.1

16

25.5

52.5

38

PN205

1ET-39-16SP

M39X2

R1"X11

32X3.1

18

25.5

56.5

41

PN205

1ET-39-20SP

M39X2

R1.1/4"X11

32X3.1

18

26.5

57.5

46

PN170

1ET-42-20SP

M42X2

R1.1/4"X11

35X3.1

20

26.5

59.5

46

PN170

1ET-45-20SP

M45X2

R1.1/4"X11

38X3.1

21

26.5

60.5

46

PN170

1ET-52-24SP

M52X2

R1.1/2"X11

40X3.1

22

26.5

63.5

55

PN105

Note: 1. The parameter of  E end O-ring is ring outside diameter and ring width.   2. PN = Nominal Pressure
