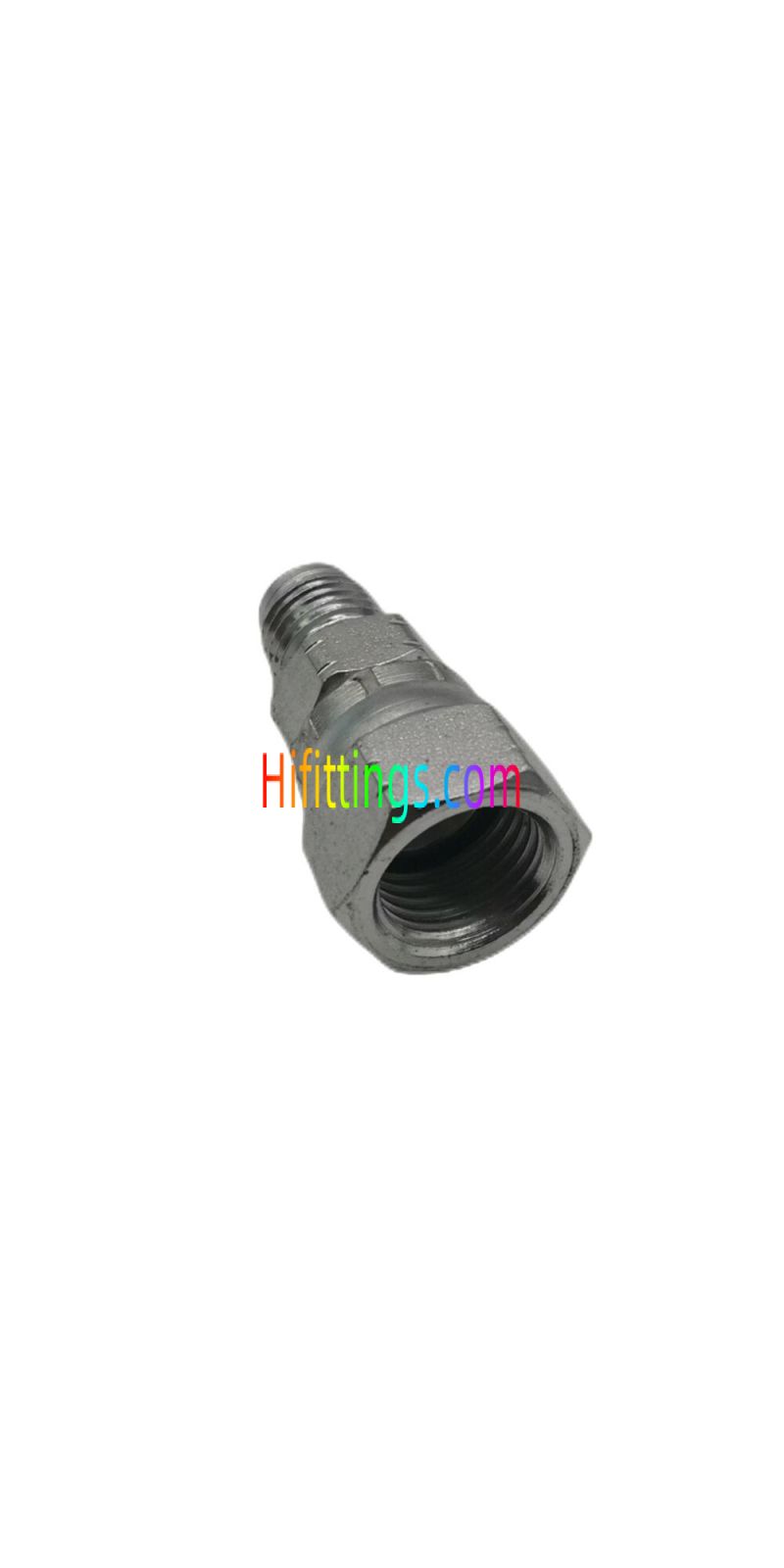

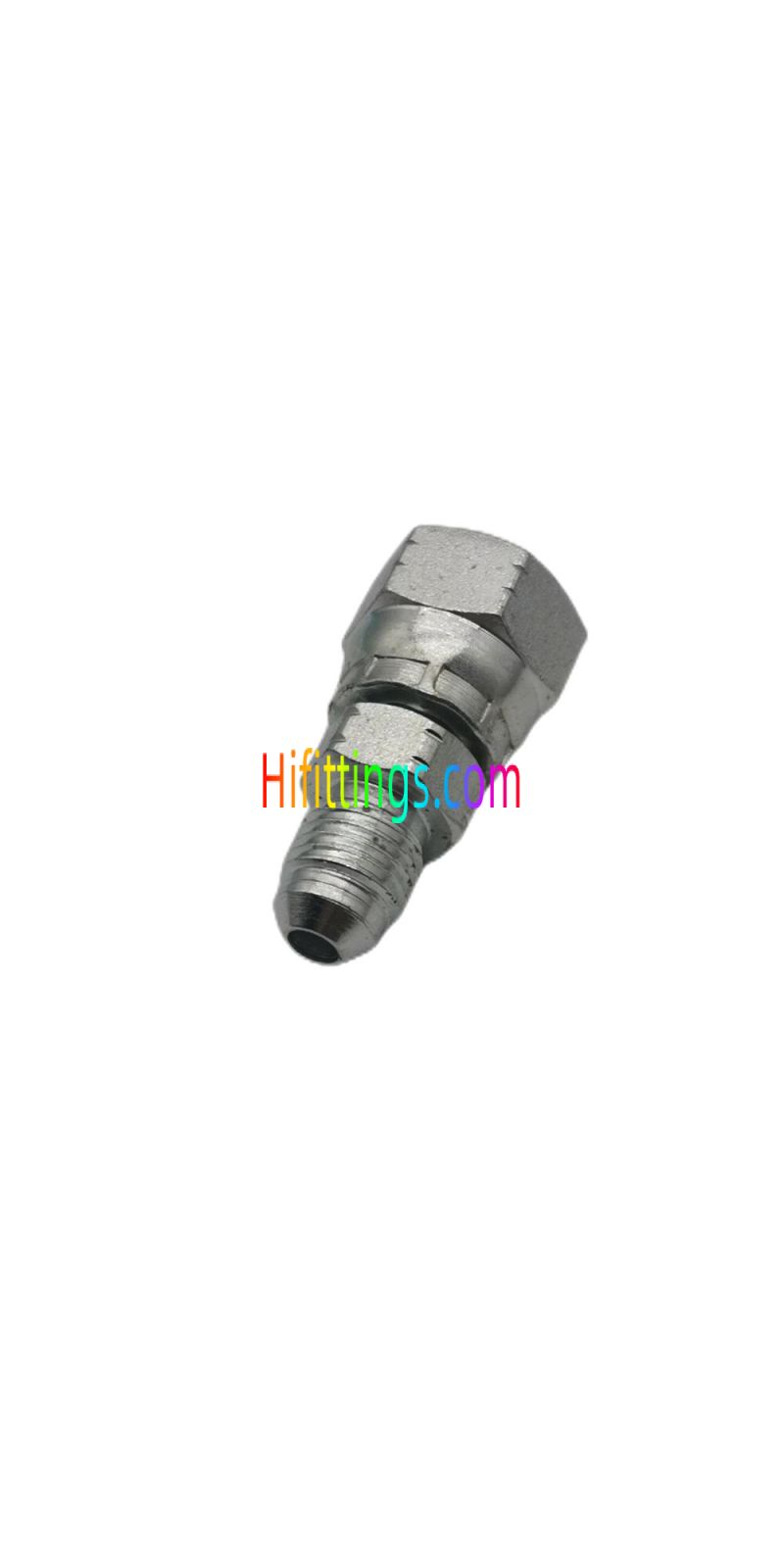

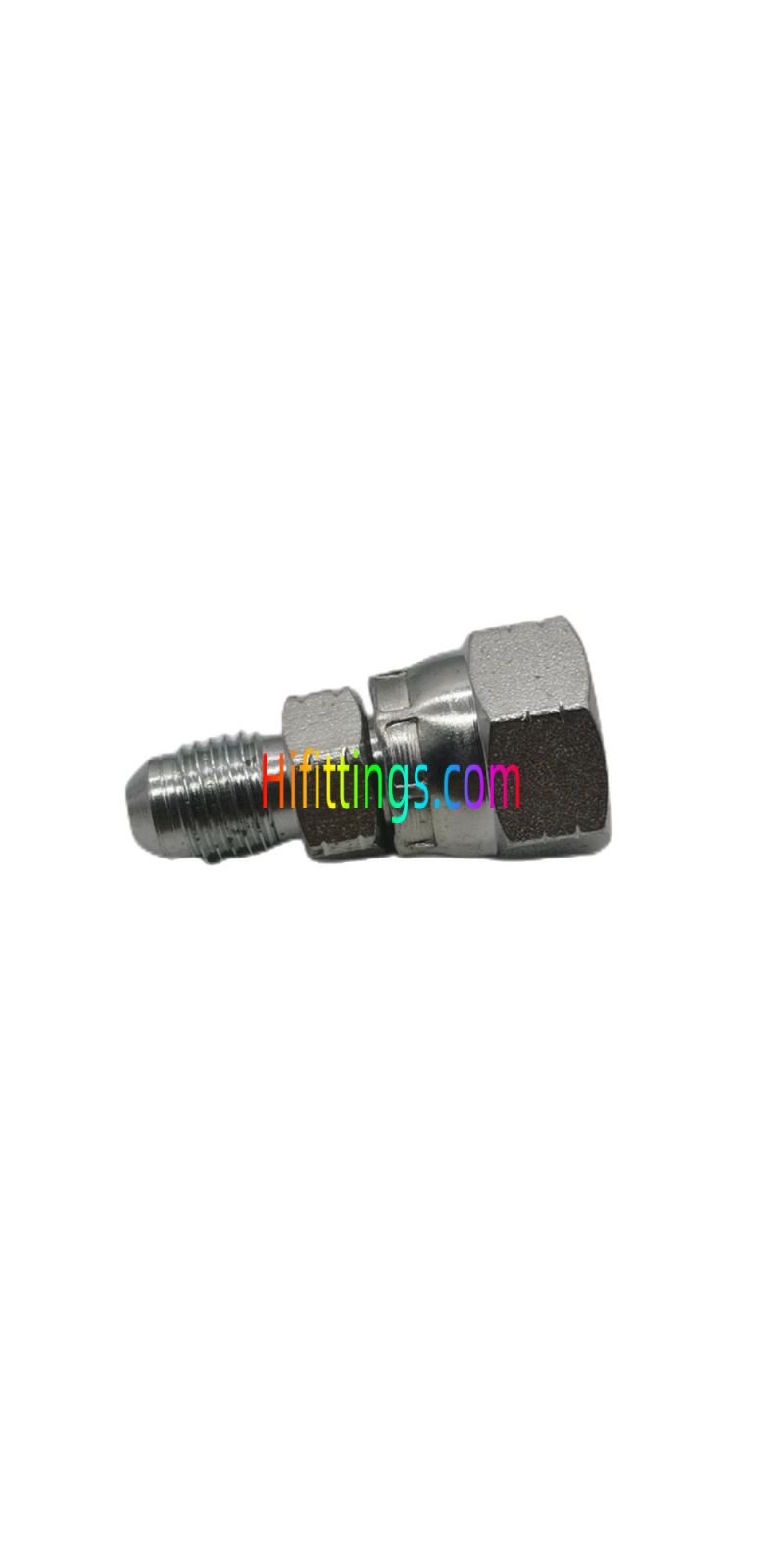

JIC Male 74° Cone / JIC Female 74° Seat Flared Tube Fittings 2J
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
S2 |
Working Pressure bar |
|
2J-04 |
7/16"X20 |
7/16"X20 |
14 |
9 |
28 |
12 |
15 |
PN345 |
|
2J-04-05 |
7/16"X20 |
1/2"X20 |
14 |
9.5 |
28.5 |
12 |
17 |
PN345 |
|
2J-04-06 |
7/16"X20 |
9/16"X18 |
14 |
10.5 |
28.5 |
14 |
19 |
PN345 |
|
2J-04-08 |
7/16"X20 |
3/4"X16 |
14 |
11 |
30.5 |
19 |
24 |
PN345 |
|
2J-05 |
1/2"X20 |
1/2"X20 |
14 |
9.5 |
29 |
14 |
17 |
PN345 |
|
2J-05-06 |
1/2"X20 |
9/16"X18 |
14 |
10.5 |
28.5 |
14 |
19 |
PN345 |
|
2J-05-08 |
1/2"X20 |
3/4"X16 |
14 |
11 |
30.5 |
19 |
24 |
PN310 |
|
2J-06 |
9/16"X18 |
9/16"X18 |
14.1 |
10.5 |
29 |
17 |
19 |
PN345 |
|
2J-06-08 |
9/16"X18 |
3/4'X16 |
14.1 |
11 |
31 |
19 |
24 |
PN310 |
|
2J-06-10 |
9/16"X18 |
7/8"X14 |
14.1 |
13 |
33.5 |
22 |
27 |
PN240 |
|
2J-08 |
3/4"X16 |
3/4"X16 |
16.7 |
11 |
36 |
22 |
24 |
PN310 |
|
2J-08-06 |
3/4"X16 |
9/16"X18 |
16.7 |
10.5 |
34 |
22 |
19 |
PN310 |
|
2J-08-10 |
3/4"X16 |
7/8"X14 |
16.7 |
13 |
36.5 |
22 |
27 |
PN240 |
|
2J-08-12 |
3/4"X16 |
1.1/16"X12 |
16.7 |
15 |
39.5 |
27 |
32 |
PN240 |
|
2J-10 |
7/8"X14 |
7/8"X14 |
19.3 |
13 |
39 |
24 |
27 |
PN240 |
|
2J-10-08 |
7/8"X14 |
3/4"X16 |
19.3 |
11 |
38 |
24 |
24 |
PN240 |
|
2J-10-12 |
7/8"X14 |
1.1/16"X12 |
19.3 |
15 |
42 |
27 |
32 |
PN240 |
|
2J-12 |
1.1/16"X12 |
1.1/16"X12 |
21.9 |
15 |
44.5 |
30 |
32 |
PN240 |
|
2J-12-10 |
1.1/16"X12 |
7/8"X14 |
21.9 |
13 |
43.5 |
30 |
27 |
PN240 |
|
2J-12-16 |
1.1/16"X12 |
1.5/16"X12 |
21.9 |
16 |
45.5 |
36 |
41 |
PN210 |
|
2J-16 |
1.5/16"X12 |
1.5/16"X12 |
23.1 |
16 |
46.5 |
36 |
41 |
PN210 |
|
2J-16-20 |
1.5/16"X12 |
1.5/8"X12 |
23.1 |
17 |
53 |
41 |
50 |
PN170 |
|
2J-20 |
1.5/8"X12 |
1.5/8"X12 |
24.3 |
17 |
54.5 |
46 |
50 |
PN170 |
|
2J-20-24 |
1.5/8"X12 |
1.7/8"X12 |
24.3 |
20 |
55.5 |
46 |
55 |
PN140 |
|
2J-24 |
1.7/8"X12 |
1.7/8"X12 |
27.5 |
20 |
61 |
50 |
55 |
PN140 |
|
2J-24-32 |
1.7/8"X12 |
2.1/2"X12 |
27.5 |
24.5 |
63 |
65 |
75 |
PN105 |
|
2J-32 |
2.1/2"X12 |
2.1/2"X12 |
33.9 |
24.5 |
69.5 |
65 |
75 |
PN105 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
||||||||
| Shape | Straight |
|---|---|
| Fitting Type | Cone Flared |
| Thread Type | Male-Female |
| Connection Type | JIC |
