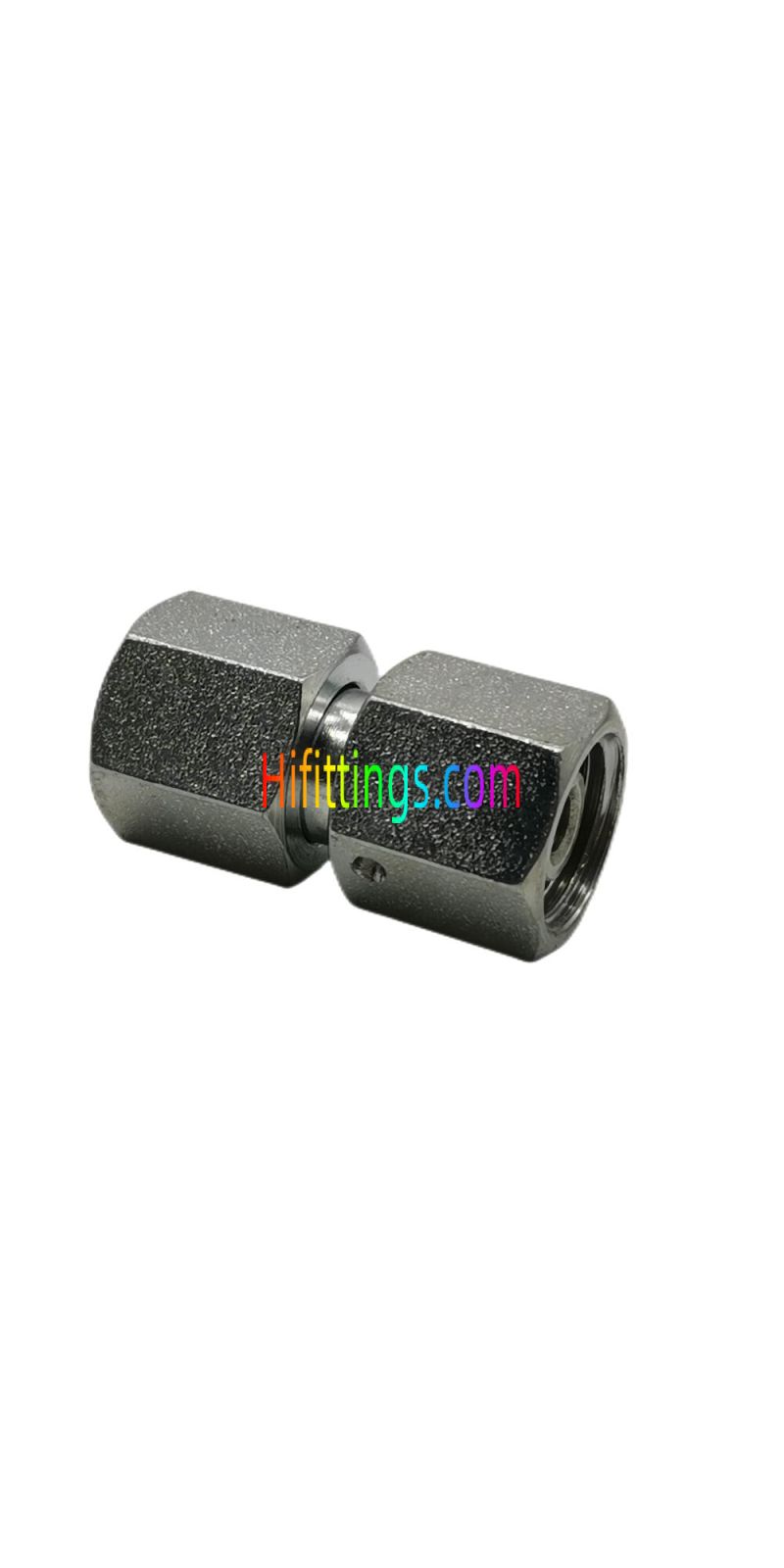

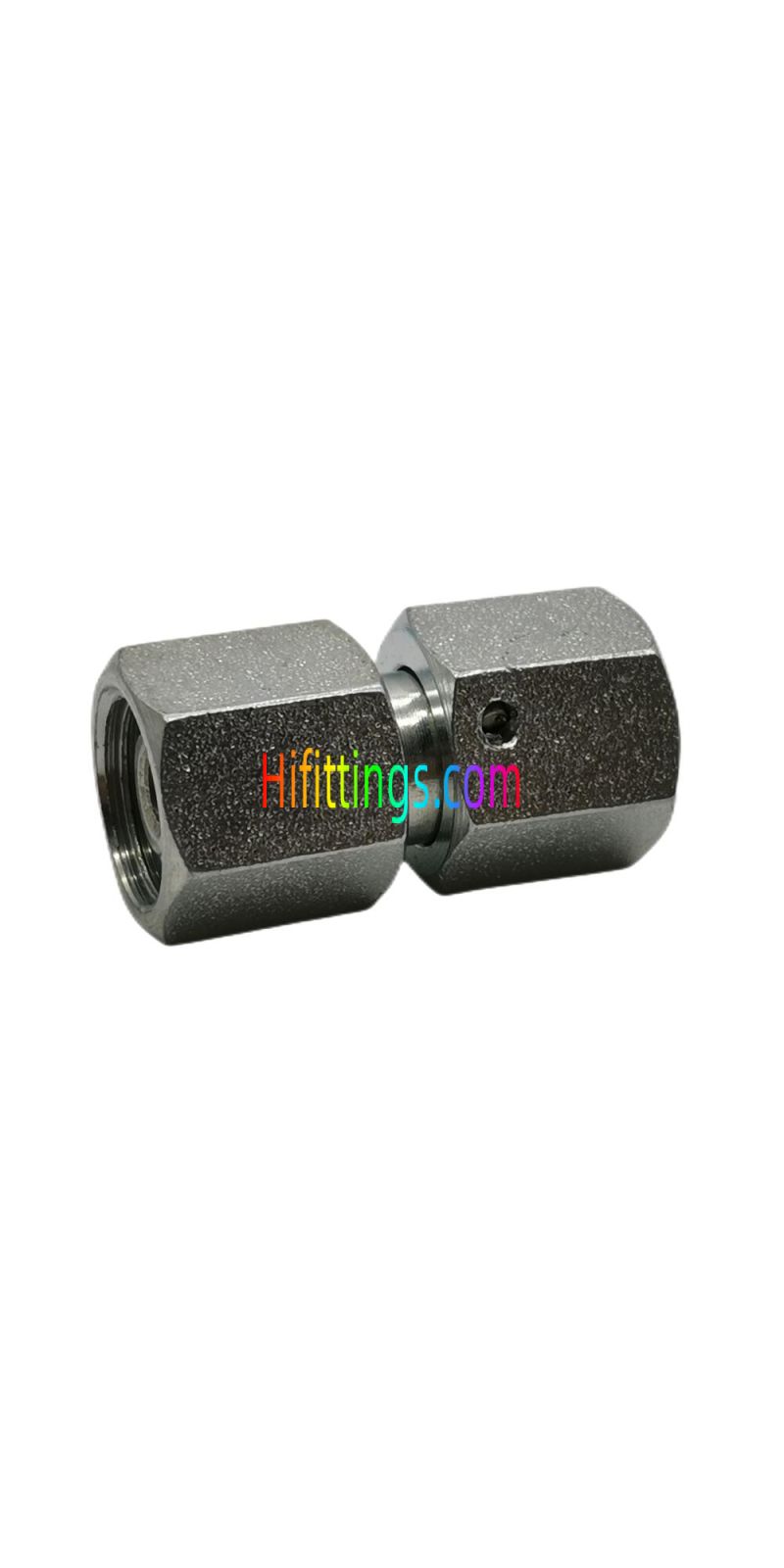

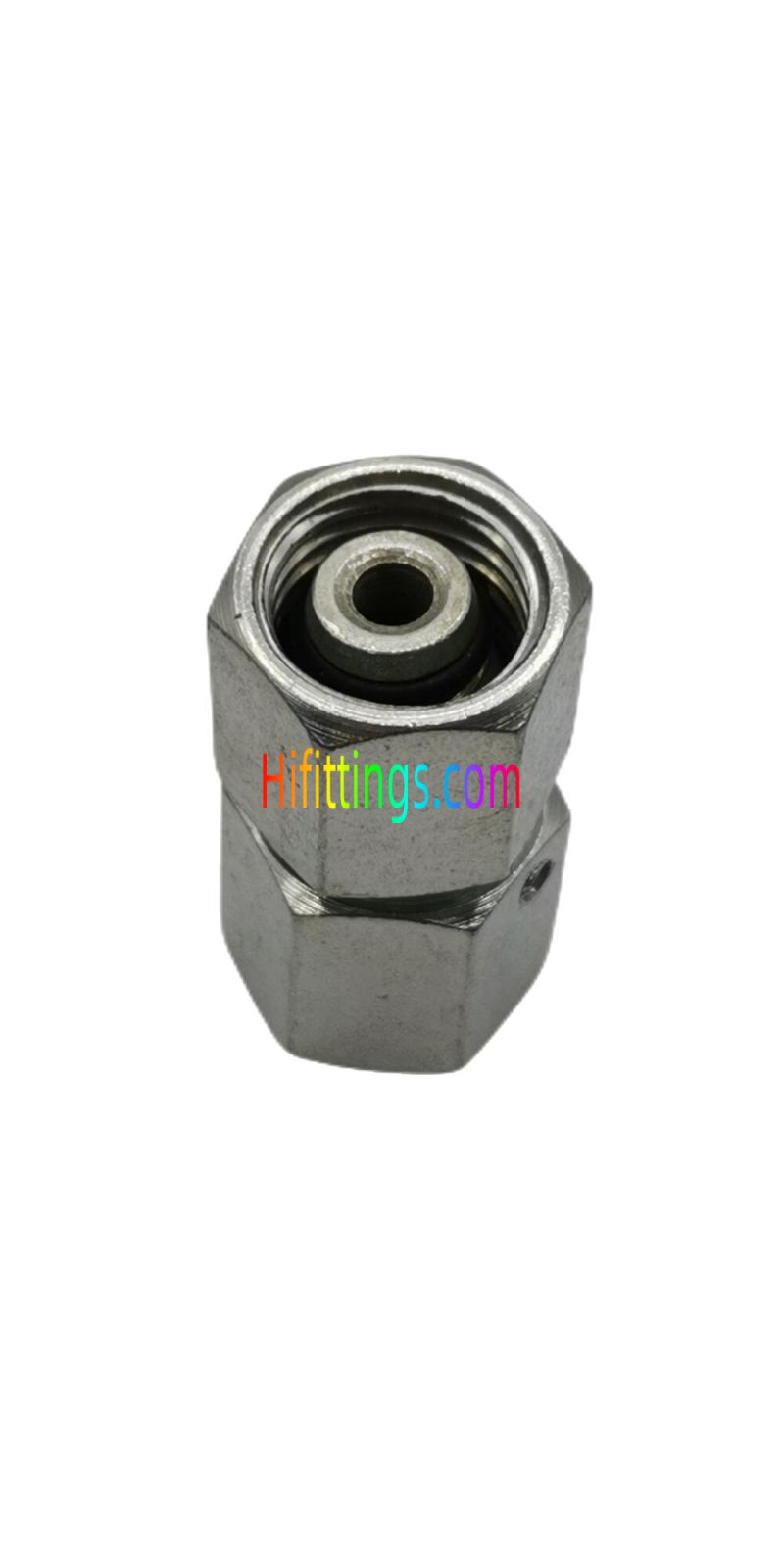

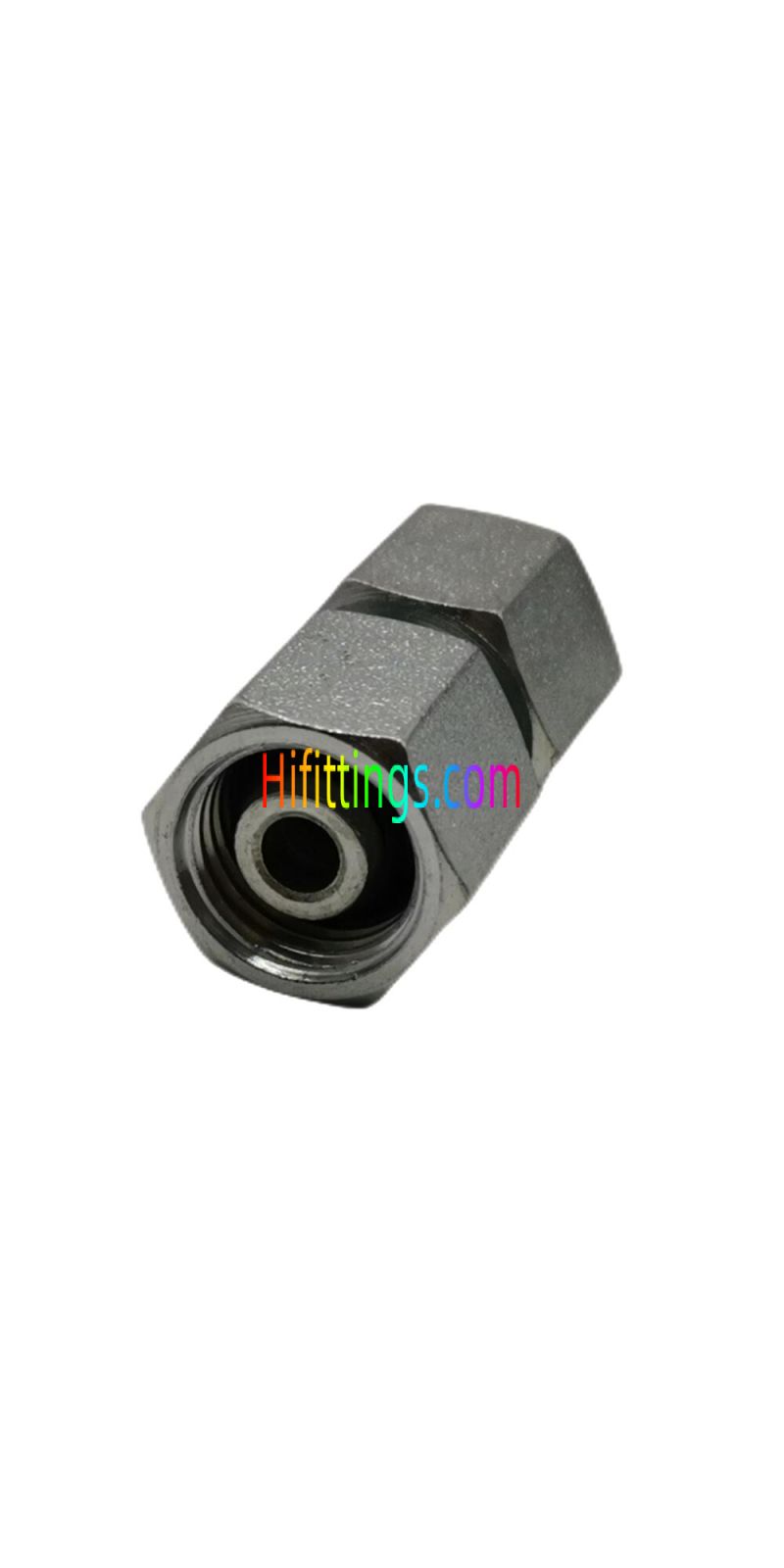

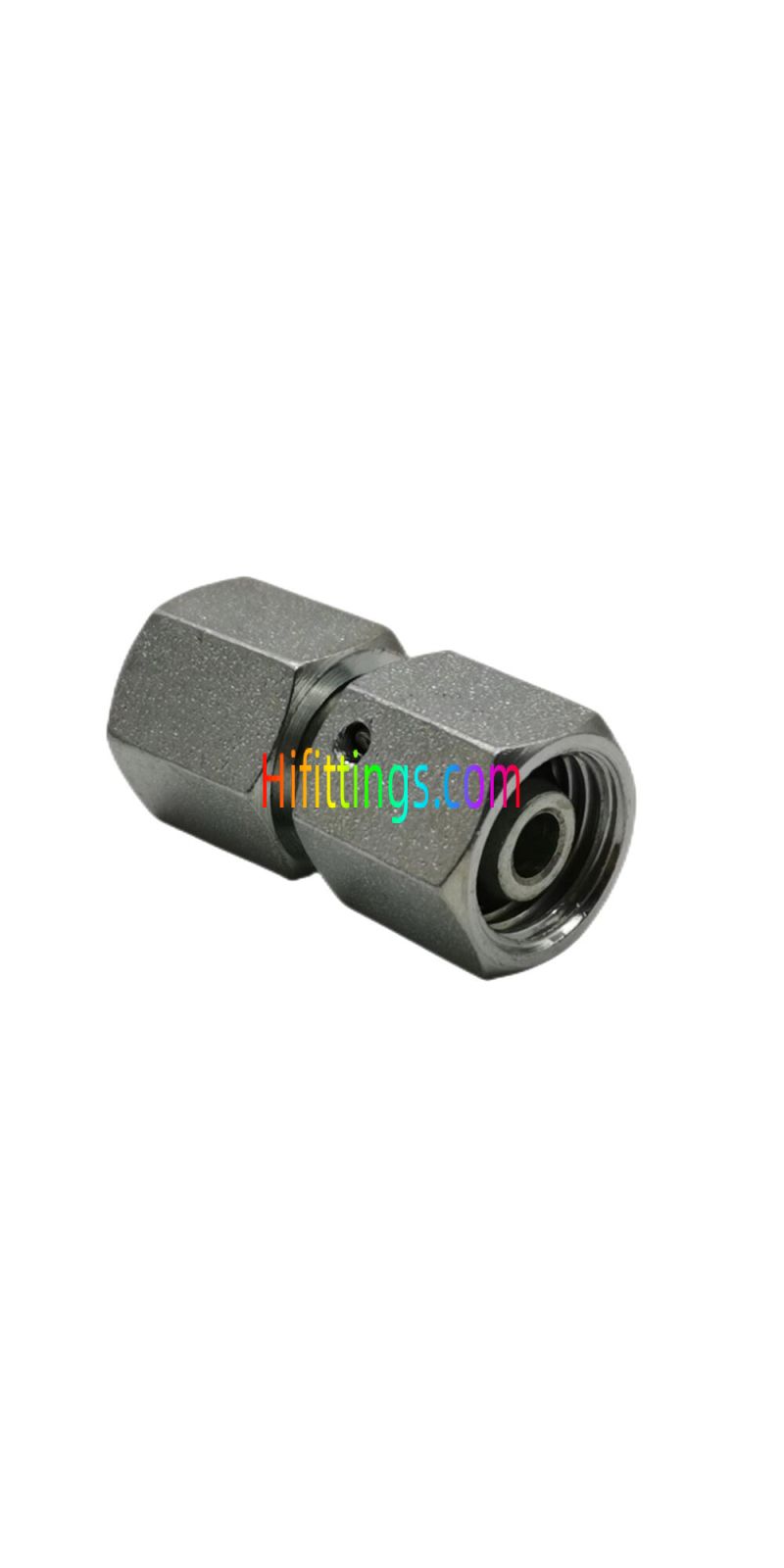

DIN Straight Metric Female Hydraulic Adapter Pipe Fittings With Swivel Nut 3C/3D
|
Part NO. |
E,F |
D1,D2 |
L1 |
L2 |
S1,S2 |
Working Pressure bar |
|
3C-12 |
M12X1.5 |
6 |
33 |
32 |
14 |
PN315 |
|
3C-14 |
M14X1.5 |
8 |
33 |
32 |
17 |
PN315 |
|
3C-16 |
M16X1.5 |
10 |
34 |
33 |
19 |
PN315 |
|
3C-18 |
M18X1.5 |
12 |
34 |
33 |
22 |
PN315 |
|
3C-22 |
M22X1.5 |
15 |
39 |
38 |
27 |
PN315 |
|
3C-26 |
M26X1.5 |
18 |
41 |
39 |
32 |
PN315 |
|
3C-30 |
M30X2 |
22 |
44 |
42 |
36 |
PN160 |
|
3C-36 |
M36X2 |
28 |
48 |
46 |
46 |
PN160 |
|
3C-45 |
M45X2 |
35 |
52 |
48 |
50 |
PN160 |
|
3C-52 |
M52X2 |
42 |
57 |
52 |
60 |
PN160 |
|
3D-14 |
M14X1.5 |
6 |
33 |
32 |
17 |
PN630 |
|
3D-16 |
M16X1.5 |
8 |
34 |
33 |
19 |
PN630 |
|
3D-18 |
M18X1.5 |
10 |
35 |
33 |
22 |
PN630 |
|
3D-20 |
M20X1.5 |
12 |
38 |
36 |
24 |
PN630 |
|
3D-22 |
M22X1.5 |
14 |
41 |
39 |
27 |
PN630 |
|
3D-24 |
M24X1.5 |
16 |
42 |
39 |
30 |
PN400 |
|
3D-30 |
M30X2 |
20 |
48 |
44 |
36 |
PN400 |
|
3D-36 |
M36X2 |
25 |
53 |
46 |
46 |
PN400 |
|
3D-42 |
M42X2 |
30 |
62 |
52 |
50 |
PN400 |
|
3D-52 |
M52X2 |
38 |
67 |
52 |
60 |
PN315 |
| Shape | Straight |
|---|---|
| Thread Type | Female |
| Connection Type | Metric |
| Fitting Type | Bite Type |
