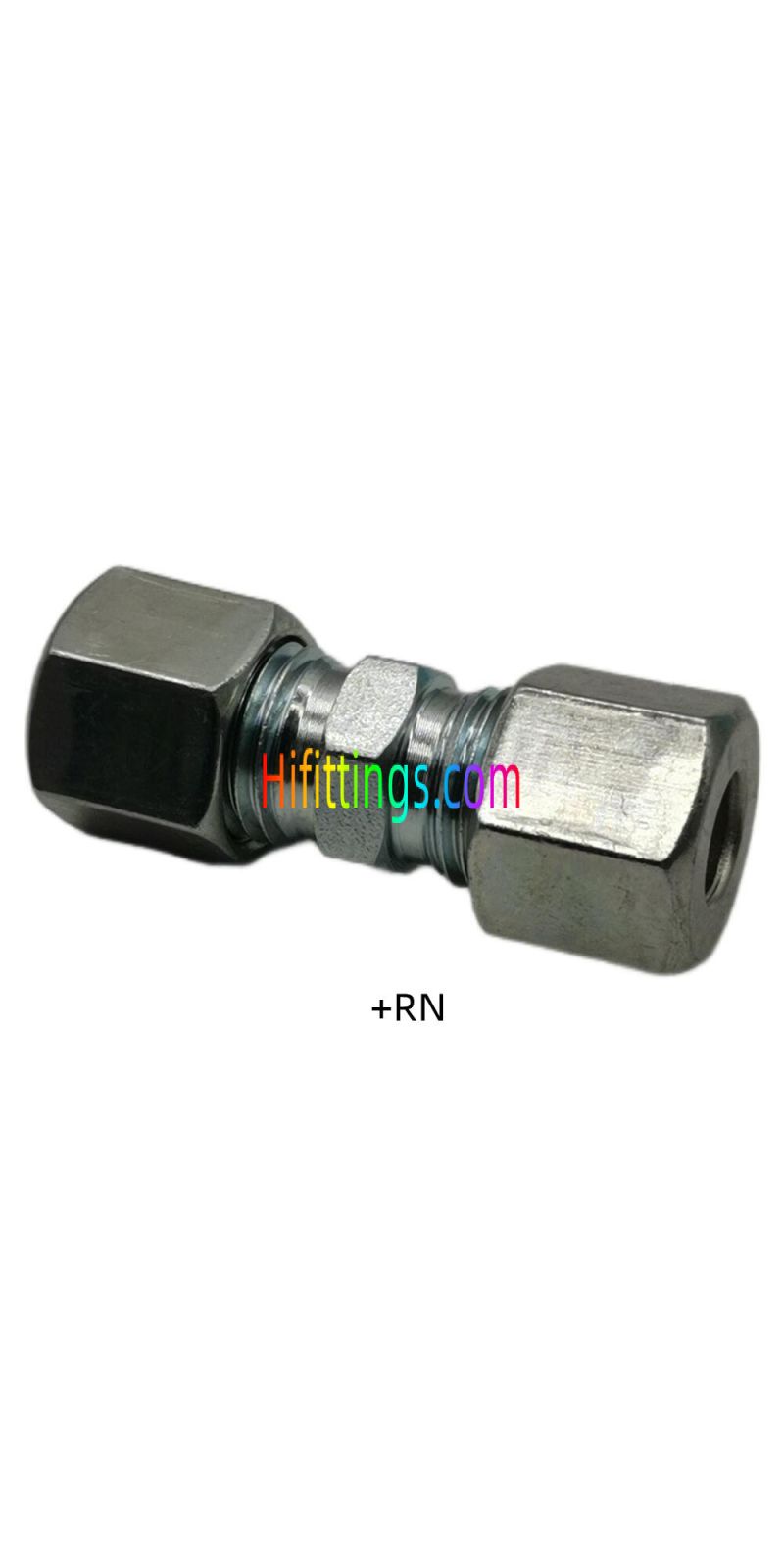

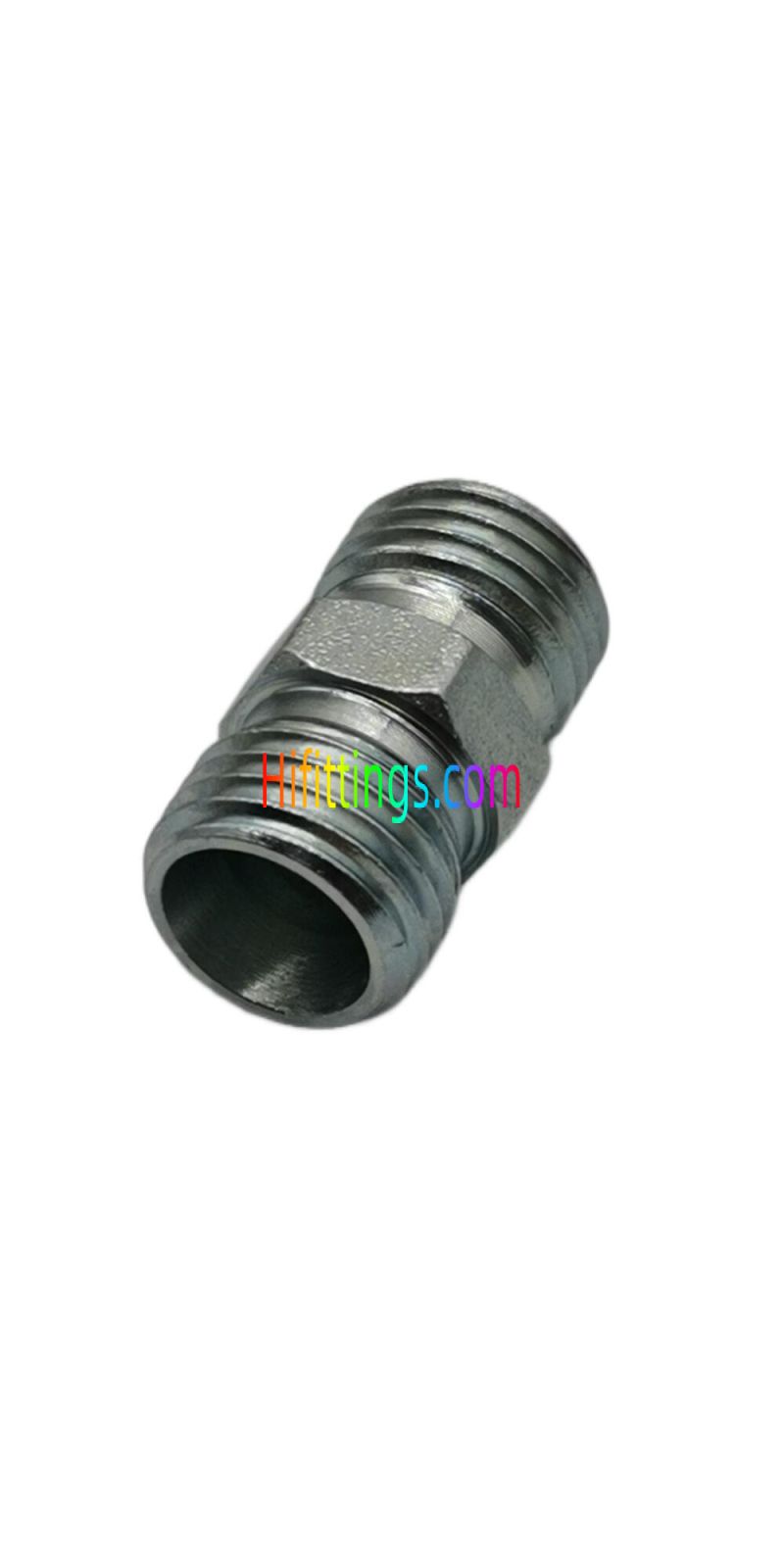

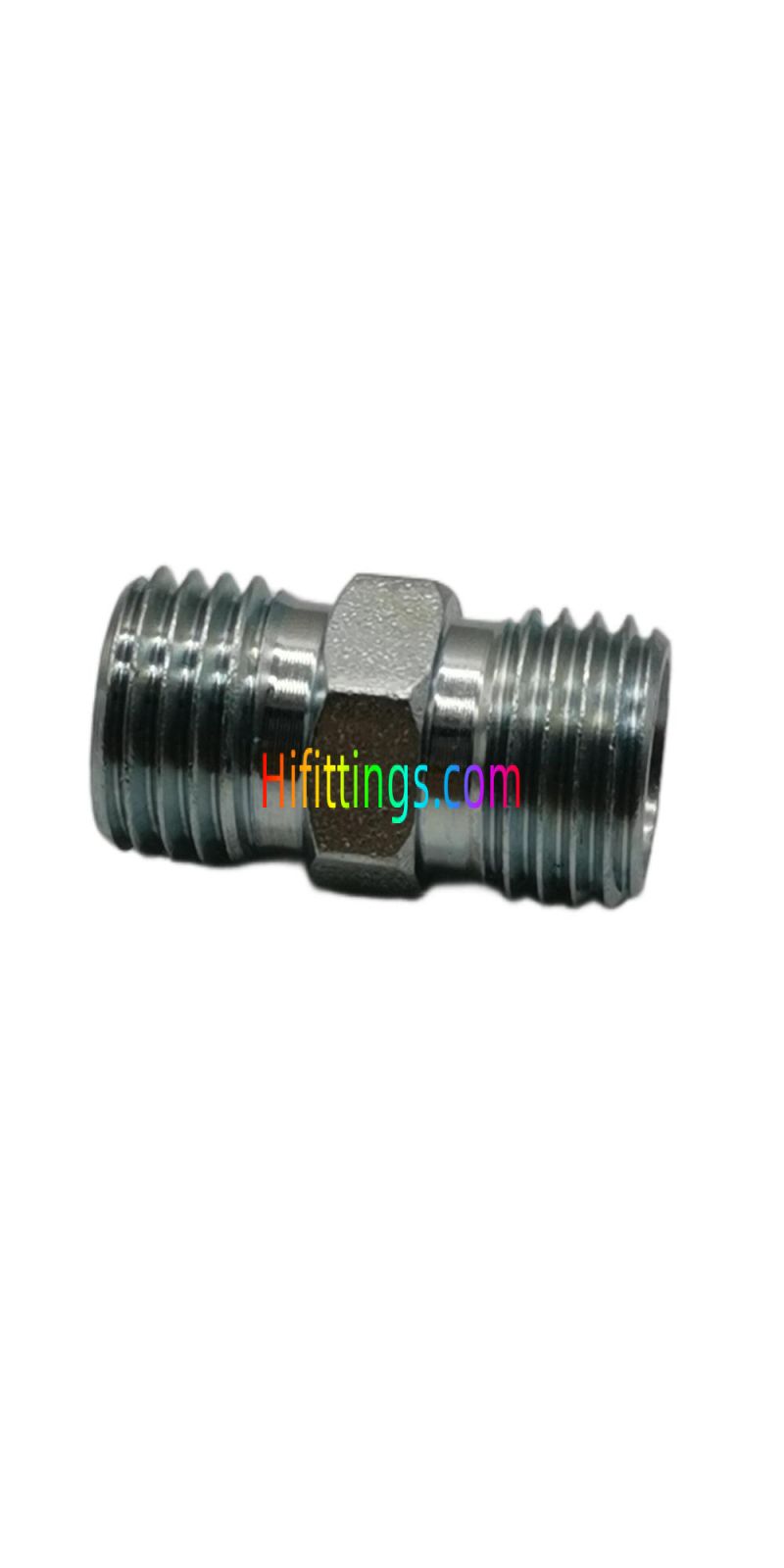

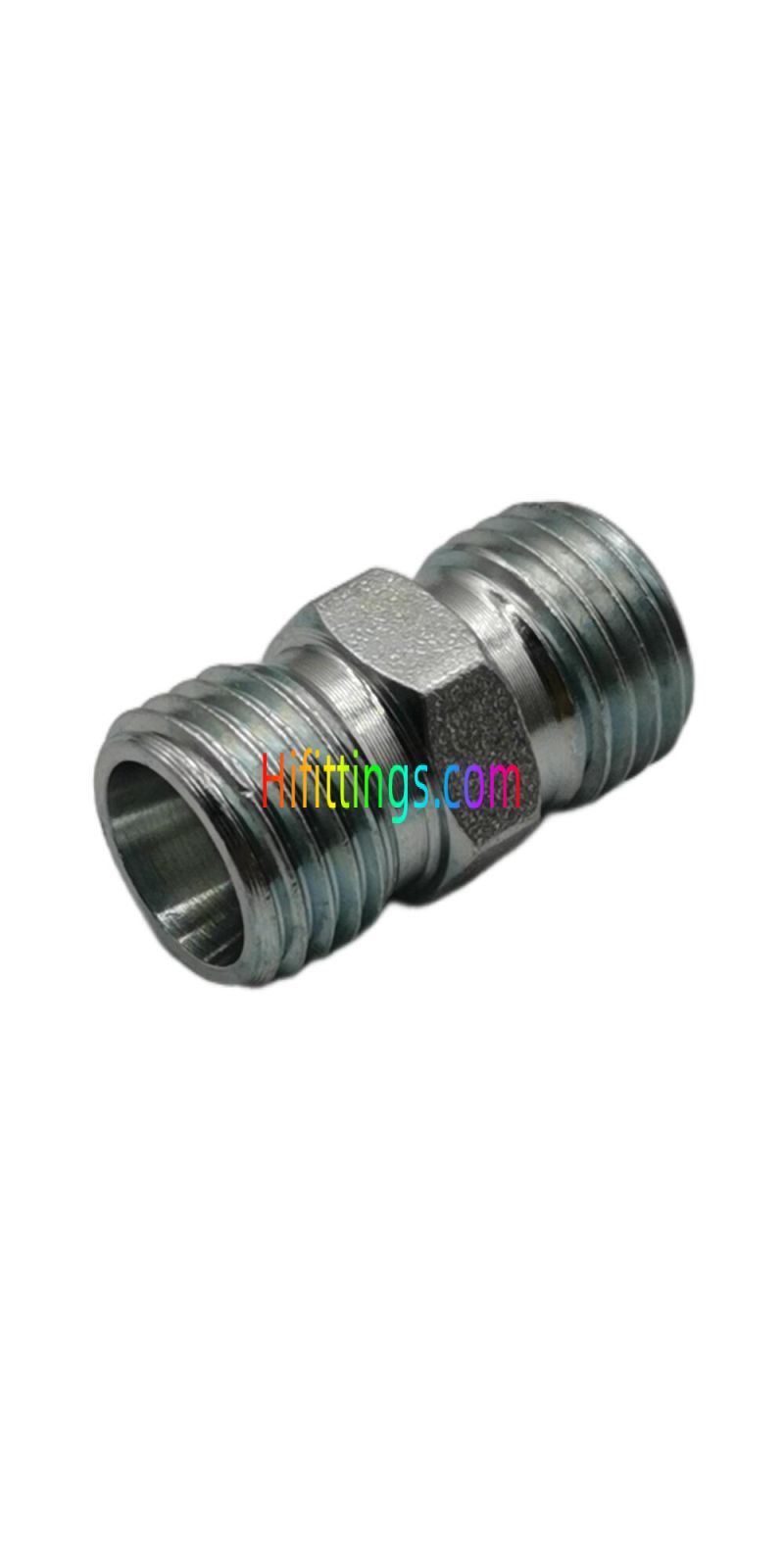

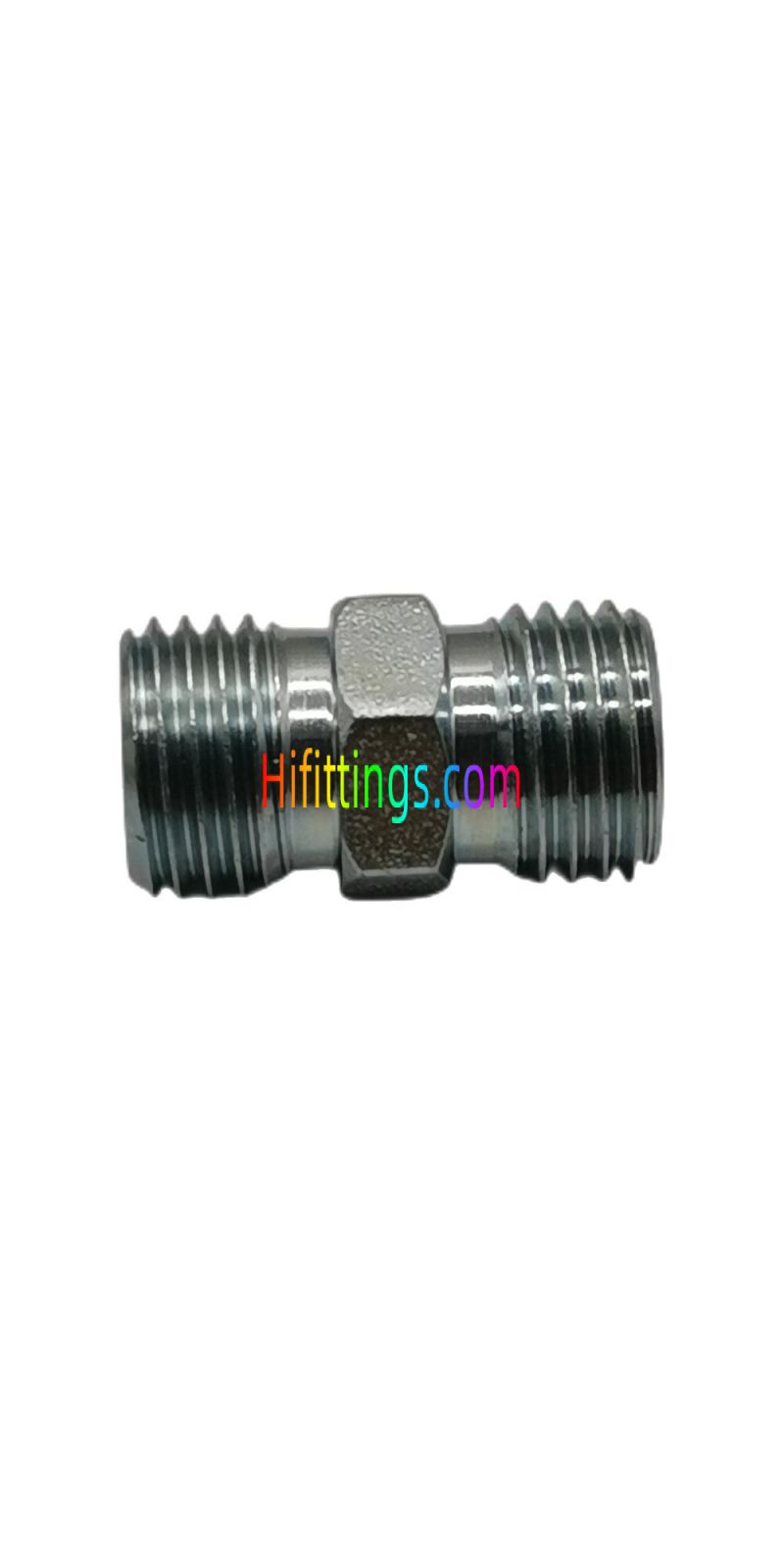

Straight Metric Male Bite Type Tube Fittings 1C/1D

Part NO.

E

F

D1

D2

I1

L1

S1

S2

S3

Working Pressure  bar

1C-12

M12X1.5

M12X1.5

6

6

10

39

12

14

14

PN315

1C-14

M14X1.5

M14X1.5

8

8

11

40

14

17

17

PN315

1C-16

M16X1.5

M16X1.5

10

10

13

42

17

19

19

PN315

1C-18

M18X1.5

M18X1.5

12

12

14

43

19

22

22

PN315

1C-22

M22X1.5

M22X1.5

15

15

16

46

24

27

27

PN315

1C-26

M26X1.5

M26X1.5

18

18

16

48

27

32

32

PN315

1C-30

M30X2

M30X2

22

22

20

52

32

36

36

PN160

1C-36

M36X2

M36X2

28

28

21

54

41

41

41

PN160

1C-45

M45X2

M45X2

35

35

20

63

46

50

50

PN160

1C-52

M52X2

M52X2

42

42

21

66

55

60

60

PN160

1D-14

M14X1.5

M14X1.5

6

6

16

45

14

17

17

PN630

1D-16

M16X1.5

M16X1.5

8

8

18

47

17

19

19

PN630

1D-18

M18X1.5

M18X1.5

10

10

17

49

19

22

22

PN630

1D-20

M20X1.5

M20X1.5

12

12

19

51

22

24

24

PN630

1D-22

M22X1.5

M22X1.5

14

14

22

57

24

27

27

PN630

1D-24

M24X1.5

M24X1.5

16

16

21

57

27

30

30

PN400

1D-30

M30X2

M30X2

20

20

23

66

32

36

36

PN400

1D-36

M36X2

M36X2

25

25

26

74

41

46

46

PN400

1D-42

M42X2

M42X2

30

30

27

80

46

50

50

PN400

1D-52

M52X2

M52X2

38

38

29

90

55

60

60

PN315

Note： In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after

our part NO.,for example 1C-30RN. 2. PN = Nominal Pressure
