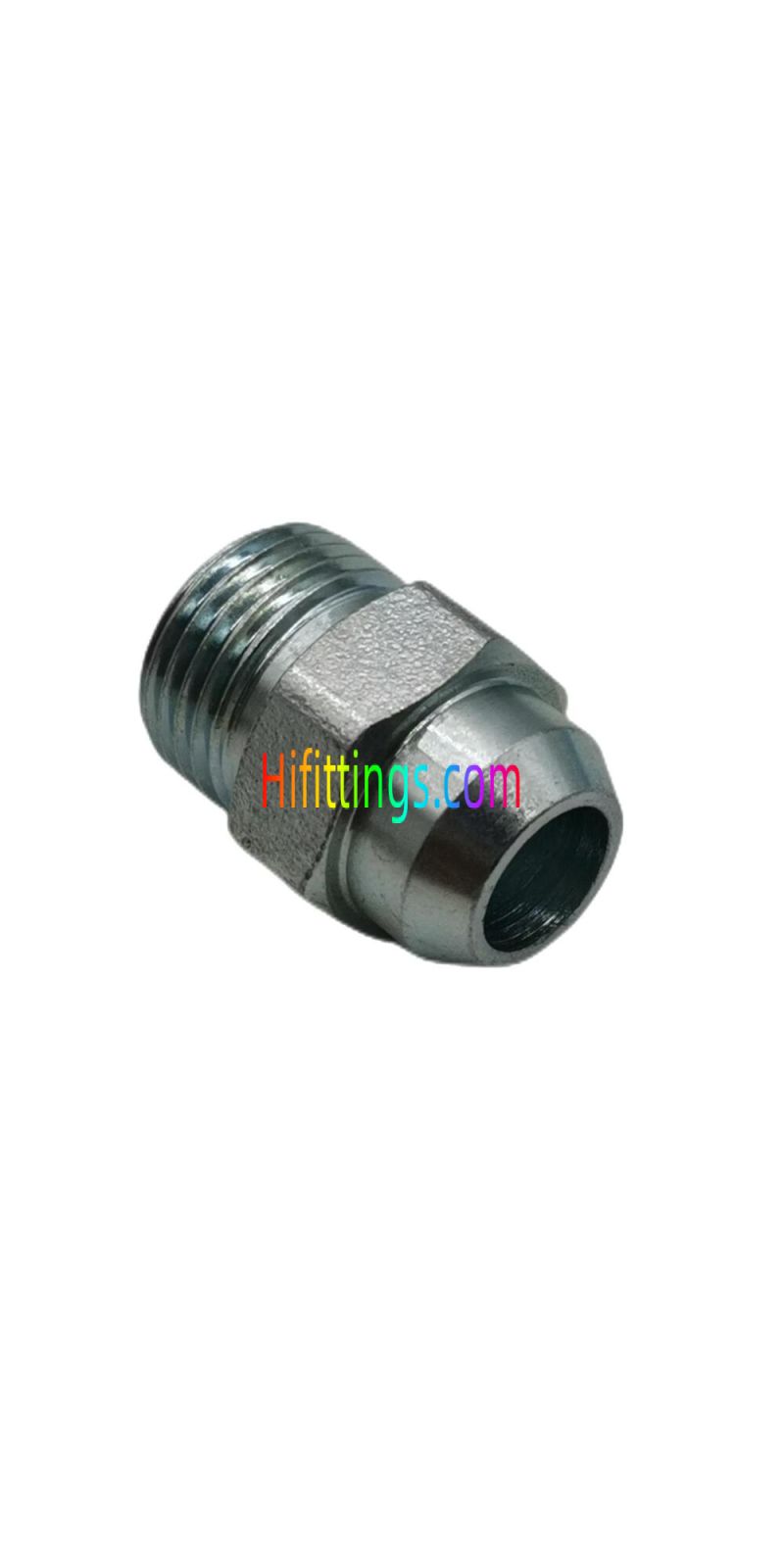

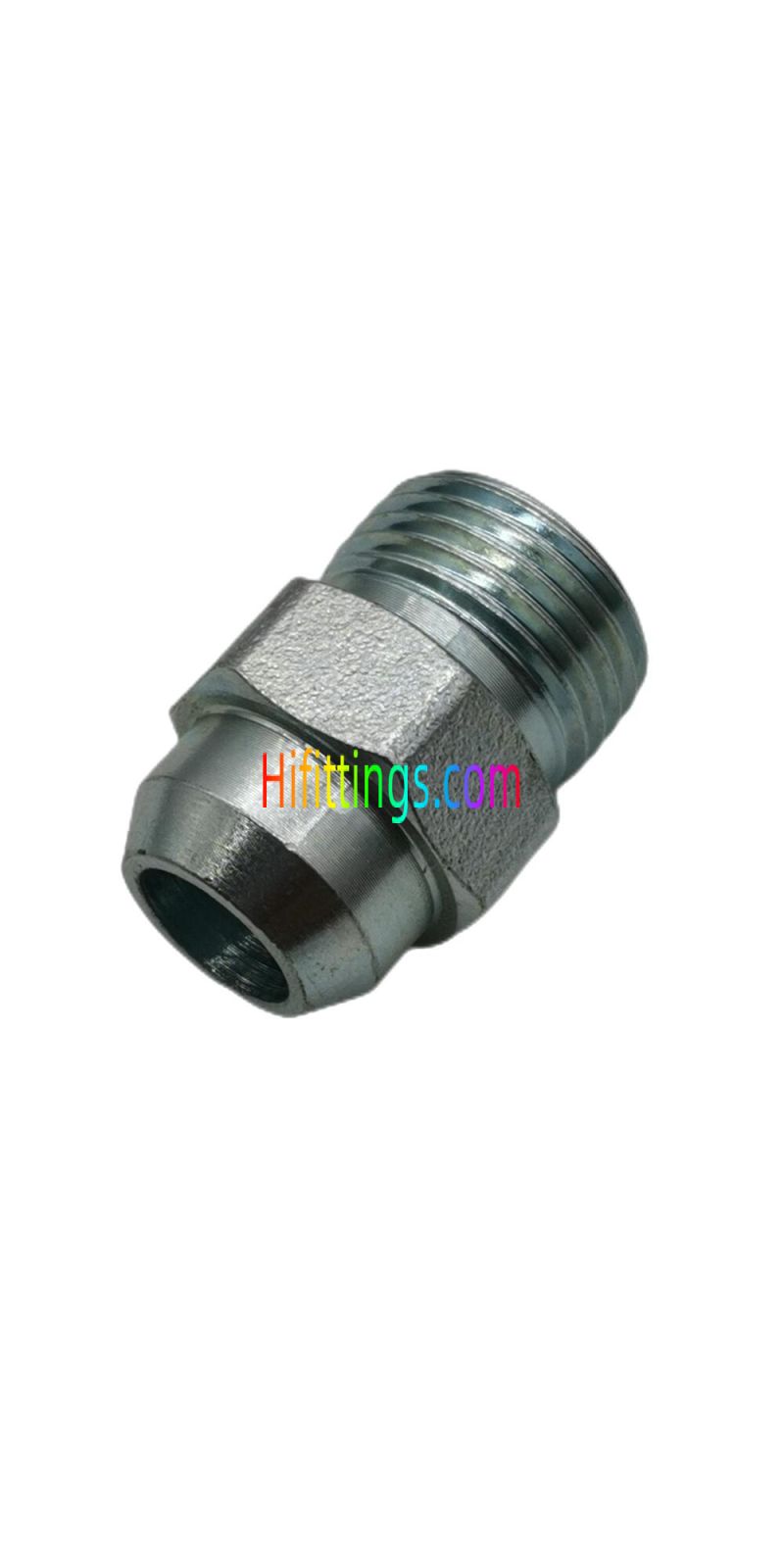

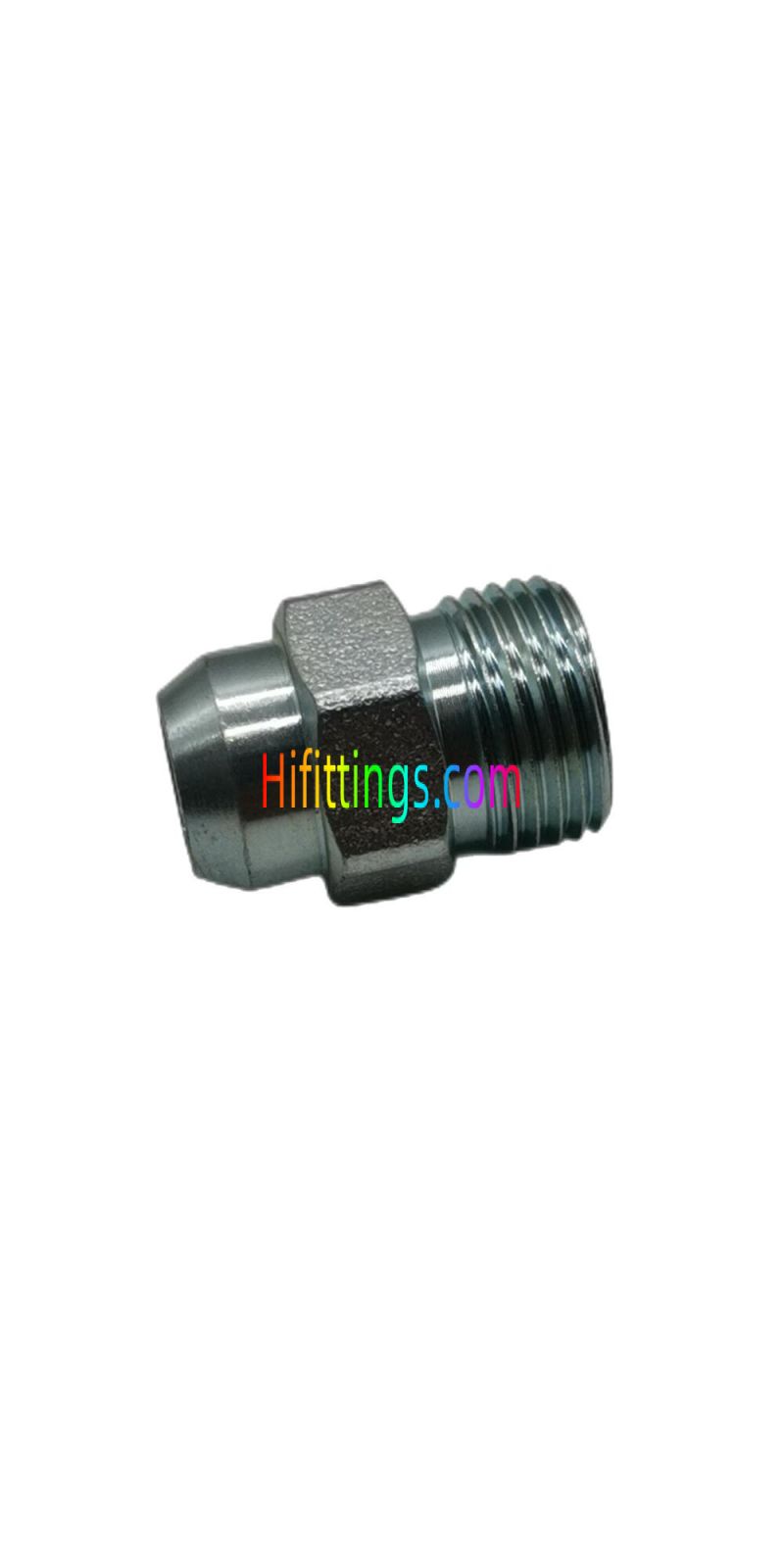

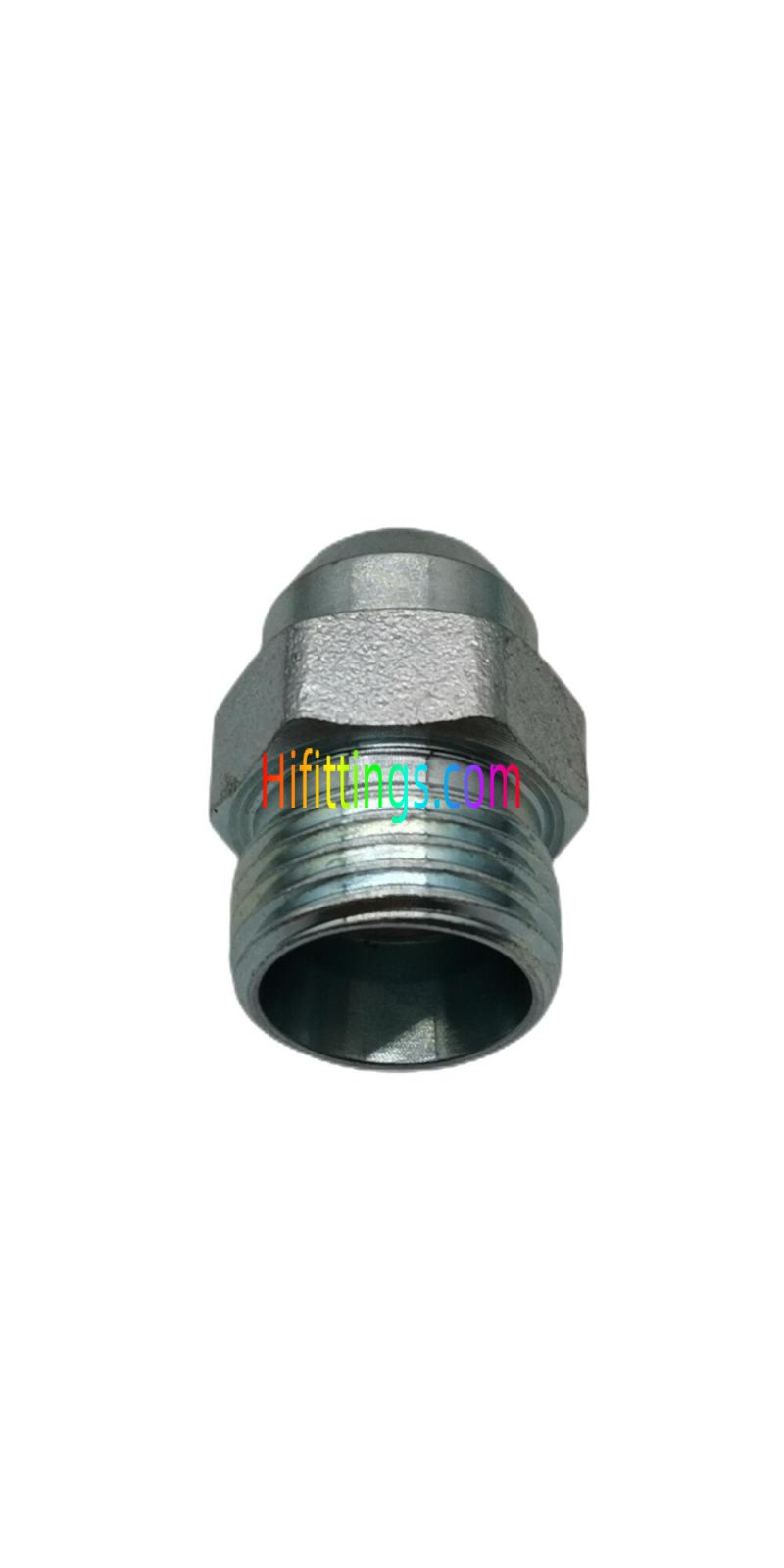

Straight Metric Male Bite Type Weld Tube Fittings 1CW/1DW

Part NO.

E

D1

D2

B

D

11

L1

S1

S2

Working Pressure bar

1 CW-12-06

M12x1.5

6

6

7

10

7

22

12

14

PN315

1 CW-14-08

M 14x1.5

8

8

8

12

8

23

14

17

PN315

1 CW-16-10

M16x1.5

10

10

8

14

9

24

17

19

PN315

1 CW-18-12

M18x1.5

12

12

8

16

10

25

19

22

PN315

1 CW-22-15

M22x1.5

15

15

10

19

11

26

22

27

PN315

1 CW-26-18

M26X1.5

18

18

10

22

11.5

28

27

32

PN315

1 CW-26-22

M26X1.5

18

22

10

27

13.5

28

27

32

PN160

1 CW-30-22

M30x2

22

22

12

27

13.5

30

32

36

PN160

1 CW-30-25

M30x2

22

25

12

31

13.5

30

32

36

PN160

1 CW-36-28

M36x2

28

28

12

32

16.5

33

38

41

PN160

1 CW-45-35

M45X2

35

35

14

40

14.5

36

46

50

PN160

1 CW-52-42

M52X2

42

42

16

46

16

39

55

60

PN160

1DW-14-06

M 14x1.5

6

6

7

11

11

26

14

17

PN630

1DW-16-08

M 16x1.5

8

8

8

13

13

28

17

19

PN630

1DW-18-10

M 18x1.5

10

10

8

15

12.5

29

19

22

PN630

1DW-20-12

M20X1.5

12

12

10

17

14.5

31

22

24

PN630

1DW-22-14

M22x1.5

14

14

10

19

16

34

24

27

PN630

1DW-24-16

M24x1.5

16

16

10

21

15.5

34

27

30

PN400

1DW-30-20

M30x2

20

20

12

26

17.5

39

32

36

PN400

1DW-36-25

M36x2

25

25

12

31

20

44

41

46

PN400

1DW-42-30

M42x2

30

30

14

36

20.5

47

46

50

PN400

1DW-52-38

M52X2

38

38

16

44

23

54

55

60

PN315

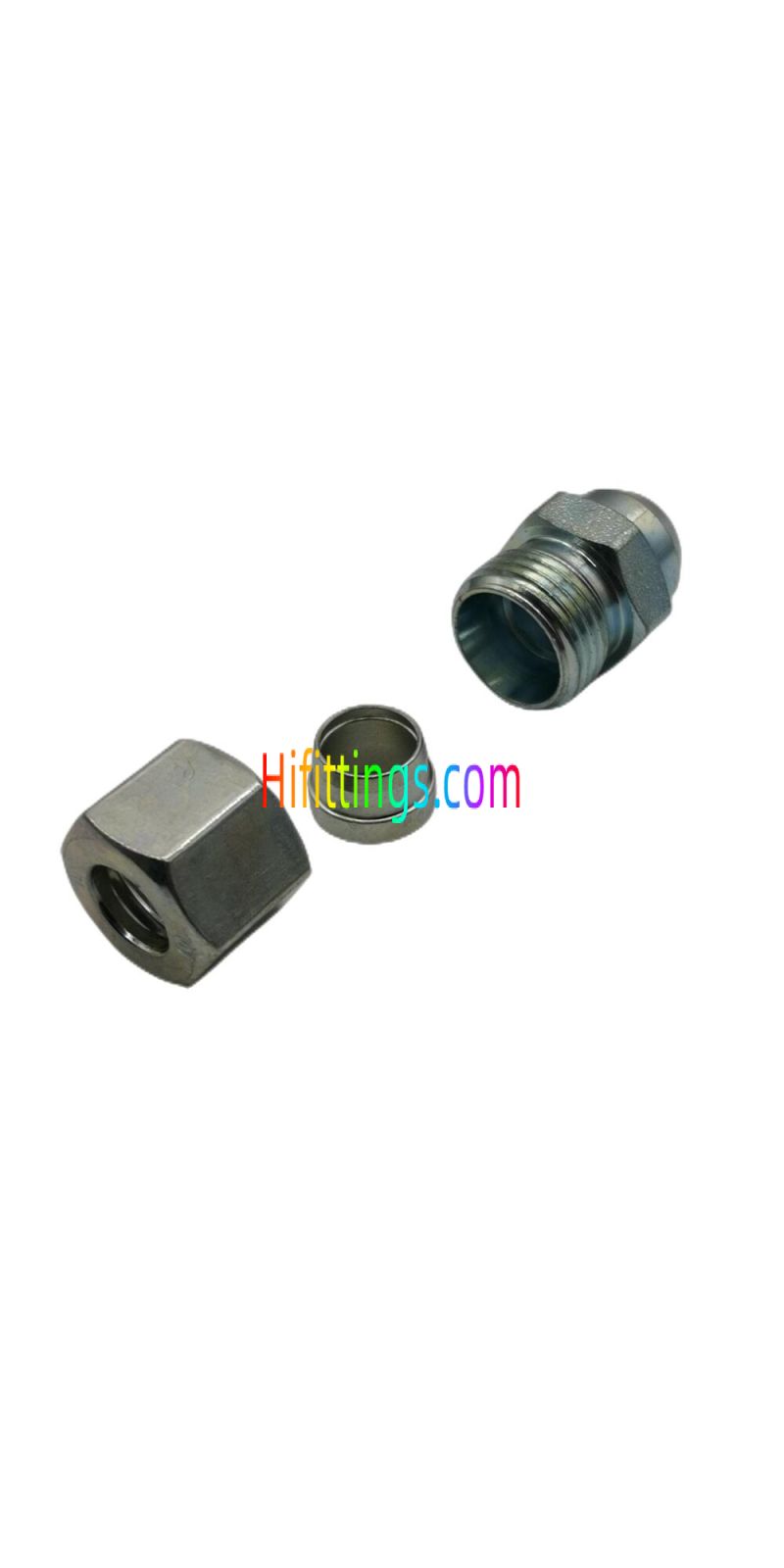

Note: 1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example 1DW-20-12RN.   2. PN = Nominal Pressure
