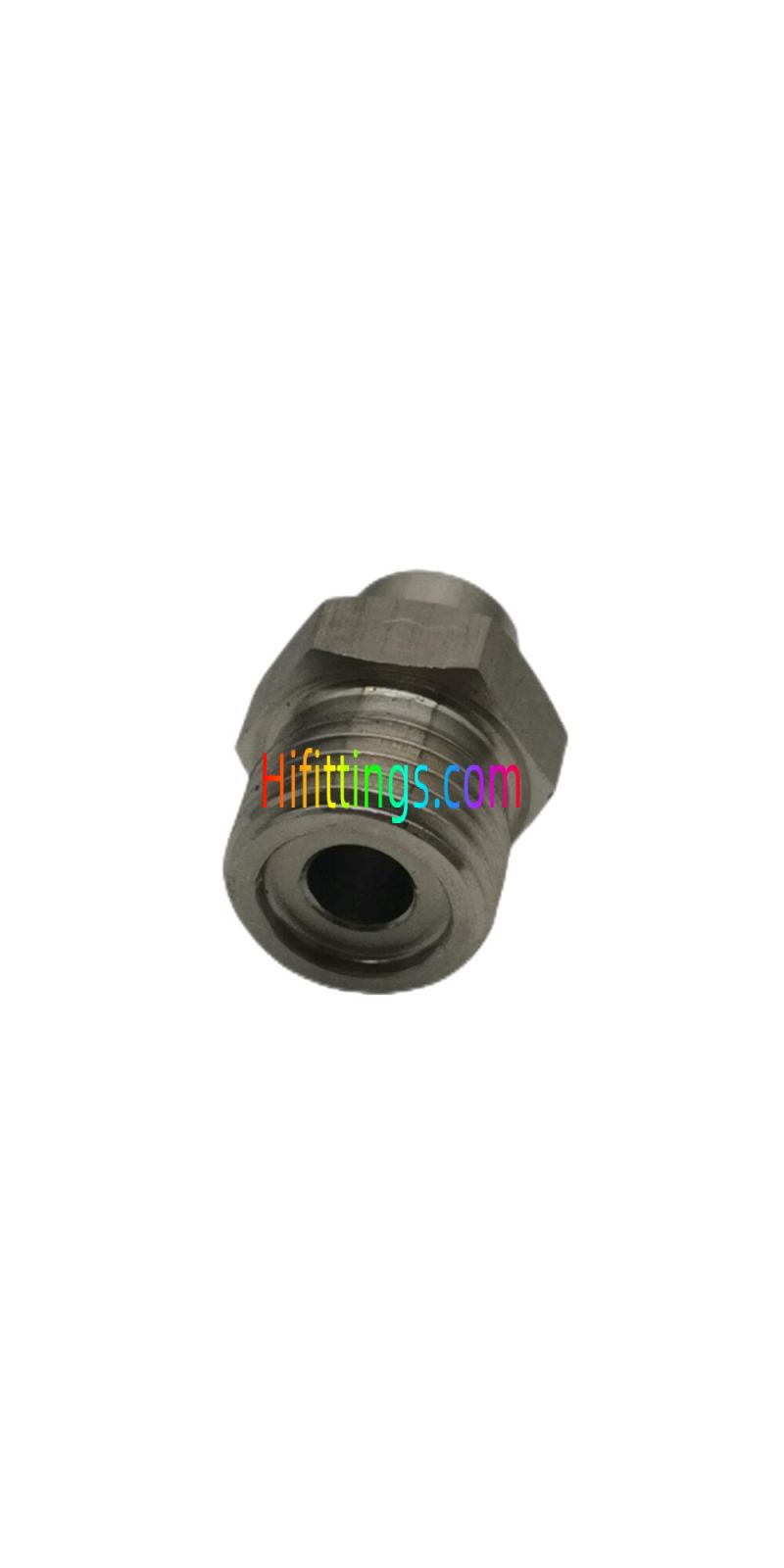

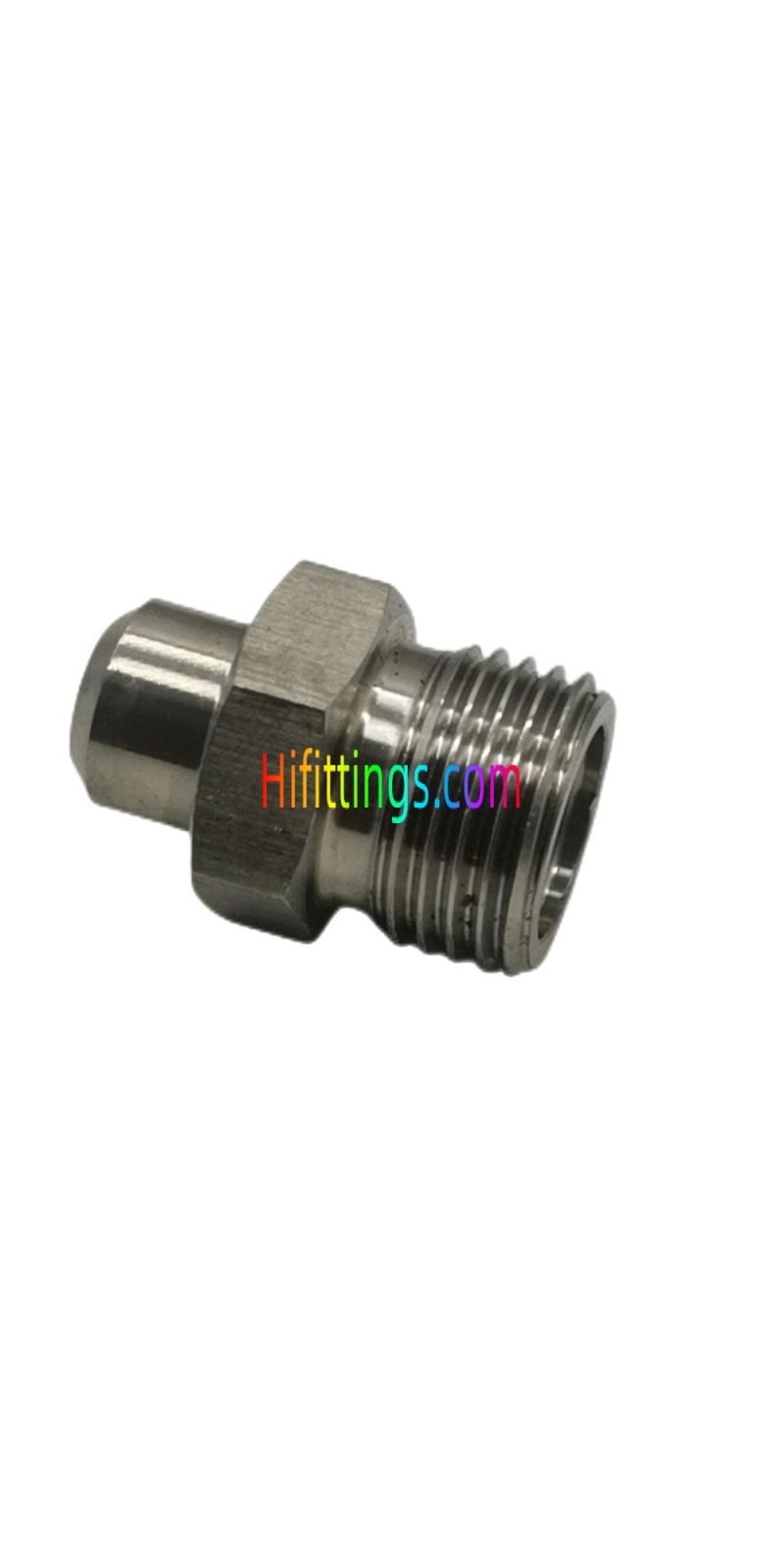

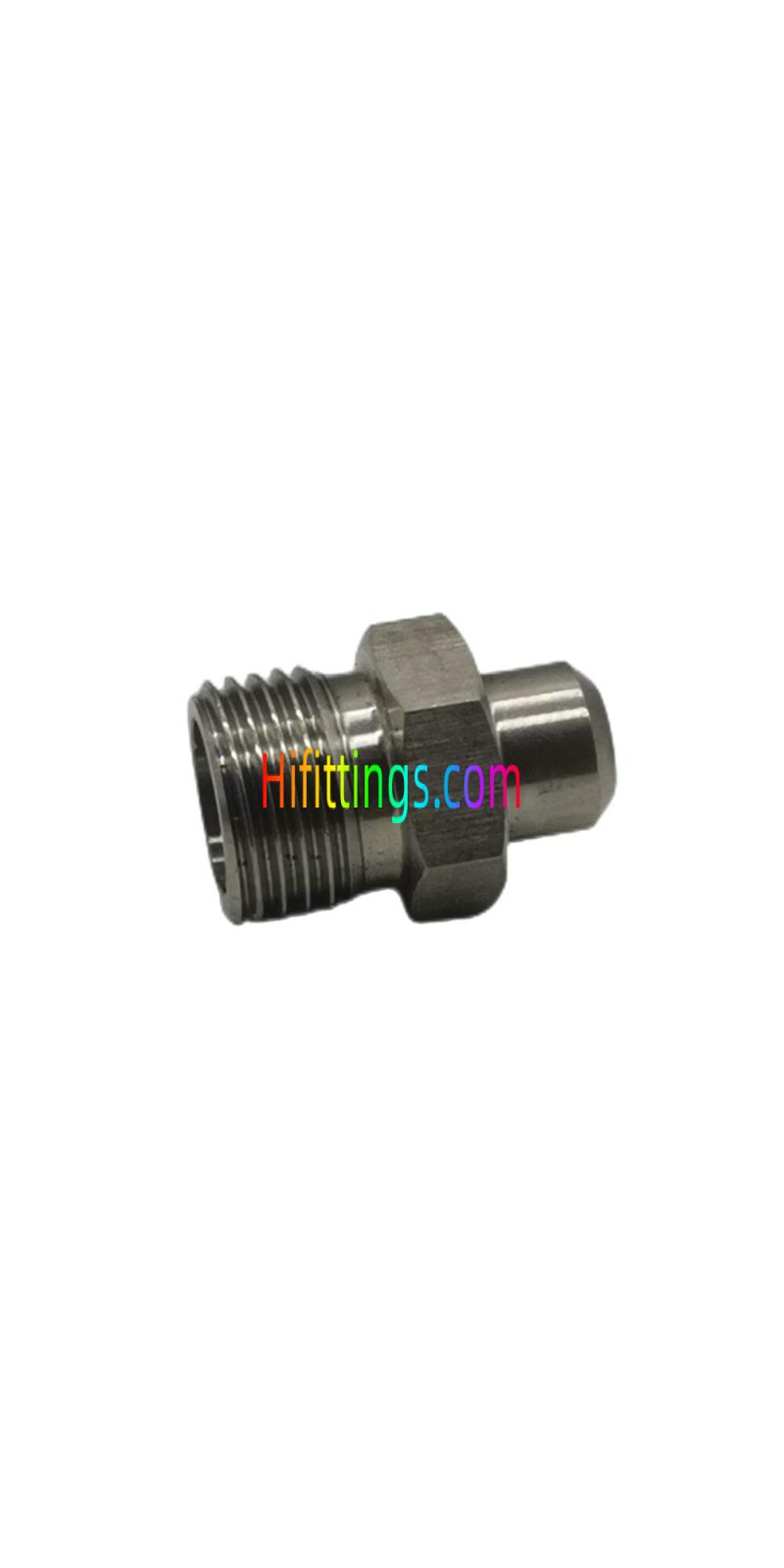

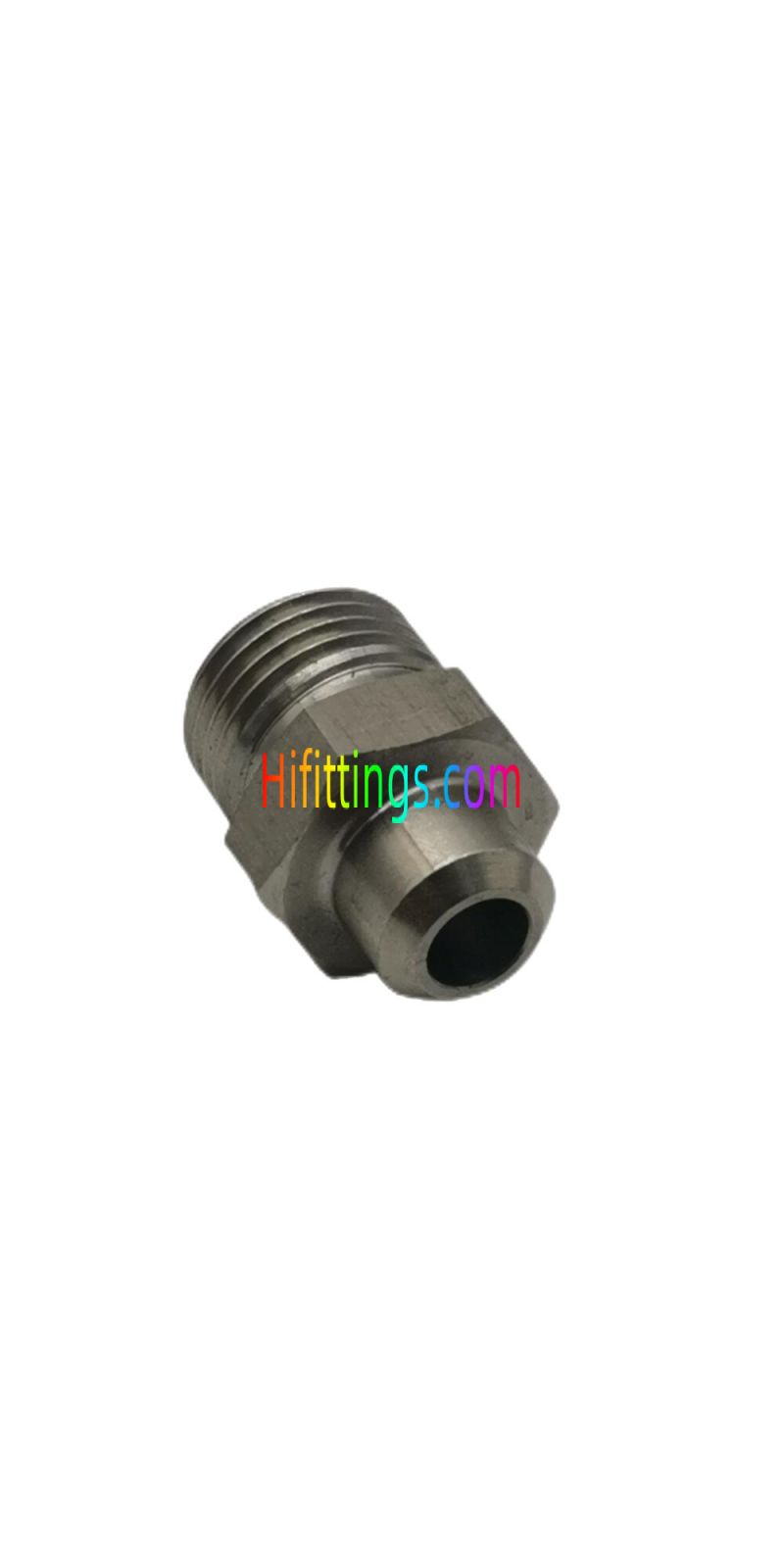

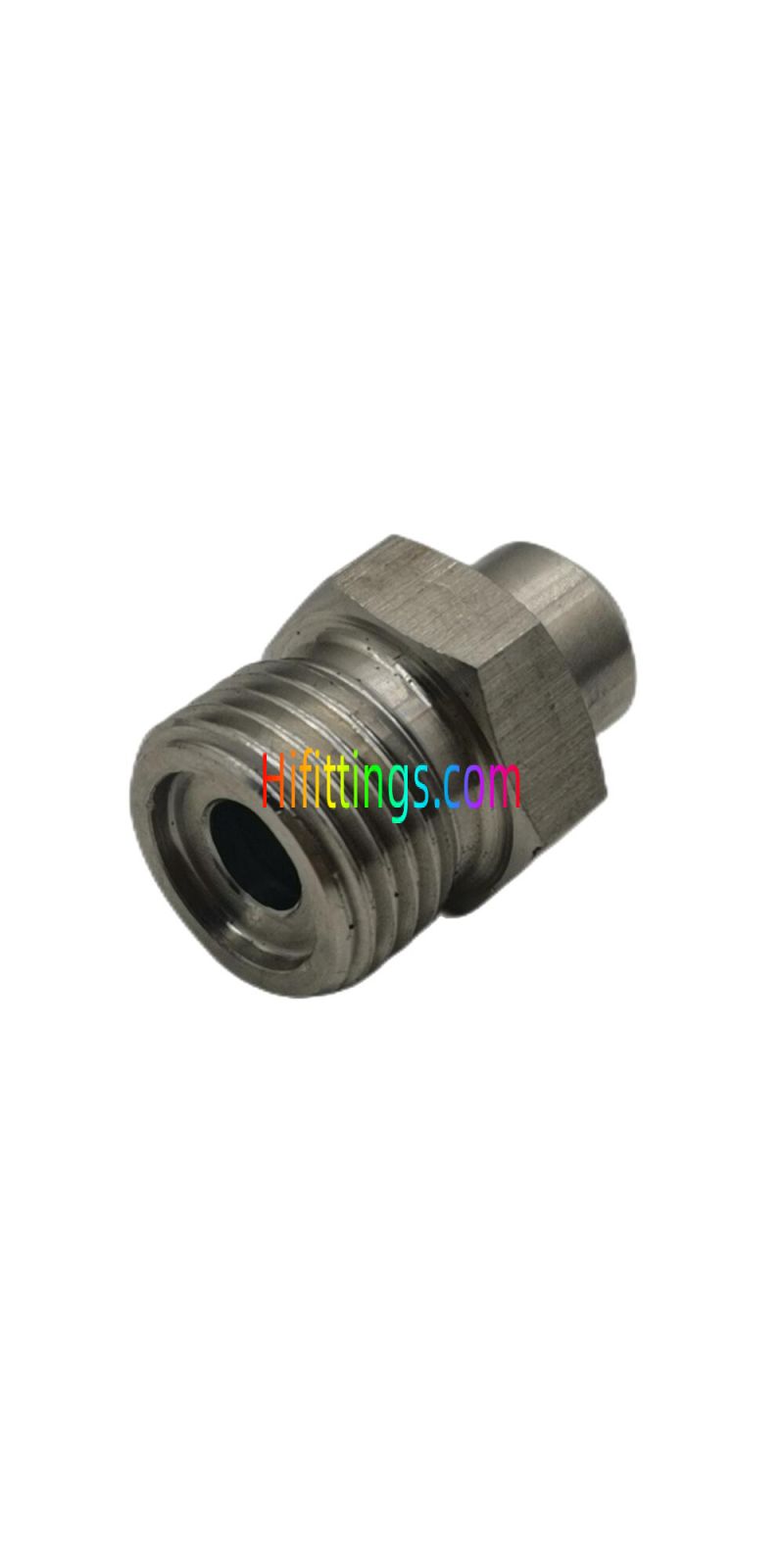

Straight Metric Male O-Ring Face Seal Butt-Weld Tube Fittings 1EW

Add to Wish List
39
In stock
Only %1 left
SKU
1EW

Guarantee safe & secure checkout

No Related Posts

 Straight Metric Male O-Ring Face Seal Butt-Weld Tube Fittings 1EW-Hifittings.com Straight Metric Male O-Ring Face Seal Butt-Weld Tube Fittings 1EW-Hifittings.com

Metric Male O-Ring / Butt-Weld Tube Hydraulic Adapter Pipe Fittings 1EW

Part NO.

E

Tube O.D.

 O-Ring - E  End

A

B

D

L

S1

Working Pressure bar

1EW-12-06

M12X1.25

6

8X1.9

11

8

6

24

14

PN630

1EW-14-08

M14X1.5

8

10X1.9

11

8

8

25

17

PN630

1EW-16-10

M16X1.5

10

11X1.9

11

8

10

25

17

PN630

1EW-18-12

M18X1.5

12

13X1.9

11

12

12

29

19

PN630

1EW-22-14

M22X1.5

14

16X2.4

12

12

14

32.5

24

PN630

1EW-27-18

M27X1.5

18

20X2.4

13

12

18

35

30

PN400

1EW-30-22

M30X1.5

22

24X2.4

14

14

22

39

32

PN400

1EW-36-28

M36X2

28

30X3.1

16

16

28

43

38

PN400

1EW-39-30

M39X2

30

32X3.1

18

16

30

47

41

PN250

1EW-42-34

M42X2

34

35X3.1

20

16

34

49

46

PN250

1EW-45-38

M45X2

38

38X3.1

21

18

38

51

46

PN250

1EW-52-42

M52X2

42

40X3.1

22

18

42

55

55

PN250

Note: 1. The parameter of  E end O-ring is ring outside diameter and ring width.   2. PN = Nominal Pressure

More Information
Shape Straight
Thread Type Male
Connection Type Metric, Weld
Fitting Type Face Seal, Weld
