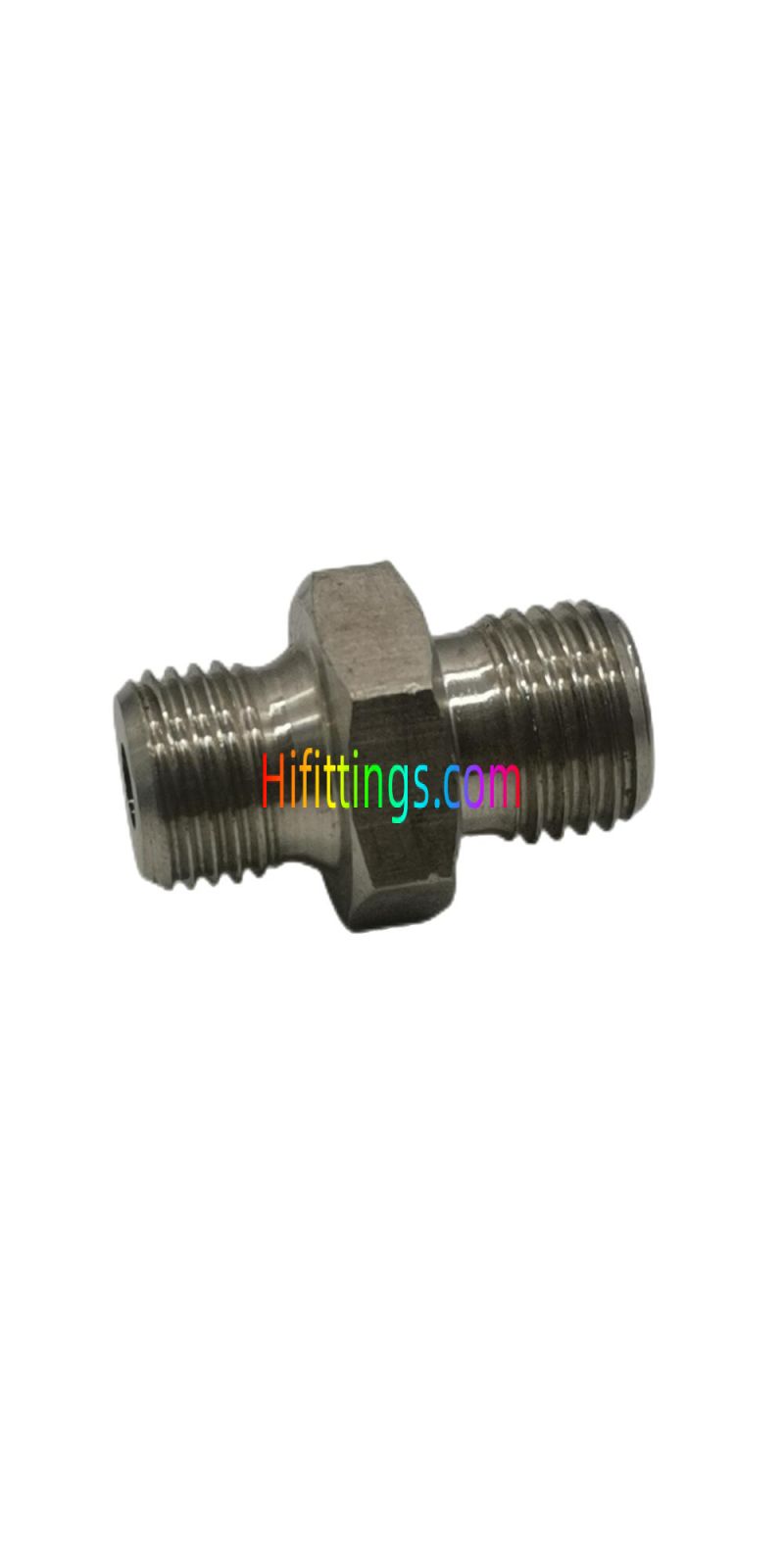

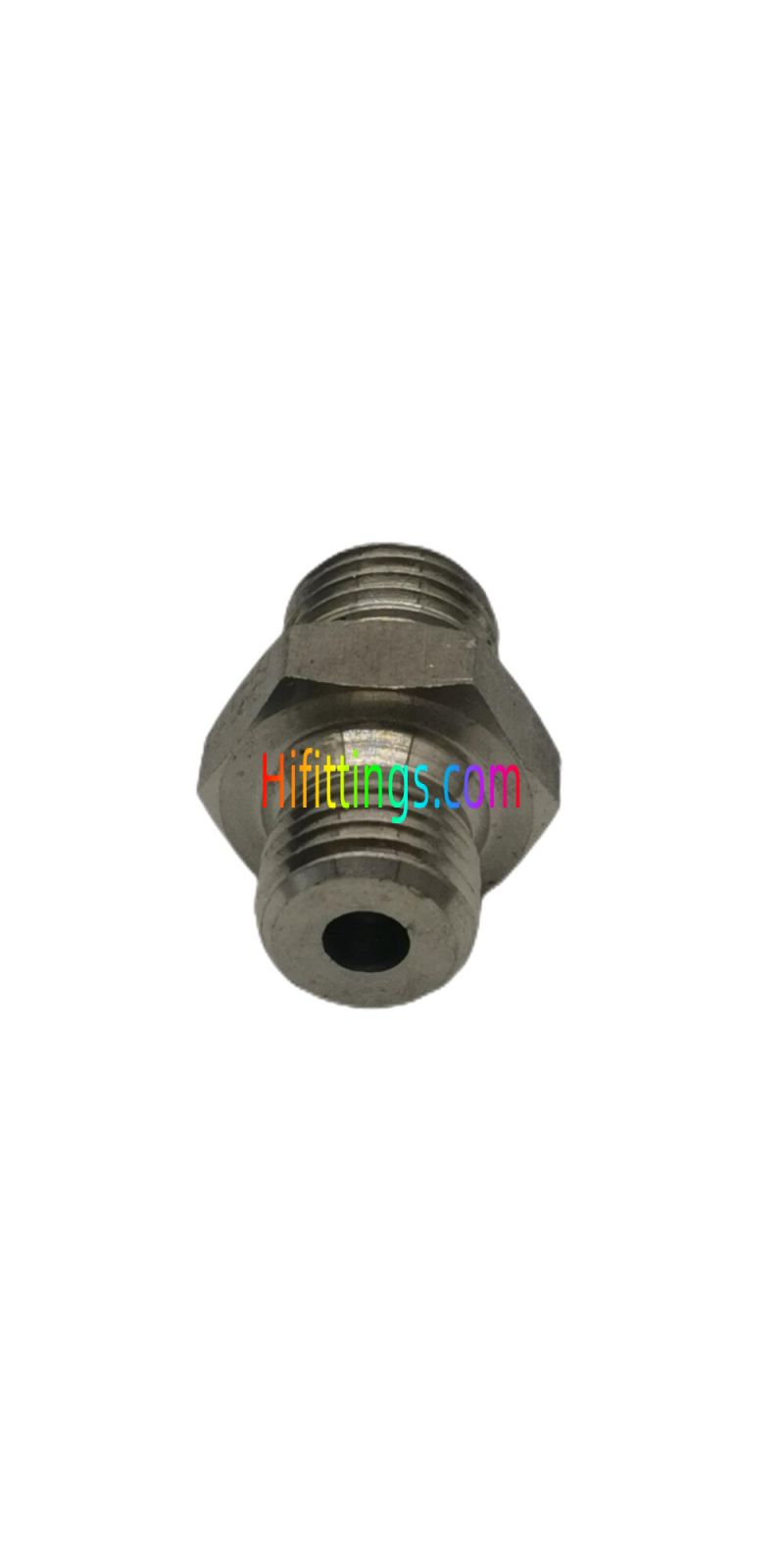

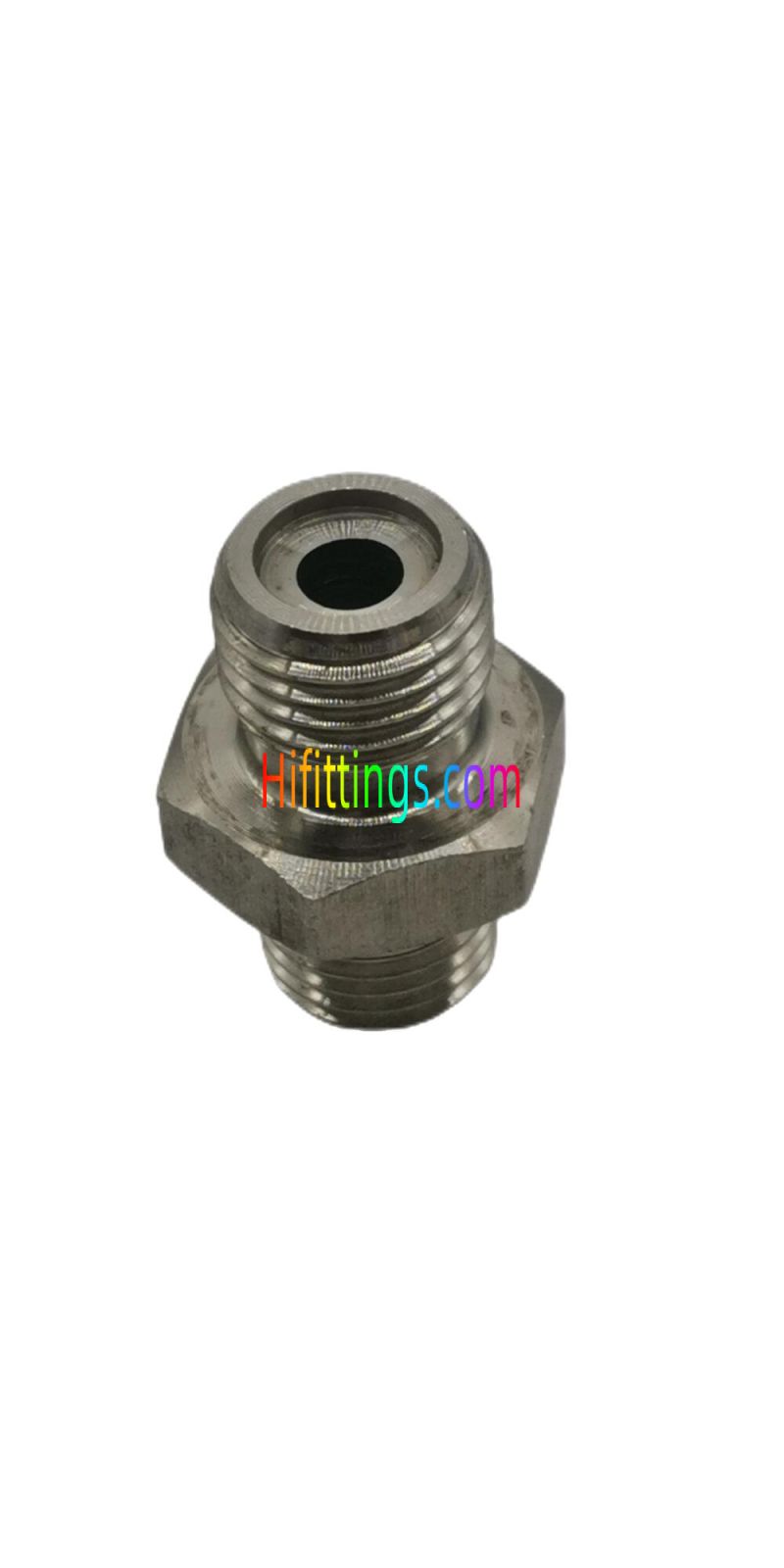

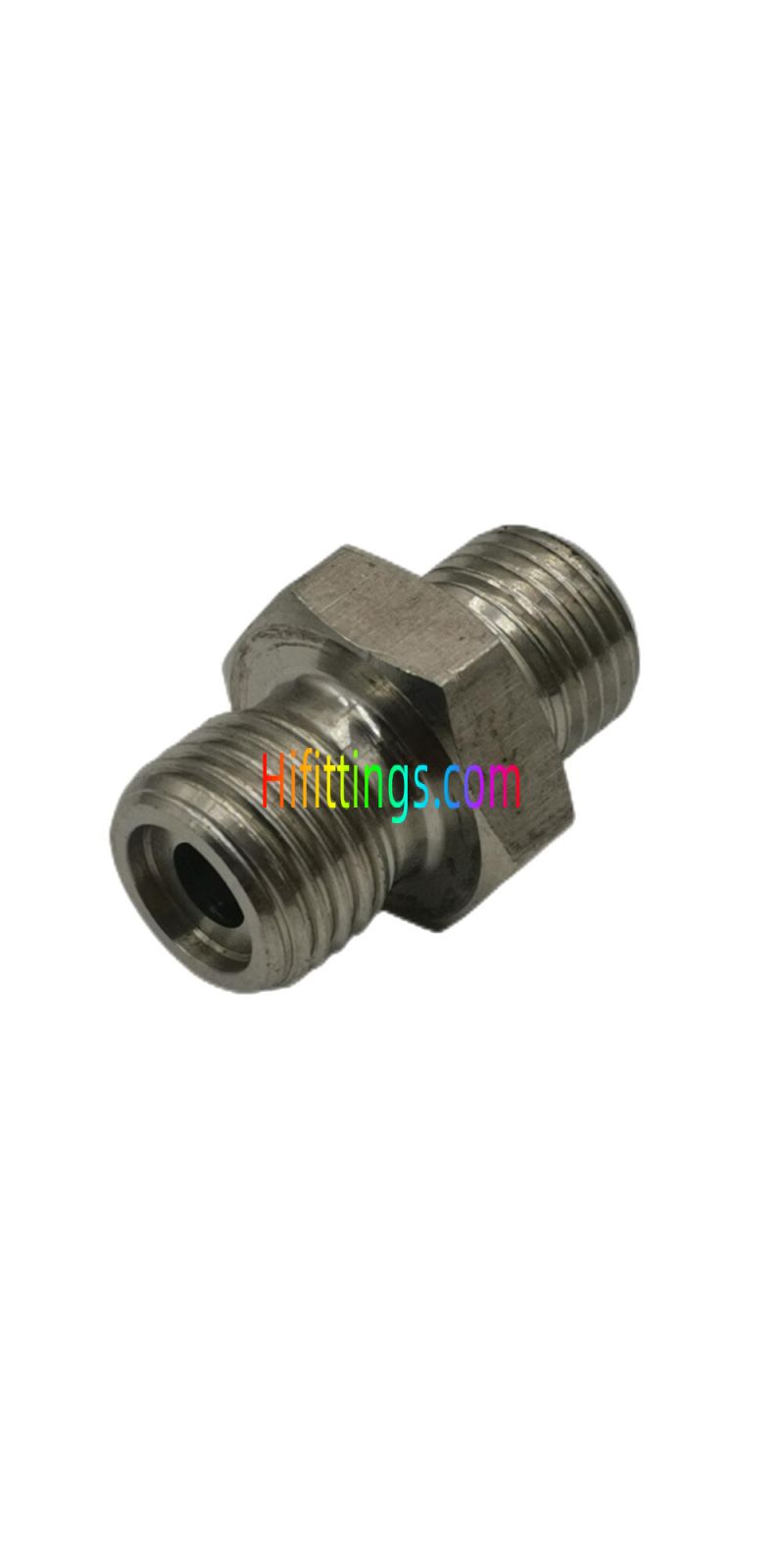

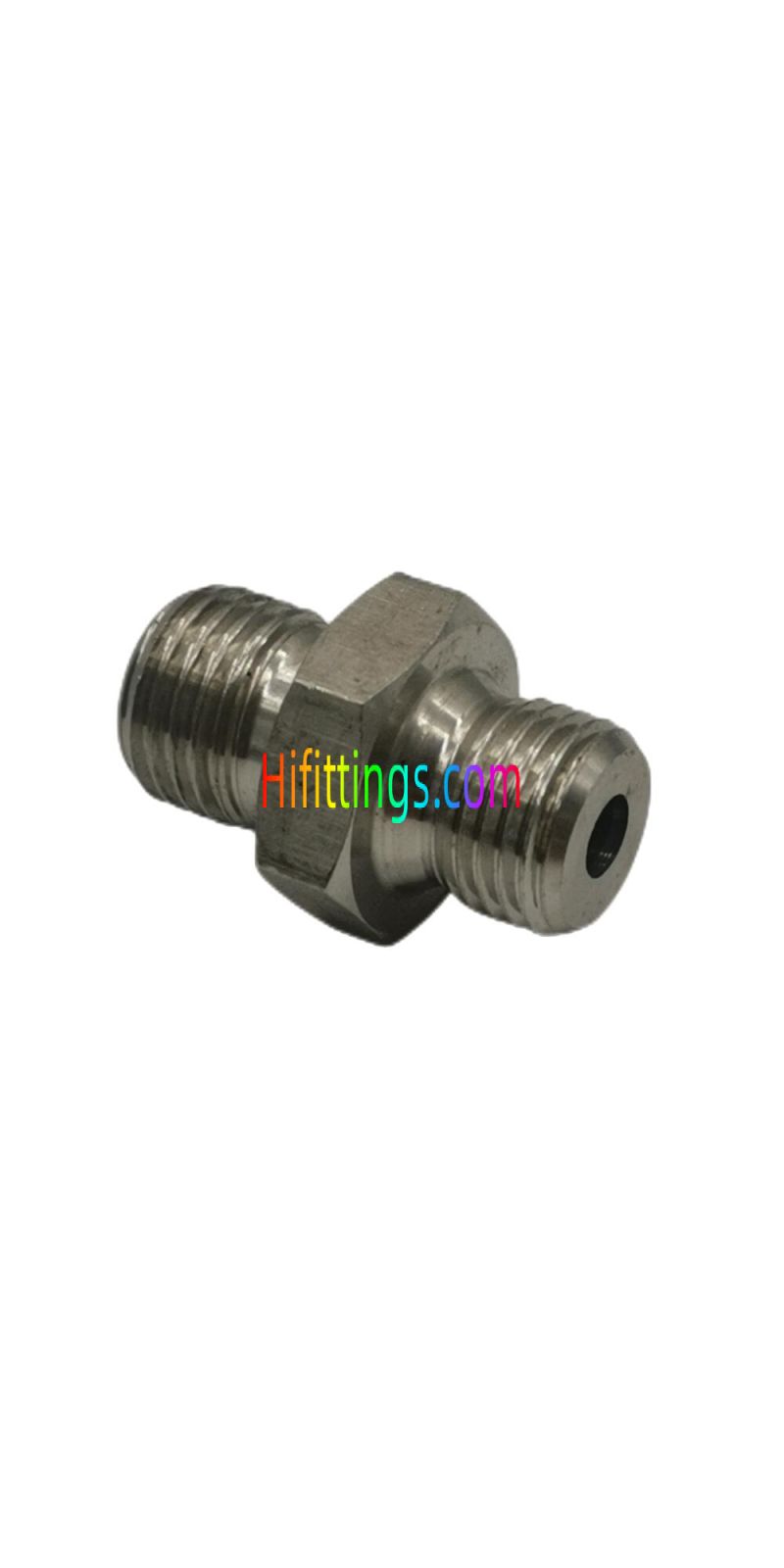

Straight Metric Male O-Ring Face Seal Fittings With Bonded Seal 1EL

Add to Wish List
28
In stock
Only %1 left
SKU
1EL

Guarantee safe & secure checkout

No Related Posts

 Straight Metric Male O-Ring Face Seal Fittings With Bonded Seal 1EL-Hifittings.com Straight Metric Male O-Ring Face Seal Fittings With Bonded Seal 1EL-Hifittings.com
Metric Male O-Ring / Metric Male With Bonded Seal Hydraulic Adapter Pipe Fittings 1EL

Part  NO.

E

F

Seal - E  End

Seal -F  End

A

B

L

S1

Working Pressure bar

1 EL-14

M14X1.5

M14X1.5

10X1.9

ZHD-14

11

12

30.5

19

PN400

1 EL-14-16

M14X1.5

M16X1.5

10X1.9

ZHD-16

11

12

31

22

PN400

1 EL-14-18

M14X1.5

M18X1.5

10X1.9

ZHD-18

11

12

32.5

24

PN400

1 EL-14-22

M14X1.5

M22X1.5

10X1.9

ZHD-22

11

14

36.5

27

PN400

1 EL-16-14

M16X1.5

M14X1.5

11X1.9

ZHD-14

11

12

29

19

PN400

1 EL-16-18

M16X1.5

M18X1.5

11X1.9

ZHD-16

11

12

31

24

PN400

1 EL-22-18

M22X1.5

M18X1.5

16X2.4

ZHD-18

12

12

33.5

24

PN400

1 EL-27-22

M27X1.5

M22X1.5

18X2.4

ZHD-22

13

14

38.5

30

PN400

1 EL-27-33

M27X1.5

M33X2

18X2.4

ZHD-33

13

18

44

41

PN400

1 EL-30-18

M30X1.5

M18X1.5

24X2.4

ZHD-18

14

12

38.5

32

PN400

1 EL-30-27

M30X1.5

M27X2

24X2.4

ZHD-27

14

16

41

34

PN400

1 EL-36-33

M36X2

M33X2

30X3.1

ZHD-33

16

18

49

41

PN250

1 EL-36-48

M36X2

M48X2

30X3.1

ZHD-48

16

22

53

60

PN250

1 EL-45-42

M45X2

M42X2

38X3.1

ZHD-42

21

20

56

50

PN250

1 EL-52-48

M52X2

M48X2

40X3.1

ZHD-48

22

22

61

60

PN250

Note: 1. The parameter of O-ring is ring outside diameter and ring width.   2. PN = Nominal Pressure.

More Information
Shape Straight
Thread Type Male
Connection Type Metric
Fitting Type Face Seal
