Straight Metric Male Stud End Bite Type Tube Fittings 1CH/1DH

Add to Wish List
44
In stock
Only %1 left
SKU
1CH

Guarantee safe & secure checkout

No Related Posts

 Straight  Metric Male Stud End Bite Type Tube Fittings 1CH/1DH- hifittings.com Straight  Metric Male Stud End Bite Type Tube Fittings 1CH/1DH- hifittings.com

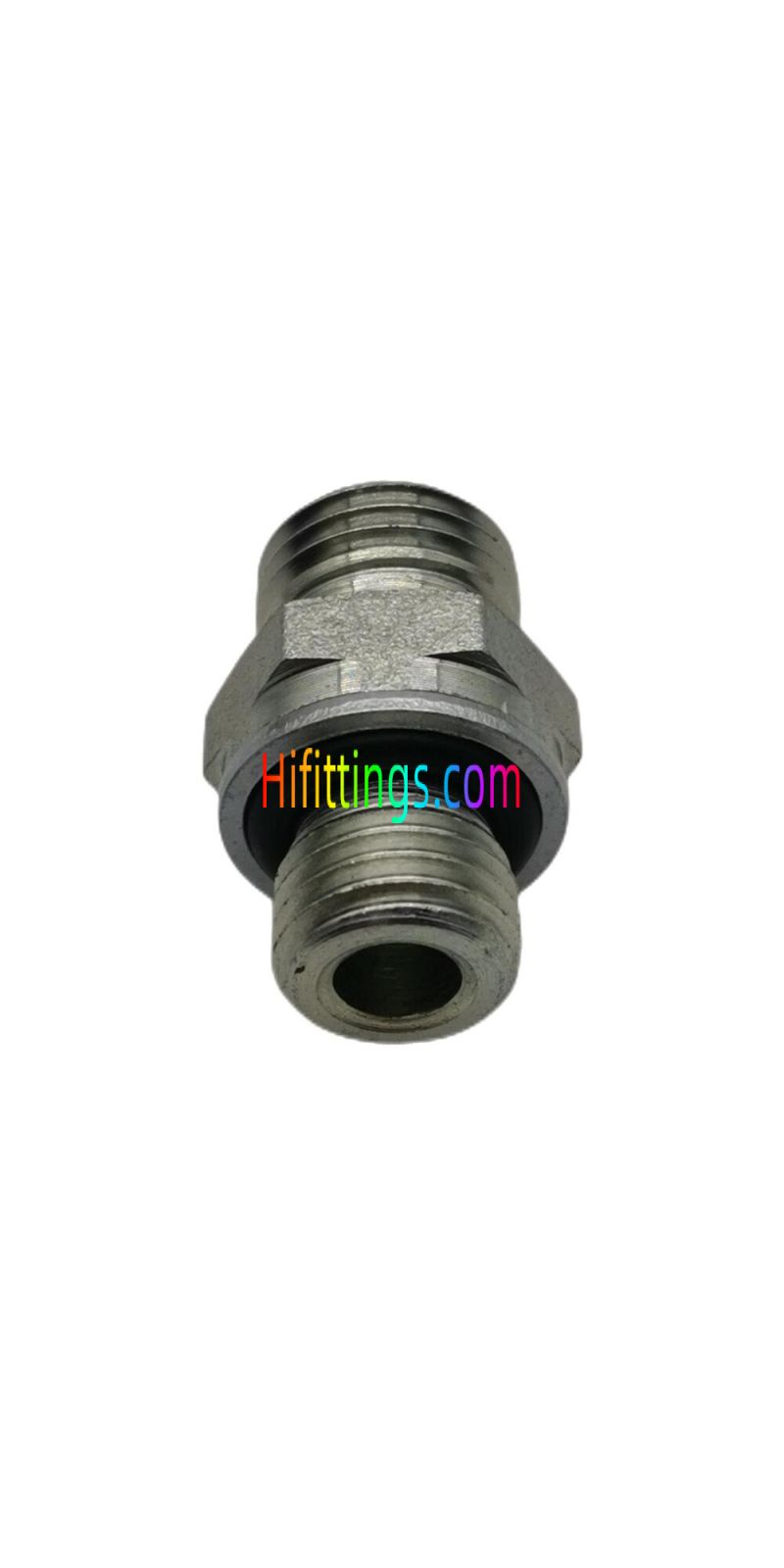

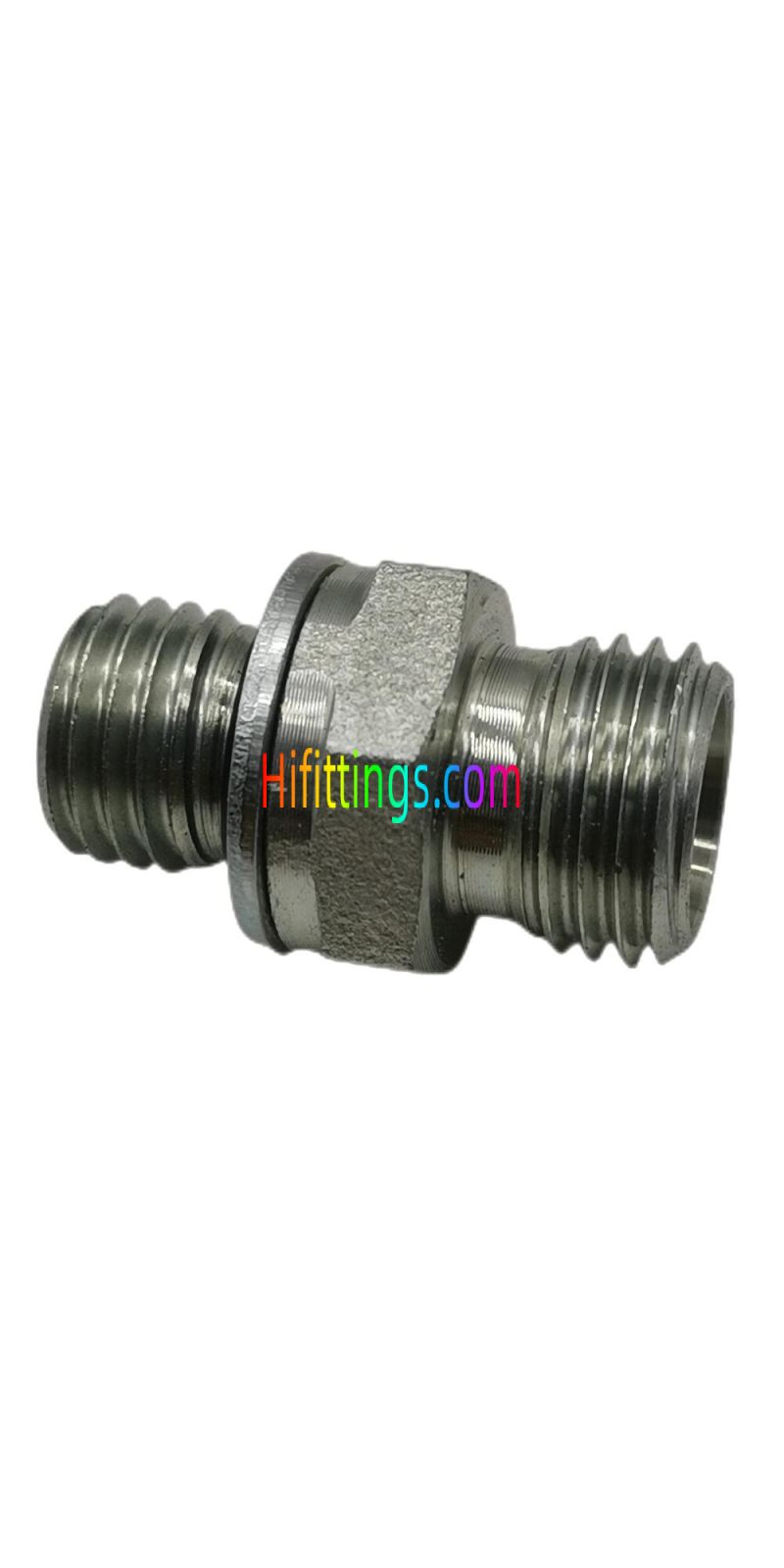

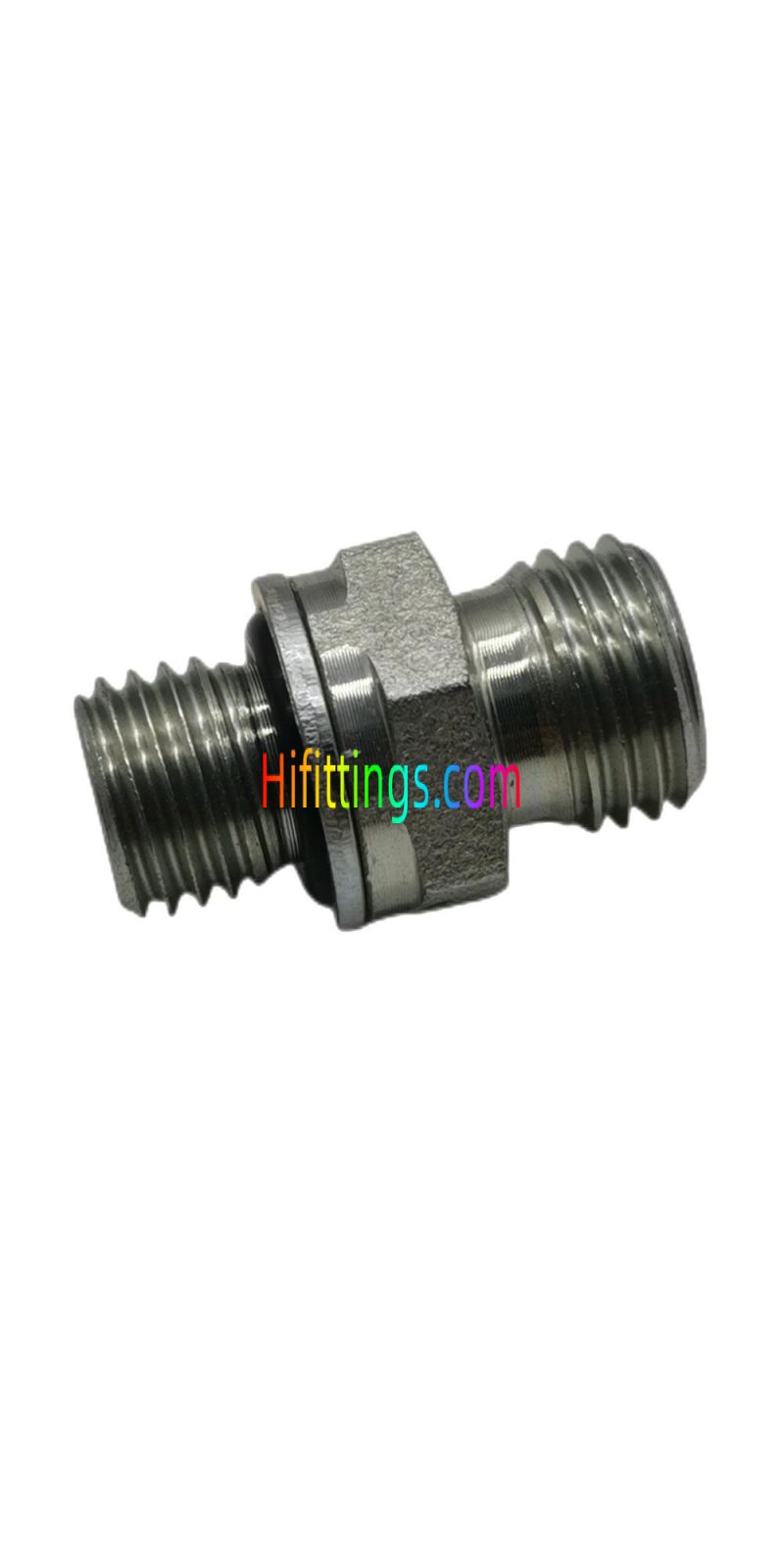

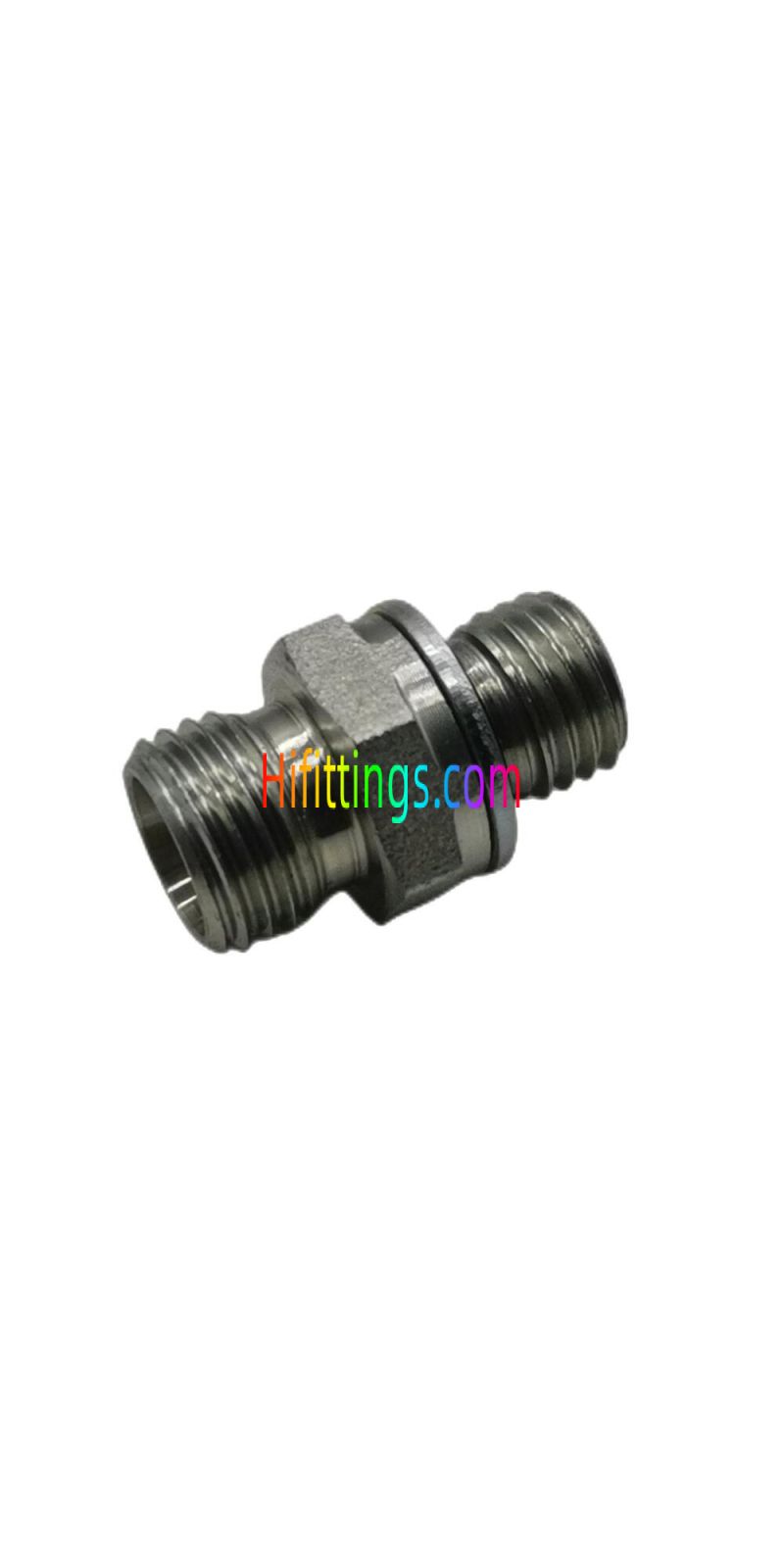

Straight Metric Male Stud End Bite Type Tube Fittings 1CH/1DH

Part  NO.

E

F

D1

O-Ring

B

11

L1

S1

S2

Working Pressure  bar

1CH-12-10

M12X1.5

M10X1

6

8.1X1.6

8.5

9.5

23

14

14

PN315

1CH-14

M14X1.5

M14X1.5

8

11.3X2.4

11

10

25

19

17

PN315

1CH-14-12

M14X1.5

M12X1.5

8

9.3X2.4

11

10

25

17

17

PN315

1CH-16-14

M16X1.5

M14X1.5

10

11.3X2.4

11

13

26

19

19

PN315

1CH-18-14

M18X1.5

M14X1.5

12

11.3X2.4

11

11

25.5

19

22

PN315

1CH-14-18

M14X1.5

M18X1.5

8

15.3X2.4

12.5

11.5

26.5

24

17

PN315

1CH-16

M16X1.5

M16X1.5

10

13.3X2.4

11.5

13

28

22

19

PN315

1CH-16-18

M16X1.5

M18X1.5

10

15.3X2.4

12.5

12.5

28

24

19

PN315

1CH-18-16

M18X1.5

M16X1.5

12

13.3X2.4

11.5

12

27

22

22

PN315

1CH-22-16

M22X1.5

M16X1.5

12

13.3X2.4

11.5

13.5

29.5

24

27

PN315

1CH-22-18

M22X1.5

M18X1.5

15

15.3X2.4

12.5

13.5

29

24

27

PN315

1CH-16-22

M16X1.5

M22X1.5

10

19.3X2.4

13

14

29.5

27

19

PN315

1CH-22-20

M22X1.5

M20X1.5

15

17.3X2.4

12

15

30.5

27

27

PN315

1CH-22

M22X1.5

M22X1.5

12

19.3X2.4

13

15

31

27

27

PN315

1CH-26-22

M26X1.5

M22X1.5

18

19.3X2.4

13

14.5

31

27

32

PN315

1CH-26

M26X1.5

M26X1.5

18

23.5X3.0

13.5

13.5

31

32

32

PN315

1CH-26-27

M26X1.5

M27X2

18

23.5X3.0

16

14.5

32

32

32

PN315

1CH-26-33

M26X1.5

M33X2

18

29.5X3.0

16

15.5

33

41

32

PN315

1CH-30-22

M30X2

M22X1.5

22

19.3X2.4

13

17.5

33

32

41

PN160

1CH-30-27

M30X2

M27X2

22

23.5X3.0

16

16.5

33

32

36

PN160

1CH-30

M30X2

M30X2

22

26.5X3.0

16

17.5

33

36

36

PN160

1CH-36-27

M36X2

M27X2

28

23.5X3.0

16

17.5

34

41

41

PN160

1CH-36-33

M36X2

M33X2

28

29.5X3.0

16

17.5

34

41

41

PN160

1CH-36-42

M36X2

M42X2

28

38.5X3.0

16

18.5

35

50

41

PN160

1CH-45-33

M45X2

M33X2

35

29.5X3.0

16

17.5

37

46

50

PN160

1CH-45-42

M45X2

M42X2

35

38.5X3.0

16

17.5

37

50

50

PN160

1CH-52-48

M52X2

M48X2

42

44.5X3.0

17.5

19

42

55

60

PN160

1DH-14

M14X1.5

M14X1.5

6

11.3X2.4

11

15

28

19

17

PN630

1DH-14-12

M14X1.5

M12X1.5

6

9.3X2.4

11

13

28

17

17

PN630

1DH-16-14

M16X1.5

M14X1.5

8

11.3X2.4

11

15

30

19

19

PN630

1DH-18-16

M18X1.5

M16X1.5

10

13.3X2.4

11.5

15

31

22

22

PN630

1DH-20-14

M20X1.5

M14X1.5

12

11.3X2.4

11

15

31

22

24

PN630

1DH-20-16

M20X1.5

M16X1.5

12

13.3X2.4

11.5

15

31

22

24

PN630

1DH-20-18

M20X1.5

M18X1.5

12

15.3X2.4

12.5

17

33

24

24

PN630

1DH-20-22

M20X1.5

M22X1.5

12

19.3X2.4

13

17.5

35

27

30

PN630

1DH-24-22

M24X1.5

M22X1.5

16

19.3X2.4

13

18.5

37

27

30

PN400

1DH-30

M30X2

M30X2

20

26.5X3.0

16

20.5

42

36

36

PN400

1DH-30-27

M30X2

M27X2

20

23.5X3.0

16

20.5

42

32

36

PN400

1DH-30-33

M30X2

M33X2

20

29.5X3.0

16

22.5

42

41

36

PN400

1DH-36-27

M36X2

M27X2

25

23.5X3.0

16

23

47

41

46

PN400

1DH-36-33

M36X2

M33X2

25

29.5X3.0

16

23

47

41

46

PN400

1DH-42

M42X2

M42X2

30

38.5X3.0

16

23.5

50

50

50

PN400

1DH-42-48

M42X2

M48X2

30

44.5X3.0

17.5

26.5

52

55

50

PN400

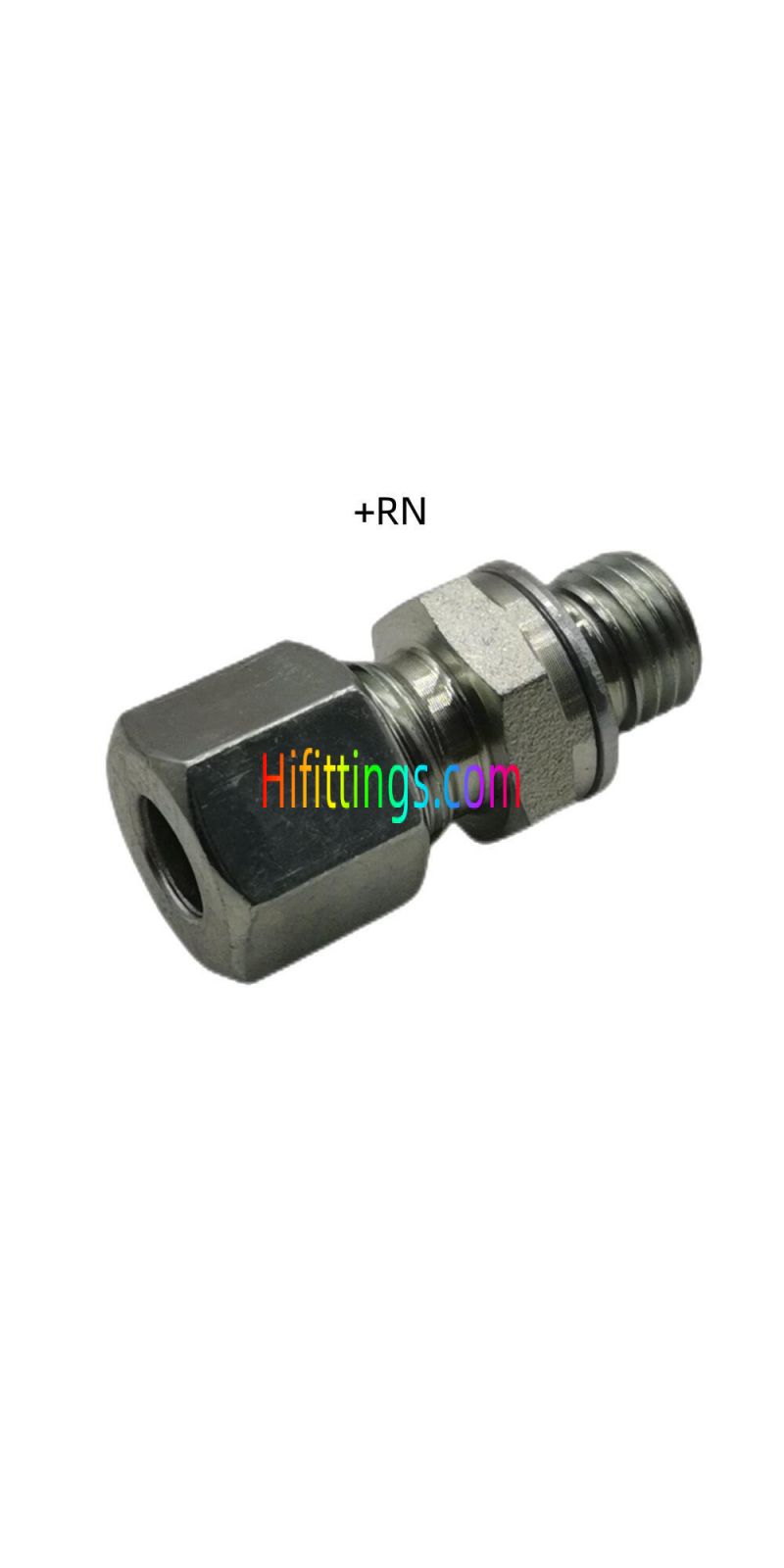

Note: 1.  In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after

our part NO. , for example 1DH-20-18RN.   2. PN = Nominal Pressure

More Information
Shape Straight
Thread Type Male
Connection Type Metric
Fitting Type Bite Type
