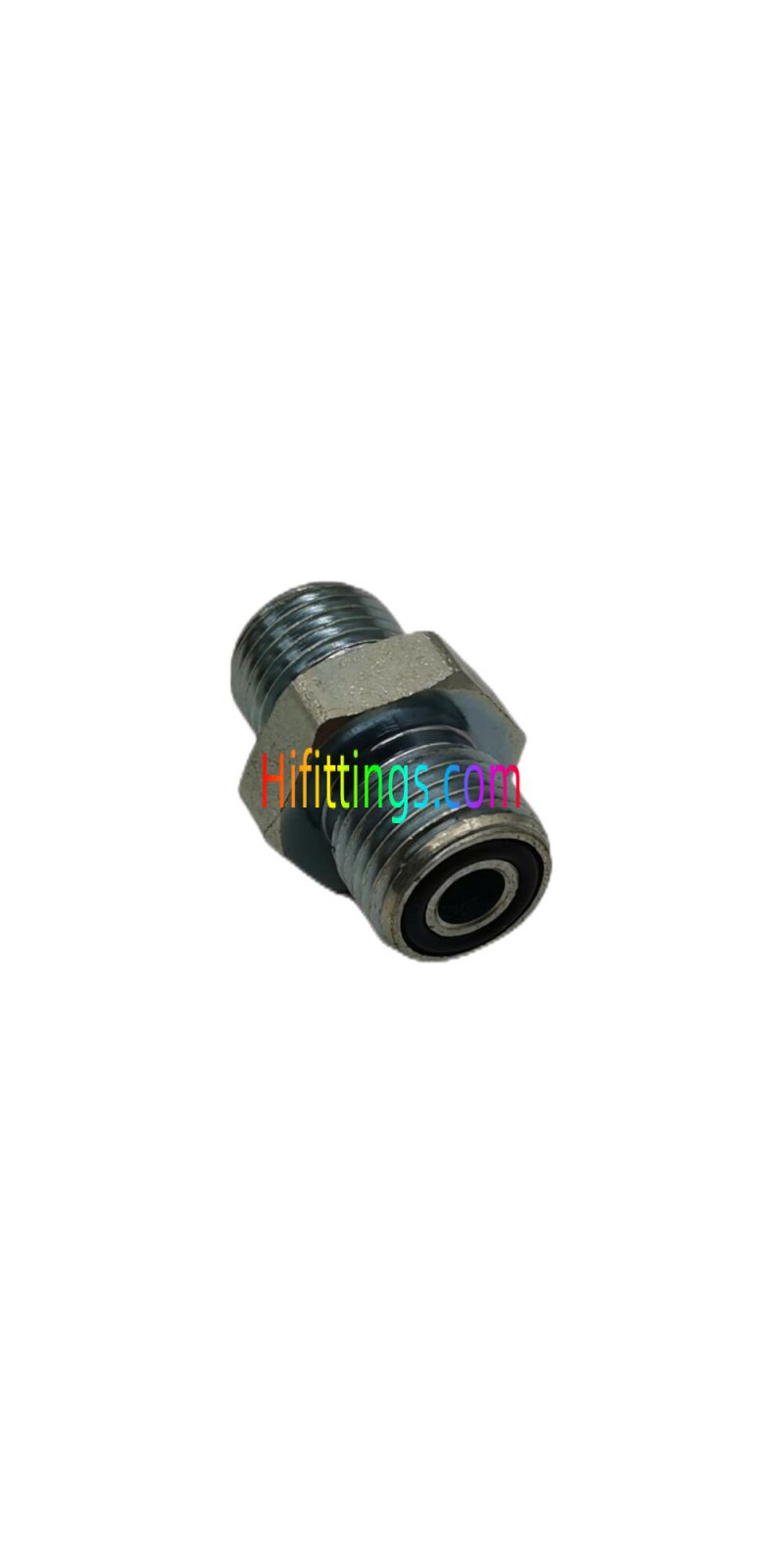

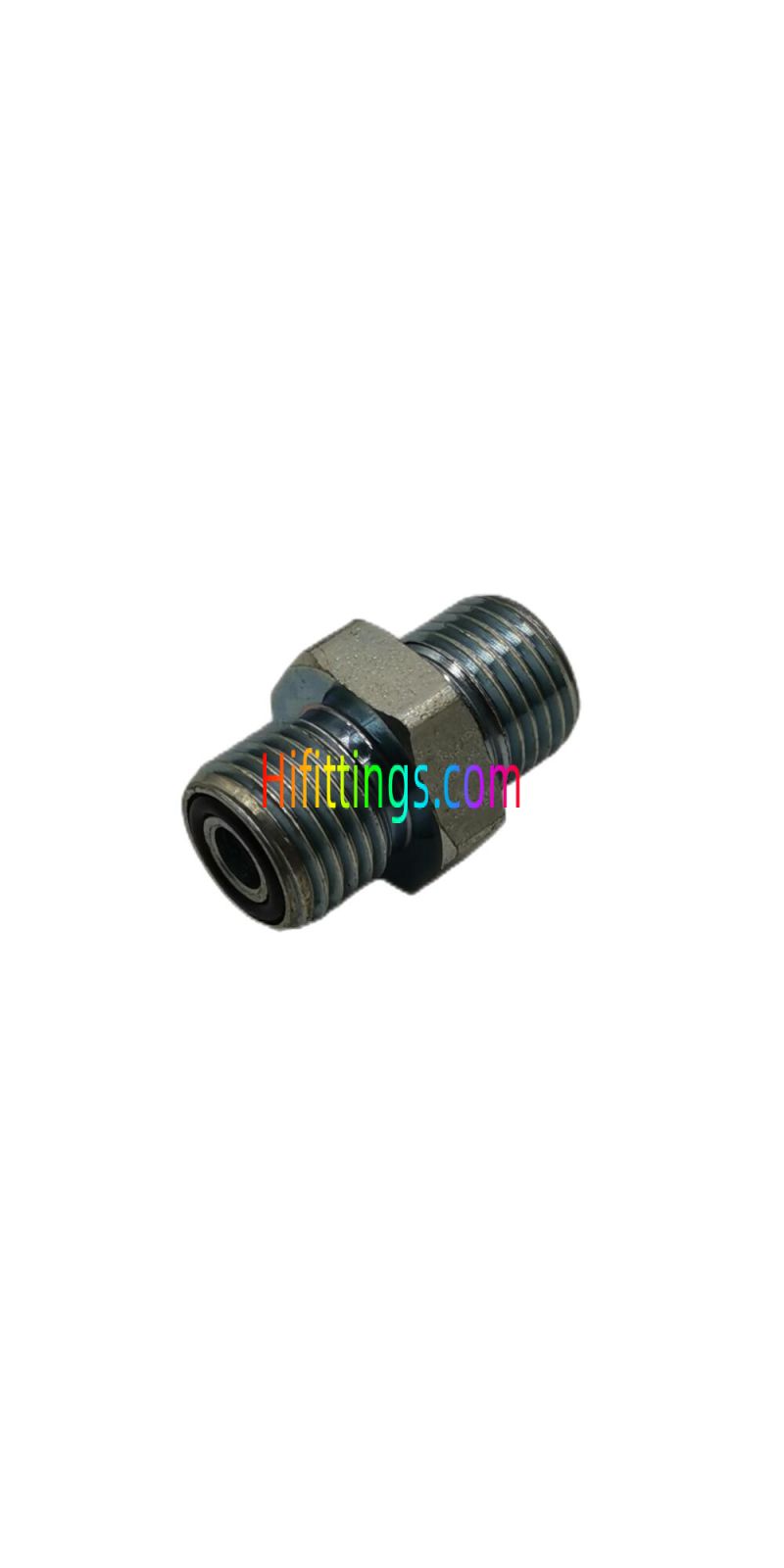

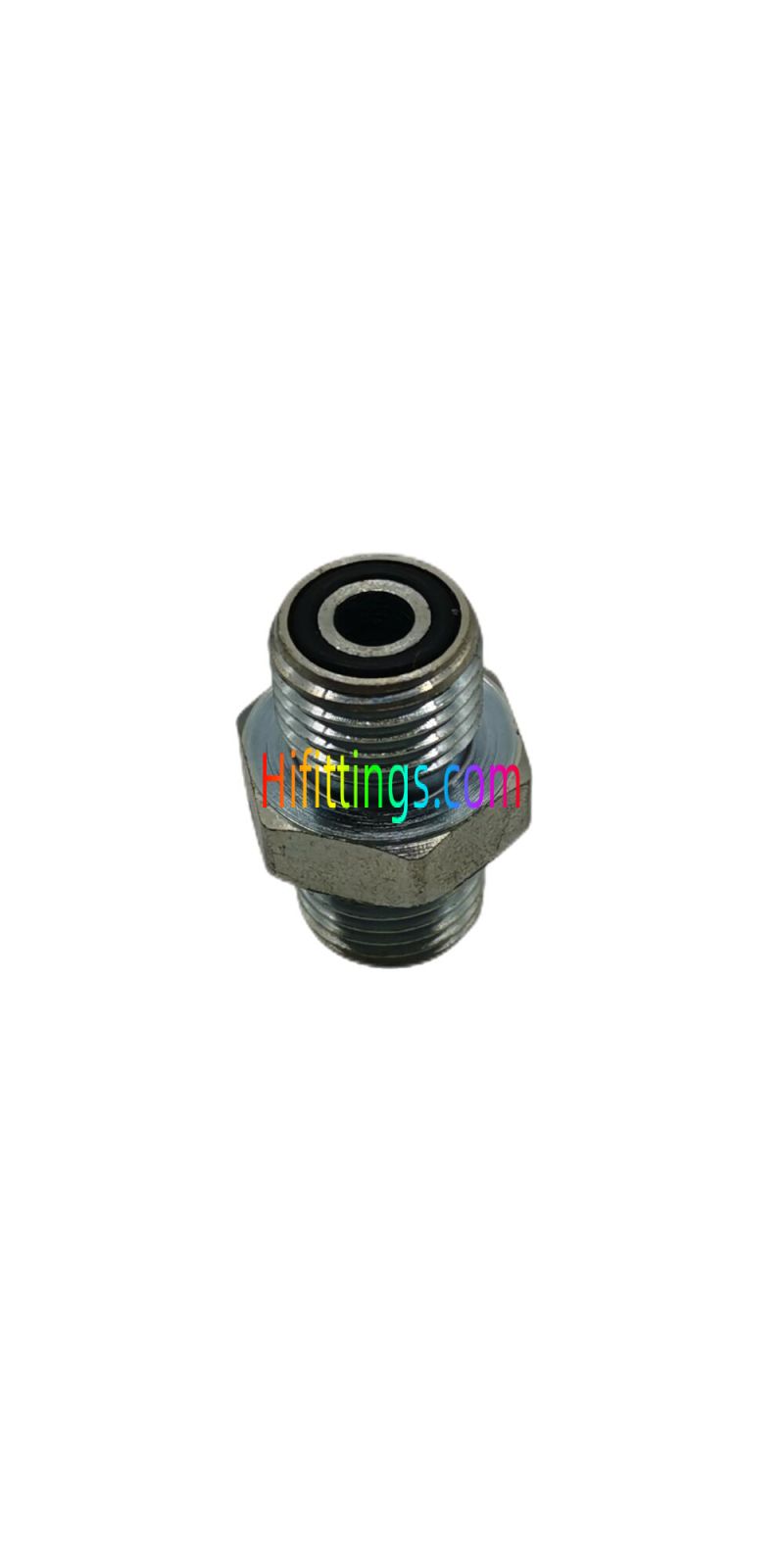

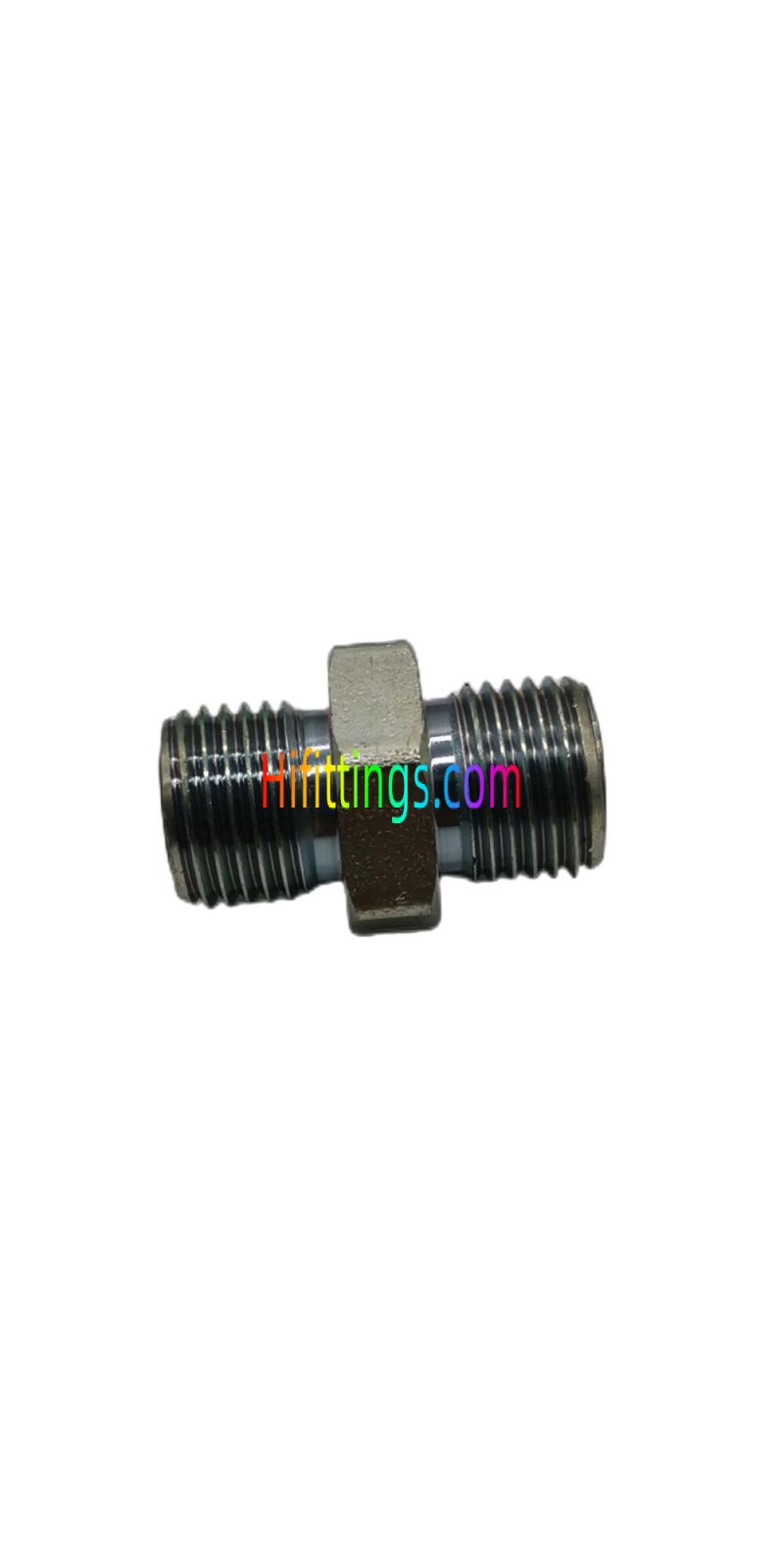

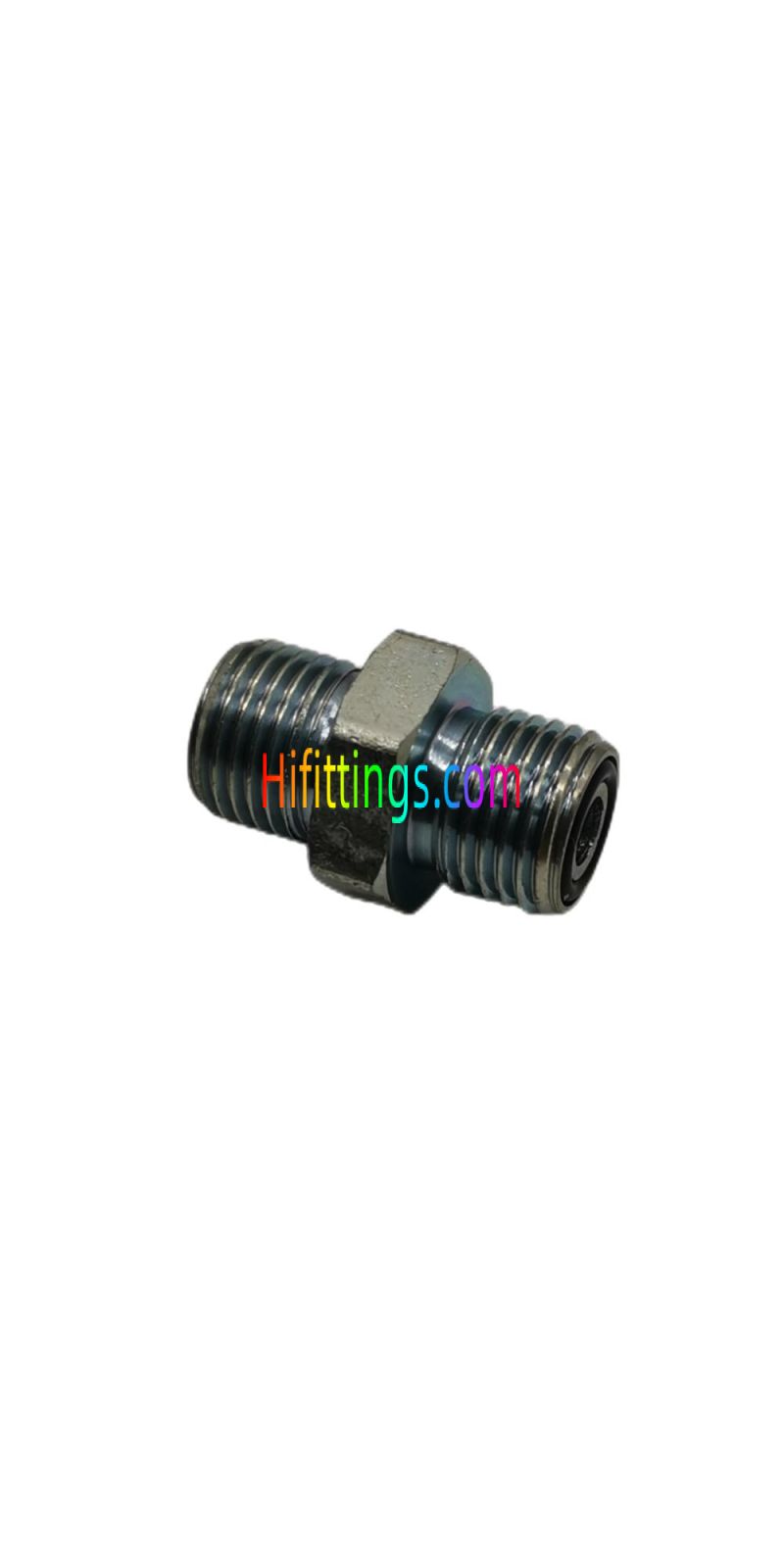

Straight ORFS Male O-Ring Hydraulic Pipe Fittings 1F
|
Part NO. |
E |
F |
E End |
F End |
A |
B |
L |
S1 |
Working Pressure bar |
|
1F-04 |
9/16"X18 |
9/16"X18 |
11 |
11 |
9.8 |
9.8 |
27.5 |
17 |
PN630 |
|
1F-04-06 |
9/16"X18 |
11/16"X16 |
11 |
12 |
9.8 |
11.2 |
29.7 |
19 |
PN630 |
|
1F-04-08 |
9/16"X18 |
13/16"X16 |
11 |
14 |
9.8 |
12.8 |
32.5 |
22 |
PN630 |
|
1F-06 |
11/16"X16 |
11/16"X16 |
12 |
12 |
11.2 |
11.2 |
31.1 |
19 |
PN630 |
|
1F-06-08 |
11/16"X16 |
13/16"X16 |
12 |
14 |
11.2 |
12.8 |
33.8 |
22 |
PN630 |
|
1F-06-10 |
11/16"X16 |
1"X14 |
12 |
16 |
11.2 |
15.5 |
38 |
27 |
PN400 |
|
1F-08 |
13/16"X16 |
13/16"X16 |
14 |
14 |
12.8 |
12.8 |
35.4 |
22 |
PN630 |
|
1F-08-10 |
13/16"X16 |
1"X14 |
14 |
16 |
12.8 |
15.5 |
40 |
27 |
PN400 |
|
1F-08-12 |
13/16"X16 |
1.3/16"X12 |
14 |
18 |
12.8 |
17 |
43 |
32 |
PN400 |
|
1F-10 |
1"X14 |
1"X14 |
16 |
16 |
15.5 |
15.5 |
42.5 |
27 |
PN400 |
|
1F-10-12 |
1"X14 |
1.3/16"X12 |
16 |
18 |
15.5 |
17 |
45.5 |
32 |
PN400 |
|
1F-12 |
1.3/16"X12 |
1.3/16"X12 |
18 |
18 |
17 |
17 |
47.1 |
32 |
PN400 |
|
1F-12-16 |
1.3/16"X12 |
1.7/16"X12 |
18 |
21 |
17 |
17.5 |
45.5 |
38 |
PN400 |
|
1F-12-20 |
1.3/16X12 |
1.11/16"X12 |
18 |
25 |
17 |
17.5 |
50.5 |
46 |
PN250 |
|
1F-16 |
1.7/16"X12 |
1.7/16"X12 |
21 |
21 |
17.5 |
17.5 |
49.3 |
38 |
PN400 |
|
1F-16-20 |
1.7/16"X12 |
1.11/16"X12 |
21 |
25 |
17.5 |
17.5 |
51,3 |
46 |
PN250 |
|
1F-16-24 |
1.7/16"X12 |
2"X12 |
21 |
29 |
17.5 |
17.5 |
53 |
55 |
PN250 |
|
1F-20 |
1.11/16"X12 |
1.11/16"X12 |
25 |
25 |
17.5 |
17.5 |
51.3 |
46 |
PN250 |
|
1F-20-24 |
1.11/16"X12 |
2"X12 |
25 |
29 |
17.5 |
17.5 |
53 |
55 |
PN250 |
|
1F-24 |
2"X12 |
2"X12 |
29 |
29 |
17.5 |
17.5 |
53 |
55 |
PN250 |
| Shape | Straight |
|---|---|
| Fitting Type | Face Seal |
| Thread Type | Male |
| Connection Type | ORFS |
