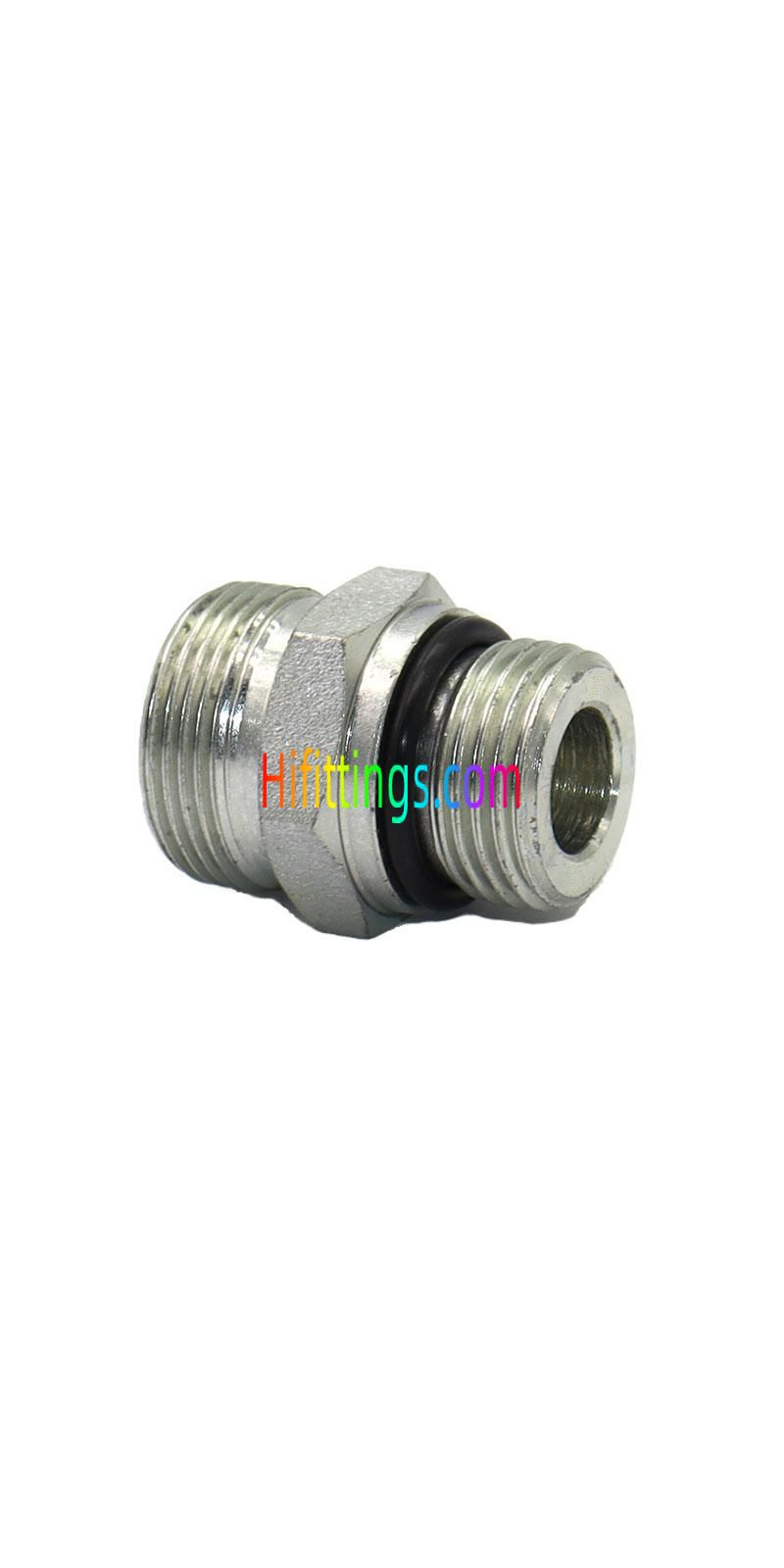

Straight UNF Male Stud End Metric Male Bite Type Tube Fittings 1CO/1DO

Add to Wish List
42
In stock
Only %1 left
SKU
1CO

Guarantee safe & secure checkout

No Related Posts

 Straight UNF Male Stud End Metric Male Bite Type Tube Fittings 1CO/1DO- hifittings.com Straight UNF Male Stud End Metric Male Bite Type Tube Fittings 1CO/1DO- hifittings.com
Straight UNF Male Stud End With O-Ring Sealing / Metric Male DIN Bite Type Hydraulic Adapter Pipe Fittings ISO11926 1CO/1DO

Part NO.

E

F

D1

B

11

L1

S1

S2

Working Pressure bar

1 CO-14-04

M14X1.5

7/16"X20

8

9

10

25

17

17

PN315

1 CO-16-04

M16X1.5

7/16"X20

10

9

11

26

17

19

PN315

1 CO-18-06

M18X1.5

9/16"X18

12

10

11

26

19

22

PN315

1 CO-18-08

M18X1.5

3/4"X16

12

11

13

28

24

22

PN315

1 CO-18-10

M18X1.5

7/8"X14

12

12.7

14.3

29

27

22

PN315

1 CO-22-08

M22X1.5

3/4"X16

15

11

14

29

24

27

PN315

1 CO-22-10

M22X1.5

7/8"X14

15

12.7

15.3

30

27

27

PN315

1 CO-22-12

M22X1.5

1.1/16"X12

15

15.1

11.9

30

32

27

PN315

1 CO-26-08

M26X1.5

3/4"X16

18

11

14.5

31

27

32

PN315

1 CO-26-10

M26X1.5

7/8"X14

18

12.7

14.8

31

27

32

PN315

1 CO-30-08

M30X2

3/4"X16

18

11.1

13.9

33

32

36

PN160

1C0-30-10

M30X2

7/8"X14

22

12.7

16.8

33

32

36

PN160

1 CO-30-12

M30X2

1.1/16"X12

22

15

16.5

33

32

36

PN160

1 CO-30-16

M30X2

1.5/16"X12

22

15

17.5

34

41

36

PN160

1 CO-36-12

M36X2

1.1/16"X12

28

15.1

14.4

34

41

41

PN160

1 CO-36-16

M36X2

1.5/16"X12

28

15

17.5

34

41

41

PN160

1 CO-45-16

M45X2

1.5/16"X12

35

15

17.5

39

46

50

PN160

1 CO-45-20

M45X2

1.5/8"X12

35

15.1

16.4

39

50

50

PN160

1 CO-52-20

M52X2

1.5/8"X12

42

15.1

15.9

42

55

60

PN160

1 DO-16-04

M16X1.5

7/16"X20

8

9

15

30

17

19

PN630

1 DO-18-06

M18X1.5

9/16"X18

10

10

14.5

31

19

22

PN630

1 DO-20-06

M20X1.5

9/16"X18

12

10

14.5

31

22

24

PN630

1 DO-20-08

M20X1.5

3/4"X16

12

11

17.5

34

24

24

PN630

1 DO-24-08

M24X1.5

3/4"X16

16

11

15.5

34

24

30

PN400

1 DO-24-10

M24X1.5

7/8"X14

16

12.7

18.8

37

27

30

PN400

1 DO-30-08

M30X2

3/4"X16

20

11

20.5

42

32

36

PN400

1 DO-30-10

M30X2

7/8"X14

20

12.7

20.8

42

32

36

PN400

1 DO-30-12

M30X2

1.1/16"X12

20

15

20.5

42

32

36

PN400

1 DO-36-12

M36X2

1.1/16"X12

25

15.1

19.9

47

41

46

PN400

1 DO-36-16

M36X2

1.5/16"X12

25

15

23

47

41

46

PN400

1 DO-42-16

M42X2

1.5/16"X12

30

15

23.5

50

46

50

PN400

1 DO-42-20

M42X2

1.5/8"X12

30

15

23.5

50

50

50

PN400

1 DO-52-20

M52X2

1.5/8"X12

38

15.1

22.9

53.9

55

60

PN315

Note: 1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example 1DO-30-12RN.   2. PN = Nominal Pressure

More Information
Shape Straight
Thread Type Male
Connection Type Metric, UNF
Fitting Type Bite Type
