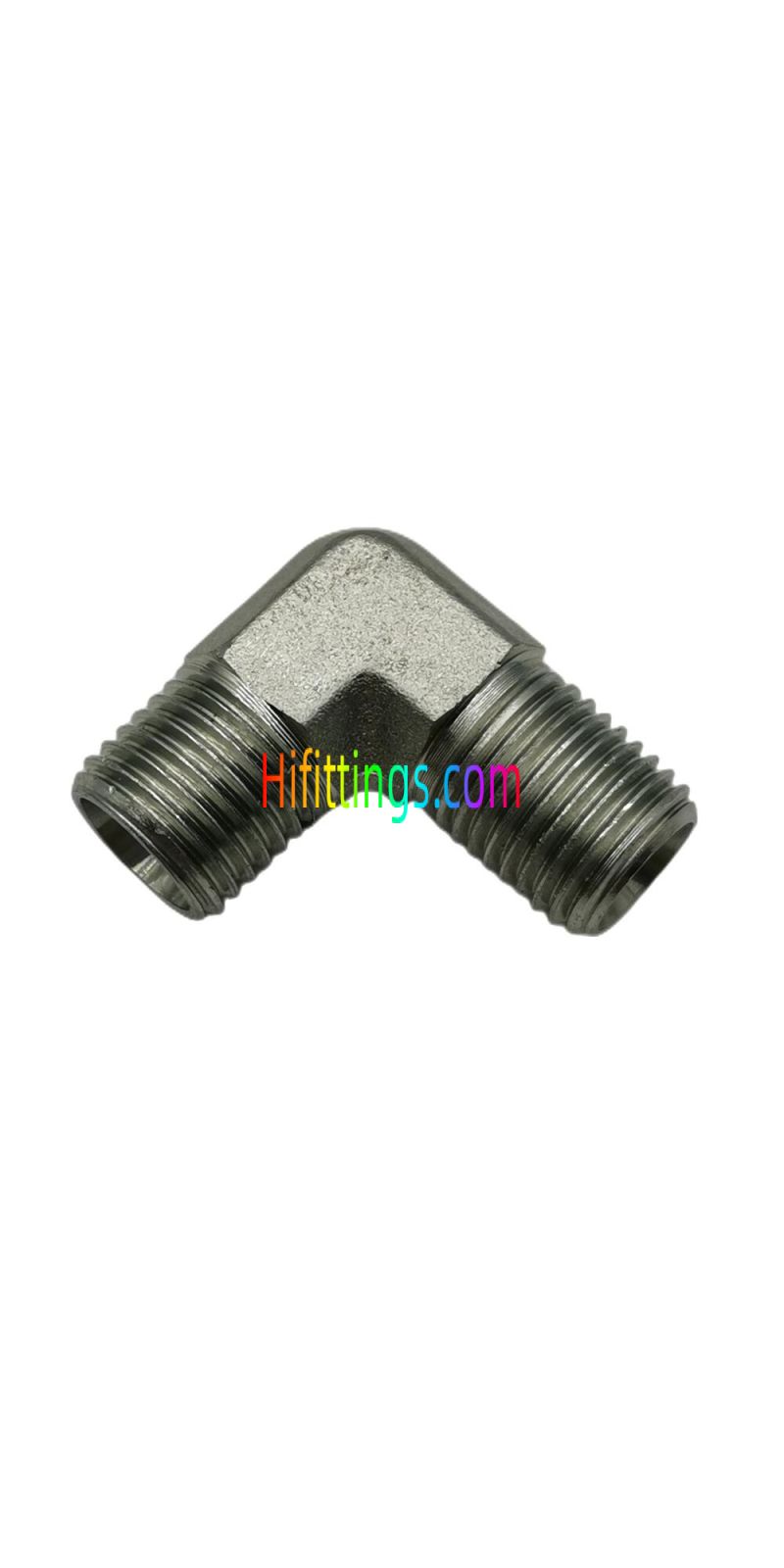

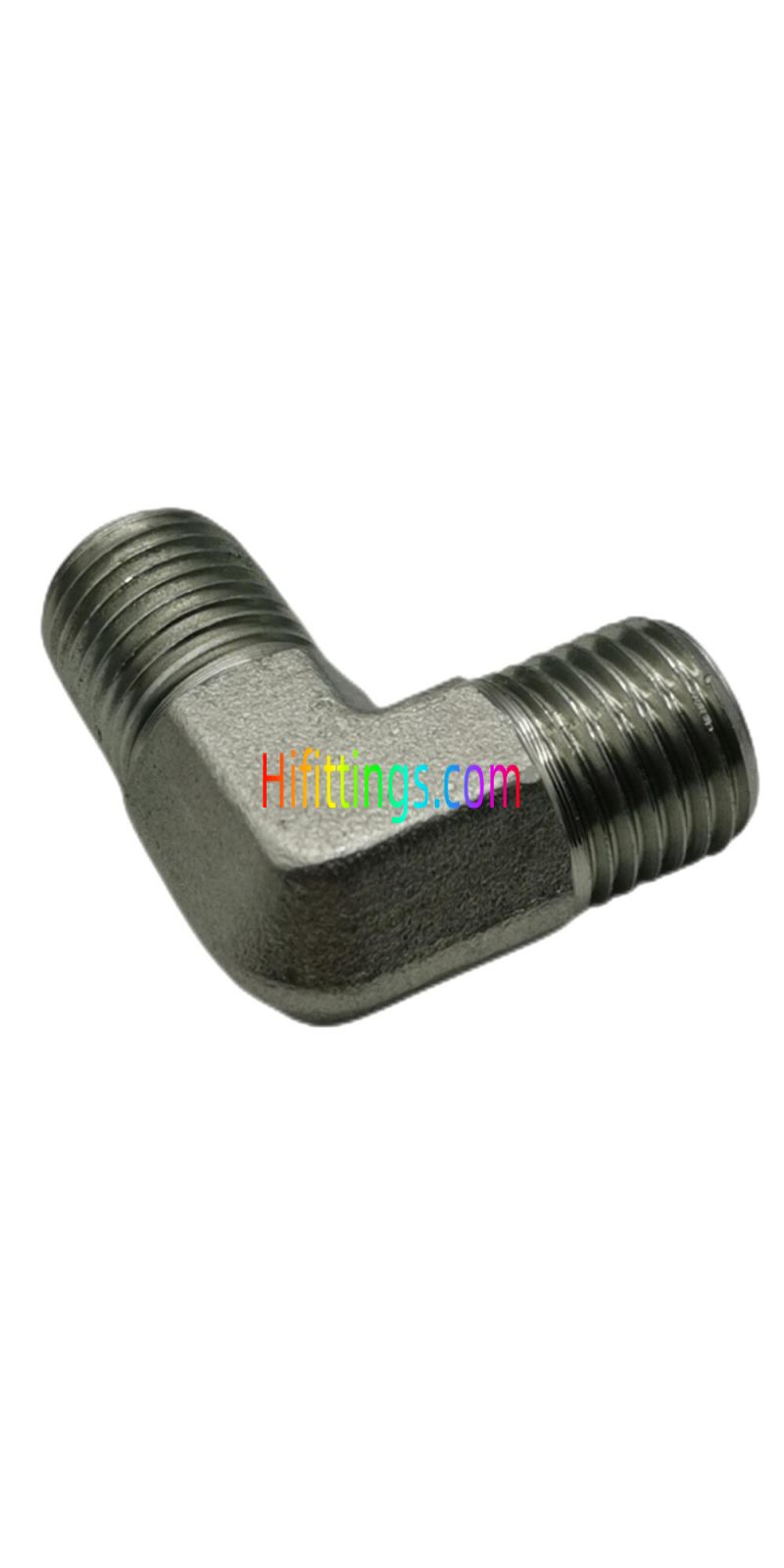

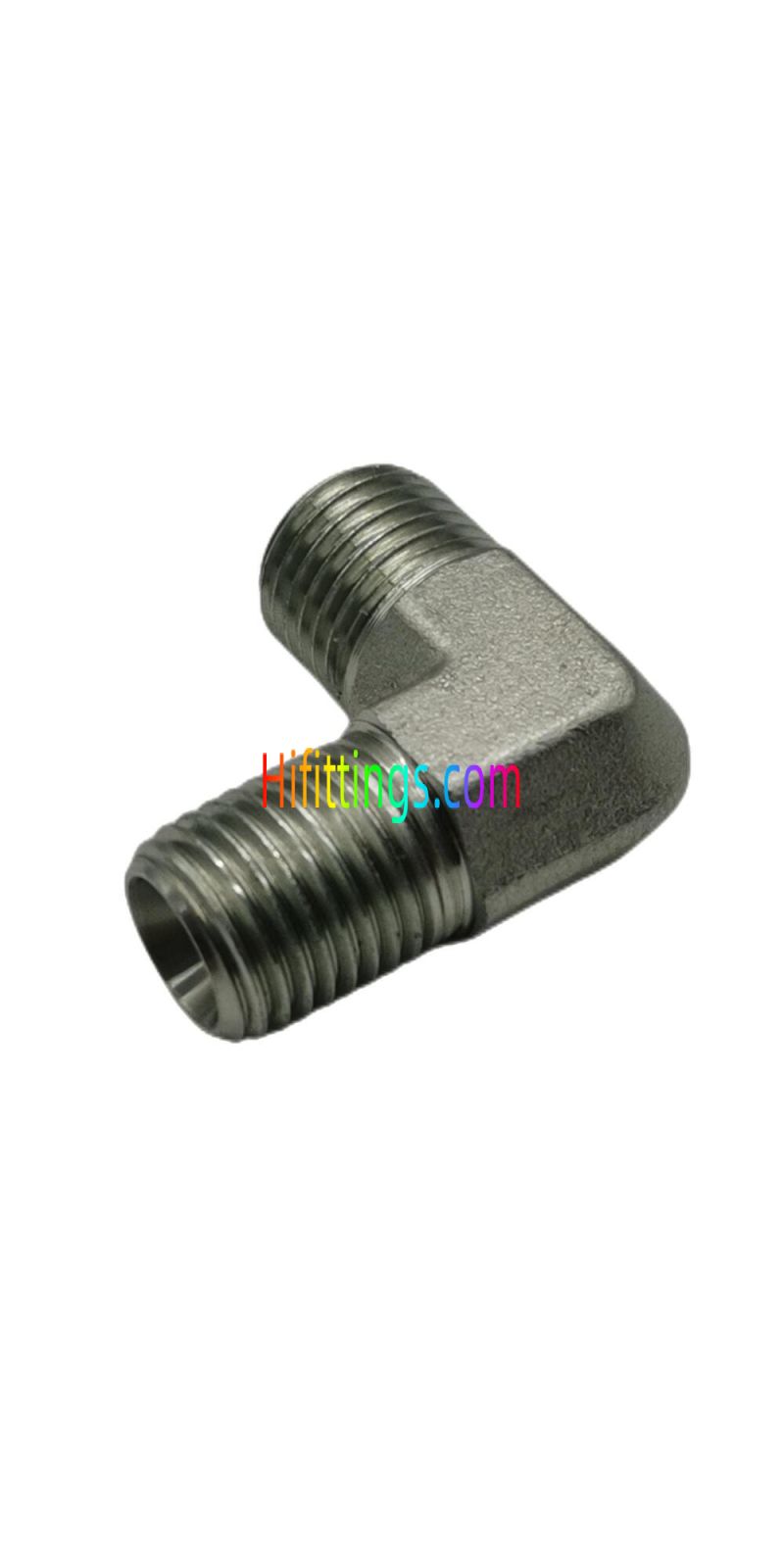

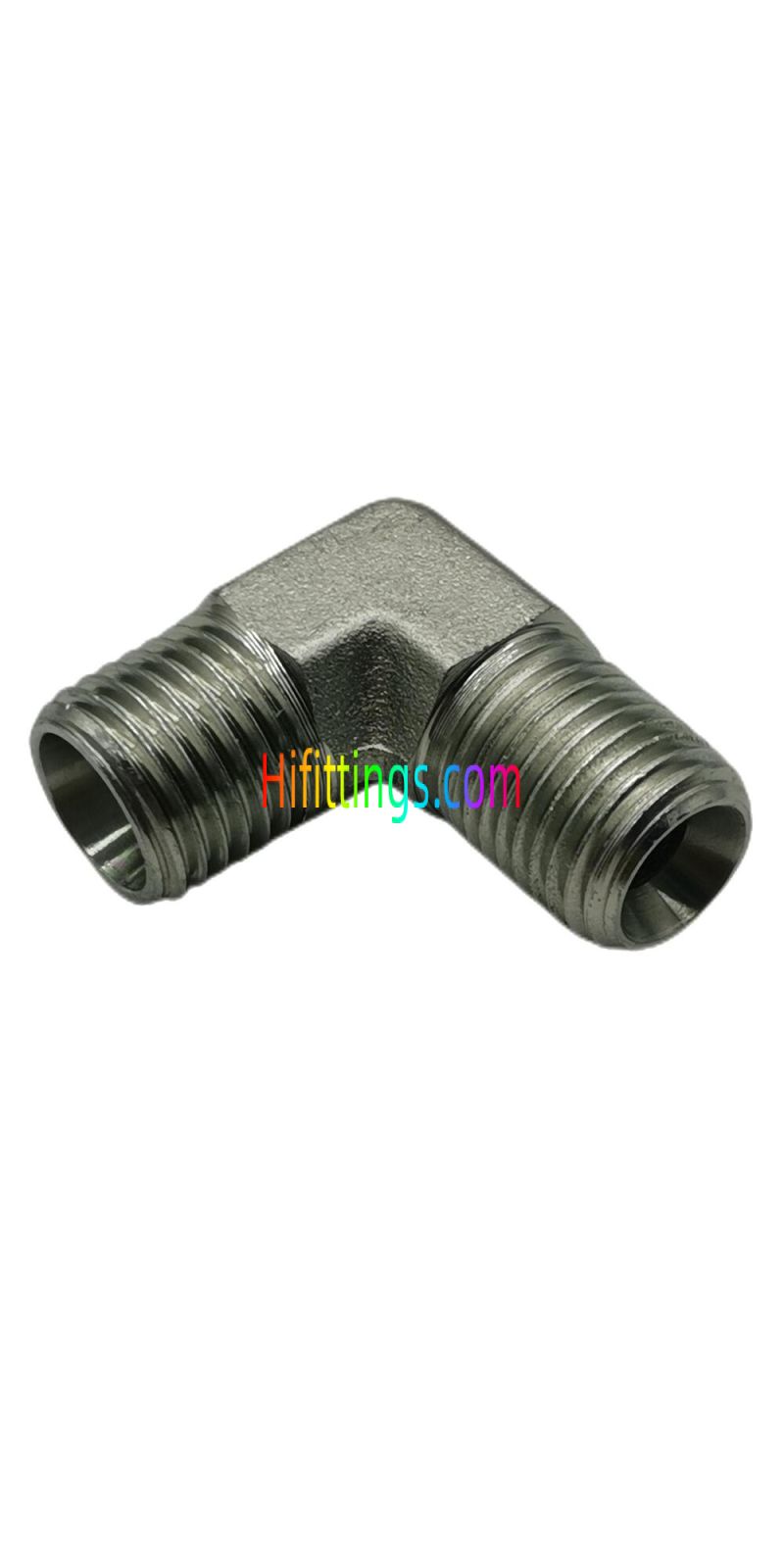

90 Degree Elbow NPT Male / Metric Male DIN Bite Type Hydraulic Adapter Pipe Fittings1CN9/1DN9
|
Part NO. |
E |
F |
D1 |
l1 |
L1 |
L2 |
S1 |
S2 |
Working Pressure bar |
|
1CN9-12-02 |
M12X1.5 |
Z1/8"X27 |
6 |
13 |
28 |
21 |
11 |
14 |
PN250 |
|
1CN9-12-04 |
M12X1.5 |
Z1/4"X18 |
6 |
15.5 |
30.5 |
25.5 |
14 |
14 |
PN250 |
|
1CN9-14-04 |
M14X1.5 |
Z1/4"X18 |
8 |
15.5 |
30.5 |
25.5 |
14 |
17 |
PN250 |
|
1CN9-16-06 |
M16X1.5 |
Z3/8"X18 |
10 |
17.5 |
32.5 |
29.5 |
16 |
19 |
PN250 |
|
1CN9-18-04 |
M18X1.5 |
Z1/4"X18 |
12 |
19 |
34 |
28 |
19 |
22 |
PN250 |
|
1CN9-18-06 |
M18X1.5 |
Z3/8"X18 |
12 |
19 |
34 |
31 |
19 |
22 |
PN250 |
|
1CN9-18-08 |
M18X1.5 |
Z1/2"X14 |
12 |
21 |
36 |
36.7 |
22 |
22 |
PN250 |
|
1CN9-22-06 |
M22X1.5 |
Z3/8"X18 |
15 |
22 |
37 |
32.5 |
22 |
27 |
PN250 |
|
1CN9-22-08 |
M22X1.5 |
Z1/2"X14 |
15 |
22 |
37 |
36.7 |
22 |
27 |
PN250 |
|
1CN9-26-08 |
M26X1.5 |
Z1/2"X14 |
18 |
25.5 |
42 |
40 |
27 |
32 |
PN160 |
|
1CN9-26-12 |
M26X1.5 |
Z3/4"X14 |
18 |
25.5 |
42 |
44 |
27 |
32 |
PN160 |
|
1CN9-30-12 |
M30X2 |
Z3/4"X14 |
22 |
29.3 |
45.8 |
45 |
30 |
36 |
PN160 |
|
1CN9-30-16 |
M30X2 |
Z1"X11.5 |
22 |
32 |
48.5 |
50 |
33 |
36 |
PN160 |
|
1CN9-36-16 |
M36X2 |
Z1"X11.5 |
28 |
33.3 |
49.8 |
51.5 |
36 |
41 |
PN160 |
|
1CN9-45-20 |
M45X2 |
Z1.1/4"X11.5 |
35 |
39.2 |
60.7 |
63 |
48 |
50 |
PN160 |
|
1CN9-52-24 |
M52X2 |
Z1.1/2"X11.5 |
42 |
44.8 |
67.8 |
65 |
55 |
60 |
PN160 |
|
1DN9-14-04 |
M14X1.5 |
Z1/4"X18 |
6 |
17.5 |
32.5 |
25.5 |
14 |
17 |
PN400 |
|
1DN9-16-04 |
M16X1.5 |
Z1/4"X18 |
8 |
18.5 |
33.7 |
26.5 |
16 |
19 |
PN400 |
|
1DN9-18-06 |
M18X1.5 |
Z3/8"X18 |
10 |
19.5 |
36 |
31 |
19 |
22 |
PN400 |
|
1DN9-20-04 |
M20X1.5 |
Z1/4nX18 |
12 |
19.5 |
36 |
28 |
19 |
24 |
PN400 |
|
1DN9-20-06 |
M20X1.5 |
Z3/8"X18 |
12 |
19.5 |
36 |
31 |
19 |
24 |
PN400 |
|
1DN9-22-06 |
M22X1.5 |
Z3/8"X18 |
14 |
23 |
41 |
32.5 |
22 |
27 |
PN400 |
|
1DN9-22-08 |
M22X1.5 |
Z1/2"X14 |
14 |
23 |
41 |
36.7 |
22 |
27 |
PN400 |
|
1DN9-24-06 |
M24X1.5 |
Z3/8"X18 |
16 |
24 |
42.5 |
33.5 |
24 |
30 |
PN400 |
|
1DN9-24-08 |
M24X1.5 |
Z1/2"X14 |
16 |
24 |
42.5 |
37.5 |
24 |
30 |
PN400 |
|
1DN9-30-08 |
M30X2 |
Z1/2"X14 |
20 |
28 |
49.8 |
41 |
30 |
36 |
PN250 |
|
1DN9-30-12 |
M30X2 |
Z3/4"X14 |
20 |
28 |
49.8 |
45 |
30 |
36 |
PN250 |
|
1DN9-36-12 |
M36X2 |
Z3/4"X14 |
25 |
32.8 |
56.8 |
49 |
36 |
46 |
PN250 |
|
1DN9-36-16 |
M36X2 |
Z1"X11.5 |
25 |
32.8 |
56.8 |
51.5 |
36 |
46 |
PN250 |
|
1DN9-42-16 |
M42X2 |
Z1"X11.5 |
30 |
36.2 |
62.7 |
54.5 |
41 |
50 |
PN250 |
|
1DN9-42-20 |
M42X2 |
Z1.1/4"X11.5 |
30 |
36.2 |
62.7 |
54.5 |
41 |
50 |
PN250 |
|
1DN9-52-20 |
M52X2 |
Z1.1/4"X11.5 |
38 |
45.8 |
76.8 |
65 |
55 |
60 |
PN250 |
|
1DN9-52-24 |
M52X2 |
Z1.1/2"X11.5 |
38 |
45.8 |
76.8 |
65 |
55 |
60 |
PN250 |
|

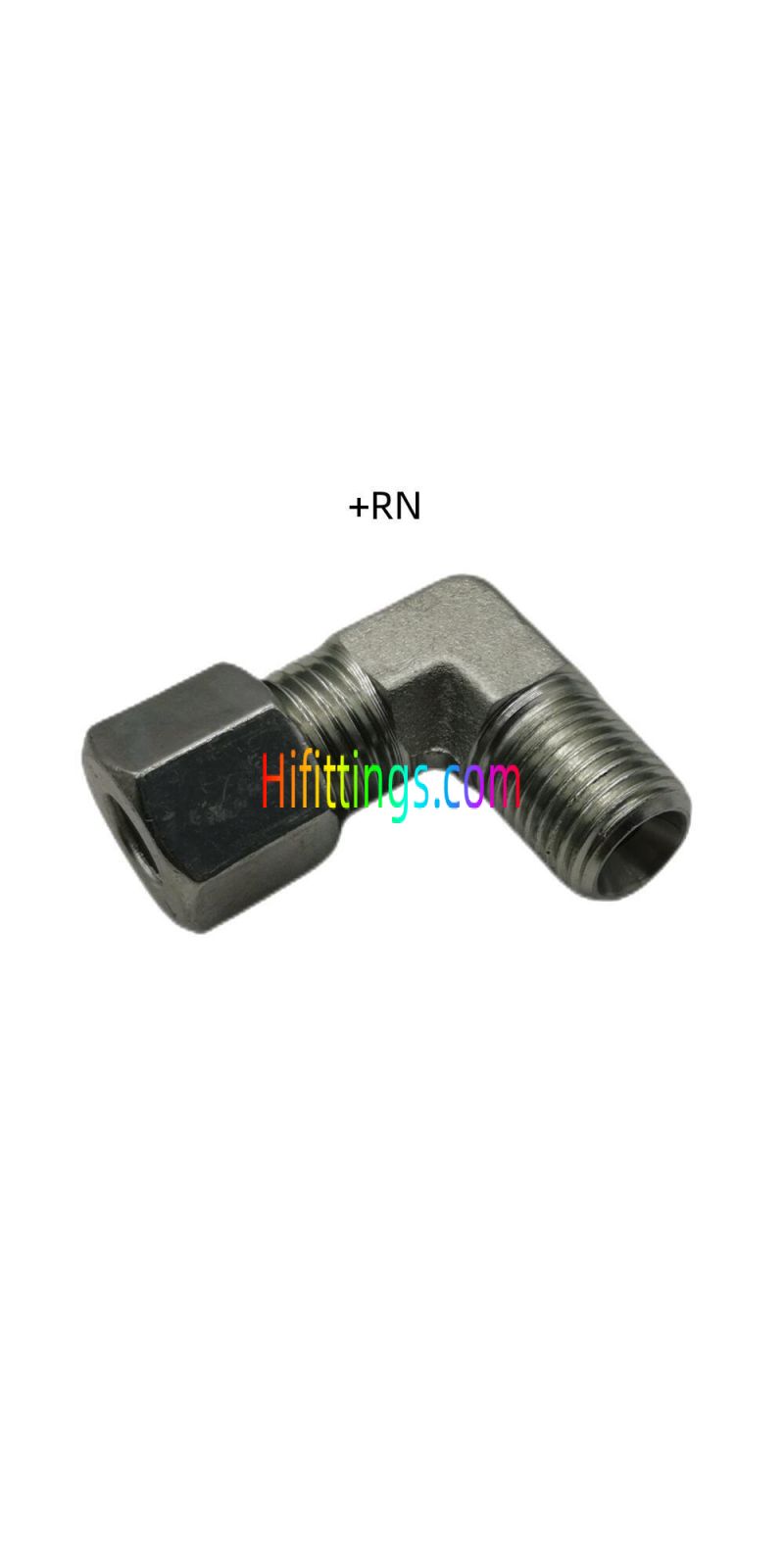

Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 1CN9-30-12RN. 2. PN = Nominal Pressure |
|||||||||
| Forma | Elbow |
|---|---|
| Tipo de hilo | Male |
| Connection Type | Metric, NPT |
| Tipo de montaje | Bite Type |
