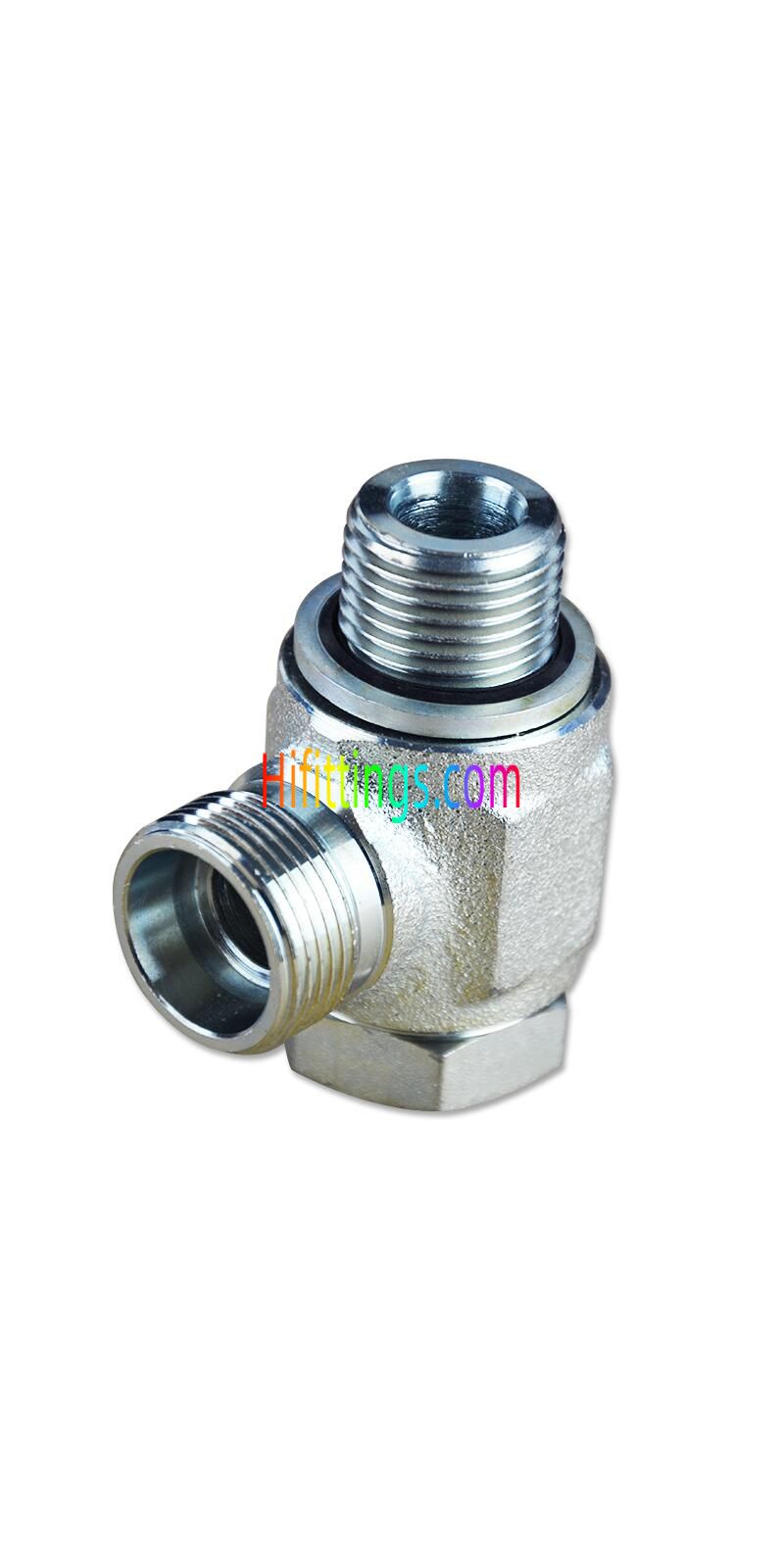

BSP BANJO Bite Type Tube Fittings 1CI-B/1DI-B
|
Part NO. |
E |
M |
D1 |
l |
l1 |
L1 |
l2 |
L2 |
S1 |
S2 |
S3 |
Sealing Ring |
Working Pressure bar |
|
1CI-12-02B |
M12X1.5 |
G1/8" |
6 |
8 |
10.5 |
25.5 |
12 |
27 |
14 |
17 |
14 |
DP-10I |
PN315 |
|
1CI-14-04B |
M14X1.5 |
G1/4" |
8 |
12 |
14 |
32.5 |
15.5 |
30 |
19 |
24 |
17 |
DP-14I |
PN315 |
|
1CI-16-04B |
M16X1.5 |
G1/4" |
10 |
12 |
14 |
32.5 |
16.5 |
31 |
19 |
24 |
19 |
DP-14I |
PN315 |
|
1CI-18-06B |
M18X1.5 |
G3/8" |
12 |
12 |
16.5 |
38 |
19.5 |
34.5 |
24 |
30 |
22 |
DP-18I |
PN315 |
|
1CI-22-08B |
M22X1.5 |
G1/2" |
15 |
14 |
21.5 |
49 |
21.5 |
37 |
27 |
32 |
27 |
DP-22I |
PN315 |
|
1CI-26-08B |
M26X1.5 |
G1/2" |
18 |
14 |
21.5 |
49 |
21 |
37 |
27 |
32 |
32 |
DP-22I |
PN315 |
|
1CI-30-12B |
M30X2 |
G3/4" |
22 |
16 |
24 |
56 |
27.5 |
44 |
32 |
41 |
36 |
DP-27I |
PN160 |
|
1CI-36-16B |
M36X2 |
G1" |
28 |
18 |
30.5 |
71 |
32 |
49 |
41 |
50 |
41 |
DP-33I |
PN160 |
|
1CI-45-20B |
M45X2 |
G1.1/4" |
35 |
20 |
35.5 |
82 |
36 |
58 |
50 |
60 |
50 |
DP-42I |
PN160 |
|
1CI-52-24B |
M52X2 |
G1.1/2" |
42 |
22 |
40.5 |
93 |
40.5 |
63 |
55 |
70 |
60 |
DP-48I |
PN160 |
|
1 DI-14-04B |
M14X1.5 |
G1/4" |
6 |
12 |
14 |
32.5 |
17.5 |
32 |
19 |
24 |
17 |
DP-14I |
PN630 |
|
1 DI-16-04B |
M16X1.5 |
G1/4" |
8 |
12 |
14 |
32.5 |
17.5 |
32 |
19 |
24 |
19 |
DP-14I |
PN630 |
|
1 DI-18-06B |
M18X1.5 |
G3/8" |
10 |
12 |
16.5 |
38 |
20 |
36.5 |
24 |
30 |
22 |
DP-18I |
PN630 |
|
1 DI-20-06B |
M20X1.5 |
G3/8" |
12 |
12 |
16.5 |
38 |
20 |
36.5 |
24 |
30 |
24 |
DP-18I |
PN630 |
|
1 DI-22-08B |
M22X1.5 |
G1/2" |
14 |
14 |
21.5 |
49 |
22.5 |
40 |
27 |
32 |
27 |
DP-22I |
PN630 |
|
1 DI-24-08B |
M24X1.5 |
G1/2" |
16 |
14 |
21.5 |
49 |
22 |
40 |
27 |
32 |
30 |
DP-22I |
PN630 |
|
1 DI-30-12B |
M30X2 |
G3/4" |
20 |
16 |
24 |
56 |
26.5 |
48 |
32 |
41 |
36 |
DP-27I |
PN400 |
|
1 DI-36-16B |
M36X2 |
G1" |
25 |
18 |
30.5 |
71 |
31.5 |
56 |
41 |
50 |
46 |
DP-33I |
PN400 |
|
1 DI-42-20B |
M42X2 |
G1.1/4" |
30 |
20 |
35.5 |
82 |
37 |
64 |
50 |
60 |
50 |
DP-42I |
PN400 |
|
1 DI-52-24B |
M52X2 |
G1.1/2" |
38 |
22 |
40.5 |
93 |
41.5 |
72 |
55 |
70 |
60 |
DP-48I |
PN400 |
|
Note： In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example 1DI-36-16B/RN. 2. PN = Nominal Pressure |
|||||||||||||
